Temptech OSLO Series User manual

This manual contains important information including safety and
installation instructions of the appliances. Please read it carefully before
use and follow all safety information & instructions. It is recommended
to keep this manual for easy reference so that you can be familiar with the
operation of the appliance.
V1/2021
OSLO SERIES
ELEGANCE SERIES
COPENHAGEN SERIES
USER MANUAL
Wine Coolers

--CONTENTS--
01 ENERGY SAVING AND ECOLOGICAL PROTECTION
02 IMPORTANT SAFETY INFORMATION
05 SCRAPPING OLD APPLIANCES
05 Conformity
05 Energy Saving
06 Service
06 DESCRIPTION OF APPLIANCE & INSTALLATION
06 OZ45SB / OZ45SX / OZ45SW
08 OZ45SBTOP
09 OZ60SB / OZ60DB / OZ60DW / OZ60DX
10 OZ90SB / OZ90DB / OZ90DW / OZ90DX
12 OZ124SB / OZ124DB / OZ124DW / OZ124DX
14 OX15SRB
14 OX30DRB / OX30DRW / OX30DX
15 CPROX60SRB / CPROX60SX
16 OX60DRB / OX60DRW / OX60DX
16 EX60DRB / EX60DRW / EX60DX
17 CPRO1800SRB / CPRO1800SX
18 E1000DRB / E1000DRW /E1000DX
19 ACCESSORY INSTALLATION BEFORE OPERATING
19 UNPACKING AND CLEANING THE WINE COOLER
19 Adjusting the height and levelling o your wine cabinet
20 Installing The Handle
21 LOCK & UNLOCK THE DOOR (FOR OPTION)
21 OPERATING THE WINE COOLER
21 WORKING CLIMATE
21 WINE STORAGE
23 CONTROL PANEL (Fixed Speed Compressor Control In Cabinet)
23 POWER ON/OFF CONTROL
24 UNLOCKING THE CONTROL PANEL
24 INTERIOR LIGHTING ON/OFF CONTROL
24 TEMPERATURE DISPLAY WINDOW
24 TEMPERATURE SETTING
25 SELECTING FAHRENHEIT(ºF) & CELSIUS (ºC) DISPLAY
25 FUNCTION INDICATING LIGHT
26 CONTROL PANEL ( Inverter Compressor Control In Cabinet)
26 POWER ON/OFF CONTROL
27 UNLOCKING THE CONTROL PANEL
27 INTERIOR LIGHTING ON/OFF CONTROL
27 RGB LIGHTING CONTROL
28 TEMPERATURE DISPLAY WINDOW
28 TEMPERATURE SETTING
28 SELECTING FAHRENHEIT(ºF) & CELSIUS (ºC) DISPLAY

29 SELECTING SET TEMPERATURE & ACTUAL TEMPERATURE
29 SELECTING ENERGY SAVING MODE
29 FUNCTION INDICATING LIGHT
31 POWER ON/OFF CONTROL
31 INTERIOR LIGHTING ON/OFF CONTROL
31 UNLOCKING THE CONTROL PANEL
31 SELECTING FAHRENHEIT(ºF) & CELSIUS (ºC) DISPLAY
32 TEMPERATURE SETTING
32 TEMPERATURE DISPLAY WINDOW
33 CARE AND MAINTENANCE
33 CLEANING THE WINE COOLER
34 REMOVING THE SHELVES
34 Carbon Filter Change (Option)
35 Defrosting
35 Moving Your Wine Cooler
35 Power Failure
36 Vacation Time
36 Disconnecting From Power
37 TROUBLESHOOTING
38 REVERSE THE DOOR SWING
38 For Built In Series (Except OZ45SBTOP)
40 For Built Under Series (Control in Cabinet)
45 CPRO1800SRB / CPR01800SX
49 INSTALL REMOVABLE FRONT GRILLE
51 DOWNLOAD OTHER LANGUAGE USER MANUAL


•Please removed all packaging, stickers and films from the products surface and clean the
product’s surfaces with a damp cloth and mild deturgent before using for the first time.
•Let the appliance stand upright for approximately 24 hours before connecting it to the
power source, which helps to reduce the possibility of a cooling-system malfunction from
handling during transportation.
Before using your Wine Coolers, please carefully read this instruction manual
in order to maximize its performance. Store all documentation for subsequent
use or for other owners.This product is intended solely for household use or similar
applications such as:
--thekitchen area forpersonnelinshops,oces and other working environments
--on farms, by clienteleofhotels,motels and other environments of a residentialtype
--atbedandbreakfasts(B&B)
--forcateringservicesandsimilarapplicationsnotforretailsale.
This appliance is intended to be used exclusively for the storage of wine or beverage,
any other use is considered dangerous and the manufacturer will not be responsiblefor
anyomissions.Also,itisrecommendedthatyoutakenoteofthewarrantyconditions.
ENERGY SAVING AND ECOLOGICAL PROTECTION
Please pay attention to the following special instructions for saving energy
and ecological protection:
(a) The most energy-saving configuration requires shelves to be
positioned in the appliance, please refer to the corresponding pictures in
the manual.
(b) Please follow all the instructions in this manual on where and how
to store wines in a the appliance for best preservation over the longest
period, to avoid food waste;
(c) Please follow all the instructions in this manual on the recommended
setting of temperatures in each compartment for optimum food
preservation.
(d) An estimation of the impact of temperature settings on food waste: for
the best storage time of wines, please consult your wine labels; the best
storage time may reduce under other un-recommended temperature
settings.
(e) The appliance has no special modes and features that can affect
temperatures.
(f) This appliance is intended to be used exclusively for the storage of


INSTRUCTION MANUAL
wine
(g) Please follow all the instructions in this manual for the correct
installation and end-user maintenance, including cleaning, of the
refrigerating appliance;
(h) FOR a free standing appliance: this refrigerating appliance is not
intended to be used as a built-in appliance.
(i) This refrigerating appliance is not suitable for freezing foodstuffs.
(j) Access to professional repair: https://service.temptech.no/
(k) Ordering spare parts: Please send emails to [email protected]
(l) The minimum period during which spare parts, necessary for the repair
of the appliance, are available:
Thermostats, temperature sensors, printed circuit boards and light sources
are available for a minimum period of seven years after placing the last
unit of the model on the market.
Door handles, door hinges, trays and baskets for a minimum period of
seven years and door gaskets for a minimum period of 10 year, after
placing the last unit of the model on the market
(m) The minimum duration of the guarantee of the refrigerating appliance
offered by the manufacturer, importer or authorised representative:
Minimum guarantee is: 5 years for Norway, Sweden, Finland and Denmark.
(n) For appliances with climate class :
- Extended temperate: ‘this refrigerating appliance is intended to be used
at ambient temperatures ranging from 10 °C to 32 °C’;
- Temperate: ‘this refrigerating appliance is intended to be used at ambient
temperatures ranging from 16 °C to 32 °C’;
- Subtropical: ‘this refrigerating appliance is intended to be used at
ambient temperatures ranging from 16 °C to 38 °C’;
- Tropical: ‘this refrigerating appliance is intended to be used at ambient
temperatures ranging from 16 °C to 43 °C’;
(o) How to nd the model information in the product database: Please visit
our website https://temptech.no/ to nd the instruction about how to nd
production information in EU database.
IMPORTANT SAFETY INFORMATION
The Wine Coolers contains a refrigerant gas (R600a: isobutane) and
insulating gas (cyclopentane), with high compatibility with the environment,
that are, however, inammable.


We recommend that you follow the following regulations so as to avoid
situations dangerous to you:
Before performing any operation, unplug the power cord from the power
socket.
● The refrigeration system positioned behind and inside the Wine Coolers
contains refrigerant. Therefore, avoid damaging the tubes.
● If in the refrigeration system a leak is noted, do not touch the wall outlet
and do not use open ames. Open the window and let air into the room.
Then call a service centre to ask for repair.
● Do not scrape with a knife or sharp object to remove frost or ice that
occurs. With these, the refrigerant circuit can be damaged, the spill from
which can cause a re or damage your eyes.
● Do not install the appliance in humid, oily or dusty places, nor expose it
to direct sunlight and to water.
● Do not install the appliance near heaters or inammable materials.
● Do not use extension cords or adapters.
● Do not excessively pull or fold the power cord or touch the plug with wet
hands.
● Do not damage the plug and/or the power cord; this could cause electrical
shocks or res.
● It is recommended to keep the plug clean, any excessive dust residues on
the plug can be the cause re.
● Do not use mechanical devices or other equipment to hasten the defrosting
process.
● Absolutely avoid the use of open ame or electrical equipment, such as
heaters, steam cleaners, candles, oil lamps and the like in order to speed
up the defrosting phase.
● Do not use or store inflammable sprays, such as spray paint, near the
Wine Coolers. It could cause an explosion or  re.
● Do not use electrical appliances inside the food storage compartments,
unless they are of the type recommended by the manufacturer.
● Do not place or store inflammable and highly volatile materials such
as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure
alcohol, etc. These materials may cause an explosion.
● Do not store medicine or research materials in the Wine Coolers. When
the material that requires a strict control of storage temperatures is to
be stored, it is possible that it will deteriorate or an uncontrolled reaction
may occur that can cause risks.
● Maintain the ventilation openings in the appliance enclosure or in the


INSTRUCTION MANUAL
built-in structure, free of obstruction.
● Do not place objects and/or containers lled with water on the top of the
appliance.
● Do not perform repairs on this Wine Coolers. All interventions must be
performed solely by qualied personnel.
● This appliance can be used by children aged from 8 years and above
and by persons with reduced physical, sensory or mental capabilities or
with a lack of experience and knowledge; provided that they have been
given adequate supervision or instruction concerning how to use the
appliance in a safe way and understand the hazards involved.
● Children should not play with the appliance. Cleaning and user
maintenance should not be made by children without supervision
● This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the
appliance.
● The appliance must be positioned so that the plug is accessible
● If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualied persons in order to avoid a hazard.
● The appliance shall not be installed in the laundry
● GWP for R600a: 3
● Do not store explosive substances such as aerosol cans with a ammable
propellant in this appliance.
– WARNING: Keep ventilation openings, in the appliance enclosure or in
the built-in structure, clear of obstruction.
– WARNING: Do not use mechanical devices or other means to accelerate
the defrosting process, other than those recommended by the
manufacturer.
– WARNING: Do not damage the refrigerant circuit.
– WARNING: Do not use electrical appliances inside the food storage
compartments of the appliance, unless they are of the type
recommended by the manufacturer


SCRAPPING OLD APPLIANCES
This appliance is marked according to the European directive 2012/19/EU
on Waste Electrical and Electronic Equipment (WEEE).
WEEE contains both polluting substances (which can cause negative
consequences for the environment) and basic components (which can
be re-used). It is important to have WEEE subjected to specic treatments,
in order to remove and dispose properly all pollutants, and recover and
recycle all materials.
Individuals can play an important role in ensuring that WEEE does not
become an environmental issue; it is essential to follow some basic rules:
--WEEE should not be treated as household waste;
--WEEE should be handed over to the relevant collection points managed
by the municipality or by registered companies. In many countries, for
large WEEE, home collection could be present.
In many countries, when you buy a new appliance, the old one may be
returned to the retailer who has to collect it free of charge on a one-to-one
basis, as long as the equipment is of equivalent type and has the same
functions as the supplied equipment.
Conformity
By placing the marking on this product, we declare, on our own responsibility,
compliance to all of European safety ,health and environmental requirements stated in
the legislation for this product.
Energy Saving
--Always ensure good ventilation. Do not cover ventilation opening or grille.
--Always keep fan louvers clear.
--Do not place appliance in areas of direct sunlight or close to a stove,
heather or similar object.
--Open or keep the doors open as little as possible
--Remove dust present on the rear of the appliance


INSTRUCTION MANUAL
Service
● You should not attempt to repair the appliance
yourself, as this could cause injury or a more serious
malfunction. If you require a service call then please
contact the Customer Care Department

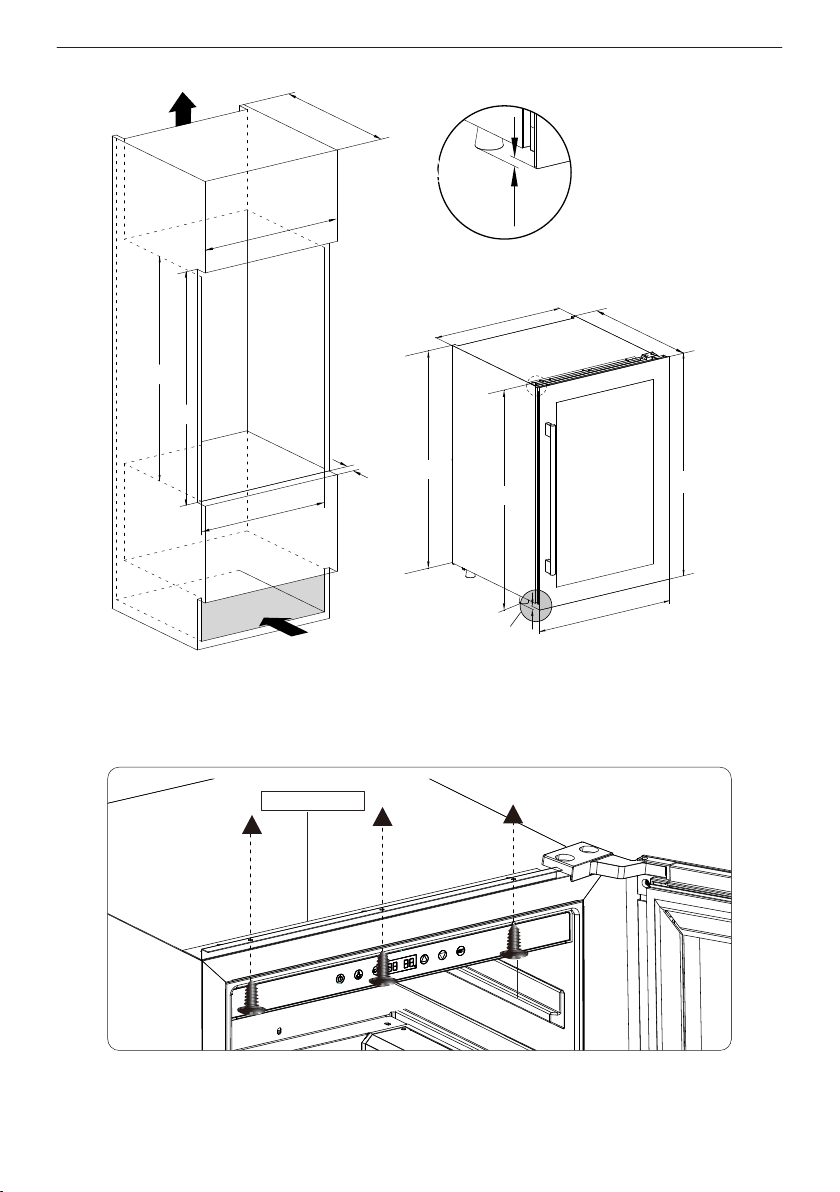

DESCRIPTION OF APPLIANCE & INSTALLATION
The following pictures only show description of appliance. The dimension and shelf
quantity may dier among the models of the same series.
OZ45SB / OZ45SX / OZ45SW
A.
C.
B.
D.
E.
Control Panel
Glass Door
Beech Shelves
Handle
Gasket
A
D
B
C
BE
Single Zone 18 Bottles


560~564
600~615
>560
200cm² Min.
200cm² Min.
452
465
555
555
590
455
450
2mm
7
20
To fix the appliance with Cabinet, pls. screw the 4 screws (ST4.2*12mm)
through the Top Bracket. The Top Bracket is pre-installed on top of
appliance.
A Top Bracket B Screws ST*mm


INSTRUCTION MANUAL
OZ45SBTOP
Control Panel
Handle
Long Shelf
Gasket
Door
Outside Cabinet
Condenser
Single Zone 24 Bottles
8
45
600
460
560-564
460
555
566
520
440
448
588
458
600
45
8
200cm² Min.
4
For a rmly xing of the unit you can install an extra Top Mounting
Bar which is an accessory packed with the unit onto the topside of
the unit and screw it with the kitchen cabinet See right drawing


OZ60SB / OZ60DB / OZ60DW / OZ60DX
1Control Panel 5 Glass Door
2Beech Shelves (Long) 6Handle
3Separator (Dual Zone) 7Gasket
4Beech Shelves (Short) 8Feet
Single Zone Dual Zone
30 Bottles 28 Bottles Single & Dual Zone
1
3
2
4
5
6
8
7
>580
570
20
560~565
605
200cm² Min.
(Hot Air Outlet)
200cm² Min.
(Cool Air Inlet)
8
B
8
590
555
590
567
594
A
B
602
>595
594
A


INSTRUCTION MANUAL
To fix the appliance with Cabinet, pls. screw the 4 screws (ST4.2*12mm)
through the Top Bracket. The Top Bracket is pre-installed on top of
appliance.
A Top Bracket B Screws ST*mm
OZ90SB / OZ90DB / OZ90DW / OZ90DX
1Control Panel(Single Zone) 5 Glass Door
2Beech Shelves (Long) 6Handle
3Separator (Dual Zone) 7Gasket
4Beech Shelves (Short) 8Feet
Single Zone Dual Zone
47 Bottles 41 Bottles
Single & Dual Zone
1
3
2
4
5
6
8
7


To fix the appliance with Cabinet, pls. screw the 3 screws (ST4.2*12mm)
through the Top Bracket. The Top Bracket is pre-installed on top of appliance.
≥570
20
600~605
560~565
200cm² Min.
(Hot Air Outlet)
200cm² Min.
(Cool Air Inlet)
897
>890
8
A
8
570
590
555
885
862
889
A
Top Bracket
Screws
(ST4.2*12mm)


INSTRUCTION MANUAL
OZ124SB / OZ124DB / OZ124DW / OZ124DX
1
3
2
4
5
6
8
7
1Control Panel (Single Zone) 5 Glass Door
2Beech Shelves (Long) 6Handle
3Control Panel (Dual Zone) 7Gasket
4Beech Shelves (Short) 8Feet
Single Zone Dual Zone
81 Bottles 74 Bottles Single & Dual Zone


To fix the appliance with Cabinet, pls. screw the 3 screws (ST4.2*12mm)
through the Top Bracket. The Top Bracket is pre-installed on top of
appliance.
20
>580
570
25
605
200cm² Min.
(Hot Air Outlet)
200cm² Min.
(Cool Air Inlet)
8
B
594
A
590
555
1210
1237
1233
1245
>1238
A
B
8
560~565
Top Bracket
Screws
(ST4.2*12mm)


INSTRUCTION MANUAL
OX15SRB
Control Panel
Chrome Shelf
Front Louver
Adjustable Foot
Outside Canbinet
Handle
Door
Gasket
Single Zone 6 Bottles
50
820
800
148
475
525
148
88
150
>525
Min 40mm
>813
•Height Adjustable:
813-863mm
OX30DRB / OX30DRW / OX30DX
Control Panel
Long Shelf
Short Shelf
Front Louver Adjustable Foot
Outside Cabinet
Handle
Door
Gasket
17 Bottles
Dual Zone


295
570
520
800
813
75
294
70
305
>570
>813
Min 40mm
•Height Adjustable:
813-845mm
CPROX60SRB / CPROX60SX
Control Panel
Single Zone 40 Bottles Single Zone
Long Shelf
Short Shelf
Front Louver
Outside Canbinet
Handle
Door
Gasket
Foot
Adjustable
>600
>813
>570
Min 40mm
A
•Height Adjustable:
813-845mm


INSTRUCTION MANUAL
OX60DRB / OX60DRW / OX60DX
Control Panel
Dual Zone 46 Bottles
Long Shelf
Short Shelf
Front Louver
Outside Canbinet
Handle
Door
Gasket
Foot
Adjustable
>600
>813
>570
Min 40mm
A
•Height Adjustable:
813-845mm
EX60DRB / EX60DRW / EX60DX
Control Panel
Dual Zone 46 Bottles
Long Shelf
(W/ 3-fold Rail)
Short Shelf
(W/ 2-fold Rail)
Front Louver
Outside Canbinet
Handle
Door
Gasket
Foot
Adjustable


>600
>863
>570
Min 40mm
570
850
863
150
•Height Adjustable:
863-883mm
CPRO1800SRB / CPRO1800SX
SingleZone 143Bottles
Control Panel
Vintage
Shelf
Front Louver
Handle
Door
Gasket
Foot
Adjustable
Outside Canbinet
