Teton Grill TR-750 User manual

TR-750 Router User Manual
Hardware 2
LEDs"2!
Buttons"2!
Connections"3!
Battery"3!
Initial Setup/Configuration 3
Network"4!
WiFi"5!
System"6!
Specs 7
FCC Statement 7
FCC Caution 7
Page 1

Hardware
The TR-750 is a dual-band (2.4GHz, 5GHz) battery powered router.!
!
LEDs
The TR-750 has the following LEDs to provide status (listed left to right):!
!
•Ethernet - blinks to indicate Ethernet data transfer!
•5 GHz Connection - 5GHz Wifi signal (solid) and data transfer (blinking)!
•2.4 GHz Connection - 2.4GHz Wifi signal (solid) and data transfer (blinking) !
•USB - USB connection (solid) and data transfer (blinking)!
•SD Card - SD Card inserted (solid)!
•Charging - Battery is charging, blinking indicated battery/charging error!
•Power - Power on (green) and battery low (red)!
Buttons
Page 2

•Power Button - Press the power button to turn the device on. Press and hold the power
button for a few seconds to turn the device off. Press and hold the power button for 15
seconds to force the power off.!
•Reset Button - Press and hold the reset button for at least 8 seconds to reset the device to
factory defaults.!
Connections
•Ethernet - The RJ45 port can act as a WAN or LAN based on the device configuration.!
•USB - USB devices can be connected to the female USB A port.!
•SD Card - Full sized SD, SDHC, and SDXC can be used.!
•Charging port - The device may be charged with a micro USB cable. Any standard USB
power source may be used.!
Battery
The TR-750 battery is accessed by sliding offthe battery cover on the bottom of the device.
The battery must be inserted in the orientation indicated in the battery compartment or the
device will be damaged. Only official TR-750 batteries should be used.!
Initial Setup/Configuration
Follow the below steps to setup/configure your router.!
1. Ensure the TR750 router’s battery is charged or is being charged and turn on the router.!
2. Connect via LAN or the 2.4GHz or 5GHz WiFi networks. The WiFi network names and
passwords will be listed on the bottom of the device.!
3. Visit http://192.168.8.1 in a web browser to access the router configuration!
4. The default password is admin.!
5. The following screens illustrate the Network, WiFi, and System settings.!
Page 3

Network
The network tab allows the user to set the IP address, enable or disable the DHCP server, and
switch the Ethernet port mode to LAN or WAN.!
Page 4

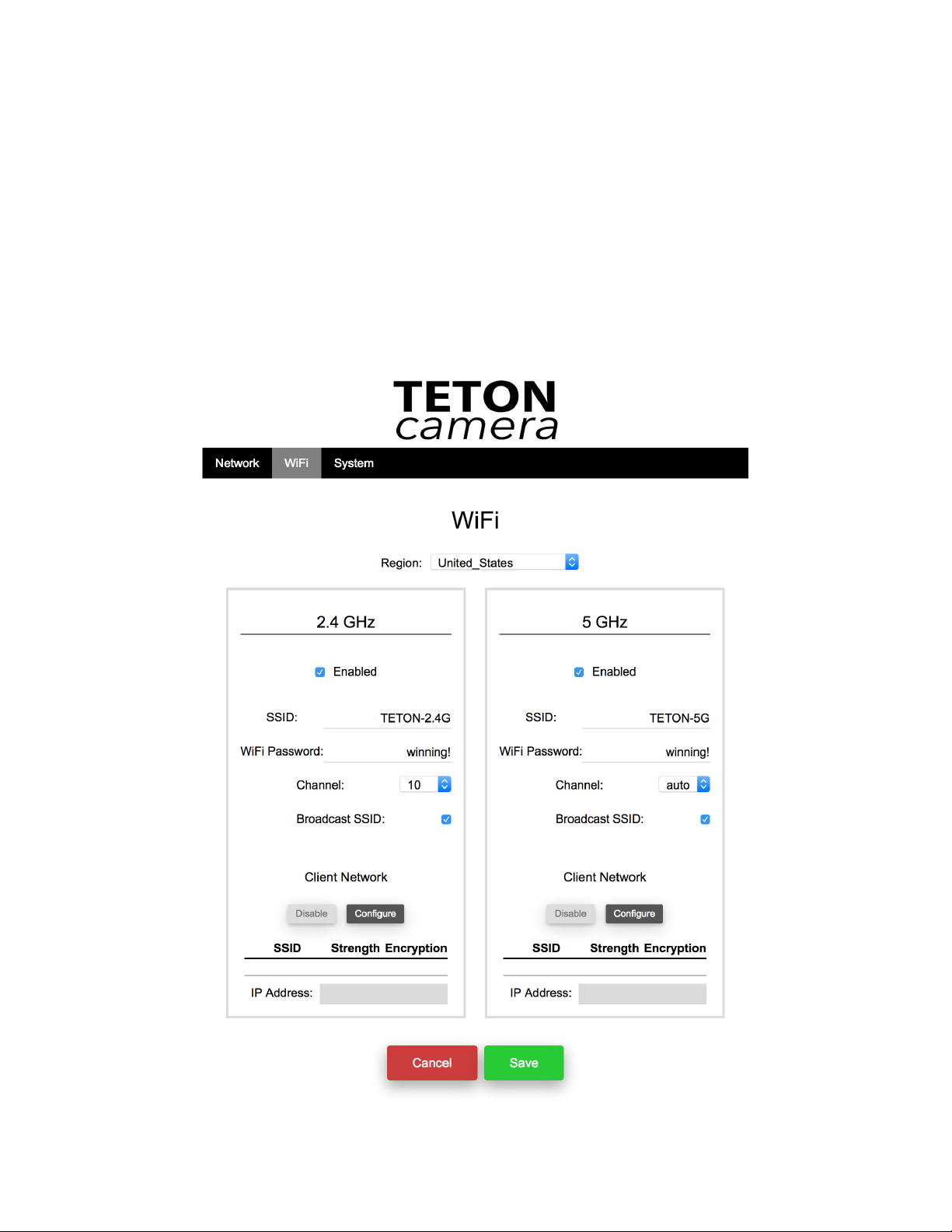

WiFi
The WiFi settings can be configured in the WiFi tab. The country/region should be set so that
the appropriate WiFi channels can be selected. The follow settings can be changed for both
the 2.4Ghz and 5GHz networks: enabled/disabled, SSID, password, channel, and SSID
broadcast. Both the 2.4GHz and 5GHz networks can join an existing WiFi network as a client.
This process can be started by pressing the Configure button.!
Page 5

System
The system tab can be used to upgrade or reset the firmware, set the login password, and
save or restore router settings. Battery status information is also presented.!
Page 6

Specs
Manufacturer: GL Technologies (Hong Kong) Limited, Unit 210D, 2/F, Enterprise Place Hong
Kong Science Park, Shatin, Hong Kong - Shenzhen Guanglianzhitong Tech Co., Ltd. Room
305-306, Skyworth Digital Bldg., Songbai Rd., Bao`an, Shenzhen, China!
FCC Statement
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:!
1. This device may not cause harmful interference, and!
2. This device must accept any interference received, including interference that may
cause undesired operation.!
2. Changes or modifications not expressly approved by the party responsible for compliance
could void the users’ authority to operate the equipment.!
FCC Caution
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is no
CPU
MT7628AN & MT7610E
Memory
DDR2 128MB / Flash 16MB
Ethernet
1 RJ45 port (WAN/LAN configurable)
USB
1 USB A data, 1 Micro USB charging port
Frequency
2.4GHz / 5GHz
Protocol
802.11a/b/g/n/ac
Transmission Rate
300Mbps (2.4GHz) + 866Mbps (5GHz)
Power Supply
5V 2A
Power Consumption
< 10W
Working Temperature
0 - 35 °C
Page 7

guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment offand on, the user is encouraged to try to correct the interference by one or
more of the following measures:!
•Reorient or relocate the receiving antenna.!
•Increase the separation between the equipment and receiver.!
•Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.!
•Consult the dealer or an experienced radio/TV technician for help.!
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure
limits, human proximity to the antenna shall not be less than 20cm during normal operation.
Page 8
