Tevion TEV8400 User manual

Product information
1

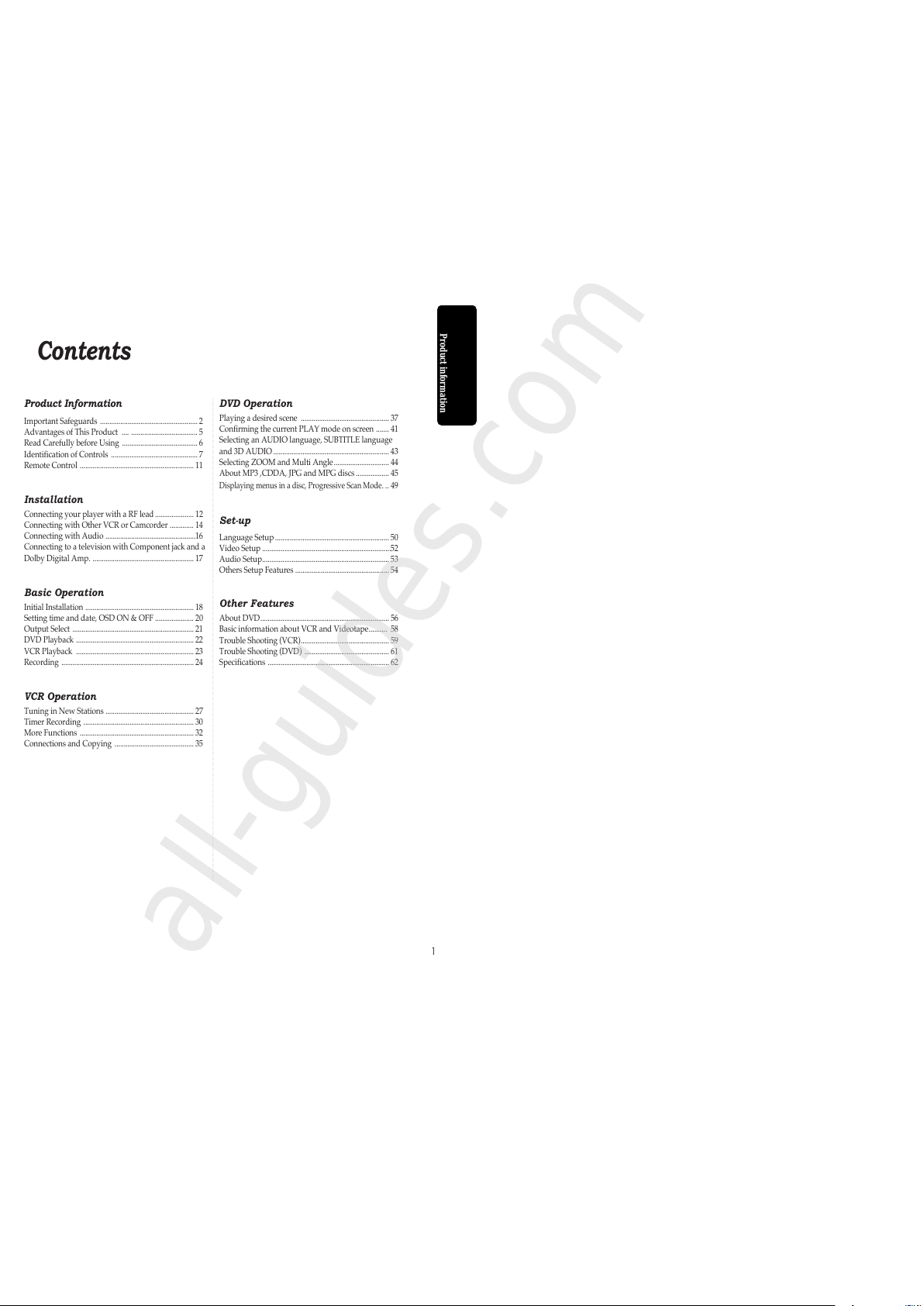

Contents
Product Information
Important Safeguards ..................................................... 2
Advantages of This Product .... .................................... 5
Read Carefully before sing ......................................... 6
Identification of Controls ............................................... 7
Remote Control .............................................................. 11
Installation
Connecting your player with a RF lead ..................... 12
Connecting with Other VCR or Camcorder ............. 14
Connecting with Audio .................................................16
Connecting to a television with Component jack and a
Dolby Digital Amp. ....................................................... 17
Basic Operation
Initial Installation ........................................................... 18
Setting time and date, OSD ON & OFF ..................... 20
Output Select .................................................................. 21
DVD Playback ................................................................ 22
VCR Playback ................................................................ 23
Recording ........................................................................ 24
VCR Operation
Tuning in New Stations ................................................ 27
Timer Recording ............................................................ 30
More Functions .............................................................. 32
Connections and Copying ........................................... 35
DVD Operation
Playing a desired scene ................................................ 37
Confirming the current PLAY mode on screen ....... 41
Selecting an A DIO language, S BTITLE language
and 3D A DIO ............................................................... 43
Selecting ZOOM and Multi Angle.............................. 44
About MP3 ,CDDA, JPG and MPG discs .................. 45
Displaying menus in a disc, Progressive Scan Mode ...49
Set-up
Language Setup .............................................................. 50
Video Setup ......................................................................52
Audio Setup..................................................................... 53
Others Setup Features ................................................... 54
Other Features
About DVD...................................................................... 56
Basic information about VCR and Videotape.......... 58
Trouble Shooting (VCR)................................................ 59
Trouble Shooting (DVD) .............................................. 61
Specifications .................................................................. 62
All manuals and user guides at all-guides.com
all-guides.com

Product information
2 3

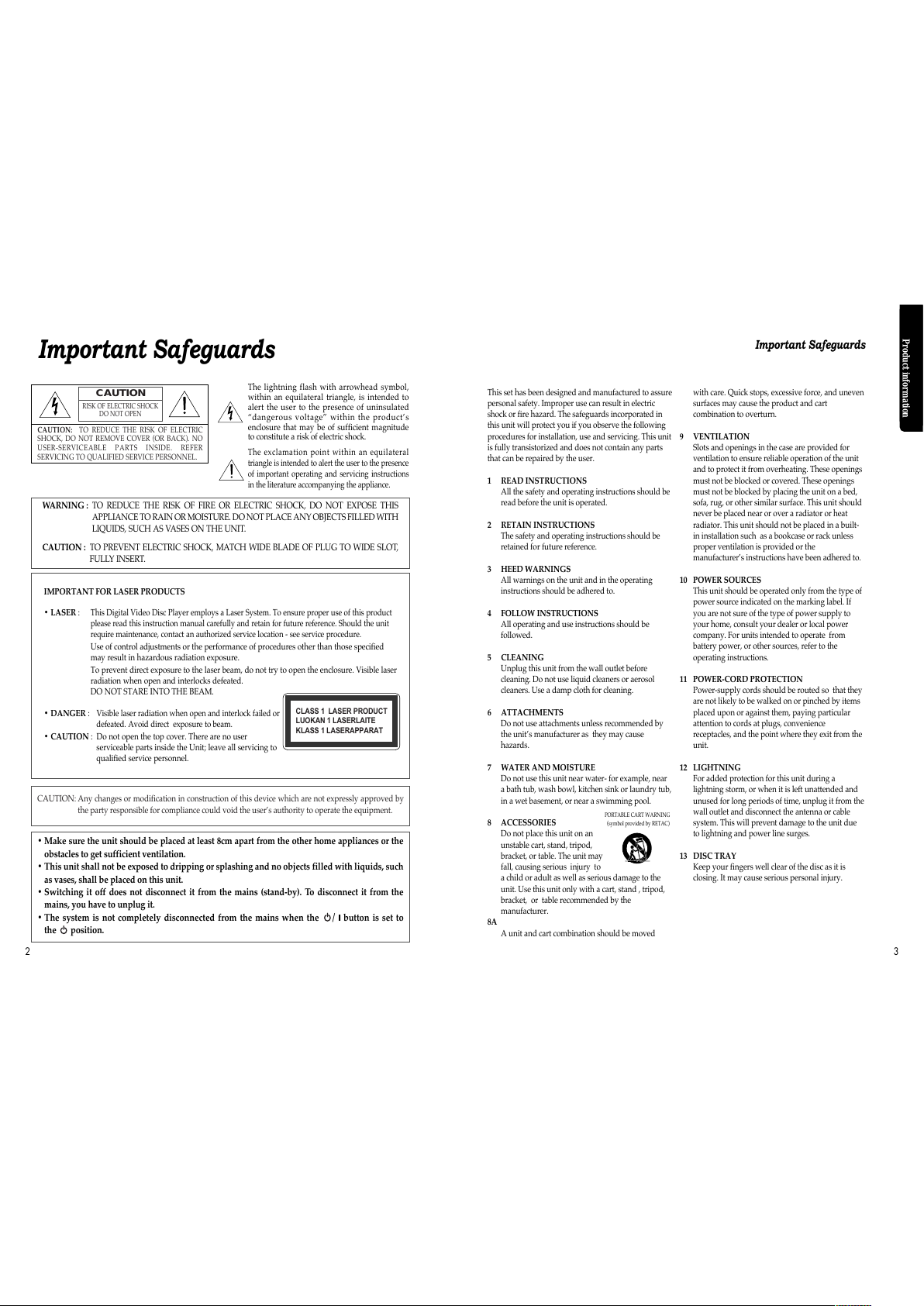

Important Safeguards
CAUTION: TO RED CE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK). NO
SER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO Q ALIFIED SERVICE PERSONNEL.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
“dangerous voltage” within the product’s
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.
The exclamation point within an equilateral
triangle is intended to alert the user to the presence
of important operating and servicing instructions
in the literature accompanying the appliance.
WARNING : TO RED CE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOIST RE. DO NOT PLACE ANY OBJECTS FILLED WITH
LIQ IDS, S CH AS VASES ON THE NIT.
CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PL G TO WIDE SLOT,
F LLY INSERT.
IMPORTANT FOR LASER PRODUCTS
• LASER : This Digital Video Disc Player employs a Laser System. To ensure proper use of this product
please read this instruction manual carefully and retain for future reference. Should the unit
require maintenance, contact an authorized service location - see service procedure.
se of control adjustments or the performance of procedures other than those specified
may result in hazardous radiation exposure.
To prevent direct exposure to the laser beam, do not try to open the enclosure. Visible laser
radiation when open and interlocks defeated.
DO NOT STARE INTO THE BEAM.
• DANGER : Visible laser radiation when open and interlock failed or
defeated. Avoid direct exposure to beam.
• CAUTION : Do not open the top cover. There are no user
serviceable parts inside the nit; leave all servicing to
qualified service personnel.
CLASS 1 LASER PRODUCT
LUOKAN 1 LASERLAITE
KLASS 1 LASERAPPARAT
CA TION: Any changes or modification in construction of this device which are not expressly approved by
the party responsible for compliance could void the user’s authority to operate the equipment.
• Make sure the unit shou d be p aced at east 8cm apart from the other home app iances or the
obstac es to get sufficient venti ation.
• This unit sha not be exposed to dripping or sp ashing and no objects fi ed with iquids, such
as vases, sha be p aced on this unit.
• Switching it off does not disconnect it from the mains (stand-by). To disconnect it from the
mains, you have to unp ug it.
• The system is not comp ete y disconnected from the mains when the / Ibutton is set to
the position.
Product information
This set has been designed and manufactured to assure
personal safety. Improper use can result in electric
shock or fire hazard. The safeguards incorporated in
this unit will protect you if you observe the following
procedures for installation, use and servicing. This unit
is fully transistorized and does not contain any parts
that can be repaired by the user.
1 READ INSTRUCTIONS
All the safety and operating instructions should be
read before the unit is operated.
2 RETAIN INSTRUCTIONS
The safety and operating instructions should be
retained for future reference.
3 HEED WARNINGS
All warnings on the unit and in the operating
instructions should be adhered to.
4 FOLLOW INSTRUCTIONS
All operating and use instructions should be
followed.
5 CLEANING
nplug this unit from the wall outlet before
cleaning. Do not use liquid cleaners or aerosol
cleaners. se a damp cloth for cleaning.
6 ATTACHMENTS
Do not use attachments unless recommended by
the unit’s manufacturer as they may cause
hazards.
7 WATER AND MOISTURE
Do not use this unit near water- for example, near
a bath tub, wash bowl, kitchen sink or laundry tub,
in a wet basement, or near a swimming pool.
8 ACCESSORIES
Do not place this unit on an
unstable cart, stand, tripod,
bracket, or table. The unit may
fall, causing serious injury to
a child or adult as well as serious damage to the
unit. se this unit only with a cart, stand , tripod,
bracket, or table recommended by the
manufacturer.
8A
A unit and cart combination should be moved
with care. Quick stops, excessive force, and uneven
surfaces may cause the product and cart
combination to overturn.
9 VENTILATION
Slots and openings in the case are provided for
ventilation to ensure reliable operation of the unit
and to protect it from overheating. These openings
must not be blocked or covered. These openings
must not be blocked by placing the unit on a bed,
sofa, rug, or other similar surface. This unit should
never be placed near or over a radiator or heat
radiator. This unit should not be placed in a built-
in installation such as a bookcase or rack unless
proper ventilation is provided or the
manufacturer’s instructions have been adhered to.
10 POWER SOURCES
This unit should be operated only from the type of
power source indicated on the marking label. If
you are not sure of the type of power supply to
your home, consult your dealer or local power
company. For units intended to operate from
battery power, or other sources, refer to the
operating instructions.
11 POWER-CORD PROTECTION
Power-supply cords should be routed so that they
are not likely to be walked on or pinched by items
placed upon or against them, paying particular
attention to cords at plugs, convenience
receptacles, and the point where they exit from the
unit.
12 LIGHTNING
For added protection for this unit during a
lightning storm, or when it is left unattended and
unused for long periods of time, unplug it from the
wall outlet and disconnect the antenna or cable
system. This will prevent damage to the unit due
to lightning and power line surges.
13 DISC TRAY
Keep your fingers well clear of the disc as it is
closing. It may cause serious personal injury.
Important Safeguards
PORTABLE CART WARNING
(symbol provided by RETAC)
All manuals and user guides at all-guides.com

Product information
4 5
Important Safeguards
14 OVERLOADING
Do not overload wall outlets of extension cords as
this can result in a risk of fire or electric shock.
15 OBJECT AND LIQUID ENTRY
Never push objects of any kind into this unit
through openings as they may touch dangerous
voltage points or “short-out” parts that could
result in a fire or electric shock. Never spill liquid
of any kind on the unit.
16 BURDEN
Do not place a heavy object on or step on the
product. The object may fall, causing serious
personal injury and serious damage to the product.
17 DISC
Do not use a cracked, deformed or repaired disc.
These discs are easily broken and may cause
serious personal injury and product malfunction.
18 SERVICING
Do not attempt to service this unit yourself as
opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.
19 DAMAGE REQUIRING SERVICE
nplug this unit from the wall outlet and refer
servicing to qualified service personnel under the
following conditions.
A. When the power-supply cord or plug is
damaged.
B. If liquid has been spilled, or objects have fallen
into the unit.
C. If the unit has been exposed to rain or water.
D. If the unit does not operate normally by
following the operating instructions. Adjust
only those controls that are covered by the
operating instructions. Improper adjustment of
other controls may result in damage and will
often require extensive work by a qualified
technician to restore the unit to its normal
operation.
E. If the unit has been dropped or the cabinet has
been damaged.
F. When the unit exhibits a distinct change in
performance-this indicates a need for service.
20 REPLACEMENT PARTS
When replacement parts are required, have the
service technician verify that the replacements he
uses have the same safety characteristics as the
original parts. se of replacements specified by the
unit manufacturer can prevent fire, electric shock,
or other hazards.
21 SAFETY CHECK
pon completion of any service or repairs to this
unit, ask the service technician to perform safety
checks recommended by the manufacturer to
determine that the unit is in safe operating
condition.
22 WALL OR CEILING MOUNTING
The product should be mounted to a wall or
ceiling only as recommended by the manufacturer.
23 HEAT
The product should be situated away from heat
sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce
heat.
24 To prevent battery electrolyte leakage, which may
result in injury and damage to the unit or other
objects, observe the following precautions:
A. All batteries must be installed with the
proper polarity.
B. Do not mix new with old or used batteries.
C. Only use batteries of the same type and brand.
D. Remove the batteries when they are not to be
used for a long period time.
E. When the batteries have become discharged,
they must be disposed of in a safe manner
which complies with all applicable laws.
Advantages of his Product .....
• DVD, VCD, CD, CD-R(MP3), CD-RW, VHS
• Watching DVD whi e recording TV
broadcasts
• Integrated remote contro (VCR, DVD)
• VISS function
• Mu tip ex sound p ayback/record
• High Sound Qua ity of 6 head Hi-Fi
• Simp e record function
• MP3 fi e p ayback function (CD-R disc
having records of MP3 fi es)
• GUI (Graphica User Interface) through
OSD (On Screen Disp ay)
By using the [DISPLAY] button on the remote
contro , information on the DVD/VCD/CD
p ayer and disc, can be disp ayed on the TV
screen.
• Screensaver function (DVD)
• 3D sound (3D sound effect using 2 speakers)
• High bit / High samp ing with 27MHz /
10bit video encoder
• High bit / High samp ing with 96MHz /
24bit Audio D/A Converter
• Coaxia , Optica digita Audio output (PCM,
Do by Digita , dts)
You can enjoy high- eve digita audio by
connecting with amp embedded with Do by
Digita / dts decoder.
• Bui t-in Do by Digita decoder (DVD)
• Ana og audio 2-channe s output for
DOWNMIX (x1)
• Composite video output (x1)
• S ow Forward / Reverse p ayback (DVD)
• Fast Forward / Reverse p ayback
• Search of tit e, chapter, and time in DVD
disc, and search of time and track time in
VCD.
• Various TV aspect (DVD)
4:3 for Pan and Scan, 4:3 for Letter Box, and 16:9
for Wide
• Repeat p ayback (tit e, chapter, and part for
DVD/ track, disc, and part for VCD/CD)
• Se ective P ay (DVD/VCD/CD)
You can se ect and p ay the desired tit e / chapter
of DVD and track of Video CD/CD in STOP
mode.
• 6 anguages OSD (On Screen Disp ay)
function (DVD)
You can se ect and disp ay OSD in 6 anguages.
(E/ F/ S/ G/ I/ D)
• Parenta Lock function (DVD)
This function can prevent p ayback of software
that may be unsuitab e for chi dren.
• Mu ti Audio function (DVD)
The audio soundtrack can be heard in up to 8
anguages. In the case of SVCD or VCD, it
depends on the disc. (The number of audio
anguages depends on the software.)
• Mu ti Subtit e function (DVD)
The subtit e can be seem in up to 32 anguages.
In the case of SVCD or VCD, it depends on the
disc. (The number of subtit e anguages depends
on the software.)
• Mu ti Ang e function (DVD)
This function a ows you to choose the viewing
ang e of scenes which were shot from a number
of different ang es. (The number of ang es
depends on the software.)
• Screen zoom function (DVD/VCD)
All manuals and user guides at all-guides.com

Product information
6 7
Read Carefully before Using
Cautions in use of DVD-Video player are described
below.
Please read carefully before using a DVD-Video player.
✔Insta ation p ace and hand ing
• When you p ace this p ayer near other devices,
they may perform poor y together.
• When you p ace DVD-Video p ayer and TV in
the upper and ower sides, it may cause
f ickering of pictures or fai ure (tape is not
ejected).
• When you p ace this p ayer near strong
magnetic materia s, it may affect image or voice
poor y or damage recording.
• Do not spi vo ati e iquids ike insect spray
over the p ayer. Do not eave rubber or p astic
products in contact with the p ayer for a ong
time. They wi cause deterioration or paint
pee -off.
✔Not in use
• When the unit is not in use, be sure to remove
the disc or tape and turn off the power.
• If you do not use the unit for a ong period,
remove batteries in remote contro to prevent
eakage.
• In case you don’t use the unit for a ong time,
the unit may not function proper y in the
future. Turn on and use the p ayer occasiona y.
✔Moving
• Repack the unit as it was origina y packed at
the factory. A ternative y, pack this product
with towe not to be damaged.
• Eject any videotape.
✔C eaning
• Dust off dirt in cabinet or contro pane part
smooth y with a soft c oth.
• For heavy dirt, soak the c oth in a weak
detergent so ution, wring it we and wipe. Use
a dry c oth to wipe it out.
• Fo ow instructions in using chemica c eaners.
• Do not use any type of so vent such as gaso ine
or benzene, as they may cause deterioration or
paint pee -off.
✔Checking
• Video is a high precision device. To obtain a
c ear screen, we recommend regu ar inspection
and maintenance every 1,000 hours of use by
technica engineers.
• For checking, contact your dea er or your
nearest service center.
✔Checking and Rep acement of Antenna
• Antenna is subject to change in its direction or
damage by wind and rain. For c ean screen,
contact and consu t your nearest service center
about checking and rep acement.
✔Copyright
• Do not use your recordings without permission
of a copyrighter except persona usage.
✔Tape and Disc Hand ing
• Do not use any tape and disc be ow. Damage
of video head or cut/coi ing of tape may cause
fai ure.
- Tape with mo d
- Tape or disc stained with juice or attachments
- Tape having breakage connection
- Disassemb ed tape
- Disc with severe scratch
• Moisture condensation may occur in tape.
Moisture condensation damages the tape.
P ease use the tape after the moisture
condensation is disappeared.
• After use, store tape vertica y in a case to
prevent oose.
• Do not store the fo owing p aces.
- High temperature and humidity
- Subject generation of mo d
- Subject to direct sun ight
- Much dirt or dust
- Near strong magnetic materia s such as speaker
✔Video head c eaning
• Video head c eaning is needed when the
p ayback picture becomes unc ear. Use an
equiva ent high qua ity chemica non-abreasive
head c eaning tape or have them c eaned
professiona y.
Identification of Controls
! POWER (STANDBY/ON) button
se to power the device on/off if AC power supply
is connected.
@ P ace to insert videotape
# Disc tray
$ VIDEO INPUT jack
% AUDIO INPUT jacks
^ EJECT button
& RECORD button
* PR -/+ (Programme Down/Up) button
( Operation Disp ay Window
Display operation of device. For more information,
see “Operation Display Window” (refer to page 8).
) SELECT button
se to change DVD mode to VCR mode, and vice
versa.
1 STOP button
se to stop playing.
2 REWIND button
se to rewind currently being played videotape or
disc; or to playback back rapidly.
3 P ayback/PAUSE button
Playback videotape or disc.
Press this button to pause a screen.
4 FAST FORWARD button
se to wind currently being played videotape or
disc; or to playback rapidly.
5 OPEN/CLOSE Tray button
Main body (front panel)
SELECT
STANDBY/ON
EJECT
VIDEO AUDIO RLREC
STOP REW PLAY/PAUSE FF OPEN/CLOSE
AV INPUT
!
%& * ) 1234 5
^
@#
$(
All manuals and user guides at all-guides.com

Product information
8 9
Identification of Controls
Timer Recording Standby
Timer Recording Error
Recording in Progress
Timer Recording in
Progress
Recording Pause
Repeat one chapter [DVD]
Repeat track [VCD]
Repeat title [DVD]
Repeat ALL [VCD]
Repeat a defined period
from A [DVD, VCD]
Repeat a defined period
from A to B [DVD, VCD]
- RECORDING MODE - - REPEAT MODE -
DVD playback
Fast playback
Fast reverse playback
Slow playback
Pause picture
- DVD OPERATION -
VCR playback
Fast forward
Rewinding
Fast playback (CUE)
Fast reverse playback
(REVIEW)
Slow playback
Still picture
Stop
Child Lock
- VCR OPERATION -
Operation Display Window
Identification of Controls
ANT.IN
ANT. OUT
R
L
OUT IN
AUDIO
VIDEO
R
COAXIAL
L
Y
Pr
Pb DIGITAL
COMPONENT OUT
AUDIO OUT
OPTICAL
AUDIO OUT
DIGITAL
AUDIO OUT
DVD & VCRDVD
! POWER CORD
It is a jack for supp ying power to the unit.
Connect to out et in a wa .
@ AUDIO OUTPUT Jack
# COMPONENT OUTPUT Jack
$ DIGITAL OUTPUT (COAXIAL) Jack
To enjoy sound qua ity of theater eve in home,
connect this jack with amp or unit embedded
with digita audio decoder.
% DIGITAL OUTPUT (OPTICAL) Jack
To enjoy qua ity theatre eve sound at home,
connect this jack with amp or unit embedded
with digita audio decoder.
^ A/V OUTPUT Jack
& A/V INPUT Jack
* Connection to ANTENNA Cab e
( Connection to TV
Main body (Rear Panel)
!@ # ^ & *
$ % (
All manuals and user guides at all-guides.com

Product information
10 11

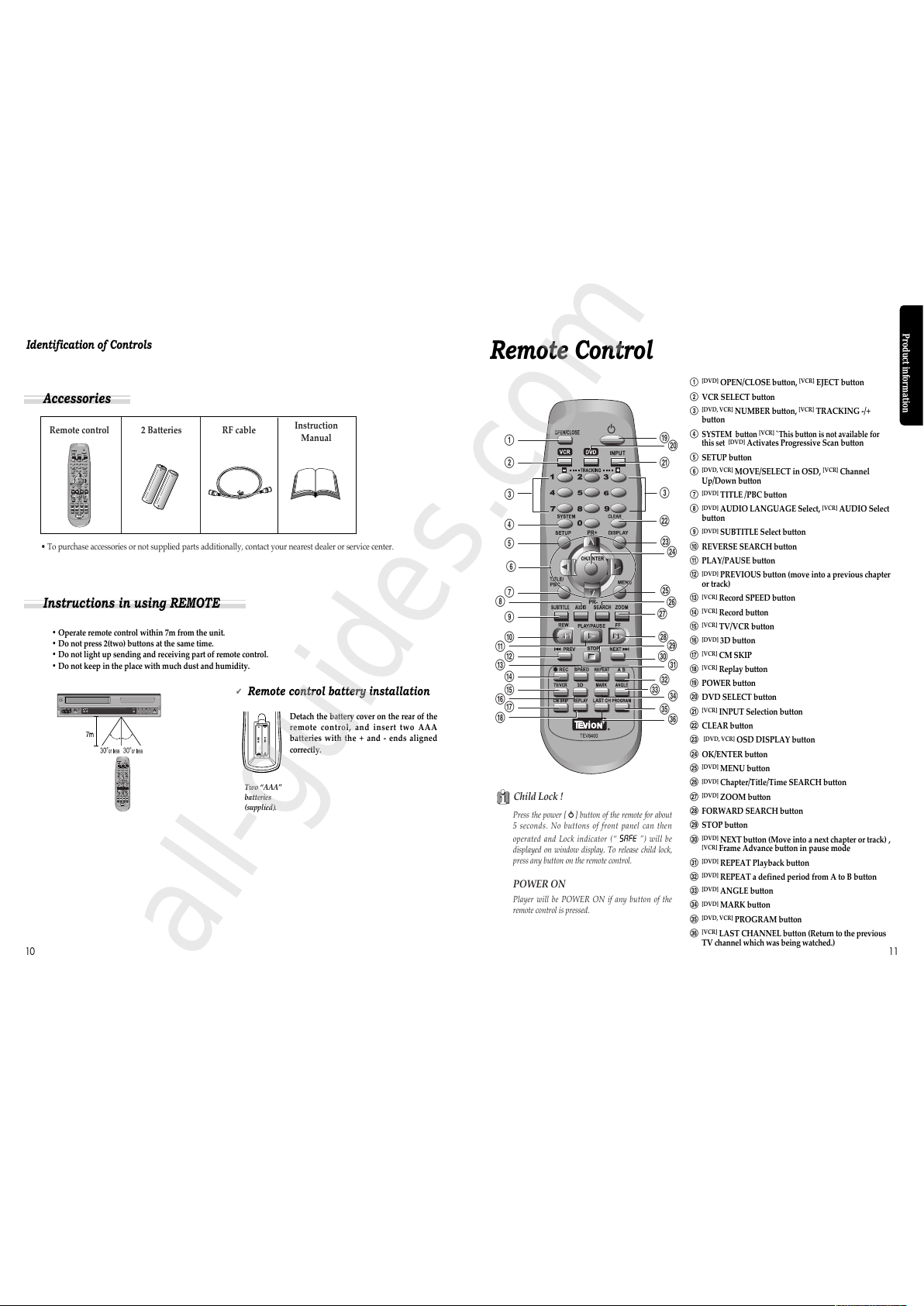

Identification of Controls
Remote contro 2 Batteries RF cab e Instruction
Manua
• To purchase accessories or not supplied parts additionally, contact your nearest dealer or service center.
SELECT
STANDBY/ON
EJECT
VIDEO AUDIO RLREC
STOP REW PLAY/PAUSE FF OPEN/CLOSE
AV INPUT
• Operate remote contro within 7m from the unit.
• Do not press 2(two) buttons at the same time.
• Do not ight up sending and receiving part of remote contro .
• Do not keep in the p ace with much dust and humidity.
Instructions in using REMO E
Accessories
Remote Control
!
#
@
$
%
^
&
(
)
2
4
5
7
9
“
#
‘
=
q
w
eR
r
T
Y
0
+
E
y
W
Q
*
3
1
6
8
!
[DVD] OPEN/CLOSE button, [VCR] EJECT button
@ VCR SELECT button
#
[DVD, VCR] NUMBER button, [VCR] TRACKING -/+
button
$ SYSTEM button
[VCR] `
This button is not avai ab e for
this set
[DVD] Activates Progressive Scan button
% SETUP button
^
[DVD, VCR] MOVE/SELECT in OSD, [VCR] Channe
Up/Down button
&
[DVD] TITLE /PBC button
*
[DVD] AUDIO LANGUAGE Se ect, [VCR] AUDIO Se ect
button
(
[DVD] SUBTITLE Se ect button
) REVERSE SEARCH button
1 PLAY/PAUSE button
2
[DVD] PREVIOUS button (move into a previous chapter
or track)
3
[VCR] Record SPEED button
4
[VCR] Record button
5
[VCR] TV/VCR button
6
[DVD] 3D button
7
[VCR] CM SKIP
8
[VCR] Rep ay button
9 POWER button
0 DVD SELECT button
“
[VCR] INPUT Se ection button
‘ CLEAR button
+
[DVD, VCR] OSD DISPLAY button
= OK/ENTER button
Q
[DVD] MENU button
q
[DVD] Chapter/Tit e/Time SEARCH button
W
[DVD] ZOOM button
w FORWARD SEARCH button
E STOP button
e
[DVD] NEXT button (Move into a next chapter or track) ,
[VCR] Frame Advance button in pause mode
R
[DVD] REPEAT P ayback button
r
[DVD] REPEAT a defined period from A to B button
T
[DVD] ANGLE button
[DVD] MARK button
Y
[DVD, VCR] PROGRAM button
y
[VCR] LAST CHANNEL button (Return to the previous
TV channe which was being watched.)
Press the power [ ] button of the remote for about
5 seconds. No buttons of front panel can then
operated and Lock indicator (“ ”) will be
displa ed on window displa . To release child lock,
press an button on the remote control.
POWER ON
Pla er will be POWER ON if an button of the
remote control is pressed.
Child ock !
AAA
AAA
✔
Remote control battery installation
Detach the battery cover on the rear of the
remote contro , and insert two AAA
batteries with the + and - ends a igned
correct y.
Two “AAA”
batteries
(supplied).
All manuals and user guides at all-guides.com
all-guides.com

Installation
12 13
Connecting your player with a RF lead
■Before you start, unplug all the equipment from the mains supply.
(Option 1) - How to connect with RF lead
■Before you start, unplug all the equipment from the mains supply.
(Option 2) - How to Connect with Audio/Video jack
Aeria
The type of aerial you should use,
depends on local interference and
how far you are from the
transmitter. You should contact a
local retailer if you have any
questions about your aerial.
In option (1) you need to tune your television to the player so you can see the picture from the player. When
it is on the player generates a signal on HF transmission channel 36, but this might change after tuning in
the stations with 'A TO-SEARCH' . See the 'Check it out' box on page 18. See your television manual for
how to tune in a new channel.
INPUT 1
ANT IN
INPUT 2
REAR PANEL OF DVD VIDEO
OUTSIDE ANTENNA OR
WALL ANTENNA OUTLET
REAR PANEL OF TV
RF CABLE
¡Remove circular cable (RF cable) (surplus cable) plugged in “ANT.IN” jack in rear panel of TV.
Connect the cable to “ANT” jack in rear panel of DVD-Video.
™Connect TV to DVD-Video. Connect “TV” jack in DVD-Video with “ANT.IN” jack in TV with RF
cable.
INPUT 1
ANT IN
INPUT 2
REAR PANEL OF DVD VIDEO REAR PANEL OF TV
AUDIO/VIDEO CABLE
£(If there is AUDIO/VIDEO INPUT jack in TV)
Connect VIDEO OUT jack in DVD-Video to VIDEO IN jack in TV, and AUDIO OUT jack in
DVD-Video to AUDIO IN jack in TV with connecting cable of Audio/Video jack.
Select VCR mode by pressing TV/INP T button in TV, you can view a clearer screen and sound
than connection with RF cable only.
• VHF: 0 ~14 channels of TV / • HF: 27~69 channels of TV
• CATV: Broadcasting is transmitted with cable from broadcasting station by contract with the station and
consumers. It does not need any antenna.
• In/Out jack in Audio/Video terminal:
- In: A jack used to receive signal required in this unit from other units.
- Out: A jack used to send signal of this unit to other units.
• Connect with Audio/Video terminal, you can enjoy more clear video and audio.
( se INP T button in this REMOTE to select video mode.)
All manuals and user guides at all-guides.com

STANDBY/ON
EJECT
VIDEO AUDIO RLREC
AV INPUT
INPUT 1
OUT
VIDEO (L) AUDIO (R)
ANT IN
INPUT 2
REAR PANEL OF DVD VIDEO
FRONT PANEL OF DVD VIDEO
REAR PANEL OF PLAYBACK VCR(CAMCORDER)
REAR PANEL OF TV
RF CABLE
Installation
14 15

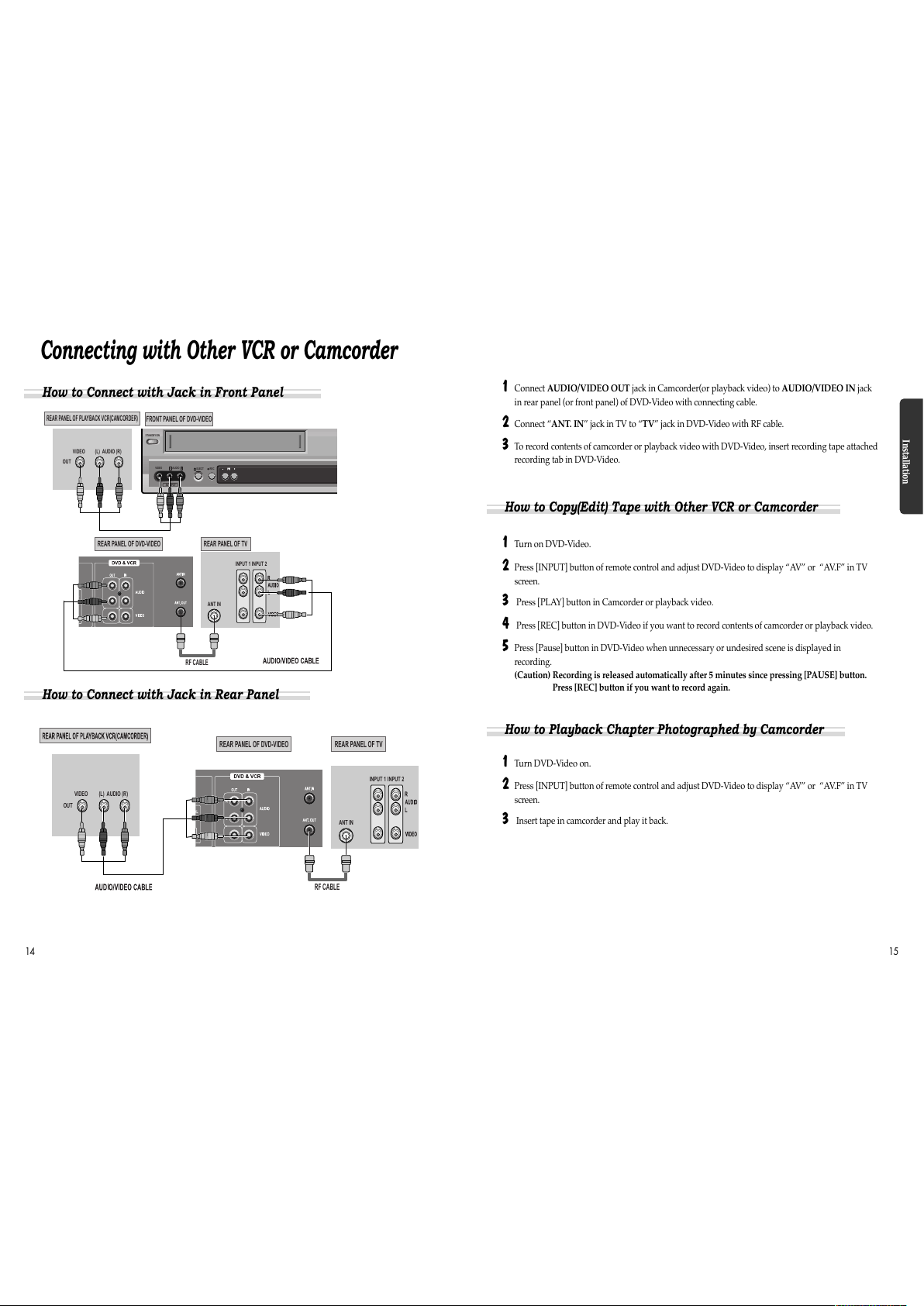

Connecting with Other VCR or Camcorder
How to Connect with Jack in Front Panel
How to Connect with Jack in Rear Panel
INPUT 1
OUT
VIDEO (L) AUDIO (R)
ANT IN
INPUT 2
REAR PANEL OF DVD VIDEO REAR PANEL OF TV
RF CABLE
¡Connect AUDIO/VIDEO OUT jack in Camcorder(or playback video) to AUDIO/VIDEO IN jack
in rear panel (or front panel) of DVD-Video with connecting cable.
™Connect “ANT. IN” jack in TV to “TV” jack in DVD-Video with RF cable.
£To record contents of camcorder or playback video with DVD-Video, insert recording tape attached
recording tab in DVD-Video.
¡Turn on DVD-Video.
™Press [INP T] button of remote control and adjust DVD-Video to display “AV” or “AV.F” in TV
screen.
£Press [PLAY] button in Camcorder or playback video.
¢Press [REC] button in DVD-Video if you want to record contents of camcorder or playback video.
∞Press [Pause] button in DVD-Video when unnecessary or undesired scene is displayed in
recording.
(Caution) Recording is re eased automatica y after 5 minutes since pressing [PAUSE] button.
Press [REC] button if you want to record again.
¡Turn DVD-Video on.
™Press [INP T] button of remote control and adjust DVD-Video to display “AV” or “AV.F” in TV
screen.
£Insert tape in camcorder and play it back.
How to Copy(Edit) ape with Other VCR or Camcorder
How to Playback Chapter Photographed by Camcorder
All manuals and user guides at all-guides.com

Installation
16 17
Connecting with Audio
How to Connect with Stereo Unit such as Audio
Connecting to a television with Component
jack and a Dolby Digital Amp.
How to Connect
(L) AUDIO (R)
REAR PANEL OF DVD VIDEOREAR PANEL OF STEREO UNIT
DIGITAL AUDIO OUT
¡Connect Audio jack. Connect AUDIO OUT in rear panel of DVD-Video to IN jack of stereo sound
unit.
™For Input Select in stereo unit, Select “External Input” connected with DVD-Video.
£Playback DVD disc or Hi-Fi videotape, you can hear sound in speaker of stereo unit.
■se in COMPONENT In jack attached in TV or amp supporting Dolby Digital.
(NOT SUPPLIED)
(L) AUDIO IN (R)
REAR PANEL OF DVD VIDEO
DOLBY DIGITAL DECODER AMPLIFIER TV CONNECTIONS
COMPONENT IN
CONNECTING CABLE
Manufactured under license from Dolby Laboratories.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
“DTS” and “DTS Digital Out” are trademarks of Digital Theatre Systems, Inc.
All manuals and user guides at all-guides.com

Basic Operation
18 19
Initial Installation
Setting up the player
■Switch the TV on.
■You can also start "A TO SEARCH" in the SET P "PR PRESET"
➝ "A TO SEARCH".
■To tune in new stations (manual tuning) and to enter station names see page 27-28.
LANGUAGE SET
ENGLISH
DEUTSCH
ITALIANO
ESPAÑOL
FRANÇAIS
NEDERLANDS
PR+/-:SELECT
OK:CONFIRM SETUP:END
SETUP:END
PLEASE WAIT...
CH 25
You should see this picture the first time you switch on the TV
and player.
Choose your anguage.
2
Press on the remote control and RF36 will be displayed on
the front of your player.
Select a free channel on your TV and manual tune the channel
until the blue screen as shown in step 2 appears. Refer to the TV
manual for more details.
1
Then choose your country.
3
OK for "AUTO SEARCH!".
"A TO SEARCH" tunes in all the stations you can receive in your
country.
4
• If you don't see the menu picture below after you press the menu button it may be because you
don't use a RCA cable and you need to tune the television to the player (see 'Connecting your
player through RF lead' on page 12). Normally a new player outputs a signal via the RF lead on
transmission channel 36. Search for the menu picture with the channel tuning function of your TV
set (see its user manual). Some televisions allow you to key in the transmission channel number in
their tuning set-up menu.
• In case there will be interference problems with other transmission channels when the player
outputs a signal on transmission channel 36, the A TO SEARCH process usually recommends an
alternative, as in step 4.
• There is a another way of setting RF output channel, if needed please see 'Connections and
Assembling on page 35'. It does not apply to models which do not generate the RF output signal.
CHECK IT!
COUNTRY SET
AUSTRALIA
NEW ZEALAND
PR+/-:SELECT
OK:CONFIRM SETUP:END
Press the [OK] button to confirm the recommended RF channel.
Should you wish the stations to have the same numbers as those
used on the TV, follow the instructions in "Sorting programme
locations" on page 28.
Else ...
exit the basic installation function and enjoy your player.
7
Should you wish the stations to have the same numbers as those
used on the TV, follow the instructions in "Sorting programme
locations" on page 28.
Else ...
Press the SET P button to exit the set-up menu and enjoy your
player
8
PLEASE CHANGE THE TV
CH TO 34.
IMPORTANT!
RF OUTPUT SET
0-9:SELECT(27-69)
OK:CONFIRM SETUP:END
CURRENT CH 36
RECOMMENDED CH 34
If other stations are positioned on near the current RF O TP T
CH, the guide message appears automatically.
The player recommends the optimal RF O TP T CH number
automatically.
6
If the clock has not been set, the clock setting screen will appear.
Please see “Setting time and date” on page 20.
5
• If the signal from the player is coming into the TV through
the RF lead, the picture will disappear when you press OK
at step 8. You will need to re-tune your television to the new
HF transmission channel.
MANUAL SET
PR01 P-01 PR08 P-08
PR02 P-02 PR09 P-09
PR03 P-03 PR10 P-10
PR04 P-04 PR11 P-11
PR05 P-05 PR12 ----
PR06 P-06 PR13 ----
PR07 P-07 PR14 ----
PR+/-:SELECT
OK:CONFIRM SETUP:END
Up [PR+], down [PR-], OK and 'confirm'
• Notice the on-screen prompts which the video recorder generates to tell you which button to press. In general
the up and down 'navigation' buttons select or highlight something and the OK button confirms it .
• [PR+] and [PR-] are the same buttons as 'up' and 'down'.
• In the DVD section it is usually the left and right buttons which 'select'.
CLOCK SET
0-9:SETUP (HOUR)
/➝:CORRECT SETUP:END
TIME - - : - -
DATE - - / - - /- - - -
➝
All manuals and user guides at all-guides.com

Basic Operation
20 21

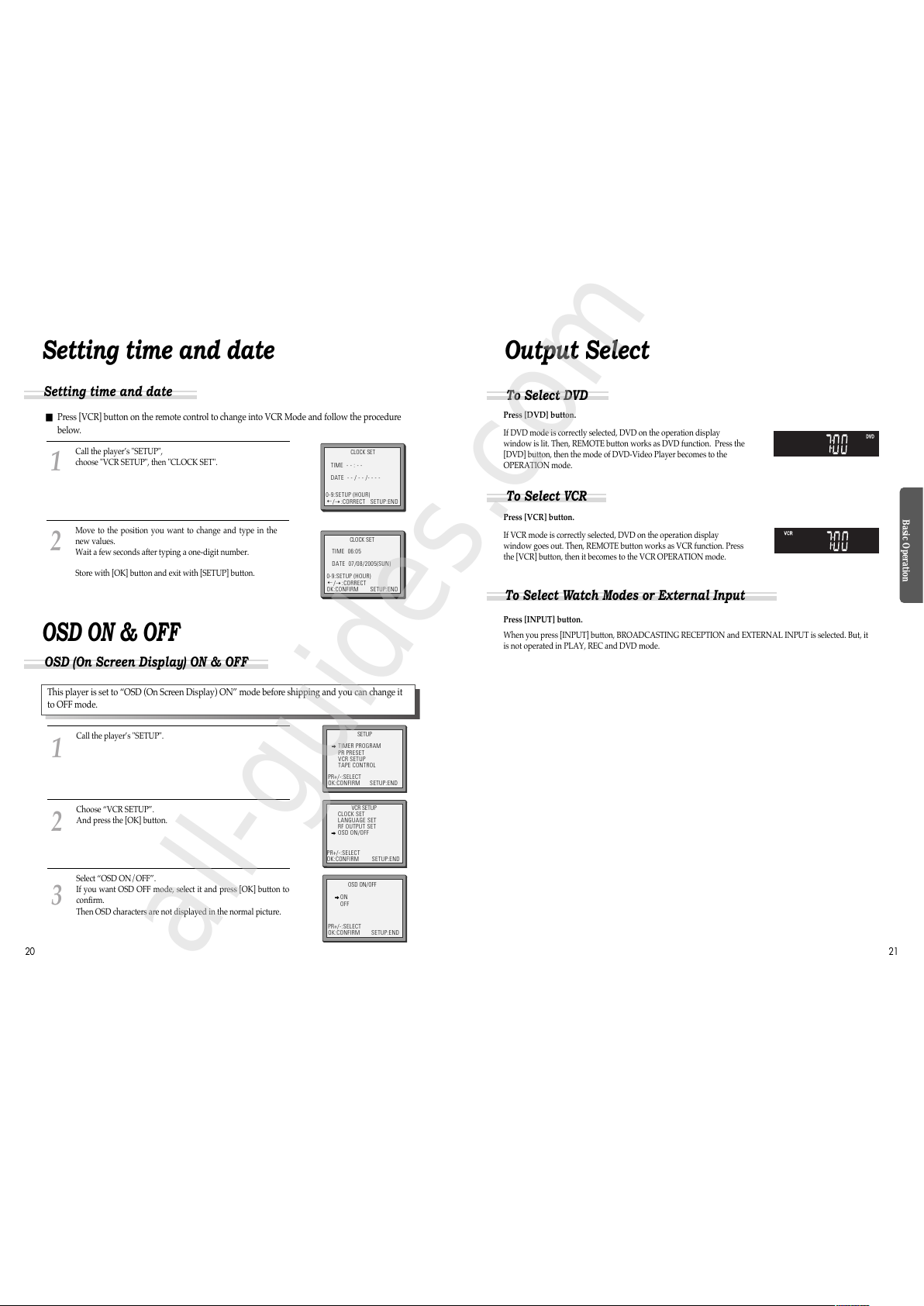

OSD ON & OFF
Output Select
Press [DVD] button.
If DVD mode is correctly selected, DVD on the operation display
window is lit. Then, REMOTE button works as DVD function. Press the
[DVD] button, then the mode of DVD-Video Player becomes to the
OPERATION mode.
Press [VCR] button.
If VCR mode is correctly selected, DVD on the operation display
window goes out. Then, REMOTE button works as VCR function. Press
the [VCR] button, then it becomes to the VCR OPERATION mode.
Press [INPUT] button.
When you press [INP T] button, BROADCASTING RECEPTION and EXTERNAL INP T is selected. But, it
is not operated in PLAY, REC and DVD mode.
Call the player’s "SET P".
1
Choose “VCR SET P”.
And press the [OK] button.
2
Select “OSD ON/OFF”.
If you want OSD OFF mode, select it and press [OK] button to
confirm.
Then OSD characters are not displayed in the normal picture.
3
This player is set to “OSD (On Screen Display) ON” mode before shipping and you can change it
to OFF mode.
VCR SETUP
CLOCK SET
LANGUAGE SET
RF OUTPUT SET
OSD ON/OFF
PR+/-:SELECT
OK:CONFIRM SETUP:END
OSD ON/OFF
ON
OFF
PR+/-:SELECT
OK:CONFIRM SETUP:END
SETUP
TIMER PROGRAM
PR PRESET
VCR SETUP
TAPE CONTROL
PR+/-:SELECT
OK:CONFIRM SETUP:END
OSD (On Screen Display) ON & OFF
o Select DVD
o Select VCR
o Select Watch Modes or External Input
■Press [VCR] button on the remote control to change into VCR Mode and follow the procedure
below.
Call the player’s "SET P",
choose "VCR SET P", then "CLOCK SET".
1
Move to the position you want to change and type in the
new values.
Wait a few seconds after typing a one-digit number.
2
Store with [OK] button and exit with [SET P] button.
CLOCK SET
0-9:SETUP (HOUR)
/➝:CORRECT SETUP:END
TIME - - : - -
DATE - - / - - /- - - -
CLOCK SET
0-9:SETUP (HOUR)
/➝:CORRECT
OK:CONFIRM SETUP:END
TIME 06:05
DATE 07/08/2005(SUN)
Setting time and date
Setting time and date
➝
➝
All manuals and user guides at all-guides.com
all-guides.com

Basic Operation
2322
DVD Playback
Press [ ] button to power on.
Press [DVD] button of REMOTE to change into DVD mode.
Press [OPEN/CLOSE] button to open the disc tray.
Place a disc firmly on the disc tray, making its label look upward.
Insert the disc and press [OPEN/CLOSE] button to c ose the tray.
The disc tray is closed and after checking the disc’s condition, Playback or Stop
function starts to operate.
1
2
3
To p ayback it, press [PLAY/PAUSE] button.
• In the case of DVD,
DVD menus and titles are displayed on TV screen.
• In the case of S-VCD and VCD2.0
the menus are displayed on TV screen and it is converted into PBC(Playback
Control) mode.
• In the case of CD, VCD1.1 and MP3,
the disc plays.
4
To stop it, press [ ] button.
For pause, press [PLAY/PA SE] button in playback mode.
If you press this button once more, it starts playback again.
5
Press [OPEN/CLOSE] button to remove the disc.
6
Various P ayback Methods
■If you want fast forward (or reverse) p ayback, press [√√√√] or [œœœœ ]button in
Playback mode. You can watch fast playing (reverse ) screen.
* This reverse playback can be unavailable for certain DVD.
■If you want s ow (or reverse) p ayback, press [√√√√] or [œœœœ ] button in Pause mode.
You can watch the desired screen in the slow forward (reverse) playback.
* For the case of Video CD, this reverse slow playback function is unavailable.
The mark will appear.
■If you want still picture, press [PA SE] button in Playback mode. You can watch
the desired screen in Pause status.
VCR Playback
Press [ ] button to power on.
Press [VCR] button of remote control to change into VCR mode.
Insert the desired tape.
If you want to p ayback it, press [PLAY/PAUSE] button.
When the operational status is flickering or poor, adjust it with [TRACKING
+/-] button.
1
2
3
To stop it, press [ ] button.
For pause, press [PLAY/PA SE] button in playback mode.
If you press this button once more, it starts playback again.
4
Press [EJECT] button in the front part or [OPEN/CLOSE] button on remote
contro to remove the tape.
5
If the product, which
has a auto-detector,
detects a contaminated
head(s), it shows the
conditions to notice the
contamination on
screen.
Various P ayback Methods
■If you want fast forward (or reverse) p ayback, press [√√√√] or [œœœœ ] button in
Playback mode. You can watch fast playing (rewinding) screen.
* NOTE: You might see no color noise band when you fast forward (or reverse)
playback the tape which is recorded in LP mode.
■If you want Sti picture, press [PLAY/PA SE] in Playback mode. You can watch
the desired screen in pause status.
■If you want s ow-motion p ayback, press [√√√√] button in Pause mode. You can
watch the desired screen in the slow forward playback.
* NOTE: VCR doesn’t have Slow Reverse Pla back function.
■If you want to watch a series of screens one by one, (FRAME ADVANCE) press
[NEXT √√√√❚ ] button in Pause mode. Each time you press this button, the picture
advances one frame.
■If you press [REPLAY] button in p ayback mode, the player quickly rewinds 15
seconds of the tape and plays it.
■If you press [CM SKIP] button in p ayback mode, the player quickly skips 30
seconds of the tape and plays it.
To Adjust Disp ay
This product includes automatic Tracking function and enables users to enjoy clear
picture without an additional operation. Provided that the following problems can be
solved by the manual adjustment, which improves display quality. (During automatic
display adjustment, “Adjusting Display” are displayed on TV screen.)
- If the screen is poor in P ayback mode,
- If noises occur in the upper or ower part of screen in s ow p ayback mode,
-If paused picture vibrates up and down.
se [TRACKING +/-] buttons of remote control to adjust the display suitable for watching.
All manuals and user guides at all-guides.com

Basic Operation
24 25
1
1If you want to p ayback DVD during recording with video, insert a DVD disc.
Place the desired DVD disc on DVD tray, press [DVD] button to convert O TP T
into DVD mode and press [PLAY] button. Then, you can watch DVD.
2
2If you want to watch a TV channe during DVD recording with video, press
[VCR] button to convert OUTPUT into VCR mode and press [PR+/-] button.
Then , you can watch a TV channel.
Press [ ] button to power on.
• Press [VCR] button of remote control to change into VCR mode.
Insert a recordab e tape.
Insert a tape with recording tab.
With [CHANNEL], [NUMBER] and [INPUT] buttons, se ect the desired
broadcasting channe or externa input unit to record.
1
2
3
Se ect the desired speed (SP or LP) with [SPEED] button.
4
Press [REC] button.
Then, it starts recording.
5
If you want to pause recording, press [PAUSE] button.
After pressing [PA SE] button, if the pause status continues for five minutes,
the recording is released automatically.
6
To exit recording, press [STOP] button.
7

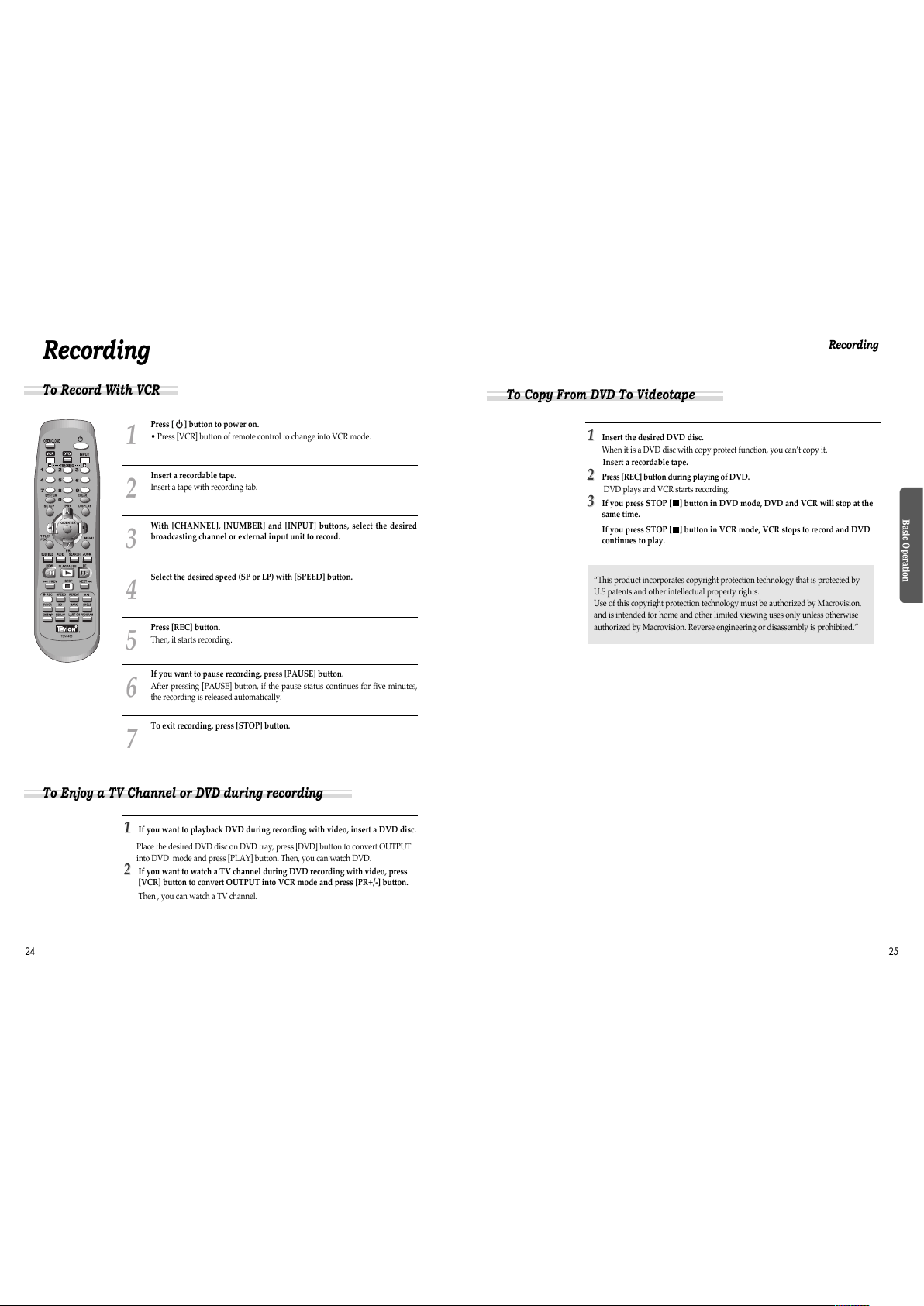

Recording
o Record With VCR
o Enjoy a V Channel or DVD during recording
Recording
“This product incorporates copyright protection technology that is protected by
.S patents and other intellectual property rights.
se of this copyright protection technology must be authorized by Macrovision,
and is intended for home and other limited viewing uses only unless otherwise
authorized by Macrovision. Reverse engineering or disassembly is prohibited.”
1
1Insert the desired DVD disc.
When it is a DVD disc with copy protect function, you can’t copy it.
Insert a recordab e tape.
2
2Press [REC] button during p aying of DVD.
DVD plays and VCR starts recording.
3
3If you press STOP [ ] button in DVD mode, DVD and VCR wi stop at the
same time.
If you press STOP [ ] button in VCR mode, VCR stops to record and DVD
continues to p ay.
o Copy From DVD o Videotape
All manuals and user guides at all-guides.com

VCR Operation
26 27
Recording
■When your urgent business happens suddenly in watching TV or you want to record the current TV
program for the desired time, follow the procedures below.
1
1First, fo ow the steps 1 to 4 in “Recording With VCR”.
2
2Press [REC] button as desired. See the “Recording Times Tab e” be ow.
Once continuous recording until you press STOP button
Twice recording for 30 mins from current time
3 (times) recording for 1 hour
21 recording for 10 hours
22 returning to the status of Once Press
3
3To stop Recording mode, press [STOP] button more than 5 seconds.
One ouch timer Recording (O R)
uning in New Stations
■The TV and player are switched on.
■To see the picture from your player, press the input or AV (Audio/Video) button on the TV.
To complete the set-up of your video recorder when the
auto set has not stored all of the channels or when you wish
to store a new channel.
Call the video’s "SET P", choose "PR PRESET".
1
Select "MAN AL SET".
2
Choose any unused location number "----" or "P-xx" ...
It's simplest to use the same location number on both the
TV and video.
... and confirm.
3
Set the station you want:
• the programme location number;
• the broadcast system you want (Aerial(CH) or
Cable(CC)),
• You can directly enter the real channel number with the
[0 to 9] buttons, or search by pressing [œœ /√√],
• The fine tuning you can adjust,
• Change or create the station name.
4
Once you see the station you want, store it.
Tune in further stations (from step 3 onwards) or exit
tuning mode.
5
PR PRESET
AUTO SEARCH
MANUAL SET
PR ERASE
PR ALIGN
PR+/-:SELECT
OK:CONFIRM SETUP:END
MANUAL SET
PR+/-: UP/DOWN
/➝: SELECT
OK:CONFIRM SETUP:END
MANUAL SET
PR01 P-01 PR08 P-08
PR02 P-02 PR09 P-09
PR03 P-03 PR10 P-10
PR04 P-04 PR11 P-11
PR05 P-05 PR12 ----
PR06 P-06 PR13 ----
PR07 P-07 PR14 ----
PR+/-:SELECT
OK:CONFIRM SETUP:END
PR 04
RECEPTION AERIAL
AUTOSEARCH CH
_ _
FINE TUNING
NAME
_ _ _ _
MANUAL SET
PR+/-: UP/DOWN
/➝: SELECT
OK:CONFIRM SETUP:END
PR 03
RECEPTION AERIAL
AUTOSEARCH CH 03
FINE TUNING
NAME
_ _ _ _
MANUAL SET
PR+/-: UP/DOWN
0/1: CHANGE/CREATE
OK:CONFIRM SETUP:END
PR 03
RECEPTION AERIAL
AUTOSEARCH CH
_ _
FINE TUNING
NAME
_ _ _ _
uning
➝
➝
All manuals and user guides at all-guides.com

VCR Operation
28 29
■If your player is showing no station name or is showing a station name incorrectly, you can correct
this.
Call this menu (just see the previous page),
if it isn't displayed.
Select NAME position.
Press the [0] button to change the given name.
Or press the [1] button to create the station name.
1
Either select the name from the stored list or you
create the station name and enter a 4-digit name.
Change the letters with the [PR +/–] buttons,
move to the next letter with the [œœ /√√ ] buttons.
2
Store and exit.
3
MANUAL SET
PR+/-:SELECT
OK:CONFIRM SETUP:END
PR01 P-01 PR08 P-08
PR02 P-02 PR09 P-09
PR03 P-03 PR10 P-10
PR04 P-04 PR11 P-11
PR05 P-05 PR12 ----
PR06 P-06 PR13 ----
PR07 P-07 PR14 ----
MANUAL SET
PR+/-: UP/DOWN
0/1: CHANGE/CREATE
OK:CONFIRM SETUP:END
PR 01
RECEPTION AERIAL
AUTOSEARCH CH01
FINE TUNING
NAME
_ _ _ _
MANUAL SET
PR+/-: SELECT CHARACTER
/➝: SELECT POSITION
OK:CONFIRM SETUP:END
PR 01
RECEPTION AERIAL
AUTOSEARCH CH
_ _
FINE TUNING
NAME O
_ _ _
If the location numbers used for programmes stored in your TV and player are different, you can change them on
the player. To do this, move the stations to the right numbers, until they are arranged the way you want.
1
1Call the player’s "SET P",
choose "PR PRESET" then "PR ALIGN".
2
2Select the programme to swap.
Confirm by pressing OK button.
Move the station to the desired location number.
Confirm by pressing OK button.
1
1Call the player’s "SET P",
choose "PR PRESET" then "PR ERASE".
2
2Select the station (location number) you want to clear.
Review the picture by pressing [œœ ] button.
Clear by pressing OK button.
PR ERASE
PR+/-:SELECT
:PR VIEW
OK:ERASE SETUP:END
PR ALIGN
PR+/-:ALIGN
:PR VIEW
OK:CONFIRM SETUP:END
PR01 P-01 PR08 P-08
PR02 P-02 PR09 P-09
PR03 P-03 PR10 P-10
PR04 P-04 PR11 P-11
PR05 P-05 PR12 ----
PR06 P-06 PR13 ----
PR07 P-07 PR14 ----
PR01 P-01 PR08 P-08
PR02 P-02 PR09 P-09
PR03 P-03 PR10 P-10
PR04 P-04 PR11 P-11
PR05 P-05 PR12 ----
PR06 P-06 PR13 ----
PR07 P-07 PR14 ----
uning in New Stations uning in New Stations
Station names Sorting programme locations
Clearing programme locations
➝
➝
➝
All manuals and user guides at all-guides.com

VCR Operation
30 31

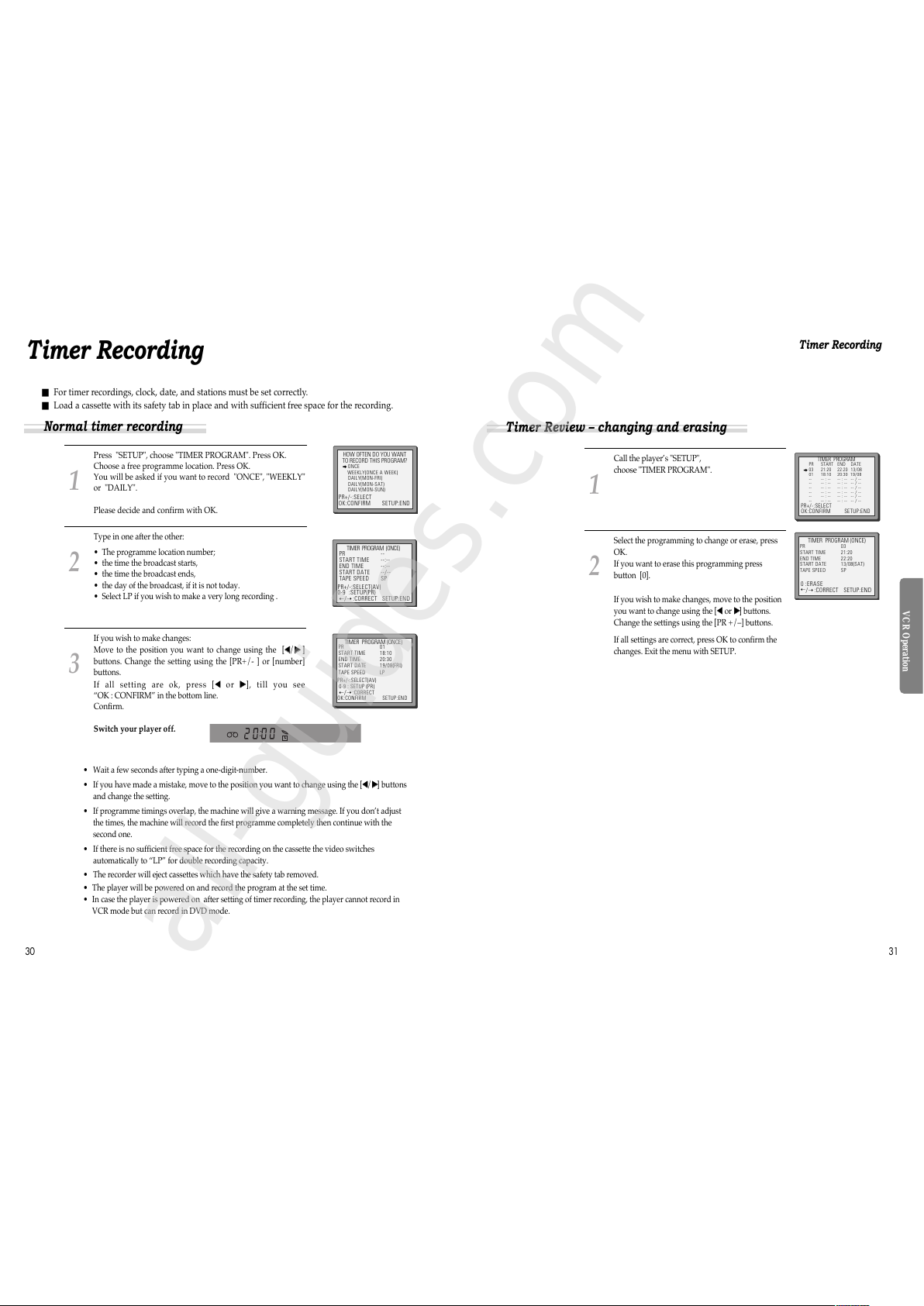

imer Recording
■For timer recordings, clock, date, and stations must be set correctly.
■Load a cassette with its safety tab in place and with sufficient free space for the recording.
Press "SET P", choose "TIMER PROGRAM". Press OK.
Choose a free programme location. Press OK.
You will be asked if you want to record "ONCE", "WEEKLY"
or "DAILY".
Please decide and confirm with OK.
1
Type in one after the other:
• The programme location number;
• the time the broadcast starts,
• the time the broadcast ends,
• the day of the broadcast, if it is not today.
• Select LP if you wish to make a very long recording .
2
If you wish to make changes:
Move to the position you want to change using the [
œœ
/
√√ ]
buttons. Change the setting using the [PR+/- ] or [number]
buttons.
If all setting are ok, press [
œœ
or √√], till you see
“OK : CONFIRM” in the bottom line.
Confirm.
3
Switch your p ayer off.
• Wait a few seconds after typing a one-digit-number.
• If you have made a mistake, move to the position you want to change using the [
œœ
/
√√] buttons
and change the setting.
• If programme timings overlap, the machine will give a warning message. If you don’t adjust
the times, the machine will record the first programme completely then continue with the
second one.
• If there is no sufficient free space for the recording on the cassette the video switches
automatically to “LP” for double recording capacity.
• The recorder will eject cassettes which have the safety tab removed.
• The player will be powered on and record the program at the set time.
• In case the player is powered on after setting of timer recording, the player cannot record in
VCR mode but can record in DVD mode.
PR+/-:SELECT(AV)
0-9 :SETUP(PR)
/➝:CORRECT SETUP:END
PR --
START TIME --:--
END TIME --:--
START DATE --/--
TAPE SPEED SP
TIMER PROGRAM (ONCE)
PR 01
START TIME 18:10
END TIME 20:30
START DATE 19/08(FRI)
TAPE SPEED LP
PR+/-:SELECT(AV)
0-9 : SETUP (PR)
/➝:CORRECT
OK:CONFIRM SETUP:END
TIMER PROGRAM (ONCE)
HOW OFTEN DO YOU WANT
TO RECORD THIS PROGRAM?
PR+/-:SELECT
OK:CONFIRM SETUP:END
ONCE
WEEKLY(ONCE A WEEK)
DAILY(MON-FRI)
DAILY(MON-SAT)
DAILY(MON-SUN)
Normal timer recording
imer Recording
Call the player’s "SET P",
choose "TIMER PROGRAM".
1
Select the programming to change or erase, press
OK.
If you want to erase this programming press
button [0].
If you wish to make changes, move to the position
you want to change using the [
œœ
or √√] buttons.
Change the settings using the [PR +/–] buttons.
If all settings are correct, press OK to confirm the
changes. Exit the menu with SET P.
2
TIMER PROGRAM
PR START END DATE
03 21:20 22:20 13/08
01 18:10 20:30 19/08
-- -- : -- -- : -- -- / --
-- -- : -- -- : -- -- / --
-- -- : -- -- : -- -- / --
-- -- : -- -- : -- -- / --
-- -- : -- -- : -- -- / --
-- -- : -- -- : -- -- / --
PR+/-:SELECT
OK:CONFIRM SETUP:END
TIMER PROGRAM (ONCE)
PR 03
START TIME 21:20
END TIME 22:20
START DATE 13/08(SAT)
TAPE SPEED SP
0 :ERASE
/➝:CORRECT SETUP:END
imer Review – changing and erasing
➝
➝
➝
All manuals and user guides at all-guides.com
all-guides.com

VCR Operation
32 33

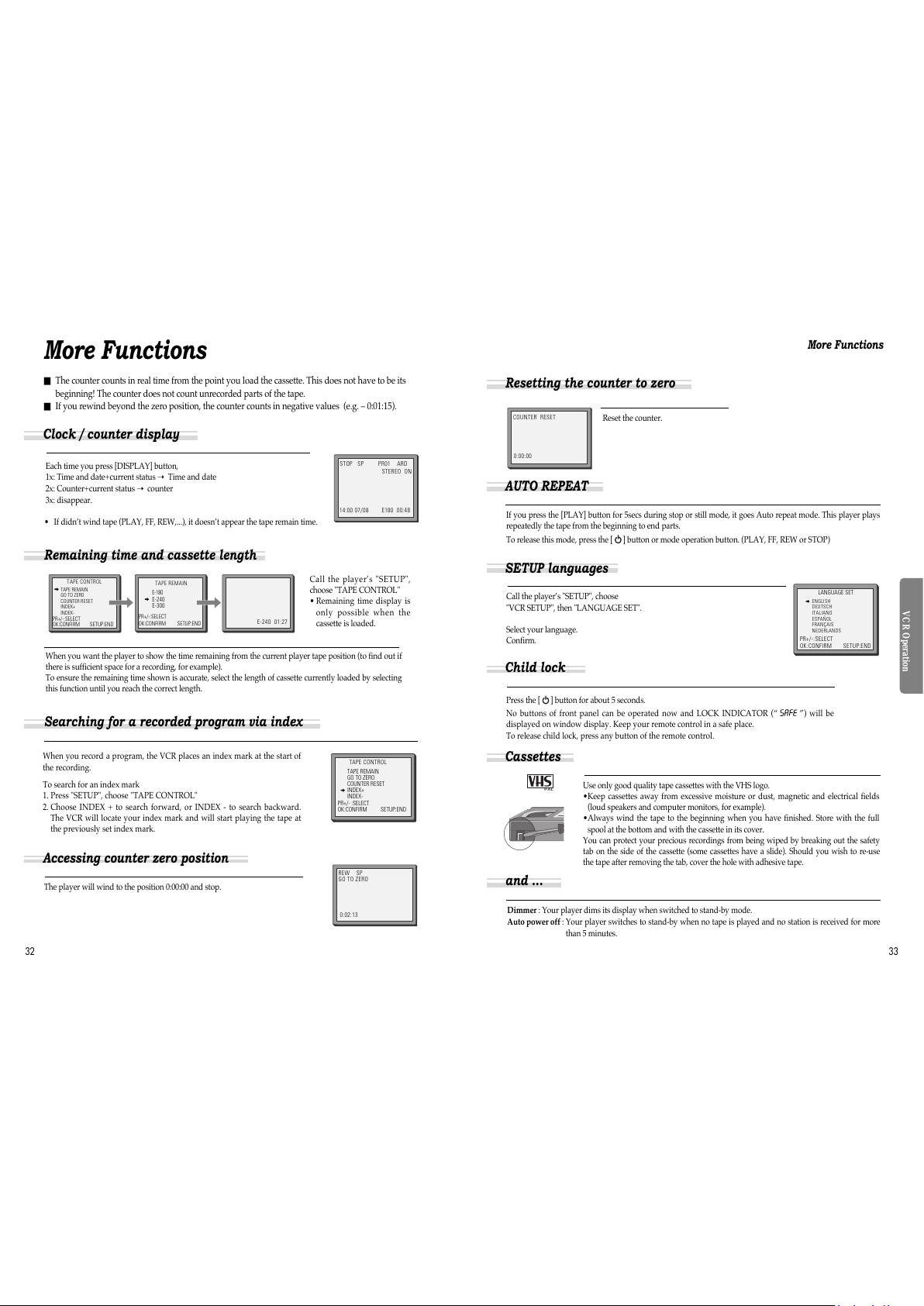

More Functions
■The counter counts in real time from the point you load the cassette. This does not have to be its
beginning! The counter does not count unrecorded parts of the tape.
■If you rewind beyond the zero position, the counter counts in negative values (e.g. – 0:01:15).
Each time you press [DISPLAY] button,
1x: Time and date+current status ➝ Time and date
2x: Counter+current status ➝ counter
3x: disappear.
• If didn’t wind tape (PLAY, FF, REW,...), it doesn’t appear the tape remain time.
STOP SP PR01 ARD
14:00 07/08 E180 00:48
STEREO ON
When you want the player to show the time remaining from the current player tape position (to find out if
there is sufficient space for a recording, for example).
To ensure the remaining time shown is accurate, select the length of cassette currently loaded by selecting
this function until you reach the correct length.
Call the player’s "SET P",
choose "TAPE CONTROL"
• Remaining time display is
only possible when the
cassette is loaded.
TAPE CONTROL TAPE REMAIN
E-240 01:27
TAPE REMAIN
GO TO ZERO
COUNTER RESET
INDEX+
INDEX-
E-180
E-240
E-300
PR+/-:SELECT
OK:CONFIRM SETUP:END
PR+/-:SELECT
OK:CONFIRM SETUP:END
When you record a program, the VCR places an index mark at the start of
the recording.
To search for an index mark
1. Press "SET P", choose "TAPE CONTROL"
2. Choose INDEX + to search forward, or INDEX - to search backward.
The VCR will locate your index mark and will start playing the tape at
the previously set index mark.
TAPE CONTROL
TAPE REMAIN
GO TO ZERO
COUNTER RESET
INDEX+
INDEX-
PR+/- :SELECT
OK:CONFIRM SETUP:END
Clock / counter display
Remaining time and cassette length
Searching for a recorded program via index
Reset the counter.
COUNTER RESET
0:00:00
If you press the [PLAY] button for 5secs during stop or still mode, it goes Auto repeat mode. This player plays
repeatedly the tape from the beginning to end parts.
To release this mode, press the [ ] button or mode operation button. (PLAY, FF, REW or STOP)
Call the player’s "SET P", choose
"VCR SET P", then "LANG AGE SET".
Select your language.
Confirm.
LANGUAGE SET
PR+/-:SELECT
OK:CONFIRM SETUP:END
More Functions
ENGLISH
DEUTSCH
ITALIANO
ESPAÑOL
FRANÇAIS
NEDERLANDS
Resetting the counter to zero
AU O REPEA
SE UP languages
The player will wind to the position 0:00:00 and stop.
REW SP
GO TO ZERO
0:02:13
Accessing counter zero position
Dimmer : Your player dims its display when switched to stand-by mode.
Auto power off : Your player switches to stand-by when no tape is played and no station is received for more
than 5 minutes.
Press the [ ] button for about 5 seconds.
No buttons of front panel can be operated now and LOCK INDICATOR (“ ”) will be
displayed on window display. Keep your remote control in a safe place.
To release child lock, press any button of the remote control.
se only good quality tape cassettes with the VHS logo.
•Keep cassettes away from excessive moisture or dust, magnetic and electrical fields
(loud speakers and computer monitors, for example).
•Always wind the tape to the beginning when you have finished. Store with the full
spool at the bottom and with the cassette in its cover.
You can protect your precious recordings from being wiped by breaking out the safety
tab on the side of the cassette (some cassettes have a slide). Should you wish to re-use
the tape after removing the tab, cover the hole with adhesive tape.
PAL
Cassettes
and ...
Child lock
All manuals and user guides at all-guides.com

VCR Operation
34 35
More Functions
■The player machine records the complete sound signal transmitted by the TV station.
■On the mono VCR, you will hear the normal mono sound.
In addition to the normal mono sound track of VHS video recorders, your player machine is equipped with a
high-quality Hi-Fi sound system.
This means you can enjoy
• films with excellent stereo sound
• films of full-length concerts in high quality stereo
• films with impressive Surround Sound using additional Surround equipment
• films with two dialogue modes (dual, bilingual), usually the original sound track and dubbed sound track
• VHS cassettes with Hi-Fi stereo sound and VHS cassette with normal sound
During Stop, the player displays what the current station is broadcasting. When
you switch to another station or the current station changes the sound mode, your
player displays the programme and sound mode on screen (if not, press A DIO).
• “STEREO” = stereo
“BIL I / BIL II ”=bilingual
nothing= monaural sound
During Playback, the player displays what is recorded on
the cassette (if not, press A DIO).
• “Hi-Fi” = stereo/bilingual
nothing = monaural sound
STOP SP PR10 EURO
STEREO ON
PLAY SP Hi-Fi
L+R
During a stereo performance (playback-”Hi-Fi”/ broadcast
- “STEREO”):
Hi-Fi stereo ➝ left audio channel only ➝ right channel
only ➝ the normal mono sound track of a Hi-Fi cassette
• During broadcasting a bilingual performance : Main
language (original sound track) ➝ sub-language
(dubbed) ➝ both main language and sub-language ➝
(OFF).
• For mono performances , there is no choice available.
PLAY SP Hi-Fi
L+R
HI-Fi
LEFT
Hi-Fi
RIGHT
Hi-Fi
OFF
he Hi-Fi system
What you can listen to
Choice of sound output
Connections and Copying
■If you are using a RCA cable, select the AV input on the TV to see the picture from the player.
■If you are not using a RCA cable, select the button number on the TV reserved for video input to
see the picture from the player.
If you are not using a RCA cable, your player can transmit pictures and sound to the TV via the coax aerial
cable. Just tune the TV to the player's transmitting channel (factory set to HF CH36). Tune the TV carefully to
ensure the best pictures and sound.
Once you have carried out the steps in "Connecting up your player
with RF lead" , switch on your TV.
Press the [ENTER] button of the player’s remote control longer than 5
seconds to call the player´s test picture.
Tune the TV to the test picture using the channel pre-set functions of
your TV as described in its manual.
When you have found the test picture, store it under the button
number on your TV for player input.
Press the [ENTER] button of the player’s remote control again longer
than 5 seconds to release the test picture.
1
• If the quality of the test picture transmitted to the TV is poor due
to interference caused by a station transmitting on channel 36,
you can tune the player to a different transmitting channel.
Find a free channel between 27 and 69 on your TV.
Call the player’s "SET P" choose "VCR SET P" then
"RF O TP T SET".
Type in the free channel.
Store and exit.
2
• If the quality of the test picture transmitted to the TV is poor, fine-tuning on the TV may
help (refer to the TV manual).
• Without a RCA cable, you will not get stereo sound from a TV capable of stereo sound.
RF OUTPUT SET
0-9:SELECT (27-69)
OK:CONFIRM SETUP:END
CH 36
o the V via antenna cable (if you are not using a RCA cable)
STOP SP PR10 EURO
BIL
I
BIL
II
BIL
I+II
All manuals and user guides at all-guides.com

36 37
Connections and Copying
Should you wish to assemble your own film, from camcorder footage for example, use the assembly technique
for smooth edit points:
• The symbol is lit in VCR mode and goes out in TV
mode.
• This symbol means the cassette is in.
• This symbol means a timer recording is setting.
For the best results, the source cassette from which
you are recording should already be playing back
when you start recording.
Assembling
To move to next chapter (or track), press [ √√❚ NEXT] button.
The current chapter (or track) moves to the next chapter (or track).
Press [ ❚œœ PREV] button.
The current scene moves to the previous chapter (or track) or first scene of current
chapter (or track).
Press the [TITLE/PBC] or [MENU] button.
A list of the titles on the disc is displayed.
* For the case of VCD disc, menu screen will
appear only when the disc has PBC function
and PBC ON is activated.
1
Press the [ENTER] button or [PLAY] button
after pressing the [ œ √…† ] button to se ect
the desired tit e.
For the case of VCD disc, press the [Number]
button.
The selected title now starts playing.
2
■ Some movie discs may contain multiple titles. If the disc has a movie title menu recorded on it, the [TITLE/PBC] or
[MEN ] button can be used to select the movie title. Details of operation may differ depending on the disc used.
* Selecting a title ma not be available on certain DVD discs.
Playing a desired scene
o skip scenes in a disc
Directly moving to a desired title
DVD Operation
All manuals and user guides at all-guides.com

DVD Operation
38 39
■You may repeat a defined period from A to B.
A MP3 disc ma
not be repeated
from A to B.
At the point where you want to start the repeat
p ayback, press [A-B] button.
The right figure appears and repeat playback start
position (A) is set.
1
At the point where you want to end the repeat
p ayback, press [A-B] button again.
The repeat playback end position (B) is set and a
defined period from A to B is playback repeatedly.
2
To exit from repeat p ayback mode, press [A-B]
button.
It enters into Normal Playback mode.
3
• CHAPTER : Current chapter will play repeatedly.
• TITLE : Current title will play repeatedly.
• TRACK : Current track will play repeatedly.
• ALL : Current disc will play repeatedly.
• Repeat one : Current file will play repeatedly.
• Repeat all : All files on the disc will play repeatedly.
• Random : Tracks on the disc will play in random order.
• OFF : Repeat playback will be cancelled.
* For the case of VCD disc, repeat playback starts only in PBC OFF mode.
- DVD -
CHAPTER
TITLE
OFF
➝➝
➝
- VCD -
TRACK
ALL
OFF
➝➝
➝
- CD/MP3 -
Repeat one
Repeat all
Random
➝➝
OFF
➝
➝
Each time you press [REPEAT] button in playback mode, repeat playback starts as below.
A-
A-B
OFF
Playing desired scene
Repeating a defined period
Repeating a defined period from A to B
Playing desired scene
If you want to search with a tit e number, press
[SEARCH] button one time.
It shows current and total title numbers. Please enter
the new title number to be searched using the
[N MBER] buttons.
1
If you want to search with a time, press
[SEARCH] button three times.
Please enter the new time to be searched using the
[N MBER] buttons.
In comp eting entering, p ease press [ENTER]
button.
PLAY starts from the selected position.
3
If you want to search with a chapter number,
press [SEARCH] button twice.
It shows current and total chapter numbers.
Please enter the new chapter number to be searched
using the [N MBER] buttons.
2
001/003
➟
total title
number
➟
current title
number
001/023
➟
total chapter
number
➟
current chapter
number
01:03:20
➟
current time
Searching DVD with a title number, a chapter number or a time
