Texim Europe Matrix 605 User manual

Overview
Matrix 605 is a WinCE ready, ARM9-based embedded comput-
er. Its lower power and robust design concept makes it an ideal
industrial computer platform for harsh environment. The
WinCE 6.0 OS is pre-installed in the on-board Flash memory
and the SDK for Microsoft Visual Studio 2005 coming with
Matrix 605 CD is ready for your application development.
Features
1. Atmel AT91SAM9G45 400MHz SoC
2. 32-KByte Data Cache and 32-KByte Instruction Cache
3. 128MB DDR2 SDRAM, 128MB NAND Flash on board
4. Two independent 10/100 Mbps Ethernet
5. Two USB 2.0 high speed (480 Mbps) Host Ports
6. One software configurable RS-232/422/485 port and three
RS-232/485 ports
7. microSD socket (open upper case)
8. Serial console (open upper case)
9. 9 to 48VDC power input
10. Pre-installed WinCE 6.0 and file system
11. SDK available in Artila CD
12. Supporting WinCE Remote Display Control
13. Optional DIN RAIL mounting adaptor
Packing List
Matrix 605 is shipped with following items
1. Matrix 605
2. Artila CD includes SDK, Installation guide and
Remote Display Control software and example programs
Optional Accessory
1. CB-RJ45F9-150: RJ45 to DB9 Female Cable
2. CB-RJ2CON-100: Serial Console Cable
3. DK-35A: DIN RAIL Mounting Kit
4. PWR-12V-1A: 110~240VAC to 12VDC 1A Power Adap-
tor
Matrix 605 Layout
Matrix 605 Quick Installation Guide
USB Port
The USB port is an USB2.0 full speed host port. It can be used
to expand the storage of Matrix 605. USB client can work with
ActiveSync to exchange file and data between PC and Matrix
605
Reset Button
Press the “Reset” button to activate the hardware reset. Please
always use “reboot” command to reset Matrix 605. You should
only use this function if the software reboot does not function
properly.
Ready LED
After Power ON, Matrix 605 starts booting. Once system is
boot up, the Ready LED will show solid green.
LAN1/LAN2 LED
When Ethernet port are connected to the network, LAN1 or
LAN2 will show solid green and if there is traffic in the Ether-
net, this LED will flash
Serial Port LED
These four dual color LEDs indicate the data traffic at the seri-
al ports. When RXD line is high then Green light is ON and
when TXD line is high, Yellow light is ON.
LAN1
USB2.0 Host x2
Reset
9-48VDC Power
LAN2
P1/P2/P3/P4
Serial Ports
Rev. 1.0
USB client
Serial console
MicroSD socket
Open the upper case
to access it

Serial Port
The four serial ports can be configured as RS-232, RS-422 or RS-
485 by software. They use RJ45 connector and the pin assign-
ment are shown as following table.
Port 1: RS-232/422/485
RS-232: RXD,TXD,RTS,CTS,DSR,DTR,DCD,GND
RS-422: TXD+, TXD-,RXD+,RXD-,GND
RS-485: DATA+,DATA-,GND
Port 2/3/4:
RS-232: RXD,TXD,RTS,CTS,GND
RS-485: DATA+, DATA-, GND
Serial Console Port: (JP1)
Serial console port is used for locally accessing Matrix-605 sys-
tem using RS-232 port. The console port is located inside the box
and close to battery. It is a four-pin wafer box header. User can
order wafer console cable to access the serial console port.
Port 0: RS-232:RXD,TXD,GND
Therefore you need to open the upper metal case and prepare or
purchase a serial console cable to use the serial console port .
Power Connector
Connect the 9 to 48VDC power line to Matrix 605. If the
power is properly supply.
Ethernet Port
The Ethernet Ports use RJ45 connector
+
-
Initial Table:
WinCE uses initial table to decide the order of program/
service to start after power on. You can use init command to
configure the initial table as follow:
Number 70 is Artila Manager and Number 71 is WinCE re-
mote display control.
Power on and System boot up
Once Matrix-605 is correctly power on, you can see the mes-
sage prompt from the serial console port. The system starts
from the initial table and a batch file,autoexec.bat which is
located at \NandFlash will follow up. Therefore user can edit
the autoexec.bat file or init table for your auto run program.
To skip the autoexec.bat, please repeatedly key $ (shift+4)
right after system boot up.
Factory Default Settings
LAN 1:
IP setting: DHCP
LAN 2:
IP Address: 192.168.2.127
Serial Console Port:
Baud rate: 115200
Data format: 8 Bits, No Parity, 1 Stop bit (N,8,1)
Flow Control: None
Terminal type: VT100
Serial Console
TxD
RxD
VCC3
GND
1
2
3
4

Network Settings Telnet Configuration
Telnet is enabled without authentication as factory default. To
disable or add authentication, please use command telnetdcfg as
follow:
File System
User programs and files should be saved at NandFlash. The other
folders are saved as RAMDisk therefore do not save your data to
them. Under NandFlash, you will find www folder and autoex-
ec.bat file. Www is for web page and autoexec.bat is for auto run
program. If you have a USB disk plugged in Matrix-604, you will
find a new folder Hard Disk available.
To configure the network setting by serial console, you can use
command ifconfig as followed. To check current network con-
figuration, you can use command ipconfig
User Account Manager
To create user group and account, you can use command
usrmgr. After user’s account and password are created, user can
add authentication in telnet and ftp function by using telnetdcfg
and ftpdcfg.
FTP Configuration
FTP is enabled without authentication as factory default. To disa-
ble or add authentication, please use command ftpdcfg as follow:
Serial Ports Configuration
The serial port of Matrix-604 is mapped as followed
COM1=> Matrix-605 Port 1 (RS-232/422/485)
COM2=> Matrix-605 Port 2 (RS-232/485)
COM3=> Matrix-605 Port 3 (RS-232/485)
COM4=> Matrix-605 Port 4 (RS-232/485)
To configure serial port settings, please use command setuart as
follow:

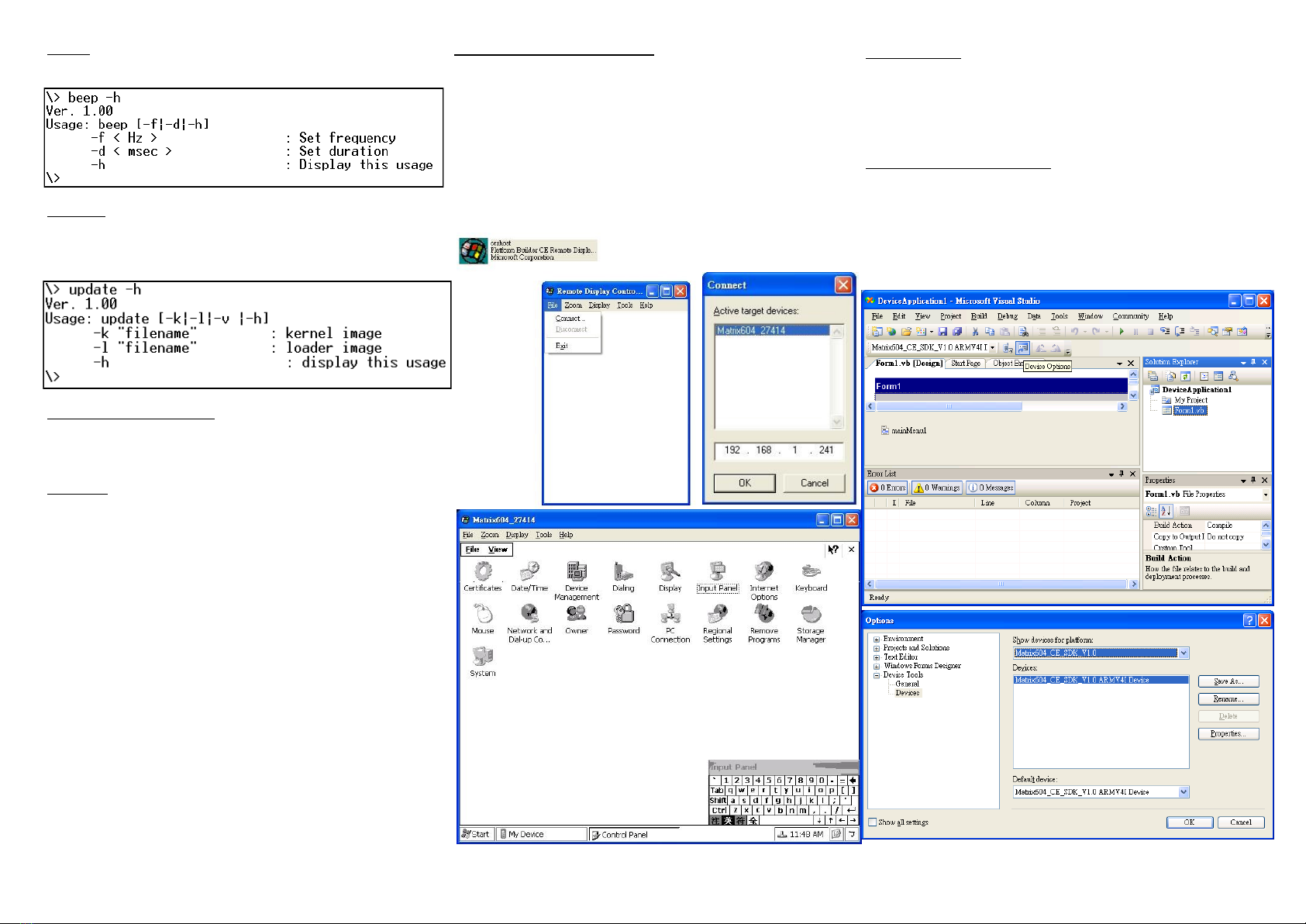

Beep
Beep command will beep the buzzer as follow.
Web Page Directory
The web pages are placed at /NandFlash/www and the home
page name should be index.htm
Remote Display Control
Matrix 605 comes with WinCE remote display control soft-
ware. You can find this software in Artila CD at
\tool\cerhost.exe. Choose connect to find and connect Matrix-
605 and ok to connect it. You can also enter the IP address of
Matrix-605 to connect it.
update
update command is used to update the kernel and loader of
WinCE 6.0. Current version of WinCE is available in Artila
Reboot
Reboot command is used to reboot the system.
ActiveSync
Matrix-605 supports Microsoft ActiveSync via USB client.
You can download ActiveSync from Microsoft web server.
ActiveSync provides an easy way to transfer files between PC
and Matrix-605.
Install Matrix604 SDK
Matrix-605 WinCE 6.0 SDK is located at Artila CD\SDK fold-
er. You need to install Microsoft Studio 2005 before installing
Matrix604 SDK.
Choose Matrix605_CE_SDK for the smart device application
and click the device option.

Install USB WLAN dongle
Matrix-605 supports USB WLAN dongle which uses Ralink RT2870 Wireless LAN controller. While plug in USB WLAN dongle, you will see the new USB device detected.
Follow the screen 1,2,3 to configure the Wireless LAN.
Screen 1
Screen 2
Screen 3
