Texim Europe ACP-5187 User manual

Multi-Touch Panel PC ACP-5187
ACP-5187
18.5” Intel®CoreTM i7/
CoreTM i5/ Celeron Processor
High Brightness
Fanless Multi-Touch Panel PC
ACP-5187 Manual 1st Ed
July 2013

Multi-Touch Panel PC ACP-5187
i
Copyright Notice
This document is copyrighted, 2013. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in this
manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, nor for
any infringements upon the rights of third parties, which may result
from its use.
The material in this document is for product information only and is
subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its
accuracy, AAEON, assumes no liabilities resulting from errors or
omissions in this document, or from the use of the information
contained herein.
AAEON reserves the right to make changes in the product design
without notice to its users.

Multi-Touch Panel PC ACP-5187
ii
Acknowledgments
Intel®, CoreTM are registered trademarks of Intel®Corporation.
Microsoft®Windows is a registered trademark of Microsoft®
Corporation.
RTL is a trademark of Realtek Semi-Conductor Co., Ltd.
C&T is a trademark of Chips and Technologies, Inc.
UMC is a trademark of United Microelectronics Corporation.
ITE is a trademark of Integrated Technology Express, Inc.
All other product names or trademarks are properties of their
respective owners.

Multi-Touch Panel PC ACP-5187
iii
Packing List
Before you begin installing your Panel PC, please make sure
that the following items have been shipped:
ACP-5187 Infotainment Multi-Touch Panel PC
Power Adapter x 1
Product DVD
Contains User’s Manual (in PDF format), Drivers and
Utilities
If any of these items are missing or damaged, you should contact your
distributor or sales representative immediately.

Multi-Touch Panel PC ACP-5187
iv
Safety & Warranty
1. Read these safety instructions carefully.
2. Keep this user's manual for later reference.
3. Disconnect this equipment from anyAC outlet before cleaning. Do
not use liquid or spray detergents for cleaning. Use a damp cloth.
4. For pluggable equipment, the power outlet must be installed near
the equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation.
Dropping it or letting it fall could cause damage.
7. The openings on the enclosure are for air convection. Protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before
connecting the equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not
place anything over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the
power source to avoid damage by transient over-voltage.
12. Never pour any liquid into an opening. This could cause fire or
electrical shock.
13. Never open the equipment. For safety reasons, only qualified
service personnel should open the equipment.

Multi-Touch Panel PC ACP-5187
v
14. If any of the following situations arises, get the equipment
checked by service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to
work according to the user’s manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
15. DO NOT LEAVE THIS EQUIPMENT IN AN UNCONTROLLED
ENVIRONMENT WHERE THE STORAGE TEMPERATURE IS
BELOW -20° C (-4°F) OR ABOVE 60° C (140° F). IT MAY
DAMAGE THE EQUIPMENT.
16. External equipment intended for connection to signal input/output
or other connectors, shall comply with relevant UL / IEC standard
(e.g. UL 1950 for IT equipment and UL 60601-1 / IEC 60601 series
for systems – shall comply with the standard IEC 60601-1-1,
Safety requirements for medical electrical systems. Equipment
not complying with UL 60601-1 shall be kept outside the patient
environment, as defined in the standard.
17. When the temperature of CPU is higher than 35°C, the frequency
of CPU will be adjusted automatically. For example, if the
temperature of Intel Core i7 is 40°C, the frequency of the CPU will
be between 1.8~1.3 GHz.
Caution:
It may cause the danger of explosion if battery is incorrectly
replaced. Replace only with same or equivalent type
recommended by the manufacturer.

Multi-Touch Panel PC ACP-5187
vi
Classification
1. Degree of production against electric shock: not classified
2. Degree of protection against the ingress of water: IPX1
3. Equipment not suitable for use in the presence of a flammable
anesthetic mixture with air or with oxygen or nitrous oxide.
4. Mode of operation: Continuous
5. Type of protection against electric shock: Class I equipment

Multi-Touch Panel PC ACP-5187
vii
FCC
This device complies with Part 15 FCC Rules.
Operation is subject to the following two
conditions: (1) this device may not cause
harmful interference, and (2) this device
must accept any interference received
including interference that may cause
undesired operation.

Multi-Touch Panel PC ACP-5187
viii
UL Module Description
ACP-5187 AC modules are developed to
suitable for the Classification Mark
requirement

Multi-Touch Panel PC ACP-5187
ix

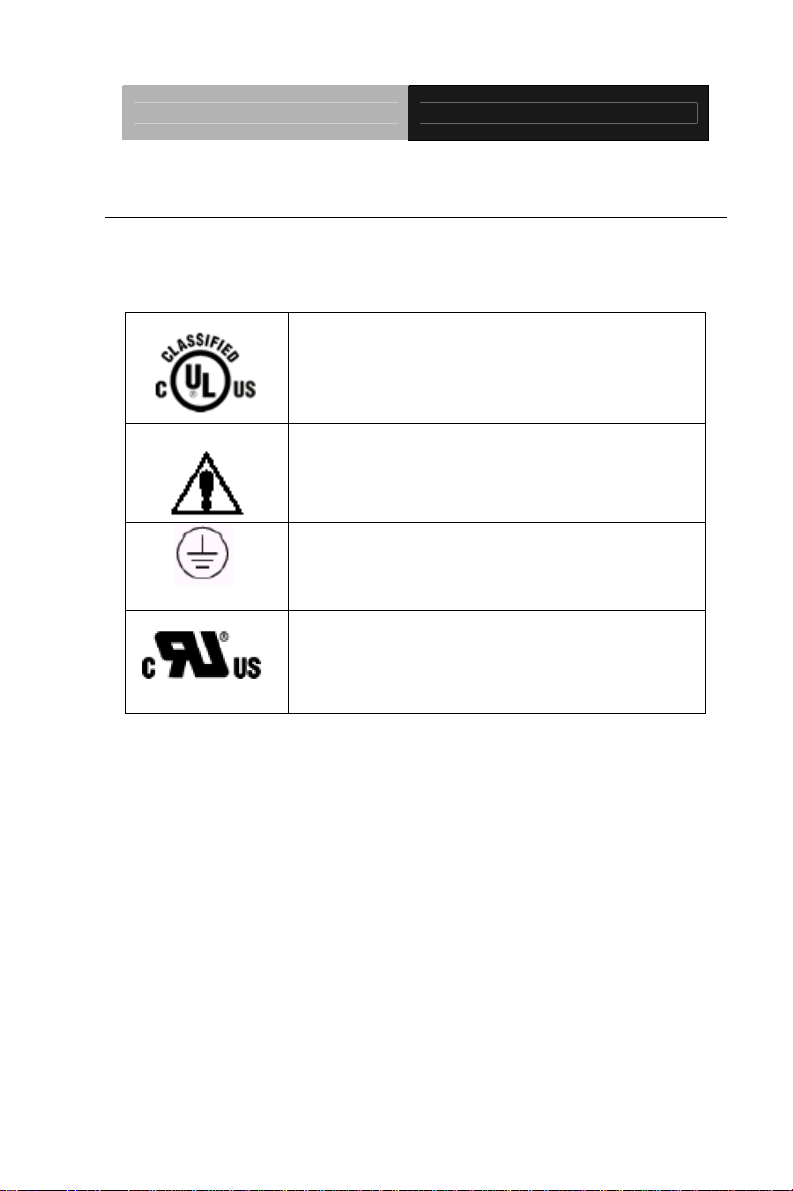

Safety Symbol Description
The following safety symbols are further explanations for your
reference.
Medical equipment with respect to electric
shock, fire and mechanical hazards only in
accordance with UL 60601-1, and
CAN/CSA C22.2 NO. 601.1
Attention, consult ACCOMPANYING
DOCUMENTS.
Ground wire
Protective Ground wire.
Medical equipment with respect to electric
shock, fire and mechanical hazards only in
accordance with UL 60601-1, and
CAN/CSA C22.2 NO. 601.1

Multi-Touch Panel PC ACP-5187
x
Below Table for China RoHS Requirements
产品中有毒有害物质或元素名称及含量
AAEON Panel PC/ Workstation
有毒有害物质或元素
部件名称 铅
(Pb)
汞
(Hg)
镉
(Cd)
六价铬
(Cr(VI))
多溴联苯
(PBB)
多溴二苯醚
(PBDE)
印刷电路板
及其电子组件 ×○○○○○
外部信号
连接器及线材 ×○○○○○
外壳 ×○○○○○
中央处理器
与内存 ×○○○○○
硬盘 ×○○○○○
液晶模块 ×○○○○○
光驱 ×○○○○○
触控模块 ×○○○○○
电源 ×○○○○○
O：表示该有毒有害物质在该部件所有均质材料中的含量均在
SJ/T 11363-2006 标准规定的限量要求以下。
X：表示该有毒有害物质至少在该部件的某一均质材料中的含量超出
SJ/T 11363-2006 标准规定的限量要求。
备注：
一、此产品所标示之环保使用期限，系指在一般正常使用状况下。
二、上述部件物质中央处理器、内存、硬盘、光驱、触控模块为选购品。

Multi-Touch Panel PC ACP-5187
xi
Contents
Chapter 1 General Information
1.1 Introduction................................................................1-2
1.2 Features....................................................................1-3
1.3 Specification..............................................................1-4
1.4 General Information...................................................1-7
Chapter 2 Hardware Installation
2.1 Safety Precautions....................................................2-2
2.2 COM2 Pin8 Function Selection (JP8) .......................2-3
2.3 Clear CMOS (JP11) ..................................................2-3
2.4 COM Port 2 Connector (CN11).................................2-3
2.5 COM Port 1 (D-SUB 9) (CN27).................................2-5
2.6 A Quick Tour of the ACP-5187..................................2-6
2.7 2.5” Hard Disk Drive (HDD) Installation ....................2-9
Chapter 3 AMI BIOS Setup
3.1 System Test and Initialization . ................................. 3-2
3.2 AMI BIOS Setup........................................................3-3
Chapter 4 Driver Installation
4.1 Installation.................................................................4-3
Appendix A Programming the Watchdog Timer
A.1 Programming .........................................................A-2
A.2 ITE8728F Watchdog Timer Initial Program...........A-6

Multi-Touch Panel PC ACP-5187
xii
Appendix B I/O Information
B.1 I/O Address Map....................................................B-2
B.2 Memory Address Map............................................B-4
B.3 IRQ Mapping Chart ..............................................B-5
B.4 DMA Channel Assignments...................................B-5
Appendix C Miscellanea
C.1 General Cleaning Tips.......................................... C-2
C.2 Cleaning Tools...................................................... C-3
C.3 Scrap Computer Recycling ................................. C-5
C.4 Installing Accessories........................................... C-6
Appendix D RAID & AHCI Settings
D.1 Setting RAID......................................................... D-2
D.2 Setting AHCI......................................................... D-9

Multi-Touch Panel PC ACP-5187
Chapter 1 General Information 1-1
General
Chapter
1
Information

Multi-Touch Panel PC ACP-5187
Chapter 1 General Information 1-2
1.1 Introduction
The ACP-5187 is a Multi-Touch Infotainment Panel PC with
superior onboard Intel®Core™ i7/i5 processor-based computer. It
is a PC-based system with 18.5” true color TFT LCD display,
integrated multimedia functions make them the perfect platforms to
build comprehensive lifestyle computing applications.
The ACP-5187 includes all the features of a powerful computer into
a slim and attractive chassis. The ACP-5187 has 300 nits TFT
display with 1366 x 768 resolution. This model equips two-point
Multi-Touch Window design and is easy to clean. Moreover, it is
IPX1 100% water-proof that can be installed in harsh environments.
Its front bezel is IP-65/NEMA4 for auxiliary water-proof protection.
In addition, the ACP-5187 deploys 7H hardness Anti-Scratch
Surface to avoid accidental damage.
The ACP-5187 supports one 2.5” SATA Hard Disk Drive and one
CFast™ slot for the storage functions, and one Mini-Card
expansion. Moreover, it supports Smart Card Reader, RFID, MSR,
Bluetooth, Skype phone, and camera to fulfill the demands of
versatile applications.

Multi-Touch Panel PC ACP-5187
Chapter 1 General Information 1-3
1.2 Features
18.5” WXGA (1366 x 768) Fanless TFT LCD Display
Easy-To-Clean: Multi-Touch Window Design (Two-Point)
Superior Intel®Core™ i7-3610QE/ Core™ i5-3510ME/
Celeron 1020E Processor
IPx1 100% Water-Proof from the Top Plastic Housing
Anti-Scratch Surface (7H Hardness)
IP65 WebCam (Optional)
USB x 6, COM x 1. DVI-I x 1, LAN x 2, Mini PCIe Card x 1
Front Access LCD ON/OFF, Brightness UP/DOWN, Volume
UP/DOWN

Multi-Touch Panel PC ACP-5187
Chapter 1 General Information 1-4
1.3 Specification
System
Processor Onboard Intel®Corei7/ Corei5 /
Celeron CoreProcessor
System Memory DDR3 SODIMM x 1, Max. 8 GB (Default
2GB)
LCD / CRT Controller Integrated graphics in Intel®QM77
I/O Port USB x 6 (USB2.0 x 2 on side; USB2.0 x
2 and USB3.0 x 2 on bottom)
RS-232 x 1
LAN x 2
Line-out x 1
DVI-I x 1
Power input x 1
2W speaker x 2
ATX power button
Storage Disk Drive 2.5” SATA Hard Disk Drive bay x 1;
CFast™ slot x 1
Expansion Mini PCIe Card x 1
OS Support Windows®XP (T/S: Single point), Linux
Fedora (T/S: Multi-point), Windows®7
(T/S: Multi-point), Windows®8

Multi-Touch Panel PC ACP-5187
Chapter 1 General Information 1-5
Mechanical
Construction IP-65/ NEMA4 for front bezel, IPX1 from
the top plastic housing
Mounting VESA 100
Dimension 18.11”(W) x 12.2”(H) x 3.39”(D) (460mm
x 310mm x 86mm)
Carton Dimension 26” x 8.11” x 19.53’’ (661mm x 206mm x
496mm)
Net Weight 15.4 lb (7 kg)
Gross Weight 19.8 lb (9 kg)
Environmental
Operating Temperature 32oF~104oF (0oC~40oC) (Ambient With
Airflow)
Storage Temperature -4oF~158oF (-20oC~70oC)
Storage Humidity 5%~90% @ 40oC, non-condensing
Vibration 1 g rms/ 5-500Hz/ Random Operation
(HDD)
Shock 20 G peak acceleration (11 msec.
duration) (HDD)
EMC CE/FCC Class A
Power Supply
DC Input 84W DC 12V, with AC power adapter with
lock

Multi-Touch Panel PC ACP-5187
Chapter 1 General Information 1-6
LCD
Display Type 18.5” TFT-LCD, CCFL
Max. Resolution 1366 x 768
Max. Colors 16.7 M colors (6/8-bit for R, G, B)
Luminance (cd/m2)300 cd/m2
Contrast Ratio 1000:1
Viewing Angle 85º (H), 80º (V)
Backlight MTBF (Hours) 50,000
Touchscreen
Type Projected Capacitive Multi-Touch (Two
points)
Resolution 2048x2048
Light Transmission >90%

Multi-Touch Panel PC ACP-5187
Chapter 1 General Information 1-7

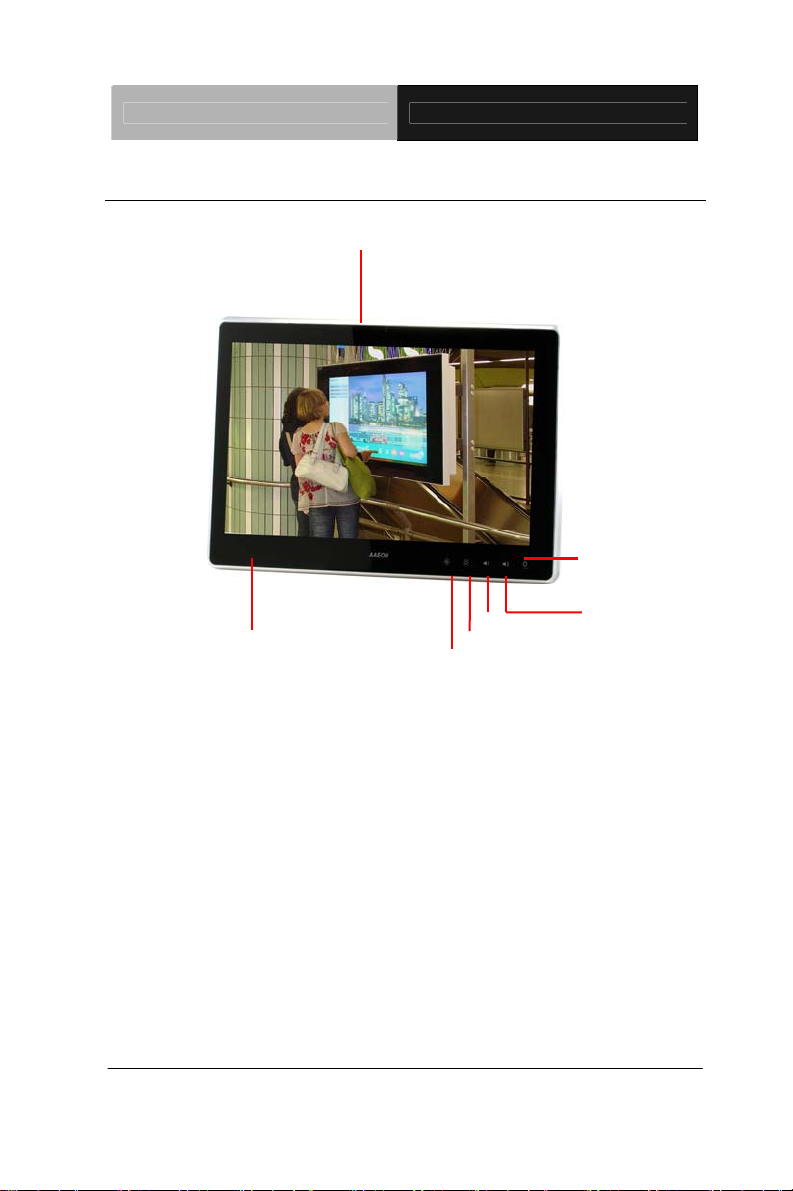

1.4 General Information
1.3M Camera (Optional)
LCD On/Off
RFID (Optional) Brightness-
Volume- Volume+
Brightness+
