TEXIO LSG-175 Owner's manual

Front cover
PROGRAMMING MANUAL
ELECTRONIC LOAD
LSG SERIES
LSG-175HLSG-350H LSG-1050H
LSG-175 LSG-350 LSG-1050
B71-0490-01

■About a trademark, a registered trademark
A company name and the brand name mentioned in this instruction
manual are the trademark or the registered trademark of each
company or group in each country and region.
■About this instruction manual
When copying the part or all of contents of this instruction manual, seek
the copyright holder.
In addition, the specifications of the product and the contents of this
instruction manual are subject to change without notice for
improvement. Please check to our website for the latest version.

CONTENTS
1. INTERFACE OVERVIEW ........................................................ 1

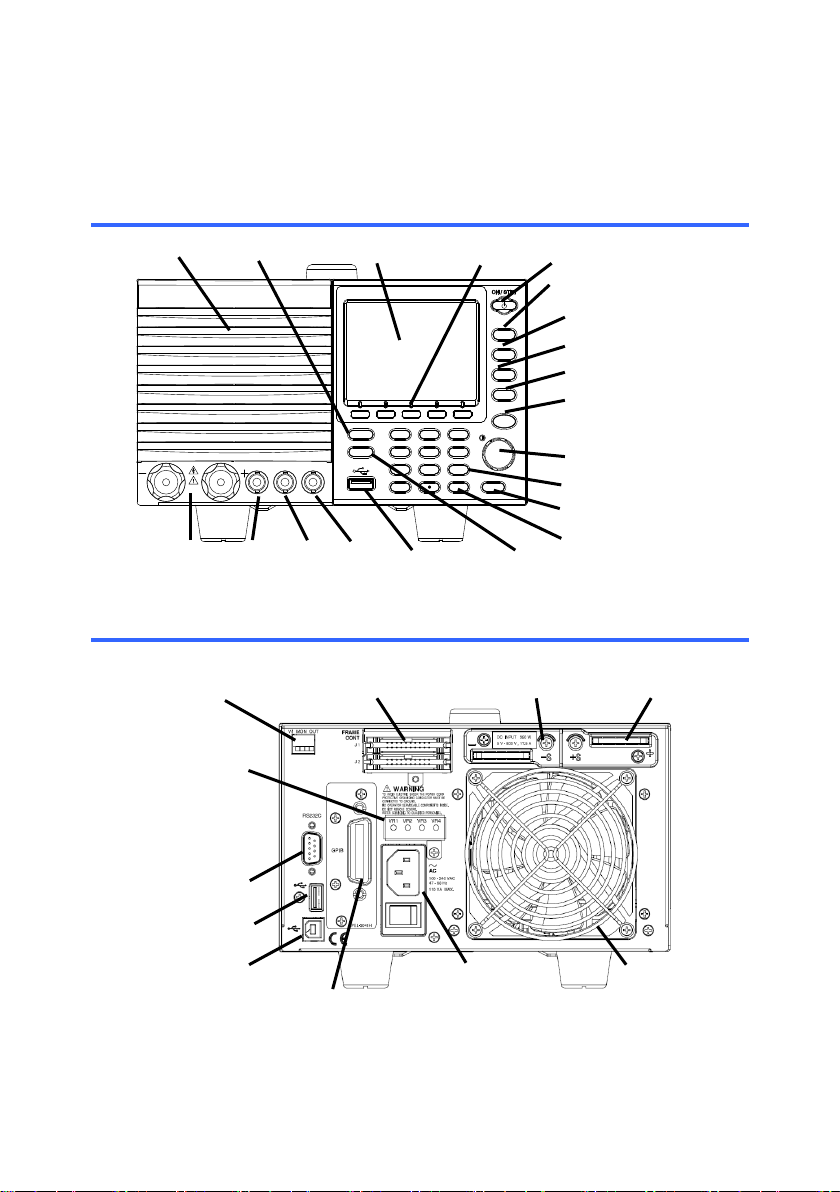

1-1. Front Panel Overview....................................................... 1
1-2. Rear Panel Overview ....................................................... 1
2. INTERFACE Configure ........................................................... 2

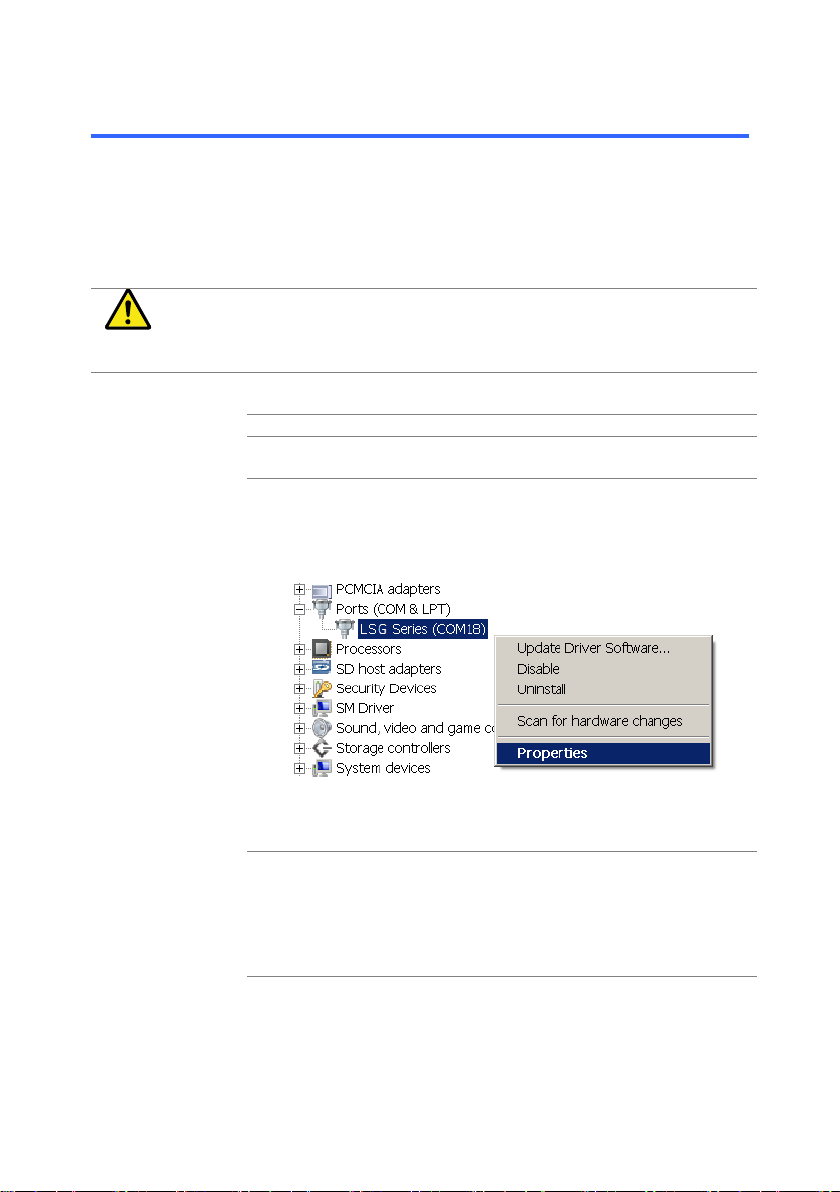

2-1. Configuring the USB Interface .......................................... 2
2-2. Configuring the RS-232C Interface................................... 2

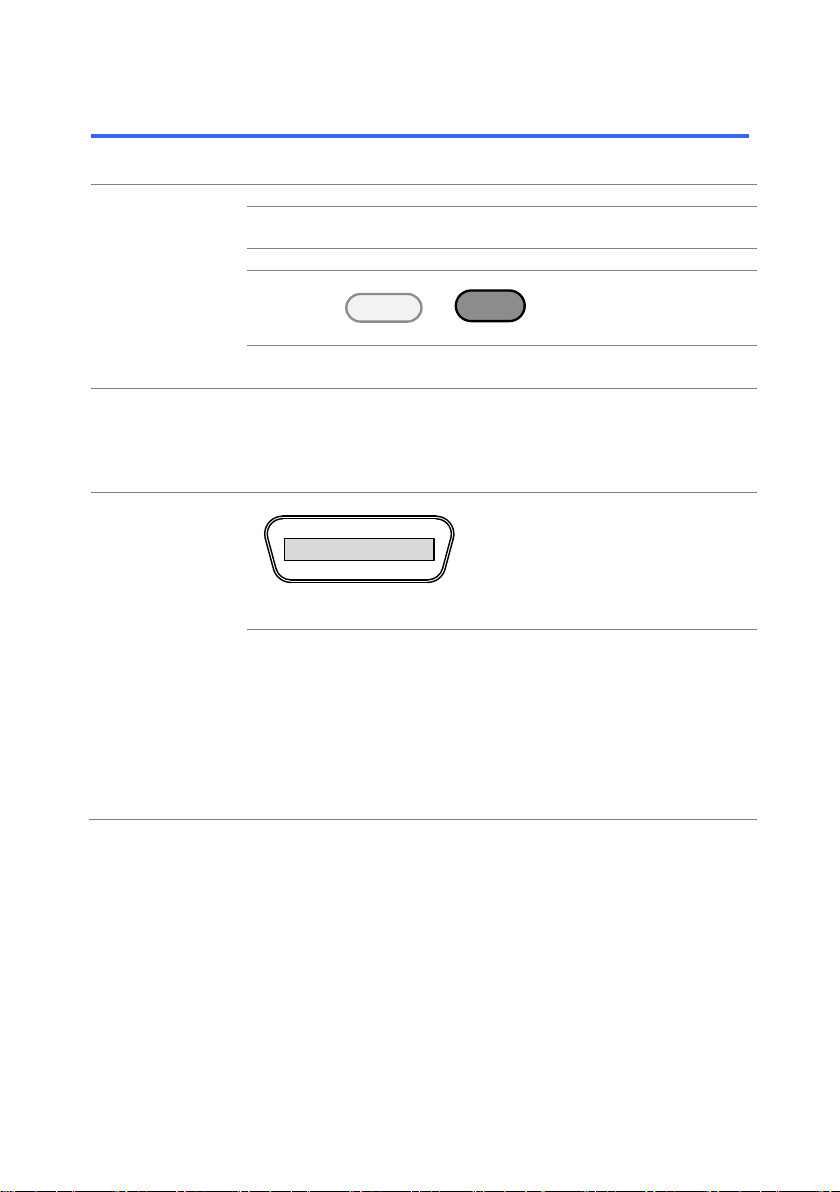

2-3. Configuring the GP-IB Interface ....................................... 3
2-4. RS-232C/USB Remote Control Function Check ................ 4

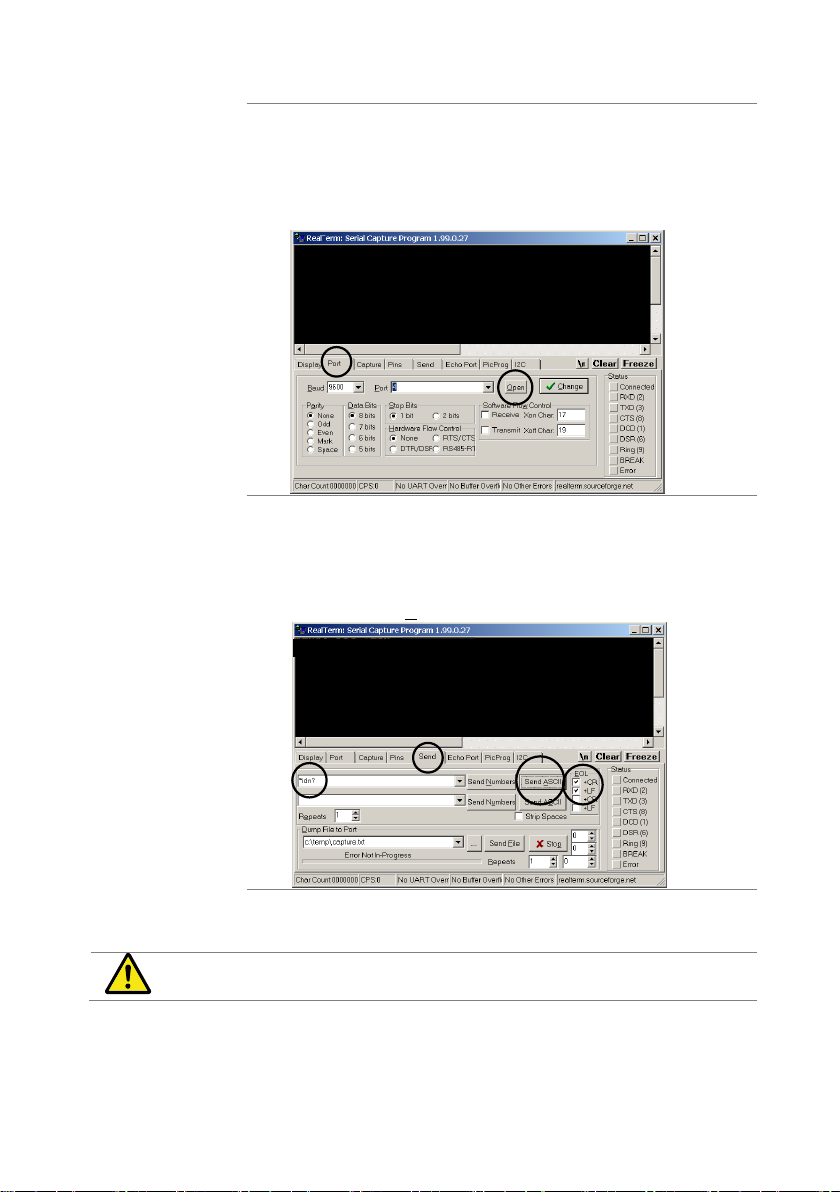

2-5. Using RealTerm to Establish a Remote Connection........... 5
2-6. GP-IB Function Check...................................................... 7
3. COMMAND OVERVIEW ......................................................... 9
3-1. Command Syntax............................................................. 9
4. COMMAND DETAILS............................................................ 12
4-1. Common Commands...................................................... 12
4-1-1. *CLS .................................................................................................12
4-1-2. *ESE.................................................................................................12
4-1-3. *ESR.................................................................................................13
4-1-4. *IDN..................................................................................................13
4-1-5. *OPC.................................................................................................13
4-1-6. *RCL.................................................................................................14
4-1-7. *RST.................................................................................................14
4-1-8. *SAV.................................................................................................14
4-1-9. *SRE.................................................................................................15
4-1-10. *STB ...............................................................................................15
4-1-11. *TRG...............................................................................................16
4-1-12. *TST................................................................................................16
4-2. Trigger Commands......................................................... 17
4-2-1. :ABORt..............................................................................................18
4-2-2. :INPut[:STATe]:TRIGgered...............................................................18
4-2-3. :INITiate[:IMMediate].........................................................................18
4-2-4. :INITiate:CONTinuous.......................................................................19
4-2-5. :TRIGger[:DELay]:TIME....................................................................19
4-2-6. :TRIGger[:PULSe]:WIDTh.................................................................20
4-3. Input Commands............................................................ 21
4-3-1. :INPut................................................................................................21
4-3-2. :INPut:MODE....................................................................................21
4-3-3. [:INPut]:SHORt..................................................................................22
4-4. Measurement Commands............................................... 23
4-4-1. :MEASure:CURRent.........................................................................23
4-4-2. :MEASure:ETIMe..............................................................................23
4-4-3. :MEASure:POWer.............................................................................23
4-4-4. :MEASure:VOLTage.........................................................................23
4-5. Fetch Commands........................................................... 24

4-5-1. :FETCh:CURRent.............................................................................24
4-5-2. :FETCh:POWer.................................................................................24
4-5-3. :FETCh:VOLTage.............................................................................24
4-6. Configure Subsystem Commands ................................... 25
4-6-1. [:CONFigure]:OCP............................................................................25
4-6-2. [:CONFigure]:OPP............................................................................26
4-6-3. [:CONFigure]:UVP ............................................................................26
4-6-4. [:CONFigure]:UVP:TIME...................................................................27
4-6-5. [:CONFigure]:OVP............................................................................27
4-6-6. [:CONFigure]:SSTart.........................................................................28
4-6-7. [:CONFigure]:VON............................................................................28
4-6-8. [:CONFigure]:VDELay.......................................................................29
4-6-9. :CONFigure:RESPonse....................................................................29
4-6-10. [:CONFigure]:CNTime.....................................................................30
4-6-11. [:CONFigure]:COTime ....................................................................30
4-6-12. [:CONFigure]:CRUnit ......................................................................31
4-6-13. :CONFigure:DYNamic.....................................................................31
4-6-14. :CONFigure:MEMory ......................................................................32
4-6-15. :CONFigure:SHORt ........................................................................32
4-6-16. :CONFigure:SHORt:SAFety............................................................33
4-6-17. :CONFigure:SHORt:FUNCtion........................................................33
4-6-18. [:CONFigure]:GNG:MODE..............................................................34
4-6-19. [:CONFigure]:GNG:H......................................................................34
4-6-20. [:CONFigure]:GNG:L.......................................................................35
4-6-21. [:CONFigure]:GNG:C......................................................................35
4-6-22. [:CONFigure]:GNG:DTIMe..............................................................36
4-6-23. [:CONFigure]:GNG:SPECTest........................................................36
4-6-24. [:CONFigure]:GNG[:PASS].............................................................37
4-7. Parallel Commands........................................................ 38
4-7-1. [:CONFigure]:PARallel......................................................................38
4-8. Step Commands ............................................................ 39
4-8-1. :CONFigure:STATus.........................................................................39
4-8-2. [:CONFigure]:STEP:CC ....................................................................39
4-8-3. [:CONFigure]:STEP:CCH..................................................................40
4-8-4. [:CONFigure]:STEP:CCM .................................................................40
4-8-5. [:CONFigure]:STEP:CCL ..................................................................41
4-8-6. [:CONFigure]:STEP:CR ....................................................................41
4-8-7. [:CONFigure]:STEP:CRH..................................................................42
4-8-8. [:CONFigure]:STEP:CRM .................................................................42
4-8-9. [:CONFigure]:STEP:CRL ..................................................................43
4-8-10. [:CONFigure]:STEP:CV ..................................................................43
4-8-11. [:CONFigure]:STEP:CVH................................................................44
4-8-12. [:CONFigure]:STEP:CVL ................................................................44
4-8-13. [:CONFigure]:STEP:CP ..................................................................45
4-8-14. [:CONFigure]:STEP:CPH................................................................45
4-8-15. [:CONFigure]:STEP:CPM ...............................................................46
4-8-16. [:CONFigure]:STEP:CPL ................................................................46
4-9. External Control Commands........................................... 47

4-9-1. [:CONFigure]:EXTernal[:CONTrol]....................................................47
4-9-2. [:CONFigure]:EXTernal:CV...............................................................47
4-9-3. [:CONFigure]:EXTernal:LOADonin ...................................................48
4-10. Mode Subsystem Commands ....................................... 49
4-10-1. :MODE............................................................................................49
4-10-2. [:MODE]:CRANge...........................................................................49
4-10-3. [:MODE]:VRANge...........................................................................50
4-10-4. [:MODE]:RESPonse........................................................................50
4-10-5. [:MODE]:DYNamic..........................................................................51
4-11. Current Subsystem Commands..................................... 52
4-11-1. :CURRent[:VA]................................................................................52
4-11-2. :CURRent[:VA]:TRIGgered.............................................................52
4-11-3. :CURRent:VB..................................................................................53
4-11-4. :CURRent:SRATe...........................................................................53
4-11-5. :CURRent:L1...................................................................................54
4-11-6. :CURRent:L2...................................................................................54
4-11-7. :CURRent:SET................................................................................55
4-11-8. :CURRent:LEVel.............................................................................55
4-11-9. :CURRent:RISE..............................................................................56
4-11-10. :CURRent:FALL............................................................................56
4-11-11. :CURRent:T1 ................................................................................57
4-11-12. :CURRent:T2 ................................................................................57
4-11-13. :CURRent:FREQuency.................................................................58
4-11-14. :CURRent:DUTY...........................................................................58
4-11-15. :CURRent:RECall .........................................................................59
4-12. Resistance Subsystem Commands ............................... 60
4-12-1. :RESistance[:VA] ............................................................................60
4-12-2. :RESistance[:VA]:TRIGgered..........................................................60
4-12-3. :RESistance:VB ..............................................................................61
4-12-4. :RESistance:SRATe........................................................................61
4-12-5. :RESistance:L1...............................................................................62
4-12-6. :RESistance:L2...............................................................................62
4-12-7. :RESistance:SET............................................................................63
4-12-8. :RESistance:LEVel..........................................................................63
4-12-9. :RESistance:RISE...........................................................................64
4-12-10. :RESistance:FALL.........................................................................64
4-12-11. :RESistance:T1.............................................................................65
4-12-12. :RESistance:T2.............................................................................65
4-12-13. :RESistance:FREQuency..............................................................66
4-12-14. :RESistance:DUTY .......................................................................66
4-12-15. :RESistance:RECall......................................................................67
4-12-16. :CONDuctance[:VA]......................................................................67
4-12-17. :CONDuctance[:VA]:TRIGgered ...................................................68
4-12-18. :CONDuctance:VB........................................................................68
4-12-19. :CONDuctance:L1.........................................................................69
4-12-20. :CONDuctance:L2.........................................................................69
4-12-21. :CONDuctance:SET......................................................................70
4-12-22. :CONDuctance:RECall..................................................................70

4-13. Voltage Subsystem Commands .................................... 71
4-13-1. :VOLTage[:VA]................................................................................71
4-13-2. :VOLTage:VB..................................................................................71
4-13-3. :VOLTage:RECall ...........................................................................72
4-14. Power Subsystem Commands ...................................... 73
4-14-1. :POWer[:VA] ...................................................................................73
4-14-2. :POWer:VB .....................................................................................73
4-14-3. :POWer:L1......................................................................................74
4-14-4. :POWer:L2......................................................................................74
4-14-5. :POWer:SET...................................................................................75
4-14-6. :POWer:LEVel.................................................................................75
4-14-7. :POWer:T1......................................................................................76
4-14-8. :POWer:T2......................................................................................76
4-14-9. :POWer:FREQuency.......................................................................77
4-14-10. :POWer:DUTY ..............................................................................77
4-14-11. :POWer:RECall.............................................................................78
4-15. Program Commands..................................................... 79
4-15-1. :FUNCtion[:COMPlete][:RING]:TIME ..............................................79
4-15-2. :PROGram:STATe..........................................................................80
4-15-3. :PROGram......................................................................................81
4-15-4. :PROGram[:RECall]:DEFault..........................................................82
4-15-5. :PROGram:STARt...........................................................................82
4-15-6. :PROGram:STEP............................................................................82
4-15-7. :PROGram:MEMory........................................................................83
4-15-8. :PROGram:RUN .............................................................................83
4-15-9. :PROGram:ONTime........................................................................84
4-15-10. :PROGram:OFFTime....................................................................84
4-15-11. :PROGram:PFTime.......................................................................85
4-15-12. :PROGram:STIMe.........................................................................85
4-15-13. [:PROGram]:CHAin:STARt ...........................................................86
4-15-14. [:PROGram]:CHAin.......................................................................86
4-15-15. [:PROGram]:CHAin:P2P...............................................................87
4-15-16. [:PROGram]:CHAin[:RECall]:DEFault...........................................87
4-15-17. :PROGram:SAVE..........................................................................87
4-16. Normal sequence Commands ....................................... 88
4-16-1. :NSEQuence:STATe.......................................................................88
4-16-2. :NSEQuence...................................................................................89
4-16-3. :NSEQuence:STARt .......................................................................91
4-16-4. :NSEQuence:NUMBer....................................................................91
4-16-5. :NSEQuence:MEMO.......................................................................92
4-16-6. :NSEQuence:MODE .......................................................................92
4-16-7. :NSEQuence:RANGe......................................................................93
4-16-8. :NSEQuence:LOOP........................................................................93
4-16-9. :NSEQuence:LLOAD......................................................................94
4-16-10. :NSEQuence:LAST.......................................................................94
4-16-11. :NSEQuence:CHAin......................................................................95
4-16-12. :NSEQuence:EDIT........................................................................96
4-16-13. :NSEQuence:EDIT:POINt.............................................................97

4-16-14. :NSEQuence:EDIT:END ...............................................................97
4-16-15. :NSEQuence[:DELet]:ALL.............................................................97
4-16-16. :NSEQuence:SAVE ......................................................................98
4-16-17. :NSEQuence:COTime...................................................................98
4-17. Fast sequence Commands ........................................... 99
4-17-1. :FSEQuence:STATe.......................................................................99
4-17-2. :FSEQuence .................................................................................100
4-17-3. :FSEQuence:MEMO .....................................................................102
4-17-4. :FSEQuence:MODE......................................................................102
4-17-5. :FSEQuence:RANGe....................................................................103
4-17-6. :FSEQuence:LOOP ......................................................................103
4-17-7. :FSEQuence:TBASe.....................................................................104
4-17-8. :FSEQuence:LLOAD.....................................................................104
4-17-9. :FSEQuence:LAST .......................................................................105
4-17-10. :FSEQuence:RPTStep................................................................105
4-17-11. :FSEQuence:EDIT......................................................................106
4-17-12. :FSEQuence:EDIT:POINt............................................................106
4-17-13. :FSEQuence:EDIT:END..............................................................107
4-17-14. :FSEQuence[:DELet]:ALL...........................................................107
4-17-15. :FSEQuence[:EDIT]:FILL............................................................107
4-17-16. :FSEQuence:SAVE.....................................................................108
4-18. OCP Test Commands ..................................................109
4-18-1. :OCP:STATe.................................................................................109
4-18-2. :OCP:EDIT[:CHANnel]..................................................................110
4-18-3. :OCP[:CHANnel]:NUMBer ............................................................111
4-18-4. :OCP:MEMO.................................................................................111
4-18-5. :OCP[:CHANnel]:RANGe..............................................................112
4-18-6. :OCP[:CHANnel]:STARt................................................................112
4-18-7. :OCP[:CHANnel]:END...................................................................113
4-18-8. :OCP[:CHANnel]:STEP:CURRent.................................................113
4-18-9. :OCP[:CHANnel]:STEP:TIME .......................................................114
4-18-10. :OCP[:CHANnel]:DELay .............................................................114
4-18-11. :OCP[:CHANnel]:TRIGger...........................................................115
4-18-12. :OCP[:CHANnel]:LAST ...............................................................115
4-18-13. :OCP:CHANnel:STATus .............................................................116
4-18-14. :OCP:RESult...............................................................................116
4-18-15. :OCP:RUN ..................................................................................116
4-19. OPP Test Commands ..................................................117
4-19-1. :OPP:STATe.................................................................................117
4-19-2. :OPP:EDIT[:CHANnel] ..................................................................118
4-19-3. :OPP[:CHANnel]:NUMBer.............................................................119
4-19-4. :OPP:MEMO.................................................................................119
4-19-5. :OPP[:CHANnel]:RANGe..............................................................120
4-19-6. :OPP[:CHANnel]:STARt................................................................120
4-19-7. :OPP[:CHANnel]:END...................................................................121
4-19-8. :OPP[:CHANnel]:STEP:WATT......................................................121
4-19-9. :OCP[:CHANnel]:STEP:TIME .......................................................122
4-19-10. :OPP[:CHANnel]:DELay..............................................................122

4-19-11. :OPP[:CHANnel]:TRIGger...........................................................123
4-19-12. :OPP[:CHANnel]:LAST ...............................................................123
4-19-13. :OPP:CHANnel:STATus .............................................................124
4-19-14. :OPP:RESult...............................................................................124
4-19-15. :OCP:RUN ..................................................................................124
4-20. BATT Test Commands .................................................125
4-20-1. :BATTery:STATe...........................................................................125
4-20-2. :BATTery:EDIT..............................................................................126
4-20-3. :BATTery [:CHANnel]:NUMBer.....................................................127
4-20-4. :BATTery:MEMO...........................................................................127
4-20-5. :BATTery:MODE...........................................................................128
4-20-6. :BATTery:RANGe .........................................................................128
4-20-7. :BATTery:VALue...........................................................................129
4-20-8. :BATTery:RISE .............................................................................129
4-20-9. :BATTery:FALL.............................................................................130
4-20-10. :BATTery:STOP:VOLTage..........................................................130
4-20-11. :BATTery:STOP:TIME ................................................................131
4-20-12. :BATTery:STOP:AH....................................................................131
4-20-13. :BATTery:DATalog:TIMer............................................................132
4-20-14. :BATTery:CHANnel:STATus.......................................................132
4-20-15. :BATTery:RESult.........................................................................133
4-20-16. :BATTery:RUN............................................................................133
4-21. Utility Commands........................................................134
4-21-1. :UTILity:SYSTem..........................................................................134
4-21-2. :UTILity:LOAD...............................................................................134
4-21-3. :UTILity:LOAD:MODE...................................................................135
4-21-4. :UTILity:LOAD:RANGe .................................................................135
4-21-5. :UTILity:TIME................................................................................136
4-21-6. :UTILity:KNOB ..............................................................................136
4-21-7. :UTILity:SPEAker..........................................................................137
4-21-8. :UTILity:ALARm............................................................................137
4-21-9. :UTILity:UNReg.............................................................................138
4-21-10. :UTILity:GNG ..............................................................................138
4-21-11. :UTILity:CONTrast ......................................................................139
4-21-12. :UTILity:BRIghtness....................................................................139
4-21-13. :UTILity:LANGuage.....................................................................140
4-21-14. :UTILity:REMote..........................................................................140
4-21-15. :UTILity:REMote:MODE..............................................................140
4-22. Interface Commands ...................................................141
4-22-1. :UTILity:INTerface.........................................................................141
4-22-2. :UTILity:BRATe.............................................................................141
4-22-3. :UTILity:SBIT.................................................................................142
4-22-4. :UTILity:PARity..............................................................................142
4-23. File Commands...........................................................143
4-23-1. :MEMory:SAVE.............................................................................143
4-23-2. :MEMory:RECall ...........................................................................143
4-23-3. :PREset:SAVE..............................................................................143
4-23-4. :PREset:RECall.............................................................................143

4-23-5. :SETup:SAVE ...............................................................................144
4-23-6. :SETup:RECall..............................................................................144
4-23-7. :FACTory[:RECall] ........................................................................144
4-23-8. :USER[:DEFault]:SAVE ................................................................144
4-23-9. :USER[:DEFault]:RECall...............................................................144
4-24. SCPI Status Commands ..............................................145
4-24-1. :SYSTem:ERRor...........................................................................145
4-24-2. :STATus:PRESet..........................................................................145
4-25. Csummary Status Commands......................................146
4-25-1. :STATus:CSUMmary:CONDition ..................................................146
4-25-2. :STATus:CSUMmary:ENABle.......................................................146
4-25-3. :STATus:CSUMmary[:EVENt].......................................................146
4-25-4. :STATus:CSUMmary:NTRansition................................................147
4-25-5. :STATus:CSUMmary:PTRansition................................................147
4-26. Operation Status Commands .......................................148
4-26-1. :STATus:OPERation:CONDition...................................................148
4-26-2. :STATus:OPERation:ENABle........................................................148
4-26-3. :STATus:OPERation[:EVENt] .......................................................148
4-26-4. :STATus:OPERation:NTRansition ................................................149
4-26-5. :STATus:OPERation:PTRansition.................................................149
4-27. Questionable Status Commands ..................................150
4-27-1. :STATus:QUEStionable:CONDition..............................................150
4-27-2. :STATus:QUEStionable:ENABle...................................................150
4-27-3. :STATus:QUEStionable[:EVENt]...................................................150
4-27-4. :STATus:QUEStionable:NTRansition............................................151
4-27-5. :STATus:QUEStionable:PTRansition............................................151
5. Status Register Overview ....................................................152
5-1. Introduction to the Status Registers...............................152
5-2. Configuration in the Status register ...............................153
5-3. Csummary Status Register Group..................................154
5-4. Operation Status Register Group...................................156
5-5. Questionable Status Register Group..............................157
5-6. Standard Event Status Register Group ..........................159
5-7. Status Byte Register Group ...........................................161
6. Appendix.............................................................................163
6-1. ERROR MESSAGE .......................................................163
6-2. Change History.............................................................170

1
1. INTERFACE OVERVIEW
This manual describes how to use the LSG Series remote command
functionality and lists the command details.
1-1. Front Panel Overview
1-2. Rear Panel Overview
Frame control ports
J1, J2
Remote sense
input
Rear panel
input
Exhaust
fan
Power socket
and switch
GP-IB port
USB device port
USB port
RS232C port
Monitor Out ports
J3
Variable
Resistor
Clear
Shift
Preset
Load
On/
Off
Main
Help
FUNC
Short
V MON OUT
I MON OUT
TRIG OUT
P7
CAL
.
Utility
Local
File
7
8
9
Enter
175W
5 –800V
0 –8.75A
4
5
6
P8
P9
P4
P5
P6
P3
P2
P1
1
2
3
P0
0
LCD Display
Function keys
Power key
FUNC/File
Help/Utility
Short
Load On/Off
Scroll wheel
Number pad
Air inlet
Main/Local
Enter key
Clear key
USB Port
Shift key
Preset key
TRIG
OUT
I MON
OUT
V MON
OUT
Input
terminals

2
2. INTERFACE Configure
2-1. Configuring the USB Interface
USB
PC side connector
Type A, host
LSG side connector
Rear panel Type B, device port
Speed
2.0 (full speed)
USB Class
USB CDC
Note
Before USB can be used for remote control, it is necessary to
install the USB device driver, located on the accompanying
User Manual CD.
Operation
1. Connect the USB cable to the rear panel USB B port.
2. Press
Shift
>
Utility
Help
> Interface [F3] in order,
and set the Interface setting to USB.
It is recognized from the PC by virtual COM port connection.
Please refer to the instruction manual for more information.
2-2. Configuring the RS-232C Interface
RS-232C
Connector
DB-9, Male
Baud Rate
2400, 4800, 9600, 19200, 38400
Stop Bit
1, 2
Parity
None, Odd, Even
Operation
1. Connect an RS-232C cable from the PC to the rear panel
RS-232C port.
2. Press
Shift
>
Utility
Help
> Interface [F3] in order,
and set the Interface setting to RS232.
3. Set the Baud Rate, Stop Bit and Parity settings. Data bits
are fixed to 8 bits.
Pin Assignment
1 2 3 4 5
6 7 8 9
2: RxD (Receive data)
3: TxD (Transmit data)
5: GND
4,6,7,8,9: No connection
PC Connection
Use a null modem connection as shown in the diagram below.
LSG-H PC
RxDPin2 RxD Pin2
GNDPin5 GND Pin5
TxD Pin3
TxDPin3

3
2-3. Configuring the GP-IB Interface
To use GP-IB, the optional GP-IB port must be installed.
Please refer to the instruction manual for more information.
Operation
1. Ensure the LSG Series is off before proceeding.
2. Connect a GP-IB cable from a GP-IB controller to the
GP-IB port on the LSG Series.
3. Turn the LSG Series on.
4. Press
Shift
>
Utility
Help
> Interface [F3] in order,
and set the Interface setting to GP-IB.
5. Set the GP-IB address.
GP-IB address
0~30
GP-IB
constraints
Maximum 15 devices altogether, 20m cable length, 2m
between each device.
Unique address assigned to each device.
At least 2/3 of the devices turned On.
No loop or parallel connection.
Pin Assignment
112
1324
Pin
Signal
Pin
Signal
1～4
Data I/O 1～4
13～16
Data I/O 5～8
5
EOI
17
REN
6
DAV
18
Ground (DAV)
7
NRFD
19
Ground (NRFD)
8
NDAC
20
Ground (NDAC)
9
IFC
21
Ground (IFC)
10
SRQ
22
Ground (SRQ)
11
ATN
23
Ground (ATN)
12
SHIELD Ground
24
Single GND

4
2-4. RS-232C/USB Remote Control Function Check
Functionality
check
Invoke a terminal application such as RealTerm or Putty.
For RS-232C, set the COM port, baud rate, stop bit, data bit
and parity accordingly.
To check the COM settings in Windows, see the Device
Manager from Control Panel.
Note
If you are not familiar with using a terminal application to
send/receive remote commands from the serial port or via a
USB connection.
Run this query command via the terminal after the instrument
has been configured for RS-232/USB remote control.
*IDN?
This should return the Manufacturer, Model number, Serial
number, and Firmware version in the following format.
TEXIO,LSG- 1050 H, XXXXXXXXX, V.X.X.X.X
Manufacturer: TEXIO
Model number : LSG-1050H
Serial number : XXXXXXXXX
Firmware version : V.X.X.X

5
2-5. Using RealTerm to Establish a Remote Connection
Background
RealTerm is a terminal program that can be used to
communicate with a device attached to the serial port of a PC
or via an emulated serial port via USB.
The following instructions apply to version 1.99.0.27.
Even though RealTerm is used as an example to establish a
remote connection, any terminal program can be used that
has similar functionality.
Note
RealTerm can be downloaded on Sourceforge.net free of
charge.
For more information please see
http://realterm.sourceforge.net/
Operation(1/2)
1. Download RealTerm and install according to the
instructions on the RealTerm website.
2. Connect the LSG Series via USB or via RS-232C.
3. If using RS-232C, make note of the configured baud rate,
stop bits and parity.
4. Go to the Windows device manager and find the COMport
number for the connection.
Double click the Ports icon to reveal the connected serial
port devices and the COM port for the each connected
device.
The baud rate, stop bit and parity settings can be viewed
by right-clicking connected device and selecting the
Properties option.
5. Start RealTerm on the PC as an administrator.
Click:
Start menu>All Programs>RealTerm>RealTerm
Tip: to run as an administrator, you can right click the
RealTerm icon in the Windows Start menu and select the
Run as Administrator option.

6
Operation(2/2)
6. After RealTerm has started, click on the Port tab.
Enter the Baud, Parity, Data bits (8bits), Stop bits and Port
number configuration for the connection.
The Hardware Flow Control, Software Flow Control
options can be left at the default settings.
Press Open to connect to the LSG Series.
7. Click on the Send tab.
In the EOL configuration, check on the +CR and +LF
check boxes.
Enter the query:
*idn?
Click on Send ASCII.
8. The terminal display will return the following:
TEXIO, LSG-XXXXH,XXXXXXXXX,VX.XX.XXX
(manufacturer, model, serial number, version)
Note
If RealTerm fails to connect to the LSG Series, please check
all the cables and settings and try again.

7
2-6. GP-IB Function Check
Functionality
check
Please use the National Instruments Measurement &
Automation Controller software to confirm GP-IB functionality.
See the National Instrument website, http://www.ni.com for
details.
Note
For further details, please see the programming manual,
available on the TEXIO TECHNOLOGY web site
www.texio.co.jp
Operation(1/2)
1. Start the NI Measurement andAutomation
Explorer (MAX) program. Using Windows,
press:
Start>All Programs>National Instruments>
Measurement & Automation

8
Operation(2/2)
2. From the Configuration panel access;
My System>Devices and Interfaces>GPIB0
3. Press the Scan for Instruments button.
4. In the Connected Instruments panel the LSG Series
should be detected as Instrument 0 with the address the
same as that configured on the LSG Series.
5. Double click the Instrument 0 icon.
23
4
5
6. Double click the Instrument 0 icon.
7. In the NI-488.2 Communicator window, ensure *IDN? is
written in the Send String: text box.
Click on the Query button to send the *IDN? query to the
instrument.
8. The String Received text box will display the query return:
TEXIO, LSG-XXXXH,XXXXXXXXX,VX.XX.XXX
(manufacturer, model, serial number, version)
6
7
8
The function check is complete.

9
3. COMMAND OVERVIEW
The command syntax section shows you the basic syntax rules you have to
apply when using commands.
3-1. Command Syntax
Compatible
Standard
IEEE488.2
Partial compatibility
SCPI, 1999
Partial compatibility
Command
Structure
SCPI (Standard Commands for Programmable Instruments)
commands follow a tree-like structure, organized into
nodes. Each level of the command tree is a node. Each
keyword in a SCPI command represents each node in the
command tree. Each keyword (node) of a SCPI command is
separated by a colon (:).
For example, the diagram below shows an SCPI
sub-structure and a command example.
:RESPonse:CRANGe :VRANGe
[:MODE]:CRANGe
:MODE
Command
types
There are a number of different instrument commands and
queries. A command sends instructions or data to the unit
and a query receives data or status information from the
unit.
Simple
command
A single command with/without a parameter.
Example
:CONFigure:RESPonse MAX
Query
A query is a simple or compound command followed by a
question mark (?). A parameter (data) is returned.
Example
:CONFigure:RESPonse?
Compound
command
Two or more commands on the same command line.
Compound commands are separated with either a
semi-colon (;) or a semi-colon and a colon (;:).
A semi-colon is used to join two related commands, with the
caveat that the last command must begin at the last node of
the first command.
Asemi-colon and colon are used to combine two commands
from different nodes.
Example
CONFigure:VON MAX;:CONFigure:VDELay MIN

10
Command
forms
Commands and queries have two different forms, long and
short. The command syntax is written with the short form of
the command in capitals and the remainder (long form) in
lower case.
The commands can be written in capitals or lower-case, just
so long as the short or long forms are complete. An
incomplete command will not be recognized.
Below are examples of correctly written commands.
Long form
Short form
Example
:CURRENT:LEVEL?
:current:level?
:CURR:LEV?
:curr:lev?
Square
brackets
Commands that contain square brackets indicate that the
contents are optional. The function of the command is the
same with or without the square bracketed items, as shown
below
For example for the query:
“[:CONFigure]:GNG [:PASS]?”
Both “:CONFigure:GNG:PASS?” and “:GNG?” are both valid
forms.
Command
format
1.00A
12 3 4
:CURRent:SET
1: Command header
2: Space
3: Parameter 1
4: Unit or suffix.
Common
input
parameters
(1/2)
Type
Description
Example
<Boolean>
boolean logic
0, 1
<NR1>
integers
0, 1, 2, 3
<NR2>
decimal numbers
0.1, 3.14, 8.5
<NR3>
floating point
4.5e-1, 8.25e+1
<NRf>
any of NR1, 2, 3
1, 1.5, 4.5e-1
[MIN]
(Optional
parameter)
For commands, this will set the setting to
the lowest value. This parameter can be
used in place of any numerical parameter
where indicated.
For queries, it will return the lowest possible
value allowed for the particular setting.
[MAX]
(Optional
parameter)
For commands, this will set the setting to
the highest value. This parameter can be
used in place of any numerical parameter
where indicated.
For queries, it will return the highest
possible value allowed for the particular
setting.

11
Common
input
parameters
(2/2)
Unit Suffixes
(Optional
parameters)
Unit suffixes can be optionally used with
most NRf type input parameters.
Type
Description
Example
[A]
Amps
1.00A
[%]
Percentage
10%
[V]
Volts
5.00V
[W]
Watts
3.00W
[ms]
milliseconds
20ms
[mV]
Millivolts
150mV
[s]
Seconds
5s
[OHM]
Ohm
50OHM
[mS]
Reciprocal of 1k ohms
20mS
[MHO]
Reciprocal of one ohm
0.02MHO
[mA/us]
Milliamps/microsecond
100mA/us
[Hz]
Hertz
6.0e+1Hz
Message
terminator
LF
Line feed code (0x0A)
