Teypra Zeus-K Probe User manual

ENGLISH
Zeus-K Probe is a device that allows you to store and control the energy
consumed by an electric utility by directly reading the data from the electric
meter. Installs easily with just a few simple steps and does not require
external power because it operates on two mini stylus with typical
autonomy 2 years. The light signals emitted by the electric meter are
stored permanently in an internal memory and can at any time be
downloaded through the use of a common US stick. The software
Zeuslog Viewer, freely downloadable from the site www.zeuslog.com, makes data interpretation and
display highlighting the consumption in various time slots both reactive and active power.
Package contents
The package contains the following items:
1. Zeus-K Probe device;
2. Velcro for positioning;
3. Quick Guide.
On the www.zeuslog.com website are available:
•User manual;
•Visualization software with examples.
Installation
The package contains 3 velcro adhesive elements usually already paired to their counterpart: 1 for
Zeus-K probe device and 2 for probes of Zeus-K device.
Teypra srl via L. Einaudi, 99 -45100 Rovigo (RO) VAT N. IT014567800293
-All right reserved-
Quickguide_Zeus_K_Probe_EN_A5
ATTENTION: The 2 AAA batteries required to operating are not pro ided.
CAUTION: Use only alkaline batteries, do not use rechargeable batteries.
CAUTION: Always use USB sticks without rele ant data. The download
operation might damage the files in Flash.
WARNING: Read the instruction manual before attempting to operate the
de ice

ENGLISH
Fasten the Zeus-K probe on the electric meter should be carried out as follows:
1. Remove the adhesive protectors from velcro counterpart of Zeus-K probe;
2. Find a flat location on the electric meter on which adhere the Zeus-K Probe sufficiently
close to emitting Leds Pulse counter;
3. Place and Push Zeus-k probe to electric meter in this point;
4. Once the device is installed you can remove it easily by pulling from the front;
5. Remove the two velcro counterparts by two probe;
6. Remove the adhesive protectors from velcro counterparts;
7. Adhere the velcro counterparts at counter, making sure to align the hole of the
counterpart velcro with the Led emitter;
8. Place the probe on the electric meter using the velcro making sure to respect the
correspondence between Led emitter active power (kW/h) and active power probe
(identified with the word Ra) and between Led emitter reactive power (kvar) and reactive
power probe (recognizable with the word Rr);
9. The probe can be removed pulling the probe using the small tab.

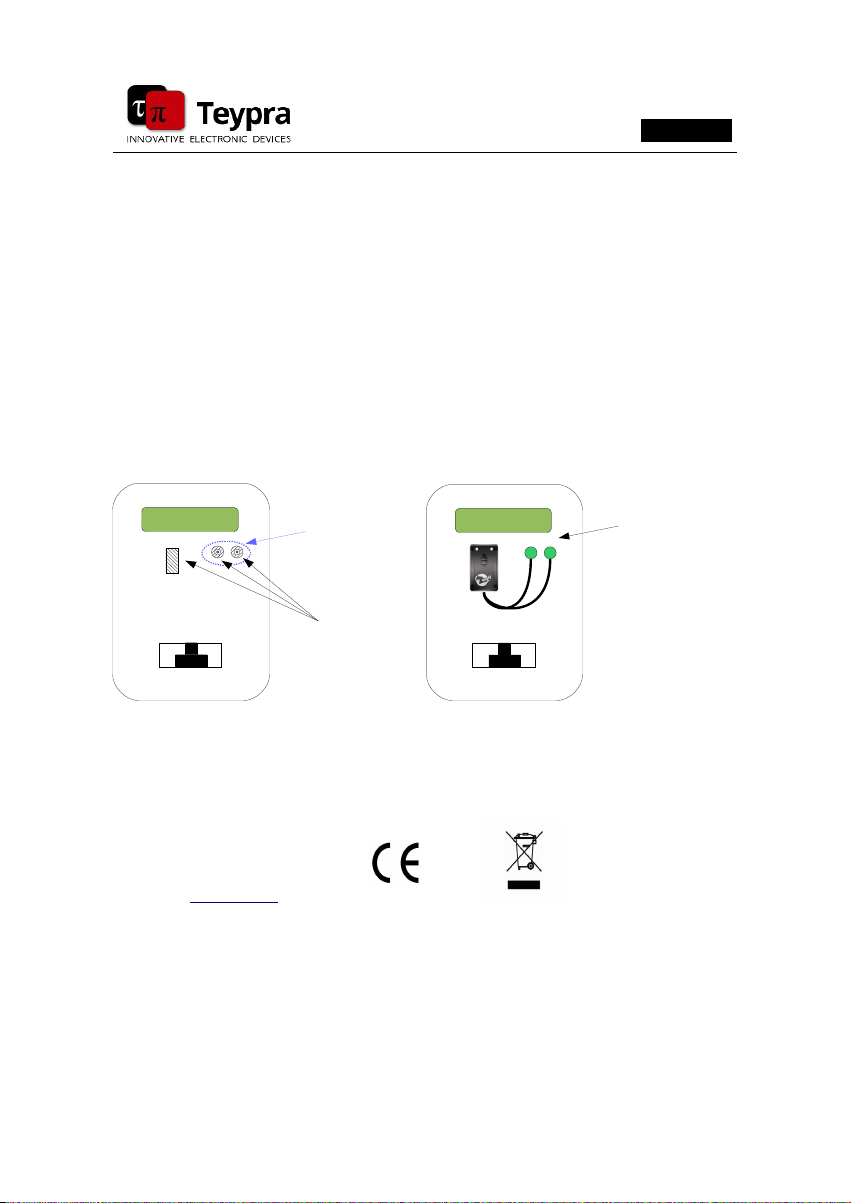

Electric meter with Zeus K Probe installed
Teypra srl
Via L. Einaudi, 99
45100 Rovigo (RO)
VAT N. IT01456780293
Email: [email protected]
web site: www.teypra.com
Do not throw the device in the
household waste.
Use the collection systems
available in your country
Teypra srl via L. Einaudi, 99 -45100 Rovigo (RO) VAT N. IT014567800293
-All right reserved-
Quickguide_Zeus_K_Probe_EN_A5
Xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
LED pulse
indicators
LED pulse
Velcro
positions
Xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
xxxxxxxxxxxxxxxxxxxxxxx
Zeus K Probe
Installed
