TGW tGW-700 Series User manual

tGW-700 series
The package includes the following items:
1. Power Supply:+12 ~ +48 VDC
2. Ethernet Hub or PoE Ethernet Switch.
3. Make sure your PC has workable network settings.
4. Disable or well configure your Windows firewall and Anti-Virus
firewall first, else the “Search Servers” on page 3 may not
work. (Please contact with your system Administrator)
For tGW-700 Series
English/ MAR 2011/ Version 1.2
What’s in the shipping package?
Preparations for devices
Software CD
Quick Start Guide
(This Document)
DC Connector
Power cable
1
tGW-700 Series Quick Start Guide

Connecting the Power and Host PC
1. Make sure the switch is placed in
the “RUN” mode.
2. Connect both the tGW-700 and your computer to the same
sub network or the same Ethernet Switch, and power the
tGW-700 on.
tGW-700 Series Quick Start Guide
2

Installing software on your PC
1. Install Modbus Utility:
The software is located at:
CD: \NAPDOS\Software\Modbus_Utility
http://ftp.icpdas.com/pub/cd/tinymodules/napdos/software/modbus_utility/
2. Run eSearch.exe.
The software is located at:
CD:\Napdos\software\eSearch\
http://ftp.icpdas.com/pub/cd/tinymodules/napdos/software/esearch/
1. Click “Search Servers” button to search your tGW-700.
2. Double-Click the tGW-700 to configure the Ethernet Settings.
Configuring Ethernet Settings
1. Click
“
Search Servers
”
2. Double-Click your tGW-700
3
tGW-700 Series Quick Start Guide

3. Contact your Network Administrator to get correct network
configuration.
4. Modify the network settings and then click “OK”. The tGW-700
will restart it-self immediately.
1. Wire the Modbus device (ex: M-7055D, optional) with your
tGW-700 as follows:
RS-232 Wiring:
Testing your tGW-700
4
tGW-700 Series Quick Start Guide

RS-485 Wiring:
Step 1: Click “
2. In order to avoid accessing error in “IE” browser, please
disable your IE cache as follows:
(If you are not using IE browser, please skip this step.)
Tools” >> “Internet Options...” in the menu items.
Step 2: Click the “General” tab and then click the “Settings...” button in Temporary
Internet files frame.
Step 3: Click the “Every visit to the page” and then click the “OK” button in
Settings box and Internet Options box.
For more detail, please refer to the user manual (Page 54)
C:\ Napdos\tGW-700\Document\
http://ftp.icpdas.com/pub/cd/tinymodules/napdos/tgw-700/document/
3. Type the URL address of tGW-700 in the browser
tGW-700 Series Quick Start Guide
5

4. Enter the password and click the “Submit” button to enter the
configuration web page. (The factory default password: admin)
5. Select the same Modbus protocol for tGW-700 in according to
the protocol of the Modbus device (ex: Modbus RTU/ASCII).
6. Double click the Modbus Utility shortcut on the desktop, and
then click the “Modbus/TCP” button.
Double-Click
6
tGW-700 Series Quick Start Guide

7. Click on the “Client tools” >> “Modbus/TCP Client”.
8. Enter the IP address of tGW-700 and then click “Connect”
button to connect the tGW-700.

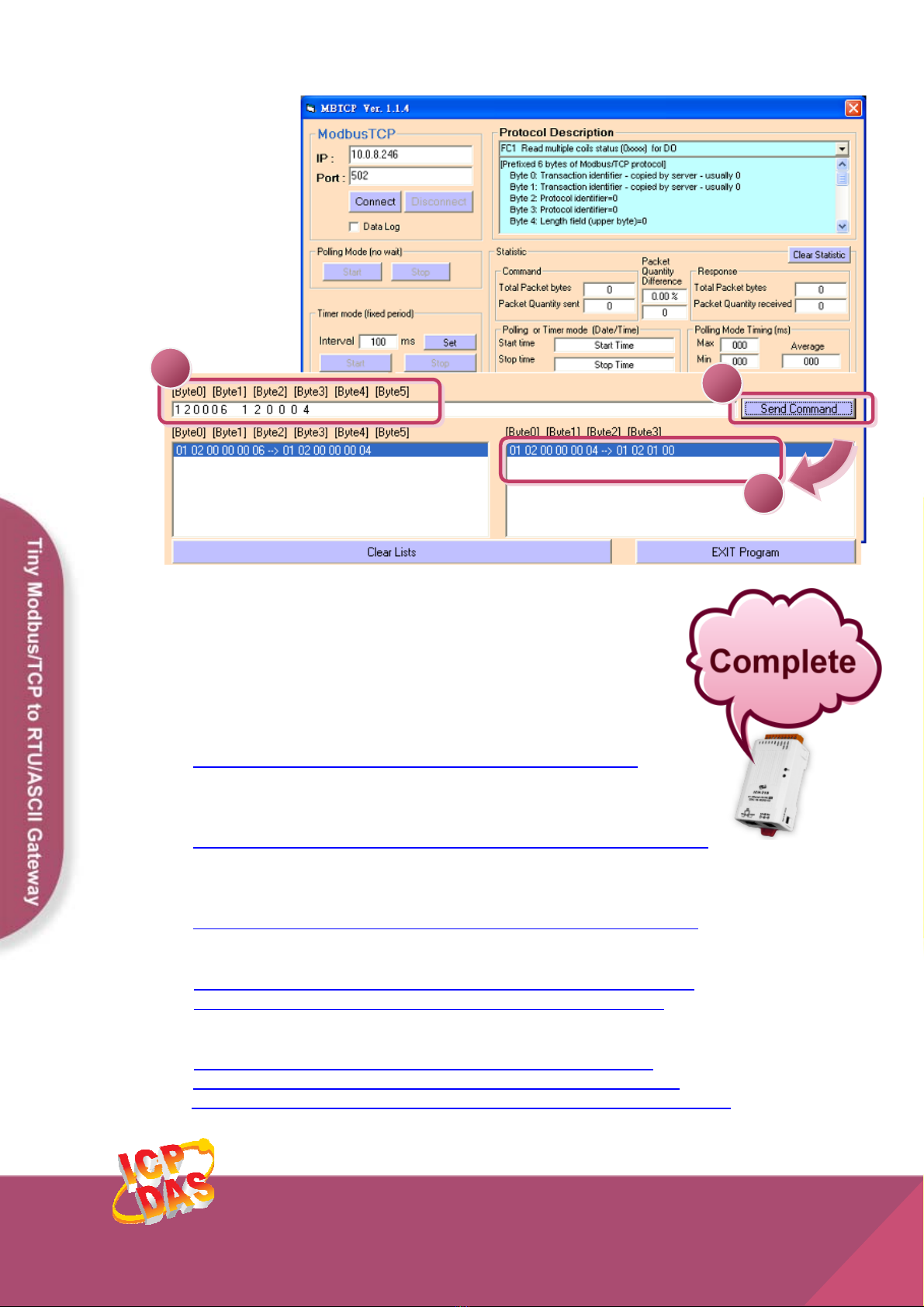

Ex: If M-7000 Modbus device ID = 1, you send “1 2 0 0 0 6
1 2 0 0 4” for reading D/I value, you may receive response
“1 2 0 0 0 4 1 2 1 0” as shown below.
9. Refer to the field "Protocol Description" at the top right part
of the program to send a request command and confirm the
response is correct or not.
7
tGW-700 Series Quick Start Guide

Related Information
tGW-700 Series Product Page:
http://www.icpdas.com/products/Industrial/pds/tgw-700.htm
tGW-700 Documentations:
CD:\Napdos\tGW-700\document\
http://ftp.icpdas.com/pub/cd/tinymodules/napdos/tgw-700/document/
tGW-700 firmware:
CD:\Napdos\tGW-700\Firmware\
http://ftp.icpdas.com/pub/cd/tinymodules/napdos/tgw-700/firmware/
M-7055D and i-7520 Product Page (optional):
http://www.icpdas.com/products/Remote_IO/m-7000/m-7055d.htm
http://www.icpdas.com/products/Remote_IO/i-7000/i-7520.htm
NS-205, NS-205PSE and CA-0915 Product Page (optional):
http://www.icpdas.com/products/Switch/industrial/ns-205.htm
http://www.icpdas.com/products/Switch/industrial/ns-205pse.htm
http://www.icpdas.com/products/Accessories/cable/cable_selection.htm
ICP DAS Web Site: http://www.icpdas.com
Contact Us (E-Mail): [email protected] , [email protected]
Copyright @ 2010 by ICP DAS Co., Ltd. All Rights Reserved.
