The bedboss ARISE 504 Series User manual

Advisory .Setup & Installation
Wireless hand control .1&14 year warranty
Owners manual
Arise
504 Series

Electrical surges are by far the biggest cause of problems
with electrical circuits. In order to help protect your
investment, in case of a power surge or outage, use an
electrical surge protection device (not included).
WARRANTY WARNING!
Do not open or tamper with the transformer, control
box, motors, or remote control (with the exception of
battery compartments). The product warranty will be
void if these components are tampered with.
SMALL CHILDREN AND PETS
Immediately dispose of all packing materials as they can
smother small children and pets. Do not allow any
persons or pets under the bed. Children, convalescents,
and disabled persons should not operate the bed
without adult supervision.
HOSPITAL OR CONVALESCENT
USE DISCLAIMER
Adjustable beds are designed and engineered for a
lifestyle of in-home comfort and are not intended for
hospital use for a bed-ridden patient on extended
recovery. Adjustable beds are not equipped with bars to
help patients get safely in and out of the bed and are not
intended to be used around tent-type oxygen therapy or
explosive gases.
PACEMAKER WARNING
The massagers in this bed produce mechanical
vibrations that may activate a special sensor in your
pacemaker that detects motion. This can fool the
pacemaker into “thinking” you are engaged in some sort
of physical activity and require a faster heart rate, and
you may experience a sensation similar to when you are
exercising. Consult your physician for further
information.
PRODUCT RATINGS
The bed lift motors are not designed for continuous use
of more than 2 minutes in an 18-minute period, or
approximately 10% duty cycle. Any attempt to
circumvent or exceed this rating will shorten the life
expectancy of the product and may void the warranty.
WEIGHT UNITS
The limitation for this adjustable bed is 750lbs. The bed
will structurally support this weight if it is evenly
distributed across the head and foot sections. This
product is not designed to support or lift this amount in
the head or foot section alone. Exceeding this weight
restriction could damage the bed and/or cause injury
and void the warranty. Enter and exit the bed in a at
position and do not sit on the head or foot sections while
in the raised position.
LIFTING AND LOWERING MECHANISMS AND
MASSAGE UNITS
It is normal for the raising and lowering feature on the
bed to emit a minimal humming sound during operation.
The massage feature creates a vibrating hum during
operation and the resonance will increase accordingly
with a higher intensity motor setting.
LOCATION ENVIRONMENT
The level of sound experienced in a room is directly
related to the environment within that location. A
vibrating sound may be noticeable if the massagers are
turned on in a room with hardwood oors. To reduce the
resonance, place a piece of carpet or rubber caster cups
under the legs. The rubber caster cups also prevent the
bed from sliding when located on a smooth or hard
surface ooring.
TO REDUCE THE RISK OF SHOCK, BURNS,
FIRE, OR INJURY
Make sure the base is in a at position and the vibrating
motors are off before unplugging it from the power
source. Always unplug the base from the electrical outlet
before cleaning or servicing the base. If the cord or plug
is damaged, discontinue use of the bed base and contact
qualied service personnel for examination and repair.
FCC COMPLIANCE
This device complies with Part 15 of the FCC Rules for
residential use. Operation is subject to the following two
conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that may
cause undesired operation. Radio Frequency: 2.4 GHz.
EMERGENCY BATTERY BACKUP
In the event that the base is stuck in an articulated
position during a power outage, the battery backup in
the transformer will return the base to a at position.
Batteries are not to be used for normal operation of the

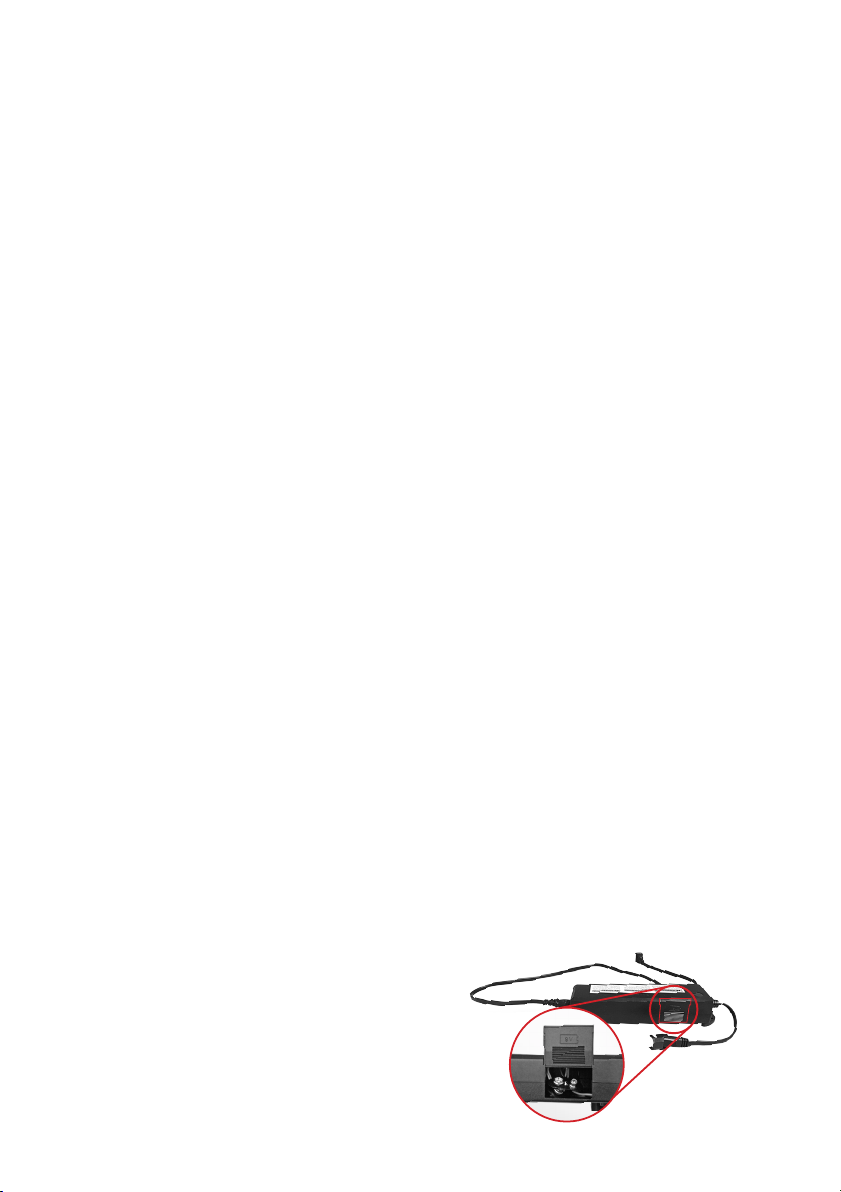

base. Install two 9-volt alkaline batteries into the
battery-backing transformer as shown below. Use the
reset button on the control box to return the base to a
at position.
WARNING
Attention: Read the following information before using this product. Failure to use a surge protection device could
compromise safety or cause product malfunction and could void the electrical portion of your warranty.

Setup and Installation
Important: We strongly recommend two able-bodied adults set up and assemble this product.
Figure 2
Step 1
Check and verify all parts are included before discarding
any packaging materials.
All electronics and components that need to be installed
are located in boxes under the bed base or attached to
the frame.
A) Wireless Remote (1)
B) Control Box (1)
C) Transformer with emergency battery backup (1)
D) Legs (4)
E) Power Cord (1)
F) Mattress Retaining Bar (1)
NOTE FOR KING ADJUSTABLE: King adjustable
has six legs and additional bag of hardware for the extra
step on page 6.
Step 2
With the help of your able-bodied assistant, place
adjustable box on floor with arrows pointing
downward.
NOTE FOR KING ADJUSTABLE: Turn to page 6
now for special instructions.
Step 3
Connect (C) Transformer to (B) Control Box. The
Control Box is the black box attached to the bottom of
the bed frame. Extend the control box extension cord
from (B) Control Box and attach it to the short electrical
output cord on (C) Transformer. Plug (E) Power Cord
into (C) Transformer. (See Figure 1.)
Step 4
Install (D) four legs rmly into the base of the frame.
The legs screw into the threaded holes in each corner of
the frame. (See Figure 2.) Do not overtighten.
Step 5
Locate the (A) Wireless Remote and insert 3 AAA
batteries (included).
F
E
E
B
C
C
E
D
C
F
A
B
1
Figure 1
E
B
C
Figure 1
F
E
B
C

Setup and Installation
Figure 3
Step 7
Plug (E) Power Cord into a grounded electrical outlet.
Using (A) Wireless Remote, push the HEAD UP button,
FOOT UP button, and any massage button for a
momentary test of the remote. (See Figure 3.)
If the adjustable bed responds to the remote, skip to
Step 10.
Step 8
If the adjustable bed does not respond to the remote,
synchronize (A) Wireless Remote with (B) Control Box.
First nd (B) Control Box mounted in the mid-section of
the bed frame. Press the HEAD UP and FOOT UP
buttons simultaneously on (A) Wireless Remote, then
press the RESET button on the side of (B) Control Box
or the control box extension cord. (See Figure 4.) You
will hear some quick beeping sounds. The adjustable
should be working after matching the remote to the
control box. Press the HEAD UP button to test. The
RESET button can be used for emergency attening of
the adjustable bed. Pressing the RESET button levels
the bed.
Step 9
With the help of your able-bodied assistant, carefully lift
the bed frame and set it upright on its legs. Excessive
lateral pressure may damage the legs. Remove all plastic
protective covering.
NOTE: Make sure to clear all power cords so that they
do not interfere with any mechanisms of the adjustable
bed. Dispose of plastic protective coverings to
avoid injury.
Step 10
(G) Mattress Retaining Bar is mounted upside down for
shipping purposes only. Remove (G) Mattress Retaining
Bar from the foot of the adjustable and turn the bar
upright. Reinstall by carefully aligning and pulling the
bar into place. (See Figure 5.)
2
1
2
2
3
3
4
4
Figure 5
Figure 4
1
2
3
4
RESET BUTTONS

Preset Position Buttons 1,2,&3
1. Adjust the head and foot to desired position.
2. Press and continue to hold the POS 1, POS 2, or POS 3 button until the backlight is ashing.
3. You can reset the three position buttons by repeating the above steps.
head Button
raise/lower
massage Intensity
Head massage
On/Off
Flat Button
Foot Button
massage speed
Foot massage
On/Off
massage type
Head Button — Raises and
lowers the head of the bed base.
Raise/Lower — Press either
button to raise or lower both the
head and foot at the same time.
Massage Intensity — Adjusts
massage intensity for the head and
foot of the bed base.
Head Massage On/O — Turns
the head massage unit on and o.
Flat Button — Press once to
return the bed to at position and
stop all massages.
Foot Button — Raises and lowers
the foot of the bed base.
Massage Speed — Increases or
decreases the massage rhythm for
the head and foot when in pulse
and wave mode.
Foot Massage On/O — Turns
the foot massage unit on and o.
Massage Type — Oers three
massage actions: Pulse, Wave, and
Constant.

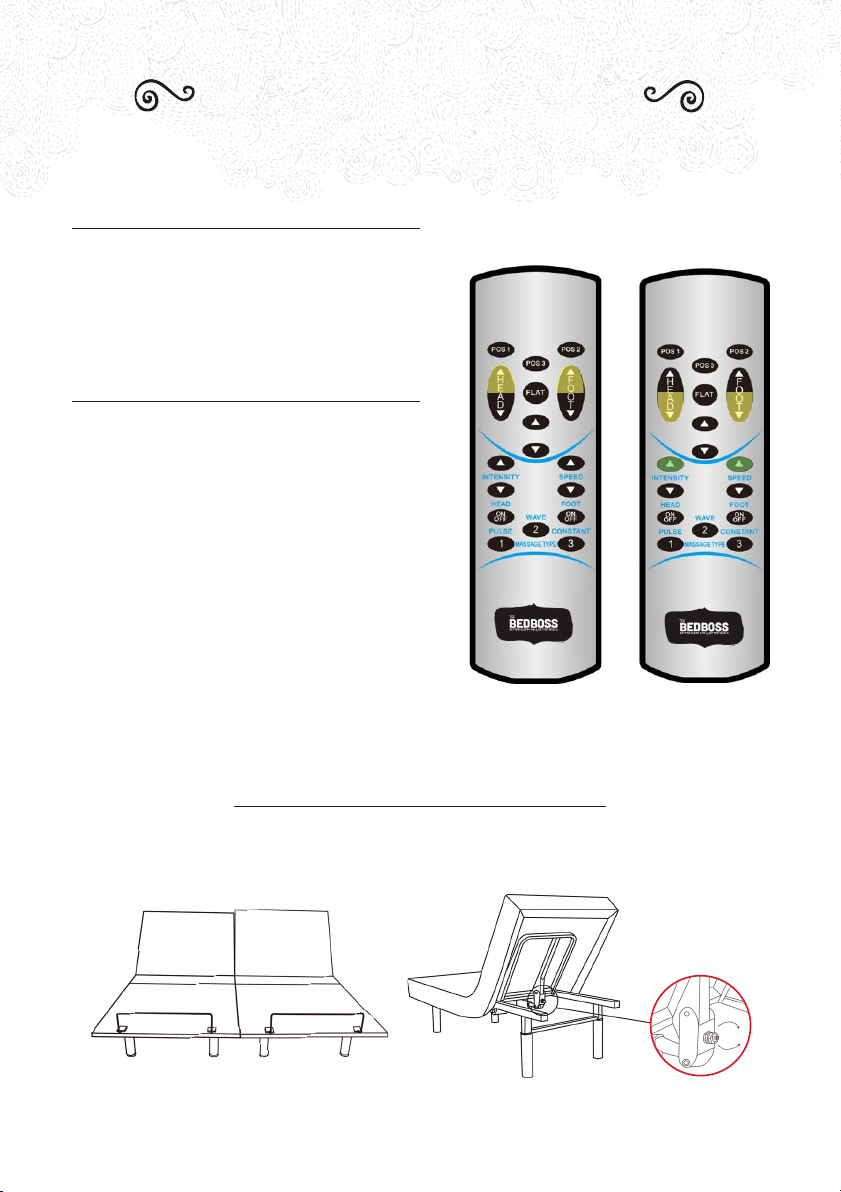

Wireless hand control
3

AB
Twin xl Instructions
When two side-by-side bases do not align
On the higher base of the two, use a wrench to turn both nuts counterclockwise to lower the angle
until the higher angle base matches the level of the lower angle base.
Using one remote to
control side-by-side bases
The bed base is designed to allow two Twin XL bases to
function together as a King base. You can use one
wireless remote to control two side-by-side bases by
synchronizing the remote with the control box of each
base. (See Step 7 of Setup and Installation.)
Using two remotes to
control side-by-side bases
You can synchronize two wireless remotes with two
side-by-side bases so that either remote simultaneously
controls both bases by: (1) synchronizing (A) Master
Remote with the control boxes of both bases and (2)
syncing (B) Clone Remote with (A) Master Remote by
following the steps below.
Press the HEAD DOWN and FOOT DOWN buttons on
(B) Clone Remote. The remote ashlight will turn on for
10 seconds. Meanwhile, press the HEAD UP and FOOT
UP buttons on (A) Master Remote. The syncing process
is successful when (B) Clone Remote ashlight begins to
ash. Now, either remote will simultaneously control
both bases.
To desynchronize (B) Clone Remote from (A) Master
Remote, simultaneously press the SPEED UP and
INTENSITY UP buttons on (B) Clone Remote. The
desynchronizing process is successful when (B) Clone
Remote ashlight stops ashing.
HIGHER ANGLED BASE
4

6
King Instructions
Securing base stability
Lock three hinge joints on King bed frame using (1) bolt, (1) at washer,
(1) lock washer, and (1) nut for each hinge joint as shown below.

Congratulations on the purchase of your new adjustable bed
base from THE BED BOSS® covered by the best warranty
from THE BED BOSS®.
THE BED BOSS® warrants the product only to the original
purchaser only for residential use from manufacturing defects
for a period of 15 years from Date of Purchase. The warranty
covers the adjustable bed base product only. The Purchaser is
responsible for all shipping costs to THE BED BOSS®. DO
NOT SHIP THE PRODUCT TO THE BED BOSS® WITHOUT
FIRST CONTACTING THE BED BOSS® FOR INSTRUCTIONS.
DO NOT RETURN THE PRODUCT TO THE RETAILER WHERE
YOU PURCHASED IT.
This warranty covers manufacturing defects only. Damage to
the product caused by abuse, misuse, or not properly
following the care instructions will void the warranty. THE BED
BOSS® is not responsible for any incidental or consequential
damages resulting from the use of its products. The
responsibility of THE BED BOSS® shall not exceed the
purchase price of the warranted product. This warranty will
only be honored when accompanied by a copy of the original
proof of purchase from an authorized retailer, reseller, or
distributor. This warranty is not available where the adjustable
bed base is used for commercial, institutional, or rental
purposes.
PRODUCT WARRANTY REGISTRATION
Product registration must be completed within 90 days of
purchase. Registration of the product online entitles the
original purchaser to an additional 1 year of full warranty
coverage as outlined below for a total period of 2 years from
date of purchase. Visit www.thebedboss.com to complete the
warranty registration process. Provide complete contact
information. Choose “Warranty Registration” as the contact
reason. Attach an image of the original purchase receipt.
Submit.
THE BED BOSS® reserves the right, upon the presentation of
a product covered by the warranty, to repair or replace with the
same. In the event that a particular product is no longer
manufactured, THE BED BOSS® shall have the right to
replace the product with a substitute product that most nearly
resembles the warranted item.
1 YEAR FULL WARRANTY
This adjustable bed base and its motor system are warranted
against defects in the workmanship or materials for a period of
1 year from the date of purchase. Upon written notice during
the rst year after the date of purchase, THE BED BOSS® will
provide a replacement part (at no cost to the purchaser) for
any defective adjustable bed base part and/or motor system.
When the adjustable bed base and/or motor system at hand is
found to be DAMAGED, not DEFECTIVE, all costs incurred to
inspect and/or correct the issue will be the financial
responsibility of the purchaser. If a service call is requested by
the purchaser within the rst year to complete a diagnostic or
repair, a fee of $100 will be charged to the purchaser and will
be due and payable prior to service. Year 2: $200. Year 3-15:
$300.
14 YEAR LIMITED PARTS WARRANTY
Upon written notice during the second year through the
fteenth from the date of purchase, THE BED BOSS® will
replace, upon terms and conditions set forth in this paragraph,
any mechanical bed base part found to be defective. This
limited warranty shall not apply unless the defective part is
returned to THE BED BOSS® according to the direction of an
THE BED BOSS® representative. The purchaser will pay all
service and transportation costs related to the replacement of
the defective part and is required to pay 1/14 of the current
replacement cost of the parts times the number of year used.
ADDITIONAL TERMS AND CONDITIONS
This warranty does not apply: (a) to any damage caused by the
purchaser; (b) if there has been any repair or replacement of
adjustable bed base parts by an unauthorized person; (c) if the
adjustable bed base has been mishandled (whether in transit
or by other means), subjected to physical or electrical abuse or
misuse, or otherwise operated in any manner inconsistent with
the operation and maintenance procedures outlined in the
Owner’s Manual and this warranty; (d) to damage to
mattresses, fabric, cables, electrical cords, or items supplied
by dealers (contact the dealer for warranty information on
these items); (e) if there has been any modication of the
adjustable bed base without prior written consent by THE BED
BOSS®; (f) to costs for service calls, including but not limited
to costs for service calls solely for the purpose of educating
the consumer about the adjustable bed base, service calls for
the replacement of defective parts under the manufacturer
warranty, or service calls which nd an unsatisfactory power
connection; (g) if the recommended weight restriction is not
followed (refer to the advisory section of this manual), the
warranty will be void. Repairs to or replacement of an
adjustable bed base or its components under the terms of this
limited warranty will apply to the original warranty period and
will not serve to extend such period. The decision to repair or
to replace defective parts under this warranty shall be made,
or cause to be made, by THE BED BOSS® at its option and in
its sole discretion. Repair or replacement shall be the sole
remedy of the purchaser. There shall be no liability on the part
of THE BED BOSS® for any special, indirect, incidental, or
consequential damages or to any other damage, claim, or loss
not expressly covered by the terms of this warranty. This
limited warranty does not include reimbursement for
inconvenience, removal, installation setup time, loss of use,
shipping, or any other costs of expenses, THE BED BOSS®
and/or its service technicians shall not be responsible for
moving furniture or any other items not attached to the
adjustable bed base in order to perform service on the
adjustable bed base. It is the sole responsibility of the
purchaser to provide adequate space and accessibility to the
adjustable bed base. In the event that the technician is unable
to perform service due to lack of accessibility, the service call
will be billed to the purchaser and the service will have to be
rescheduled. THE BED BOSS® makes no other warranty
expressed or implied, and all implied warranties of
merchantability and fitness for a particular purpose are
disclaimed by THE BED BOSS® and excluded from this
agreement. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so the
above limitation or exclusion may not apply to every purchaser.
Distributed by THE BED BOSS®
99 Textile Lane
Chattanooga, TN 37419
THE BED BOSS® - 1 & 14 YEAR LIMITED WARRANTY
