the sportScreen P316 User manual

Installation and User Manual
(Power Version 2.3)
For P316 and P31X (Custom)
ATTENTION: Read these instructions prior to assembling and using The SportScreen.
STOP! Make Sure You Have Received All the Parts Listed on the Bill of Materials.
Our Instructional Videos are strongly recommended to help with the installation.
www.thesportscreen.com/instructional-vedios

Table of Contents
Section 0: Bill of Material and Detail Drawings
Section 1: Introduction & General Product Information
Itrodutio…………………………………………………………………………………………………………………….
Product Information………………………………………………………………………………..……………….…....
Accessories………………………………………………………………………………………….…………..………….....
Safety Istrutios……………………………………………………………………………………………………………
Section 2: Installation Instructions
Dislaier………………………………………………………………………………………………….……………....…..
Preparatio……………………………………………………………………………………………………..….…....…...
Tools Needed…………………………………………………………………………………………..……….……....…...
Parts Needed…………………………………………………………………………………………..……….……....…....
Assely…………………………………………………………………………………………….………..……....…….-8
Section 3: Troubleshooting………………………………………………………………………………………….8
Section 4: Frequently Asked Questions……………………………………………………………………9
Section 5: User Warning Information
User Warig Iforatio……………………………………………………………………………………………....….…….9
Section 6: Care and Maintenance
Cold Weather Protetio………………………………………………………………………………....…..…………
Cleaning Instructions..……………………………………………………………………….……………....….….……
Replaeet Parts…………………………………………………………………………….……………....….….……

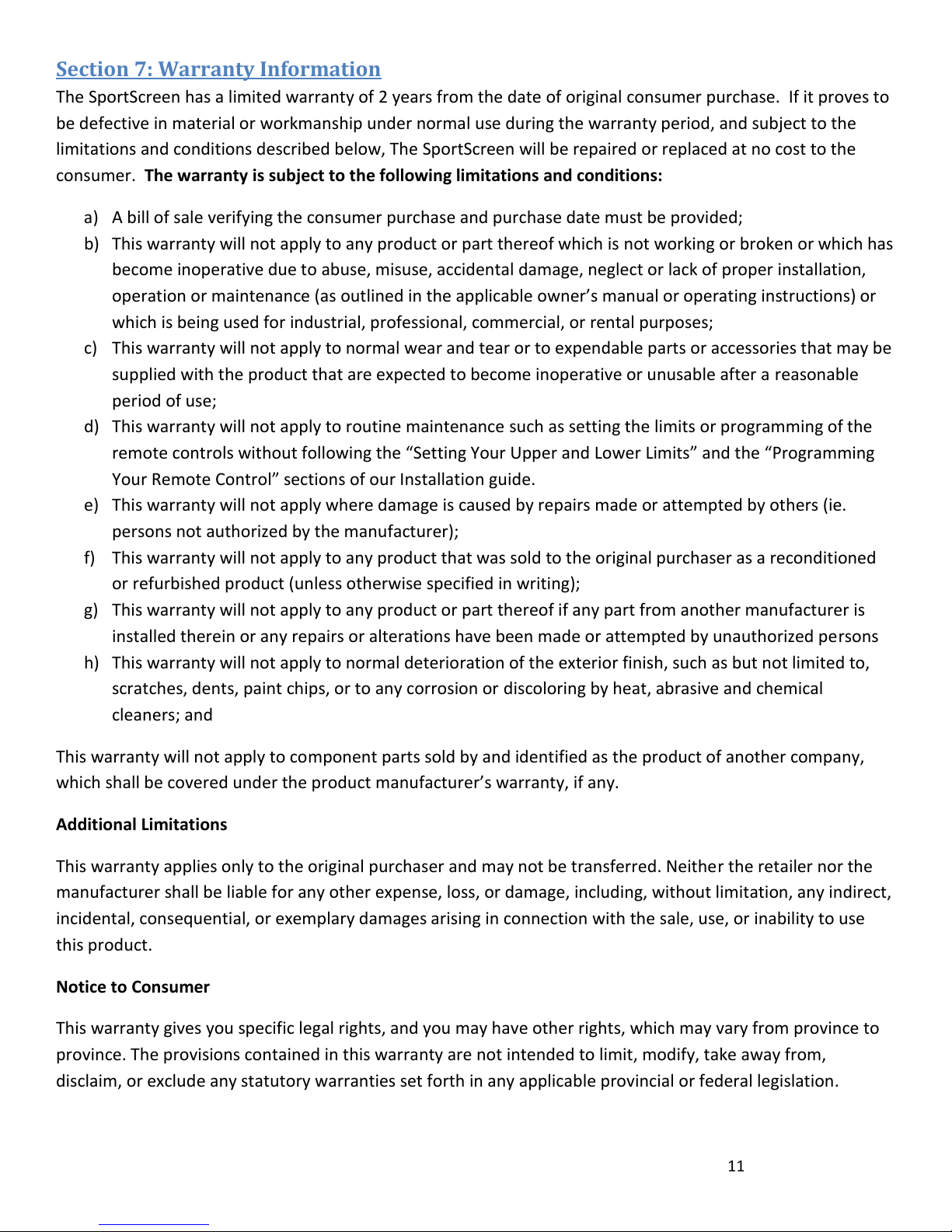

Section 7: Warranty Information
Warraty Iforatio………………………………………………………………………………………………....….………….

A
B
C
D
E
F
G
123456789
TOLERANCES
UNLESS OTHERWISE SPECIFIED
.XX +/- .01
.XXX +/- .005
.XXXX +/- .0001
ANGLES +/- .5
DO NOT SCALE
MARK ALL PARTS WITH
DRAW'G OR DETAIL NO.
TITLE
P316_SPORTSCREEN
DR. DATE. SHEET
1 OF 7
DR. NO. SIZE
CH. SCALE:
BILL OF MATERIAL
No. Description Qty.
1HEADROLL TUBE 3
2HEADROLL JOINER 2
3IDLER END 1
4ANGLE BRACKET 1
5DROP IN BRACKET 1
6COTTER PIN 1
7SCREW, PAN HD, 6-32 X 1/2 LG, SST 2
8NYLOCK NUT 2
9MOTOR 1
10 DRIVE, MOTOR 1
11 CROWN, MOTOR 1
12 COTTER PIN 1
13 ANGLE BRACKET 1
14 STAR BRACKET 1
15 SCREW, PAN HD, 6-32 X 1/2 LG, SST 2
16 NYLOCK NUT 2
17 BOTTOM BAR 3
18 JOINER BOTTOM BAR 2
19 BOTTOM BAR END CAP 2
20 MIDDLE BAR (FIBERGLASS) 3
21 MIDDLE BAR JOINER 2
22 MIDDLE BAR END CAP VELCRO 2
23 TEKS LATH PHILLIPS SCREW 1/2 38

A
B
C
D
E
F
G
123456789
TOLERANCES
UNLESS OTHERWISE SPECIFIED
.XX +/- .01
.XXX +/- .005
.XXXX +/- .0001
ANGLES +/- .5
DO NOT SCALE
MARK ALL PARTS WITH
DRAW'G OR DETAIL NO.
TITLE
P316_SPORTSCREEN
DR. TGSP DATE. SHEET
2 OF 7
DR. NO.
P316 SPORTSCREEN
SIZE
C
CH. SCALE:
SEE DETAIL D
SEE DETAIL B
1
3
4
5
7
8
9
10
11
12
13
14
15
16
17
18
20
21
22
23
23
SEE DETAIL A
19
SEE DETAIL C
SEE DETAIL E
SEE DETAIL F
SEE DETAIL G
2
23
6
SEE DETAIL D
SEE DETAIL B
SEE DETAIL A
SEE DETAIL C
SEE DETAIL E
SEE DETAIL F
SEE DETAIL G

A
B
C
D
E
F
G
123456789
TOLERANCES
UNLESS OTHERWISE SPECIFIED
.XX +/- .01
.XXX +/- .005
.XXXX +/- .0001
ANGLES +/- .5
DO NOT SCALE
MARK ALL PARTS WITH
DRAW'G OR DETAIL NO.
TITLE
P316_SPORTSCREEN
DR. TGSP DATE. SHEET
3 OF 7
DR. NO.
SPORTSCREEN
SIZE
C
CH. SCALE:
SCALE 0.750
DETAIL A
4
REF
7
REF
6
REF
5
REF
8
REF
3
REF

A
B
C
D
E
F
G
123456789
TOLERANCES
UNLESS OTHERWISE SPECIFIED
.XX +/- .01
.XXX +/- .005
.XXXX +/- .0001
ANGLES +/- .5
DO NOT SCALE
MARK ALL PARTS WITH
DRAW'G OR DETAIL NO.
TITLE
P316_SPORTSCREEN
DR. DATE. SHEET
4 OF 7
DR. NO. SIZE
CH. SCALE:
SCALE 0.750
DETAIL B
13
REF
15
REF
14
REF
16
REF
12
REF
23
REF
9
REF
9
REF
11
REF
10
REF

A
B
C
D
E
F
G
123456789
TOLERANCES
UNLESS OTHERWISE SPECIFIED
.XX +/- .01
.XXX +/- .005
.XXXX +/- .0001
ANGLES +/- .5
DO NOT SCALE
MARK ALL PARTS WITH
DRAW'G OR DETAIL NO.
TITLE
P316_SPORTSCREEN
DR. TGSP DATE. SHEET
5 OF 7
DR. NO.
SPORTSCREEN
SIZE
C
CH. SCALE:
SCALE 0.750
DETAIL D
2
REF
23
REF

A
B
C
D
E
F
G
123456789
TOLERANCES
UNLESS OTHERWISE SPECIFIED
.XX +/- .01
.XXX +/- .005
.XXXX +/- .0001
ANGLES +/- .5
DO NOT SCALE
MARK ALL PARTS WITH
DRAW'G OR DETAIL NO.
TITLE
P316_SPORTSCREEN
DR. 4DATE. SHEET
6 OF 7
DR. NO. SIZE
CH. SCALE:
SCALE 0.750
DETAIL F
SCALE 0.750
DETAIL G
22
REF
21
REF
23
REF
20
REF

A
B
C
D
E
F
G
123456789
TOLERANCES
UNLESS OTHERWISE SPECIFIED
.XX +/- .01
.XXX +/- .005
.XXXX +/- .0001
ANGLES +/- .5
DO NOT SCALE
MARK ALL PARTS WITH
DRAW'G OR DETAIL NO.
TITLE
P316_SPORTSCREEN
DR. DATE. SHEET
7 OF 7
DR. NO. SIZE
CH. SCALE:
SCALE 0.750
DETAIL C
SCALE 0.750
DETAIL E
19
REF
18
REF
17
REF

1
Section 1: Introduction & General Product Information
INTRODUCTION
Congratulations on being the owner of The SportScreen! The SportScreen has been engineered with safety, durability,
and performance in mind, to protect your garage door while providing hours of entertainment and exercise for the
whole family. The SportScreen is designed to prevent dents, damage, and reduce noise from pucks and/or balls hitting
your garage door. The SportScreen may improve puck and ball skills for a variety of sports.
Save this manual for future use and reference.
PRODUCT INFORMATION
The SportScreen is constructed from heavy-duty industrial materials that are resistant to ultraviolet rays and mold to
provide use all year-round. The SportScreen does NOT need to be removed during the winter months.
ACCESSORIES
The SportScreen offers a series of sports accessories. They can be conveniently purchased online at anytime for use
with The SportScreen. Sports accessories currently available include:
Targets are available for hockey, baseball and lacrosse to perfect precision with aim
Shooting Pad with Puck Rebounder for improving stick handling and shooting skills and offering a realistic
feeling of playing hockey
2ft Extension for additional height
For a current listing of all product accessories visit us at www.thesportscreen.com
SAFETY INSTRUCTIONS
Safe use and operation of The SportScreen requires proper setup and installation. Please read this manual
thoroughly. It provides important information on safe installation, use and maintenance of The SportScreen. To
reduce the risk of personal injury, the information in this manual must be followed. The purchaser of this piece of
equipment is assuming a degree of risk for which The SportScreen Ltd. cannot be held responsible.

2
Section 2: Installation Instructions
DISCLAIMER
While it is possible to install and mount The SportScreen yourself, we recommend that our valued customers hire a
professional garage door specialist or a general handyman to ensure proper setup and installation of The SportScreen.
The SportScreen Ltd. assumes no liability for incorrect installation by customers or third party installers.
The Sportscreen can be mounted as high as 108. For higher mountings, contact customer service for a
custom build unit.
Instructional videos demonstrating step-by-step installation can be viewed at:
www.thesportscreen.com/instructional-videos
PREPARATION
Sweep and clean your driveway before you begin assembly of The SportScreen. The following tools are needed in order
to install
TOOLS NEEDED
Ladders
Tape Measure
Level
Marker/Pencil
Phillips Screwdriver bit
Power Drill
Safety Glasses
Hammer
A partner
/1 reh
PARTS NEEDED
Appropriate fastening screws are required to mount the brackets to your house. These can be
purchased at your local hardware store.
ASSEMBLY
Step 1: Mounting Options
For your convenience The SportScreen can be mounted in two ways:
a) Inside mount: mount The SportScreen inside of the garage door jambs
b) Surface mount: mount The SportScreen on the brick or siding
(See Next Page for Detail)

3
The Sportscreen can be mounted as high as 108. For higher outigs, otat ustoer serie for a
custom build unit.
Step 2: Head roll Tube Assembly (SEE DETAIL D)
Lay out on a flat surface the head roll tube[1] components.
The head roll tubes[1] and Joiner[2] are supposed to be a tight fit with each other. Connect the head
roll tube[1] and line up the Velcro with each piece
Ensure the joiners[2] are distributed evenly in each tube. They are marked at center.
.
When the Joiner[2] is completely inserted into the tubes[1], the assembled tube should be checked to
ensure it is straight. This can be done by rolling the tube on a flat surface like the garage floor or the
driveway.
a) Inside Mount
b) Surface Mount
For the inside mount, the wall mount bracket is
mounted directly to the wood door jamb using 4
woodscrews. The brackets are mounted to the
garage door frame at the upper corners.
The Surface Mount is used for screens that are
mounted directly on the surface of the building.
Roof
Brick/Siding
Inside Mount
Roof
Brick/Siding
Surface Mount
Garage
Door
Garage
Door

4
Use a power drill and the 1/2Phillip screws[23] that are provided to install the screws on the pre-
marked holes on the tube[1]
Tip the head roll tube[1] towards the open end (the idler end) to empty out any aluminum shavings. If
this is not done, you will hear rattling in the tube during operation.
Step 3: Bracket location
Determine the placement of the motor (left side or right side) in relation to your power supply.
Depending on whether you are doing an inside mount or a surface mount, you will need to fasten the
drop-in bracket[5] with the Machine Screw and Nylock Nut [8] to the Wall Mount Bracket(Angle
Bracket)[4] such that the slotted grove is facing up. The star bracket[14] can be fastened any way.
(SEE DETAIL A)
Unit Size
Unit width (outside bracket –to –
outside bracket) if you do not wish to
use measuring wire
 P3)
127.667”
 P3
9.3”
Note: This area should be free of all obstructions since the head roll tube[1] will be mounted here.
Attach both angle brackets[4]+[13] to the wall, with one installer at each end and ladders in place, lift
the entire assembly up into the desired location. The motor end must be inserted first.
Place the wire on the motor end downwards, so that water and ice will not funnel into the motor.
Take the idle end[3] and insert it into the angle bracket[4], and move the bracket until it is secure in
the slotted grove. (SEE DETAIL A and DETAIL B)
Install the lock pin for idler end[6] first to prevent the head roll assembly from falling out of the
brackets. Then install the motor end cotter pin[12] and it should be bent open after been inserted to
ensure it will not fall out. DO NOT proceed to next step until the both cotter pins[12]+[6] have been
inserted and bent open. (SEE DETAIL A and DETAIL B)
Ensure that the head roll tube[1] is straight, you may notice some deflection due to the wide
distance the screen spans, this is normal.

5
Step 4: Mounting the Screen
The screen is to roll off the front of the head roll tube[1] (see mounting options on page 2)
“tartig aout ¾ i fro the motor on the head roll tube[1], begin to attach the screen to
the Velcro; you will need another person to hold the screen.
This ensures The SportScreen rolls up and it does so evenly, otherwise, it will NOT roll up
properly.
Step 5: Wiring
If you would like to have your wire fed through your house, drill a hole into your house from your
garage usig a iiu 3/ learae drill it.
Once The SportScreen is mounted, take the cord from the end of the motor and feed it through the
hole into your garage.
Once the wire is through the wall, attach the wall plug, wiring the green wire to the green and the
other two to either end. The power cord should be tightened inside of the cap so that no wiring is
visible. (see drawing below) NOTE: you will see a cut off black wire. Do not expose or use this wire. It is
obsolete and not needed.
Place the power cord on the motor end downwards, so that water and ice will not funnel into the
motor.
Step 6: Programming your Remote Control
The SportScreen remote control is already pre-programmed with The SportScreen motor. Install the
battery into the back of your remote. If you would like to set up a new remote, or your remote is not
pre-programmed. Follow these steps
1) Unplug the wall plug
2) Hold Up button (5 seconds)
3) Plug the wall plug back in while still holding the up button
4) Listen for beeping from the motor
5) As the motor is beeping, rapidly press the up button
**If your motor has been mounted on the left side, your buttons are opposite. To reverse this, follow these
steps:
1) Unplug the wall plug
2) Hold the up button (5 seconds)
3) Plug the wall plug back in while still holding the up button
4) Listen for beeping from the motor
5) As the motor is beeping, rapidly press the down button

6
Step 7: Assembling & Inserting Mid Bar and Bottom Bar
Mid Bar
Join the middle bars[20] together by sliding the outer rods over the preinstalled joiner[21]
section. (SEE DETAIL G)
Use the 1/2Phillip screws[23] , fasten the screws in the pre marked holes to connect the
rods together.
Insert the assembled middle bar through the pocket at the center of the screen.
Fit the middle bar end caps Velcro[22] into both ends of the middle bar. You may need to
gently tap with a hammer. (SEE DETAIL F)
Bottom Bar
Join the bottom bar sections[17] together by sliding the bottom bar joiner[18] into the
other bottom bar(s) using a hammer. (SEE DETAIL E)
Note: This is a jam fit and may require hitting the bar against a solid surface or wall. We
suggest putting a piece of wood between the surface and the tube to avoid damaging
the surface .
Insert the assembled bottom bar through the pocket at the bottom of the screen.
Using a hammer, tap the bottom bar end caps[19] onto both sides of the bottom bar. (SEE
DETAIL C)
Step 8: Setting Your Upper and Lower Limits
WE STRONGLY ADVISE WATCHING OUR INSTRUCTIONAL VEDIOS AT
WWW.THESPORTSCREEN.COM/INSTRUCTIONAL-VEDIOS BEFORE YOU SETTING YOUR LIMITS
The liit sets how high or low The SportScreen will roll when activated by the remote(s). There is an
adjusting screw on either side of the power cord.

7
Left Side Motor Mount:
Upper Limit (slot closest to the wall/garage):
Press the up utto o your reote. Your uit ill egi to rap aroud the head roll tue.
To increase your upper limit, turn the limit adjusting tool COUNTER-CLOCKWISE. The screen will begin
to travel in the upward direction as you turn the limit adjusting tool.
Stop when the screen is right below the head roll tube.
Your upper limit is set.
To decrease your upper limit, turn the limit adjusting tool CLOCKWISE.
Lower Limit (slot farthest from the wall/garage):
Press the do utto o your reote. Your uit ill egi to lower towards the ground.
To decrease your lower limit, turn the limit adjusting wand CLOCKWISE (this will reduce how far away
the screen is from the head roll tube). You will need to turn about 50 times in order for the screen to
be off the ground.
To increase your lower limit, turn the limit adjusting wand COUNTER-CLOCKWISE. The screen will
begin to travel in the downward direction.
Continue this process until the screen is at the desired level. When it is fully lowered, the screen should
be tight and the bar almost touching the ground, but low enough to stop a hockey puck from sliding
under. When it is fully raised up, the bottom bar should be tucked right below the tube.
Right Side Motor Mount:
Upper Limit (slot closest to the wall/garage):
Press the up utto on your remote. Your unit will begin to wrap around the head roll tube.
To increase your upper limit, turn the limit adjusting tool CLOCKWISE. The screen will begin to travel in
the upward direction as you turn the limit adjusting tool.
Stop when the screen is right below the head roll tube.
Your upper limit is set.
To decrease your upper limit, turn the limit adjusting tool COUNTER-CLOCKWISE.
Lower Limit (slot farthest from the wall/garage):
Press the do utto o your reote. Your uit ill egi to lower towards the ground.
To decrease your lower limit, turn the limit adjusting wand COUNTER-CLOCKWISE (this will reduce how
far away the screen is from the head roll tube). You will need to turn about 50 times in order for the
screen to be off the ground.
To increase your lower limit, turn the limit adjusting wand CLOCKWISE. The screen will begin to travel
in the downward direction.
Continue this process until the net is at the desired level. When it is fully lowered, the net should be
tight and the bar almost touching the ground, but low enough to stop a hockey puck from sliding
under. When it is fully raised up, the bottom bar should be tucked right below the tube.

8
Step 9: Display Warnings
Display the warning information sign either inside or near your garage to ensure users
remain safe and are aware of any dangers.
Section 3: Troubleshooting
Check out our instructional videos at www.thesportscreen.ca/instructional-videos
My motor is not working:
Make sure the batteries have a charge. To check this, press the up button and you will see a red light at
the top of the remote.
Make sure the wires in the wall plug are connected properly
Make sure your remote is synced to The SportScreen (see page 5)
My motor was working and then it stopped working:
These motors are designed to operate occasionally and not continuously. This also protects against any
jamming or bending of the curtain during roll up phase.
These motors have a built in safety thermal overload. This means that IF the unit is operated
frequently, repeatedly and/or the curtain gets caught the motor will heat up and the thermal safety
will automatically shut it off until it cools down.
In this situation, you are required to wait 20-30 minutes until the unit automatically starts up
Make sure there is nothing obstructing the screens range of motion
I at set y liits:
Refer back to page 6-7 – “ettig Your Upper ad Loer Liits
My Screen is not rolling up evenly:
Ensure that the screen is straight across the Velcro.
Since the SportScreen is made of a durable mesh material it has a natural stretch charactistic to it.
Therefore, some fine tuning may be required once the screen is installed correctly.
1) Cycle the screen up a quarter of the way from the complete down position
2) Look at the screen and by grabbing the bottom bar pocket, tug on the high side of the screen (left
or right)
3) Cycle the screen up to half way and, if necessary, repeat step #2
4) Cycle the screen up three quarters of the way and, if necessary, repeat step #2 again
My curtain and/or target flips over the top ar:
The upper limit is set slightly too high.
See pages 7 for lowering the upper limit.
If you are still having issues, call 1-855-727-3360

9
Section 4: Frequently Asked Questions
If I leave my SportScreen mounted outside during the winter, will it be affected by the weather?
The SportScreen is designed to be able to withstand harsh weather and temperatures. Snow buildup
should be removed from the top of The SportScreen to prevent sagging and to maintain proper
function. It is recommended that The SportScreen be rolled up when not in use.
How can I clean my SportScreen and/or valance?
All SportScreens and valances can be cleaned up using a mild dish detergent and water.
Can The SportScreen be installed to fit my 16 foot wide garage door to optimize coverage and protection for
my garage door?
It is important to follow the instructions provided for proper setup and installation of The SportScreen.
The SportScreen is designed to fit a 16 foot garage door frame with flexibility for different mounting
options. The SportScreen can be mounted on the surface of the exterior brick, or, it can be mounted
on the inside door jam.
Can I program a second remote control to work with my SportScreen?
Yes. Up to four (4) remotes can be programmed to work with one (1) SportScreen. Multiple remotes
provide you with the convenience of having them in your vehicle when you pull in to your driveway.
Additional remotes are offered as a sports accessory on the website at www.theSportScreen.ca
Section 5: User Warning Infomation
It is the responsibility of the owner to become familiar with the safety rules and to convey these rules to
all users
Children should be supervised at all times when The SportScreen is in use especially when lowering and
raising The SportScreen.
Check to make sure that there are no holes or tears in The SportScreen prior to use.
A hockey helmet with cage should be used at all times when The SportScreen is in use to prevent
serious injuries to the head or face to all persons.
To prevent personal injury to fingers or the appendages, do not touch or hold onto The SportScreen
when it is being lowered or raised
Do not hang from, attach or suspend objects from The SportScreen. It could damage the product and
cause possible harm to users.
Do not shoot a puck or hard object at a person or pet standing near or behind the SportScreen as they
could be seriously injured.
The SportScreen Ltd. assumes no liability for improper installation or any injuries that result.
Do not place your vehicle under The SportScreen when it is being rolled down for use as it can scrape
and cause damage to the vehicle.
When The SportScreen is in use, everyone should be aware that shooting pucks and other objects can
cause serious injury to people/pets and can cause damage to property and vehicles.

10
Section 6: Care and Maintenance
Proper use, care and maintenance will help to prolong the life of The SportScreen.
Cold Weather Protection
The SportScreen is designed for year-round outdoor use. In climates of cold weather where snow and ice are
common, any snow and/or ice build-up should be removed before use to ensure it does not interfere with
lowering or raising The SportScreen. When The SportScreen is not in use, it should be rolled up.
Do not use a sharp object (such as a shovel, hoe, garden rake, etc.) to remove ice or snow as this may
damage The SportScreen or interfere with proper operation.
Cleaning Instructions
The SportScreen and valance can be cleaned using a mild dish detergent and water.
Replacement Parts
The SportScreen is made of heavy-duty and durable components that may eventually need to be replaced.
Replacement parts, warning signs and labels can be ordered by calling 1-855-727-3360 if you need
replacement parts.

11
Section 7: Warranty Information
The SportScreen has a limited warranty of 2 years from the date of original consumer purchase. If it proves to
be defective in material or workmanship under normal use during the warranty period, and subject to the
limitations and conditions described below, The SportScreen will be repaired or replaced at no cost to the
consumer. The warranty is subject to the following limitations and conditions:
a) A bill of sale verifying the consumer purchase and purchase date must be provided;
b) This warranty will not apply to any product or part thereof which is not working or broken or which has
become inoperative due to abuse, misuse, accidental damage, neglect or lack of proper installation,
operatio or aiteae as outlied i the appliale oer’s aual or operatig istrutios or
which is being used for industrial, professional, commercial, or rental purposes;
c) This warranty will not apply to normal wear and tear or to expendable parts or accessories that may be
supplied with the product that are expected to become inoperative or unusable after a reasonable
period of use;
d) This warranty will not apply to routine maintenance such as setting the limits or programming of the
reote otrols ithout folloig the “ettig Your Upper ad Loer Liits ad the Prograig
Your Reote Cotrol setios of our Istallation guide.
e) This warranty will not apply where damage is caused by repairs made or attempted by others (ie.
persons not authorized by the manufacturer);
f) This warranty will not apply to any product that was sold to the original purchaser as a reconditioned
or refurbished product (unless otherwise specified in writing);
g) This warranty will not apply to any product or part thereof if any part from another manufacturer is
installed therein or any repairs or alterations have been made or attempted by unauthorized persons
h) This warranty will not apply to normal deterioration of the exterior finish, such as but not limited to,
scratches, dents, paint chips, or to any corrosion or discoloring by heat, abrasive and chemical
cleaners; and
This warranty will not apply to component parts sold by and identified as the product of another company,
hih shall e oered uder the produt aufaturer’s arraty, if ay.
Additional Limitations
This warranty applies only to the original purchaser and may not be transferred. Neither the retailer nor the
manufacturer shall be liable for any other expense, loss, or damage, including, without limitation, any indirect,
incidental, consequential, or exemplary damages arising in connection with the sale, use, or inability to use
this product.
Notice to Consumer
This warranty gives you specific legal rights, and you may have other rights, which may vary from province to
province. The provisions contained in this warranty are not intended to limit, modify, take away from,
disclaim, or exclude any statutory warranties set forth in any applicable provincial or federal legislation.
