the t.amp TA 450 MK-X User manual

TA 450 MK-X
TA 600 MK-X
TA 1050 MK-X
TA 1400 MK-X
TA 2400 MK-X
power amplier
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
12.04.2019, ID: 156554, 156555, 156556, 156557, 163846 (V3)

Table of contents
1 General information................................................................................................................................. 4
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 6
2 Safety instructions..................................................................................................................................... 8
3 Features....................................................................................................................................................... 14
4 Installation and starting up................................................................................................................ 15
5 Connections and controls................................................................................................................... 16
6 Technical specications....................................................................................................................... 21
7 Plug and connection assignment.................................................................................................... 37
8 Cleaning....................................................................................................................................................... 41
9 Protecting the environment.............................................................................................................. 42
Table of contents
TA 450 MK-X TA 600 MK-X TA 1050 MK-X TA 1400 MK-X TA 2400 MK-X
3

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
power amplier
4

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
TA 450 MK-X TA 600 MK-X TA 1050 MK-X TA 1400 MK-X TA 2400 MK-X
5

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
References to other locations in this manual are identied by an arrow and the specied page
number. In the electronic version of the manual, you can click the cross-reference to jump to
the specied location.
Example: See Ä ‘Cross-references’ on page 6.
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
Cross-references
General information
power amplier
6

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General information
TA 450 MK-X TA 600 MK-X TA 1050 MK-X TA 1400 MK-X TA 2400 MK-X
7

2 Safety instructions
This device amplies electric audio frequency signals to operate passive speakers. Use the
device only as described in this user manual. Any other use or use under other operating con‐
ditions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Intended use
Safety
Safety instructions
power amplier
8

DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or
damaged.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a pro‐
tective contact plug. Do not modify the mains cable or the plug. Failure to do so
could result in electric shock/death or re. If in doubt, seek advice from a regis‐
tered electrician.
Safety instructions
TA 450 MK-X TA 600 MK-X TA 1050 MK-X TA 1400 MK-X TA 2400 MK-X
9

CAUTION!
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent
hearing impairment. Over an extended period of time, even levels that seem to
be uncritical can cause hearing damage.
Decrease the volume level immediately if you experience ringing in your ears or
hearing impairment. If this is not possible, keep a greater distance or use su‐
cient ear protectors.
CAUTION!
Risk of injury due to heavy weight
Due to the heavy weight of the device, at least two persons are required for trans‐
port and installation.
Safety instructions
power amplier
10

NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked ames.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
Safety instructions
TA 450 MK-X TA 600 MK-X TA 1050 MK-X TA 1400 MK-X TA 2400 MK-X
11

NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or re.
NOTICE!
Magnetic elds
The device generates strong magnetic elds that can interfere with the function
of poorly shielded devices. The strongest magnetic elds are directly above and
below the power amplier. Therefore, never place sensitive devices such as pre-
ampliers, radio transmission systems, or tape decks directly above or below the
power amplier. When installing the power amplier into a rack, you should place
it in the lowest position, and further equipment such as pre-ampliers in the
highest position.
Safety instructions
power amplier
12

NOTICE!
Possible damage due to installation of a wrong fuse
The use of dierent types of fuses can cause serious damage to the unit. Fire
hazard!
Only fuses of the same type may be used.
Safety instructions
TA 450 MK-X TA 600 MK-X TA 1050 MK-X TA 1400 MK-X TA 2400 MK-X
13

3 Features
nInputs
– 2 × XLR
– 2 × 1/4" phone socket
nOutputs
– 2 × NL4 connectors (lockable)
– 2 × screw terminal
nProtective circuits
– Audio limiter
– Thermal protection
– Short circuit protection
– DC voltage protection
– Overcurrent protection
– Infrasound protection
nCooling via integrated two-stage fans
nSuitable for 19" racks (2 RU, mounting depth 44 cm)
Find device-specic features here Ä Chapter 6 ‘Technical specications’ on page 21.
Features
power amplier
14

4 Installation and starting up
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
Installation and starting up
TA 450 MK-X TA 600 MK-X TA 1050 MK-X TA 1400 MK-X TA 2400 MK-X
15

5 Connections and controls
Front panel
Connections and controls
power amplier
16

1[POWER]
Main switch to turn the device on and o.
2[CH-A/B]
Controls for input gain of channels CH-A and CH-B.
3 LED indicators for channels CH-A/B
These LEDs indicate the ready status of the device ([Power]), the input signal level ([Signal]), channel overdrive ([Clip])
and a fault condition ([Fault]).
The [Power] LED is permanently lit during operation. The [Signal] LEDs respond to the
input signal. If one of these LEDs is lit without an input signal being present, discon‐
nect the loudspeakers from the power amplier and turn the input gain control knobs
of channels CH-A and CH-B to their minimum levels. If the LEDs are still permanently
lit, the device must be checked by an authorized technical service centre.
Connections and controls
TA 450 MK-X TA 600 MK-X TA 1050 MK-X TA 1400 MK-X TA 2400 MK-X
17

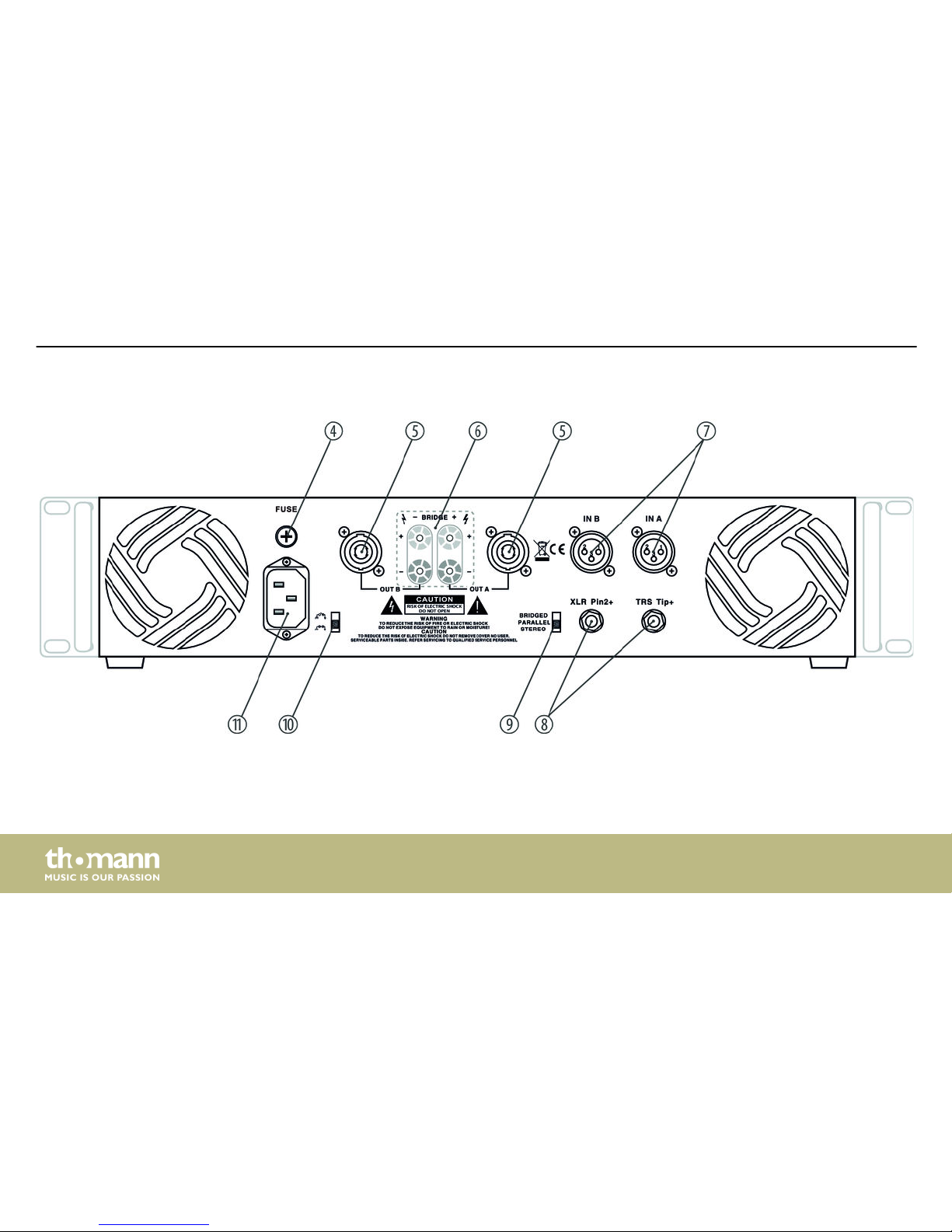

Rear panel
Connections and controls
power amplier
18

4 Fuse holder
5[OUT A | OUT B]
Signal outputs, designed as lockable NL4 panel sockets for connecting speakers.
6[OUT A | OUT B]
Signal outputs, designed as screw terminals (+/–) to connect speakers.
7[IN A | IN B]
Signal inputs, designed as XLR chassis sockets.
8[IN A | IN B]
Signal inputs, designed as 1/4" phone sockets.
9 Switch[STEREO | PARALLEL | BRIDGED]
Switch for operating modes ‘STEREO’ (channels operate independently of each other), ‘PARALLEL’ (two channels are
interconnected) and ‘BRIDGED’ (two channels are interconnected to form one channel with double output).
Connections and controls
TA 450 MK-X TA 600 MK-X TA 1050 MK-X TA 1400 MK-X TA 2400 MK-X
19

10 [Lift | Ground] selector switch
The Ground/Lift switch allows you to interrupt the connection between the device’s protective earth terminal and
signal ground in order to prevent hum loops (Lift/unpressed state: disconnected. ‘Ground’ position / switch pressed:
Earth pin and signal ground are electrically connected).
11 IEC chassis plug for the power supply.
