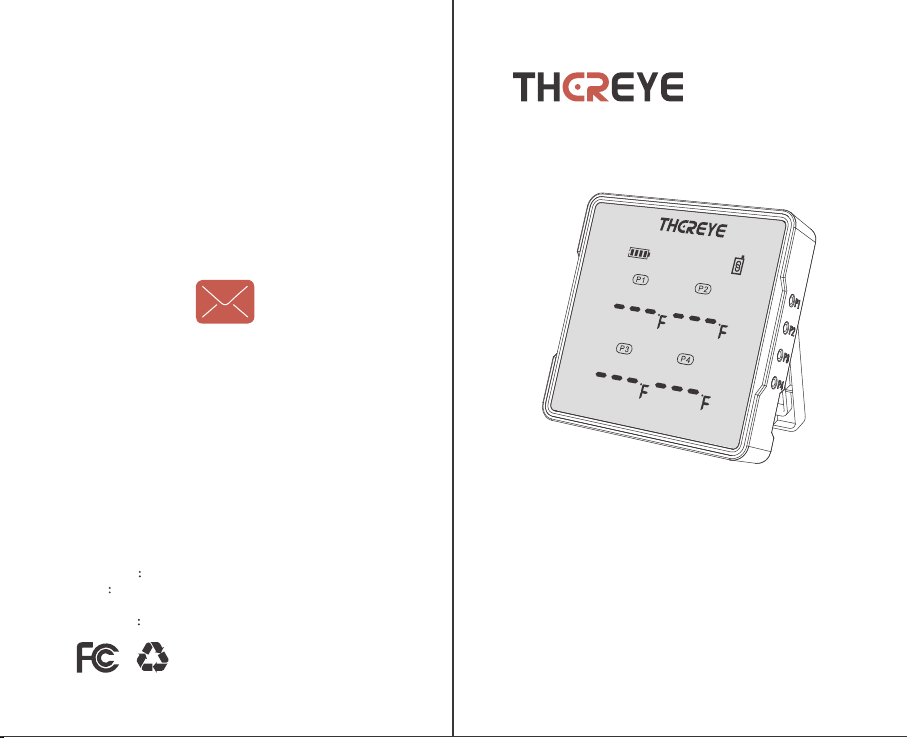

THEREYE ER-BT02 User manual
Manufacturer：Shenzhen Guiyang Network Technology Co., Ltd
Address：1404K3, East Block, Shengtang Commercial Building,
Futian District, Shenzhen, China
Service Email：[email protected]om
Smart Meat
Thermometer
User Manual
ER-BT02
P1 P2
P3 P4
F F
F F
Front and Rear View
01
1 x Thermometer transmitter
1 x Type C USB charging cable
4 x SUS304 probes
2 x Metal clips
1 x Owner manual
Power button
88mm
88mm
Display
Package Contents
Product Diagram
P1 P2
P3 P4
F F
F F
LED Display & Side View
Probe No. 2
Probe No. 4
Probe No. 1
Probe No. 3
Battery
capacity
Bluetooth
connection
status
Real-time
Temperature
measured
by the probe
Temperature
Unit
02 03
Magnet
Probes Metal rack
Reset key
Bracket
Power button
Press 1.5s to turn on/ off the unit
Quick press to switch
the temperature unit
Press 8s to wipe
the existing data
Type C USB Port
Probes dock No.1
Probes dock No.2
Probes dock No.3
Probes dock No.4
04 05
Model NO.
Measuring range
Accuracy (during the
lab. condition)
Display unit
Measuring time
Rating voltage
Effective transmit
range
ER-BT02
-22℉～572℉/-30℃～300℃
±1℃(±2℉):-10～100℃(14～212℉)；
±2℃(±4℉): 100℃～200℃(212～
302℉)、-20～-10℃(-4～14℉)；
1℉/1℃
1 second
3.7V 1000mAh Rechargeable
Li-battery
393 ( 120M) ( No barrier)
Item Dimension
Wire of the probe
Operating
environment
3.94x2.76x0.72 In (10x7x1.82cm)
Length: 41.73 in（106cm）, The
temperature resistance: 716°F
(380°C)
32℉～122℉/0℃～50℃
Storage environment 14℉~140℉/-10℃~60℃
1Press the power button in 1.5 seconds until the
LCD screen displays“ON”;
2Choose the probe and insert it into the port;
Specifications Using your thermometer
o
P1 P2
P3 P4
F F
FF
06 07
3Insert the probe into the food, and the screen shows
the instant food temperature;
4When the LCD display brightness is 100%, press the
power button to switch Celsius/Fahrenheit;
5Use the phone APP to check the probe temperature,
set the time and temperature alarm.
Download and install the APP and Pairing
What You Need
A smart device running iOS8.0 (or above) or Android
4.3(or above)
Search the EB LinkLite app from the Apple Store for
IOS devices or on the Google Play Store for Android
devices.
Enable Bluetooth function on your smart device
Open the App, tap the “+”icon in the top right corner
or the “Add Device”icon in the middle of display or
search Food Probe ( BLE) or Meatthermometer.
Tap the device icon and follow the onscreen
instruction to complete pairing.
Done! Your Thereye Smart Bluetooth Wireless Meat
Thermometer is ready for use!
①
②
③
④
Using your transmitter
P1 P2
P3 P4
P1 P2
P3 P4
F F
FF
P1 P2
P3 P4
P1 P2
P3 P4
F F
F F
89
When the transmitter is on, and the LCD display
brightness is 100%, press the power button to
switch Celsius/Fahrenheit; when the LCD display
brightness is 30%, press the power button once,
and the LCD brightness displays to 100%
Celsius and Fahrenheit unit
Press the power button 8 seconds on the top of
thermometer transmitter when the transmitter
was off.
Wipe the existing connection data if you want
to change the smart device
The reflected probe number temperatures in the
display will be lighting if the the probe was insert
into the dock.
The probes installation
Keep the probe was located in the center of the
food for more accuracy temperature informa-
tion.
Temperature measurement
09
/ F
℃
08
If the thermometer transmitter is power off/ on, press
the power button in 1.5 seconds and “ON”/ “OFF”
icon will be shown in the LCD display.
Turn on / off the transmitter
The battery capacity icon will flash if the battery is
low. The display of the transmitter will show ” OFF”
and the transmitter will be shut-off. Please charge it
with DC5V 1A adapter.
Please fully charge the thermometer transmitter
before the first usage or if the unit was storage more
than half an year.
The battery capacity icon will flash when charging.
When the charging completed, the icon won’t flash.
Don’t use the transmitter when it is in charging.
Charge the transmitter with the type-C
USB cable
Operation Guide
/
o
OFF
10 11
How to pair the transmitter and the smart
device. If pairing failed, the transmitter
could monitor the temperature or not.
Please check whether it is first use. Aer turning
on the thermometer transmitter, the Bluetooth
will start pairing in 10 mins. You can see the
Bluetooth connection in the top right corner
flashing. Follow the instruction of “Download and
install the APP and Pairing “, you can pair the
transmitter and your smart device.
If you want to pair again, please press the power
button 1.5 seconds to turn off the transmitter
then turn on. The Bluetooth start pairing again.
Even if the pairing failed in 10 mins, you can use
the thermometer transmitter as non-Bluetooth
thermometer and the pairing will be stopped
automatically.
The display lightness is dark automatic.
The transmitter “ auto-dim” feature to extend the
battery operation time.
If you press the power button or install or uninst
the probes or operate the APP in the connected
smart device, the display will be full lightness
again.
Cannot use EB LinkLite app to set up the
meat thermometer
Ensure your smart device’s Bluetooth is on and
has connected t the meat thermometer
Ensure the app location permission is allowed
Ensure your smart device is within 393/120m of
the meat thermometer. It is recommended to be
as close as possible to the thermometer during
pairing.
How to switch the Celsius and Fahrenheit unit.
When the transmitter is on, quick press the power
button once then you can find the unit was
switched
When the LCD display brightness is 100%, open the
EB LinkLite App and switch the unit in the setting
page
The screen displays“---” “ LLL” or “HHH”.
There screens display “---” if the probe was not
equipped or equipped in position. Please insert or
pull it then insert into the dork again.
The meat temperature measurement range is -22
℉～572℉/-30℃～300℃
If the temperature is lower than -22℉/-30℃, the
screen will display “---”
If the temperature is higher than 572℉/300℃, the
screen will display “ HHH”, which will then trigger
an alarm
Troubleshooting
Q：
A：
Q：
A：
Q：
A：
Q：
A：
Q：
A：
12 13
Check the Bluetooth connection icon whether it
stay on both of the APP page and the LCD display
or not. And check whether smart device receive
the disconnection notice
Check the battery status, if the battery icon is
flash, Please charge it.
If the connection status is single connected, you
can only check the current food temperature.
Please move your smart device closer to the meat
thermometer to achieve a two-way connection.
Then you will be able to make related adjustment
and settings.
How to change the device
Delete the Thereye Smart Bluetooth Wireless Meat
Thermometer device in the original smart device
via the “EB LinkLite” APP. Then use the new smart
device to follow the use steps mentioned above.
Press the power button 8 seconds on the top of
thermometer transmitter. Then use the new smart
device to follow the use steps mentioned above.
The thermometer is abnormal
Use a pin to push the reset key of the thermometer
transmitter in the back of transmitter
Q：
A：
Q：
A：
Warm Tips
Please make sure open your bluetooth on your phone
to be paired correctly.
Connecting distance range up to 393(120M) (under
open conditions), please make sure to use it within the
connection range.
Please make sure that the meat thermometer probe is
firmly inserted into the port to prevent the wrong
temperature reading.
Do not put the plastic wrap in the oven to avoid melt!
Do not immerse the base in water or any corrosive
cleaning materials. Wipe with a damp cloth.
Do not touch hot probes or wires with bare hands
during or just aer cooking. Always wear heat-resistant
gloves.
The thermal resistance of different parts of the probe is
different. Do not put the probe directly in the flame.
The probe is not suitable for dishwasher cleaning!
The probe must be wiped clean or disinfected before
and aer measuring food.
The probe cable of this product has IPX4 waterproof
and can be washed with water, but cannot be
immersed in water.
The probe can withstand a high temperature of 300°C
(572°F). Do not expose it to flames.
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
14 15
1
2
3
1
2
3
This product is intended for domestic use only. Thereye
will repair or replace the product, or any part of this
product, (excluding batteries) free of charge if within 12
months of the date of purchase, it can be shown to
have failed through defective workmanship or
materials.
This guarantee covers working parts that affect the
function of the product. It does not cover cosmetic
deterioration caused by fair wear and tear or damage
caused by accident or misuse. Thereye shall not be
responsible for any type of incidental, consequential or
special damages. Opening or taking apart the product
or its components will void the guarantee. Claims
under guarantee must be supported by proof of
purchase and be returned carriage paid to Thereye.-
Care should be taken in packing the product so that it is
not damaged while in transit.
This undertaking is in addition to a consumer's
statutory rights and does not affect those rights in any
way. For questions, support, or warranty claims,
contact us at the email address below. Please do
include your order number and product model number.
Warranty & Customer Support
We can only provide aer-sale services for the products
that are sold by authorized sellers. If you have purchased
from an unauthorized seller, please contact them directly
for service or warranty issues.
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules.
These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this equipment
does cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and
receiver.
Statement
NOTE:
-Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician
for help.
-Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
-This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1)this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
16
Table of contents
