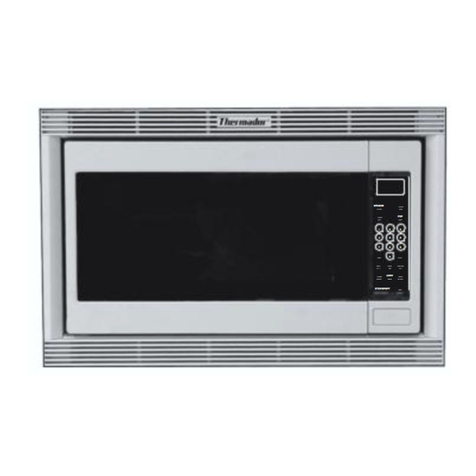

Thermador MBB User manual

For Built - in Microwave Ovens
INSTALLATION
INSTRUCTIONS
Oven
Model
MBB
Built-In
Trim Kits
Models:
MET27B
MET30B
(Sold Separately)

Page 2
IMPORTANT: Local codes vary. Installation, electrical connections, circuit breakers
and grounding must comply with all applicable codes. Save these instructions
for your local electrical inspector's use.
INSTALLER: Please leave these Installation Instructions with this unit for the
owner.
OWNER: Please retain these instructions for future reference.
WARNING: Disconnect power at the breaker before installing.
Please read this entire manual before proceeding
Table of Contents
Step 1: Unpacking ................................. 3
Step 2: Preparing the Cabinet ................ 4
Step 3: Preparing the Electric ................. 5
Step 4: Preparing the Trim Kit ................ 5
Step 5: Installing the Ducts .................... 6
Step 6: Completing the Installation ......... 7

Page 3
Step 1: Unpacking
A. Tools Needed:
• Tape Measure
• Drill with 1/16" bit
• Pliers
• # 2 Phillips Head Screwdriver
• Gloves
• Safety Goggles
Microwave Oven Model MBB
Remove and discard all packing
material.
Parts Included:
• Care & Use manual (1)
• Warranty Card (1)
• Plastic Turntable (1)
• Glass Tray (1)
B. Trim Kit Models MET27B & MET30B
Remove and discard all packing materials.
Parts Included:
• Trim Frame (1)
• Base Pan (1)
• Trim Bracket (2)
• Side Duct (1)
• Upper Exhaust Duct (1)
• Top Intake Duct (1)
• Rear Intake Duct (1)
• Installation Instructions (1)
• 10-foot Roll Tape (1)
• Screws #8 x
3/8" Type B (Blunt
Point) (7)
• Screws #8 x
3/8" Type A (Sharp
Point) (9)
• Grommet (1)
• Template (1)
• 7/16" Lag Bolts (2)
Table 1 - Model Numbers
Caution:
• Trim kits are designed for use
only with the Thermador
microwave oven models listed
(See Table 1).
• For safety, do not alter or
modify any part of this kit or
oven.
• Unit is heavy and requires at
least two people to lift or
move.
Trim Kits Microwave
Ovens
30" Cabinet
27" Cabinet
MET30BB
MET30BW
MET30BS
MET27BB
MET27BW
MET27BS
MBBB
MBBW
MBBS
MBBB
MBBW
MBBS

Page 4
4"
14"
4"
➛
➛
A
➝
➝
➝
➝
➛
➛
➛
➛
BC
Step 2: Preparing the Cabinet
• The cabinet cutout dimensions are shown in
Figure 1.
• It is a good practice when the microwave oven is
installed at the end of a cabinet run, adjacent to a
perpendicular wall or cabinet door, to allow at least
1/2"
(12.7 mm) space between the side of the trim
and wall or door.
• Your microwave oven can be installed into a
cabinet or wall by itself or above any of the
following Thermador wall ovens: C271, C301,
CM301, S301, SC301. Or,
Thermador Warming
Drawers WD27 and WD30 (see Figures 2a and
2b).
• Outlet can be located anywhere within the shaded
area as indicated in Figure 1.
Warming
Drawer
cutout
Microwave
cutout
1-1/2"
(38 mm)
}
Figure 1
Outlet should be
in the shaded area.
Dimension MET27B MET30B
Trim Height 17-1/4"17
-1/4"
Trim Width 26-3/4"29
-3/4"
Cutout Height (A) 17" ±1/16" 17" ±1/16"
Cutout Width (B) 25-1/2" ±1/16"28
-1/2" ±116"
Depth (C) 24" ±1/16" 24" ±1/16"
Figure 2a
Microwave
Cutout
1-3/4"
(44.5 mm)
}
Thermador
single wall
oven
cutout
1" (25.4 mm) minimum
from cutout to wall.
}
1"
(25.4 mm) Bottom of
microwave
shelf
Figure 2b
Trim Kit Model

Page 5
WARNING: Improper grounding can result in risk of electric shock.
Step 4: Preparing the Trim Kit
(1) Attach the two vertical side trim brackets to the template as shown in Figure 3. Use two (2) #8 x
3/8, Type B screws on each side.
(2) Mark the center line on bottom edge of the cutout.
(3) Hold template in front of cabinet cutout. Line up the bottom of the template with the bottom of the
cutout. Align the template notch with the centerline of the cutout.
(4) Mark the location of the three holes in the trim brackets on both sides. Set brackets and tem-
plate aside.
(5) Drill 1/16" diameter starter holes.
(7) Remove template from trim brackets and discard. Set brackets and screws aside to be installed
later in the process.
Note: DO NOT attach trim brackets at this time. Continue to
Step 5: Installing the Ducts.
Step 3: Preparing the Electric
The Thermador microwave oven is equipped with a grounded cord. The wall receptacle must be
installed and grounded in accordance with the national electrical code. It can be installed anywhere in
the shaded area in Figure 1 (previous page). Electrical connections and grounding must comply with all
applicable local codes.
The electrical requirements for a separate circuit serving only this microwave oven are: 120V, 60Hz,
15Amp.
Figure 3
Align notch in template
with center line
of cabinet cutout
Screws #8
x
3/8"
Centerline
Template
Trim Brackets

Page 6
Step 5: Installing The Ducts
Figure 4
Microwave
Oven
Top
Intake
Duct
Rear
Intake
Duct
Outer Case Screw
Side
Duct
Upper
Exhaust
Duct
1. Remove and discard the protective plastic
film from the 4 ducts.
CAUTION
The ducts have sharp edges. Be careful when
handling.
Base Pan
(center hole)
Grommet
2. Set microwave upside down in stable loca-
tion.
3. Use pliers to remove and discard all four (4)
black plastic feet from bottom of microwave.
4. Attach base pan to bottom of microwave at
leg holes. Fasten with two (2) 7/16" lag bolts.
Install one bolt through front right leg hole
and one through back left hole. Return mi-
crowave to right-side-up position.
2. Loosen the outer case screw near the vent
on left side of the microwave.
3. Position side duct on left side of oven. Slide duct
under loosened outer case duct screw and tighten.
4. Position upper exhaust duct on top left side (hinge
side) of oven. The left side will overlap the side
duct. Fasten upper exhaust duct and side duct
to microwave using two (2) #8 x 3/8" Type B
screws.
5. Wrap grommet around electrical cord.
6. Thread grommet and electrical cord in the
receiving hole provided in the rear intake duct.
7. Attach rear intake duct to the rear of the oven.
Fasten with one (1) #8 x 3/8" Type B screw.
6. Position top intake duct on top side of oven. Slide
the back edges under the rear intake duct. Fasten
top intake duct and rear intake duct to microwave
using four (4) #8 x 3/8" Type B screws.
7. Use tape provided to cover all duct seams. Verify
that all seams are tightly sealed.

Page 7
Caution: The microwave oven is heavy. Al-
ways use at least two people to lift the unit.
1. Lift oven into position and rest right rear cor-
ner in cabinet cutout.
2. Reach past microwave on left side to insert
electrical cord into outlet.
3. Slide oven the rest of the way into the cabi-
net. Position microwave in cabinet so that
base pan center hole aligns with cabinet
centerline. When properly installed, the front
end of pan will be flush with the front edge
of the shelf.
4. Open the microwave door to access three
holes on the base pan below the microwave.
Drill 1/16" holes through the three (3) base
pan holes into the cabinet cutout bottom.
Fasten base pan to shelf with three 3 #8 x
3/8 Type A screws.
11. Install both vertical trim brackets on the cabi-
net using three (3) #8 x 3/8 Type A screws
on each side. The flanges on the ends of
the brackets should be inside the cabinet.
12. Snap frame trim into the trim brackets
(Figure 6). The four (4) ball studs on the
back of the frame snap into the four (4) spring
clips on the trim brackets. Tip: Place
screwdriver behind spring clip to support
bracket.
13. Install the plastic turntable. Place in center
of oven bottom with base in hole. Turn
turntable clockwise until it drops into place.
Place glass tray on top of turntable.
14. Test the operation of the microwave. See
the Care & Use manual for operating instruc-
tions.
Step 6: Completing the Installation
Figure 5
Figure 6
Frame Trim

BSH Home Appliances Corporation
5551 McFadden Avenue, Huntington Beach, CA 92649 • 800/735-4328
RO 2011M • 9000012356A • © 2004 BSH Home Appliances Corp. • Litho Date 06/04
Thermador reserves the right to change specifications or design without notice. Some models are
certified for use in Canada. Thermador is not responsible for products which are transported from
the United States for use in Canada. Check with your local Canadian distributor or dealer. Thermador,
5551 McFadden Avenue, Huntington Beach, CA 92649.
For the most up-to-date critical installation dimensions by fax, use your fax handset and phone
702/833-3600. Use code #8030.
