Thermador PDR366 User manual

for
THERMADOR®
PROFESSIONAL RANGES
®
Model PDR366
with High Shelf PRS36HS
Dual Fuel Model PDR36
FOR RESIDENTIAL USE ONLY
January, 2003
SERVICE MANUAL
5040008372A

Page 2
THIS S RVIC MANUAL CONTAINS INFORMA-
TION THAT IS N C SSARY FOR S RVICING TH
TH RMADOR® PROF SSIONAL RANG S:
MOD L PDR 36
THIS MANUAL IS DESIGNED TO BE USED ONLY BY
QUALIFIED SERVICE PERSONNEL THERMADOR
RECOMMENDS THAT CUSTOMERS DO NOT SER-
VICE THEIR OWN UNITS, DUE TO THE COMPLEX-
ITY AND THE RISK OF HIGH-VOLTAGE ELECTRI-
CAL SHOCK
TH INFORMATION IS ORGANIZ D TO H LP TH
S RVIC R ASILY FIND WHAT IS N D D TO R PAIR
TH UNIT.
INTRODUCTION

Page 3
Table Of Contents
Page
General .................................................................................................................................................................... 4
Serial Number/Data Sticker Locations........................................................................................................... 4
Model And Parts Identification ....................................................................................................................... 5
Symbols You Will See In The Manual............................................................................................................. 6
Important Safety Information .......................................................................................................................... 6
Thermador Warranty......................................................................................................................................... 7
Installation .............................................................................................................................................................. 8
Important Installation Information ................................................................................................................. 8
Ventilation Requirements ............................................................................................................................... 10
Cabinet Preparation ......................................................................................................................................... 11

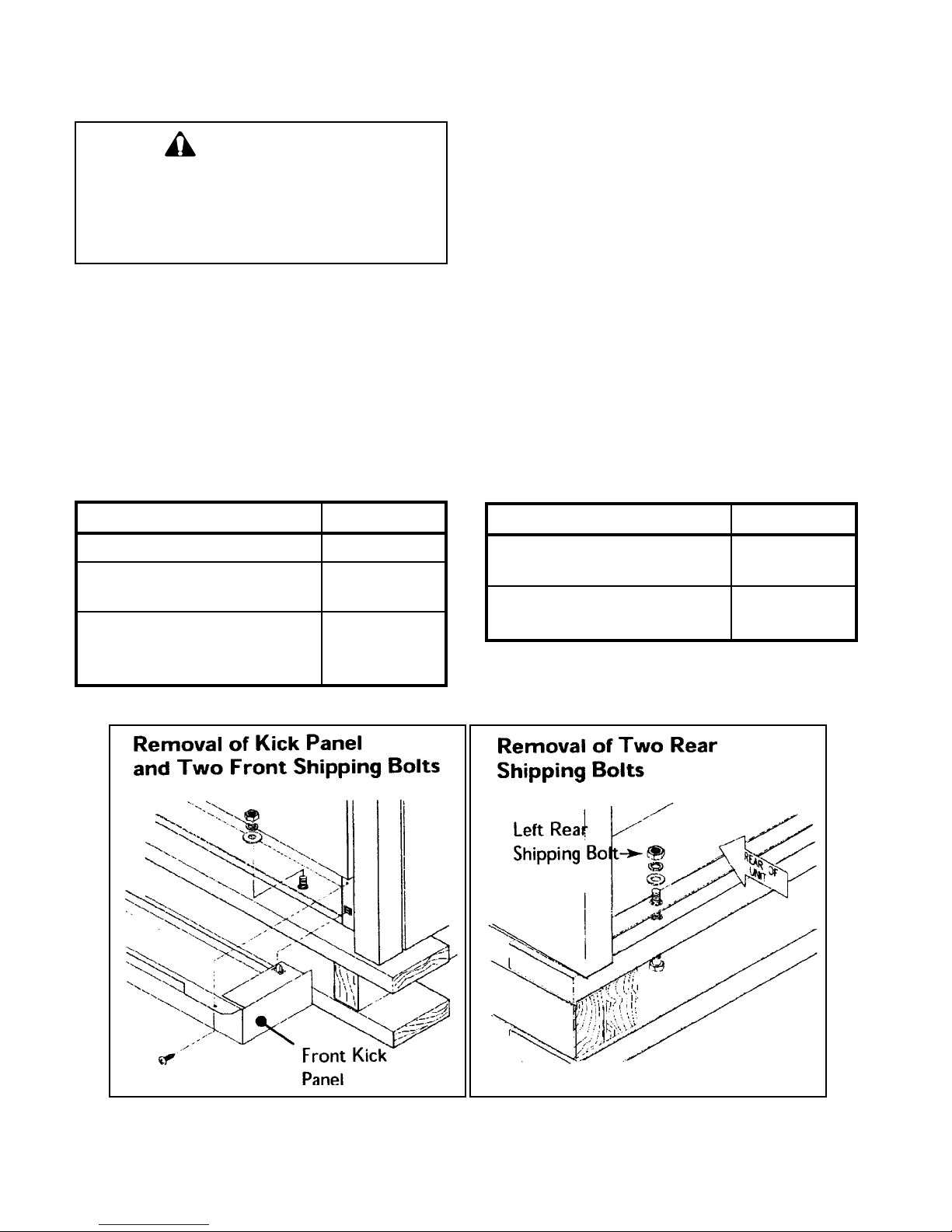

Unpacking, Moving, & Placing The Range .................................................................................................. 14

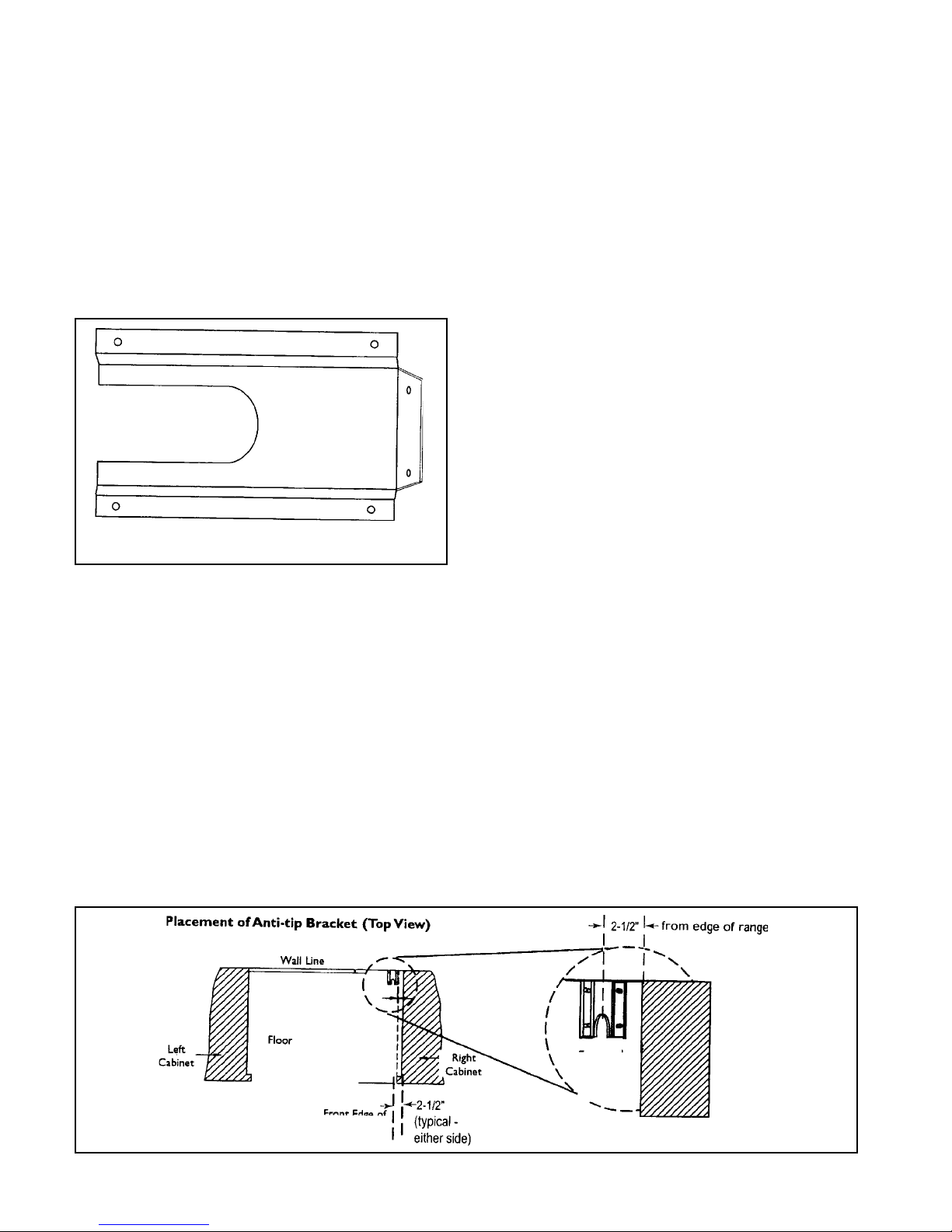

Installing The Anti-Tip Device ....................................................................................................................... 16
Gas Requirements & Hookup ........................................................................................................................ 17
lectrical Requirements, Connection, & Grounding .................................................................................. 19
Backguard Installation..................................................................................................................................... 22
Door Installation............................................................................................................................................... 23
Tests And Adjustments ................................................................................................................................... 24
Cooktop Section ................................................................................................................................................... 25
Cooktop Components...................................................................................................................................... 25
Burner Components ......................................................................................................................................... 26
Control Panel Components ............................................................................................................................ 27
Burner Box Components ................................................................................................................................. 28
Feature Operation Gas Flow........................................................................................................................... 29
TroubleShooting Chart A ................................................................................................................................ 31
TroubleShooting Chart B ................................................................................................................................ 32
TroubleShooting Chart C ................................................................................................................................ 33
TroubleShooting Chart D ................................................................................................................................ 34
Oven Section......................................................................................................................................................... 35
Oven Components ........................................................................................................................................... 35
Top Components .............................................................................................................................................. 36
Interior Components........................................................................................................................................ 36
Rear Components ............................................................................................................................................. 37
Component Description .................................................................................................................................. 38
Diagnostics ........................................................................................................................................................ 40
Wiring Diagrams ................................................................................................................................................. 42

Page 4
GENERAL
SERIAL NUMBER/DATA STICKER LOCATIONS
Toe Panel
WARNING
Be sure to turn off the electrical supply to
the range before removing the toe panel; oth-
erwise electrical shock could occur.
The Serial Number/Data Sticker shows the
model and serial numbers of the range. It is
located behind the toe panel at the bottom of
the range. To access the Serial Number/Data
Sticker, remove the two toe panel attachment
screws and remove the panel.
The PDR Dual-Fuel models have the Serial
Number/Data Sticker located on the vertical
panel to the left of the electrical components.
ELECTRICAL SHOCK HAZARD

Page 5
MODEL AND PARTS IDENTIFICATION
1. 22″ High Shelf Backguard, 12″ Low Back, or
Island Trim (Backguard ordered separately)
2. Burner Grates & Burners
3. Control Knobs, xtraLow® Burners (2)
4. Control Knobs, Standard Burners (4)
5. Oven Controls
6. Oven Light Switch
7. Oven Door
8. Viewing Window
9. Kick Panel
Dual-Fuel Model PDRS366 Shown
10. Oven Interior Lights
11. Broil lement
13. Rack Guides
14. Oven Rack (3)
15. Bake lement
16. Convection Fan Covers
17. Heat Shields (2)
Key for PDR Models
Electric Oven

Page 6
and proper operation and servicing of the range,
follow the instructions carefully each time you
see one of the symbols.
The following symbols are provided through-
out this manual. For reasons of personal safety
SYMBOLS YOU WILL SEE IN THE MANUAL
WARNING
This symbol alerts you to such dangers as
personal injury, burns, fire, and electrical
shock
CAUTION
This alerts you to actions that could cause
product damage (scratches, dents, etc ), and
damage to your personal property
IMPORTANT SAFETY INFORMATION
WARNING
Be sure to turn off all electric and gas sup-
plies to the range before servicing; other-
wise, a fire or explosion may result caus-
ing property damage, personal injury, or
death
Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
GAS RANGE—WHAT TO DO IF
YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch.
• Do not use any phone in the building.
• Immediately call your gas supplier from a
neighbor’s phone.
• Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call
the fire department.
TH RMADOR ASSUM S NO R SPONSIBILITY
FOR ANY R PAIRS MAD ON OUR PRODUCTS
BY ANYON OTH R THAN AUTHORIZ D
TH RMADOR S RVIC T CHNICIANS.

Page 7
THERMADOR® WARRANTY
Thermador will not pay for:
1. Service by an unauthorized
agency. Damage or repairs by
an unauthorized agency or
use of unauthorized parts.
2. Chipping of porcelain,
enamel, discoloration of
chrome plating or the griddle
plate.
3. Service visits to:
• Teach you how to use the
appliance.
• Correct the installation.
You are responsible for
providing electrical wir-
ing and/or gas installa-
tion and other connecting
facilities.
• Reset circuit breakers or
replace home fuses.
4. Damage caused from acci-
dent, abuse, alteration, mis-
use, incorrect installation or
installation not in accordance
with local codes, or improper
storage of the appliance.
5. Repairs due to other than
normal home use.
Thermador will pay for:
All repair labor and replacement
parts found to be defective due to
materials and workmanship.
Service must be provided by a
Factory Authorized Service Agency,
during normal working hours. For
a Service Agency nearest you,
please call: 1-800/735-4328.
Length of Warranty
FULL ONE YEAR
For one year from date of installa-
tion or date of occupancy for a
new previously unoccupied
dwelling. Save all dated receipts
or other evidence of date of
installation/occupancy date.
This warranty applies to appliances used in normal family households; it does not cover their use in commercial situations.
This warranty is for products purchased and retained in the 50 states of the U.S.A., the District of Columbia, and Canada. The
warranty applies even if you should move during the warranty period. Should the appliance be sold by the original purchaser
during the warranty period, the new owner continues to be protected until the expiration of the original purchaser’s warranty
period.
This warranty gives you specified legal rights. You may also have other rights which vary from state-to-state.
HOW TO OBTAIN SERVICE
For service, contact the Factory Authorized Service Agency in your area, the dealer from whom you purchased the appliance,
or write us at the address shown below.
We want you to be a satisfied customer. If a problem arises that has not been resolved to your satisfaction, please let us know
Write to:
Consumer Relations Department
5551 McFadden Avenue
Huntington Beach, CA 92659
or phone:
[phone]
Please be sure to include the Model Number, Serial Number, (located on the data sticker), and the Date of Original Purchase.

Page 8
INSTALLATION
IMPORTANT INSTALLATION INFORMATION
Improper installation, adjustment, alter-
ation, service or maintenance can cause in-
jury or property damage Refer to this
manual For assistance or additional infor-
mation consult a qualified installer, service
agency, manufacturer (dealer) or the gas
supplier
WARNING
Do not store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from a
neighbor’s phone.
• Follow the gas supplier’s instruction
• If you cannot reach your gas supplier, call
the fire department.
Installation and service must be performed by
a qualified installer, service agency or the gas
supplier.
GAS TYPE VERIFICATION
Verify the type of gas supplied to the location.
nsure that the appliance is connected to the
type of gas for which it is certified. All models
are certified for use with natural gas. Field
conversion of the appliance for use with pro-
pane gas supply will require a conversion kit.
Refer to the product rating label which can be
located as indicated on page 4.
When connecting the unit to propane gas,
make certain the propane gas tank is
equipped with its own high-pressure regu-
lator in addition to the pressure regulator
supplied with the range. The maximum gas
pressure to this appliance must not exceed
14 0 inches water column (34 9 millibars)
from the propane gas tank to the pressure
regulator
CAUTION

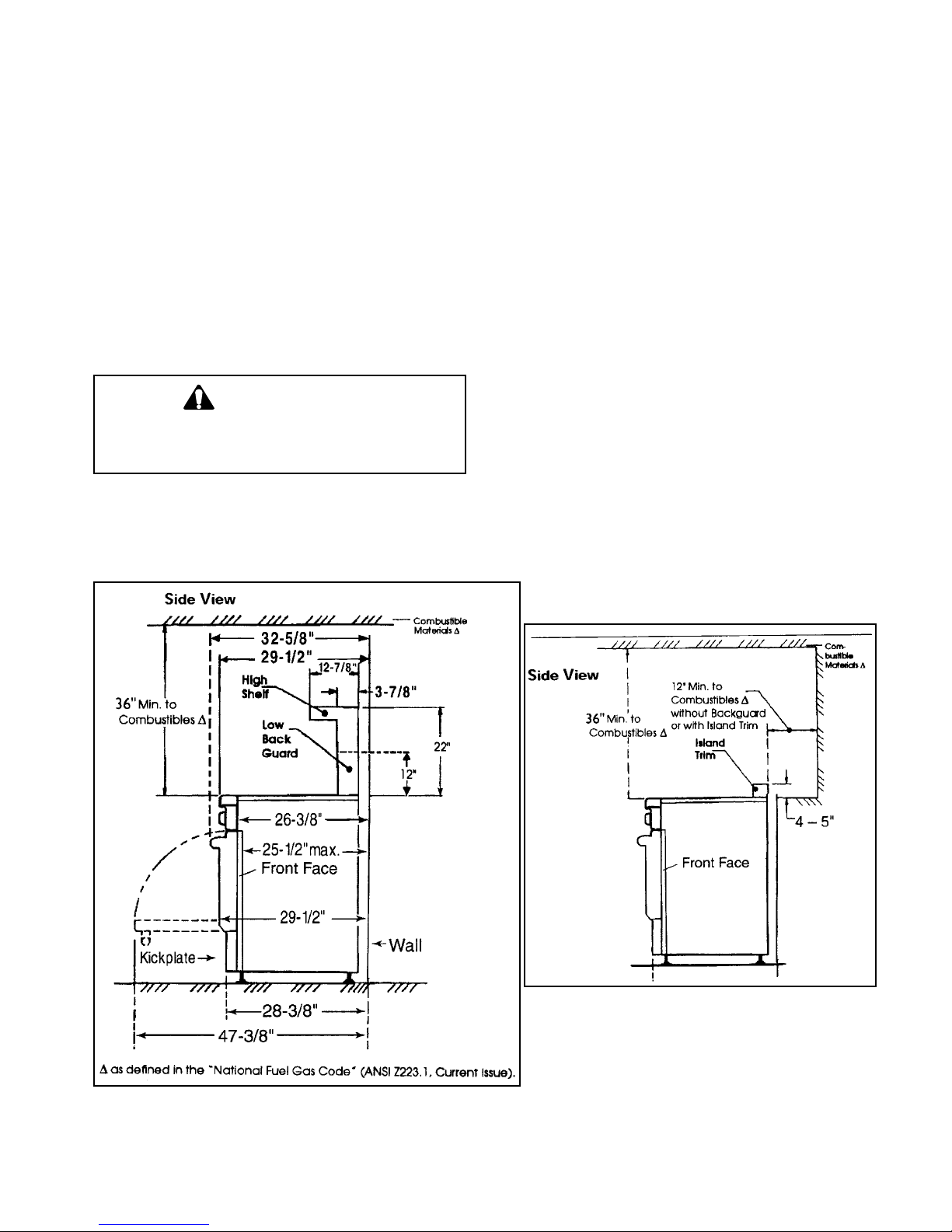

IMPORTANT
• A backguard must be utilized when there
is less than a 12 inch horizontal clearance
between combustible materials and the
back edge of the cooktop. The Thermador
Low Back backguard must be ordered sepa-
rately and installed at the rear of the
cooktop. For island installations and other
installations with more than 12 inches of
clearance, an optional stainless steel Island
Trim is available to cover the backguard
mounting flanges.
• Verify that the appliance is correct for the
type of gas being provided.

Page 9
This appliance has been tested in accordance
with ANSI Z21.1 2000, Standard for House-
hold Cooking Appliances (USA) and in accor-
dance with CAN 1.1-M81 Domestic Gas Ranges
(Canadian).
It is strongly recommended that this appliance
be installed in conjunction with a suitable over-
head vent hood (see “Ventilation Require-
ments” on page 10). Due to the high heat
capability of this unit, particular attention
should be paid to the hood and ductwork
installation to assure it meets local building
codes.
Check local building codes for the proper
method of appliance installation. Local codes
vary. Installation, electrical connections and
grounding must comply with all applicable
codes. In the absence of local codes the appli-
ance should be installed in accordance with the
To eliminate risk of burns or fire caused
by reaching over heated surface units, cabi-
net storage located above the surface units
should be avoided
CAUTION
When connecting the unit to propane gas,
make certain the propane gas tank is
equipped with its own high pressure regu-
lator in addition to the pressure regulator
supplied with this unit. The maximum gas
pressure to this appliance is not to exceed
14.0 inches (37 mb) water column from the
propane gas tank regulator.
This unit is designed as a cooking appliance.
Based on safety considerations never use it
for warming or heating a room.
CAUTION
National Fuel Gas Code ANSI Z223.1 Current
Issue and National lectrical Code ANSI/
NFPA 70-Current Issue. In Canada, installa-
tion must be in accordance with the CAN 1 -
B149.1 and .2 - Installation Codes for Gas Burn-
ing Appliances and/or local codes.
This appliance is equipped with an intermit-
tent/interrupted ignition device that cycles
the two far left surface burners on and off when
in the xtraLow® setting.

Page 10
VENTILATION REQUIREMENTS
It is strongly recommended that a suitable
exhaust hood be installed above the range.
Downdraft ventilation should not be used.
The table below indicates the Thermador hoods,
by model number, that are recommended for
use with all ranges.
1 Select Hood and Blower Models
For wall installations, the hood width must, at
a minimum, equal the width of the range cook-
ing surface. Where space permits, a hood larger
in width than the cooking surface may be
desirable for improved ventilation perfor-
mance.
For island installations, the hood width should,
at a minimum, overhang the range cooking
surface by 6″ on both sides.
CAUTION: Ventilation hoods and blowers
are designed for use with single wall ducting.
However, some local building codes or inspec-
tors may require double wall ducting. Consult
local building codes and/or local agencies,
before starting, to assure that hood and duct
installation will meet local requirements.
Hood blower speeds should be variable to
reduce noise and loss of heated or air condi-
tioned household air when maximum ventila-
tion is not required. Normally, the maximum
blower speed is only required when using the
grill.
2 Hood Placement
For best smoke elimination, the lower edge of
the hood should be installed a minimum of 30″
to a maximum of 36″ above the range cooking
surface.
If the hood contains any combustible materials
(i.e. a wood covering), it must be a minimum of
36″ above the cooking surface.
3 Consider Make-Up Air
Due to the high volume of ventilation air, a
source of outside replacement air is recom-
mended. This is particularly important for
tightly sealed and insulated homes.
A qualified heating and ventilating contractor
should be consulted.

Page 11
CABINET PREPARATION
1. The range is a freestanding unit. If the unit
is to be placed adjacent to cabinets, the
clearances, shown in Figures 1A and 1B,
are required. The same clearances apply to
island installations, except for the over-
head cabinets, which must have a space
wide enough to accept the flared island
hood.
2. The 30″ and 36″ ranges may be recessed
into the cabinets beyond the edge of the
front face of the oven (see Figures 1A & 1B).
In these installations, the door and cabinet
can cause a pinching hazard.
CAUTION
3. The gas and electrical supply should be
within the zones shown in Figures 2A or 2B
on page 12.
4. The maximum depth of overhead cabinets
installed on either side of the hood is 13″.
5. Any openings in the wall behind the range
and in the floor under the range must be
sealed.
6. When there is less than a 12″ horizontal
clearance between combustible material
and the back edge of the range above the
cooking surface, a Thermador Low Back or
High Shelf backguard must be installed
(see Figure 1A). When clearance to com-
bustible material is over 12″, a Thermador
Island Trim may be used (see Figure 1B).
Figures 1A and 1B indicate the space re-
quired for each type of backguard.
7. Always keep appliance area clear and free
from combustible materials, gasoline and
other flammable vapors and liquids.
8. Do not obstruct the flow of combustion and
ventilation air to the unit.
Figure 1A
Figure 1B

Page 12
Figure 2A
Figure 2B
Model PDR36 A=7″, B=9″
GAS & ELECTRICAL SUPPLY ZONES

Page 13
ELECTRICAL SUPPLY—
DUAL FUEL RANGES
Installation of Dual Fuel ranges must be
planned so that the rough-in of the junction
box for the receptacle or conduit connection
will allow maximum clearance to the rear of
the unit.
When the power supply cord (not supplied) or
conduit is connected to the mating receptacle
or junction box cover, the combined plug/
receptacle or junction box cover/conduit con-
nector should protrude no more than 2-1/4
inches from the rear wall (see Figure 2C ).
This is especially critical if the junction box in
the wall will be directly behind the junction
box on the unit when the unit is installed (see
Figure 7 on Page 20 for location of junction box
on unit). To minimize binding when the unit is
connected to the receptacle or junction box,
orient the receptacle or conduit connector, and
slide back into position.
Figure 2C

Page 14
UNPACKING, MOVING, & PLACING THE RANGE
Proper equipment and adequate manpower
must be used in moving the range to avoid
damage to the unit or the floor. The unit is
heavy and rests on adjustable steel legs.
CAUTION
The range has an approximate shipping weight
as shown in Chart A. It is recommended that
the grates, griddle, burner caps, front kick
panel and oven racks be removed to facilitate
handling. This will reduce the weight as shown
in Chart A and allow the range to pass through
30″ doorways (see Chart B and Figures 1A and
1B on Page 11). Do not remove the grill or
griddle assemblies.
Remove the outer carton and packing material
from the shipping base. Remove the front kick
panel (see Figure 3) by removing two (2) screws
at the top and pulling forward. The dual fuel
ranges are held to the skid by four (4) bolts. The
front two (2) are behind the kick panel, (see
Figure 3), and the rear two (2) are located on
the bottom flange of the range back (see Figure
4). All-gas ranges are held in place by 4 bolts,
two (2) as shown in Figure 3, and two (2) at the
rear as shown in Figure 4. After removing the
bolts, the range must be lifted and removed
from the skid.
Chart B 36″ Range
Doorway Width Required 30-7/8″
(Unit Assembled)
Doorway Width Required 29-1/2″
(Oven Door(s) Removed)
Chart A 36″ Range
Shipping Weight 444 lbs.
Weight W/O Packing 390 lbs.
Materials
After Removing Door(s), 295 lbs.
burner caps, front kick
panel, and oven racks
Figure 3 Figure 4

Page 15
Due to the weight, a dolly with soft wheels
should be used to move this unit. The weight
must be supported uniformly across the bot-
tom (see Figure 5).
After transporting the professional range by
dolly close to its final location, the range can be
tipped back and supported on the rear legs
while the dolly is carefully removed. TH
FLOOR UND R TH L GS SHOULD B PRO-
T CT D (WOOD STRIPS, CARP T, PAN L-
ING, TC.) B FOR PUSHING TH UNIT
Figure 5
INTO POSITION. The anti-tip device must be
installed, gas and electric connections should
be made, and the backguard installed before
the range is placed in its final position.
For proper performance the professional range
must be level. The range is leveled by adjusting
the legs with a wrench. Replace the kick panel
and install oven door. It is important that the
two (2) screws retaining the kick panel are
secure to prevent accidental access to hot
surfaces

Page 16
INSTALLING THE ANTI-TIP DEVICE
(MODELS PDR30 & PDR36 DUAL FUEL RANGES)
Part No Qty Description
415078 4 Screw, Phillips, #10 x 1/2″
487310 1 Anti-Tip Bracket, Floor-Mounted
The thickness of the wall or floor may require
use of longer screws, available at your local
hardware store.
In all cases, at least two (2) of the bracket
mounting screws must be fastened to solid
wood or metal.
Use appropriate anchors when fastening the
mounting bracket to any material other than
hardwood or metal.
The anti-tip bracket (Figure 6A) may be at-
tached to a solid wood cabinet having a mini-
mum wall thickness of 3/4″.
Figure 6A
Prepare holes at fastener locations as identi-
fied below:
• For walls, wall studs, or floors com-
posed of solid wood or metal, drill 1/8″
pilot holes.
• For walls or floors composed of dry-
wall, sheet-rock or other soft materials,
drill 3/16″ holes to a minimum depth of
1-3/4″, then tap plastic anchors into
each of the holes using a hammer.
• For walls or floors composed of con-
crete or concrete block, drill 3/16″ holes
to a minimum depth of 1-3/4″, then tap
concrete anchors into each of the holes
using a hammer.
• For walls or floors having ceramic tile
covering, drill 3/16″ holes through the
tile only, then drill into the material
behind the tile as indicated immedi-
ately above.
If the range is moved to a new location, the
Anti-Tip Device must be removed and rein-
stalled.
MOUNTING THE ANTI-TIP
BRACKET
The alternative floor mounted bracket shall be
installed as follows:
a) Place bracket on floor in position shown in
Figure 6B.
b) Secure to floor or wall stud.
c) Later, when the unit is installed, the adjust-
able leg will slide under the bracket.
Figure 6B

Page 17
GAS REQUIREMENTS & HOOKUP
Verify the type of gas being used at the instal-
lation site. As shipped from the factory, all
units are configured for use on natural gas. For
use with propane gas, the unit must be con-
verted. Field conversion for use with propane
must only be done by qualified service person-
nel. Contact the dealer where the unit was
purchased or Thermador (800-735-4328). The
field conversion kit for all Professional Dual
Fuel (PDR series) ranges is Thermador Model
CTLPKIT.
For installation of the appliance at high alti-
tude, please consult your local gas company
for their recommendation of the correct orifice
sizes and any other necessary adjustments that
will provide proper gas combustion at speci-
fied altitudes.
When connecting unit to propane gas, make
certain the propane gas tank is equipped
with its own high pressure regulator in ad-
dition to the pressure regulator supplied
with the appliance. The pressure of the gas
supplied to the appliance regulator must not
exceed 14″ (37 mb) water column.
NATURAL GAS REQUIREMENTS
Inlet Connection: 3/4″ N.P.T. (Minimum 3/4″
diameter flex line)
Supply Pressure: 6″ to 14″ water column. (14.9
to 37 mb)
Manifold Pressure: 5″ water column (12.5 mb)
PROPANE GAS REQUIREMENTS
Inlet Connection: 3/4″ N.P.T. (Minimum 3/4″
diameter flex line)
Supply Pressure: 11″ to 14″ water column.
(27.4 mb to 37 mb)
Manifold Pressure: 10″ water column (24.9
mb)
CAUTION
For Massachusetts Installations:
1. Shutoff valve must be a “T” handle gas
cock.
2. Flexible gas connector must not be longer
than 36″.
3. Not approved for installation in a bed-
room or a bathroom unless unit is direct
vent.

Page 18
HOOKUP
A manual gas shutoff valve must be installed
external to the appliance, in an accessible loca-
tion from the front, for the purpose of shutting
off the gas supply. The supply line must not
interfere with the back of the unit. Make sure
the gas supply is turned off at the manual shut-
off valve before connecting the appliance.
The range is supplied with its own pressure
regulator that has been permanently mounted
within the range body.
Use 3/4″ flex line to connect between the gas
supply and the appliance manifold pipe, which
exits the upper left rear of the appliance. The
appliance manifold pipe connection is 1/2″
NPT (see Figures 2A, or 2B on Page 12.) Use
caution to avoid crimping the 3/4″ flex line
when making bends.
The gas supply connections should be made
by a competent technician and in accordance
with local codes or ordinances. In the absence
of a local code, the installation must conform to
the National Fuel Gas Code ANSI Z223.1, Cur-
rent Issue.
Always use pipe dope or Teflon® tape on the
pipe threads, and be careful not to apply exces-
sive pressure when tightening the fittings.
Turn on the gas and check the supply line
connections for leaks using a soap solution. Do
not use a flame of any sort to check for leaks.

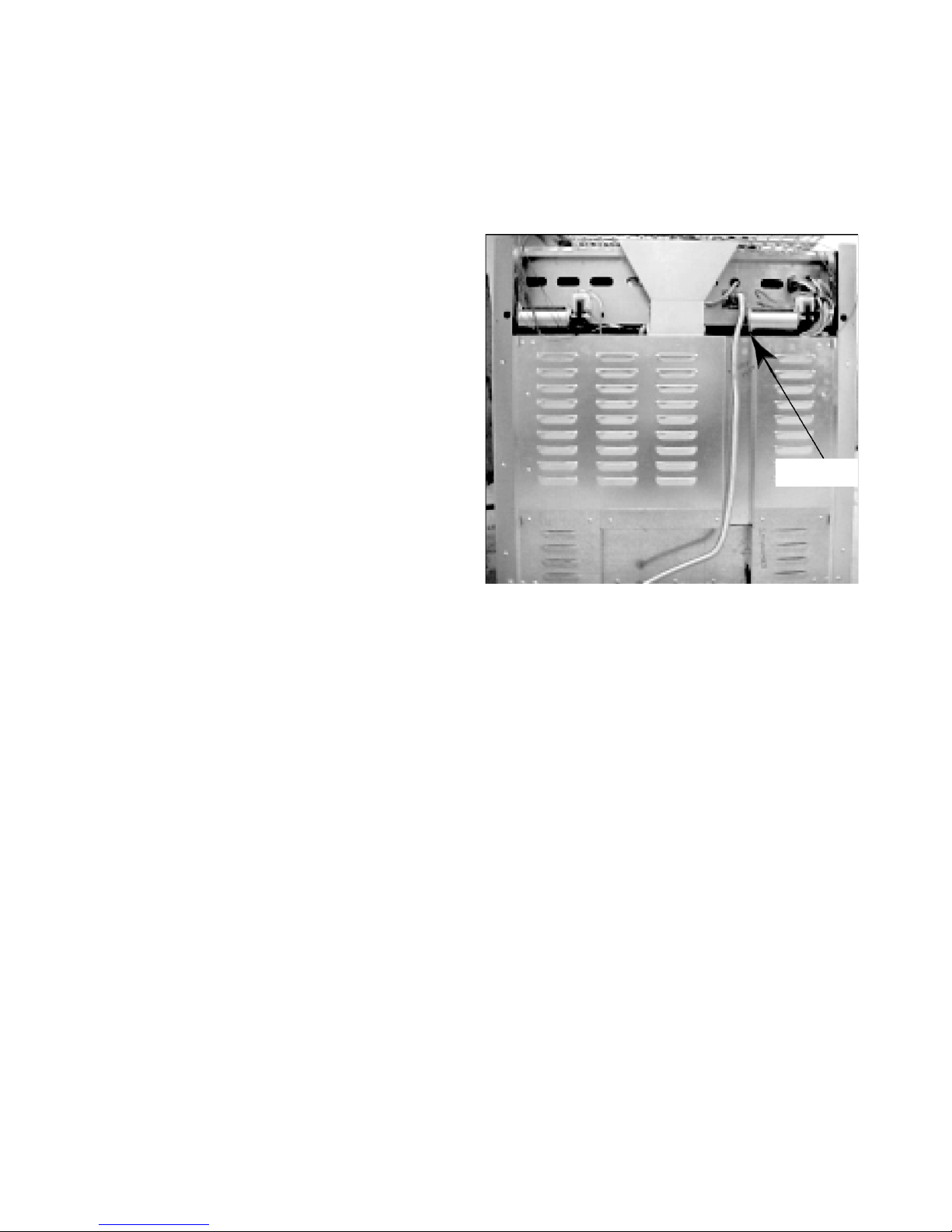

Photo A
Flex Line

Page 19
ELECTRICAL REQUIREMENTS,
CONNECTION, & GROUNDING
Electrical Supply Requirements
Model Voltage Current Rating Frequency Phase
PDR36 120/240 VAC 40 Amps 50/60 Hz Single
For the PDR Dual-Fuel Ranges, a neutral sup-
ply wire must be provided from the power
source (breaker/fuse panel) because critical
range components, including the surface
burner spark reignition module, require 120
VAC to operate safely and properly. An im-
proper 120/240 VAC power supply will cause
malfunction, damage this appliance, and pos-
sibly create a condition of shock hazard. If the
correct power supply circuit is not provided, it
is the responsibility and obligation of the in-
staller or user to have proper power supply
connected. This must be accomplished in ac-
cordance with all applicable local codes and
Dual Fuel range model PDR36 can be con-
nected or hard-wired to the power supply.
The appliance must be isolated from the gas
supply piping system by closing its indi-
vidual manual shutoff valve during any
pressure testing of the gas supply piping sys-
tem at test pressures equal to or less than 1/2
psig (3.5 kPa.).
The appliance and its individual shut off
valve must be disconnected from the gas
supply piping system during any pressure
CAUTION
Prior to servicing appliance, always discon-
nect appliance electrical supply cord, if so
equipped, from wall receptacle. If appliance is
hard-wired to power supply, disconnect power
to unit by turning off the proper circuit breaker
or disconnecting the proper fuse.
ordinances by a qualified electrician. In the
absence of local codes and ordinances, the
power supply connection shall be in accor-
dance with the National lectric Code.
Observe all governing codes and ordinances
when grounding. In the absence of these codes
or ordinances observe National lectrical Code
ANSI/NFPA No. 70 Current Issue.
lectrical wiring diagrams and schematics have
been placed in the toe kick area of the range for
access by a qualified service technician.
The PDR Dual Fuel Ranges may be connected
to a 120/208 VAC power supply.
testing of the system at test pressures in ex-
cess of 1/2 psig (3.5 kPa.).
When checking the manifold gas pressure,
the inlet pressure to the regulator should be
at least 6.0″ (14.9 mb) W.C. for natural gas
or 11.0″ (27.4 mb) for propane.
Do not attempt any adjustment of the pres-
sure regulator.
Chart C
Chart D
Power Supply Wire-Rating & Size Requirements
Model Voltage Temperature Conductor Size, AWG
Number Rating (Min ) Rating L1, L2 Neutral Ground
PDR36 300 VAC 105°C 10 12 10

Page 20
Dual Fuel models must be connected to the
power supply utilizing one of the following
methods. For all methods of connection, the
length of the cord or conduit/wiring must
allow the unit to be slid completely out of the
cabinet without having to unplug or discon-
nect the unit from the power supply. Recom-
mended minimum free length of cord or con-
duit is four feet. lectrical installations and
grounding must be in accordance with all local
codes and ordinances, and/or the National
lectric Code, as applicable.
4-CONDUCTOR CORD
NORMALLY, A UNIT MUST B CON-
N CT D TO TH POW R SUPPLY WITH A
3-POL , 4 CONDUCTOR CORD KIT RAT D
AT 125/250 VOLTS, 50 AMP R S, AND
MARK D FOR US WITH RANG S.
The cord kit must be attached to the range
junction box with a strain relief which will fit a
1-3/8″ diameter hole. If not already equipped,
the cord must have #10 closed loop lugs at-
tached to the free ends of the individual con-
ductors, preferably soldered in place.
PERMANENT CONNECTION
(HARD WIRING)
Units may be hard wired to the power supply.
The installer must provide approved flexible
aluminum conduit, 3/4″ trade size, maximum
6 feet long. Locate the junction box on the rear
of the unit and remove cover (refer to Figure 7).
Remove the ground strap retaining screw and
bend the ground strap up (refer to Figure 8 on
the next page). The conduit must be installed
to the junction box using an approved conduit
connector.
Wiring for the unit is to be brought into the
junction box through the conduit (refer to
“Chart D” on Page 19 for rating of wiring and
sizing of individual conductors). The ends of
the wiring must have #10 closed-loop lugs
attached, preferably soldered in place.
Make the connections to the terminal block
provided. Secure the ground lead to the junc-
tion box with the screw previously used to
secure the ground strap (refer to Figure 9 on
the next page). The free end of the conduit
must be connected to a junction box provided
in the gas and electrical supply zone, as shown
in Figure 2A on Page 12.
3-CONDUCTOR CORD
WH R LOCAL COD S AND ORDINANC S
P RMIT GROUNDING THROUGH N U-
TRAL, AND CONV RSION OF SUPPLY TO
4-WIR IS IMPRACTICAL, UNIT MAY B
CONN CT D TO TH POW R SUPPLY
WITH A 3-POL , 3-CONDUCTOR CORD KIT
RAT D AT 125/250 VOLTS, 50 AMP R S,
AND MARK D FOR US WITH RANG S.
The cord kit must be attached to the range
junction box with a strain relief which will fit a
1-3/8″ diameter hole. If not already equipped,
the cord must have #10 closed-loop lugs at-
tached to the free ends of the individual con-
ductors, preferably soldered in place.
Figure 7
