Thermador T24UR925RS User manual

Page | 1
INSTALLATION
GUIDE
GUIDE
D'INSTALLATION
GUIA DE
INSTALACION
Model/Modele/Modelo
T24UR925RS
T24UR925LS
T24UR915RS
T24UR915LS
T24UR905RP
T24UR905LP
Glass Door Refrigerator
Verre Porte Frigo
Refrigerador Puerta de Vidrio

Page |2
IMPORTANT:
Before you begin, read these instructions completely and
carefully.
INSTALLER:
Please leave this manual with owner for future reference.
OWNER:
Save these installation instructions for local electrical
inspector’s use and for future reference.
Table of Contents
Important Safety Instructions ….…………. 3
- Inspect the Glass Door Refrigerator
Tools needed for installation …………….. 4
Materials supplied …………….………….…4
Installing the appliance ……………………. 5
- Transporting
- General measures
- Installation location
- Installing Side-by-Side
Ventilation ……………………………………. 9
Connecting the appliance ………………… 9
- Electrical connection
Door opening ………………………………… 11
Installing the anti-tip-brackets ……………..13

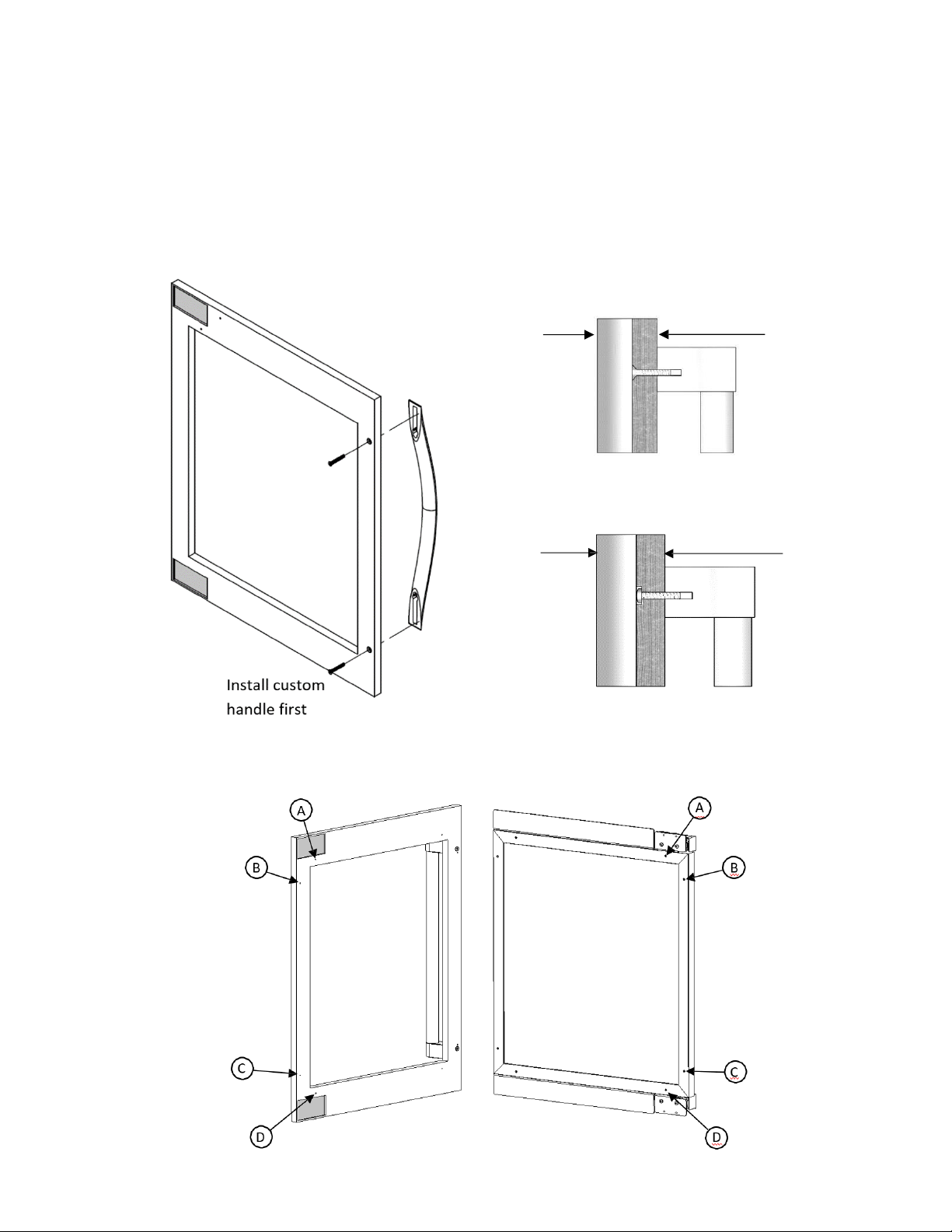

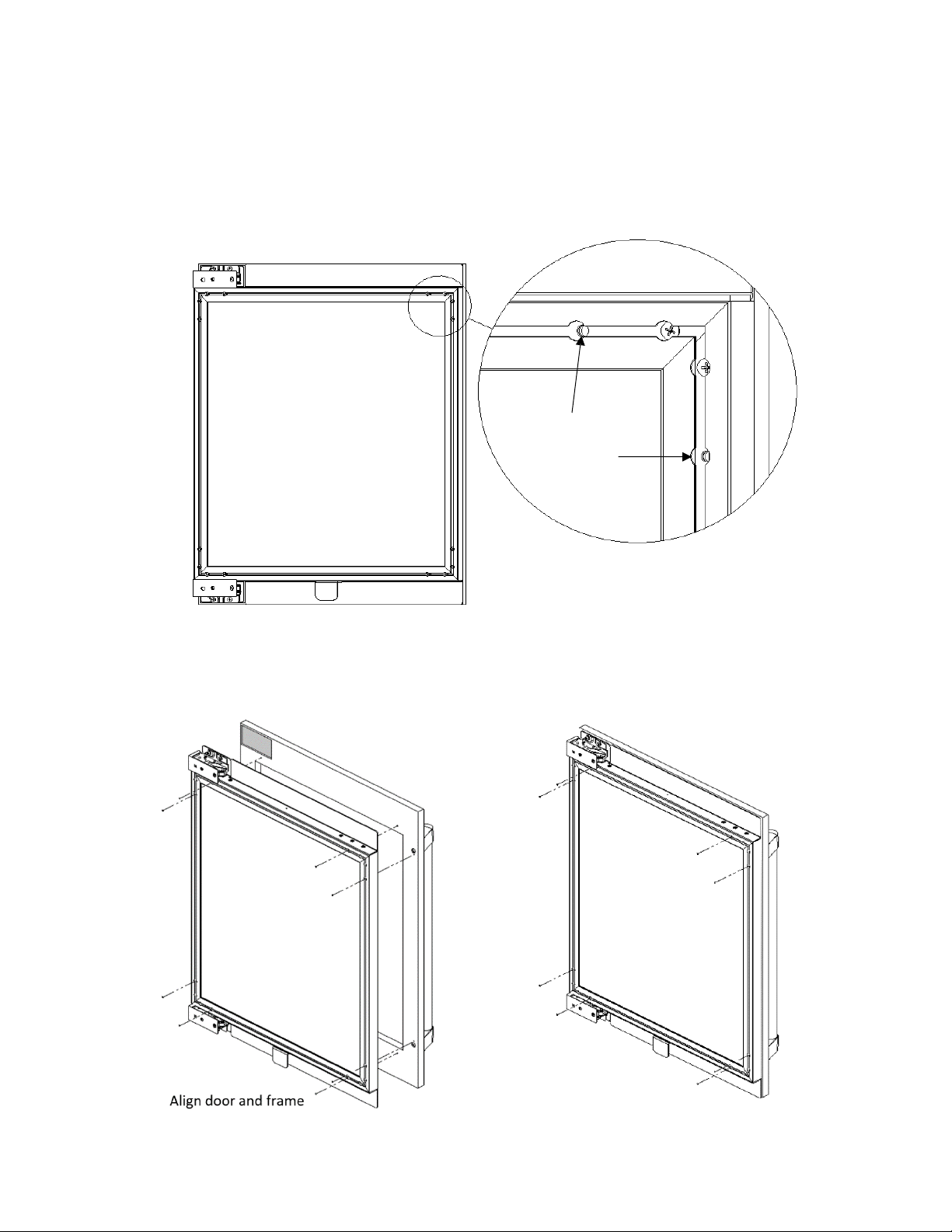

Installing the overlay frame ………………..17
Customer Service Information …………… 21
Addendum A ………………………………… 22

Page | 3
Important Safety Instructions
READ AND SAVE THESE INSTRUCTIONS!
These installation instructions are intended for use by qualified installers.
In addition to these instructions, the appliance shall be installed:
• In the United States, in accordance with the
National Electric Code/State and municipal
codes and/or local codes.
• In Canada, in accordance with the Canadian
Electric Code C22.1 –latest edition/Provincial
and Municipal codes and/or local codes.
Be sure to observe all listed warnings and cautions.
Look for the triangles with exclamation marks inside.
WARNING:
This indicates that death or serious injurymay result due to non-observance of this warning.
CAUTION:
This indicates that minor or moderately severe injury may result due to non-observance of this
warning.
NOTE:
This is used to draw the user’s attention to something in particular.
Important
• NEW INSTALLATION –If the appliance is a new installation, most of the work must be
done before the unit is moved into place.
• REPLACEMENT –If the appliance is replacing another appliance, the connections for
the appliance being replaced must be checked for compatibility with the new unit and
replaced as necessary.
Inspect the Glass Door Refrigerator
Remove all tape, packaging and plastic covers.
After unpacking the appliance and prior to installation, thoroughly inspect the Glass Door Refrigerator for
possible freight or cosmetic damage. Report any damage immediately.
NOTE: Please do not discard any bags or items that come with the original package until after the entire
installation has been completed!
State of California Proposition 65 Warnings
This product may contain a chemical known to
the State of California, which can cause cancer
or reproductive harm. Therefore, the packaging
of your product may bear the following label as
required by California:

Page |4

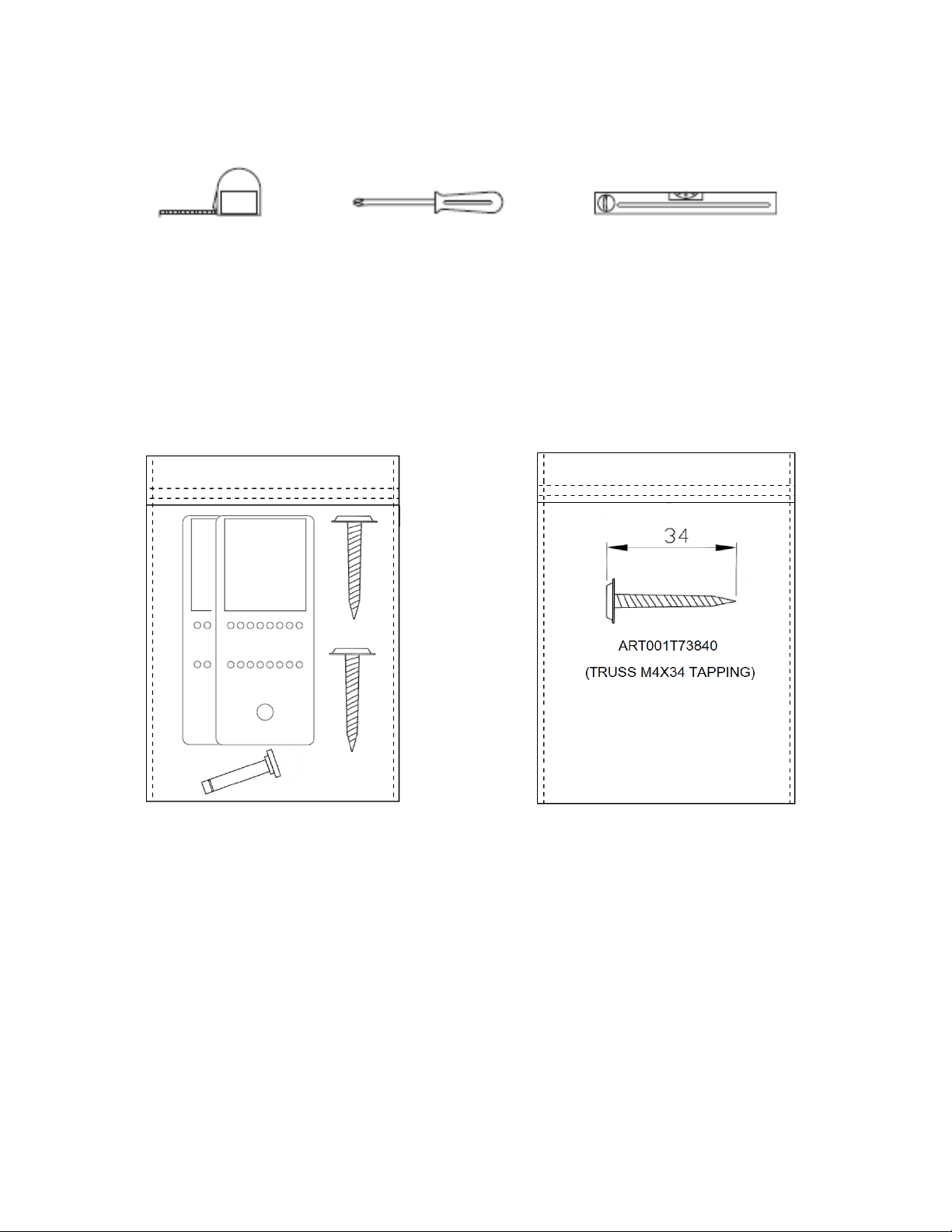

Tools needed for installation
Tape Measure Philips Screwdriver Level
These are the tools that you mayneed for the installation of the appliance. However, if you need to
modifythe counter or cabinetryto fit the unit, you may need other tools to make counter/cabinetry
modifications before installing the appliance.
Materials supplied
Anti-tip-bracket. 2 pieces.
Screws: 2 pieces.
Door Stopper Pin: 1
1 Insulating Foam (Not
illustrated) 20 1/2”
(520mm) x 29 1/8” (740mm)
x 1/8” (3mm)
Screws for Overlay Panel:
ART001T73840 (TRUSS M4X34
TAPPING). 8 pieces. ONLY FOR
T24UR905LP AND T24UR905RP
MODELS.

Page | 5
Installing the appliance
Most of the installation work must be done before the Glass Door Refrigerator is moved into place.
Have a qualified technician install and connect the appliance according to the enclosed installation
instructions.
WARNING:
Do not install this appliance:
- Outdoors
- In an environment with dripping water
- In rooms where there is a risk of frost
Transporting
The appliance is heavy and must be handled with caution during transportation and installation.
Because of the weight and dimensions of the appliance, at least two persons are necessary to move the
appliance into position securelyand avoid injuries to people or damage to the appliance.

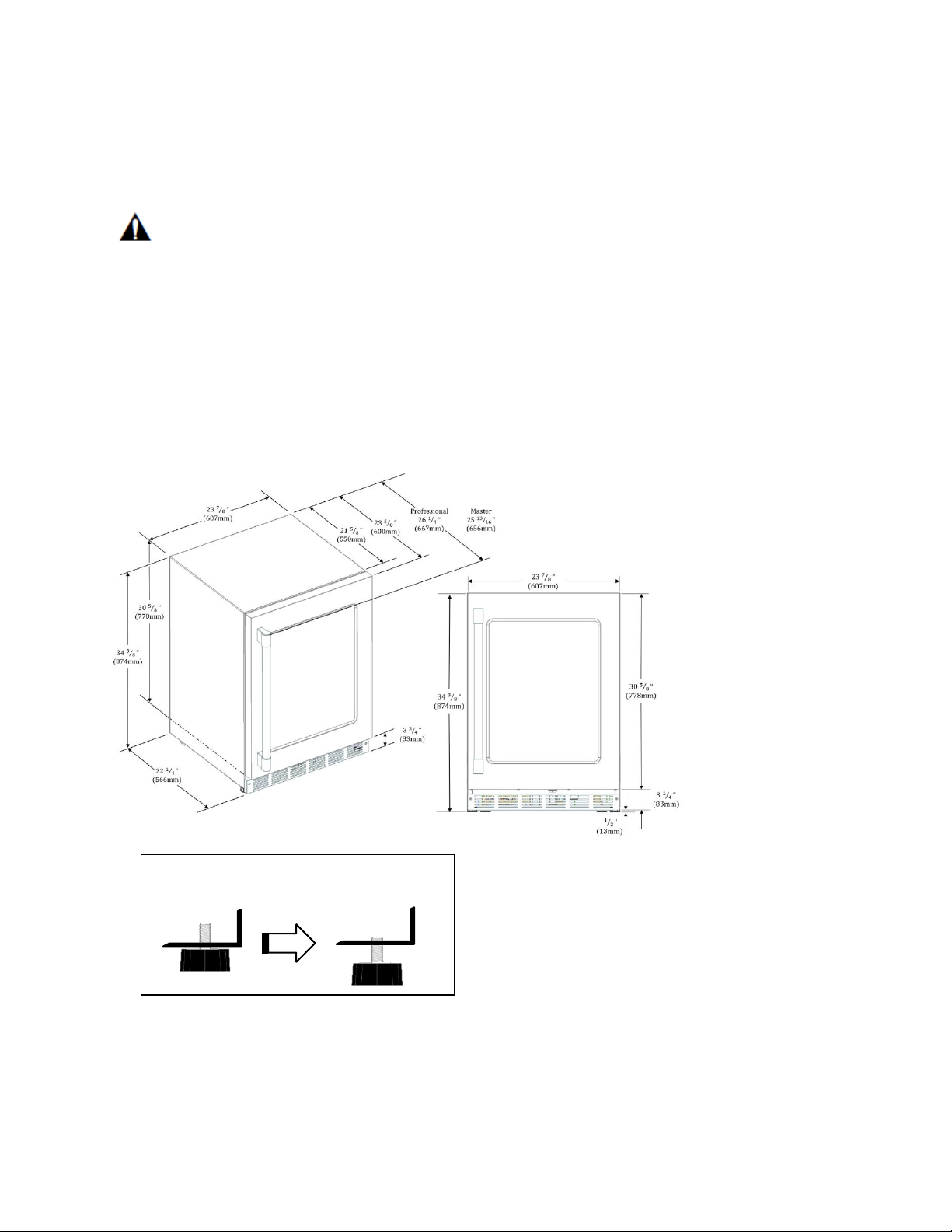

General measures
All legs are adjustable by up to ½ inch.
Note: With the legs fully
retracted the appliance has a
minimum dimension of 34 3/8”
from top to bottom. The legs
can be extended up to 1/2”
(13mm).
Measurements in inches (mm)

Page |6
Installation location
A dry, well ventilated room is suitable as an installation location. The installation location should not be
exposed to direct sunlight and not placed near a heat source, e.g. a cooker, radiator, etc.
If installation next to a heat source is unavoidable, use a suitable insulating plate or observe the following
minimum distance from the heat source:
▪ To electric or gas oven/range 1¼”(3 cm).
▪ To an oil or coal-fired cooker 1113/16”(30cm).
▪ To another Refrigerator or Wine Reserve 1” (2.54cm).
The floor of the installation location must not give way; if necessary, reinforce floor. The appliance must
be upright and level to function correctly.
For proper operation and appearance of the unit, the cabinet opening should be square and have
dimensions as shown in the next diagrams.
TOP VIEW
FRONTAL VIEW

Page | 7
TOP VIEW OPEN RIGHT SWING
TOP VIEW OPEN LEFT SWING

Page |8
Installing Side-by-Side
The appliance can be installed next to another Thermador appliance. Follow the next dimensions and
notes for the correct installation of the appliance in a side-by-side layout.
NOTE: Before placing the unit into the niche, adhere the Insulating Foam (included with the product) on
the side of the unit that will be placed next to the additional appliance. Be sure that the Insulating Foam is
even with the surface of the unit and that there are no bubbles or bumps on the Insulation Foam after
adhering it to the unit.
Install the appliances in a “French Door”configuration; appliances with Left Hinge should be
opposite to another with Right Hinge.
Side of the unit next to
the other appliance.
Insulating Foam
Included with the unit.

Page |9

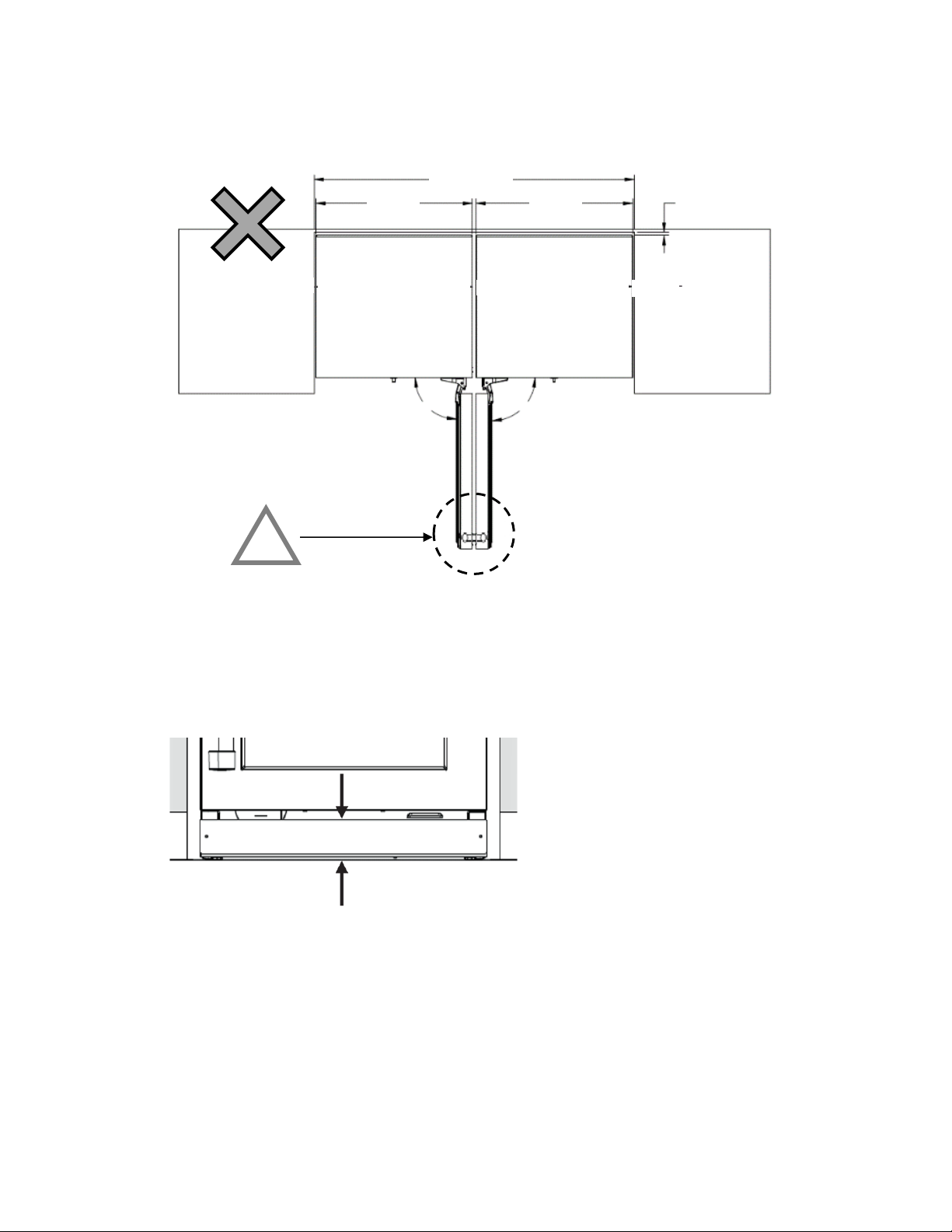

Do not place one appliance with Right Hinge next to an appliance with a Left Hinge.
Ventilation
The Glass Door Refrigerator unit is ventilated only at the Toe-Kick in the base. Never cover that area
or place anything in front of it. Otherwise the refrigeration cooling performance will be affected and the unit
must work harder increasing power consumption.
Connecting the appliance
After installing the appliance, wait at least 1 hour to turn on the appliance. During transportation the oil
in the compressor may have flowed into the refrigeration system.
Before switching ON the appliance for the first time, clean the interior of the appliance (see chapter
“Cleaning the appliance”in the Use & Care Guide).
!
1226mm
48 1/4 in
10mm
3/8 in
(MÍNIMUM)
Interference
607mm
23 7/8 in
607mm
23 7/8 in

Page |10
Electrical connection
WARNING:
These installation instructions are intended for use by qualified installers.
WARNING:
Avoid the risk of an electric shock!
Insert into a grounded receptacle.
Never remove grounding phase.
Do not use any adapters.
Do not use any extension cords.
WARNING:
It is the customer’s responsibility to ensure that the appliance installation is in compliance with all national
and local electrical codes and ordinances. Non-compliance with these instructions may result in death,
fire or an electric shock.
The receptacle must be near the appliance, 61”(1550mm) to the right of the appliance or 37” (940mm)
to the left of the appliance, and freely accessible following installation of the appliance for future service.
The appliance complies with protection class I. Connect the appliance to 115 V/ 60Hz alternating
current via a correctly installed receptacle with grounded terminal.
The appliance comes with a UL registered 3-wire power cord NEMA 5-15p type. The appliance
requires a 3-pole receptacle.
Never remove the grounding phase

Page |11
WARNING:
Never connect the appliance to electronic energy saver plugs.
This appliance can be used with mains and sine-controlled inverters. Main controlled inverters are used
for photovoltaic systems which are connected directly to the national grid.
Sine-controlled inverters must be used for isolated applications (e.g. on ships or in mountain lodges)
which are not connected directly to the national grid.
The appliance requires a 3-pole socket. The socket should be connected by a qualified electrician only.
Where there is a 2-pole standard wall socket, it is the responsibilityof the customer to have this socket
replaced with a correctly grounded 3-pole wall socket. Do not use any adapter plugs.
Be sure that the location of your Glass Door Refrigerator has a near and accessible electric socket.
It is recommended that a separate circuit serving only your wine cellar be provided. Use an outlet that
cannot be turned off by a switch. Do not use an extension cord.

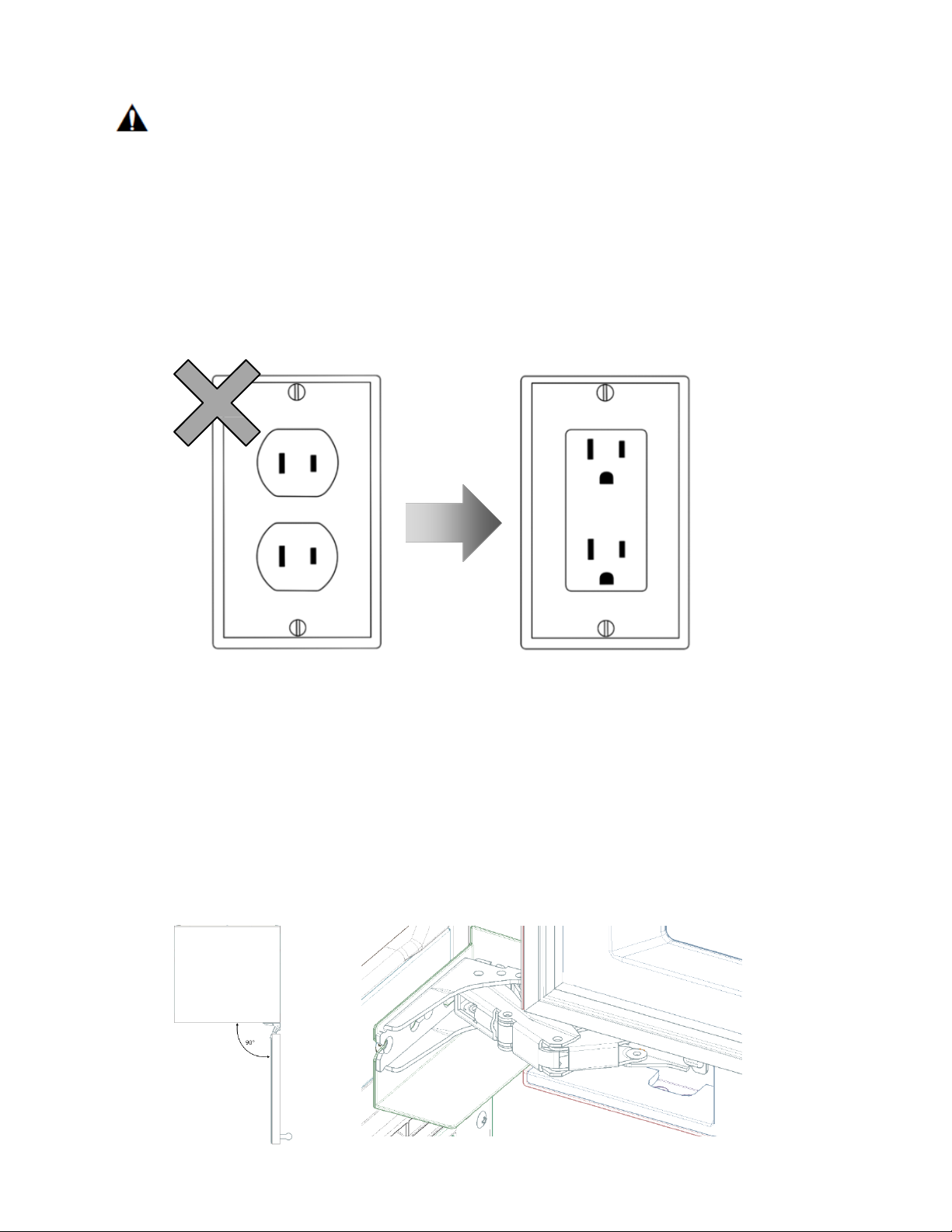

2-pole standard wall socket must be replaced with a 3-pole grounded socket. Do not use adapters.
Door opening.
The door of your Glass Door Refrigerator is configured by default to have an aperture up to 115°. This
makes for easy access to shelves for loading or cleaning. However, if the appliance is installed under
counter, it is recommendedto install the Door Stopper Pins in the hinge to avoid hitting the wall, cabinets
or another appliance installed next to the Glass Door Refrigerator.
To install the Door Stopper Pin follow the next instructions:
1. Open the door at <90° and position yourself near the bottom hinge of your appliance.

Page |12
2. Grab the stopper pin from the bag included with this appliance and insert into the hole as shown:
3. Push firmly to ensure the stopper pin has locked into the hinge.
Now, the door opens only 90°.
OPEN SLOT METALLIC RIB

Page |13
Installing the anti-tip-brackets
The appliance includes two anti-tip-brackets. If your cabinetryis not designed for the specific dimensions
of your appliance, or if you plan to use the appliance as a free-standing unit, you should use these
brackets to avoid your appliance tilting due to unbalanced overweight situations where the door is open.
For free-standing use
1. Consider the distance necessaryfor the appliance to be flush with the front of your cabinetry. If
there is no cabinetry, put the unit close to the wall, then take the measurement of the space at the
back, between the unit and the wall.

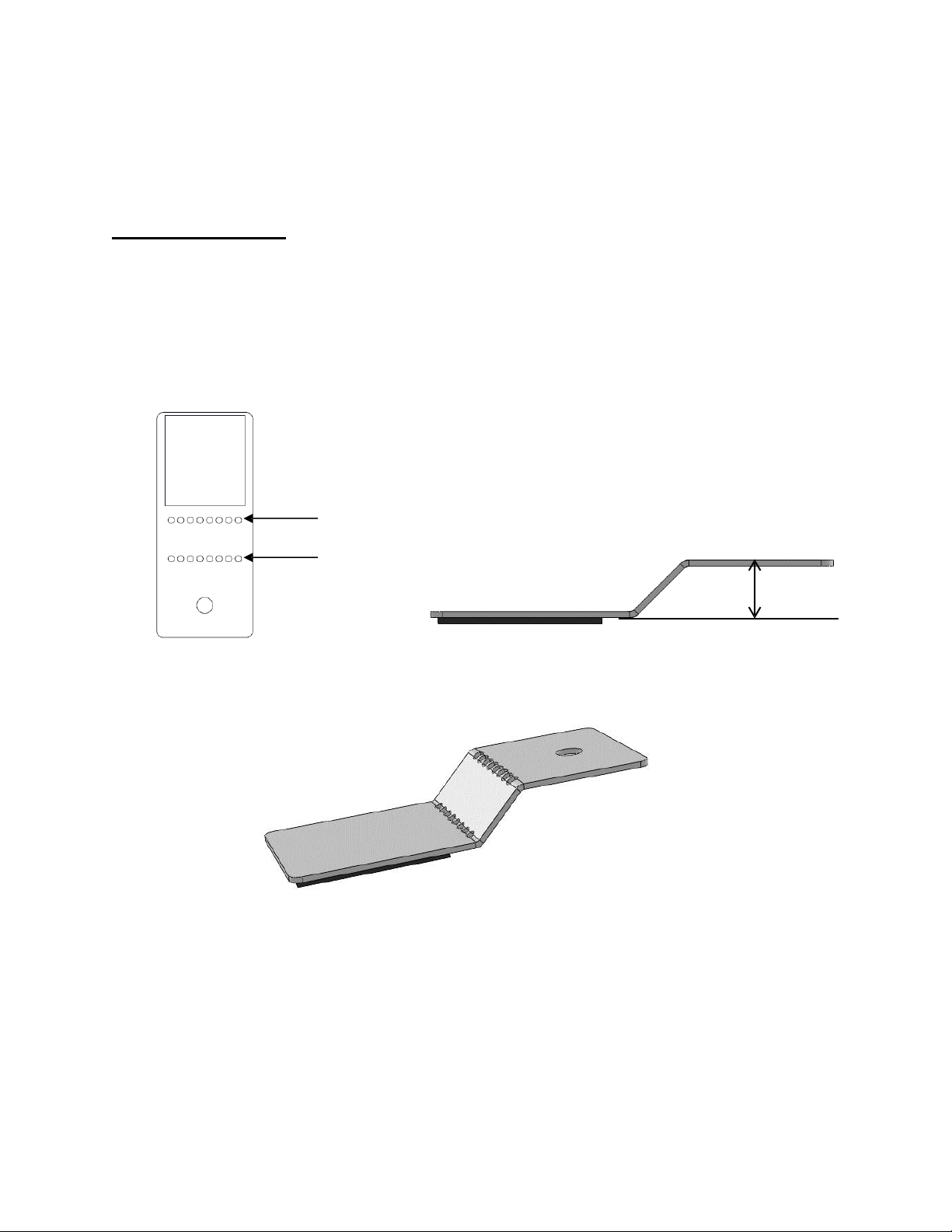

2. Based on the measured distance between the back of the unit and the wall, bend the anti-tip
bracket (included with the unit) from the pointed lines to form a “step”with the same Distance
measured.
Bend from here
And here
Anti-tip-bracket.
2 pieces.
Adhesive foam Distance measured
Resultant formed “step”.
NOTE: The adhesive foam must be at the bottom of the
step, never on the reverse side.

Page |14
3. Peel the adhesive foam and paste the anti-tip-bracket at both sides on the back of the appliance
as shown in the illustrations.
Paste the anti-tip-bracket to
the back of the appliance.
4. With the anti-tip-brackets pasted on the back of the appliance, slide the appliance to the wall until
the anti-tip-bracket is touching the wall.
Using the screws provided, fasten the anti-tip-bracket to the wall for both sides.
NOTE: Do not fasten the unit to drywall. Be sure to attach the unit to a solid surface.
Screw the bracket
to the wall.
Repeat on the
other side.

Page |15
For under counter use
1. Consider the distance necessaryfor the appliance to be flush with the front of your cabinetry.
.
2. Take the measurement from the top of the cabinet of the unit to the bottom of the counter.
The measurement X”(mm) may vary depending on the design of the counter, extension of the
legs of the product, etc.
3. Based on the Distance = X”(mm) between the appliance and the counter, bend the anti-tip-
brackets included with the appliance on the pointed lines to form a “step”1/16” (2mm) smaller
than the Distance = X”(mm) measured.
Bend from here
Adhesive foam Distance = X”- 1/16”
(X mm –2mm)
And here
A nti-tip-b racke t.
2 pi ece s.
Resultant formed “step”.
NOTE: The adhesive foam must be at the
bottom of the step, never on the reverse side.
Thermador Glass Door
Refrigerator Top View
600mm
23 5/8”
Unit
NOTE: the Distance = X” (mm) may vary
depending on the design of your cabinetry.
Distance = X” (mm)

Page |16

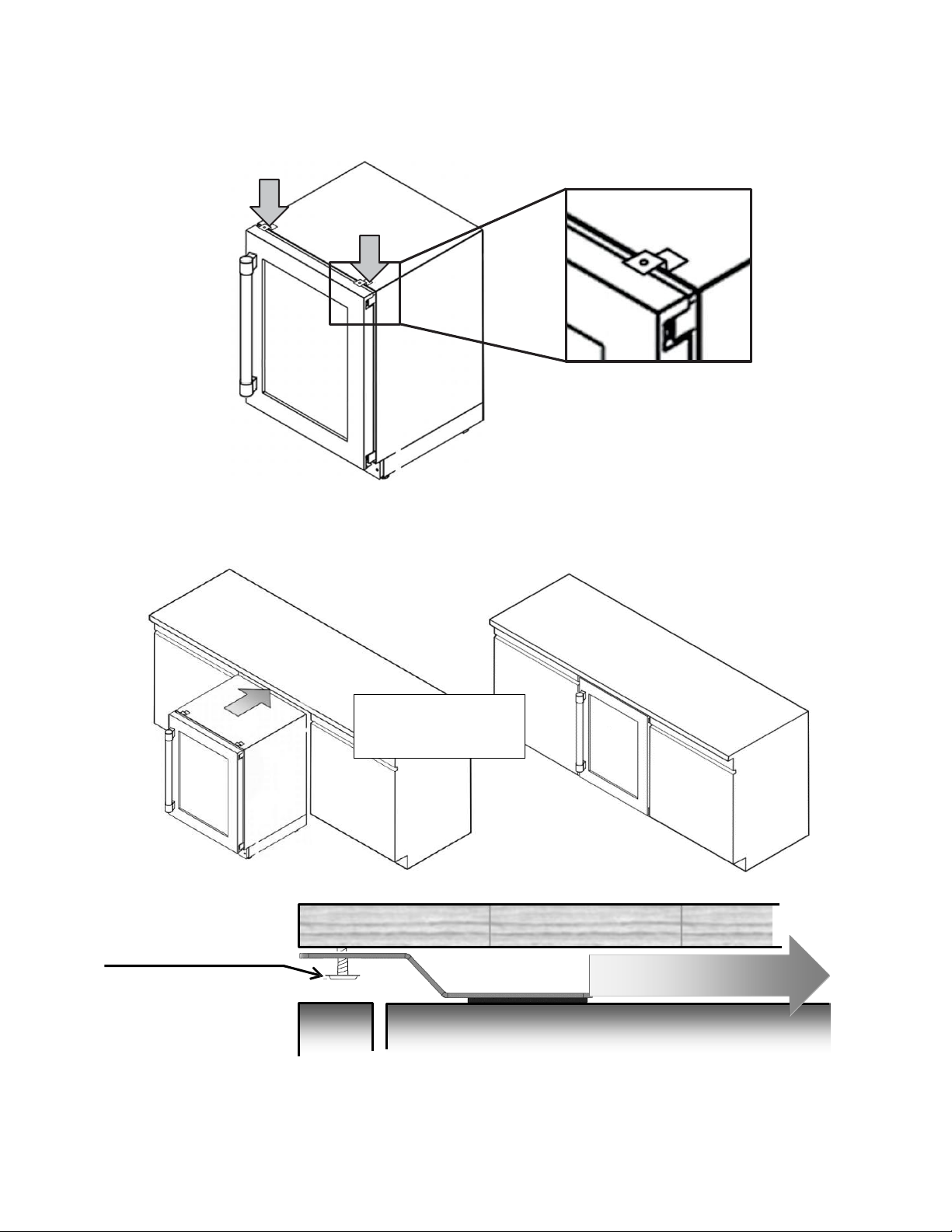

4. Peel the adhesive foam and paste the anti-tip-bracket at the front on the top of the cabinet of the
appliance, near the corners as shown in the picture:
5. Slide the appliance into the cabinet until the front of the appliance is flush with the front of the
cabinetry. Check that nothing interferes or obstructs the anti-tip-bracket while sliding under the
counter.
Using the screws provided,
screw the anti-tip bracket to
the counter to fix the unit.
C O U N T E R
A P P L I A N C E
Check that nothing obstructs
the anti-tip-bracket.
Paste the anti-tip-bracket near
the corners.
Slide the appliance into
the cabinet until the
fron t surfaces are flus h.

Page |17
Installing the overlay frame
(For T24UR905LP and T24UR905RP models only)
If you plan to install a custom overlay frame, you will need to create the frame yourself or consult a
qualified cabinetmaker or carpenter.
A full sized template for easier hole pattern marking is included in the manual package.
IMPORTANT:
- The thickness of the overlay frame must be ¾”(19mm).
- Overlay frame must not weigh more than 10lbs (4.54kg).
- Overlayframe weighing more than recommended may cause damage to your appliance.
- To install the frame, use only the screws included in the “installation kit”.
Create the custom overlay frame using the dimensions shown.
IMPORTANT: The following graphics shows a custom frame for a door with hinges installed on the right-
hand side. If your Glass Door Refrigerator has hinges installed on the left-hand side, rotate the custom
frame 180° so the makings will be on the left.
For detailed dimensions, see the frame specifications in Addendum A.

Page |18
IMPORTANT: It is recommended to install the custom overlay frame with the help of another person.
1. Install the custom handle of your preference on the overlay frame before installing the frame on
the door.
- Every custom handle is different and it is the responsibilityof the customer to make the
necessaryadjustments to place the handle on the overlay frame.
- The screws used to affix the custom handle to the frame must be flat and flush with the surface
of the frame; if the screws are not flat, then consider making a recession on the overlay, enough to
hide the head of the screw below the surface of the overlay, otherwise the screws will interfere
with the correct placement of the overlay on the door.
2. Locate and identify every pair of holes on the overlay frame corresponding with the holes on the
door. Every hole must be aligned to screw and fasten the overlay to the door.
A A
B B
C C
D D
Install custom
handle first
Overlay frame with
custom handle
Door
Flat screw flush with surface
Overlay frame with
custom handle
Door
Round head screw hidden in a
recession on the overlay.

Page |19
3. Remove the door gasket from the corners, by pulling it gently until the four screws are visible.
Then remove the two screws further to the corner. The two holes shown on the below illustration
must be accessible to screw (install) the custom overlay frame to the door. There should be 8
accessible holes in total, two per corner.
NOTE: It is not necessary to remove the entire gasket from the door, just from the corner, enough
to access to the screws.
Remove the
screws to
leave these
holes
4. Align the overlay frame with the door and hold them firmlytogether while screwing them. It may
be easier with the help of another person to hold and keep the frame in place while fastening.
Using the 8 screws included in the installation kit, fasten the overlay frame to the door.
Align door and frame Fasten together

Page |20
5. Once the overlay frame is securely attached to the door with the 8 screws, put the gasket back in
its place pressing it against the door until all is even and firm into its channel.
Put gasket back in its place
6. Now, the overlay frame is ready.
