Dometic RH418NTE User manual

RH418NTE, RH418NTEG
Minibar
Installation and Operating Manual. . . . . . . 10
Minibar
Montage- und Bedienungsanleitung . . . . .22
Minibar
Instructions de montage
et de service . . . . . . . . . . . . . . . . . . . . . . . . .35
Minibar
Instrucciones de montaje y de uso . . . . . . .48
Minibar
Instruções de montagem e manual de
instruções . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
Minibar
Istruzioni di montaggio e d’uso . . . . . . . . .74
Minibar
Montagehandleiding en
gebruiksaanwijzing . . . . . . . . . . . . . . . . . . .87
Minibar
Monterings- og betjeningsvejledning . . . .99
Minibar
Monterings- och bruksanvisning . . . . . . . .111
Minibar
Monterings- og bruksanvisning. . . . . . . . 123
Minibaari
Asennus- ja käyttöohje . . . . . . . . . . . . . . . 135
Мини-бар
Инструкция по монтажу и эксплуатации 148
Minibar
Instrukcja montażu i obsługi. . . . . . . . . . . 161
Minibar
Návod na montáž a uvedenie
do prevádzky. . . . . . . . . . . . . . . . . . . . . . . 174
Minibar
Návod k montáži a obsluze . . . . . . . . . . . 186
Minibár
Szerelési és használati útmutató . . . . . . . 198
EN
DE
FR
ES
PT
IT
NL
DA
SV
NO
FI
RU
PL
SK
CS
HU
REFRIGERATION
CLASSIC
RH418NTE-RH418NTEG-IOM-EMEA16.book Seite 1 Donnerstag, 5. Dezember 2019 3:32 15

RH418NTE-RH418NTEG-IOM-EMEA16.book Seite 2 Donnerstag, 5. Dezember 2019 3:32 15

RH418NTE, RH418NTEG
3
4
3
2
1
1
1
2
3
4
2
RH418NTE-RH418NTEG-IOM-EMEA16.book Seite 3 Donnerstag, 5. Dezember 2019 3:32 15

RH418NTE, RH418NTEG
4
1.
2.
3.
3
1.
2.
5.
4. 3.
4
5.
4.
1.
2. 3.
5
6
3.
2.
1.
RH418NTE-RH418NTEG-IOM-EMEA16.book Seite 4 Donnerstag, 5. Dezember 2019 3:32 15

RH418NTE, RH418NTEG
5
1.
2.
3.
7
1. 3.
2.
4.
8
2. 1.
9
1.
3.
2.
0
RH418NTE-RH418NTEG-IOM-EMEA16.book Seite 5 Donnerstag, 5. Dezember 2019 3:32 15

RH418NTE, RH418NTEG
6
A
D
C
B
2
2
3
2
2
3
3
1
1
1
1
1
1
11
3
a
RH418NTE-RH418NTEG-IOM-EMEA16.book Seite 6 Donnerstag, 5. Dezember 2019 3:32 15

RH418NTE, RH418NTEG
7
b
40 mm
10 mm
3.
4.
1.
2.
c
6–8 mm
1–2 mm
d
RH418NTE-RH418NTEG-IOM-EMEA16.book Seite 7 Donnerstag, 5. Dezember 2019 3:32 15

RH418NTE, RH418NTEG
8
e
80 mm
90°
2.
1.
f
RH418NTE-RH418NTEG-IOM-EMEA16.book Seite 8 Donnerstag, 5. Dezember 2019 3:32 15

RH418NTE, RH418NTEG
9
g
RH418NTE-RH418NTEG-IOM-EMEA16.book Seite 9 Donnerstag, 5. Dezember 2019 3:32 15

EN
Explanation of symbols RH418NTE, RH418NTEG
10
Please read this manual carefully before starting the device. Keep it in a
safe place for future reference. If the device is passed on to another
person, this manual must be handed over to the user along with it.
The manufacturer cannot be held liable for damage resulting from improper usage
or incorrect operation.
Contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
3 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
4 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
5 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
7 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19
9 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
10 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
1 Explanation of symbols
!
!
A
WARNING!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
CAUTION!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
NOTICE!
Indicates a situation that, if not avoided, can result in property damage.
RH418NTE-RH418NTEG-IOM-EMEA16.book Seite 10 Donnerstag, 5. Dezember 2019 3:32 15

EN
RH418NTE, RH418NTEG Safety instructions
11
I
2 Safety instructions
!WARNING! Failure to obey these warnings could result in death
or serious injury.
Electrocution hazard
• Do not operate the cooling device if it is visibly damaged.
• If this cooling device's power cable is damaged, it must be replaced
by the manufacturer, customer service or a similarly qualified person in
order to prevent safety hazards.
• This cooling device may only be repaired by qualified personnel.
Improper repairs can lead to considerable hazards.
Fire hazard!
• When positioning the device, ensure the supply cord is not trapped or
damaged.
• Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the device.
Health hazard
• This device can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the device in a safe way and understand
the hazards involved.
• Children shall not play with the device.
• Cleaning and user maintenance shall not be made by children without
supervision.
• Children aged from 3 to 8 years are allowed to load and unload
cooling devices.
Explosion hazard
• Do not store any explosive substances such as spray cans with a
flammable propellant in the cooling device.
NOTE
Supplementary information for operating the product.
RH418NTE-RH418NTEG-IOM-EMEA16.book Seite 11 Donnerstag, 5. Dezember 2019 3:32 15

EN
Safety instructions RH418NTE, RH418NTEG
12
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Electrocution hazard
• Before starting the cooling device, ensure that the power supply line
and the plug are dry.
• Disconnect the cooling device from the power supply
– before each cleaning and maintenance
– after every use
Health hazard
• Please check if the cooling capacity of the device is suitable for storing
the food or medicine you wish to cool.
• Food may only be stored in its original packaging or in suitable
containers.
• Opening the cooling device for long periods can cause significant
increase of the temperature in the compartments of the device.
• Clean regularly surfaces that can come in contact with food and
accessible drainage systems.
• Store raw meat and fish in suitable containers in the device, so that it is
not in contact with or can drip onto other food.
• If the device is left empty for long periods:
– Switch off the device.
– Defrost the device.
– Clean and dry the device.
– Leave the door open to prevent mould developing within the
device.
ANOTICE! Damage hazard
• Check that the voltage specification on the type plate corresponds to
that of the energy supply.
• Connect the cooling device with an AC connection cable to the AC
power supply.
• Never pull the plug out of the socket by the cable.
• The cooling device is not suitable for transporting caustic materials or
materials containing solvents.
• The insulation of the cooling device contains flammable cyclopentane
and requires special disposal procedures. Deliver the cooling device
at the end of its life-cycle to an appropriate recycling center.
RH418NTE-RH418NTEG-IOM-EMEA16.book Seite 12 Donnerstag, 5. Dezember 2019 3:32 15

EN
RH418NTE, RH418NTEG Intended use
13
• Do not use electrical devices inside the cooling device unless they are
recommended by the manufacturer for the purpose.
• Do not place the cooling device near naked flames or other heat
sources (heaters, direct sunlight, gas ovens etc.).
•Risk of overheating!
Ensure at all times that there is a minimum of 50 mm ventilation on all
four sides of the cooling device. Keep the ventilation area free of any
objects that could restrict the air flow to the cooling components.
Do not place the cooling device in closed compartments or areas with
none or minimal air flow.
• Ensure that the ventilation openings are not covered.
• Do not fill the inner container with ice or fluids.
• Never immerse the cooling device in water.
• Protect the cooling device and cables against heat and moisture.
3 Intended use
The cooling device is suitable for cooling beverages and snacks.
The device is designed for use with AC mains supply.
The cooling device is intended to be used in household and similar applications
such as
• staff kitchen areas in shops, offices and other working environments
•farmhouses
• clients in hotels, motels and other residential type environments
• bed and breakfast type environments
• catering and similar non-retail applications
!
4 Technical description
The cooling device can cool products and keep them cool. A grid divider can be
used to separate foodstuffs, e.g. bottles and sweets. The cooling system is a thermo-
electric cooling with a Peltier element.
CAUTION! Health hazard
Please check if the cooling capacity of the device is suitable for storing
the food you wish to cool.
RH418NTE-RH418NTEG-IOM-EMEA16.book Seite 13 Donnerstag, 5. Dezember 2019 3:32 15

EN
Installation RH418NTE, RH418NTEG
14
4.1 Control elements on the cooling device
4.2 Remote control
5 Installation
!
!
A
The cooling device is designed for free-standing installation, but can be built-in if the
following conditions are complied with to ensure satisfactory operation and maxi-
mum cooling efficiency.
No. in
fig. 1, page 3 Description
1 Door opening sensor
2 Interior light
3 Automatic door control LED (optional)

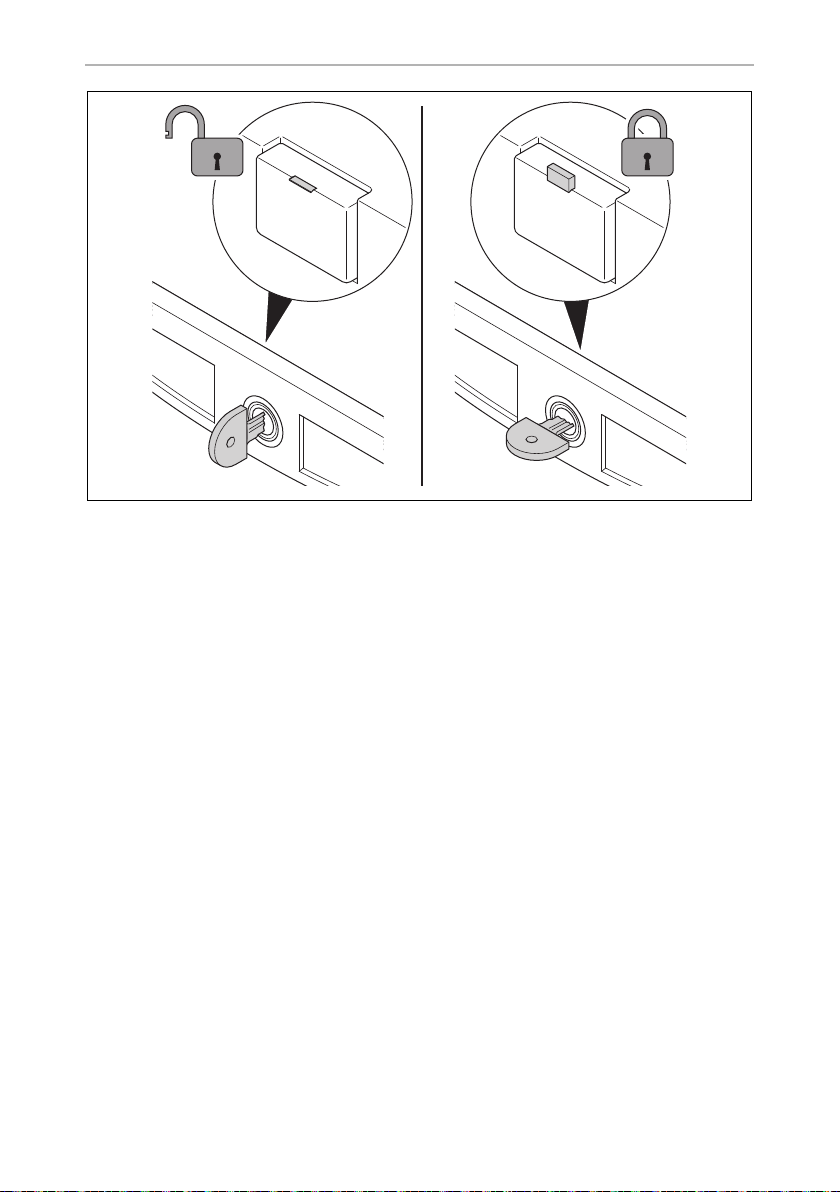

4 Door lock
No. in
fig. 2, page 3 Description
1 Red button: Resets the door control monitor
2 Black button: Low inside temperature (two different levels possible)
3 Yellow button: High inside temperature
4 Blue button: Medium inside temperature
WARNING! Fire hazard!
• When positioning the device, ensure the supply cord is not trapped
or damaged.
• Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the device.
CAUTION! Health hazard
To avoid a hazard due to instability of the device, it must be fixed in
accordance with the instructions.
NOTICE! Risk of damage
Do not use extension cords or ungrounded (two prong) adapters.
RH418NTE-RH418NTEG-IOM-EMEA16.book Seite 14 Donnerstag, 5. Dezember 2019 3:32 15

EN
RH418NTE, RH418NTEG Installation
15
• The cooling device must be levelled carefully to ensure proper function.
• For the glass door version: When the ambient humidity is above 65 % at 25 °C
ambient temperature, moisture will condense on the door.
• The socket outlet for the mains connection must be freely accessible.
5.1 Changing the decorative plate
➤Change the decorative plate as shown (fig. 3, page 4 to fig. 6, page 4).

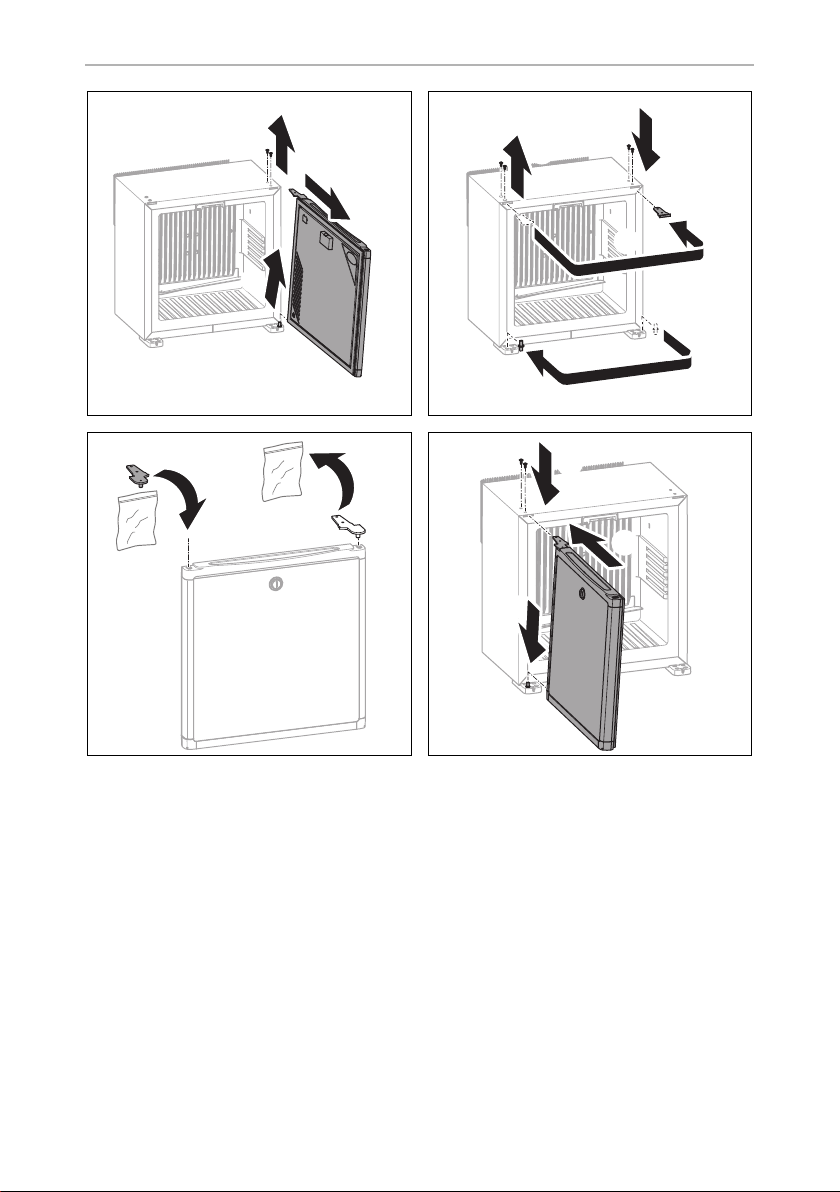

5.2 Reversing the door

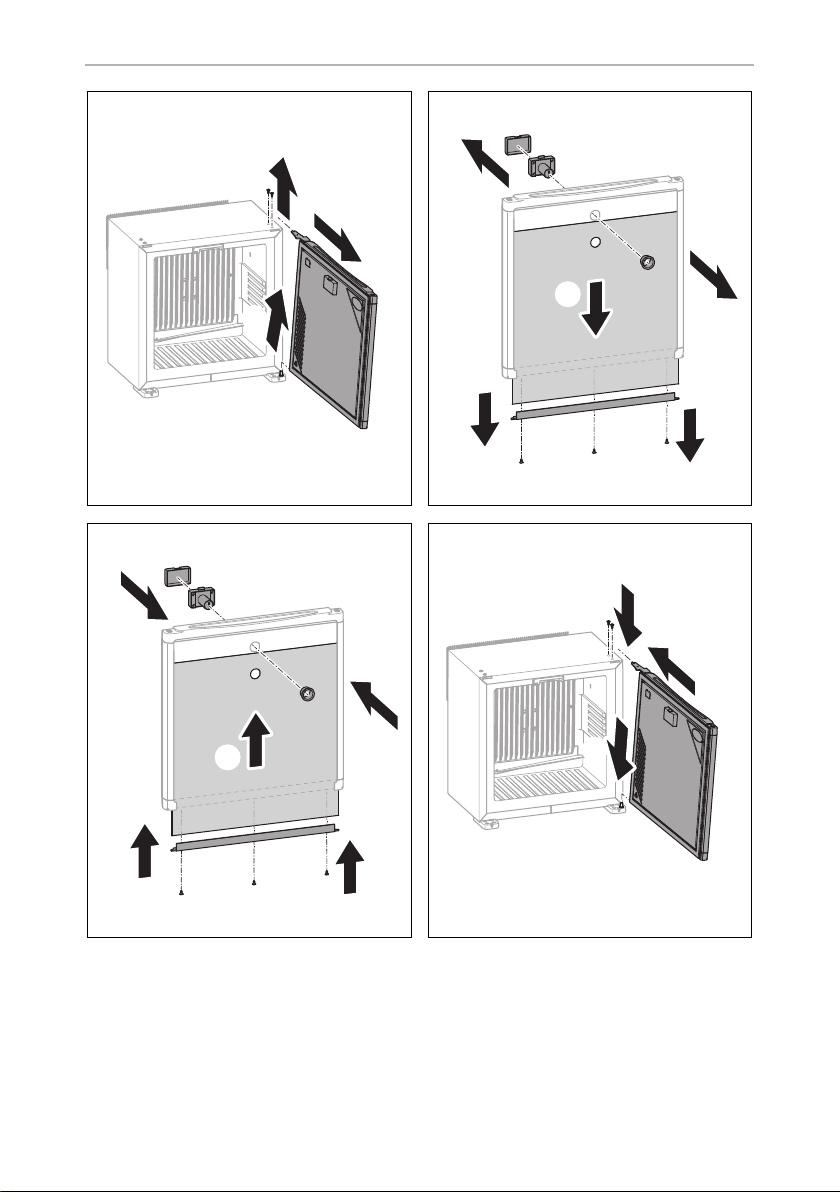

➤Reverse the door as shown (fig. 7, page 5 to fig. 0, page 5).
I
For versions with automatic door control, proceed as follows:
➤Pull out the LED (fig. 13, page 3).
➤Lay the cable in the guide.
➤Insert the LED on the device‘s foot on the other side.

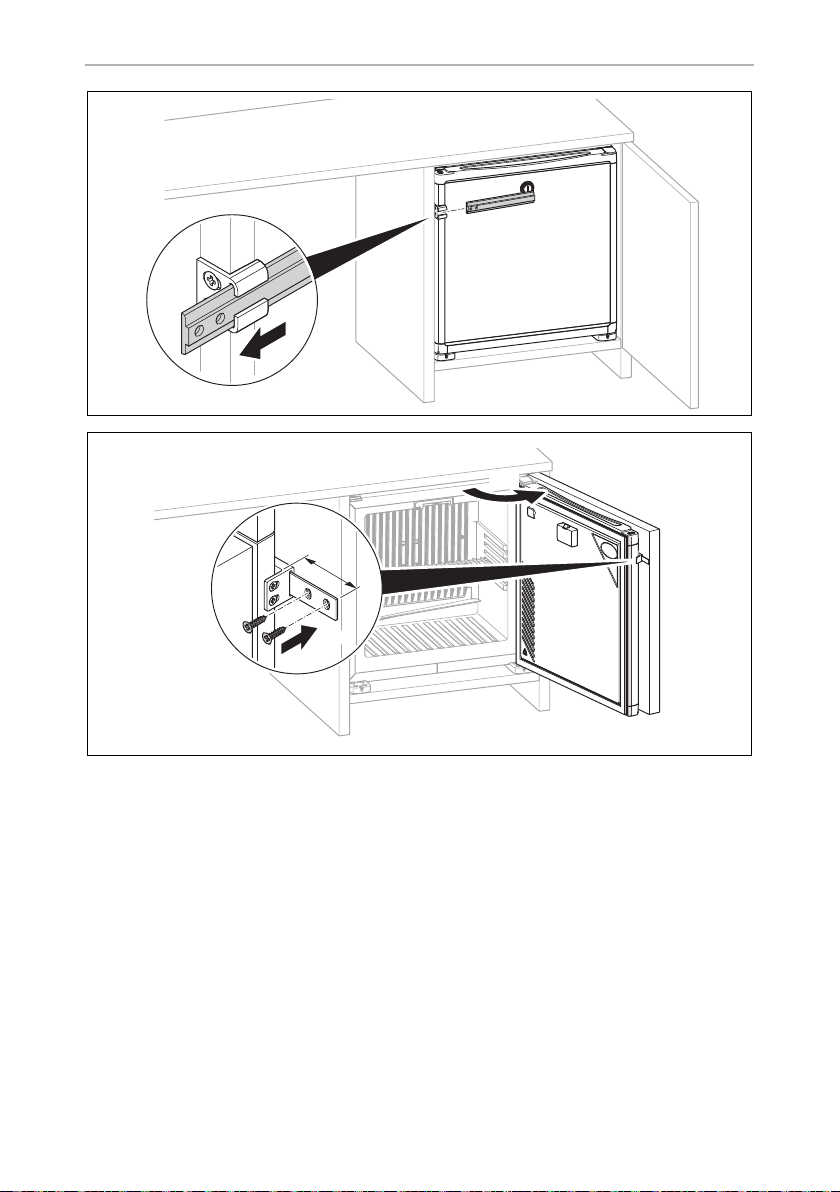

5.3 Fixing the cooling device
Ventilation (fig. a, page 6)
• Ventilation must be provided as shown in alternatives A, B, C or D.
• Ventilation grills (1), if used, must have openings of at least 200 cm² each.
• The minimum clearance between the cooling device‘s back and the surrounding
structure should be as follows:
• The ventilation duct must at least measure 105 mm x the width of the cooling
device.
• The entire cooling unit must project into the ventilation duct as shown.
NOTE
The LED of the automatic door control (optional) must always be located
opposite the door hinge.
No. in
fig. a, page 6 Min. distance
220mm
3105mm
RH418NTE-RH418NTEG-IOM-EMEA16.book Seite 15 Donnerstag, 5. Dezember 2019 3:32 15

EN
Operation RH418NTE, RH418NTEG
16
• Air passing through the ventilation duct must not be preheated by any source of
heat.
• The ventilation duct must be kept free from any obstacles. Especially portable
multi socket outlets or portable power supplies, which can get warm, must not
be kept at the rear of the cooling device.
➤Fix the cooling device through its fixing feet as shown (fig. b, page 7).
5.4 Mounting the sliding hinge (optional)
You can mount a sliding hinge that allows the cooling device door to be opened at
the same time as the door of the built-in cabinet.
➤Mount the sliding hinge as shown (fig. c, page 7 to fig. f, page 8).
6Operation
!
I
6.1 Energy saving tips
• Choose a well ventilated location which is protected from direct sunlight.
• Allow warm food to cool down first before placing it in the cooling device to
keep cool.
• Do not open the cooling device more often than necessary.
• Do not leave the cooling device open for longer than necessary.
CAUTION! Health hazard!
Food may only be stored in its original packaging or in suitable
containers.
NOTE
• Before starting your new cooling device for the first time, you should
clean it inside and outside with a damp cloth for hygienic reasons
(please also refer to the chapter “Cleaning and maintenance” on
page 19).
• A few water drops may form inside the cooling device if it has been
cooling for a lengthy period. This is normal because the moisture in
the air condenses to water when the temperature in the cooling
device falls. The cooling device is not defective. Wipe it out with a
dry cloth if necessary.
RH418NTE-RH418NTEG-IOM-EMEA16.book Seite 16 Donnerstag, 5. Dezember 2019 3:32 15

EN
RH418NTE, RH418NTEG Operation
17
6.2 Using the cooling device
!
A
➤Place the cooling device on a firm base.
➤Connect the connection cable to the AC mains supply.
✓The cooling device starts cooling the interior.
➤If you wish to switch the cooling device off, pull out the connection cable.
➤Clean the interior to make sure it is dry enough.
6.3 Setting the temperature
The cooling device is equipped with an automatic temperature regulation function.
With the optional remote control (fig. 2, page 3) you can adjust the temperature to
four different levels. Three buttons on the remote control the temperature settings.
•Blackbutton(2): Low inside temperature (two different levels possible)
• Yellow button (3): High inside temperature
•Bluebutton(4): Medium inside temperature
With each press of the buttons on the remote control, the cooling temperature
switches between the possible values. By pressing a button, a red LED illuminates on
the remote control.
WARNING! Suffocation hazard
If children climb into unused cooling devices and close the door behind
them, they can suffocate inside the device.
If you are not going to use the cooling device for a long time, take the fol-
lowing precautionary steps:
• Remove the door.
• Leave the shelves in place so that children cannot easily climb inside.
NOTICE! Damage hazard
• Ensure that the objects placed in the cooling device are suitable for
cooling to the selected temperature.
• Ensure that food or liquids in glass containers are not excessively
refrigerated. Liquids expand when they freeze and can therefore
destroy the glass containers.
• Ensure that your cooling device is well ventilated so that any heat
created can dissipate. Otherwise proper functioning cannot be
ensured. It is especially important not to cover the air vents.
RH418NTE-RH418NTEG-IOM-EMEA16.book Seite 17 Donnerstag, 5. Dezember 2019 3:32 15

EN
Operation RH418NTE, RH418NTEG
18
I8
➤Remove the plastic insulation from the battery holder before initial use.
➤Align the upper side of the remote control to the LEDs of the interior light
(fig. 12, page 3). Maintain a distance of approx. 10 cm.
➤Press the desired button:
6.4 Locking the door (optional)
➤Turn the key a quarter turn to the left to lock the cooling device (fig. g, page 9).
6.5 Using the automatic door control (optional)
The automatic door control (optional) displays via an LED (fig. 13, page 3) that the
door has been opened.
If the door opening monitor LED is lit:
➤Open the cooling device.
➤If necessary, refill the cooling device.
➤Reset the door control monitor with the remote control (optional).
– Hold the remote control towards the door opening sensor (fig. 11,
page 3).
– Press the red button once (fig. 21, page 3).
➤Close the cooling device.
NOTE
The red LED illuminates as soon as a signal has been sent out. Check the
batteries if the LED does not illuminate.
Button
(fig. 2page 3) Inside temperature LED signal
Black button (2)Press once: Low level The LEDs of the interior light
flash at high speed.
Press twice: Lowest level (maxi-
mum performance)
Yellow button (3)High level (minimum perfor-
mance)
The LEDs of the interior light
flash at low speed.
Blue button (4)Medium level The LEDs of the interior light
flash at medium speed.
RH418NTE-RH418NTEG-IOM-EMEA16.book Seite 18 Donnerstag, 5. Dezember 2019 3:32 15

EN
RH418NTE, RH418NTEG Cleaning and maintenance
19
6.6 Defrosting the cooling device
The cooling device is equipped with an automatic defrosting function.
7 Cleaning and maintenance
!
A
➤Use a soft cloth, lukewarm water and a mild detergent to clean the inside of the
cooling device.
➤Wash out the cooling device using clean water and dry thoroughly.
➤At annual intervals, remove dust from the cooling aggregate at the back of the
cooling device using a brush or a soft cloth.
8 Troubleshooting
General troubleshooting
WARNING! Electrocution hazard
Always disconnect the device from the power supply before you clean
and service it.
NOTICE! Damage hazard
• Never clean the cooling device under running water or in dish water.
• Do not use abrasive cleaning agents or hard objects during cleaning
as these can damage the cooling device.
Problem Possible cause Suggested remedy
The cooling is poor. Too much food was put
in.
Remove some food.
Door is not closed
properly.
Close the door.
Internal air circulation is
restricted.
Provide internal air circulation.
RH418NTE-RH418NTEG-IOM-EMEA16.book Seite 19 Donnerstag, 5. Dezember 2019 3:32 15

EN
Warranty RH418NTE, RH418NTEG
20
9Warranty
The statutory warranty period applies. If the product is defective, please contact your
retailer or the manufacturer's branch in your country (see back page).
For repair and warranty processing, please include the following documents when
you send in the device:
• A copy of the receipt with purchasing date
• A reason for the claim or description of the fault
10 Disposal
➤Place the packaging material in the appropriate recycling waste bins wherever
possible.
MIf you wish to finally dispose of the product, ask your local recycling centre
or specialist dealer for details about how to do this in accordance with the
applicable disposal regulations.
There is no cooling. Plug is not properly
connected to the mains
socket.
Put the plug into the mains socket
properly.
There is no voltage in
the mains socket.
Establish voltage.
Problem Possible cause Suggested remedy
RH418NTE-RH418NTEG-IOM-EMEA16.book Seite 20 Donnerstag, 5. Dezember 2019 3:32 15
