Fisher & Paykel RS6121WR User manual

USER GUIDE
NZ AU UK BI SG HK
INTEGRATED
REFRIGERATOR-FREEZER
RS6121WR, RS6121WL,
RS7621WR & RS7621WL
models

3
CONTENTS
Safety and warnings 4
Integrated refrigerator-Freezer 9
Before you begin 10
Control panel 11
Food modes 12
Storage features 13
Special features 14
Wifi connection 15
Care and cleaning 21
Food care 28
User warnings and sounds 30
Troubleshooting 31
European Directive 2012/19/EU on
Waste ElectricalandElectronic Equipment(WEEE) 35
Service & warranty 36
Registration
To register your product visit our website: fisherpaykel.com/register

4
SAFETY AND WARNINGS
!WARNING!
Electric Shock Hazard
Failure to do so can result in death, electric
shock, fire or injury to persons.
• Read and follow the safety and warnings
outlined in this user guide before operating this
appliance.
!WARNING!
This appliance contains flammable
refrigerant isobutane (R600a).

5
SAFETY AND WARNINGS
READ AND SAVE THIS GUIDE
WARNING!
Read entire manual. Failure to follow all guides and rules could cause personal injury or
property damage. When using this appliance, always exercise basic safety precautions
including thefollowing:
General Use
zThis product has been designed for use in a normal domestic (residential) environment.
zChildren should be supervised to ensure that they do not play with the appliance.
zCleaning and user maintenance shall not be undertaken by children without supervision.
zChildren aged 3 to 8 years may load and unload this appliance under supervision.
zThis appliance can be used by children aged from 8years and above and persons
withreduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
theappliance in a safe way and understand the hazards involved.
zThe manufacturer’s installation instructions for product and cabinetry ventilation
mustbe followed when installing the appliance.
zTo avoid hazard due to instability of the appliance, it must be fixed in accordance
withinstallation instructions.
zKeep ventilation openings, in the appliance enclosure or the built-in structure,
clearofobstruction.
zDo not use mechanical devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
zDo not damage the refrigerant circuit.
zIn case of damage to the refrigerant circuit, ventilate the area by opening all windows.
zDo not operate electrical equipment or any other equipment that may produce arcs,
sparks or flames in the area. Contact your Fisher & Paykel trained and supported
service technician immediately to arrange for the appliance to be repaired.
zConnect to potable water supply only
zThis refrigerating appliance is intended to be used at ambient temperatures ranging
from 16 °C to 43 °C. The product performance may be compromised when operating
outside of this temperature range.
zIt is hazardous for anyone other than a Fisher & Paykel trained and supported service
technician to service this appliance. In Queensland – the authorized Service Person
MUST hold a Gas Work Authorisation for hydrocarbon refrigerants, to carry out
Servicing or repairs which involve the removal of covers.
Electrical
zThis appliance must be installed in accordance with the installation instructions before
use.
zTo allow disconnection of the appliance from the supply after installation, incorporate a
switch in the fixed wiring in accordance with the wiring rules.
zNever unplug your refrigerator by pulling on the power cord. Always grip the plug
firmly and pull straight out from the outlet.
zDo not plug in any other appliance at the same power point as your refrigerator or use
extension cords or double adapters.
zRepair or replace immediately all electric service cords that have become frayed or
otherwise damaged. Do not use a cord that shows cracks or abrasion along its length or
at either the plug or appliance end.

6
SAFETY AND WARNINGS
zIf the power supply cord is damaged, it must only be replaced by your Fisher & Paykel
trained and supported service technician because special purpose tools are required.
zWhen moving your appliance away from the wall, be careful not to roll over or damage
the power cord.
zWARNING: Do not use electrical appliances inside the food storage compartments of
the appliance, unless they are of the type recommended by the manufacturer.
zWhen positioning the appliance, ensure the power cord is not trapped or damaged.
zDo not locate multiple portable socket-outlets or portable power supplies at the rear of
the appliance.
Food safety
zRegularly clean accessible draining systems and surfaces that come in contact with
food.
zEnsure any raw meat or fish is stored in sealed containers to prevent
cross-contamination.
zImmediately clean any drips or spills on surfaces.
zIf the appliance will be left empty for long periods, switch off, defrost, clean, dry, and
leave the door open to prevent mould developing within the appliance.
zOpening the door for long periods can cause a significant increase of the temperature
in the compartments of the appliance.
Storing food and drinks/wine
zDo not store explosive substances such as aerosol cans with a flammable propellant
inthis appliance.
zNever store volatile or flammable materials in your appliance as they may explode.
zNever freeze liquids in glass containers. Liquid expands during freezing, which may
cause the container to explode.
zNever freeze carbonated drinks. They may explode.
Servicing
zYour refrigerator is designed to operate for many years without the need for service
checks. However, if your refrigerator is malfunctioning, have it attended to by your
Fisher & Paykel trained and supported service technician as soon as possible. All
electrical repairs must be carried out by an adequately trained service technician or
qualified electrician.
zThe LED light cannot be serviced by the user. Contact your Fisher & Paykel Dealer or
Fisher & Paykel trained and supported service technician.
zIf you suspect that the product is not getting cold — items such as ice cream are
melting— remove all perishable food and store in another appliance or cooler to prevent
spoilage. Immediately call for a service technician.
Cleaning
zUse mild dish-washing liquid with warm water and a lint-free cloth to clean the product.
zAvoid using anti-bacterial cleaning products on either the interior or exterior
of the cabinet as they may cause rusting of metal components and cracking of
plasticcomponents.
Disposal
zExtreme care must be taken when disposing of your old appliance to avoid hazards:
zThe flammable refrigerant gas must be safely removed by a qualified servicetechnician.

7
SAFETY AND WARNINGS
zThe thermal insulation foam in this appliance may contain flammable insulationblowing
gases, any exposed foam may be highly flammable andmustbe carefully treated
during disposal.
zWARNING: Risk of child entrapment. Before you throw away your old refrigerator or
freezer, the doors and panels should be removed and the racks left in place so that
children may not easily climb inside.
zConsult your local energy authority or local codes as to the best way to dispose ofyour
old appliance.
Water connection
zThe water connection to your Ice & water refrigerator must be installed by an
authorised plumber or Fisher & Paykel trained and supported service technician.
zInstallation and use MUST comply with all state and local plumbing codes. Check
with your local public works department for plumbing codes. You must follow their
guidelines as you install the water filtration system.
zIf the water tank has not been used for an extended period of time, or has developed
an unpleasant taste or odour, flush the water system. If the problem persists, replace
the water filter cartridge and refer to the flushing instructions detailed in section
‘Flushing through the water dispenser.
zTo avoid serious illness or death, only connect your water filter to safe drinking water.
zThe water filter cartridge needs to be changed when the replacement indicator icon
illuminates. This will happen every six months.
zIf the water filtration system has been allowed to freeze, replace filter cartridge. Failure
to replace the disposable filter at recommended intervals may lead to reduced filter
performance and failure of the filter, causing property damage from water leakage or
flooding.
zIn cases of excessively reduced filter life — we recommend that you consult a local
plumber or your water supplier for advice on suitable filtration requirements for the
water supplied to your home.
zFilter replacement is the consumer’s responsibility and will not be covered by the
warranty except in the case of faulty parts or materials within the filter cartridge.
zIf the water has not created ice for some time or ice has an unpleasant taste or odour
dispose of ice and refer to ‘Automatic ice’ for flushing instructions. If unpleasant taste
or odour persists, you may wish to fit a new filter cartridge.
zUse new tubing supplied with the refrigerator. DO NOT reuse old tubing from old water
and ice connections.
zYour water filtration system can withstand up to 827kPa of water pressure.
zEnsure the supplied pressure limiting valve is installed before installing the water
filtration system. DO NOT install if water pressure exceeds 827kPa.
To reduce the risk associated with property damage due to water leakage or flooding:
zDO NOT install systems in areas where ambient temperatures may go above 38°C or
drop below 0.6°C.
zDO NOT install on hot water supply lines. The maximum operating water temperature of
this filter system is 38°C.
zDO NOT install where water hammer conditions may occur. If water hammer conditions
exist, you must install a water hammer arrester.
WARNING!
To reduce the risk associated with choking:
zDO NOT allow children under 3 years of age to have access to small parts during the
installation of the water filter.

8
Ice making
zAvoid contact with the moving parts of the ice maker ejector mechanism, and do not
place your fingers on the automatic ice- making mechanism while the appliance is
inoperation.
zAt first use or after water filter has been replaced, there may be discolouration in the
first bin of ice cubes. Discard the discoloured ice cubes. If discolouration continues in
succeeding bins, contact your Fisher & Paykel trained and supported service technician.
Power failure
zIn the event of a power interruption, the appliance will automatically save the current
temperature settings. When power is recovered, the appliance will revert to the current
temperature settings only.
zMost power failures are corrected within a short period of time. 1 – 2 hours loss of
power will not affect the appliance’s temperatures.
zTo avoid sudden change of temperature while the power is off, you should avoid
opening the door. A refrigerator will keep food safe for up to 4 hours during a power
outage. Keep the door closed as much as possible. Discard refrigerated perishable food
such as meat, poultry, fish, eggs, and leftovers after 4 hours without power.
SAFETY AND WARNINGS

9
INTEGRATED REFRIGERATOR-FREEZER
24" Refrigerator-Freezer
RS6121WL
Left Hinge
24" Refrigerator-Freezer
RS6121WR
Right Hinge
30" Refrigerator-Freezer
RS7621WR
Right Hinge
30" Refrigerator-Freezer
RS7621WL
Left Hinge

10

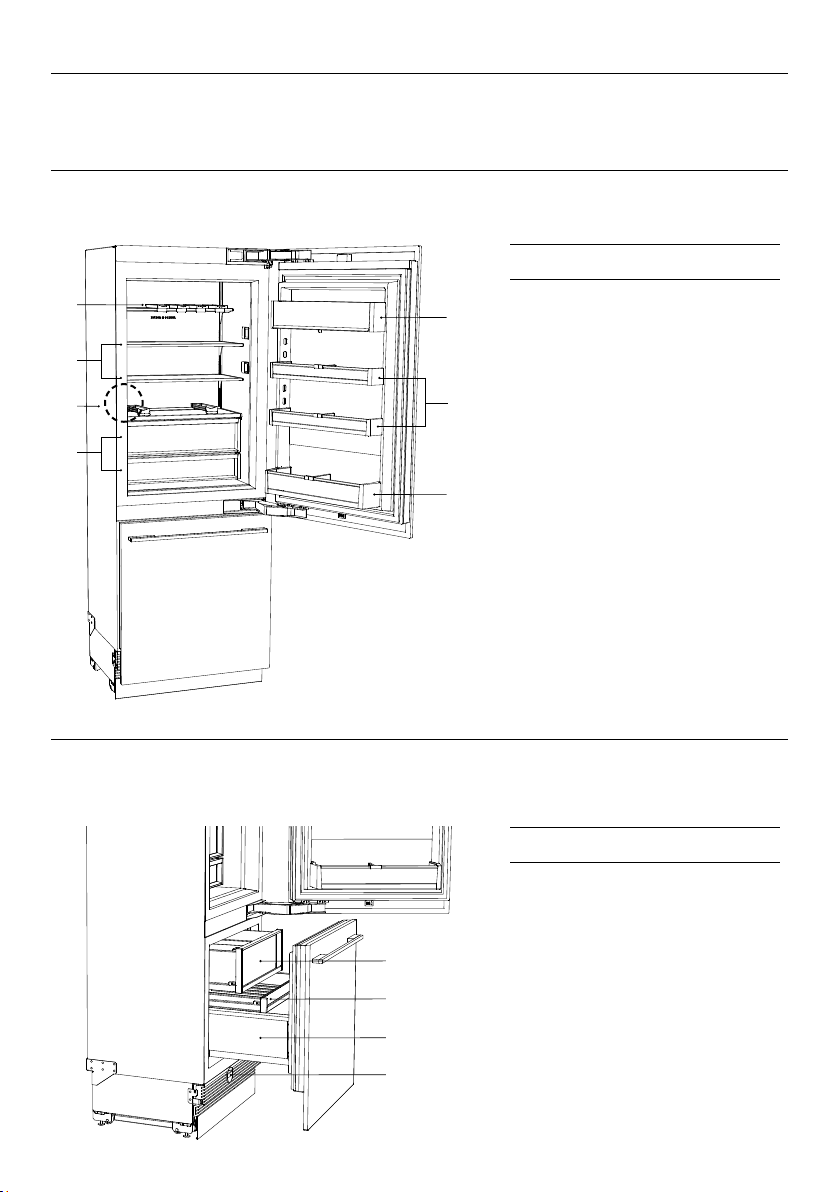

BEFORE YOU BEGIN
Refrigerator features
1 Bottle racks
2 Shelving
3 Internal water dispenser
4 Soft close bins with
humidity control
5 Dairy compartment
6 Door shelf
7 Gallon shelf
Freezer features
1 Top bin with ice storage
2 Mid tray
3 Large bottom steel bin
4 Water filter
zEnsure the installer has completed the final checklist in the installation instructions.
zRead this guide, taking special note of the Safety and Warnings section.
zRemove all packaging and dispose of it responsibly. Recycle items that you can.
15
1
3
4
2
7
6
2
4
Freezer Compartment
3
Refrigerator Compartment

11

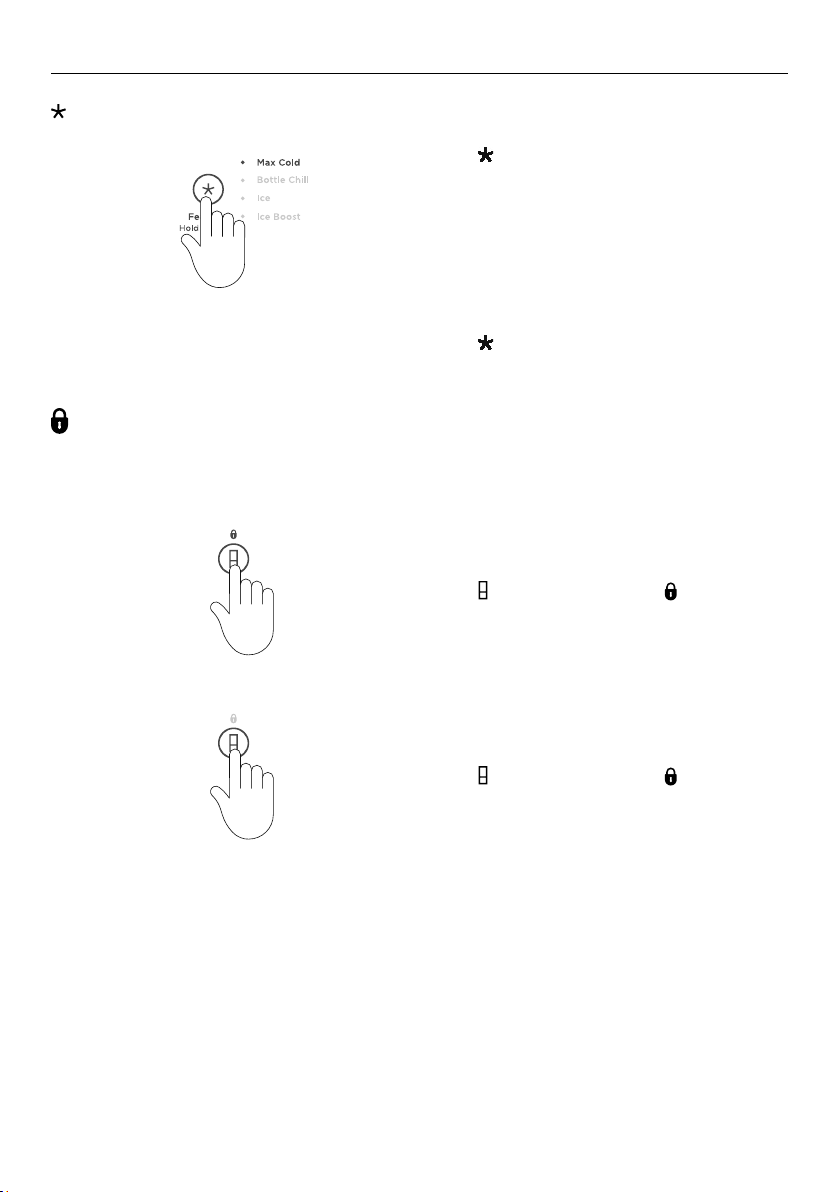

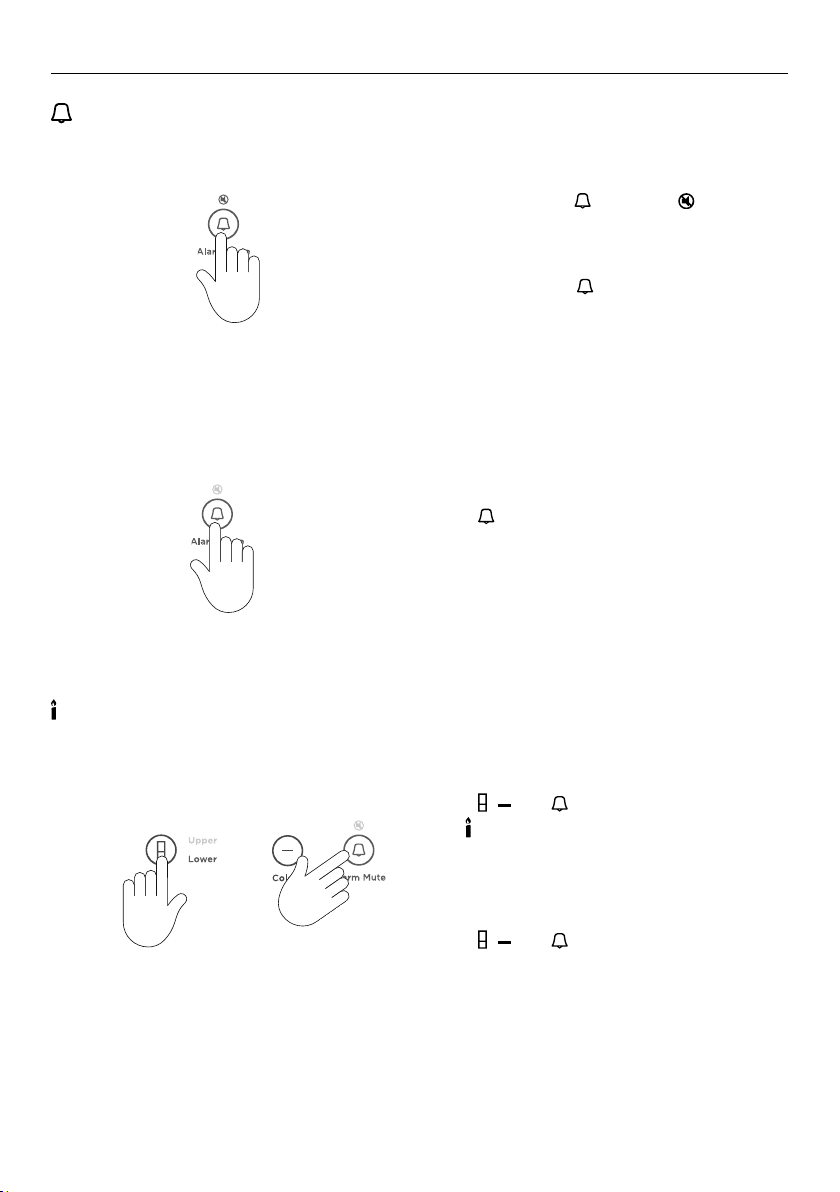

CONTROL PANEL
1 2 3 4 5 87
6

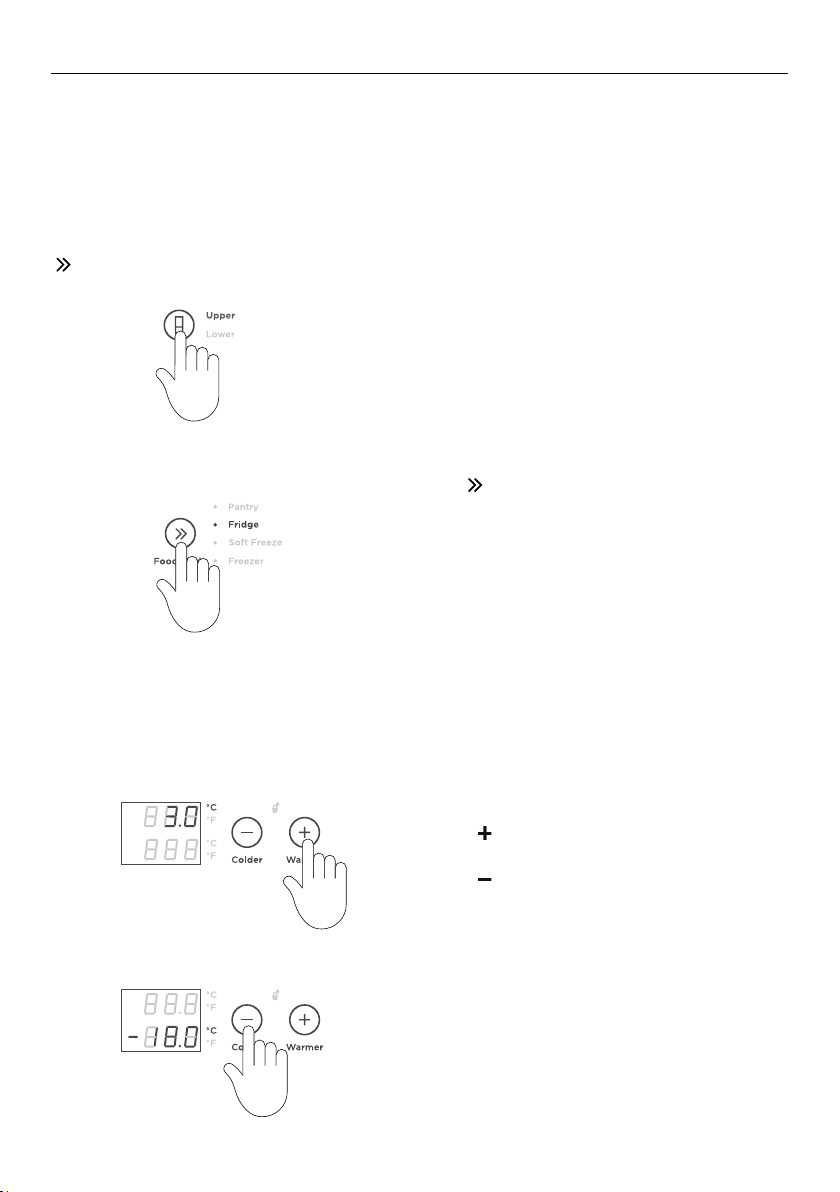

1COMPARTMENT activates the control panel when pressed. Allows you to select the
compartment to adjust the temperature.
zUPPER to indicate the refrigerator compartment is selected.
zLOWER to indicate the freezer compartment is selected.
2Allows you to select the food mode for the selected compartment.
3WiFi illuminates when functionality is activated.
Illuminates when the water filter needs replacement.
IIluminates to indicate that Sabbath mode is activated.
Illuminates to indicate that the keys on the control panel are locked. When the
door is closed, the display is automatically locked.
4Displays the set temperature of the compartments.
To change between Celsius and Fahrenheit on the display:
Press and together for 4seconds.
5Allows you to adjust the temperature of the selected compartment.
6Press and keys for 4 seconds to lock the water dispenser. When locked, the
icon will illuminate.
7Allows you to scroll and select features:
zMax Cold
zBottle Chill
zIce
zIce Boost
8This button has a dual function—it allows you to deactivate door alarms for
20minutes and/or mute key tones on the control panel.

12
Variable temperature zones
Separate food modes, in both fridge and freezer, allow you to adjust the temperature
independently for optimal storage.
Refrigerator
FOOD
MODES DESCRIPTION TYPES OF FOOD TO STORE
Pantry
(12°C/54°F)
Pantry mode provides a cool, dark place
for a wide variety of foods that perish
quickly or mayspoil at room temperature,
but are too sensitive to be stored at normal
refrigerator temperatures.
Pantry mode tested to Cellar Compartment
storage conditions as per Commission
Regulation (EU) 2019/2019.
Bananas, avocados, tomatoes.
Dry food items such as grains, flours,
sugars, crackers, cereal, baked goods,
tortillas, wraps and breads.
Dry food items such as grains, flours,
sugars, crackers, cereal, baked goods,
tortillas, wraps and breads.
Wine
Fridge
(3°C/37°F)
The ideal mode for fresh, everyday foods.
This mode offers a higher relative humidity
than many other refrigerators allowing fresh
foods such as fruits and vegetables, meats
and cheeses to stay fresher for longer.
Fruit and vegetables, dairy products,
jams and chutneys/preserves, meats
and drinks.
Freezer
FOOD
MODES DESCRIPTION TYPES OF FOOD TO STORE
Soft Freeze
(-9°C/16°F)
Soft Freeze mode is an extension of your
refrigerator, extending the shelf life of
perishable items while maintaining the
quality. Soft Freeze mode allows easy
portioning of food and the ability to heat,
cook or serve foods straight from the
compartment without waiting for it to thaw.
Meats, seafood, soups, sauces, pureed
foods, bread, desserts and pastries.
Note: Soft Freeze mode is not
recommended for storage of creamy
desserts such as ice cream.
Freezer
(-18°C/0°F)
Freezer mode is for general frozen food
items that require storage between 1 – 12
months. For frozen food items that may
need to be stored for longer periods, press
the button to reach -25°C (-13°F). This
extends the shelf life of general frozen
items by up to 6months.
Meat, poultry, seafood,
pre-cooked foods and leftovers, some
fruits and vegetable, ice cream, and
other frozen desserts.
General frozen food items that are
required to be stored for extended
times , eg larger cuts ofmeat.
FOOD MODES

13
STORAGE FEATURES
REFRIGERATOR
Fruit and vegetable bins/Slim bin
with humidity control lids
Separate fruits and vegetables to prevent the ethylene-sensitive
produce from ripening too quickly-helps to extend their storage life.
Also used for storing deli items and beverages, or fordefrosting
foods.
Cantilever glass shelving Heat-treated safety glass
Can be removed and positioned at heights to suit your storage
requirements.
Dairy shelf and door shelves The top door shelf is a dairy compartment for storing butter and
cheeses.
The middle shelves are designed for general items, condiments and
drinks.
The bottom shelves are designed to store large drinks or those
drinks you require frequent access to.
Clear windows give ultimate visibility to what is being stored in the
door shelves.
Adjustable door shelves with dividers.
Single bottle holders Can be placed along the length of any shelf (except half-depth
cantilever shelves) to store a varietyof bottles.
Half-depth cantilever shelf bottle
holders Can be placed only on half depth cantilever shelves to store a
variety of bottles.
Store bottles with the neck facing the front of therefrigerator.
Unused bottle holders can be stacked on top ofone another to
maximise shelf space.
FREEZER
Top bin with removable ice
container and hygienic ice scoop
For storing large or small frozen food items.
Mid tray For storing smaller food items.
Large bottom steel bin For storing multiple frozen food items or large food items.

14
Max Cold
Boosts the cooling speed of the selected compartment by dropping to its coldest
temperature for a set time (Pantry - 6 hours, Fridge - 6 hours), dependent on the food
mode in use. We recommend using ‘Max Cold’ when you are adding food items toyour
appliance, such as after grocery shopping. This feature will ensure the food ischilled/frozen
within the shortest period of time, locking in the freshness andextending the shelf life of
your food.
Bottle Chill
This feature allows you to rapidly chill your beverages in the freezer for 15 minutes.
Depending on the size of your beverage, the default time may not be enough to chill
your beverage. If your beverage is notcold enough after the set time, return it to the
compartment and reset the ‘Bottle Chill’ feature.
Ice*
Turns on your automatic ice maker. This feature is only available in the freezer compartment.
Ice Boost*
Increases ice production by lowering the freezer to the coldest set point, and deactivates
automatically after 24 hours.
* This feature is not available if the compartment is set to ‘Soft Freeze’. If ice making is turned on and the foodmode is
changed to ‘Soft Freeze’ any ice that is already in the ice bin may melt and form clumps.
SPECIAL FEATURES

15
WIFI CONNECTION
Your appliance can be connected to your home wireless network and operated remotely
using the app.
Getting started
zEnsure your home WiFi network is turned on.
zYou will be given step by step guidance on both your appliance and mobile device.
zIt may take up to 10 minutes to connect your appliance.
On your mobile device:
1 Download the app from www.fisherpaykel.com/connect
2 Register and create an account.
3 Add your appliance and set up the WiFi connection.

16
Once you turn on your refrigerator for the first time, the compartments will automatically
default to the recommended temperature setting. The control panel enables you to change
and control the temperature of all compartments accurately and independently.
For best storage of general household food items, we recommend to use the appliance
at its factory default temperature and configuration settings. Adjusting temperature and
moving the shelves and bins will have minimal impact on efficiency.
Press to increase the temperature of the
selected food mode.
Press to decrease the temperature of the
selected food mode.
USING YOUR APPLIANCE
Select the desired compartment,
UPPER or LOWER.
Press to scroll through the available FOOD
MODE.
A light illuminates to indicate the matching
FOOD MODE as you scroll down the list.
Selecting the Food Mode
Adjusting the temperature

17
1
2
Allows you to disable the buttons on the control panel. Suitable when cleaning your
appliance. It is automatically activated when the refrigerator door opens.
Press to scroll through the available
FEATURES for the compartment and food
mode you have selected.
To activate:
Select from the list by scrolling through and
stopping at your preferred feature.
A blinking light indicates the current feature
when scrolling through the list.
Press for 2 seconds to activate.
To activate:
Press for twoseconds. The icon on the
control panel will illuminate.
Key lock
Selecting Features
USING YOUR APPLIANCE
Door alarm
zIf refrigerator compartment door is left open, the alarm will beep after 90 seconds.
zIf freezer compartment drawer is left open, the alarm will beep after 60 seconds.
zIf door remains open, subsequent beeps will sound every 30 seconds for five minutes.
zIf door remains open for five minutes or longer, an alarm will sound continuously and the
interior compartment light(s) will turn off.
1
To deactivate:
Press for twoseconds. The icon will not
illuminate.

18
1
To activate:
Press for twoseconds, a single beep will
sound to indicate key mute is activated. All
key sounds are now muted.
Door alarms and the BOTTLE CHILL alarm are
still operational.
Key mute
USING YOUR APPLIANCE
1
To activate:
Press , and together for four seconds.
The icon on the control panel will
illuminate. When activated, the display,
all alarms and lights are deactivated for
80 hours.
To deactivate manually:
Press , and together for fourseconds.
Note: If you turn off your appliance
while in Sabbath mode, it will resume
automaticallyonce the appliance is switched
on again.
1
To activate:
To activate, press once. The will
illuminate to indicate the refrigerator is
muted.
ALARM MUTE will deactivate after
20minutes. Press To deactivate manually,
Closing the door also deactivates the
ALARM MUTE.
Alarm mute
Sabbath mode

19
USING YOUR APPLIANCE
Water filter
The water supplied to your appliance is filtered through a water filter to remove impurities.
The water filter is located at the bottom front of your appliance, and must be replaced
every sixmonths. Refer to your installation guide for instructions on how to remove and
install the water filter.
zA water filter icon on the control panel illuminates when the filter needs replacement.
zReplacement filter cartridges can be purchased online from fisherpaykel.com or by
calling Fisher & Paykel Customer Care. Details of the replacement filter cartridge are
labelled on the cartridge. Instructions on how to install your replacement water filter
are provided with the filter. Guidance of how to replace your water filter and reset your
indicator icon can be found at fisherpaykel.com/water-filter.
To reset the filter indicator:
Press and together for fourseconds.
The on the control panel will turn off
when reset.
Internal water dispenser
The water dispenser is located inside at the left side wall of the refrigerator compartment.
To dispense water, gently press the
dispensing pad with a glass or container.
To stop the flow of water, simply pull your
glass or container away from the dispensing
pad.
Pressing hard against the dispensing pad will
not increase the flow or dispense more water.
Flushing through the water dispenser
Press the water dispenser pad to dispense
4L (one gallon) of water.
zThe dispensed water may contain harmless
carbon residue during the flushing process.
Wait for 4 minutes before dispensing again.
Dispense 4L (one gallon) of water then wait
another four minutes.
Dispense another 4L (one gallon) of water.
Your water dispenser is ready for use.

20
USING YOUR APPLIANCE
Automatic ice maker
1
2
Before turning on your automatic ice maker, the system must be flushed to remove any
impurities or trappedair inthe filter system.
Turn your Ice maker on, select
LOWER COMPARTMENT >FREEZER >ICE.
3
Empty the water, dry the bin and return it
correctly.
Once your ice maker is turned on the first bin
of ice may be discoloured, this is not harmful
and normal during the flushing process.
Discard the first full bin of ice made. Your ice
maker is now ready for use.
Flushing through the ice maker
Press the , and together for
fourseconds then close the doors.
The ice tray will empty the water into the bin
below. The ice tray will only empty after the
doors are closed.
Repeat to remove dust in the ice tray
collected during manufacture and transport.
Turn the ice maker off if:
zThere is no water supply for several hours.
zYou are removing the ice storage bin for a period of time.
zYou are going on holiday/vacation.
