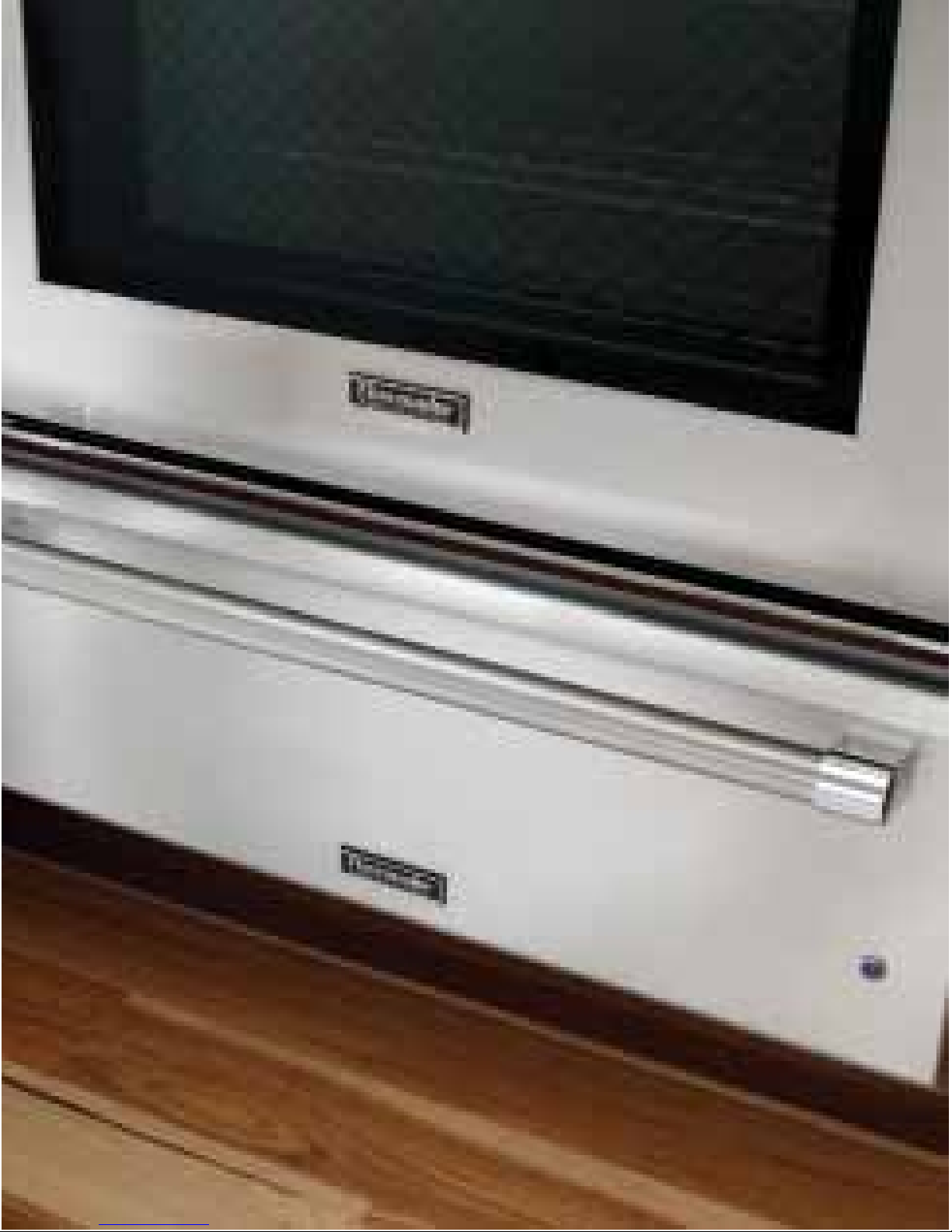

MODELS SHOWN: WDC30UP WARMING DRAWER AND PODM301J BUILT-IN OVEN190

WARMING DRAWERS
1.800.735.4328 | THERMADOR.COM 191
TRADITIONAL
For the ultimate in elegance, practicality and convenience, complete your Thermador kitchen with a spacious,
built-in warming drawer. Keep food warm until every dish is ready to be served. It’s the ultimate indulgence for
the culinary enthusiast.
CONVECTION
Our convection warming drawer is the perfect combination of uncompromising performance and unique
convenience features. Its ceramic warming surface not only heats faster and more evenly to keep food hot
until it’s ready to serve — it’s also easier to clean. A special convection mode offers superior heat distribution,
allowing you to warm tall stacks of dinner plates evenly and quickly. We’ve also added a unique touch control
panel with a digital display for easy activation and temperature monitoring and kept the sides of the drawer
open for easy accessibility.
WARMING
DRAWERS
TRADITIONAL
& CONVECTION

192
WARMING DRAWERS
FEATURES & BENEFITS
CERAMIC SURFACE
The glass-ceramic heating surface with up to 780 Watts, features
numerous conducting paths to ensure quick and even heating and
is so easy-to-clean, you can place food directly on the surface.
EASY ACCESS
The open sides make it easier and more convenient to load and
remove plates from the spacious drawer cavity.
EASY CUSTOM
PANEL INSTALLATION
Create a custom panel to
match the warming drawer
to existing cabinetry. The
fully ush-mounted design
lets you achieve a seamless
appearance. Together, these
features offer the ultimate in
design exibility.
TOUCH CONTROL
This convenient feature
boasts a digital display to
easily activate and monitor
any one of the 4 temperature
settings. It also includes an
electronic timer, a hot-surface
indicator, an automatic shut-
off feature.
NEW SOFTCLOSE®DRAWER
New SoftClose hinges prevent slamming and ensure ultra smooth
closing of the Warming Drawer.
TELESCOPIC RAILS
These rails feature a telescoping ball-bearing design for smooth
opening and closing that supports up to 40 lbs. on traditional models
and 55 lbs. on convection models.
CONVECTION WARMING
The 400 Watt convection heater allows you to evenly, quickly and
effortlessly heat large stacks of plates and can even be used to
dehydrate food, such as fruit.
THERMADOR EXCLUSIVE

WARMING DRAWERS
1.800.735.4328 | THERMADOR.COM 193
ELECTRICAL LOCATION
The outlet can be installed in the back wall directly behind the drawer.
ELECTRICAL SPECIFICATIONS
Be sure your appliance is properly installed and grounded by a qualied
technician. Installation, electrical connections and grounding must comply
with all applicable local codes.
All Thermador Warming Drawers are designed to be connected to a 120V
AC, 60 Hz, 3-wire, grounded outlet.
MODEL OPTIONS
Thermador Warming Drawers are available in 30-inch
and 36-inch widths to t your kitchen plans perfectly.
There are two series to choose from — Professional and
Masterpiece®. Each series features a distinctive style.
You may choose from traditional warming drawers or
convection warming drawers. The warming drawers
featured in this guide include the front panel — you
no longer need to purchase front panels separately.*
Additionally, Thermador Convection Warming Drawer
units may be installed with your own custom front panel
and are available with Masterpiece or Professional
handles. Be sure to reference the correct model
information in this design guide.
*Product available April 2012. For our current collection of Warming Drawers,
refer to Volume 1 of the Kitchen Design and Planning Guide or visit
thermador.com or your local dealer for details.
INSTALLATION CONSIDERATIONS
The information in this design guide provides key
features, product dimensions, cutouts and installation
specications. Before installing a Thermador Warming
Drawer, be sure to verify the cabinet dimensions
and electrical connections. Also, always consult with
the installation manual packed with the product for
complete details before installing.
Thermador Warming Drawers may be installed
below any Thermador Single or Double Built-in Oven.
A minimum space of 1" is recommended between the
bottom of the oven and the top of the warming drawer.
Refer to the built-in oven section for additional details.
Thermador Warming Drawers may also be installed
below any Thermador Electric or Non-professional Gas
Cooktop as long as there is no contact between the
bottom of the cooktop and the top of the warming
drawer. When installing below a Thermador Induction
Cooktop, a minimum 1" air gap must be maintained
between the bottom of the cooktop and the top of the
warming drawer. When installing below a Thermador
Professional Rangetop, a minimum 2 3/4" air gap must
be maintained between the bottom of the cooktop and
the top of the warming drawer. Refer to the appropriate
cooktop or rangetop section for additional details.
WARRANTY
Limited warranty parts and labor (2 year)
See page 308 for additional warranty details.
WARMING DRAWERS
PLANNING INFORMATION
MODEL REQUIRED CIRCUIT BREAkER
120V, 60Hz
WD27JS 15 Amp
WD30JS 15 Amp
WD30JP 15 Amp
WDC30JS 15 Amp
WDC30JP 15 Amp
WDC30J 15 Amp
WDC36JP 15 Amp
WDC36J 15 Amp

194
WARMING DRAWER
27-INCH TRADITIONAL
WD27JS
WD27JS
INNOVATION
- NEW SoftClose®hinges for ultra smooth closing of the
warming drawer
PERFORMANCE
- Telescopic ball-bearing rails offer smooth handling and
support up to 40 lbs
- Warming Mode with three convenient temperature settings
- Special Proof Mode
- Moisture selector controls humidity level in the drawer
- Concealed 450 Watt heating element
- Spacious 2.3 cu. ft. cavity holds up to 20 dinner plates
- Drawer has open sides for easy and convenient access
- Automatic shut-off timer
- NEW Star-K certied
DESIGN
- NEW side supports and door liner now in bold stainless
steel design
- Built-in Warming Drawer is the perfect companion for any
Thermador Wall Oven
- Premium touch control
- Blue digital display
- Chiseled Masterpiece®design
THERMADOR EXCLUSIVE
WD27JS
Stainless Steel Warming Drawer with Masterpiece Handle
Product available April 2012. For our current collection of Warming Drawers, refer
to Volume 1 of the Kitchen Design and Planning Guide or visit thermador.com or
your local dealer for details.
SPECIFICATIONS
Product Width 26 3/4"
Product Height 11 1/4"
Product Depth 22 1/4"
Overall Interior
Capacity (cu. ft.)
2.3
Usable Interior Dimensions
(W x H x D)
18 7/8" x 7 11/16" x 20 1/4"
Cutout Width 25 3/8"
Cutout Height 10 7/8"
Cutout Depth 24"
Front Panel Width 26 3/4"
Front Panel Height 11 1/4"
Front Panel Depth 7/8"
Drawer Clearance 20 1/2"
Electrical Supply 120V AC, 60 Hz
Required Circuit Breaker 15 Amp
Wattage 450
Power Cord Included 120V-3-Wire
Power Cord Length 84"
Shipping Weight (lbs.) 70

WARMING DRAWERS
1.800.735.4328 | THERMADOR.COM 195
WARMING DRAWER
27-INCH TRADITIONAL
WD27JS
27-INCH TRADITIONAL WARMING DRAWER
AND CUTOUT DIMENSIONS
INSTALLATION OPTIONS
WALL-MOUNTED INSTALLATION
Thermador Warming Drawers may be installed
below any Thermador Single or Double Built-in
Oven. A minimum space of 1" is recommended
between the bottom of the oven and the top of
the warming drawer. Refer to the built-in oven
section for additional details.
UNDER-COUNTER INSTALLATION
Thermador Warming Drawers may also be installed
below any Thermador Electric or Non-professional
Gas Cooktop as long as there is no contact
between the bottom of the cooktop and the top
of the warming drawer. When installing below a
Thermador Induction Cooktop, a minimum 1" air
gap must be maintained between the bottom of
the cooktop and the top of the warming drawer.
When installing below a Thermador Professional
Rangetop, a minimum 2 3/4" air gap must be
maintained between the bottom of the cooktop
and the top of the warming drawer. Refer to the
appropriate cooktop or rangetop section for
additional details.
The cabinet base must be at and capable of
supporting a weight of at least 110 lbs. (50 kg).
Door Handle Depth*
*Protrusion of handle from
outer part of drawer front.
Does not include thickness
of drawer front

196
WARMING DRAWER
30-INCH TRADITIONAL
WD30JS / WD30JP
WD30JS / WD30JP
INNOVATION
- NEW SoftClose®hinges for ultra smooth closing of the
warming drawer
PERFORMANCE
- Telescopic ball-bearing rails offer smooth handling and
support up to 40 lbs
- Warming Mode with three convenient temperature settings
- Special Proof Mode
- Moisture selector controls humidity level in the drawer
- Concealed 450 Watt heating element
- Spacious 2.6 cu. ft. cavity holds up to 27 dinner plates
- Drawer has open sides for easy and convenient access
- Automatic shut-off timer
- NEW Star-K certied
DESIGN
- NEW side supports and door liner now in bold stainless
steel design
- Built-in Warming Drawer is the perfect companion for any
Thermador Wall Oven
- Premium touch control
- Blue digital display
- WD30JS features a chiseled Masterpiece®design
- WD30JP features a bold Professional design
THERMADOR EXCLUSIVE
WD30JS
Stainless Steel Warming
Drawer with Masterpiece
Handle
WD30JP
Stainless Steel Warming
Drawer with Professional
Handle
SPECIFICATIONS
WD30JS WD30JP
Product Width 29 3/4"
Product Height 11 1/4"
Product Depth 23 7/8"
Overall Interior
Capacity (cu. ft.)
2.6
Usable Interior Dimensions
(W x H x D)
21 7/8" x 7 11/16" x 20 1/4"
Cutout Width 28 1/2"
Cutout Height 11"
Cutout Depth 24"
Front Panel Width 29 3/4"
Front Panel Height 11 1/4"
Front Panel Depth 7/8"
Drawer Clearance 19 3/8"
Electrical Supply 120V AC, 60 Hz
Required Circuit Breaker 15 Amp
Wattage 450
Power Cord Included 120V-3-Wire
Power Cord Length 84"
Shipping Weight (lbs.) 72 80
Product available April 2012. For our current collection of Warming Drawers, refer
to Volume 1 of the Kitchen Design and Planning Guide or visit thermador.com or
your local dealer for details.

WARMING DRAWERS
1.800.735.4328 | THERMADOR.COM 197
WARMING DRAWER
30-INCH TRADITIONAL
WD30JS / WD30JP
30-INCH TRADITIONAL WARMING DRAWER
AND CUTOUT DIMENSIONS
INSTALLATION OPTIONS
WALL-MOUNTED INSTALLATION
Thermador Warming Drawers may be installed
below any Thermador Single or Double Built-in
Oven. A minimum space of 1" is recommended
between the bottom of the oven and the top of
the warming drawer. Refer to the built-in oven
section for additional details.
UNDER-COUNTER INSTALLATION
Thermador Warming Drawers may also be installed
below any Thermador Electric or Non-professional
Gas Cooktop as long as there is no contact
between the bottom of the cooktop and the top
of the warming drawer. When installing below a
Thermador Induction Cooktop, a minimum 1" air
gap must be maintained between the bottom of
the cooktop and the top of the warming drawer.
When installing below a Thermador Professional
Rangetop, a minimum 2 3/4" air gap must be
maintained between the bottom of the cooktop
and the top of the warming drawer. Refer to the
appropriate cooktop or rangetop section for
additional details.
The cabinet base must be at and capable of
supporting a weight of at least 110 lbs. (50 kg).
Door Handle Depth*
* Protrusion of handle from
outer part of drawer front.
Does not include thickness
of drawer front.

198
WARMING DRAWER
30-INCH CONVECTION
WDC30JS / WDC30JP
SPECIFICATIONS
Product Width 29 3/4"
Product Height 11 1/4"
Product Depth 22 1/4"
Overall Interior
Capacity (cu. ft.)
2.5
Usable Interior Dimensions
(W x H x D)
23 3/8" x 7 3/8" x 18 5/8"
Cutout Width 28 1/2"
Cutout Height 10"
Cutout Depth 24"
Front Panel Width 29 3/4"
Front Panel Height 11 1/4"
Front Panel Depth 7/8"
Drawer Clearance 18 1/2"
Electrical Supply 120V AC, 60 Hz
Required Circuit Breaker 15 Amp
Wattage 958
Power Cord Included 120V-3-Wire
Power Cord Length 72"
Shipping Weight (lbs.) 84
WDC30JS
Stainless Steel Warming
Drawer with Masterpiece
Handle
WDC30JP
Stainless Steel Warming
Drawer with Professional
Handle
WDC30JS / WDC30JP
INNOVATION
- NEW SoftClose®hinges for ultra smooth closing of the
warming drawer
- State-of-the-art glass ceramic heating surface with powerful
535 W element heats surface more evenly compared to
standard warming drawer
PERFORMANCE
- Telescopic ball-bearing rails offer smooth handling and
support up to 55 lbs
- Warming Mode with three convenient temperature settings
- Powerful 400 Watt convection heater
- Spacious 2.5 cu. ft. cavity holds up to 32 dinner plates
- Glass ceramic surface features numerous conducting paths
which ensure quick and even heating
- Heat large stacks of plates evenly, quickly and effortlessly
- Glass ceramic surface for easy cleaning
- Hot surface indicator for added safety
- Drawer has open sides for easy and convenient access
- Automatic shut-off timer
DESIGN
- NEW side supports, door liner and inner front face now in
bold stainless steel design
- Built-in Convection Warming Drawer is the perfect
companion for any Thermador Wall Oven
- Premium touch control
- Blue digital display
- WDC30JS features a chiseled Masterpiece®design
- WDC30JP features a bold Professional design
THERMADOR EXCLUSIVE
Product available April 2012. For our current collection of Warming Drawers, refer
to Volume 1 of the Kitchen Design and Planning Guide or visit thermador.com or
your local dealer for details.

WARMING DRAWERS
1.800.735.4328 | THERMADOR.COM 199
WARMING DRAWER
30-INCH CONVECTION
WDC30JS / WDC30JP
30-INCH CONVECTION WARMING DRAWER
AND CUTOUT DIMENSIONS
INSTALLATION OPTIONS
WALL-MOUNTED INSTALLATION
Thermador Warming Drawers may be installed
below any Thermador Single or Double Built-in
Oven. A minimum space of 1" is recommended
between the bottom of the oven and the top of
the warming drawer. Refer to the built-in oven
section for additional details.
UNDER-COUNTER INSTALLATION
Thermador Warming Drawers may also be installed
below any Thermador Electric or Non-professional
Gas Cooktop as long as there is no contact
between the bottom of the cooktop and the top
of the warming drawer. When installing below a
Thermador Induction Cooktop, a minimum 1" air
gap must be maintained between the bottom of
the cooktop and the top of the warming drawer.
When installing below a Thermador Professional
Rangetop, a minimum 2 3/4" air gap must be
maintained between the bottom of the cooktop
and the top of the warming drawer. Refer to the
appropriate cooktop or rangetop section for
additional details.
The cabinet base must be at and capable of
supporting a weight of at least 110 lbs. (50 kg).
Door Handle Depth*
* Protrusion of handle from
outer part of drawer front.
Does not include thickness
of drawer front.

200
WARMING DRAWER
30-INCH CONVECTION, CUSTOM PANEL
WDC30J
SPECIFICATIONS
Product Width 29 3/4"
Product Height 11 1/4"
Product Depth 22 1/4"
Overall Interior
Capacity (cu. ft.)
2.5
Usable Interior Dimensions
(W x H x D)
23 3/8" x 7 3/8" x 18 5/8"
Cutout Width 28 1/2"
Cutout Height 10"
Cutout Depth 24"
Front Panel Width 29 3/4"
Front Panel Height 11 1/4"
Front Panel Depth 7/8"
Drawer Clearance 18 1/2"
Electrical Supply 120V AC, 60 Hz
Required Circuit Breaker 15 Amp
Wattage 958
Power Cord Included 120V-3-Wire
Power Cord Length 72"
Shipping Weight (lbs.) 70
WDC30J
INNOVATION
- NEW SoftClose®hinges for ultra smooth closing of the
warming drawer
- State-of-the-art glass ceramic heating surface with powerful
535 W element heats surface more evenly compared to
standard warming drawer
PERFORMANCE
- Telescopic ball-bearing rails offer smooth handling and
support up to 55 lbs
- Warming Mode with three convenient temperature settings
- Powerful 400 Watt convection heater
- Spacious 2.5 cu. ft. cavity holds up to 32 dinner plates
- Glass ceramic surface features numerous conducting paths
which ensure quick and even heating
- Heat large stacks of plates evenly, quickly and effortlessly
- Glass ceramic surface for easy cleaning
- Hot surface indicator for added safety
- Drawer has open sides for easy and convenient access
- Automatic shut-off timer
DESIGN
- NEW side supports, door liner and inner front face now in
bold stainless steel design
- Built-in Convection Warming Drawer is the perfect
companion for any Thermador Wall Oven
- Premium touch control
- Blue digital display
THERMADOR EXCLUSIVE
WDC30J
Custom Panel Ready Warming Drawer
Product available April 2012. For our current collection of Warming
Drawers, refer to Volume 1 of the Kitchen Design and Planning Guide
or visit thermador.com or your local dealer for details.

WARMING DRAWERS
1.800.735.4328 | THERMADOR.COM 201
WARMING DRAWER
30-INCH CONVECTION, CUSTOM PANEL
WDC30J
30-INCH CONVECTION WARMING DRAWER
AND CUTOUT DIMENSIONS
INSTALLATION OPTIONS
WALL-MOUNTED INSTALLATION
Thermador Warming Drawers may be installed
below any Thermador Single or Double Built-in
Oven. A minimum space of 1" is recommended
between the bottom of the oven and the top of
the warming drawer. Refer to the built-in oven
section for additional details.
UNDER-COUNTER INSTALLATION
Thermador Warming Drawers may also be installed
below any Thermador Electric or Non-professional
Gas Cooktop as long as there is no contact
between the bottom of the cooktop and the top
of the warming drawer. When installing below a
Thermador Induction Cooktop, a minimum 1" air
gap must be maintained between the bottom of
the cooktop and the top of the warming drawer.
When installing below a Thermador Professional
Rangetop, a minimum 2 3/4" air gap must be
maintained between the bottom of the cooktop
and the top of the warming drawer. Refer to the
appropriate cooktop or rangetop section for
additional details.
CUSTOM FRONT PANEL
This Thermador Warming Drawer requires a custom
front panel. You may build a custom drawer front
panel to coordinate with your cabinetry. Custom
panels must meet the following requirements:
– Have a handle
– Have the dimensions shown below
– Have a minimum thickness of 3/4" (19 mm)
– Have all edges nished
– Be capable of withstanding a temperature of
158°F (70° C)
The cabinet base must be at and capable of
supporting a weight of at least 110 lbs. (50 kg).
CUSTOM FRONT PANEL
Custom Drawer Front Dimensions
Build custom drawer front to the dimensions specied below. All four edges must be nished.
If using wood, the back must be sealed to prevent moisture damage.

202
WARMING DRAWER
36-INCH CONVECTION
WDC36JP
WDC36JP
INNOVATION
- NEW SoftClose®hinges for ultra smooth closing of the
warming drawer
- State-of-the-art glass ceramic heating surface with powerful
780 W heats surface more evenly compared to standard
warming drawer
PERFORMANCE
- Telescopic ball-bearing rails offer smooth handling and
support up to 67 lbs
- Warming Mode with three convenient temperature settings
- Powerful 400 Watt convection heater
- Spacious 3.1 cu. ft. cavity holds up to 48 dinner plates
- Glass ceramic surface features numerous conducting paths
which ensure quick and even heating
- State-of-the-art glass ceramic heating surface
- Heat large stacks of plates evenly, quickly and effortlessly
- Glass ceramic surface for easy cleaning
- Hot surface indicator for added safety
- Drawer has open sides for easy and convenient access
- Automatic shut-off timer
DESIGN
- NEW side supports, door liner and inner front face now in
bold stainless steel design
- Bold Professional design
- Built-in Convection Warming Drawer is the perfect
companion for any Thermador Wall Oven
- Premium touch control
- Blue digital display
THERMADOR EXCLUSIVE
SPECIFICATIONS
Product Width 35 11/16"
Product Height 11 1/4"
Product Depth 22 1/4"
Overall Interior
Capacity (cu. ft.)
3.1
Usable Interior Dimensions
(W x H x D)
29 3/8" x 7 1/8" x 18 1/2"
Cutout Width 34 1/2"
Cutout Height 10"
Cutout Depth 24"
Front Panel Width 35 11/16"
Front Panel Height 11 1/4"
Front Panel Depth 7/8"
Drawer Clearance 18 1/2"
Electrical Supply 120V AC, 60 Hz
Required Circuit Breaker 15 Amp
Wattage 1,214
Power Cord Included 120V-3-Wire
Power Cord Length 72"
Shipping Weight (lbs.) 86
WDC36JP
Stainless steel warming drawer with Professional Handle
Product available April 2012. For our current collection of Warming Drawers,
refer to Volume 1 of the Kitchen Design and Planning Guide or visit
thermador.com or your local dealer for details.

WARMING DRAWERS
1.800.735.4328 | THERMADOR.COM 203
WARMING DRAWER
36-INCH CONVECTION
WDC36JP
36-INCH CONVECTION WARMING DRAWER
AND CUTOUT DIMENSIONS
INSTALLATION OPTIONS
WALL-MOUNTED INSTALLATION
Thermador Warming Drawers may be installed
below any Thermador Single or Double Built-in
Oven. A minimum space of 1" is recommended
between the bottom of the oven and the top of
the warming drawer. Refer to the built-in oven
section for additional details.
UNDER-COUNTER INSTALLATION
Thermador Warming Drawers may also be installed
below any Thermador Electric or Non-professional
Gas Cooktop as long as there is no contact
between the bottom of the cooktop and the top
of the warming drawer. When installing below a
Thermador Induction Cooktop, a minimum 1" air
gap must be maintained between the bottom of
the cooktop and the top of the warming drawer.
When installing below a Thermador Professional
Rangetop, a minimum 2 3/4" air gap must be
maintained between the bottom of the cooktop
and the top of the warming drawer. Refer to the
appropriate cooktop or rangetop section for
additional details.
The cabinet base must be at and capable of
supporting a weight of at least 110 lbs. (50 kg).
Door Handle Depth*
*Protrusion of handle from
outer part of drawer front.
Does not include thickness
of drawer front.

204
WARMING DRAWER
36-INCH CONVECTION, CUSTOM PANEL
WDC36J
WDC36J
INNOVATION
- NEW SoftClose®hinges for ultra smooth closing of the
warming drawer
- State-of-the-art glass ceramic heating surface with powerful
780 W heats surface more evenly compared to standard
warming drawer
PERFORMANCE
- Telescopic ball-bearing rails offer smooth handling and
support up to 67 lbs
- Warming Mode with three convenient temperature settings
- Powerful 400 Watt convection heater
- Spacious 3.1 cu. ft. cavity holds up to 48 dinner plates
- Glass ceramic surface features numerous conducting paths
which ensure quick and even heating
- State-of-the-art glass ceramic heating surface
- Heat large stacks of plates evenly, quickly and effortlessly
- Glass ceramic surface for easy cleaning
- Hot surface indicator for added safety
- Drawer has open sides for easy and convenient access
- Automatic shut-off timer
DESIGN
- NEW side supports, door liner and inner front face now in
bold stainless steel design
- Built-in Convection Warming Drawer is the perfect
companion for any Thermador Wall Oven
- Premium touch control
- Blue digital display
THERMADOR EXCLUSIVE
SPECIFICATIONS
Product Width 35 11/16"
Product Height 11 1/4"
Product Depth 22 1/4"
Overall Interior
Capacity (cu. ft.)
3.1
Usable Interior Dimensions
(W x H x D)
29 3/8" x 7 1/8" x 18 1/2"
Cutout Width 34 1/2"
Cutout Height 10"
Cutout Depth 24"
Front Panel Width 35 11/16"
Front Panel Height 11 1/4"
Front Panel Depth 7/8"
Drawer Clearance 18 1/2"
Electrical Supply 120V AC, 60 Hz
Required Circuit Breaker 15 Amp
Wattage 1,214
Power Cord Included 120V-3-Wire
Power Cord Length 72"
Shipping Weight (lbs.) 76
WDC36J
Custom Panel Ready Warming Drawer
Product available April 2012. For our current collection of Warming
Drawers, refer to Volume 1 of the Kitchen Design and Planning Guide
or visit thermador.com or your local dealer for details.

1.800.735.4328 | THERMADOR.COM 205
WARMING DRAWERS
WARMING DRAWER
36-INCH CONVECTION, CUSTOM PANEL
WDC36J
36-INCH CONVECTION WARMING DRAWER
AND CUTOUT DIMENSIONS
INSTALLATION OPTIONS
WALL-MOUNTED INSTALLATION
Thermador Warming Drawers may be installed
below any Thermador Single or Double Built-in
Oven. A minimum space of 1" is recommended
between the bottom of the oven and the top of
the warming drawer. Refer to the built-in oven
section for additional details.
UNDER-COUNTER INSTALLATION
Thermador Warming Drawers may also be installed
below any Thermador Electric or Non-professional
Gas Cooktop as long as there is no contact
between the bottom of the cooktop and the top
of the warming drawer. When installing below a
Thermador Induction Cooktop, a minimum 1" air
gap must be maintained between the bottom of
the cooktop and the top of the warming drawer.
When installing below a Thermador Professional
Rangetop, a minimum 2 3/4" air gap must be
maintained between the bottom of the cooktop
and the top of the warming drawer. Refer to the
appropriate cooktop or rangetop section for
additional details.
CUSTOM FRONT PANEL
This Thermador Warming Drawer requires a custom
front panel. You may build a custom drawer front
panel to coordinate with your cabinetry. Custom
panels must meet the following requirements:
– Have a handle
– Have the dimensions shown below
– Have a minimum thickness of 3/4" (19 mm)
– Have all edges nished
– Be capable of withstanding a temperature of
158°F (70° C)
The cabinet base must be at and capable of
supporting a weight of at least 110 lbs. (50 kg).
CUSTOM FRONT PANEL
Custom Drawer Front Dimensions
Build custom drawer front to the dimensions specied below. All four edges must be nished.
If using wood, the back must be sealed to prevent moisture damage.
