Gas Continuous Flow Water Heaters
Owner's Information
Warranty
Models
G
1 6NG50/G 1 6LP50
G 1 6NG60/G 1 6LP60
G20NG50/G20LP50
G20NG60/G20LP60
G26 NG50/G26 LP50
G26 NG60/G26 LP60

Thermann Owner’s Guide
Gas Continuous Flow Water Heaters

33
Important Safety Instructions 4-7
Electrical Connection 7
Remote Controller 8-10
Fault Monitor 11-12
Warranty 13-14
CONTENTS

Thermann Owner’s Guide
Gas Continuous Flow Water Heaters
4

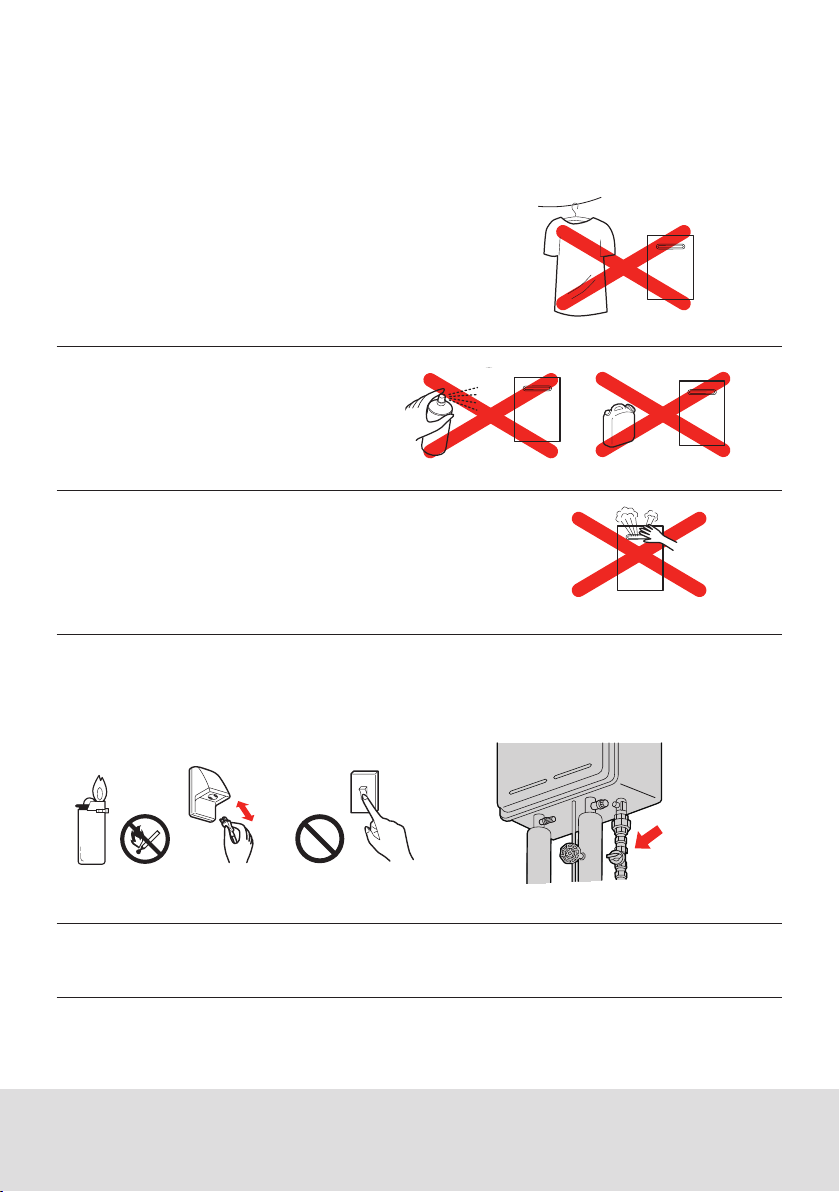

1. Do not hang washing or other
materials adjacent to the unit.
2. Do not use or store flammable
materials within 2 metres of the unit.
3. Do not spray aerosols in the vicinity of
this appliance while it is in operation.
4. Do not touch the flue outlet of the unit
during or immediately after operation.
5. If any gas smell comes from the unit, do not use naked flames to test for gas leaks.
Turn o the gas supply and power and contact your plumber or Reece Customer
Care on 1800 080 055.
6. If a power failure occurs, any connected remote controllers will not function and the
unit will not supply hot water until power is restored.
7. Do not use this appliance as a space heater.
1
CLOSE
1
CLOSE
No Fire Prohibited
1
CLOSE
1
CLOSE
1
CLOSE
IMPORTANT SAFETY INSTRUCTIONSIMPORTANT SAFETY INSTRUCTIONSIMPORTANT SAFETY INSTRUCTIONS

555
IMPORTANT SAFETY INSTRUCTIONS
DO NOT INSTALL INDOORS
This unit is designed for outdoor installation. Never install indoors. It
will be extremely dangerous because it will cause oxygen deficiency
and incomplete combustion.
If the unit has been installed indoors turn o the gas supply and
contact your plumber immediately.
MEASURES TO BE TAKEN DURING ELECTRICAL STORMS
Power surges caused by lightning can cause damage to the electrical components
of the unit. Turn o the main power during electrical storms.

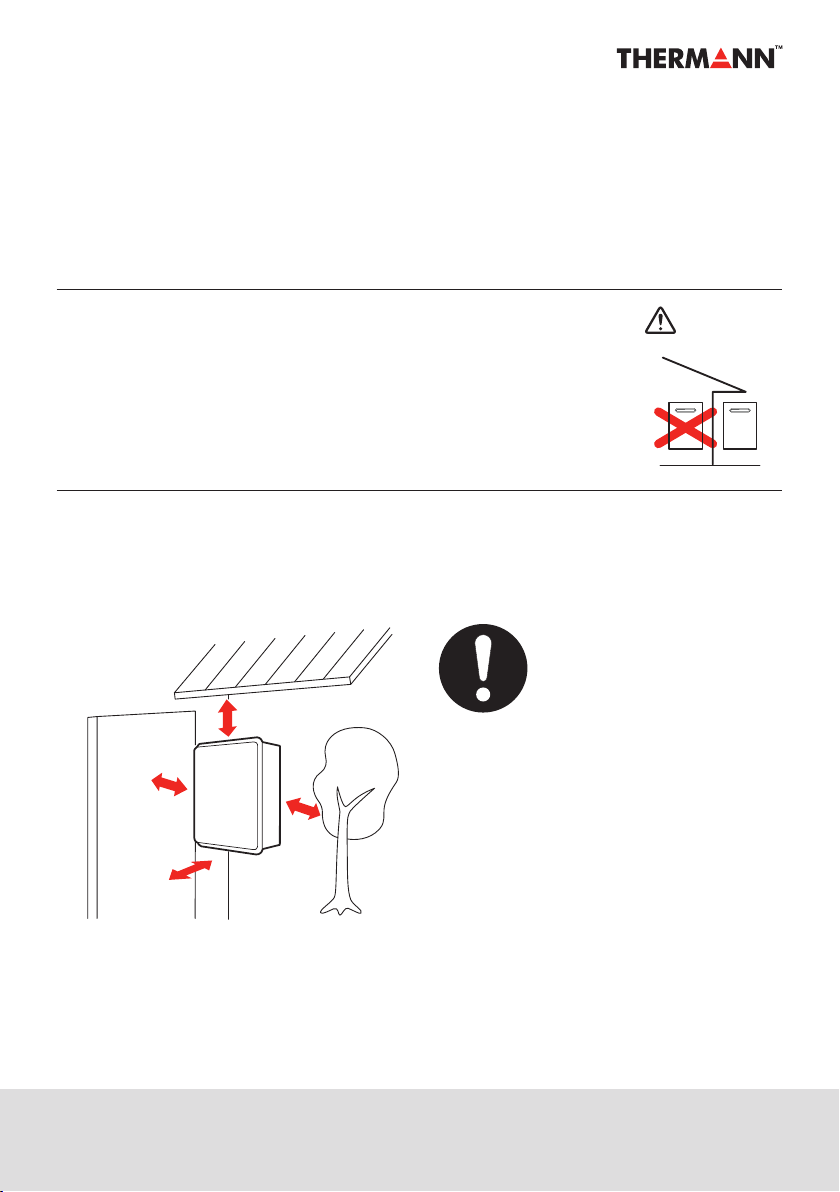

SECURE SERVICE SPACE
Make sure there is enough space around the unit for checking, service and maintenance.
5
Check
Caution
Pull
No wet hand
CloseClose
Danger

Thermann Owner’s Guide
Gas Continuous Flow Water Heaters
6
CAUTION TO PREVENT SCALDING
Check the water temperature by hand first before using shower.
This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
WATER INLET PRESSURE
Maximum working water pressure is 1300kPa
DO NOT DISASSEMBLE, REPAIR OR MODIFY
Do not disassemble or modify the units as this may cause fire,
electric shock and other accidents.
Always use a licensed plumber for installation, relocation,
repair or connection to solar units.
FREEZE PREVENTION
This unit comes equipped with internal electric heaters that prevent the water inside the
unit from freezing.
To enable this freeze prevention system to operate there must be an electrical power
supply connected to the unit.
The freeze prevention devices will not operate if the electrical power source is not connected.
The electric defrost heaters are installed inside the water heater only. All External Hot and Cold
water supply pipes and fittings connected to the water heater should be properly insulated.
FLAMMABLE ITEMS
Do not place any flammable items on, near, or around the unit,
as this can cause fire or an explosion to occur.
Caution
Pull
No wet hand
CloseClose
Caution
Pull
No wet hand
CloseClose
Warning
Warning
Caution
Pull
No wet hand
CloseClose
IMPORTANT SAFETY INSTRUCTIONSIMPORTANT SAFETY INSTRUCTIONSIMPORTANT SAFETY INSTRUCTIONS

777
IMPORTANT SAFETY INSTRUCTIONS
ELECTRICAL CONNECTION
MEASURES TO BE TAKEN IN CASE OF EMERGENCY
The procedure to follow in an emergency such as
earthquake, flood or fire is:
1. Close all hot water taps in the house.
2. Close the gas valve and the main water valve.
3. Turn o the main power.*
Caution
Pull
No wet hand
CloseClose
*In case of gas leakage, first close the gas valve, wait for the
leaked gas to disperse then turn o the main power supply
Caution
Pull
No wet hand
Close
Close
5
5
Prohibited
Prohibited
Warning
Check

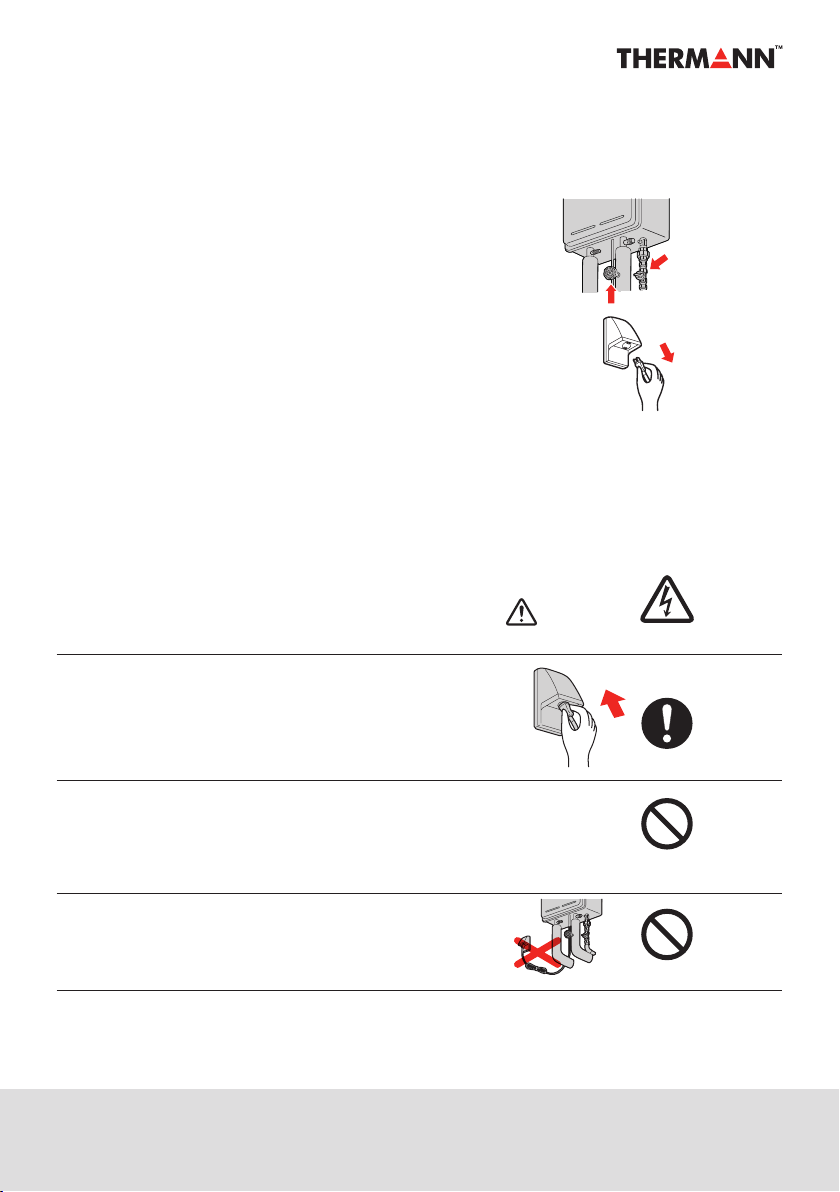

DO NOT REPLACE POWER CORD
If the power supply cord is damaged, it should be replaced by a cord available from your
local Reece branch. The power cord must be replaced by an authorised tradesperson.
DO NOT USE POWER CORD BUNDLED
Never use power cord in a bundled condition.
It can cause heat generation and fire.
DO NOT PULL POWER CORD
Do not remove the power plug by pulling the cord
as it may generate heat by wire breakage and cause
fire. Hold the plug when removing the power cord.
INSERT POWER PLUG FULLY INTO POWERPOINT
Check that the power plug is clean and undamaged,
then fully insert into the power point.
DANGER OF WET HANDS
Do not touch power plug with wet hands.
It can cause electric shock. Caution

Thermann Owner’s Guide
Gas Continuous Flow Water Heaters
8
REMOTE CONTROLLER
Up to three remote controllers are able to be installed with your Thermann unit for
complete control of your hot water.
Please note, units without remote controller will be set at either 50°C or 60°C (the
exception is if the unit is installed as a solar booster. Your plumber will have set the unit to
70°C).

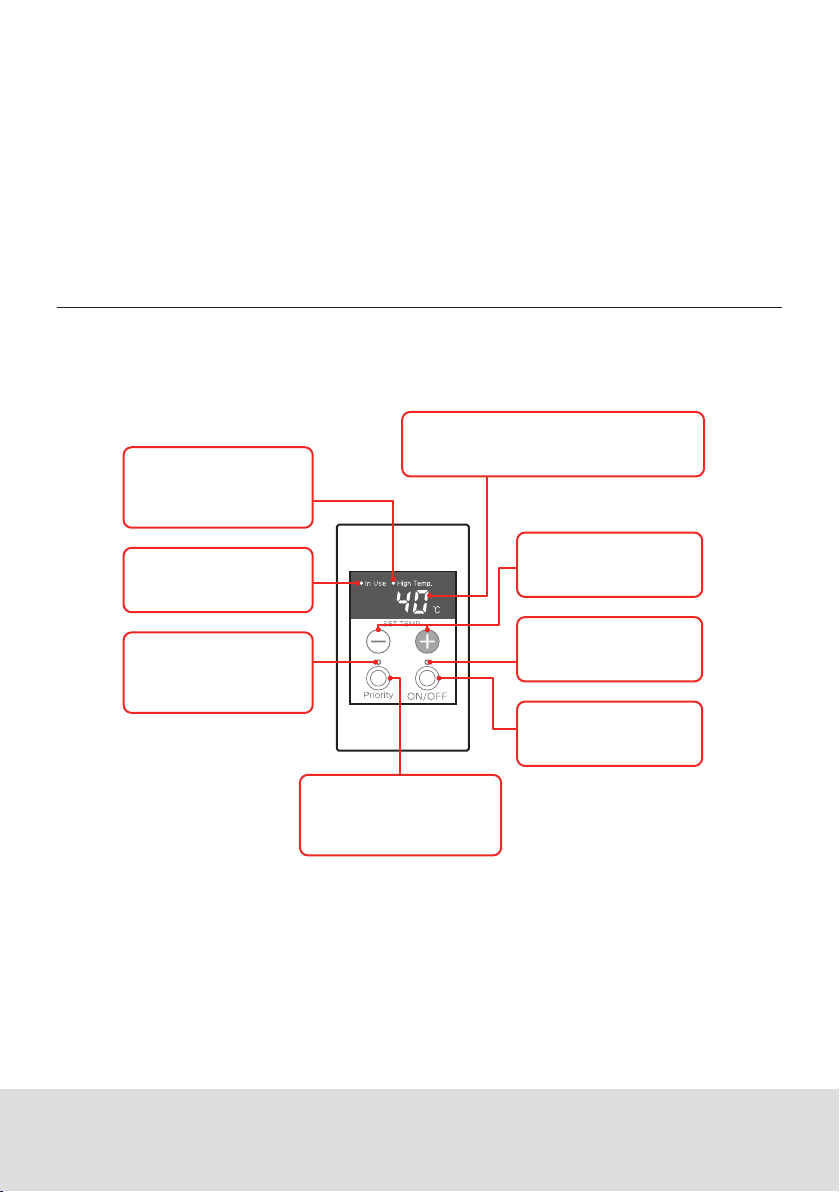

YST-2807
(Universal Controller)
This remote controller is intended to be used in the kitchen, laundry room, bathroom
and ensuite.
The unit will deliver the selected temperature as follows:
Kitchen Controller:
37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48, 49
, 50 , 55*, 60*, 65*, 70* and 75°C*
Bathroom Controller:
37, 38, 39, 40, 41, 42, 43, 44, 45, 46, 47, 48°C
*Only for 60°C model
**Delivery Temperature Adjustment for 50°C preset model
ON Indicator
Indicates power is on
to the system.
UP/DOWN Button
Increase or decrease the
desired water temperature.
ON/OFF Button
Power switch to operate
this remote controller.
In Use Indicator
Indicates that a hot
water tap is open.
High Temp. Indicator
Indicates the setting
temperature is higher
than 50゜ C.
Digital Monitor
Indicates the selected water temperature.
Error messages flash in the event of failure.
PRIORITY Indicator
Indicates this controller
has priority control over
the other controllers.
PRIORITY Button
PRIORITY Button to set the
water temperature on this
remote controller.
**
*** *

999
REMOTE CONTROLLER
Operation of Remote Controller
Please read these instructions carefully before using this appliance.

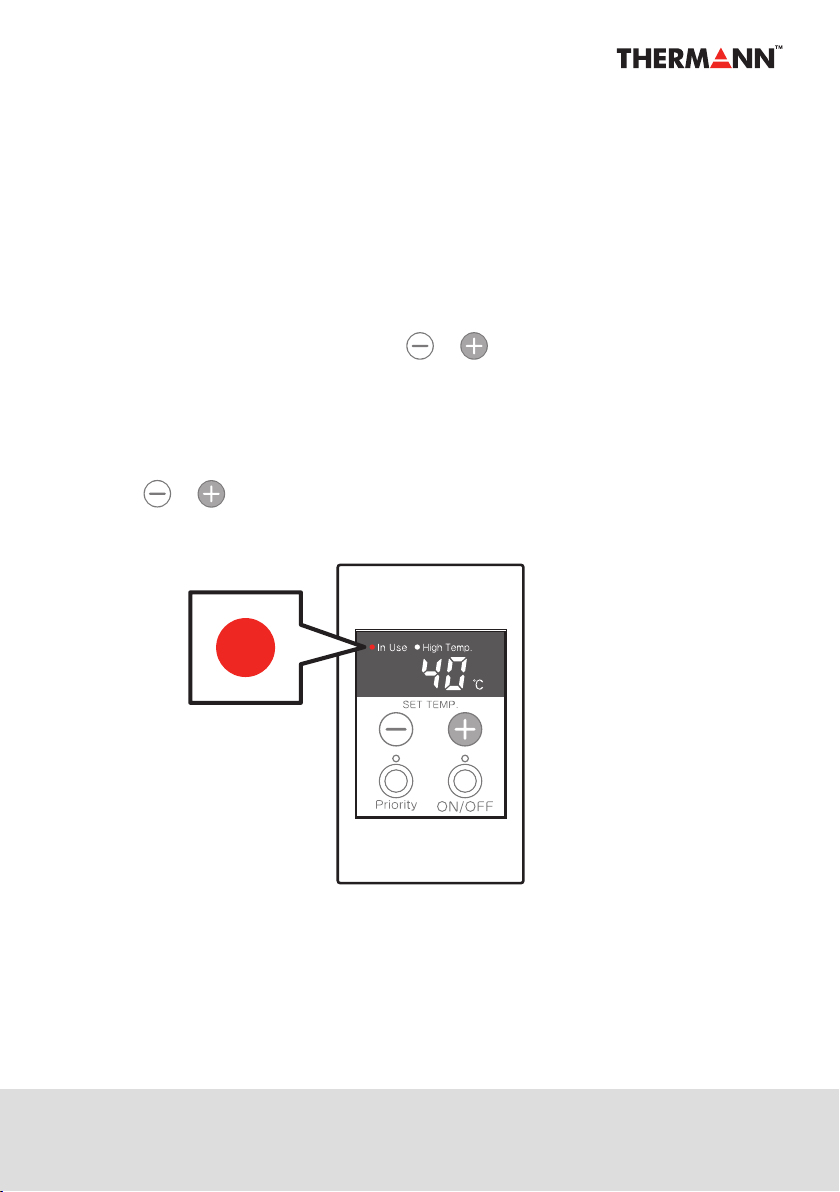

1. Turn on the ON/OFF button.
2. The temperature display will read 40°C.
3. The priority indicator will illuminate.
4. Select hot water temperature by pushing or button on the remote controller.
5. Turn on the hot water tap or shower. The ``In Use´´ indicator will illuminate
after a short delay.
This indicator will remain illuminated until the hot water tap or shower
is turned o.
6. The hot water temperature can be altered at any time during the operation by
pushing or button located on the remote controller.
Remote Controller
Energy-saving Mode
If no data is adjusted within a period of approximately 5 minutes the display becomes
dim. This is energy-saving mode and not a failure.

Thermann Owner’s Guide
Gas Continuous Flow Water Heaters
10
Priority Control (Change)
The temperature can only be controlled by the remote controller which has the
priority indication.
When the priority button is turned ON, that controller takes priority control over the
temperature settings. While hot water is being supplied, other remote controllers cannot
be turned o.
Whilst hot water outlets are open, transfer of ``priority´´ to other remote controllers
is not possible. This is safety feature.
HINTS FOR USING REMOTE CONTROLLERS FOR SAFETY AND ENERGY SAVINGS
1. Set the remote controller to a maximum of 42°C for normal bathroom use and to
prevent small children from scalding.
2. For kitchen and laundry use set the main remote controller to 60°C or the desired
temperature.
3. For showering, use settings between 37°C - 39°C and no cold water will be needed
to be mixed, and if other hot or cold water taps are used the temperature will be
maintained.
4. When bathroom remote controller is turned ON the temperature can be adjusted
between 37°C - 48°C.
Up to 50°C the temperature will increase by 1°C with each press of the UP/DOWN
buttons. The temperature can be adjusted continuously by keeping the button pressed.
Between 50°C and 75°C, the temperature is controlled by 5°C increments. The
temperature setting cannot be increased above 42°C while the hot water tap is open.
PLEASE NOTE: FOR TEMPERATURES ABOVE 50°C SCALDING CAN OCCUR
WITHIN SECONDS.
REMOTE CONTROLLER
Warning
Do not turn o the remote controller or change the water temperature while someone
is bathing or washing. That may result in scalds or burns.

111111
FAULT MONITOR

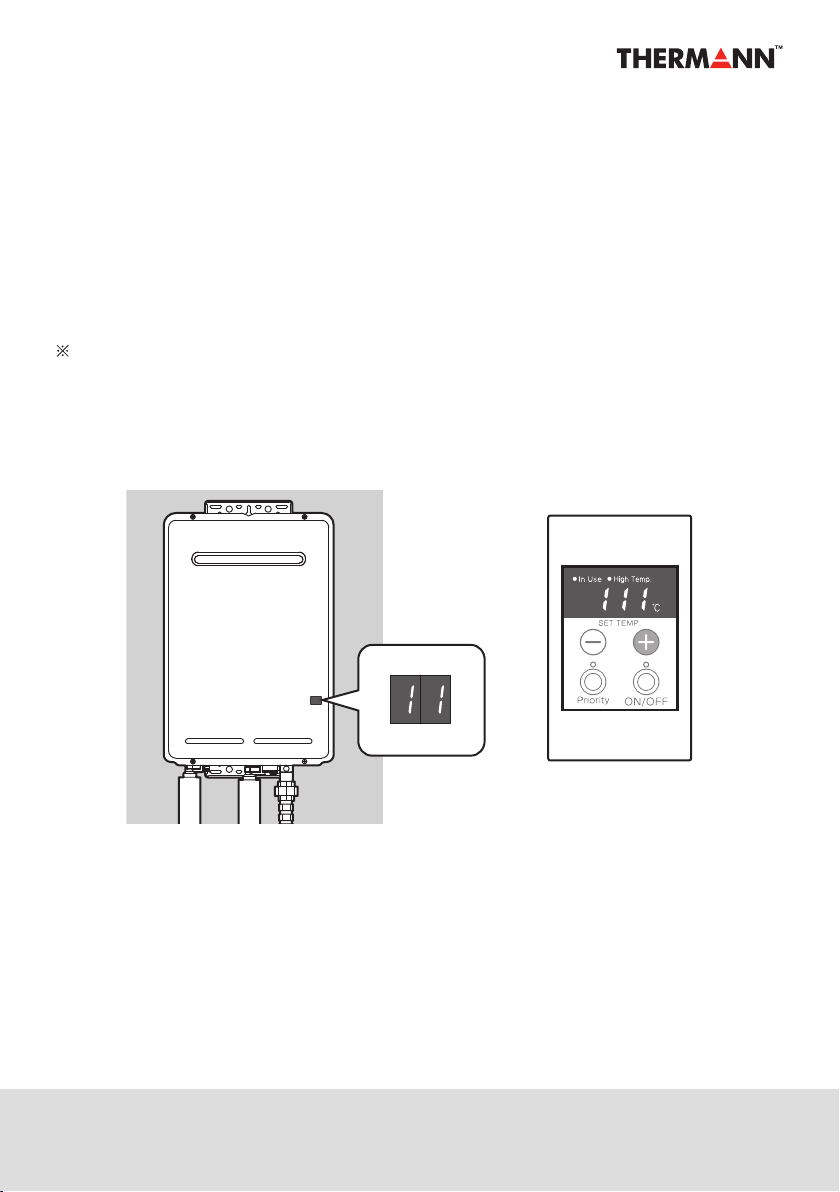

When installed with remote controllers the unit has a self diagnosing function for faults.
When the unit does not operate correctly an error code is displayed on the Status Display
of the THERMANN HOT WATER UNIT and the remote controller TEMPERATURE DISPLAY
INDICATOR.
The cause of the fault can be determined after checking the fault numbers display on the
Status Display of the THERMANN HOT WATER UNIT and the remote controller display.
Check the monitor whilst hot water taps are closed.
REMOTE CONTROLLER
STATUS DISPLAY

Thermann Owner’s Guide
Gas Continuous Flow Water Heaters
12
FAULT MONITOR
MAINTENANCE
These units can be cleaned using warm soapy water and a soft cloth. Unit should be kept
free of insects and any foreign materials.
NOTE: Do not spray chemical insecticides directly into or onto the unit.
Maintain all plant growth to ensure it does not eect the operation of the unit by blocking
or interfering with air intake or flue terminal.
It is recommended the unit is serviced annually by a licensed tradesperson to ensure safe
and proper operation.
For servicing and spare parts information contact Reece Customer Care on 1800 080 055 .
DISPLAY
PROBLEM REMEDY
REMOTE
CONTROLLER
STATUS
DISPLAY
111 11 GAS BURNER FAILS TO IGNITE CHECK GAS SUPPLY
121 12 LOSS OF COMBUSTION CHECK GAS SUPPLY
AND PRESSURE
141 14 THERMAL FUSE FAILURE CALL REECE CUSTOMER CARE
1800 080 055
200 20 RESIDUAL FLAME SAFETY DEVICE CALL REECE CUSTOMER CARE
1800 080 055
311, 321, 341 31, 32, 34 THERMISTOR WIRE BREAKAGE CALL REECE CUSTOMER CARE
1800 080 055
510, 511 51 GAS VALVE FAILURE CALL REECE CUSTOMER CARE
1800 080 055
611 61 COMBUSTION FAN FAILURE CALL REECE CUSTOMER CARE
1800 080 055
651 65 WATER FLOW CONTROL VALVE
FAILURE
CALL REECE CUSTOMER CARE
1800 080 055
700, 731 70, 7E PCB FAILURE CALL REECE CUSTOMER CARE
1800 080 055
721 72 FALSE FLAME DETECTION CALL REECE CUSTOMER CARE
1800 080 055
735 7C CASCADE COMMUNICATION
FAILURE
CALL REECE CUSTOMER CARE
1800 080 055
740, 750, 760 76
COMMUNICATION FAILURE BETWEEN
REMOTE CONTROLLERS AND PCB
TURN OFF POWER AND
TURN ON AGAIN

131313
This warranty will apply only under all of the following conditions:
• The item has been installed by a licensed plumber
• Failure is due to a fault in the manufacture of the product
• Proof of purchase (including the date of purchase) is provided
• The installation of the product is in accordance with the instructions provided
• This warranty does not cover products purchased as an ex-display without being fully
checked and tested for sale by the manufacturer.
This warranty does not include faults caused by:
• Unsuitable or improper use
• Incorrect installation or installation not in accordance with the instructionsprovided
• Installation or part installation by the purchaser or any person other than a LICENSED
PLUMBER or tradesperson licensed to install this product.
• Normal wear and tear
• Inadequate or complete lack of maintenance
• Chemical, electrochemical or electrical influences
• Harsh detergents or abrasive cleaners used on product finishes
EXCLUSIONS
To the fullest extent permitted by law, Reece excludes all liability for damage or injury
to any person, damage to any property, and any indirect consequential or other
loss or damage.
CLAIM PROCEDURE
For all warranty queries please contact the branch where the product was purchased.
These details can be found on your purchase invoice.
Our goods come with guarantees that cannot be excluded under the Australian
Consumer Law. You are entitled to a replacement or refund for a major failure and for
compensationfor anyother reasonably foreseeable loss or damage. You are also entitled
to have the goods repaired or replaced if the goods fail to be of acceptable quality and
the failure does not amount to a major failure.
WARRANTY

Thermann Owner’s Guide
Gas Continuous Flow Water Heaters
14
WARRANTY
Warranty Terms
Thermann Gas Continuous Flow Hot Water Units are covered by Reece for any cost of
labour and parts in the event of a component failure due to any defects that may arise
either from workmanship and/or faulty material.
The Warranty commences on the date of Installation:
Domestic
Heat Exchanger 12 years parts
All components 3 years parts & labour
Commercial
All components 1 year parts & labour
All Thermann water heaters must be installed in accordance with manufacturer’s
installation instructions and in accordance with local regulations, building codes
and AS/NZS 3000, AS/NZS 3500 and AS/NZS 5601.
Where a component may have failed under warranty and is replaced, the component
replaced will only be covered by the warranty for the balance of the appliance
warranty period.
Water Quality must be within limits specified in table below.
pH 6.5 to 8.5
Sodium Up to 150 mg/litre or ppm
TDS (Total Dissolved Solids) Up to 600 mg/litre or ppm
Chlorides Up to 300 mg/litre or ppm
Iron Up to 1 mg/litre or ppm
Magnesium Up to 10 mg/litre or ppm
Alkalinity (as CaCO3) Up to 200 mg/litre or ppm
Dissolved (free) CO2 Up to 25 mg/litre or ppm
Total Hardness CaCO3 Up to 200 mg/litre or ppm

151515

Thermann Owner’s Guide
Gas Continuous Flow Water Heaters
16
20933230 (K)
