Gas water heater(Premium/Glassy Dlx)
Dear Customer
Thank you for choosing Kunstocom Gas Water heater of which you are the proud owner.
Please read all the instructions, given in the manual carefully before using the product,
to obtain best performance and trouble free operation.
Kunstocom (India) Limited is an IS0/TS 16949 & IS0 14001 Certified Company from
DNV Holland. Kunstocom, a company of world renowned AKC Group, was founded in
West Germany (Now Germany) in 1973 by Dr. Ashok K. Chauhan, Chairman of AKC
Group and Founder President of Amity Universities and Educational Institutions.
Kunstocom started its journey in 1979 and became a leading name in the world offering
one-stop solution for designing, tool making and molding of plastic components. The
company boasts of the most advanced tool room, machineries and has technical
collaboration with one of the most renowned Japanese Tool Room. Kunstocom supplies
about 3,50,000 aesthetic and fitment parts every day to major white goods and
automotive companies. It is known for its quality, service and on time delivery to the
renowned OEMs in Europe, America, India and Asia Pacific Region.
After extensive research and meticulous planning, Kunstocom started its Appliances Division
with a promise to provide world class quality products, which are eco-friendly, safe, energy
efficient and cost effective.
Kunstocom s a customer centric company committed to supply 100% trouble free
products with the best service back-up.

CONTENTS
 Configuration and name of parts............................................................
 Characteristics........................................................................................
 Technical Specifications..........................................................................
 Use method and attention........................................................................
 Installation...............................................................................................
 Trouble shooting......................................................................................
Warranty - terms and conditions...............................................................

1
2
3
3
4
5
6
7
Gas water heater(Premium/Glassy Dlx)

2
CONFIGURATION AND NAME OF PARTS
Gas water heater(Premium/Glassy Dlx)

3
11.11 KW
6
440 300 138
6
440 300 138
0.1~5.0 bar

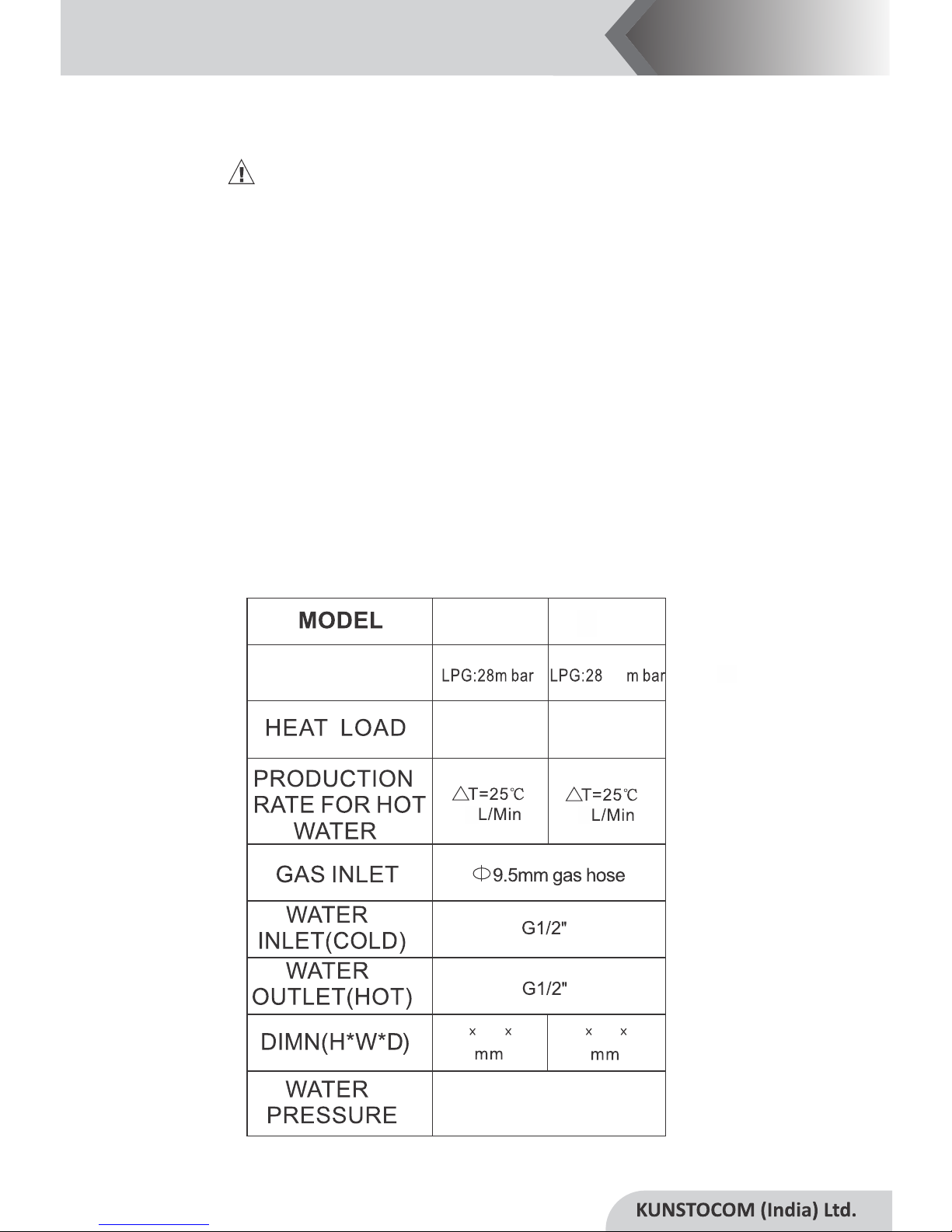

TECHNICAL SPECIFICATIONS
6litres(Premium) 6litres(DLX)
CHARACTERISTICS
Ten superior features for protection.
1: Automatic IC Ignition system
2: Ideal for low pressure and multi-point use
3: Flame failure safety
4: Over-water-pressure protection
5: 2-in-1pressure release and drain valve
6: Temperature safety device
7: Anti-dry burning perfection
8: Flue-restrictor
9: Anti-frozen device
10: Twenty minutes in built timer
Gas water heater(Premium/Glassy Dlx)
GAS TYPE AND
RATED PRESSURE
-33
11.11 KW

4
USE METHOD
Please put battery into battery box before using.
1: Turn on the gas valve, then ignition is done by pilot fire.
2: Open the hot water valve, the hot water comes out.
3: If there is no need of hot water, close the valve, if required to use it
again, open the same valve.
Be careful ! Using again once stopped, please wait for a minute before
using, as the water temperature is too high.
1: As per the requirement of hot water, turn the valve for water
temperature. You can obtain different temperature and volume of water.
2: Under the condition of certain water, turn the valve for fire temperature,
You can obtain different temperature of water also.
ATTENTION
These attention clauses are very important. Please pay attention to it before
using.
1: Type of gas must be fit for the requirements of the heater’s plate.
2: The water heater should be installed outside bathroom and where it is well
ventilated
3: You should install the exhaustion pipe.
4: Never use the heater near combustible/ flammable items.
5: Do remember to close the gas valve after using.
6: Never leave the water heater without guard when it is being used.
7: In winter, please pull out the water in the heater after using so as to avoid it
getting frozen.
8: Only qualified technician should attempt to re-install and maintain the heater.
Gas water heater(Premium/Glassy Dlx)

5

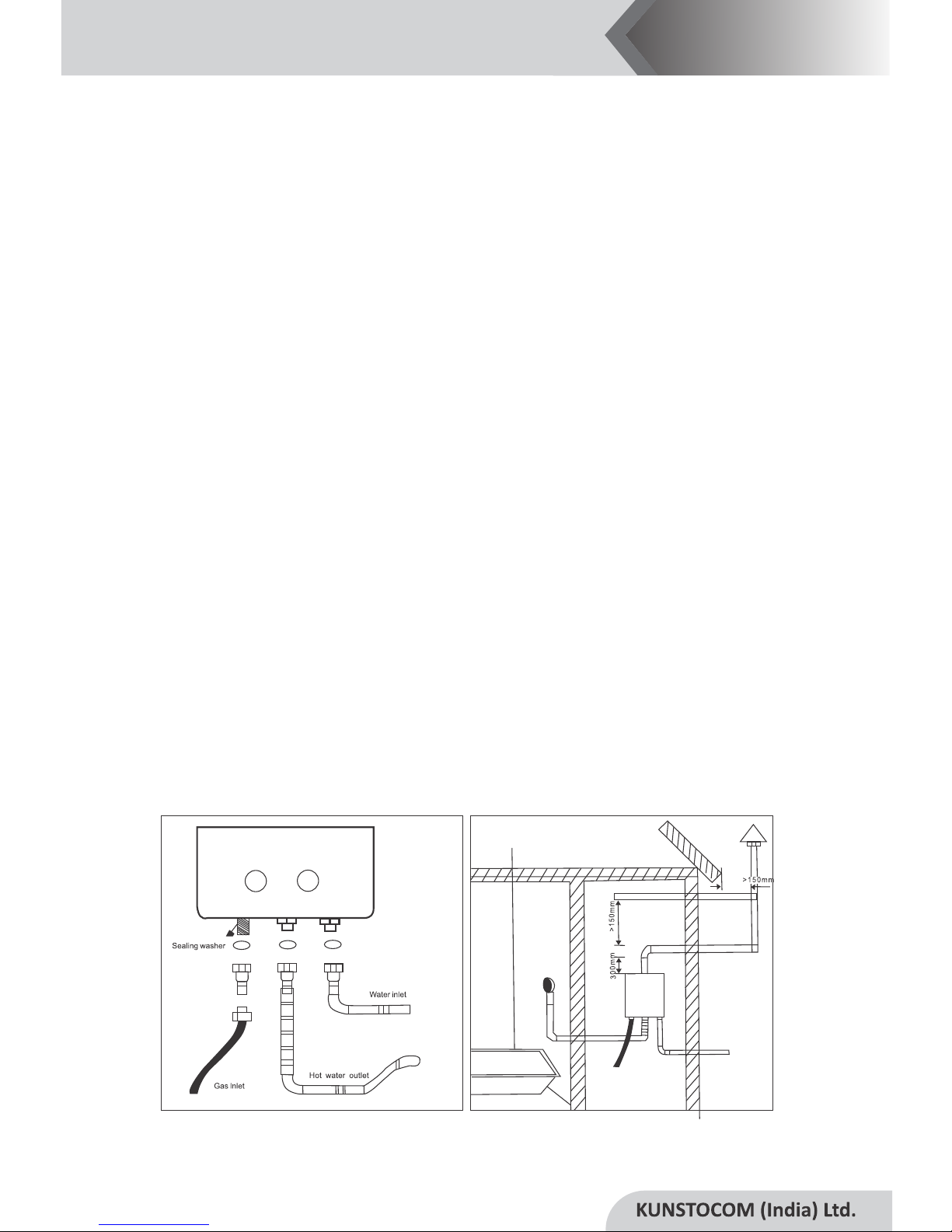

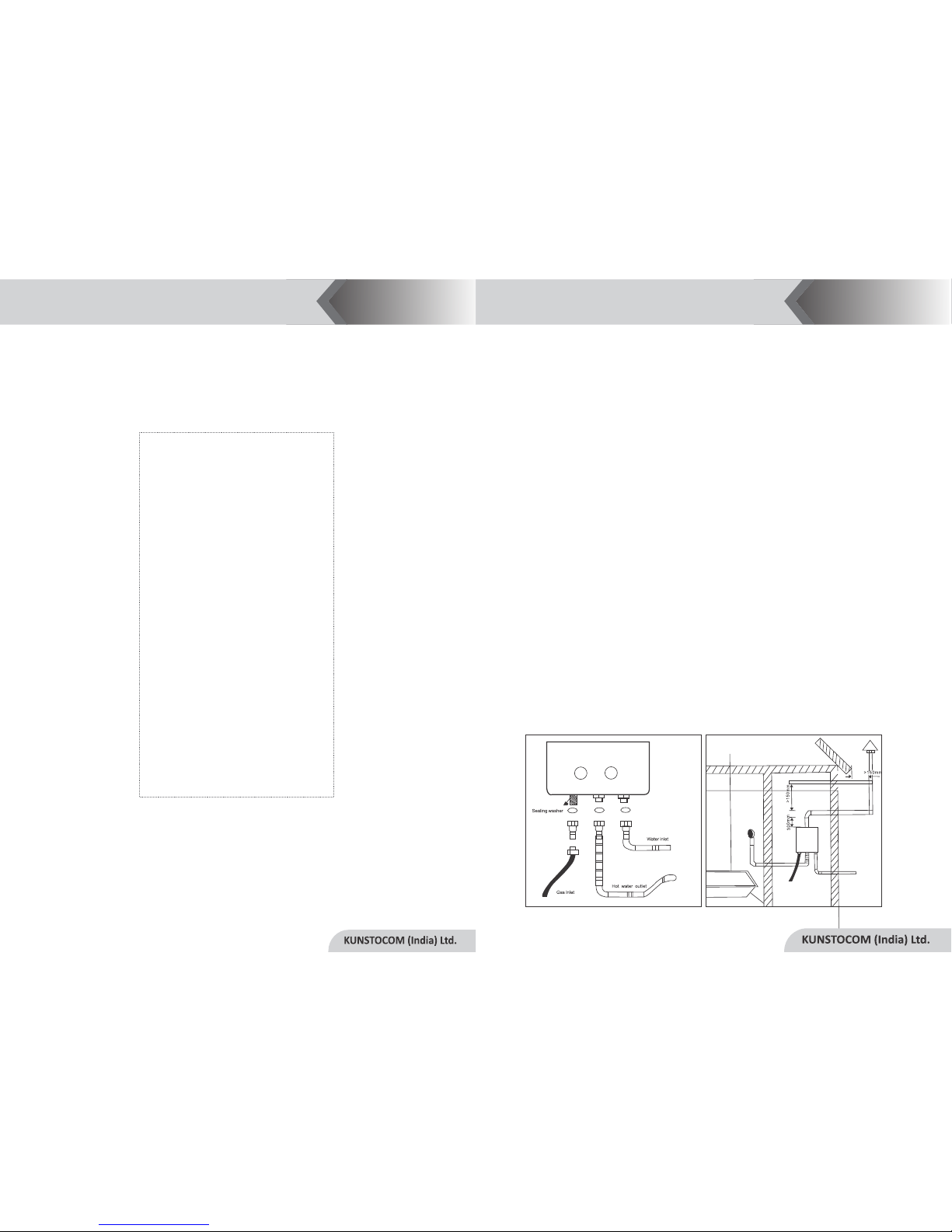

INSTALLATION
1: Installation height : the view of flame should be parallel to the height of
eyes(about 1.4 to 1.6m high from the ground)
2: Installation distance : the distance from the exhaustion pipe to ceiling
should be more than0.6m. the wall should be fire resistant.
3: Heater Installation : After drilling the holes according to the height of
heater, fix the screw-nail into the wall. Then hang up the heater.
4: Battery installation : Put two batteries(1.5V each) into the battery box.
5: Pipe installation:
(a) The pipe of water inlet should be pressure- resistant. The pipe of
water outlet should be pressure and heat resistant. the pipe of gas
inlet should be oil resistant and anti-corrosive.
(b) The pipe and connector should be fixed with sealing washer.
(c) Before using, please pull out the dirt from the pipe first.
In the following cases, the heater is normal and there is no need to
maintain:
1: When the valve of water temperature is at the position of HIGH (MAX),
and the water pressure is lower to 0.1 Bar, or the valve is on low
temperature, the lighter will not work.
2: In the beginning of usage, the hot water is muddy. Because the air in the
water is pressed speedily, resulting in little bubble.
3: When the water pressure is too high, the outlet for water will drip water
to lower the pressure.
Gas water heater(Premium/Glassy Dlx)

6
TROUBLESHOOTING
Unsuccessful
Ignition
Main gas cock
and /or cold water
tap is not opened.
Dry cell used up
Gas pipe is full of
air
Non availability of
gas supply
Low water
pressure(less
than 0.1Bar)
Open main gas cock
and/or cold water tap
Replace the batteries
Repeat the operation
Replace the LPG bottle
or inform to the gas
company for the natural
gas supply
Check the water
pressure and increase
the water pressure.
Heater does not
start
Water inlet filter is
clogged
Clean the filter
Fire goes off
during operation
Gas cock is half
open or gas
pressure is too low
Turn the main cock
fully, call the technician
Abnormal flame
and smell
Blocked burners Deliver it to nearest
service center
Gas water heater(Premium/Glassy Dlx)

The appliance is warranted for 2 year against all manufacturing defects. This
warranty will not cover damage due to accident, mishandling or non-
compliance with the instruction given in the instruction Manual.
• This warranty is valid only if this card is duly signed and stamped by our
dealer and is produced along with the original customer's copy of the
purchase bill.
• Warranty period starts from the date of purchase from our authorized
dealer only.
• The Appliance has to be used with all normal care and maintenance and
in accordance with instruction for use, recommended by the company, as
enumerated in instruction manual.
• The Appliance should not be repaired, tampered or altered by any agency
or person other than an authorised company personnel or their service
centers.
• The warranty shall not apply to replacements parts such as Main Cords.
• Plastics and glass parts, which are breakable, are not covered under this
warranty.
• The Appliances are subject to normal wear & tear, misuse, neglect, accident
including technical breakdown etc. On non compliance of the instructions
given in the instruction manual, improper installation is not covered by
this warranty.
• The Customer is responsible for bringing the defective product to the
service center/manufacturing unit for servicing and collecting the same at
his/her own cost.
• Under the terms of warranty, free services will be provided within the
municipal limits of the cities/towns where the company has its branches
or authorized representative. Service outside the municipal limits
specified above will be provided after charging the actual to and fro
traveling and incidental expenses,
as prevailing from time to time.
• The decision of the company is final and binding on all matters arising out
of this warranty.
• This warranty is issued at Delhi, and courts at Delhi shall have exclusive
jurisdiction over matters by or following from this warranty. In case of any
dispute, arising out of this the same shall be settled by an Arbitrator,
in accordance with the provision of Arbitration and conciliation and Act,
1996.
7
WARRANTY - TERMS AND CONDITIONS
Gas water heater(Premium/Glassy Dlx)

WARRANTY CARD
Model No. ........................................................... Serial No. .........................................
Invoice No. ........................................................... Date of Sale .....................................
Owner’s Name and Address ..........................................................................................
........................................................................................................................................
........................................................................................................................................
Tested by .................................................. Remarks ......................................................
Authorised Dealer/ Franchisee
Note : Suggestions are welcome. The ones implemented, shall be rewarded.
You can directly write to the Vice President of the company at [e-mail]
CUSTOMER CARE
TOLL FREE: 1800 - 103 - 2070
Email: [e-mail]
Website: www.kunstocom.com
Kunstocom (India) Ltd.
An AKC Group Company
Factory/Office : C-47, Phase -2, Noida - 201305 (India)
Phone: 0120 - 476 3800 | Fax: 0120 - 427 2813

WARRANTY CARD
Model No. ........................................................... Serial No. .........................................
Invoice No. ........................................................... Date of Sale .....................................
Owner’s Name and Address ..........................................................................................
........................................................................................................................................
........................................................................................................................................
Tested by .................................................. Remarks ......................................................
Authorised Dealer/ Franchisee
Note : Suggestions are welcome. The ones implemented, shall be rewarded.
You can directly write to the Vice President of the company at [e-mail]
CUSTOMER CARE
TOLL FREE: 1800 - 103 - 2070
Email: [e-mail]
Website: www.kunstocom.com
Kunstocom (India) Ltd.
An AKC Group Company
Factory/Office : C-47, Phase -2, Noida - 201305 (India)
Phone: 0120 - 476 3800 | Fax: 0120 - 427 2813
INSTRUCTION MANUAL
Gas water heater
6 liters (Premium)
Gas water heater
6 liters (DLX)

The appliance is warranted for 2 year against all manufacturing defects. This
warranty will not cover damage due to accident, mishandling or non-
compliance with the instruction given in the instruction Manual.
• This warranty is valid only if this card is duly signed and stamped by our
dealer and is produced along with the original customer's copy of the
purchase bill.
• Warranty period starts from the date of purchase from our authorized
dealer only.
• The Appliance has to be used with all normal care and maintenance and
in accordance with instruction for use, recommended by the company, as
enumerated in instruction manual.
• The Appliance should not be repaired, tampered or altered by any agency
or person other than an authorised company personnel or their service
centers.
• The warranty shall not apply to replacements parts such as Main Cords.
• Plastics and glass parts, which are breakable, are not covered under this
warranty.
• The Appliances are subject to normal wear & tear, misuse, neglect, accident
including technical breakdown etc. On non compliance of the instructions
given in the instruction manual, improper installation is not covered by
this warranty.
• The Customer is responsible for bringing the defective product to the
service center/manufacturing unit for servicing and collecting the same at
his/her own cost.
• Under the terms of warranty, free services will be provided within the
municipal limits of the cities/towns where the company has its branches
or authorized representative. Service outside the municipal limits
specified above will be provided after charging the actual to and fro
traveling and incidental expenses,
as prevailing from time to time.
• The decision of the company is final and binding on all matters arising out
of this warranty.
This warranty is issued at Delhi, and courts at Delhi shall have exclusive
jurisdiction over matters by or following from this warranty. In case of any
dispute, arising out of this the same shall be settled by an Arbitrator,
in accordance with the provision of Arbitration and conciliation and Act,
1996.
Gas water heater(Premium/DLX)
WARRANTY - TERMS AND CONDITIONS
7

9
0
0
2
:
9
4
9
6
1
-
S
T
/
O
S
I
4
0
0
2
:
1
0
0
4
1
O
S
I
An AKC Group Company
TROUBLESHOOTING
Gas water heater(Premium/DLX)
Unsuccessful
Ignition
Main gas cock
and /or cold water
tap is not opened.
Dry cell used up
Gas pipe is full of
air
Non availability of
gas supply
Low water
pressure(less
than 0.1Bar)
Open main gas cock
and/or cold water tap
Replace the batteries
Repeat the operation
Replace the LPG bottle
or inform to the gas
company for the natural
gas supply
Check the water
pressure and increase
the water pressure.
Heater does not
start
Water inlet filter is
clogged
Clean the filter
Fire goes off
during operation
Gas cock is half
open or gas
pressure is too low
Turn the main cock
fully, call the technician
Abnormal flame
and smell
Blocked burners Deliver it to nearest
service center
6

Dear Customer
Thank you for choosing Gas
water heater(premium), of
which you are the proud owner.
Please read all the instructions,
given in the manual carefully
before using the product, to
obtain best performance and
trouble free operation.
Gas water heater(Premium/DLX)
INSTALLATION
1: Installation height : the view of flame should be parallel to the height of
eyes(about 1.4 to 1.6m high from the ground)
2: Installation distance : the distance from the exhaustion pipe to ceiling
should be more than0.6m. the wall should be fire resistant.
3: Heater Installation : After drilling the holes according to the height of
heater, fix the screw-nail into the wall. Then hang up the heater.
4: Battery installation : Put two batteries(1.5V each) into the battery box.
5: Pipe installation:
(a) The pipe of water inlet should be pressure- resistant. The pipe of
water outlet should be pressure and heat resistant. the pipe of gas
inlet should be oil resistant and anti-corrosive.
(b) The pipe and connector should be fixed with sealing washer.
(c) Before using, please pull out the dirt from the pipe first.
In the following cases, the heater is normal and there is no need to
maintain:
1: When the valve of water temperature is on the position of HIGH (MAX),
the water pressure is lower to 0.1 Bar, or the valve is on low
temperature, the lighter can not work.
2: In the beginning of usage, the hot water is muddy. Because the air in the
water is pressed speedily, resulting in little bubble.
3: When the water pressure is too high, the outlet for water will drip water
to lower the pressure.
Gas water heater(Premium/DLX)
5

Gas water heater(premium)

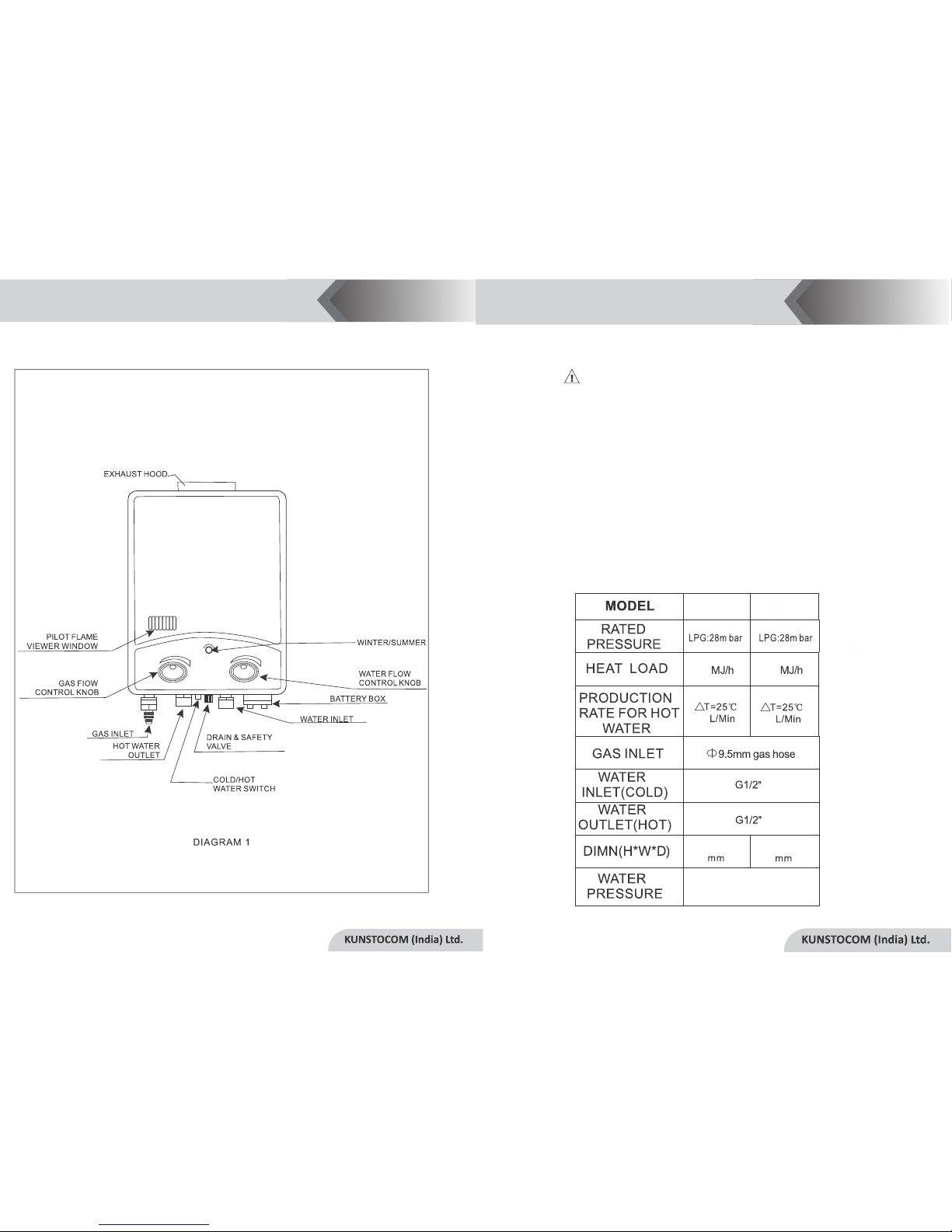

CONFIGURATION AND NAME OF PARTS
2
40
6
440*300*138
6
440*300*138
0.1~5.0bar
40
TECHNICAL SPECIFICATIONS
Gas water heater(Premium/DLX)
6litres(Premium) 6litres(DLX)
CHARACTERISTICS
Ten kinds of protection.
1: Automatic IC Ignition system
2: Ideal for low pressure and multi-point use
3: Flame failure safety
4: Over-water-pressure protection
5: 2-in-1pressure release and drain valve
6: Temperature safety device
7: Anti-dry burning perfection
8: Flue-restrictor
9: Anti-frozen device
10: Twenty minutes in built timer
3

Gas water heater(Premium/DLX)
USE METHOD
Please put battery into battery box before using.
1: Turn on the gas valve, then ignition is done by pilot fire.
2: Open the hot water valve, the hot water comes out.
3: If there is no need of hot water, close the valve, if required to use it
again, open the same valve.
Be careful ! Using again once stopped, please wait for a minute before
using, as the water temperature is too high.
1: Under the condition of ceratin fire, turn the valve for water temperature.
You can obtain different temperature and volume of water.
2: Under the condition of certain water, turn the valve for fire temperature,
You can obtain different temperature of water also.
ATTENTION
These attention clauses are very important. Please pay attention to it before
using.
1: Type of gas must be fit for the requirements of the heater’s plate.
2: The water heater should be installed outside bathroom and where it is well
ventilated
3: You should install the exhaustion pipe.
4: Never use the heater near combustible/ flammable items.
5: Do remember to close the gas valve after using.
6: Never leave the water heater without guard when it is being used.
7: In winter, please pull out the water in the heater after using so as to avoid it
getting frozen.
8: Only qualified technician should attempt to re-install and maintain the heater.
4
CONTENTS
 Configuration and name of parts............................................................
 Characteristics........................................................................................
 Technical Specifications..........................................................................
 Use method and attention........................................................................
 Installation...............................................................................................
 Trouble shooting......................................................................................
Warranty - terms and conditions...............................................................

Gas water heater(Premium/DLX)
2
3
3
4
5
6
7
1
