Thermo Dynamics ELITE TDCH User manual

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v3 Page 1of 26
USER MANUAL
ELITE TDCH
Installation Instructions and User Manual

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v3 Page 2of 26
INDEX
1 GENERAL SAFETY WARNINGS......................................................................2
2 OPERATING PRINCIPLE....................................................................................3
3 TECHNICAL FEATURES....................................................................................4
4 INSTALLATIONS.................................................................................................8

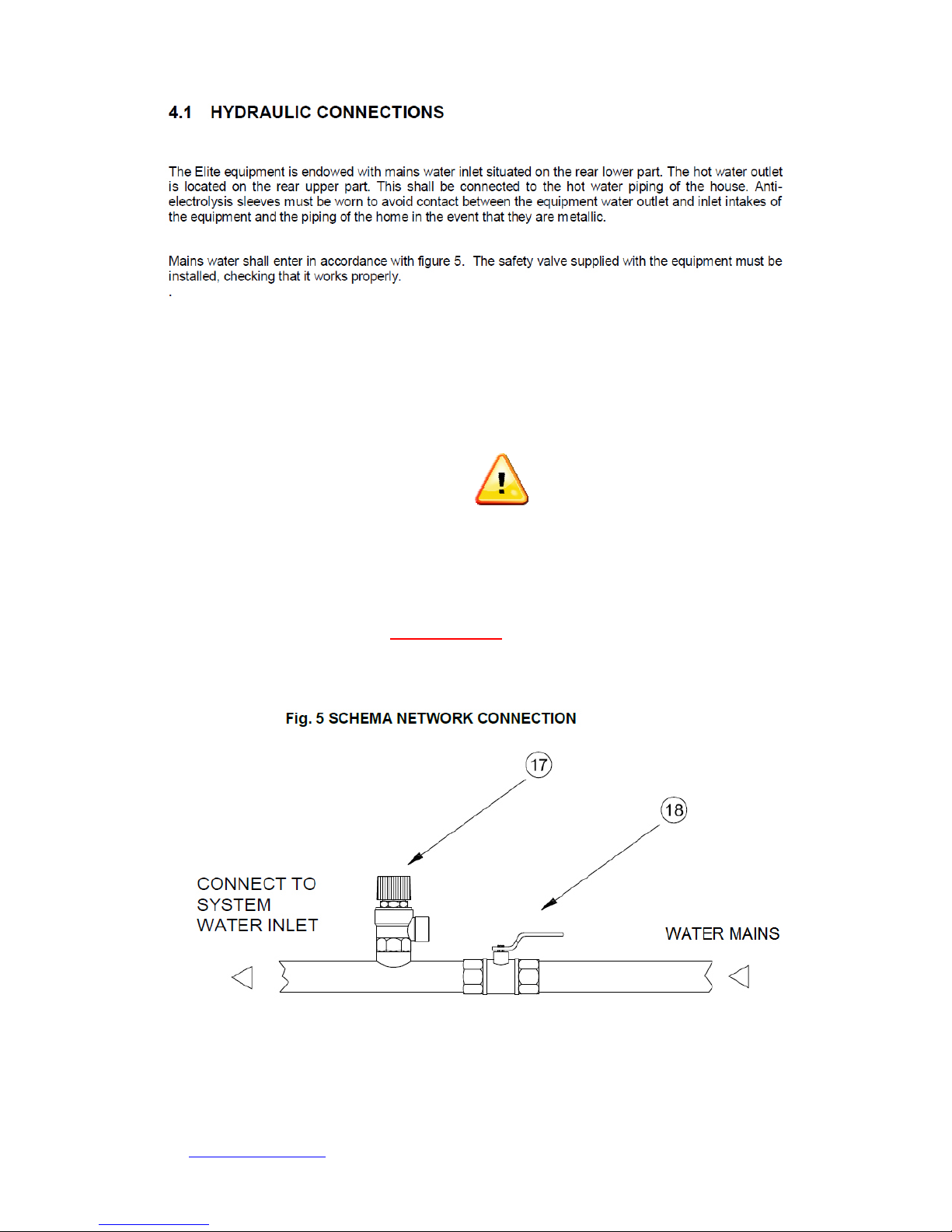

4.1 HYDRAULIC CONNECTIONS........................................................................8

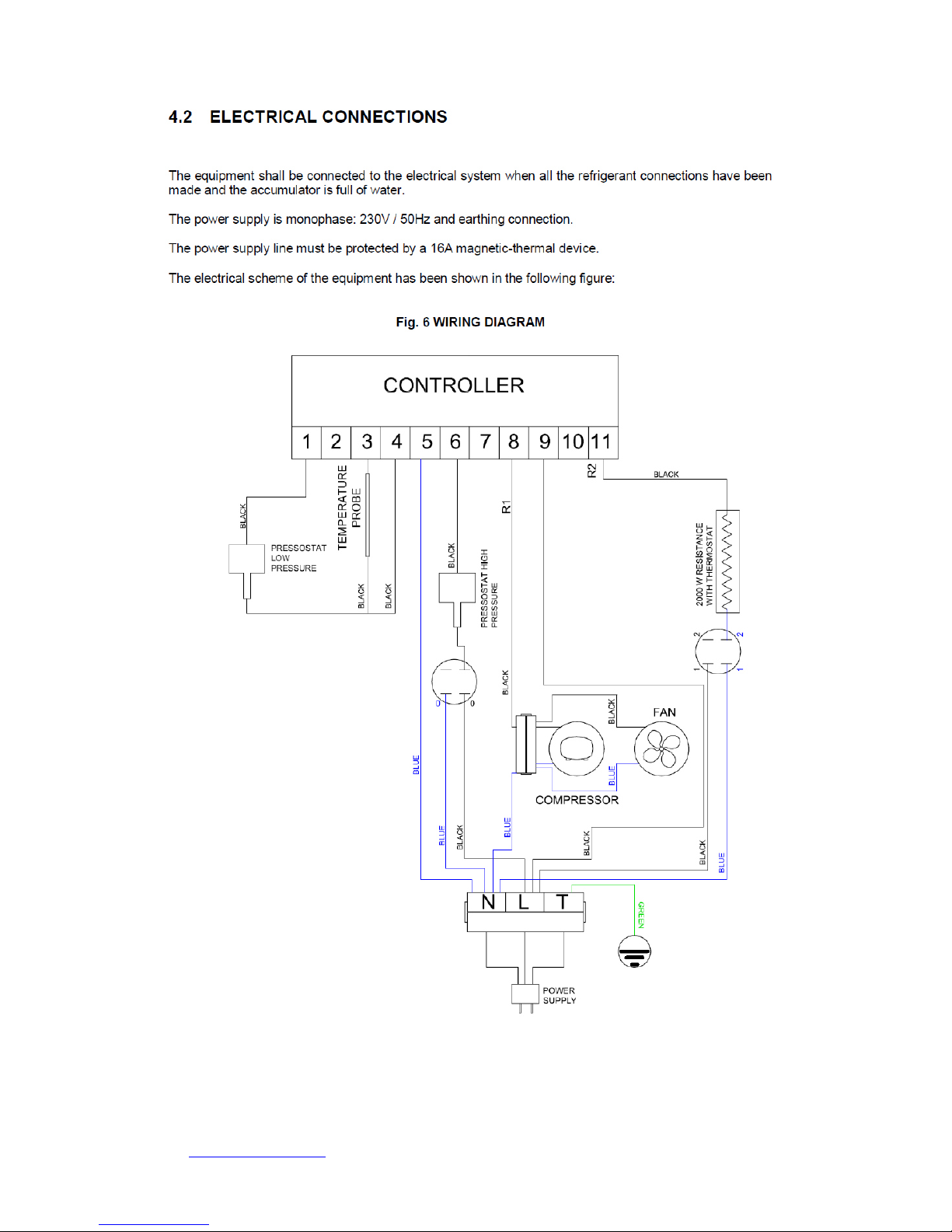

4.2 ELECTRICAL CONNECTIONS.......................................................................10
4.3 FILLING THE ACCUMULATOR....................................................................11
4.4 TURNING THE SYSTEM ON..........................................................................11
5 USAGE RULES....................................................................................................12
5.1 TEMPERATURE ADJUSTMENT....................................................................12
5.2 ELECTRICAL RESISTANCE...........................................................................13
6 MAINTENANCE, REPAIR AND CLEANING...................................................14
7 TROUBLESHOOTING.........................................................................................15
8 PREVENTION OF ISSUES..................................................................................17
NOTES TO END USER
THIS UNIT SHOULD ONLY BE INSTALLED BY QUALIFIED PERSONNEL
IF AFTER INSTALLATION THE UNIT DEVELOPES ANY FAULTS CONTACT
YOUR INSTALLER
Installer Name Tel Number Date Installed
Serial Number

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v3 Page 3of 26
For any warranty questions contact the manufacturer:
Hidrodinamica Solar, S.L
Ave De Los Labrodores, 5, Local
28760 Tres Cantos
Madrid, Spain
Tel [phone]
Email [email protected]
To avoid injury as well as the damaging the TDCH unit the following instructions
should be followed.

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v3 Page 4of 26
The TDCH is a thermo dynamic sytem based on air source heat pump
using ambient room air which is then forced through a heat exchanger
and condenser using refrigerent fluid. This is all contained in a
compact easy to install housing

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v3 Page 5of 26

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v3 Page 6of 26
1. Compressor
2. Tank
3. Drum
4. Dehydrator
5. Expansion Valve
6. Ventilator
7. Condenser coil externa
8. Evaporator
9. CH booster coil internal
9

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v3 Page 7of 26
250 litres tank
A = 176 cm
B = 59 cm

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v3 Page 8of 26

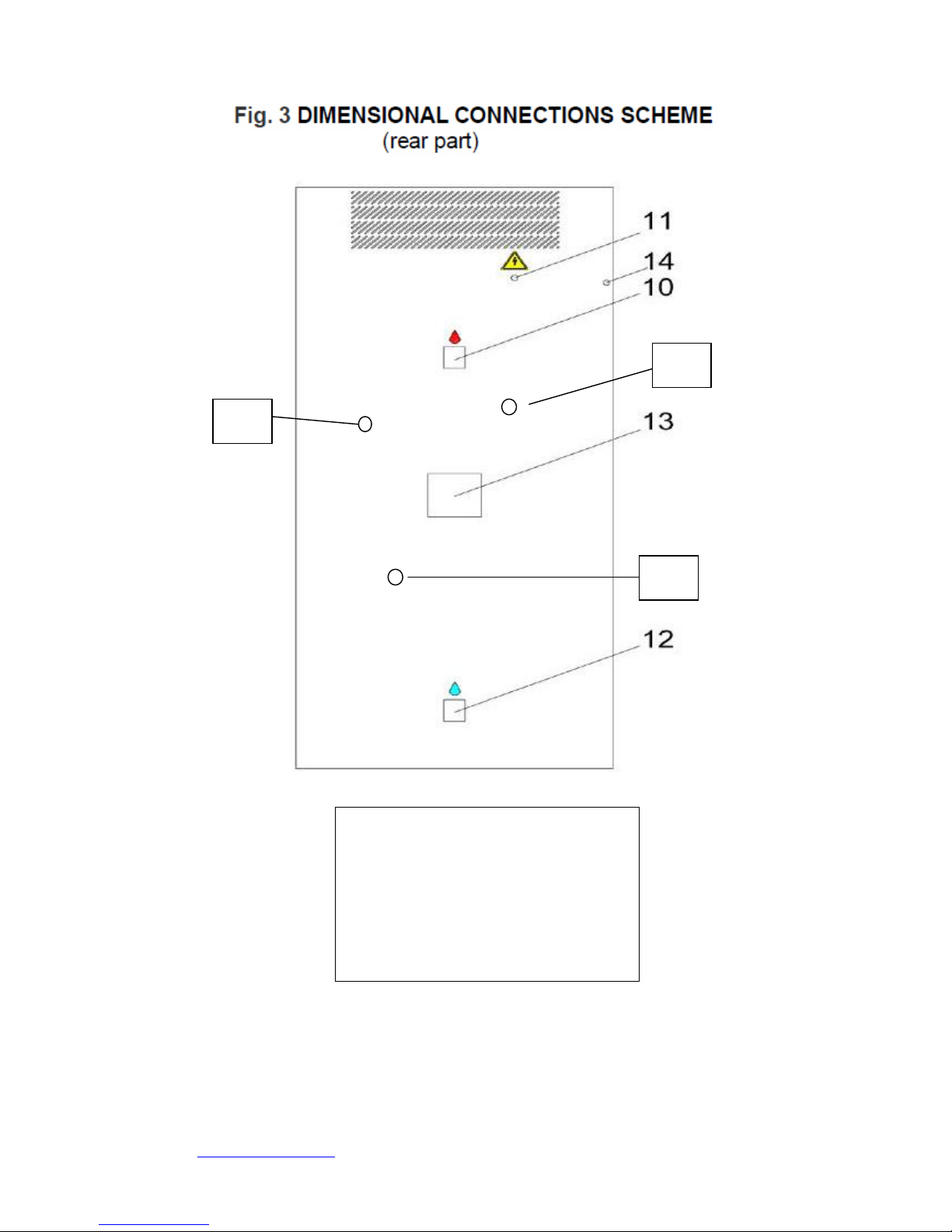

10. Hot Water Outlet
11. Electrical Connection
12. Cold Water Inlet
13. Immerser coil
14. Heat exchange drip line
15.CH flow
16.Press & Temp reducing outlet
17. CH return
15
16
17

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v3 Page 9of 26
Before Operating the System the following connections should be made.
REFER TO PAGE 8
1. Cold water feed to Item 12
2. Hot water feed Item 10
3. Pressure & temperature reducing valve to Item 16, this then connected to overflow
4. Heat exchange drip line connected down stream of P&T overflow( #3)
5. Central heating flow to Item 15
6. Central heating return to Item 17
7. Pump and timer installed in Central Heating outlet
8. Plug in unit
9. Plug in timer / pump
10. Check that compressor tray and drip line are free from debris

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v3 Page 10 of 26
Tank factory
tested to 10 bar
All connexions ¾ “BSP

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v3 Page 11 of 26
Ensure adequate ventilation if the
unit is placed in a cupboard type
space
for air in and air out
The installation should be carried out as detailed
below:
•Check that there is sufficient space for the
unit see Fig 4
•Check that there is sufficient space to hook up
the pipework and electrics.
•The unit must be transported vertically
•The unit must be installed vertically
•Check that the setting area in strong enough
to take the units weight
a 250 litre unit weighs approx. 300 Kgs when full of
water

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v3 Page 12 of 26
NOTE
The TDCH works by drawing ambient air in, extracting the heat, and expelling cold air out at the
rear of the unit.
It is best pactice to situate the unit next to an outside wall and and fit ducting to direct the cold
air to the outside of the building.
Hot air drawn in through top of unit and
cold air expelled at rear through wall
ducting

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v3 Page 13 of 26
IMPORTANT
The equipment is rated to 6 bar on the cold water feed side and a safety valve is
supplied see Fig 5 and should be installed.
It is recommended that an expansion vessel (tank) is fitted on the cold water outlet side.
The current plumbing regulations should be referred to when fitting the
expansion vessel
17 is located on the rear of the unit see Page 8

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v3 Page 14 of 26

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v3 Page 15 of 26
NB Resitance refers to Immerser Coil
Filling the tank
After the pipework for the tank and the CH coil have been fitted.
Fill the tank by opening the cold water feed at the bottom of the unit See page 8,
allow the tank to fill and monitor the hot water outlet for water returns.
Close the cold water feed and hook the hot water outlet to the hot water system

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v3 Page 16 of 26

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v3 Page 17 of 26
The unit is fitted with a 2 K watt immerser coil situated at the back of the unit this can be
switched on manually maximum temperature is set at 70 deg C, the switch is on the front
of the cabinet see Fig 7 (resistance switch).
NOTE
To activate the immerser coil both the thermodynamic and the immerser coil switches
must be in the on position
Immerser Coil

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v3 Page 18 of 26

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v3 Page 19 of 26

Thermo Dynamic water heater & central heating booster
www.elitetdch.com ELITE TDCH Aug 2014v3 Page 20 of 26
Trouble shooting cont.
Water escaping from the
tank
Codensation Check that there is no blockage in the condensate tray or
condensate drip hose
Water leak
Check that none of the piping / connexions are leaking
Check the pressure and temperature relief valve
discharge is not causing the water leak
Compressor working
intermitantly
Power source Check eletrical plug is in the socket correctly
Cable is not in tension
Drip tray and hose inspection clearing procedure
1. Switch off electrical power supply to the unit
2. Remove the four retaining screws in the top of the unit
3. Remove lid
4. Inspect the drip tray to see if there is excess water flowing over the tray
5. If so remove the drip pipe connexion from the rear of the unit ( use a container to catch
any water) Fig A
6. If the drip tray drains then there is a blockage in the drip pipe, call your installer
7. If the tray does not drain there is a blockage in the drip tray or internal drip pipe Fig B
8. This can be cleared by inserting a wire rod e.g.a wire coat hanger ,into the internal drip
pipe and out through the tray outlet Fig C
9. Remove any debris.
10. Re install drip pipe connector
11. Re install lid and attach with the four screws
12. Switch unit back on.
External drip pipe connextion Fig A
