thermo mate UCPS75 Manual
UNDER CABINET RANGE HOOD
1 (844) 334-4203
3330-A Marathon Ct Charleston, SC 29418
www.thermomate.com
Live Smart, Better Life!
UCPS75 & UCPB75
Instruction / Installation Manual
Live Smart, Better Life!
01
1(844) 334-4203
Contents
Important Safety Instructions Aluminum Filters.............................................
Aluminum Filters............................................................................................
Accessories...................................................................................................
Installation Requirments................................................................................
Installation Diagram For External Venting.....................................................
Wiring Diagram..............................................................................................
Operation Instructions...................................................................................
Troubleshooting.............................................................................................
02
04
04
05
07
07
12
14
Live Smart, Better Life!
02
1(844) 334-4203
Important Safety Instructions Aluminum Filters
Read all instructions before using this appliance. Save these instructions for
future reference. Approved for residential appliances. For residential use only.
Caution
For general ventilating use only. Do not use to exhaust hazardous or explosive
materials or vapors.
Caution
To reduce the risk of fire and to properly exhaust air, do not vent exhaust air
into spaces within walls, ceilings, attics, crawl spaces, or garages.
Warning
TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCT WORK. Install
this hood is in accordance with all requirements specified.
Warning
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO
PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the manufacturer. If you have
questions, contact the manufacturer.
2. Before servicing or cleaning the unit, switch power off at the service panel
and lock service panel disconnecting means to prevent power from being
switched on accidentally. When the service disconnecting means cannot
be locked, securely fasten a prominent warning device, such as a tag, to
the service panel.
3. Installation work and electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards, including fire-rated
construction.
4. Sufficient air is needed for proper combustion and exhausting of gases
through the flue (Chimney) of fuel burning equipment to prevent
back-drafting. Follow the heating equipment manufacturer's guideline and
safety standards such as those published by the National Fire Protection
Association (NFPA), the American Society for Heating, Refrigeration and Air
Conditioning Engineers (ASHRAE), and the local code authorities.
5. When cutting or drilling into wall or ceiling, do not damage electrical wiring
and other hidden utilities.
6. Ducted systems must always be vented to the outdoors.
Live Smart, Better Life!
03
1(844) 334-4203
Warning
Disconnect the appliance from the power source before servicing.
Warning
GROUNDING INSTRUCTIONS. This appliance must be grounded. In the
event of an electrical short circuit, grounding reduces the risk of electric
shock by providing an escape wire for the electric current.
WARNING - IMPROPER GROUNDING CAN RESULT IN A RISK OF
ELECTRIC SHOCK. Consult a qualified electrician if the grounding
instructions are not completely understood, or if doubt exists as to whether the
appliance is properly grounded.
Warning
TO REDUCE THE RISK OF INJURY TO PERSONS, IN THE EVENT OF A
RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:
• SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then
turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do
not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
• NEVER PICK UP A FLAMING PAN – You may be burned.
• DO NOT USE WATER, including wet dishcloths or towels - a violent steam
explosion will result.
• Use an extinguisher ONLY if:
1. You know you have a Class ABC extinguisher, and you already know how
to operate it.
2. The fire is small and contained in the area where it started.
3. The fire department is being called.
4. You can fight the fire with your back to an exit Always leave safety grills and
filters in place. Without these components, operating blowers could catch
onto hair, fingers and loose clothing. The manufacturer declines all
responsibility in the event of failure to observe the instructions given here
for installation, maintenance and suitable use of the product. The
manufacturer further declines all responsibility for injury due to negligence
and the warranty of the unit automatically expires due to improper
maintenance.
Warning
WARNING – TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
A. Never leave surface units unattended at high settings. Boilovers cause
smoking and greasy spillovers that may ignite. Heat oils slowly on low or
medium settings.
Live Smart, Better Life!
04
1(844) 334-4203
B. Always turn hood ON when cooking at high heat or when flaming food (i.e.
Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambe).
C. Clean ventilating fans frequently. Grease should not be allowed to
accumulate on fan or filter.
D. Use proper pan size. Always use cookware appropriate for the size of the
surface element.
Aluminum Filters
About Your New Filters
Aluminum filters are recommended to be replaced every 4-6 months,
depending on usage.
Cleaning My Aluminum Filters
Your filters can be hand washed and cleaned to increase time between
replacements. Aluminum filters should not be placed in the dishwasher.
Accessories
Range Hood Accessories Provided:
1 x Range hood
4 x ST4 0.63inch
4 x ST4 1.38inch
4 x M5Φ 0.2inch Washers
4 x Plastic wall anchors
4 x ST4 0.31inch
2 x Filters
1 x Ducting outlet
1 x User manual
Check to make sure that all parts and accessories are present and in good
condition.
Live Smart, Better Life!
05
1(844) 334-4203
Installation Requirments
General Preparation
*Remove range hood from packaging and lay upside down on a table
covered with cardboard or paper to prevent scratching of the hood or table.
*Check the power switch is set to OFF. Tools needed for installation:
*Drill
*Wood bit or drilling electrical wiring access hole
*Phillips head screwdriver
*Flat-head screwdriver
*Pencil, ruler, and level for marking range hood location
*Hand saw or jig saw for cutting the wall or cabinet openings
*Duct Tape
*Electrical tape
Warning
All electrical connections must be in accordance with local codes, ordinances,
or national electrical codes. If you are unfamiliar with methods of installing
electrical wiring, secure the services of a qualified electrician.
Live Smart, Better Life!
06
1(844) 334-4203
This range hood vented from top side. Follow the cooking equipment
manufacturer’s guideline and safety standards such as those published by the
National Fire Protection Association(NFPA), the American Society for Heating,
Refrigeration and Air Conditioning Engineers(ASHRAE), and local code.When
cutting or drilling into wall or ceiling, do not damage electrical wiring and other
hidden utilities, Ducted systems must always be vented outdoors.
Live Smart, Better Life!
07
1(844) 334-4203

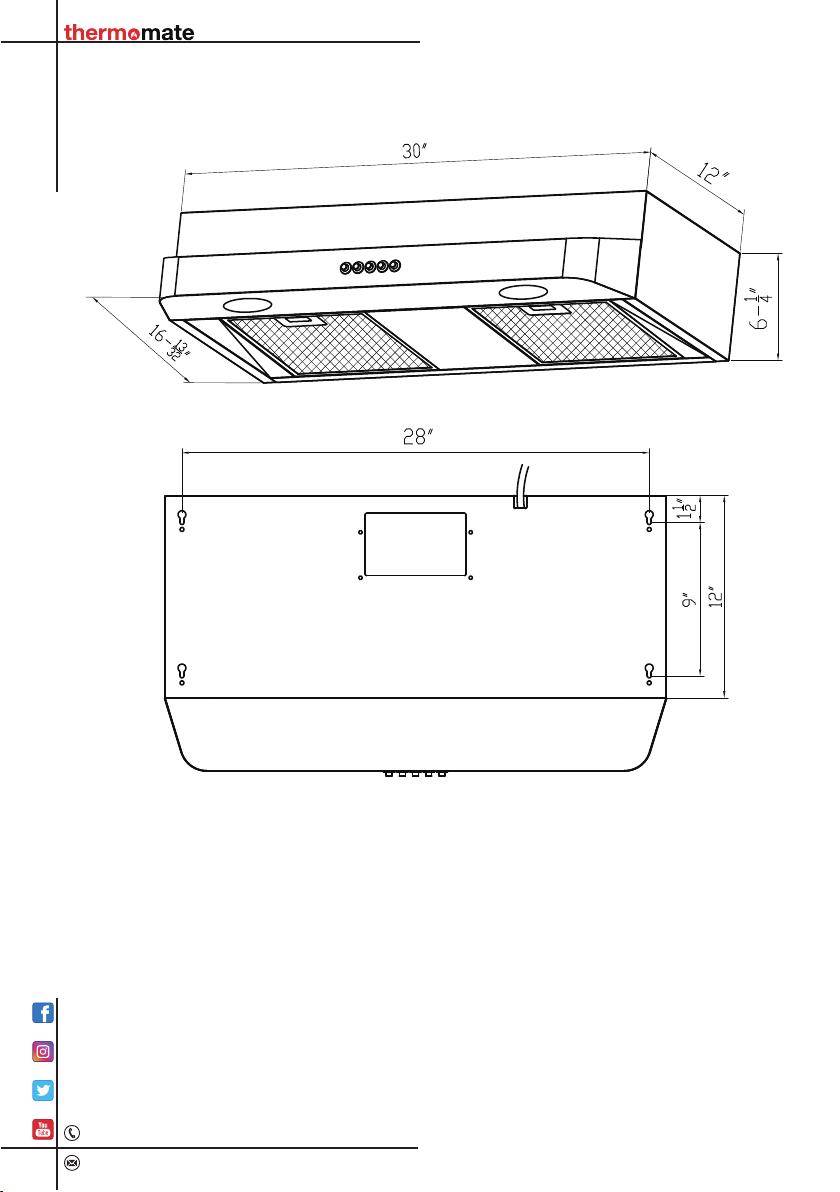

Installation Diagram For External Venting
Wiring Diagram
Caution!
Shut-off power supply before installing. Installation work and electrical wiring
must be done by qualified person(s) in accordance with all applicable codes &
standards, including fire-rated construction.
Live Smart, Better Life!
08
1(844) 334-4203
Caution!
Hood may have very sharp edges, please wear protective gloves whenever it is
necessary to remove any parts for installing, cleaning or servicing.
This range hood has two ways for installation.
Method 1:Mounting to the wall only.
1. Drill two 0.31inch holes in position for plastic wall anchor placement. (Fig.1).
2. Tap plastic wall anchors securely into each of the drilled holes. (Fig.1).
3. After wall anchors have been tapped in place, insert ST4x1.38inch
woold screws to the top two wall anchors and tighten two screws. (Fig.1)
Fig.1
E
Live Smart, Better Life!
09
1(844) 334-4203

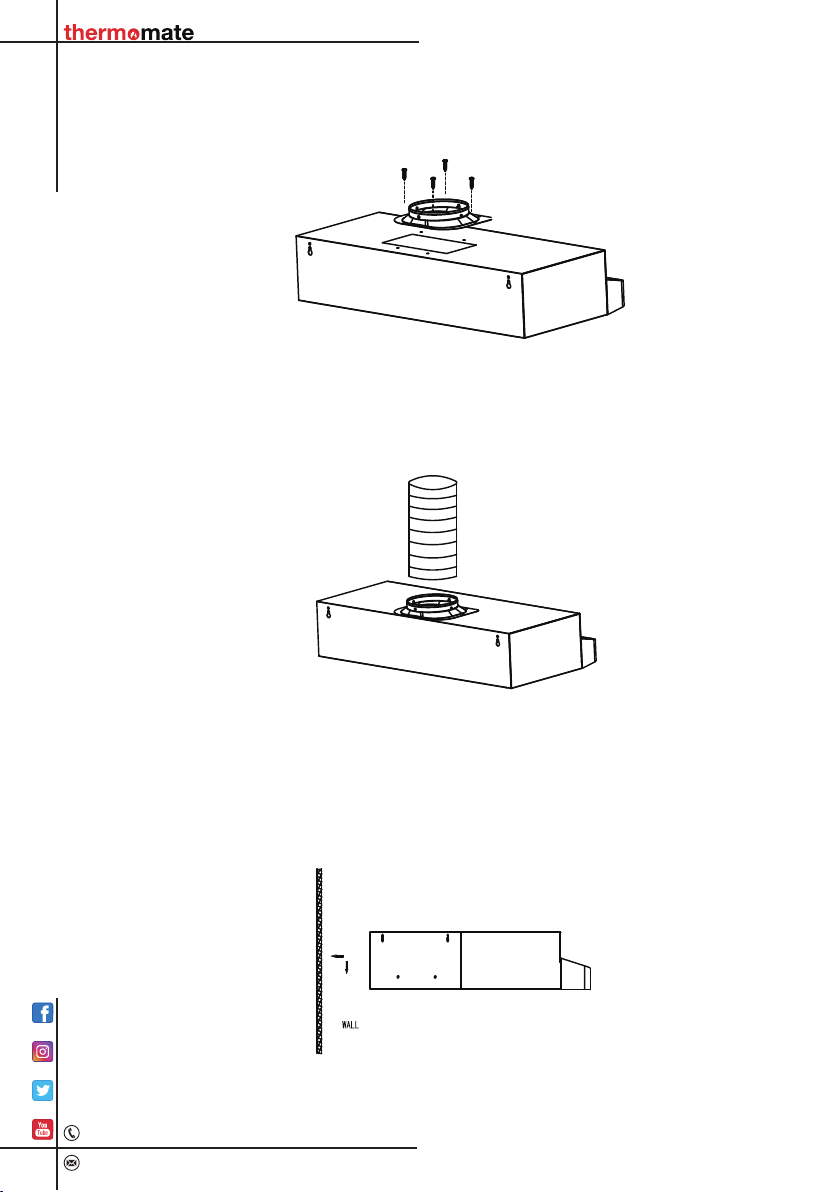

4. Take out the outlet from the cooker hood inside. To use 4pcs ST4x0.31inch
screw to install the outlet. (Fig.2)
5. Take the hood unit along with the 6" Round aluminum duct or the damper at
the top of the hood unit using HVAC aluminum foil tape. (Fig.3)
6. Lift the hood and hang the hood unit on the back wall using screws drilled in
the wall. Once the hood is securely hung on the wall, tighten the screws
from the interior of the hood after removing the filters. (Fig.4)
Fig.2
4-ST4x
0.31inch
Fig.3
Fig.4
Live Smart, Better Life!
10
1(844) 334-4203
7. Pull adapter/ductwork through the newly drilled hole in the wall. Connect
unit to power source. (Fig.5)
8. Remove the filters and insert two ST4x1.38inch woold screws to the rest of
two wall anchors and tighten two screws. (Fig.6)
Method 2:Mounting to the cabinet.
To install the hood with a duct, you will need to provide a hole for the duct.
Please use the template provided to correctly place the hole. (Fig.7)
Fig.5
Fig.6
Live Smart, Better Life!
11
1(844) 334-4203
3. Pull the round duct through the bottom of the new cabinet hole.
4. Pull the electrical cord through the bottom of the new cabinet hole.
5. Remove the filters and lift the hood and hang the hood unit on the bottom
of the cabinet.And using 4pcs ST4x0.63inch self-tapping screw to drill in the
cabinet plate. (Fig.7)
Use the diagram below for correct placement
of ductwork and electrical cutout in the cabinets.
4-ST4X16mm
Fig.7
Live Smart, Better Life!
12
1(844) 334-4203

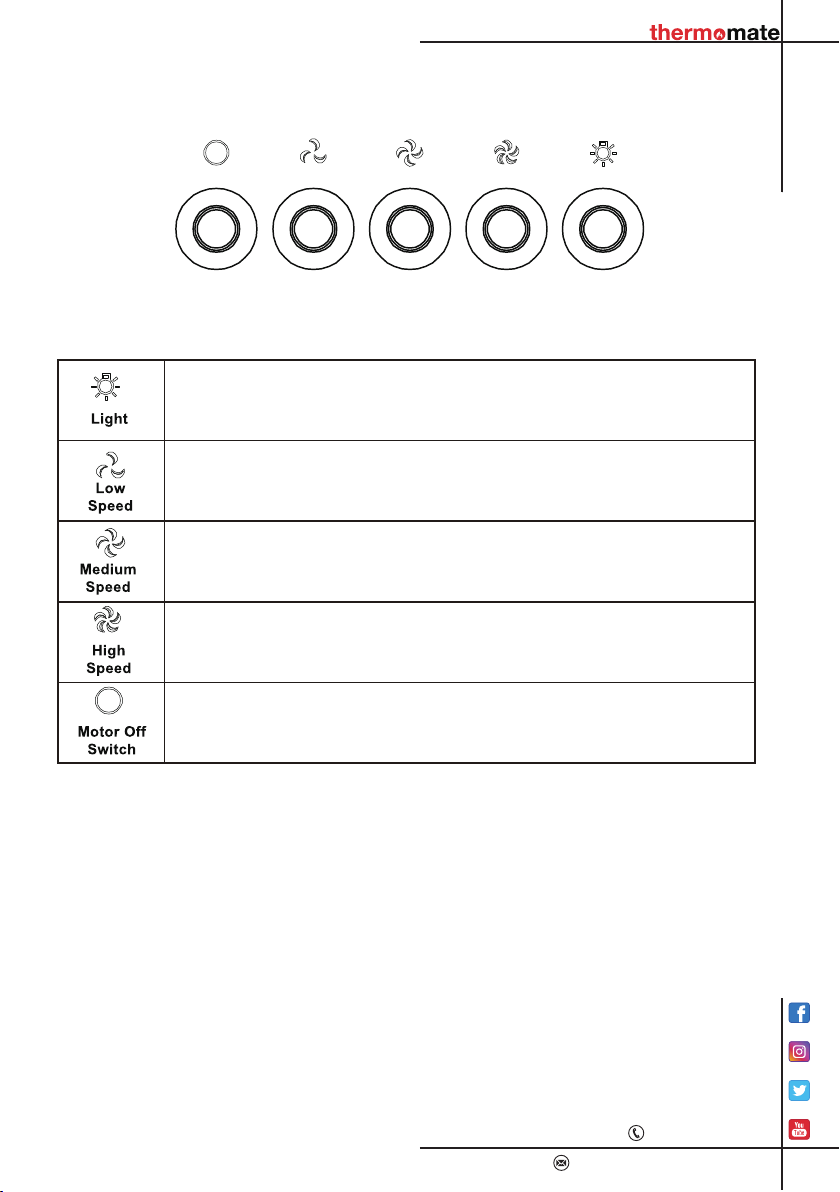

Operation Instructions
Caution:
never put your hand inside of the unit while ti is operating. For the best
performance clean your range hood regularly.
Motor Off
Switch
Press this button to turn on the lights, and press again to turn
them off.
Press this button to run the motor at low speed.
Press this button to run the motor at medium speed.
Press this button to run the motor at high speed.
Press this button to stop the motor while it is running at any
given speed.
Low
Speed
Medium
Speed
High
Speed
Light
Live Smart, Better Life!
13
1(844) 334-4203
Cleaning
1. Use only mild soap or cleaning solutions to clean the hood's outer surface.
Dry surfaces using a soft cloth.
2. Stainless Steel cleaner may be used on the external surface.
3. Clean the Range Hood motor assembly every 1 to 3 months depending on
use.
4. DO NOT clean the motor or electrical components with water or any other
liquid.
Lamp Replacement
Always switch off the power supply before working on the device. When
handling the lamp, make sure that it has cooled down completely before you
come into direct contact with your hands.
1. Before changing the lighting, make sure that the device is switched off and
disconnected from the power supply.
2. Protect yourself from dangers when you change the LED module, e.g. with
gloves.
Chang The Lamp
1. Using a screwdriver, gently lever the lamp out of the hood housing and
remove it by turning it slightly counterclockwise.
2. Disconnect the lamp cable from the connector of the connection cable
in the hood.
3. Connect the lamp cable of the new light with the plug connection of the
connection cable in the hood.
4. Press the lamp lightly into the hood housing and fix it by turning it slightly
clockwise.
5. Dispose of the old lamp at an electronic waste disposal point.
Live Smart, Better Life!
14
1(844) 334-4203
Troubleshooting
Caution:
Always disconnect unit from power before.
Problem
My range hood
is noisy.
My range hood has
poor performance.
My range hood
shakes.
The motor no
longer runs.
Light bulb went out.
A. The range hood and cooktop are
too far away from each other.
Optimal distance is 24 inch to
30 inch.
B. There are too many open
windows or doors in the area.
Close some doors or windows.
C. The motor performance has
decreased due to wear. Replace
motor.
D. Check and make sure the tape
holding down the damper flaps
at the vent hole are removed
before use.
A. The installation is not secure.
Check again and make sure the
installation hardware is securely
mounted.
B. The fan is broken or not
balanced. Realign or replace
fan.
C. The motor is loose. Check and
make sure the motor is solidly
mounted to the unit.
A. Replace control panel or circuit
board.
B. Replace with new motor
assembly.
A. Replace with a new LED light
1 watt max.
Phillips screwdriver
gloves.
Phillips screwdriver
gloves.
Phillips screwdriver
nose pliers gloves.
Gloves
A. Check inside the range hood
for any loose debris and remove.
Phillips screwdriver
gloves.
Solution Tools
This manual suits for next models
1
Table of contents
Other thermo mate Ventilation Hood manuals
