Thermomedics Caregiver PRO-TF Series User manual

Instructions For Use
Professional Clinical Thermometer
With TouchFree™Technology
PRO-TF SERIES
PRO-TF300
Copyright© 2021 Thermomedics All Rights Reserved

P|2
1. Low battery
indicator
2. Date indicator
3. Date/Time
4. Temperature
reading
5. Body
temperature
indicator
6. Object surface
temperature
indicator
7. Room
temperature
indicator
8. Memory mode
9. Error warning
10. Temperature


P|4
Features
• Fast measurementthat meets ASTM and ISO standards
•Simple 1-button operation,no scanning required
•No cross-contamination and may be used on sleeping patient
•Audible and visual indication of completed temperature
• Backlit LCD display and Low Battery indication
• Long Battery Life of more than 10,000 temperatures (typical)
with Sleep Mode
• 30-temperature memoryrecall with date and time stamp
•Able to measure temperature of other objects without contact
and also room temperature
•Measures natural thermal radiation. Does not emit radiation
Intended Use
Caregiver® Professional Clinical Thermometer is an infrared
thermometer intended for the measurementof human body
temperature in people of all ageswithout contact to the body and
is to be used by medical professionals.
Important Precautions
• Read this manual thoroughly prior to using. Use this
product only for its intended use.
• Caregiver is a precision optical thermometer. Handle
carefully and do notdrop. Do not use ifthermometer has
suffered damage.
• Insure thatsensor end is clean and free ofdebris.See
Maintenance/Cleaning for instructions.
• Caregiver is a non-steriledevice.Do not useethylene
oxide gas, heat,autoclave,or any other harsh method to
sterilize.
• Replace protectivesensor cap when not in use.
• If coming from a warmer or cooler environment or after
a period of exertion, allow the patientand thermometer
to acclimate to room temperature for 20minutes prior to
taking temperature.
• Removeperspiration and excess oil from the forehead as
this may affect the accuracy of the reading.

P|5
MODE
MEM
• Operating environment is from 50˚F to 104˚F (10˚C to 40˚C).
• Do not expose to severe environments. Storage
temperature is from -4˚F to 140˚F (-20˚C to +60˚C).
• Do not use in presence of ammable anaesthetic
mixtures.
• Do not use on patients with scarred tissue or tissue
compromised by skin disorders or trauma in the vicinity
of the forehead measurement area; patients treated
with certain drug therapies that may affect normal body
temperature or use on patients while skin is exposed to
external sources of heat or cold such as direct sunlight,
replace heat, cold compress therapies, air conditioner
ow, etc.
Initial Setup
1. To remove Battery Cover,press down at the arrow mark and
also on the center of the cover, SLIDE it in the direction of the
arrow as shown in Figure 1.
2. Install (2) AA alkaline batteries with polarity as shown in the
battery compartment.All LCD display segments will briey
illuminate during self-test, and you will hear a “beep”.
3. Close the battery cover by pressing down both the arrow mark
and the bottom of the cover, SLIDING the cover in the opposite
direction of the arrow as shown in Figure 2.
Do NOT press the battery cover to force it closed if the battery
cover doesn’t close tight as shown in Figure 3.If this happens,
remove the battery cover by SLIDING as described in step 1.
Repeat step 3 to close the battery cover tight.
Caution: Closing the battery cover by force may damage the
battery cover latch and result in battery damage.Always follow
the instructions and close the battery cover by SLIDING only.
If thermometer will be stored for a long period, remove
batteries.
Figure 1

P|6
Figure 2 Figure 3
In BODY MODE, the icon at the left is shown on the display
and temperature is adjusted to an Oral (sublingual)
temperature approximation. Normal Oral temperature is
typically 96.3°F to 99.9°F (35.7°C to 37.7°C) but varies by
age, gender and time of day1.
Body Temperature Measurement
About Body Temperature & Fever
Body temperature can vary from one person to the next and also varies by location
on the body and time of day.Temperatures measured from different sites, even at the
same time, should not be directly compared. Fever indicates that body temperature
is higher than normal. This may be caused by a number of conditions including
infection, overexertion, overdressing or immunization. Some people may not
experience fever even when they are ill.These include, but are not limited to, infants
younger than 3 months old, persons with compromised immune systems, persons
taking antibiotics, steroids or antipyretics (aspirin, ibuprofen, acetaminophen), or
persons with certain chronic illnesses. Please consult your physician when you feel ill
even if you do not have fever.
.
.

P|7
Inspect Sensor and remove any debris. Clean if
necessary.
Remove hair and perspiration from center
forehead area.
• If patient was lying face down or was wearing
a hat or garment covering the skin, allow the
forehead to be exposed to the air in the room for
5 minutes prior to taking reading.
• Relocate patient if in drafty environment.
Aim at center forehead area 1/2” to 2” away from
skin surface (1.2 to 5 cm). Be sure thermometer is
perpendicular to skin surface (at right angle).
Press and release the POWER button. Hold
thermometer in place until a double audio “beep” is
heard and the temperature is displayed on the LCD.
Be sure BODY temperature icon is displayed. Read
Temperature.
If temperature is suspected to be incorrect or display
reads “LO” or “HI” consult the Troubleshooting - Error
Codes Section of this manual.
Replace Sensor Cap and place
in (optional) Wall Mount.


P|8
Temperature Recall
POWER.
Press MEM button and hold.The date and a number from 1 to
30 will be displayed indicating the temperature number. “01”
is the most recently taken temperature and “30” is the oldest.
(After 30 temperatures are stored, the oldest will be deleted)
Release the MEM button and the “TIME” “Temperature” and

at 12:26AM, a 98.6 o
Repeat pressing and releasing MEM to display earlier stored
temperatures “02” through “30”.
Press POWER button to exit this function.
Changing oF/oC Temperature Scale

changed using the following procedure.
POWER.
Press the oo
Press the oo
will be displayed.
Press POWER to exit this function.
SURFACE Temperature Mode




of object being measured and the temperature of the


P|9
Room temperature mode measures the temperature of the
room in which the thermometer is located.Allow 20 minutes
for the thermometer to adjust to abrupt changes in room
temperature.
Setting SURFACE or ROOM Modes
1. If Caregiver® is powered off (blank display), press POWER.
2. Press and hold MODE for 1 second.The currently set Mode
(Body, Surface or Room) will
3. Press MODE repeatedly to cycle to the next mode -
SURFACE/ROOM/BODY.
4. Press POWER key to exit this function and display the
temperature in the desired Mode.
5. Caregiver will remain in the chosen Mode with each press
of the POWER button until it powers off after 30 seconds.
It will then revert back to BODY Mode.
Setting Date and Time
This setting is only necessary at initial setup and when the
batteries are changed.
1. If Caregiver is powered off (blank display), press POWER.
2. Press and hold SET for 1 second.The currently set date will
display and the “months” digits will
3. Press MODE repeatedly to increase the month by 1 or
press·oC/oFrepeatedly to decrease the month by 1.
4. Press SET to change the DAY. The “day” digits will
5. Press MODE repeatedly to increase the day by 1 or press
oC/oFrepeatedly to decrease the day by 1.
6. Press SET to change the YEAR.The “year” digits will
7. Press MODE repeatedly to increase the year by 1 or press
oC/oF repeatedly to decrease the year by 1.

P|10
8. Press SETto change the HOURS and toggle AM/PM.The
9. Press MODErepeatedlyto increase the hours by 1 or press
oC/oFrepeatedly to decrease the hours by 1.
10. Press SETto change the MINUTES.The “minutes” digits
sunlight.
• Store in a dry location free of dust and away from direct
• Always replace Sensor Cap when not in use.
replacement.
• Caregiver® has no user serviceable internal parts except battery
Maintenance and Cleaning
2. Setting of Date and Time is complete.1
press
oC/oF
repeatedly to decrease the minutes by 1.
1. Press MODE repeatedly to increase the minutes by 1 or1
cleaners in the sensor cavity.
to help prevent debris from collecting in this area. If debris is
• The sensor cavity at the front of the thermometer is recessed
noticed, clean with a dry lint-free swab. Do not use liquid
• Never submerge in liquid.
water and mild detergent.
plastic housing or a cloth dampened with a solution of
• Replace sensor cap and use a soft dry cloth to clean the
liquid sparingly and wipe off after cleaning.
Occasionally, 70% isopropanol solution may be used. Use

P|11
Displayed
Code
Meaning Suggested Solution
Low Battery Replace batteries as soon as
practical.
Very Low
Battery
Replace batteries prior to further
use.
Ambient
Temperature
too LOW
Allow Caregiver® to warm to
temperature above
500F (100C).
Ambient
Temperature
too HIGH
Allow Caregiver® to cool to temperature
below 1040F (400C).
Sensor Error
or Ambient
Temperature
Unstable
Allow Caregiver ® to equilibrate to
the current room temperature for 20
minutes. Contact Thermomedics®
Support if this error persists.
Body Mode
Temperature
is below 940F
(34.40C)
Remove Sensor Lens cap.Allow
patient to warm up in ambient
room temperature above 500F
(10 0C).
Body Mode
Temperature
is above 1080F
(42.20C)
Repeat the temperature. If this
condition persists, the ambient
temperature of the thermometer
may be outside the acceptable
limits. Allow to cool for
20 minutes.
Displayed
Temperatures
Appear to be
Too Low
Remove Sensor Lens Cap.Allow
thermometer and patient to
adjust to room temperature for 20
minutes. Remove perspiration, oil
and makeup from forehead.Also
consult the knowedgebase at
www.thermomedics. com
Troubleshooting - Error Codes

P|12
Displayed
Temperature Range

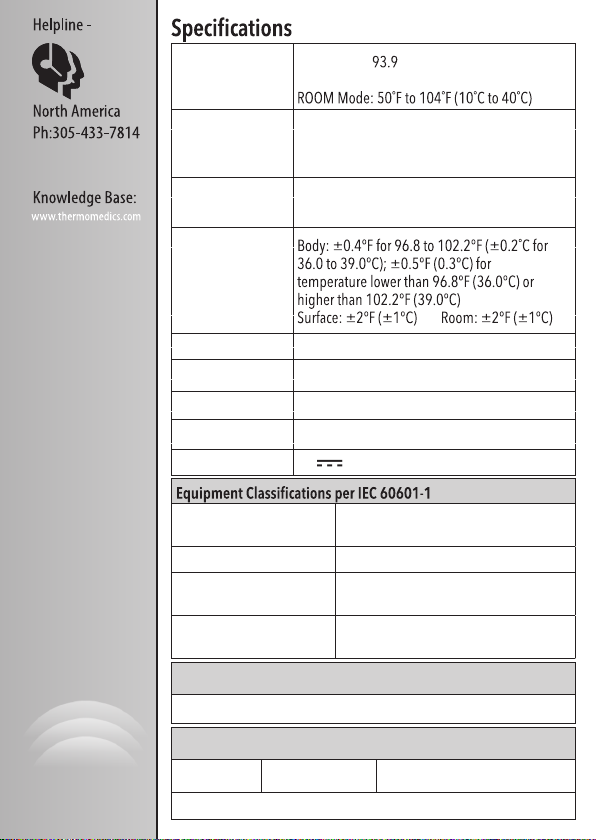

BODY Mode: ˚F to 108.0˚F (34.4˚C to 42.2˚C)
SURFACE Mode: 32˚F to 140˚F (0˚C to 60˚C)
Storage
Environmental
Range
-4˚F to 140˚F (-20˚C to +60˚C) Pressure: 525
mmHg to 795 mmHg 15% - 95% Relative
Humidity
Operating
Environmental Range
50˚F to 104˚F (10˚C to 40˚C)
15% - 85% Relative Humidity (non-condensing)
Displayed Accuracy
Power Two 1.5v “AA” Alkaline Batteries
Battery Life >10,000 Temperatures Typical
Response Time Approx 1 second
Size (L x W x H) 150 x 48.48 x 55.16mm
Batteries 3V 2XAA
EMC Compliance
IEC 60601-1-2 Class B
Safety Compliance
IEC 60601-1-6 ASTM E1965-1998 IEC/EN 60601-1 ISO 80601-2-56
ANSI/AAMI ES60601-1 CSA C22.2 No. 60601-1
Degree of Protection
Against Electrical Shock Type BF Applied Part
Mode of Operation Continuous
Degree of Protection From
Liquid Ingress
Protection Against Vertically Falling
Water Drops IPX0
USA Not For Use In The Presence OF
Flammable Anesthetics

Symbol Information
Follow Instructions for use Seperate collection for electrical and
electronic equipment (WEEE)
Manufacturer Storage temperature range
Date of Manufacture
YYYY - MM - DD Storage humidity limitation
Non-ionizing Electromagnetic Radiation Keep dry
Protection against vertically falling
water drops Fragile,handle with care
Authorized representative in the European
community
Mark of conformity to European medical
device directive 93/42/EEC
Caution Type BF Applied Part
Not made with natural rubber latex Product contains no PVC (polyvinyl
chloride) material
Do not use if package is damaged
Separate collection for electrical equipment

P|14

P|15

Warranty
For questions or warranty related service,please go to our web
site at: www.thermomedics.com/contact and submit your
question or email a technician directly attechnical-support@
thermomedics.com.You may also leave a message for
technical service at 1-800-208-3009 ext 300.
Please register your Caregiver®Thermometer via our web site
at: www.thermomedics.com/register
IMPORTANT: Prior to returning thermometer, contact
Thermomedics® for return procedure.
Purchase Date ______ / ______ / _______
Serial Number: ________________________________
Distributed by
Thermomedics, Inc. North America Service Center
18310 Calle La Serra
Rancho Santa Fe, CA 92091
Toll Free: 800-208-3009
TaiDoc Technology Corporation
B1-7F, No.127 Wugong 2nd Rd.,
Wugu Dist., 24888 New Taipei City,
Taiwan
MedNet EC-REP GmbH
Borkstraβe 10,
48163 Mϋnster, Germany
L010-0121-01
Caregiver IFU
Copyright© 2021 Thermomedics, Inc. All Rights Reserved
