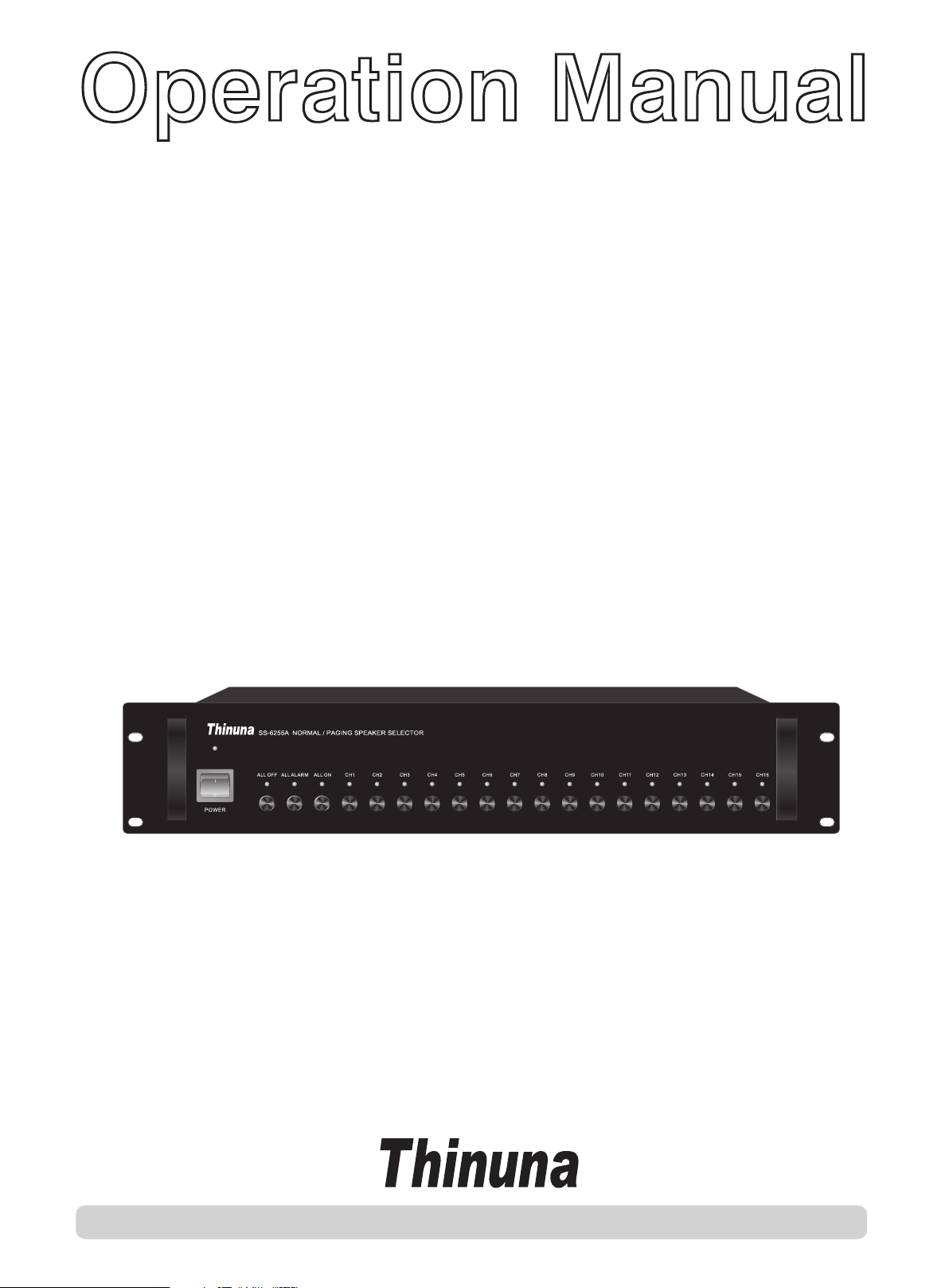

Thinuna SS-6255A User manual

SS-6255A
www.thinuna.com Version A
16CH Normal/Paging Speaker Selector

SS-6255A 16CH Normal/Paging Speaker Selector
www.thinuna.com Version A
Contens
Welcome........................................................................................................................................................................... 1
Warning................................................................................................................ ..........................................1
Installation Environment..................................................................................................................................................2
Important Safety Instructions.........................................................................................................................................2
Features..............................................................................................................................................................................3
Accessories.................................................................................................................................................3
Front Panel.........................................................................................................................................................................4
Real Panel..........................................................................................................................................................................5
Specifications.....................................................................................................................................................................6
Service.............................................................................................................................................................................7
Note..............................................................................................................................................................................8
Note..........................................................................................................................................................................9

SS-6255A 16CH Normal/Paging Speaker Selector
www.thinuna.com Page 1 Version A
A personal welcome to you from the management and employees of Thinuna global.
Thanks you for choosing PA and HPA series power amplifier, we will always provide innovative, advanced,
reliable products like before.
We are sincerely trust these products will provide years of satisfactory service, but if anything is not to your
complete satisfaction, we will endeavor to make things right.
Welcome to thinuna again, and thank you for becoming part of our worldwide extended family!
Welcome
Warning
CAUTION
.
RISK OF ELECTRIC
SHOCK DON’T OPEN
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of suf-ficient
magnitude to constitute a risk of electric shock to
persons.
This symbol is intended to alert the user to the
presence of important operation and mainte-nance
(servicing) instructions in the literature accompanying
the appliance.
* Do not install this equipment in a confined space such as a book case or similar unit.
* The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such vases, shall be placed on the apparatus.
* Worded: “WARNING FOR YOUR PROTECTION PLEASE READ THE FOLLOWING-WATER AND MOISTURE: Unit should not be used
near water(e.g. near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, etc).
Care should be taken so than objects do not fall and liquids are not spilled into the enclosure through openings.”
Service Instructions
* Worded: "Caution: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not
perform any servicing other than that contained in the operating instructions unless you are qualified to do so."
* Location: Instruction Manual.
NOTE : This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to correct the interference at his own expense.
Attentions: Pour prévenir les chocs électriques ne pas utiliser cette
fiche polarisée avec un prolongateur, une prise de courant
on une autre sortie de courant, sauf si les lames peuvent
étre insérées à fond sans en laisser aucune partie à
découvert.
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
WARNING
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Caution: To prevent electric shock do not use this (polarized) plug with
an extension cord, receptacle or other outlet unless the blades
can be fully inserted to prevent blade expo-sure.

www.thinuna.com Page 2 Version A
SS-6255A 16CH Normal/Paging Speaker Selector
Installation Environment
Important Safety Instructions
- Avoid excessive heat, humidity, dust and vibration
Keep the unit away from locations where it is likely to be exposed to high temperatures or humidity-such as
near radiators, stoves, etc. Also avoid locations which are subject to excessive dust accumulation, or to vibration
that could cause mechanical damage.
- Avoid physical shocks
Strong physical shocks to the unit may cause damage. Handle the unit with care.
- Do not open the case or attempt repairs or modifications yourself
This product contains no user-serviceable parts. Refer all maintenance to qualified Thinuna service personnel.
Opening the case and/or tampering with internal circuitry voids the warranty.
- Always power off before making connections
Always turn the AC mains OFF before connecting or disconnecting cables. This is important to prevent damage
to the unit itself as well as other connected equipment.
- Handle cables carefully
Always plug and unplug cables (including the AC mains power cord) by gripping the connector, not the cord.
- Clear with a soft dry cloth
Never use solvents such as benzine or paint thinner to clean the unit. Wipe clean with a soft, dry cloth.
Installation this system is not difficult and complex. But you still need to spend some time to read this manual
and ensure the connection and installation is exact.
Never place this product in an environment which could alter its performance or reduce its service life.
Such environments usually include high levels of heat, dust, moisture, and vibration.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong.
The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparaus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury
from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate
normally, or has been dropped.

SS-6255A 16CH Normal/Paging Speaker Selector
www.thinuna.com Page 3 Version A
* 16CH speaker selector with Normal /Paging amplifier input
4CH BGM amplifier input: A1(zone 1~4)，A2(zone 5~8）, A3(zone 9～12), A4(zone 13~16）;
* 1 CH paging amplifier input: to zone 1～16;
* 16 LED indicator show the status of mode:
"Normal"mode: the LED lights to show the related zone is on
RS-485 control in and control out;
；
*
;
"Paging" mode: the LED blinks to show the related zone is making a paging;
*
Features：
Accessories
One detachable AC power cord is provided for use with this product.

Power LED
All Paging On
Power On
All on
All Off
6
Zone Buttons and LED
Front Panel
SS-6255A 16CH Normal/Paging Speaker Selector
www.thinuna.com Page 4 Version A
Note：
* 16 LED indicator show the status of mode:
- "Normal"mode: the LED lights to show the related zone is on;
- "Paging" mode: the LED blinks to show the related zone is making a paging;

SN.:
485 INPUT 485 OUTPUT
NC
ALARM
PAGING
INPUT
AMP
CH1 CH2 CH3 CH4
+
-
+
-
+
-
+
-
CH9 CH10 CH11 CH12
+
-
+
-
+
-
+
-
CH5 CH6 CH7 CH8
+
-
+
-
+
-
+
-
CH13 CH14 CH15 CH16
+
-
+
-
+
-
+
-
AMP2 AMP3
+
-
+
-
AMP1 AMP4
+
-
+
-
67
1. RS-485 CONTROL PORT
Connect to a Emergency panel or Alarm matrix to trigger a paing.
2. NOT USED
3. 16CH SPEAKER OUTPUT TERMINALS
These terminals are for connection of 16 channels speaker lines to deliver power output to speakers.
Be careful not to change the “+” and “-” lines. The capacity of each zone is 20A/150V.
4. 4CH NORMAL AMPLIFIER INPUT PORTS
Usually connect to the output (100V or 70V line) of a background music amplifier.
Be careful not to change the “+” and “-” lines.
Description of corresponding zones:
5. EMERGENCY AMPLIFIER INPUT PORT
Usually connect to the output (100V or 70V line) of a emergency amplifier (like fire alarm amplifier etc.)
Be careful not to change the “+” and “-” lines.
Description of corresponding zones: E: CH1~CH16;
6. AC POWER INPUT PORT
Connect the supplied standard AC input cable here.
7. AC FUSE HOLDER
The fuse holder contains the AC overload protection fuse. If the fuse has blown out, replace it with a fuse of
the same specifications. If the fuse continues to blow, refer servicing to a qualified service technician.

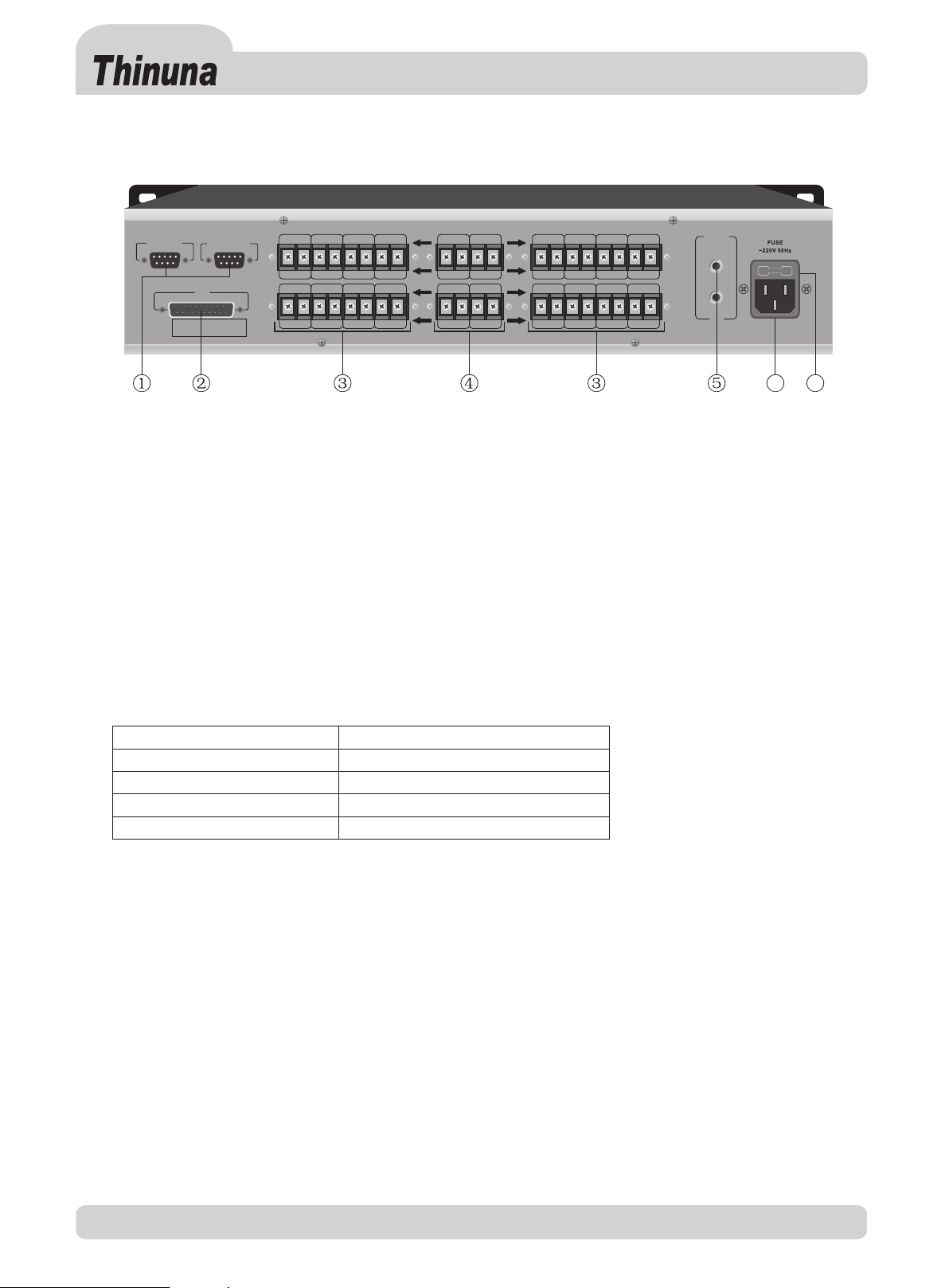

Rear Panel
SS-6255A 16CH Normal/Paging Speaker Selector
www.thinuna.com Page 5 Version A
AMP1
INPUT OUTPUT
AMP2
AMP3
AMP4
CH1、 CH2、 CH3、 CH4
CH5、 CH6、 Ch7、 Ch8
CH9、 CH10、CH11、CH12
CH13、CH14、CH15、CH16

Specifications
SS-6255A 16CH Normal/Paging Speaker Selector
www.thinuna.com Page 6 Version A
Model No. SS-6255A
BGM Amplifier Input 4CH，Max 2000W，each channel
Paging Amplifier Input 1CH，Max 2000W
Speaker Output 16CH，Max20A/150V，each channel
Control RS-485 control in and control out
power 220~240VAC，50/60Hz
Power Consumption <45W
Weight 9kg
Temperature / Humidity 0°C~40°C，<95%
Dimensions 482(W) × 88(H) × 350(D) mm
Shipping Weight 11kg
Shipping Dimensions 0.0382CBM,58(W) x 47(H) x 14(D) cm

SS-6255A 16CH Normal/Paging Speaker Selector
www.thinuna.com Page 7 Version A
Procedures
Ensure the problem is not related to operator error, or external system devices, Once it is certain that the
problem is related to the product contact your warranty provider as described in the warranty section of this
manual.
Schematic
A Schematic is available by contacting your warranty provider.
Parts List
A Parts List is available by contacting your warranty provider.
Variations
Variations of this product exist to reflect the variations in AC power requirements throughout the world. Product
supplied through local sources are compatible with local AC power requirements.
Options
No optional items are available for this product.
Warranty
Warranty terms and conditions vary by country and may not be the same for all products. Terms and conditions
of warranty for a given product may be determined first by locating the appropriate country which the product
was purchased in, then by locating the product type.
To obtain specific warranty information and available service locations contact Thinuna directly or the
authorized Thinuna Distributor for your specific country or region.
Service

SS-6255A 16CH Normal/Paging Speaker Selector
www.thinuna.com Page 8 Version A
Note

Note
www.thinuna.com Page 9 Version A
SS-6255A 16CH Normal/Paging Speaker Selector

Notice: Thinuna Technology makes every effort to ensure the
accuracy of information on this manual. The documents,
graphics, and other information included in this manual may
include technical inaccuracies, typographical, or other errors.
Specifications are subject to change without notice.
