thomann Harley Benton FRFR-112A Guitar DSP User manual

FRFR-112A Guitar DSP
guitar combo
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
06.12.2019, ID: 478594

Table of contents
1 General information................................................................................................................................. 4
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 6
2 Safety instructions..................................................................................................................................... 8
3 Features....................................................................................................................................................... 12
4 Starting up.................................................................................................................................................. 13
5 Connections and controls................................................................................................................... 15
6 DSP functions............................................................................................................................................ 18
7 Technical specications....................................................................................................................... 23
8 Plug and connection assignment.................................................................................................... 25
9 Cleaning....................................................................................................................................................... 28
10 Protecting the environment.............................................................................................................. 29
Table of contents
FRFR-112A Guitar DSP
3

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
guitar combo
4

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
FRFR-112A Guitar DSP
5

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’ , ‘OFF’ .
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
Displays
General information
guitar combo
6

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
Warning – danger zone.
General information
FRFR-112A Guitar DSP
7

2 Safety instructions
This device is intended to be used for amplication and playback of signals from musical
instruments with electromagnetic pickups. Any other use or use under other operating condi‐
tions is considered to be improper and may result in personal injury or property damage. No
liability will be assumed for damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Intended use
Safety instructions
guitar combo
8

DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or
damaged.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a pro‐
tective contact plug. Do not modify the mains cable or the plug. Failure to do so
could result in electric shock/death or re. If in doubt, seek advice from a regis‐
tered electrician.
Safety instructions
FRFR-112A Guitar DSP
9

CAUTION!
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent
hearing impairment. Over an extended period of time, even levels that seem to
be uncritical can cause hearing damage.
Decrease the volume level immediately if you experience ringing in your ears or
hearing impairment. If this is not possible, keep a greater distance or use su‐
cient ear protectors.
NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked ames.
Safety instructions
guitar combo
10

NOTICE!
Power supply
Before connecting the device, ensure that the input voltage (AC outlet) matches
the voltage rating of the device and that the AC outlet is protected by a residual
current circuit breaker. Failure to do so could result in damage to the device and
possibly injure the user.
Unplug the device before electrical storms occur and when it is unused for long
periods of time to reduce the risk of electric shock or re.
NOTICE!
Possible damage due to installation of a wrong fuse
The use of dierent types of fuses can cause serious damage to the unit. Fire
hazard!
Only fuses of the same type may be used.
Safety instructions
FRFR-112A Guitar DSP
11

3 Features
The device is characterized by the following features:
nFull range at-response case for a modern digital guitar setup (amp modelling and multi-
eects processor)
n4 DSP sound programmes
nvarious DSP equalizer modes, each with ±12 dB level control per band
n1200 watt power amp, class D
n12-inch woofer and 1-inch tweeter
nsuitable for use as oor monitor or on a tripod
n2 × XLR / 1/4" phone jack combo socket for adjustable MIC / Line input
n1 × 3.5 mm phone jack socket as AUX input for connecting line devices
n1 × XLR output
nsuitable dust cover optional (item no. 410589)
Features
guitar combo
12

4 Starting up
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
NOTICE!
Possible property damage by magnetic elds
Loudspeakers produce a static magnetic eld. Therefore, maintain an appropriate
distance to devices that can be adversely aected or damaged by an external
magnetic eld.
Starting up
FRFR-112A Guitar DSP
13

NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.
The unit can be mounted on a tripod or set up on the oor or a suciently sized and stable
surface.
Starting up
guitar combo
14

5 Connections and controls
Connections and controls
FRFR-112A Guitar DSP
15

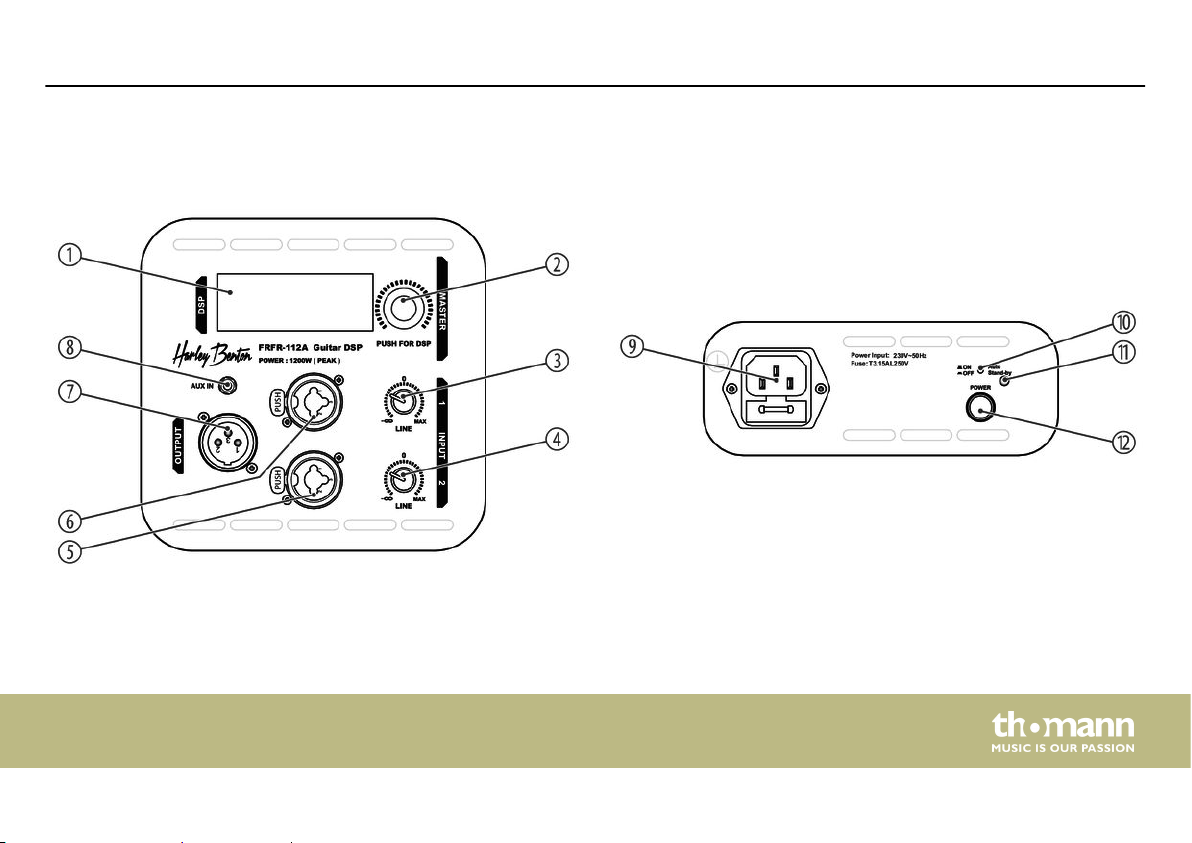

Front panel
1[DSP]
backlit display for DSP functions
2[MASTER / PUSH FOR DSP]
Rotary control for the overall volume, push button for activating the DSP functions
3[INPUT 1 LINE]
Rotary gain control for input 1. Turning clockwise increases the input gain for connecting microphones. Turning
counterclockwise decreases the input gain for connecting instruments or devices with line level outputs.
4[INPUT 2 LINE]
Rotary gain control for input 2. Turning clockwise increases the input gain for connecting microphones. Turning
counterclockwise decreases the input gain for connecting instruments or devices with line level outputs.
5 Mic / Line input, designed as XLR / 1/4" phone jack combo socket, balanced
6 Mic / Line input, designed as XLR / 1/4" phone jack combo socket, balanced
Connections and controls
guitar combo
16

Front panel
7[OUTPUT]
Line output, designed as XLR chassis plug. The combined signal of both inputs is present here, unaected by DSP.
8[AUX IN]
3.5 mm phone socket for connecting line level devices such as MP3 or CD players. Stereo signals are combined.
Rear panel
9 IEC chassis plug with fuse holder for the power supply
10 LED [ON OFF].
This LED lights when the unit is turned on.
11 LED [Auto Stand-by]
This LED lights up when the automatic shutdown function is active.
12 [POWER ON / OFF]
Mains switch. Turns the device on and o.
Connections and controls
FRFR-112A Guitar DSP
17

6 DSP functions
1. Press [MASTER | PUSH FOR DSP] to call up the main menu.
2. Turn [MASTER | PUSH FOR DSP] to switch between menu items or values.
3. Press [MASTER | PUSH FOR DSP] to activate the menu shown in the display or to conrm a
value.
4. To exit a menu item without changes, select ‘EXIT’ and press [MASTER | PUSH FOR DSP] to
conrm.
1. Press [MASTER | PUSH FOR DSP] to call up the main menu.
2. Turn [MASTER | PUSH FOR DSP] until the display shows ‘MODE’ and press
[MASTER | PUSH FOR DSP] to conrm.
3. Turn [MASTER | PUSH FOR DSP] until the display shows ‘Sim1’ , ‘Sim2’ , ‘Sim3’ or ‘OFF’ and
press [MASTER | PUSH FOR DSP] to conrm.
ðThe selected sound program is set.
Function selection
Setting the sound programme
DSP functions
guitar combo
18

1. Press [MASTER | PUSH FOR DSP] to call up the main menu.
2. Turn [MASTER | PUSH FOR DSP] until the display shows ‘EQ SET’ and press
[MASTER | PUSH FOR DSP] to conrm.
3. Turn [MASTER | PUSH FOR DSP] until the display shows ‘EQ TYPE’ and press
[MASTER | PUSH FOR DSP] to conrm.
4. Turn [MASTER | PUSH FOR DSP] until the display shows ‘PA’ , ‘GUITAR1’ or ‘GUITAR2’ and
press [MASTER | PUSH FOR DSP] to conrm.
ðThe selected EQ setting is set.
1. Press [MASTER | PUSH FOR DSP] to call up the main menu.
2. Turn [MASTER | PUSH FOR DSP] until the display shows ‘EQ SET’ and press
[MASTER | PUSH FOR DSP] to conrm.
3. Turn [MASTER | PUSH FOR DSP] until the display shows ‘EQ LOW’ (bass control), ‘EQ MID’
(mids control) or ‘EQ HIGH’ (treble control) and press [MASTER | PUSH FOR DSP] to con‐
rm.
EQ setting
Setting the level of a frequency
band
DSP functions
FRFR-112A Guitar DSP
19

4. Turn [MASTER | PUSH FOR DSP] to raise or lower the level of the selected frequency band
and press [MASTER | PUSH FOR DSP] to conrm.
1. Press [MASTER | PUSH FOR DSP] to call up the main menu.
2. Turn [MASTER | PUSH FOR DSP] until the display shows ‘LED MODE’ and press
[MASTER | PUSH FOR DSP] to conrm.
3. Turn [MASTER | PUSH FOR DSP] until the display shows ‘OFF’ (LED not active), ‘ON’ (LED
active) or ‘LIMITER’ (LED ashes when limiter is activated) and press
[MASTER | PUSH FOR DSP] to conrm.
1. Press [MASTER | PUSH FOR DSP] to call up the main menu.
2. Turn [MASTER | PUSH FOR DSP] until the display shows ‘LCD DIM’ and press
[MASTER | PUSH FOR DSP] to conrm.
3. Turn [MASTER | PUSH FOR DSP] until the display shows ‘OFF’ or ‘ON’ and press
[MASTER | PUSH FOR DSP] to conrm.
Setting the LED mode
Dimming the display
DSP functions
guitar combo
20
