thomann the box MBA1 User manual

MBA1
active 2-way speaker
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
17.03.2021, ID: 480782 (V2)

Table of contents
1 General information................................................................................................................................. 4
1.1 Further information........................................................................................................................... 5
1.2 Notational conventions.................................................................................................................... 6
1.3 Symbols and signal words............................................................................................................... 6
2 Safety instructions..................................................................................................................................... 9
3 Features....................................................................................................................................................... 13
4 Installation and starting up................................................................................................................ 14
4.1 Dealing with lithium batteries..................................................................................................... 16
5 Connections and controls................................................................................................................... 18
6 Technical specications....................................................................................................................... 21
7 Plug and connection assignment.................................................................................................... 26
8 Cleaning....................................................................................................................................................... 30
9 Protecting the environment.............................................................................................................. 31
Table of contents
MBA1
3

1 General information
This user manual contains important information on the safe operation of the device. Read and
follow all safety notes and all instructions. Save this manual for future reference. Make sure
that it is available to all persons using this device. If you sell the device to another user, be sure
that they also receive this manual.
Our products and user manuals are subject to a process of continuous development. We there‐
fore reserve the right to make changes without notice. Please refer to the latest version of the
user manual which is ready for download under www.thomann.de.
General information
active 2-way speaker
4

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
MBA1
5

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
Texts and values displayed on the device are marked by quotation marks and italics.
Examples: ‘24ch’ , ‘OFF’ .
1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Letterings
Displays
General information
active 2-way speaker
6

Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
General information
MBA1
7

Warning signs Type of danger
Warning – danger zone.
General information
active 2-way speaker
8

2 Safety instructions
This device is designed for sound reinforcement. Use the device only as described in this user
manual. Any other use or use under other operating conditions is considered to be improper
and may result in personal injury or property damage. No liability will be assumed for damages
resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Safety
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not within reach of babies and young children. Choking
hazard! Ensure that children do not detach any small parts (e.g. knobs or the like) from the unit. They could swallow the pieces and
choke! Never let children unattended use electrical devices.
Intended use
Safety instructions
MBA1
9

DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never remove any covers. There are no user-serviceable parts
inside. Do not use the device if covers, protectors or optical components are missing or damaged.
DANGER!
Electric shock caused by short-circuit
Always use proper ready-made insulated mains cabling (power cord) with a protective contact plug. Do not modify the mains cable
or the plug. Failure to do so could result in electric shock/death or re. If in doubt, seek advice from a registered electrician.
WARNING!
Incorrect handling of lithium batteries can result in injury
In the event of a short circuit, overheating or mechanical damage, lithium batteries can cause severe injuries. Follow the advice on
the correct handling of lithium batteries in the present section.
CAUTION!
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent hearing impairment. Over an extended period of
time, even levels that seem to be uncritical can cause hearing damage. Decrease the volume level immediately if you experience
ringing in your ears or hearing impairment. If this is not possible, keep a greater distance or use sucient ear protectors.
Safety instructions
active 2-way speaker
10

NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat source. Keep the device away from naked ames.
NOTICE!
Risk of re due to incorrect polarity
Incorrectly inserted batteries may destroy the device or the batteries. Ensure that proper polarity is observed when inserting bat‐
teries.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never expose the device to any liquid or moisture. Avoid
direct sunlight, heavy dirt, and strong vibrations. Only operate the device within the ambient conditions specied in the chapter
‘Technical specications’ of this user manual. Avoid heavy temperature uctuations and do not switch the device on immediately
after it was exposed to temperature uctuations (for example after transport at low outside temperatures). Dust and dirt inside can
damage the unit. When operated in harmful ambient conditions (dust, smoke, nicotine, fog, etc.), the unit should be maintained by
qualied service personnel at regular intervals to prevent overheating and other malfunction.
NOTICE!
Possible damage by leaking batteries
Leaking batteries can cause permanent damage to the device. Take batteries out of the device if it is not going to be used for a
longer period.
Safety instructions
MBA1
11

NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react with the coating of your parquet, linoleum, laminate
or PVC oor and after some time cause permanent dark stains. In case of doubt, do not put the rubber feet directly on the oor, but
use felt-pad oor protectors or a carpet.
NOTICE!
Possible damage due to installation of a wrong fuse
The use of dierent types of fuses can cause serious damage to the unit. Fire hazard! Only fuses of the same type may be used.
NOTICE!
Possible damage to lithium-ion batteries through incorrect storage
By deep discharge, lithium-ion batteries can be permanently damaged or lose some of their capacity. Before long breaks, charge the
batteries to around 50 % of their capacity and then switch o the device. Store the device at room temperature or cooler in an envi‐
ronment as dry as possible. If the batteries are stored for a longer period, recharge them to 50 % every three months. Fully charge
the batteries only shortly before use at room temperature.
Safety instructions
active 2-way speaker
12

3 Features
The device is characterized by the following features:
nmobile battery-powered 2-way active speaker box
n8" woofer
n1" full-range tweeter
nClass-D power stage
n150 W RMS output power
n3 preset modes: Music, speech and guitar
n2 × XLR / 1/4" phone jack combo socket for adjustable MIC / Line input
n1 × RCA socket pair / 1 × 3.5 mm phone socket for stereo input
n1 × XLR output socket
nBluetooth
Features
MBA1
13

4 Installation and starting up
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
NOTICE!
Possible property damage by magnetic elds
Loudspeakers produce a static magnetic eld. Therefore, maintain an appropriate
distance to devices that can be adversely aected or damaged by an external
magnetic eld.
Installation and starting up
active 2-way speaker
14

The unit can be mounted on a tripod or set up on the oor or a suciently sized and stable
surface, e.g. a wall bracket.
NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.
Comply with regulations
When installing and operating, make sure to follow the standards and regulations
that apply in your country.
The speaker box has two 35 mm anges for tripod mounting at dierent angles.
nThe ange with 0° angle (rear position) is suitable for use in front of standing audiences.
nThe ange with 7° angle (front position) is suitable for use in front of sitting audiences.
Installation and starting up
MBA1
15

4.1 Dealing with lithium batteries
WARNING!
Incorrect handling of lithium batteries can result in injury
In the event of a short circuit, overheating or mechanical damage, lithium bat‐
teries can cause severe injuries.
Follow the advice on the correct handling of lithium batteries in the present sec‐
tion.
When handled correctly and appropriately lithium batteries pose no risk.
Store lithium batteries in a cool, dry place, ideally in the original packaging.
Store lithium batteries away from heat sources (e.g. radiators or sunlight). Lithium batteries are
hermetically sealed. Never attempt to open a lithium battery.
If the battery housing is damaged small amounts of the electrolyte may leak out. If this should
happen, seal the lithium battery in airtight packaging and wipe up the traces of electrolyte
using absorbent paper towels. You must wear protective rubber gloves when doing so. Clean
your hands and the aected surface thoroughly with cold water.
Installation and starting up
active 2-way speaker
16

Never attempt to recharge non-rechargeable lithium batteries. When charging lithium bat‐
teries you must use a suitable charging device intended for the purpose.
Before disposing of the device remove the lithium batteries. Protect used lithium batteries
against potential short circuits, e.g. by covering the poles with adhesive tape.
Only use powder extinguishers or other suitable extinguishing agents to extinguish a burning
lithium battery.
Installation and starting up
MBA1
17

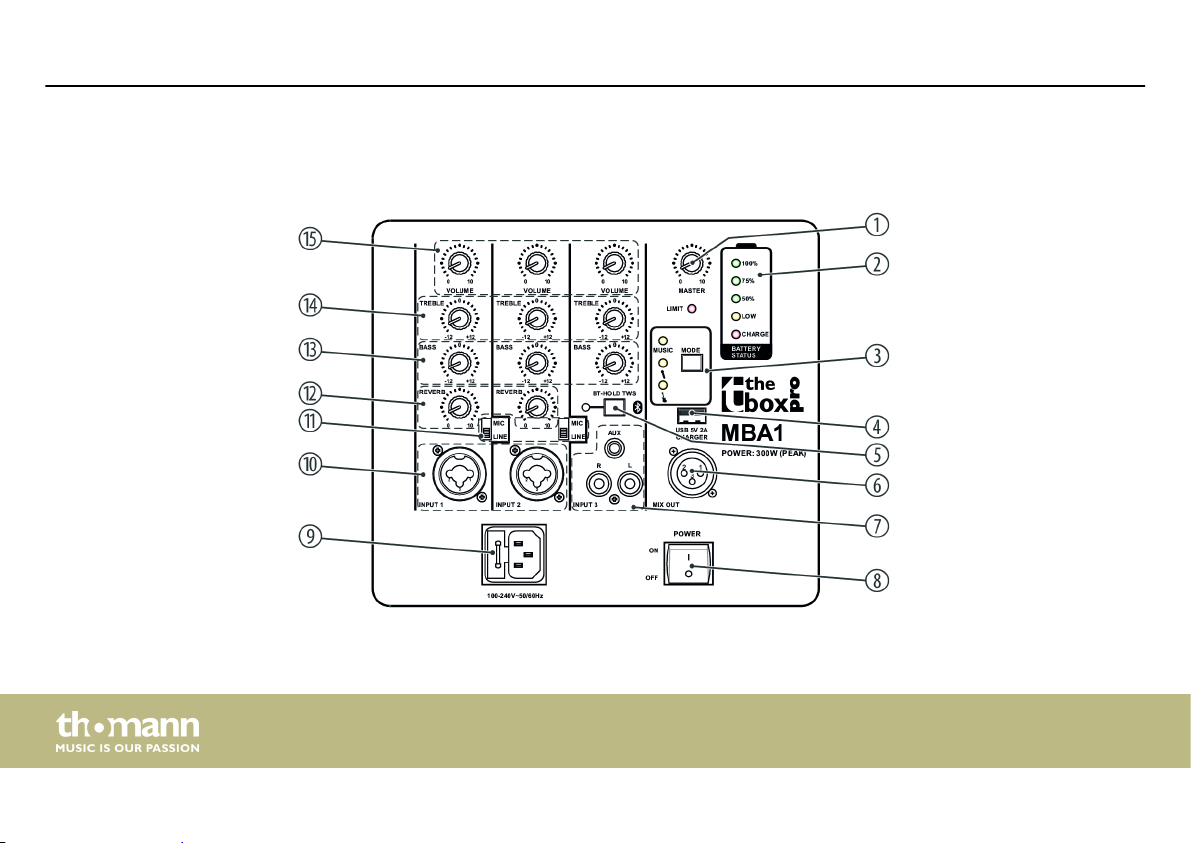

5 Connections and controls
Connections and controls
active 2-way speaker
18

1[MASTER] Overall volume control
2[BATTERY STATUS] Indicator LEDs for the battery charge level
[100%], [75%], [50%] LED lights green: Charge level 100%, 75% or 50%
[LOW] LED lights yellow: Charge level low
[CHARGE] LED ashes red: Charge level below 25% Recharge the battery.
3[MODE] Selection button for the playback mode according to the audio source
Press the button to switch between the three dierent preset modes (music,
speech, guitar). The LED of the selected mode lights up.
4[USB 5V 2A CHARGER] USB charge socket 5 V, 2 A
5[BT HOLD TWS] Bluetooth connection button (Bluetooth pairing)
Press the button to establish a Bluetooth connection with other Bluetooth-ena‐
bled devices.
If there is a Bluetooth connection between the speaker and a Bluetooth-enabled
device, additional speakers of the same type are automatically recognized and
connected after switching on.
Connections and controls
MBA1
19

6[MIX OUT] XLR mounting socket, 3-pin, for the output of line-level signals and for looping
through several active loudspeakers
7[INPUT 3]
[AUX], [R], [L]
RCA socket pair (L / R) / 3.5 mm phone socket, unbalanced, for connecting stereo
input signal sources
8[POWER]
[ON | OFF]
Main switch. Turns the device on and o.
9[100- 240 V 50/60 Hz] IEC panel plug for the mains cable with fuse holder and for charging the battery
10 [INPUT 1], [INPUT 2] XLR / 1/4" jack combo sockets for connecting a mixer or an instrument
11 [MIC / LINE] Input signal switch. With this switch you toggle between a microphone and a
signal source with line level.
12 [REVERB] Control for the intensity of the reverb applied to the audio signal
13 [BASS] Control to adjust the low frequencies
14 [TREBLE] Control to adjust the high frequencies
15 [VOLUME] Input level control
Connections and controls
active 2-way speaker
20
