Achat 206
passive
full-range speaker
user manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
15.10.2015, ID: 277960, 277958

Table of contents
1 General notes............................................................................................................................................... 4
1.1 Further information........................................................................................................................... 5
1.2 Symbols and signal words............................................................................................................... 6
2 Safety instructions..................................................................................................................................... 8
3 Features....................................................................................................................................................... 11
4 Installation.................................................................................................................................................. 12
4.1 Tips on handling speakers............................................................................................................ 13
4.2 Installation.......................................................................................................................................... 14
4.3 Connections....................................................................................................................................... 18
5 Technical specifications....................................................................................................................... 20
6 Plug and connection assignment.................................................................................................... 23
7 Protecting the environment.............................................................................................................. 24
Table of contents
Achat 206
3

1 General notes
This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are subject to
change.
General notes
passive full-range speaker
4

1.1 Further information
On our website (www.thomann.de) you will find lots of further information and details on the
following points:
Download This manual is also available as PDF file for you to download.
Keyword search Use the search function in the electronic version to find the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the
customer service will gladly assist you.
General notes
Achat 206
5

1.2 Symbols and signal words
In this section you will find an overview of the meaning of symbols and signal words that are
used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
WARNING! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in death or serious
injury if it is not avoided.
CAUTION! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in minor injury if it
is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
General notes
passive full-range speaker
6

Warning signs Type of danger
Warning – high-voltage.
Warning – suspended load.
Warning – danger zone.
General notes
Achat 206
7

2 Safety instructions
This device is intended to be used in a sound reinforcement system. Use the device only as
described in this user manual. Any other use or use under other operating conditions is consid‐
ered to be improper and may result in personal injury or property damage. No liability will be
assumed for damages resulting from improper use.
This device may be used only by persons with sufficient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
Intended use
Safety
Safety instructions
passive full-range speaker
8

WARNING!
Consequences of faulty mounting
Faulty mounting may lead to lethal injuries or property damage.
Please ensure that the norms and regulations valid in your country are always
observed when mounting and operating your product. In Germany: BGV C1,
“Event and Production Sites for Stage Presentations”. Only expertly trained staff
may mount speakers.
CAUTION!
Possible hearing damage
The device can produce volume levels that may cause temporary or permanent
hearing impairment. Over an extended period of time, even levels that seem to
be uncritical can cause hearing damage.
Decrease the volume level immediately if you experience ringing in your ears or
hearing impairment. If this is not possible, keep a greater distance or use suffi‐
cient ear protectors.
Safety instructions
Achat 206
9

NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
Safety instructions
passive full-range speaker
10

3 Features
Special features of this powerful and compact full-range speaker:
nConnections: 2 lockable NL4 sockets (1+/1–), screw terminals
nM10 rigging points
nSpeaker stand flange
nAvailable U-brackets for horizontal or vertical mount or truss suspension (option):
– the box pro 206 U-Bracket vertical black (ref. 283312): U-bracket for vertical mount or
truss suspension, black
– the box pro 206 U-Bracket vertical white (ref. 302854): U-bracket for vertical mount or
truss suspension, white
– the box pro 206 U-Bracket horizontal black (ref. 283311): U-bracket for horizontal
mount or truss suspension, black
– the box pro 206 U-Bracket horizontal white (ref. 302855): U-bracket for horizontal
mount or truss suspension, white
nBlack textured coating
Features
Achat 206
11

4 Installation
Unpack and carefully check that there is no transportation damage before using the unit. Keep
the equipment packaging. To fully protect the device against vibration, dust and moisture
during transportation or storage use the original packaging or your own packaging material
suitable for transport or storage, respectively.
Create all connections while the device is off. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
DANGER!
Electric shock caused by high voltages at the power amplifier output
The output voltages of modern high-performance amplifiers may result in death
or serious injury.
Never touch the bare ends of loudspeaker cables when the amplifier is on.
Installation
passive full-range speaker
12

4.1 Tips on handling speakers
We recommend you to set up the speakers in a way, that the sound signals can reach the audi‐
ence unobstructedly. It will often be helpful to mount the speakers on tripods. Thus, the sound
will be evenly spread with maximum range throughout the audience area.
Always use high grade cable to connect your equipment. Otherwise you won't reach max‐
imum sound quality.
For optimum results both impedance and power handling of the speakers must match the
requirements of the amplifier. Always follow the technical specifications of the speakers! The
overall impedance of the connected loudspeakers must not deceed the minimum output
impedance of the amp. The amps max. RMS output power should be 50 % above the power
handling capacity of the connected speakers.
If you notice distortion during operation, either the amp or the speaker is overloaded. This may
permanently damage the amp or the speaker. Always reduce the volume when you hear dis‐
tortion.
Installation
Achat 206
13

4.2 Installation
WARNING!
Consequences of faulty mounting
Faulty mounting may lead to lethal injuries or property damage.
Please ensure that the norms and regulations valid in your country are always
observed when mounting and operating your product. In Germany: BGV C1,
“Event and Production Sites for Stage Presentations”. Only expertly trained staff
may mount speakers.
Installation
passive full-range speaker
14

NOTICE!
Possible staining
The plasticiser contained in the rubber feet of this product may possibly react
with the coating of your parquet, linoleum, laminate or PVC floor and after some
time cause permanent dark stains.
In case of doubt, do not put the rubber feet directly on the floor, but use felt-pad
floor protectors or a carpet.
NOTICE!
Possible property damage by magnetic fields
Loudspeakers produce a static magnetic field. Therefore, maintain an appropriate
distance to devices that can be adversely affected or damaged by an external
magnetic field.
You can install the device standing or hanging upside down. When in use, the device must be
mounted at a solid surface or clamped to an approved truss.
Mounting options
Installation
Achat 206
15

NOTICE!
Use of stands
When mounting the device onto a stand, ensure that the stand is in a safe and
stable position and that the weight of the device does not exceed the maximum
permissible load capacity of the stand.
We recommend that the speaker be set up so that the lower edge is located 185 cm above the
floor.
Using a standard tripod, detach the flange cover at the bottom side of the speaker (four
screws).
Standing mounting
Installation
passive full-range speaker
16

Using a U bracket for vertical or horizontal mounting, you can mount the speaker stably and
safe to a wall or truss (half coupler).
WARNING!
Risk of injury caused by falling objects
Portable PA systems should be secured from falling using two independently
working devices, for example, safety ropes.
The load capacity of trusses or other fixtures must be sufficient for the intended number of
devices. The personnel in charge of mounting the suspension system are responsible for
ensuring that the systems are set up and used safely.
Always work from a stable platform whenever installing, moving or servicing the unit. Block
access under the work area. Only persons directly involved in set-up and removal are author‐
ized to be in the assembly area.
Suspended mounting
Installation
Achat 206
17

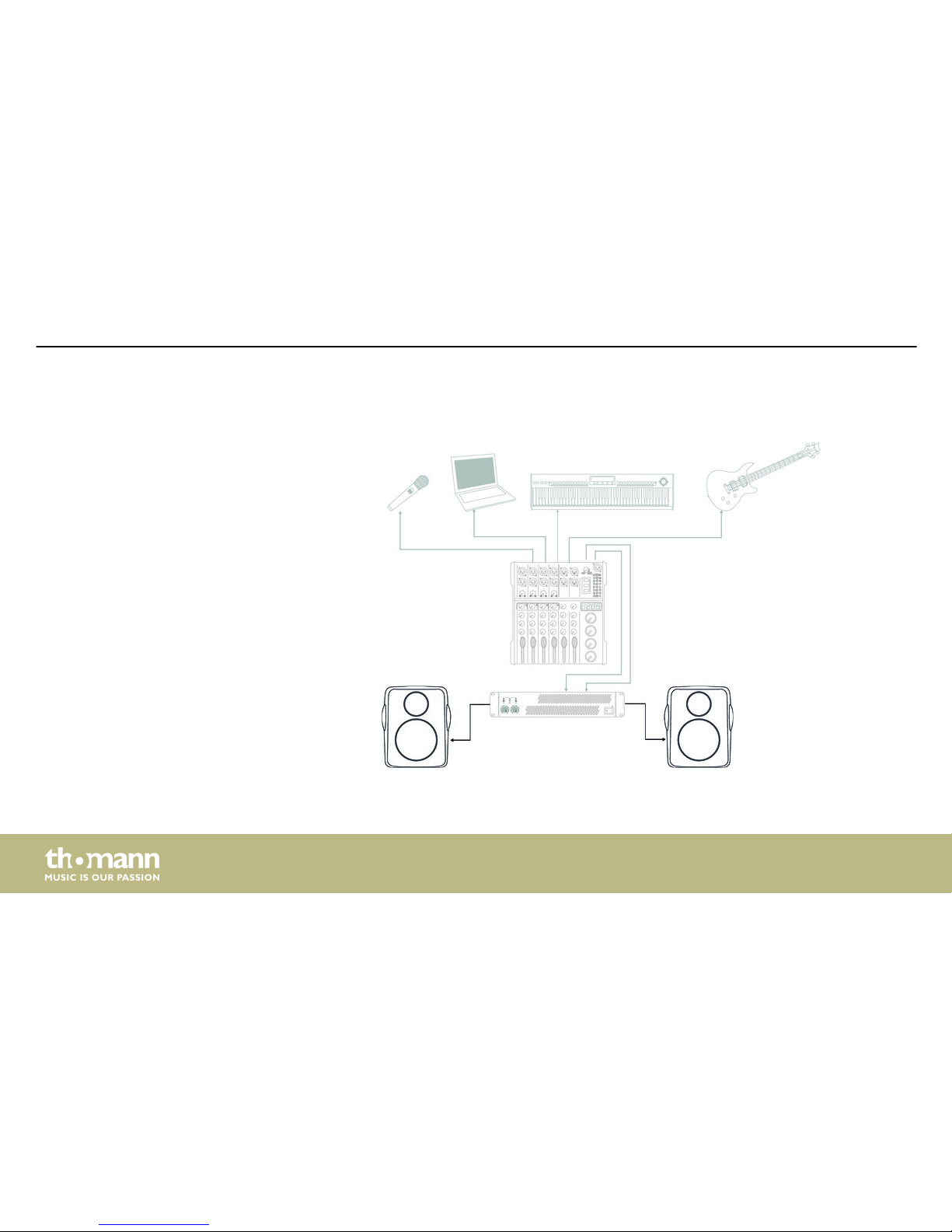

4.3 Connections
Installation methods
Installation
passive full-range speaker
18

1, 2 NL4 connections wired in parallel
3 Screw connection (2 × bipolar) with protective cover
Installation
Achat 206
19

5 Technical specifications
System 2-way full-range box with built-in crossover
Speakers 2 × 6" woofer, 1" compression driver
Power handling 250 W (RMS), 1000 W (peak)
Impedance 8 Ω
Sound pressure level (max.) 122 dB
Frequency response 70 Hz … 20 kHz
Dispersion angle (H × V) 90° × 90°
Dimensions (W × H × D) 200 mm × 570 mm × 228 mm (7.87 × 22.44 × 8.98 inches)
Weight 12 kg
Technical specifications
passive full-range speaker
20
