02.34.5 Technical Manual LDK 20(S) - Studio Camera I

LDK 20(S)

Studio Camera

Technical Manual

Contents

About This Manual ................................................II

SafetyInstructions ........................................... 1-1

Safety Summary ................................................ 1-2

CautionsandWarnings ...................................... 1-2

Earthing ............................................................. 1-3

Installation ........................................................ 2-1

Packing/Unpacking ............................................ 2-2

Local / Remote Power Supply ............................ 2-2

HardwareSetupand Customization ................... 2-3

Test Sawtooth .................................................... 2-4

Lens matching ................................................... 2-4

AnalogueCh1-Ch2 ............................................. 2-5

External Aspect Ratio Switch............................. 2-5

Dipswitch Settings ............................................. 2-5

ViewfinderCadreIndication ................................ 2-6

Audio / Intercom settings ................................... 2-7

Private Data ....................................................... 2-8

ConnectorsandCables ...................................... 2-9

Specifications LDK20 ....................................... 2-14

Replacements ................................................... 3-1

Introduction ........................................................ 3-2

Printed circuit boards ......................................... 3-2

Frontmodule ...................................................... 3-3

FilterwheelCassette........................................... 3-4

Powersupply ..................................................... 3-4

Adjustments ..................................................... 4-1

Introduction ........................................................ 4-2

Test Equipment ................................................. 4-3

Set-up Instructions ............................................. 4-3

Video Processor 1 Board ................................... 4-5

Digital Video Processor .................................... 4-10

Digital Video Processor .................................... 4-11

Digital Video Processor Subboard ................... 4-12

Digital Video Processor Subboard ................... 4-13

Digital Video Processor .................................... 4-14

Digital Video Processor .................................... 4-15

Video Miscellaneous Board .............................. 4-17

Sync./ShadingBoard ....................................... 4-27

Video Miscellaneous Board .............................. 4-35

Encoder Board PAL ......................................... 4-37

Encoder BoardNTSC ....................................... 4-43

Audio/Intercom LF Board ................................. 4-51

Audio/Intercom LF Board RTS MODE ............. 4-55

Pre-ProcessorBoard ........................................ 4-57

Drawings ........................................................... 5-1

Block Diagram Power Signals ............................ 5-2

Block Diagram Video Signals ............................. 5-3

Block Diagram Transmission Signals ................. 5-4

Block Diagram Control Signals ........................... 5-5

II Technical Manual LDK 20(S) - Studio Camera 02.34.5

About This Manual

Service policy

The LDK 20(S) is a sophisticated camera containing

state-of-the-art electronic components which are

designed to provide long-life operation without the

need for maintenance. With this in mind, the service

policy of Thomson Multimedia Broadcast Solutions

endeavourstoensure that help willbequickly on hand

in the unlikely event of anything going wrong. The

guidingprinciplesoftheThomsonMultimediaBroadcast

Solutionsfirstline maintenance philosophy arespeed

and cost effectiveness. First line maintenance is

dedicatedtokeepingyour camera operational, despite

afault,bymodulereplacementandthereplacementof

minor mechanical parts by the user.

Purpose of this manual

The provision of correct information is the first step in

ensuring the operational integrity of the camera.

Information on the operation of the camera is to be

found in the User’s Guide.

This installation and first line maintenance manual is

an integral part of the service policy. It ensures that

you will be able to install and set-up your camera to

meet the requirements of your environment. This

informationontheinstallationofthecameraiscontained

in Section 2 of the manual. The remaining sections of

themanualprovidefirstlineserviceinformationsothat

suitably qualified service personnel can detect and

repair faults, normally by module replacement.

Becauseofthecomplexityof some of the components,

second line service can only be carried out at the

specially equipped service centres and information

concerning second line maintenance is not supplied

in this manual.

Intendedaudience

The manual is intended as a guide to those with a

workingknowledgeof camera systemsandinstallation

techniques.The first line detection and repair of faults

requiresageneralknowledgeoftestandmeasurement

techniques.

Structure of this manual

The manual is divided into five sections:

Section 1: Safety Information.

Contains important safety information and should be

read before carrying out any work on the camera.

Section 2: Installation.

Givesinstructionsontheintegrationofthecamerainto

the operating environment and the customization of

certainhardwarefunctions

Section 3: Replacements.

Gives information on the replacement of components

at first line level.

Section 4: Adjustments.

Containsthe adjustment procedures to befollowed to

obtain the best performance from the camera.

Section 5: Drawings.

Contains block diagrams of the camera.

Safety Instructions Technical Manual LDK 20(S) - Studio Camera 1-1

Section 1

Safety Instructions

This section outlines the precautions that must be taken into account when using the LDK 20(S)

StudioCamera.

Contents

Safety Summary ........................................................ 1-2

Cautions and Warnings ............................................. 1-2

Earthing ..................................................................... 1-3

1-2 Technical Manual LDK 20(S) - Studio Camera Safety Instructions

Safety Summary

This informaton is intended as a guide for trained and

qualified personnel who are aware of the dangers involved

in handling potentially hazardous electrical/electronic

equipment. It is not intended to contain a complete list of

all safety precautions which should be observed by

personnel in using this or other electronic equipment.

Theinstallation,maintenance and serviceofthis equipment

involves risks both to personnel and equipment and must

be performed only by qualified personnel exercising due

care.

Personnel engaged in the installation, operation,

maintenance or servicing of this equipment are urged to

become familiar with First Aid theory and practises.

During installation and operation of this equipment, local

building safety and fire protection standards must be

observed.

Before connecting the equipment to the power supply of

the installation, the proper functioning of the protective

earth lead of the installation needs to be verified.

Whenever it is likely that safe operation is impaired, the

apparatus must be made inoperative and secured against

any unintended operation. The appropriate servicing

authority must then be informed. For example, safety is

likely to be impaired if the apparatus fails to perform the

intended function or shows visible damage.

This product has been designed and tested according to

EN60065.

Cautions and Warnings

When performing service, be sure to read and comply with

the warning and caution notices appearing in the manuals.

Warnings indicate danger that requires correct procedures

orpractices to preventdeathor injurytopersonnel. Cautions

indicate procedures or practices that should be followed

to prevent damage or destruction to equipment or property.

WARNING

THE CURRENT AND VOLTAGES PRESENT IN THIS

EQUIPMENT ARE DANGEROUS. ALL PERSONNEL

MUST AT ALL TIMES FOLLOW THE SAFETY

REGULATIONS.

ALWAYS DISCONNECT POWER BEFORE REMOVING

COVERS OR PANELS.

ALWAYS DISCHARGE HIGH VOLTAGE POINTS

BEFORE SERVICING.

NEVER MAKE INTERNAL ADJUSTMENTS, PERFORM

MAINTENANCE OR SERVICE WHEN ALONE OR WHEN

FATIGUED.

IN CASE OF AN EMERGENCY ENSURE THAT THE

POWER IS DISCONNECTED.

ANY INTERRUPTION OF THE PROTECTION

CONDUCTOR INSIDE OR OUTSIDE THE APPARATUS,

OR DISCONNECTION OF THE PROTECTIVE EARTH

TERMINAL, IS LIKELY TO MAKE THE APPARATUS

DANGEROUS. INTENTIONAL INTERRUPTION IS

PROHIBITED.

FOR SAFETY REASONS THE CPU MUST BE MOUNTED

IN A 19-inch RACK WHICH HAS SAFETY COVERS

ACCORDING TO IEC65.

WHEN TWO CPUs ARE MOUNTED ABOVE EACH

OTHER THE MINIMUM DISTANCE BETWEEN THEM

MUST BE 50MM OR THE RACK MUST BE FORCE-AIR

COOLED.

USE ONLY FUSES OF THE TYPE AND RATING

SPECIFIED.

CAUTION

To prevent risk of overheating, ventilate the product

correctly.

Connect the product only to a power source with the

specified voltage rating.

Only connect a Triax cable from the LDK 6 camera

family to an LDK 6 CPU. Never connect it to any other

base station.

Never connect the Triax cable from a camera to a

CPU of a different family; never connect the LDK

family to the TTV family.

Do not allow system ground currents to exceed 1.5A

in the outer shield of the triax cable or 0.2A in other

cable shields.

It is strickly prohibited to short circuit the inner and

outer shields of a triax cable used to connect a

camera to a base station.

Safety Instructions Technical Manual LDK 20(S) - Studio Camera 1-3

Symbol Colour Explanation

Red High voltage terminal at which a

voltage, with respect to an other

terminal, exists or may be

adjusted to 1000V or more.

Yellow/Black Live part.

Yellow/Black This marking indicates that the

operator must refer to an

explanation in the Instruction

Manual, or that a specific

component must be replaced by

the component specified in the

documentation for safety

reasons.

White/Black Protective earth (ground)

terminal.

Cathode ray tubes

Components marked on the circuit diagram are critical

for safety and include those specified to comply with X-ray

emission standards for units using cathode ray tubes and

those specified for compliance with various regulations

regarding spurious radiation emission.

When servicing units that use cathode ray tubes (CRTs),

the cathode ray tubes themselves, the high voltage circuits

and related circuits are specifically chosen so that they

complywithrecognized codes pertaining toX-rayemission.

Consequently, when servicing, replace the cathode ray

tubes and other parts with specified parts only. Do not

attempt to modify these circuits as any unauthorized

modification can increase the high voltage value and

cause X-ray emission from the cathode ray tube.

Handlethe cathoderaytube onlywhenwearing shatterproof

goggles and after discharging the high voltage completely.

Earthing

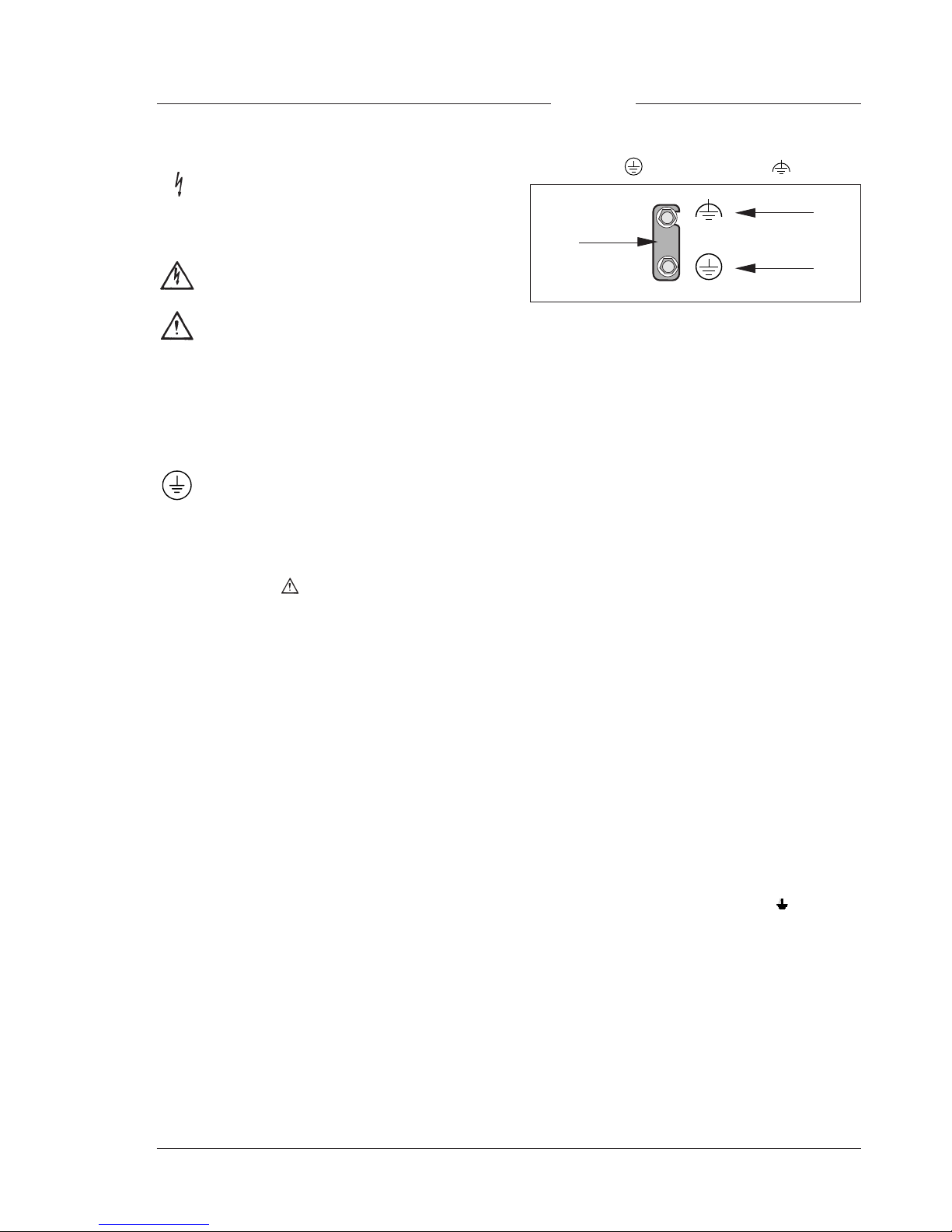

The rear of a CPU has two separate screw terminals for

protective earth (PE) and video earth (VE).

These are normally connected by a metal strap. The

protective earth terminal is internally connected to the

protective earth conductor of the power cable. If required,

the central earth connection wire of the studio can be

connected to terminal PE.

In normal circumstances the connection between the

protective earth and the video earth should not be broken.

The metal strap may be removed only if the studio (or OB

van) is equipped with separate protective and video earth

systems. Under these circumstances the video earth

terminal must be connected to the central functional earth

potential (video earth) of the studio. This earth potential

should have functional protective and noiseless earth

(FPE) qualities as stated in the VDE regulation 0800/part2.

A low impedance interconnection of both earth conductors

must be provided at the central studio earthing point.

WARNING

THE UNIT MUST ALWAYS BE CONNECTED TO

PROTECTIVE EARTH.

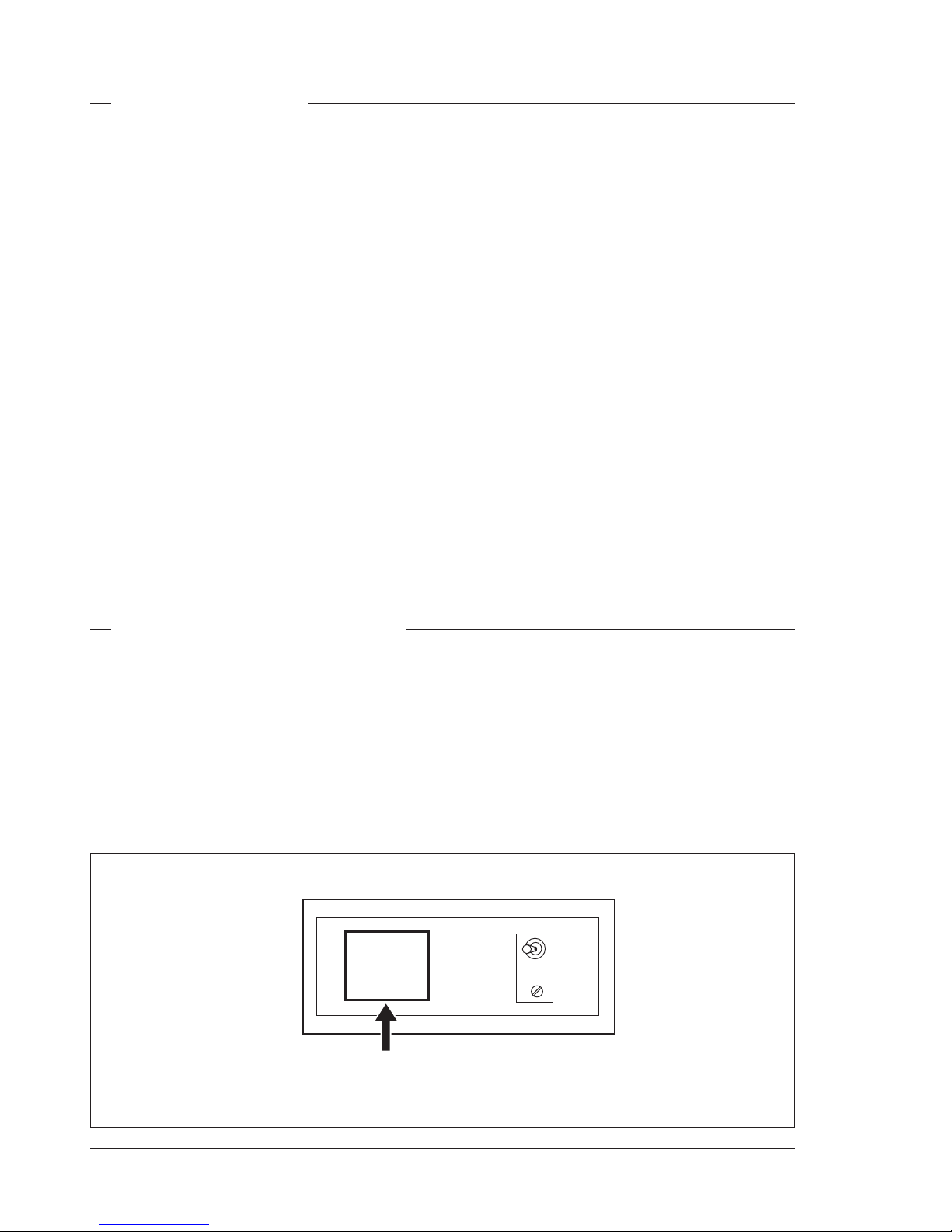

Metal

strap

Mains Lead Wiring for UK Users

The wires in the mains lead are coloured in accordance

with the following code:

GREEN AND YELLOW - EARTH

BLUE - NEUTRAL

BROWN - LIVE

As the colours of the wires in the mains lead of this

apparatus may not correspond with the coloured markings

identifying the terminals in your plug proceed as follows:

• The wire coloured GREEN AND YELLOW must be

connected to the terminal on the plug marked with the

letter E or by the safety earth symbol or coloured

GREEN or GREEN AND YELLOW.

• The wire coloured BROWN must be connected to the

terminal marked with the letter L or coloured RED.

• The wire coloured BLUE must be connected to the

terminal marked with the letter N or coloured BLACK.

Ensure that your equipment is connected correctly - if you

are in any doubt consult a qualified electrician.

1-4 Technical Manual LDK 20(S) - Studio Camera Safety Instructions

Installation Technical Manual LDK 20(S) - Studio Camera 2-1

Section 2

Installation

This section provides information which is relevant when the camera is to be used for the first time.

Packing and unpacking instructions together with information on the integration of the camera into

yourstudio system areprovided. Theprocedures for thecustomization ofcertain hardware functions

and connector information is also provided.

Contents

Packing/Unpacking ............................................ 2-2

Local / Remote Power Supply ............................ 2-2

HardwareSetupand Customization ................... 2-3

Test Sawtooth.................................................... 2-4
