Thor Kitchen HDW2401SS User manual

COOK
LIKE
A
GOD
HDW2401S S

DISHWASHER
USE AND CARE MANUAL
HDW2401SS

TABLE OF CONTENTS
Important Safety Instructions-----------------------------------------------------------2
Features of your new dishwasher-----------------------------------------------------3-4
Operating Instructions----------------------------------------------------------------5-8
Preparing and loading dishes--------------------------------------------------------9-13
Care & cleaning--------------------------------------------------------------------14-16
Troubleshooting--------------------------------------------------------------------17-18

IMPORTANT SAFETY INSTRUCTION
For your safety, the information in this manual must be followed to minimize the risk of
fire or explosion, electric shock, and to prevent property damage, personal injury.
WARNING
Water supply temperature should be 120 F or 149 F.
Dispose of the discarded appliance and packing material properly.
The dishwasher must be grounded, or it can result in a risk of electric shock.
If there is any damage to the dishwasher, please contact your dealer do not attempt to
repair or replace any part by yourself.
PROPER INSTALLATION
Please install your dishwasher properly follow the installation guide.
.
.
.
.
Basic precaution before use
Read all instructions before using the dishwasher.
The manual does not cover every possible condition and situation that may occur .
Use the dishwasher only for intended function as described in this manual.
When loading items to be washed / Load sharp items and knives so that they are not likely to
damage the door seal and tub / Load sharp items and knives with the handles up to reduce
the risk of cut-type injury. Do not wash plastic items unless marked dishwasher safe or the
equivalent, if not marked, check with manufacture for recommendation, items / that are not
dishwasher safe may melt and create a potential fire hazard / If the dishwasher drains into a
food disposer, make sure disposer is completely empty before running dishwasher / Do not
tamper with control / Do not operate your dishwasher unless all enclosure panels are in the
properly place / Do not touch the heating element during or immediately after use,especially if
the sanitize option has been selected.
Do not let children abuse,sit or stand on door or racks of a dishwasher. Under certain
conditions,hydrogen gas may be produced in a hot water system that has not been used for two
weeks or more.Hydrogen gas is explosive.If the hot water system has not been used for such a
period,before using on all hot water faucets and let water flow from each for several minutes.
This will release any accumulated hydrogen gas.Hydrogen gas is flammable. Do not smoke
or use an open flame during this time. Do not store or use combustible materials, gasoline
or other flammable vapors and liquids in the vicinity of this or any other appliance. Use only
detergents or rinse agents recommended for use in a dishwasher and keep them out of the
reach of children.
Keep young children and infants away from dishwasher when it is operating. Do not use the
dishwasher if it has a damaged power line or plug, and do not plug the dishwasher into a
damaged outlet, failure to observe these instructions may result in electrical shock. Remove
the door to the washing compartment when removing an old dishwasher from service or
discarding it.
2

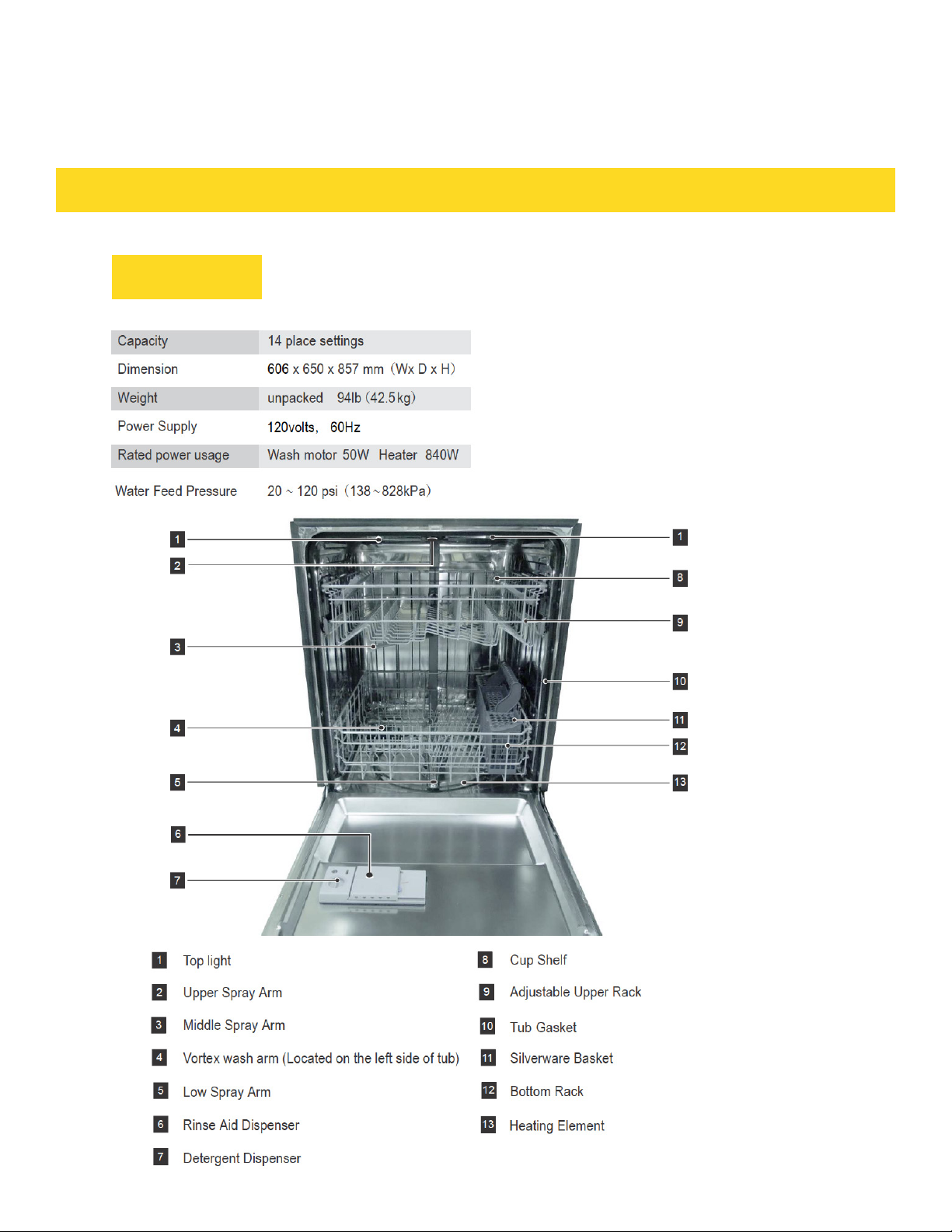

FEATURES OF YOUR NEW DISHWASHER
SPECIFICATION
3

FEATURES
FEATURES OF YOUR NEW DISHWASHER
4

HOW YOUR DISHWASHER CLEANS
GETTING STARTED
FEATURES OF YOUR NEW DISHWASHER
Your dishwasher cleans by spraying a mixture of hot water and detergent through the
spray arms against soiled surfaces
The dishwasher fills with water covering the filter area. Water is then pumped through
the multiple filter and spray arms. Seperated soil particles go down the drain as the
water is pumped out and replaced with clean water.
The number of water fills will vary with the cycle being used
1. Load dishwasher (See Preparing and loading dishes)
2. Add detergent (See fill detergent to the dispenser)
3. Add rinse aid, if needed (See fill rinse to dispenser)
4. Close door to latch.
5. Select desired CYCLE (See Cycle Chart). The indicator light above the pad will glow
when selected
6. Selected desired OPTIONS (See Energy Options) The indicator light abobe the pad
will glow when selected
7. Run hot water faucet nearest dishwasher until water is hot. Turn off water.
8. To start press START/CANCEL (See Start/Cancel pad).
Your dishwasher has the front control panel. Your selections will only beactivated when
the door is firmly closed.
NOTE
The dishwasher is programmed to remember your last cycle so you do not have to
reset each time. To start the dishwasher using the same cycle and options selected on
the previous wash, just press the Start/Cancel pad.

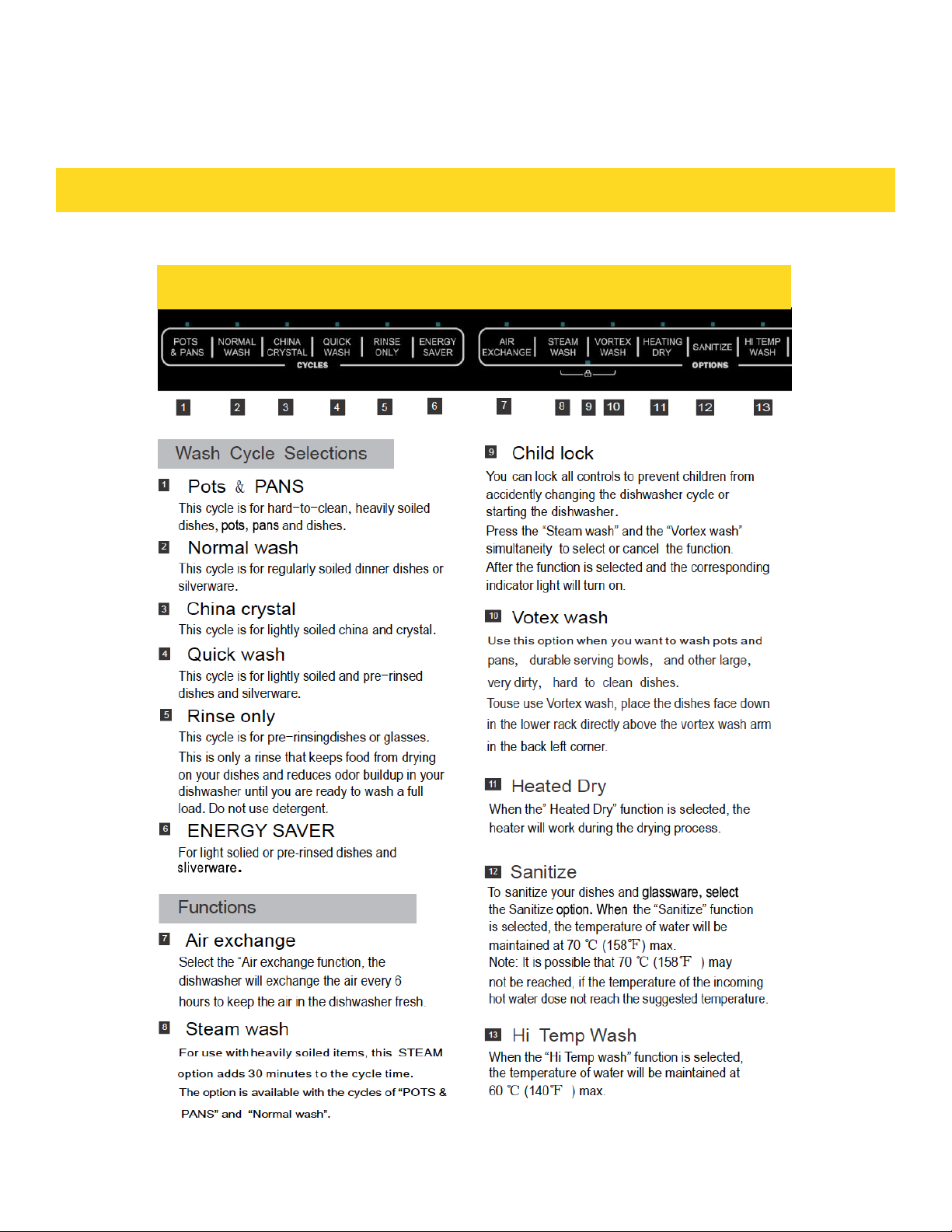

Wash Cycle Selections
Cycle times are approximate and will vary with options water is necessary to activate
dishwasher detergent and melt fatty food soils. An automatic sensor will check the
incoming water temperature and if it is not hot timer will be delayed for automatic
water heating in the main wash of all happens even when HI-TEMP WASH is selected
an even higher temperature will be guaranteed to handle heavier soil loads.
5

FEATURES OF YOUR NEW DISHWASHER

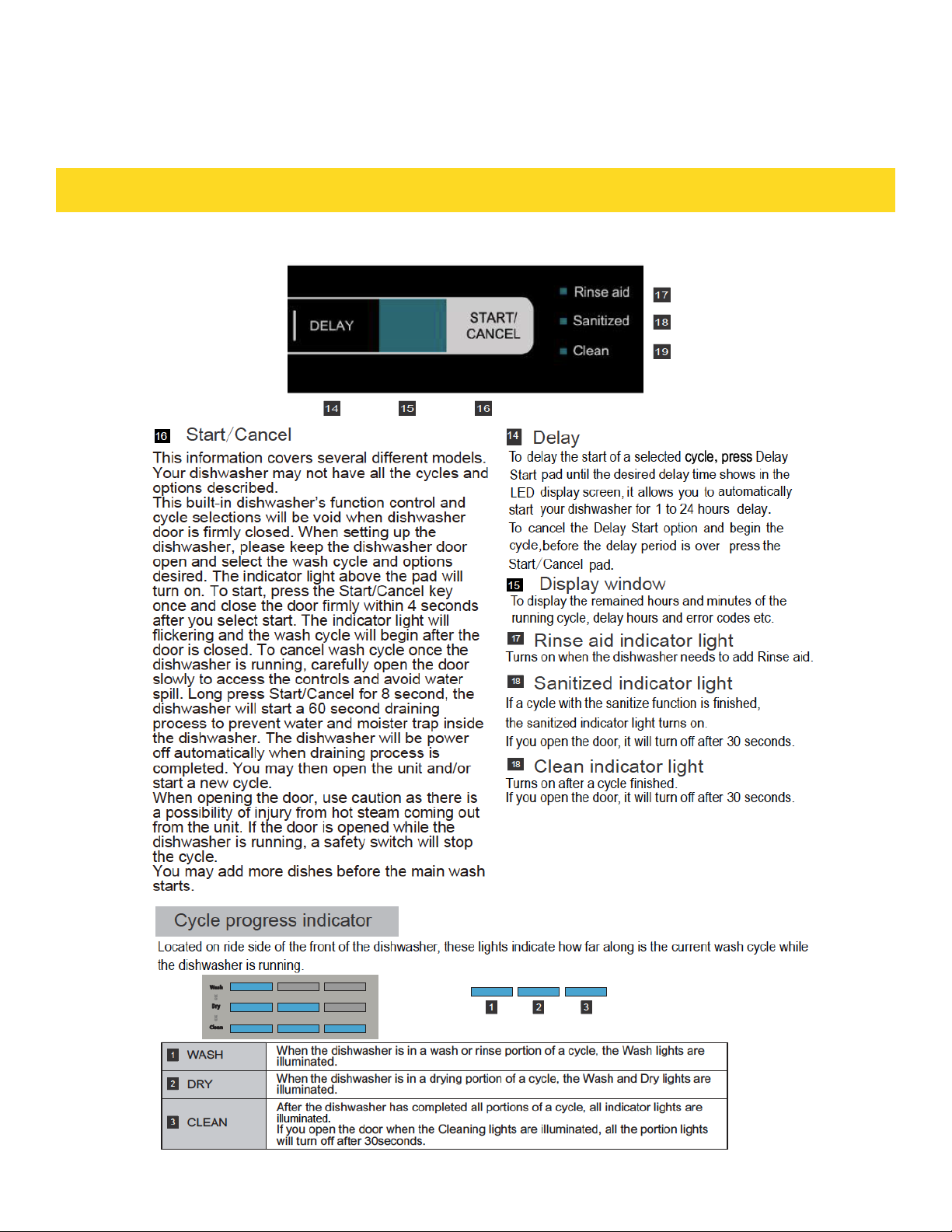

CONTROL PANEL
6

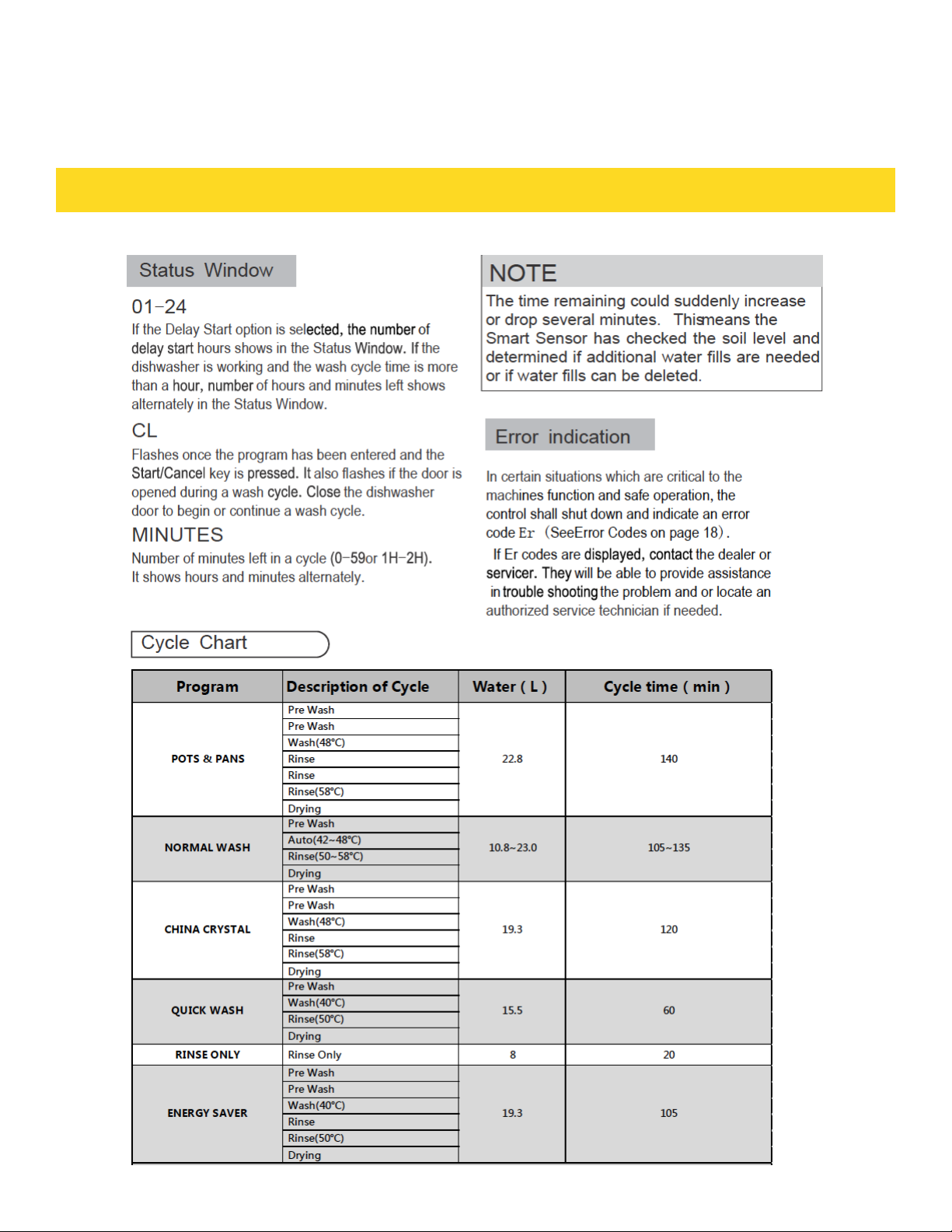

OPERATING DISHWASHER
7

OPERATING DISHWASHER
8

OPERATING DISHWASHER

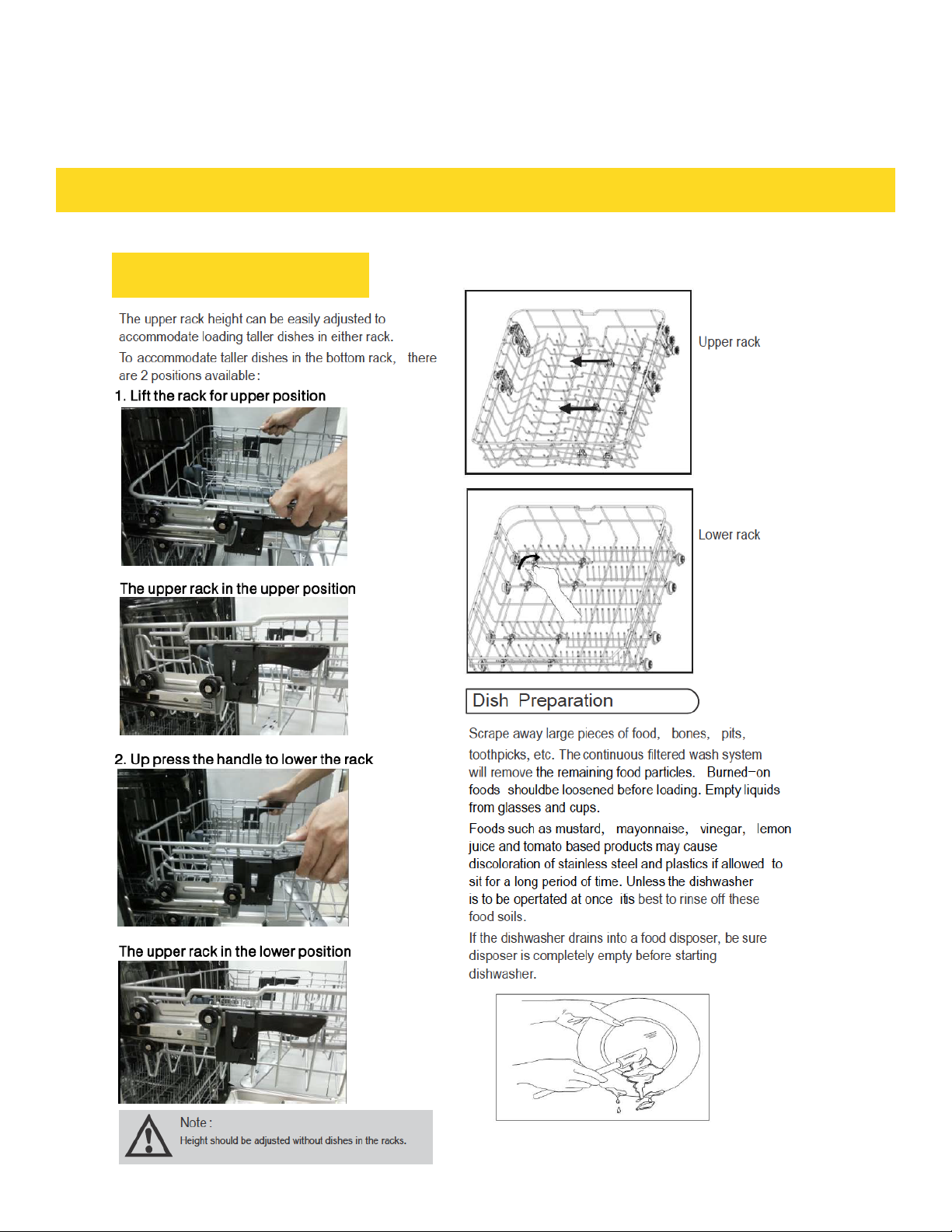

ADJUSTABLE UPPER RACK
9

The bottom rack is designed to load plates,
soup bow ls, plates,saucers and cookware.The
adjustable rack space wil lallow you to load
maximum 13 inch items.
Large items should be placed along the edge
so they do not interfere with the middle spray
arm rotation, and make sure they not prevent
the detergen tdispenser from opening. Large
items should be turned so that the inside faces
downward, and make sure these items do not
interfere with the lower spray arm rotation.
The fold-down tines in the bottom rack make i
teasy to load those extra large and hard-to-f it
items.The tines may be left up for norma l use
or folded down for more flexible loading.Fold
down for more space to load large pots or pans
The upper rack is designed for cups, glasses,
small plates, bowls and plastic items marked safe
etc. For best results, place the bowls, cups, glass-
es, sauce pans with soiled surface facing down or
toward the center. Tilt slightly for better drainage.
Make sure the loaded dishes do not
interfere with the rotation of the middle
spray arm, which is located at the bottom
of the upper rack. (Check this by rotating
the middle spray arm by hand.)
OPERATING DISHWASHER

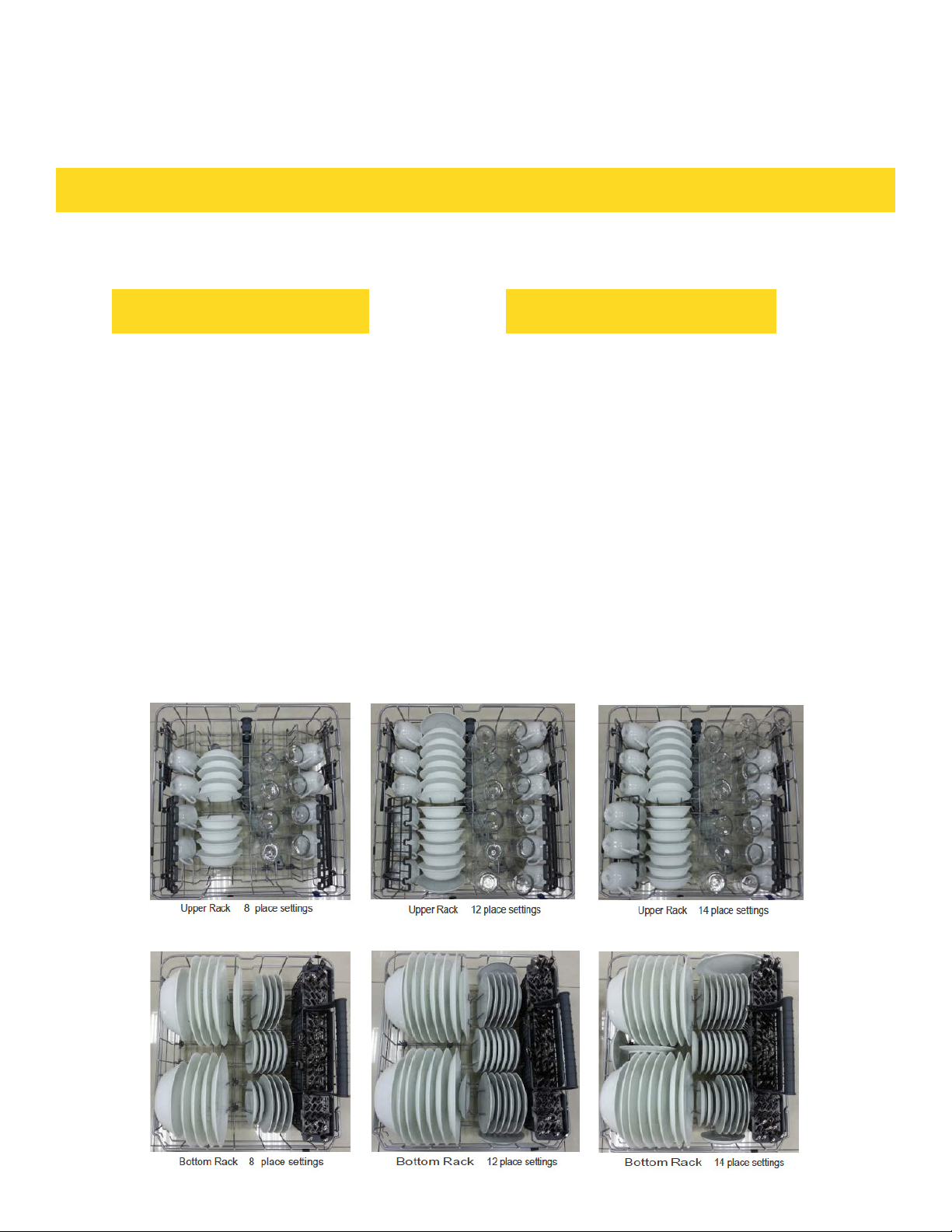

LOADING THE UPPER RACK LOADING THE BOTTOM RACK
9

PREPARING AND LOADING DISHES

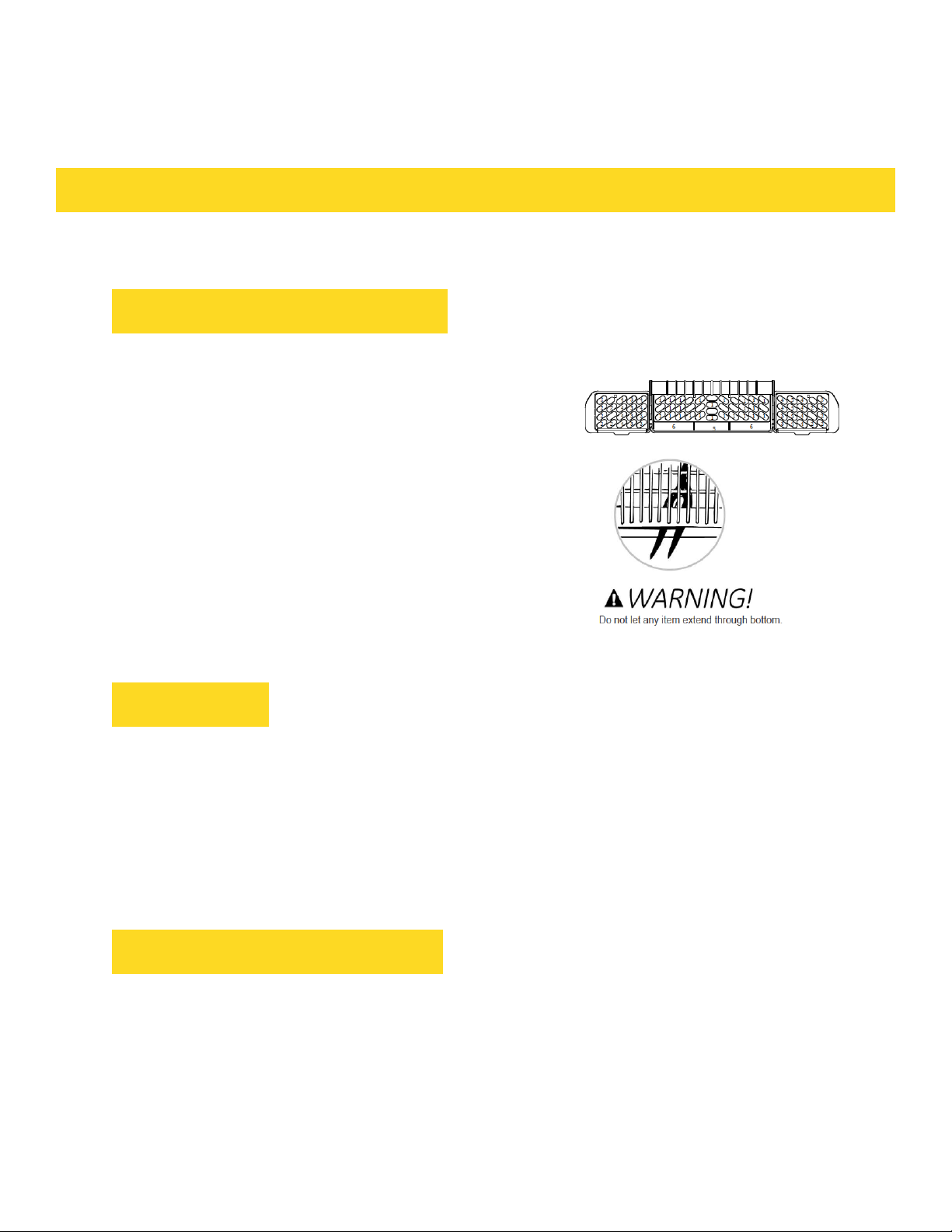

LOADING THE SILVERWARE BASKET
ADDING A DISH
FILLING THE RINSE AID DISPENSER
The silverware basket could be divided into three separate modules that can be used in
both upper and lower racks
1. Spoons
2. Knives
3. Salad Forks
4. Forks
5. Large Spoons
6. Large forks
Be sure nothing protrudes though bottom of the basket or rack to block the lower spray
arm.
To add or remove items after wash cycle starts:
1 Open door slightly and wait a few seconds until wash action stops before completely
opening.
2 Add the item.
3 Close door firmly to latch and cycle will automatically resume.
CAUTION TO AVOID BURN INJURY:
Slightly open door and wait until spray arms and wash action stop. Hot water may
splash out of dishwasher. Failure to do so may result in injury.
Rinse aid greatly improves drying and reduces water spots and filming.Without rinse
aid your dishes and dishwasher interior will have excessive moisture. The Heated Dry
option will not perform as well without rinse aid.The rinse aid dispenser,located next to
the Detergent cup,automatically releases a measured amount of rinse aid during the
last rinse. If spotting and poor drying is a problem,increase the amount of rinse aid dis-
pensed by rotating the dial to a higher number.The dial is located under the dispenser
cap. If the rinse aid is low, the Rinse Aid light is illuminated a t
the beginning and end of the cycle indicating that it is time to refill.
10

PREPARING AND LOADING DISHES

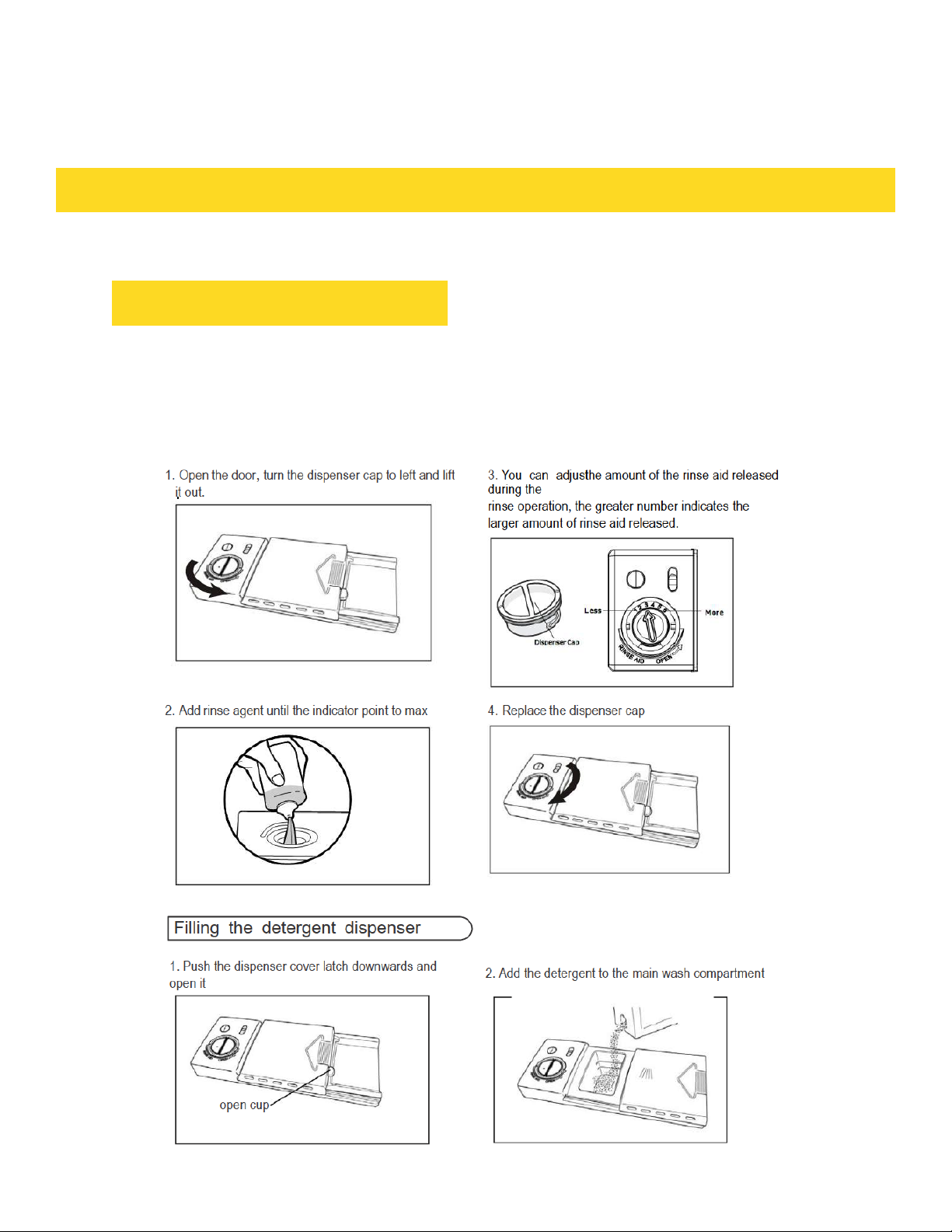

FILLING THE RINSE AID DISPENSER
Your dishwasher is designed to use a liquid rinse aid. The use of rinse greatly improves
drying performance after the final rinse. Do not use a solid or bar-type rinse aid. Under
normal conditions, the rinse aid will last approximately one month, try to keep it full,
but do not over fill.
11

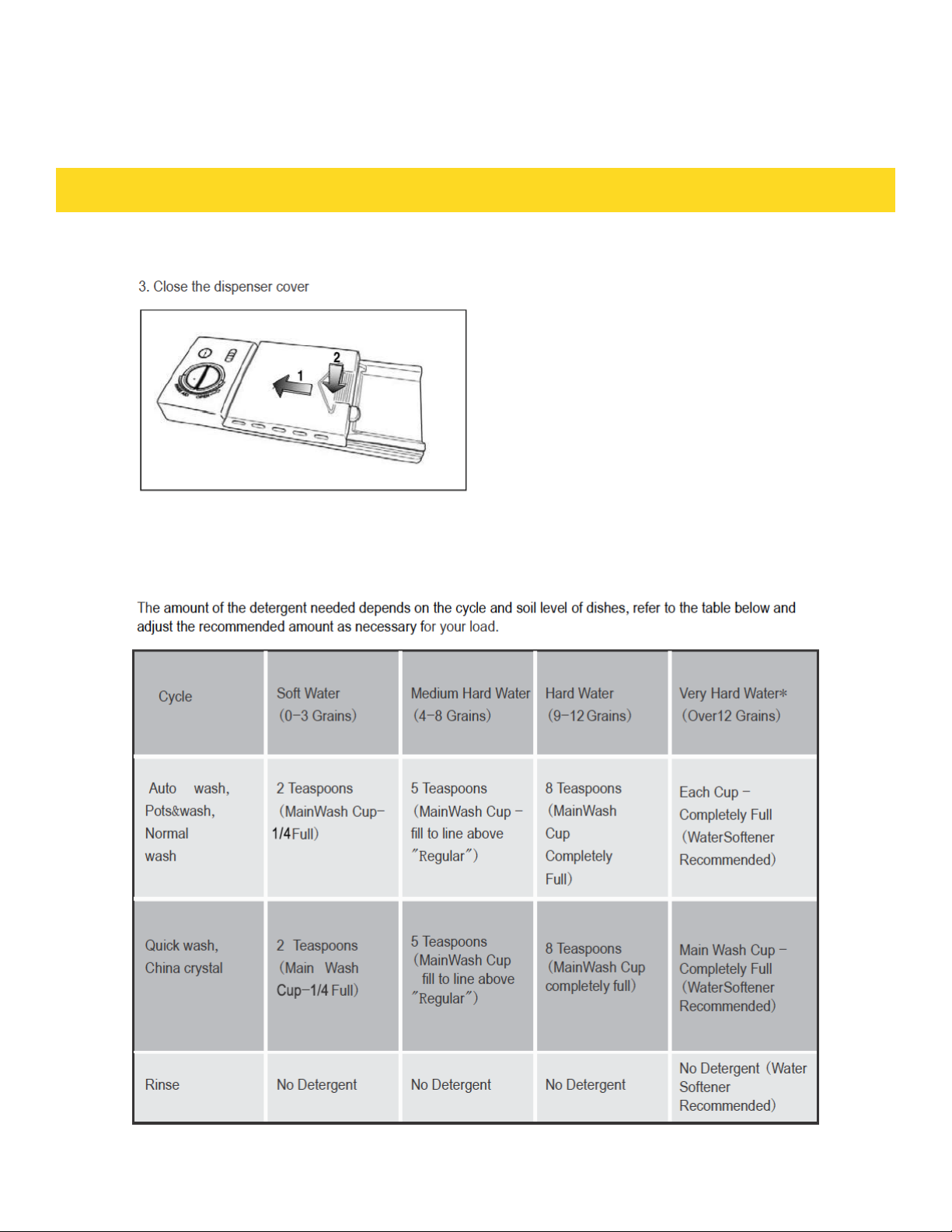

PREPARING AND LOADING DISHES
12

PREPARING AND LOADING DISHES
CLEANING THE EXTERIOR DOOR AND PANEL
CLEAN THE CYLINDER FILTER
CLEAN THE STAINLESS STEEL INNER DOOR AND TUB
1. Stainless steel panel
Clean the stainless steel door and handle regularly to
remove the debris with cleaning soft cloth.
Do not use appliance wax, polish, bleach or products
containing chlorine to clean the stainless steel door.
2.Controlpanel
Clean the control panel with a lightly dampened
cloth, clean it gently.
The tub is made of Stainless Steel,it will not rust or corrode if the dishwasher should
be scratched or dented.
Clean the spots on the steel inner door and tub with a damp nonabrasive cloth.
The Cylinder Filter is designed to collect some big items such as broken glass, bones
and pits. The Cylinder Filter needs to be cleaned to maximize wash performance.
Remove the bottom rack, rotate the cylinder filter as shown, lift it out, empty and clean
it by holding it under running water and replace.
WARNING
Burn Hazard Allow heating element to cool before cleaning the interior. Failure to do so
can result in burns.
13

PREPARING AND LOADING DISHES

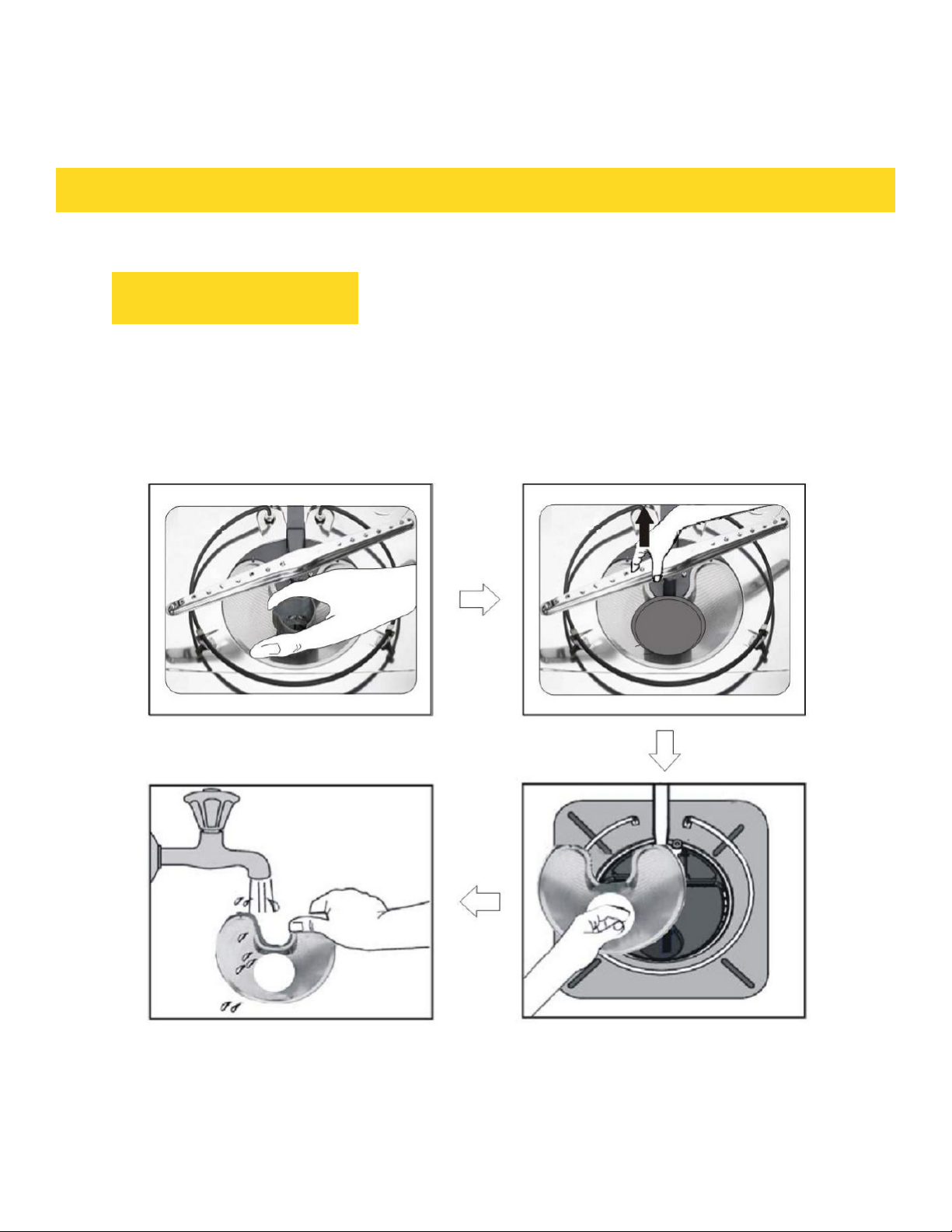

CLEAN THE FINE FILTER
Take out the Cylinder Filter and remove the Fine Filter from the dishwasher tub
bottom. To remove the Fine Filter you must first remove the bottom spray arm as
shown below. Flush the Fine Filter by holding it under running water and replace.
14

PREPARING AND LOADING DISHES

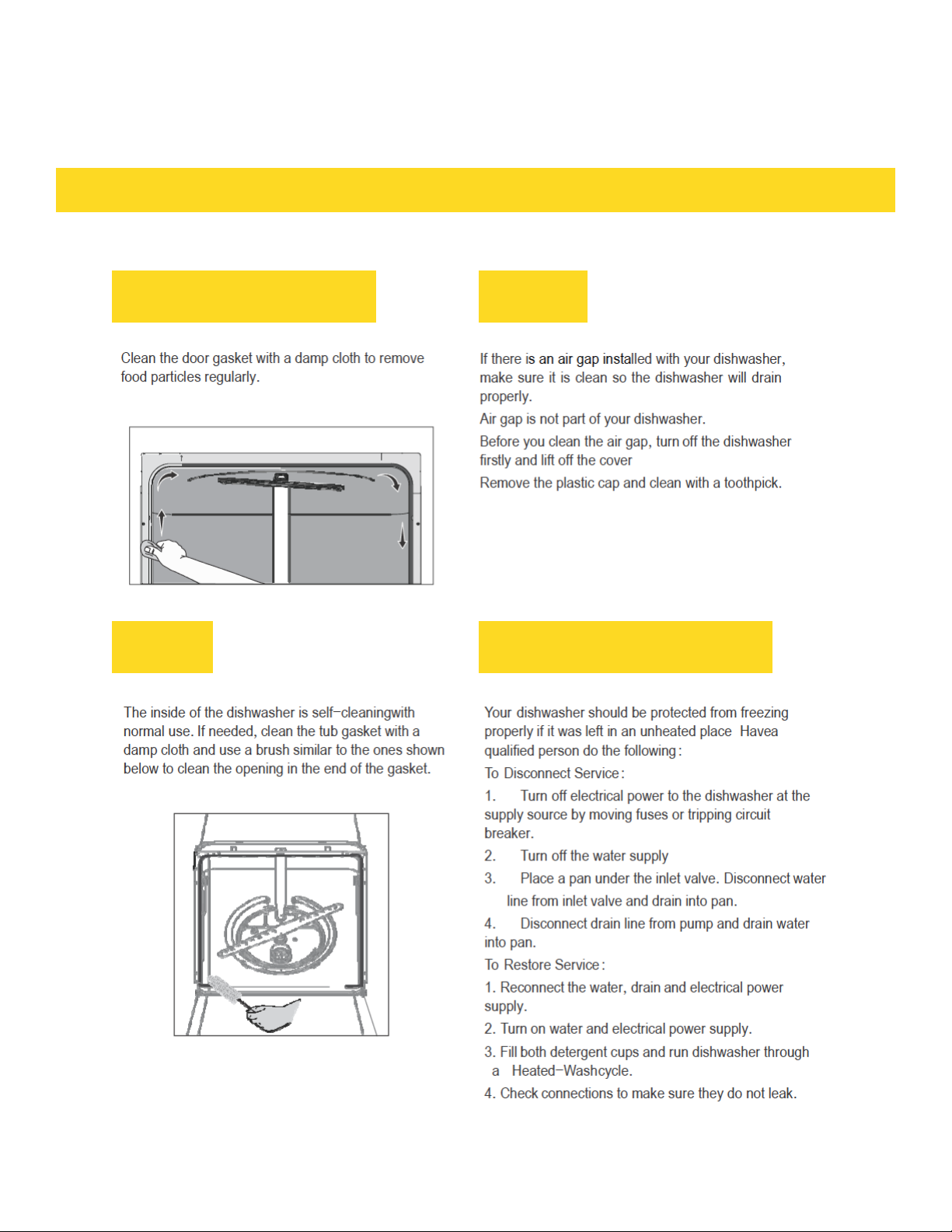

CLEAN THE DOOR GASKET
INSIDE
AIR GAP
PROTECT AGAINST FREEZING
15

TROUBLE SHOOTING
PROTECT AGAINST FREEZING
16

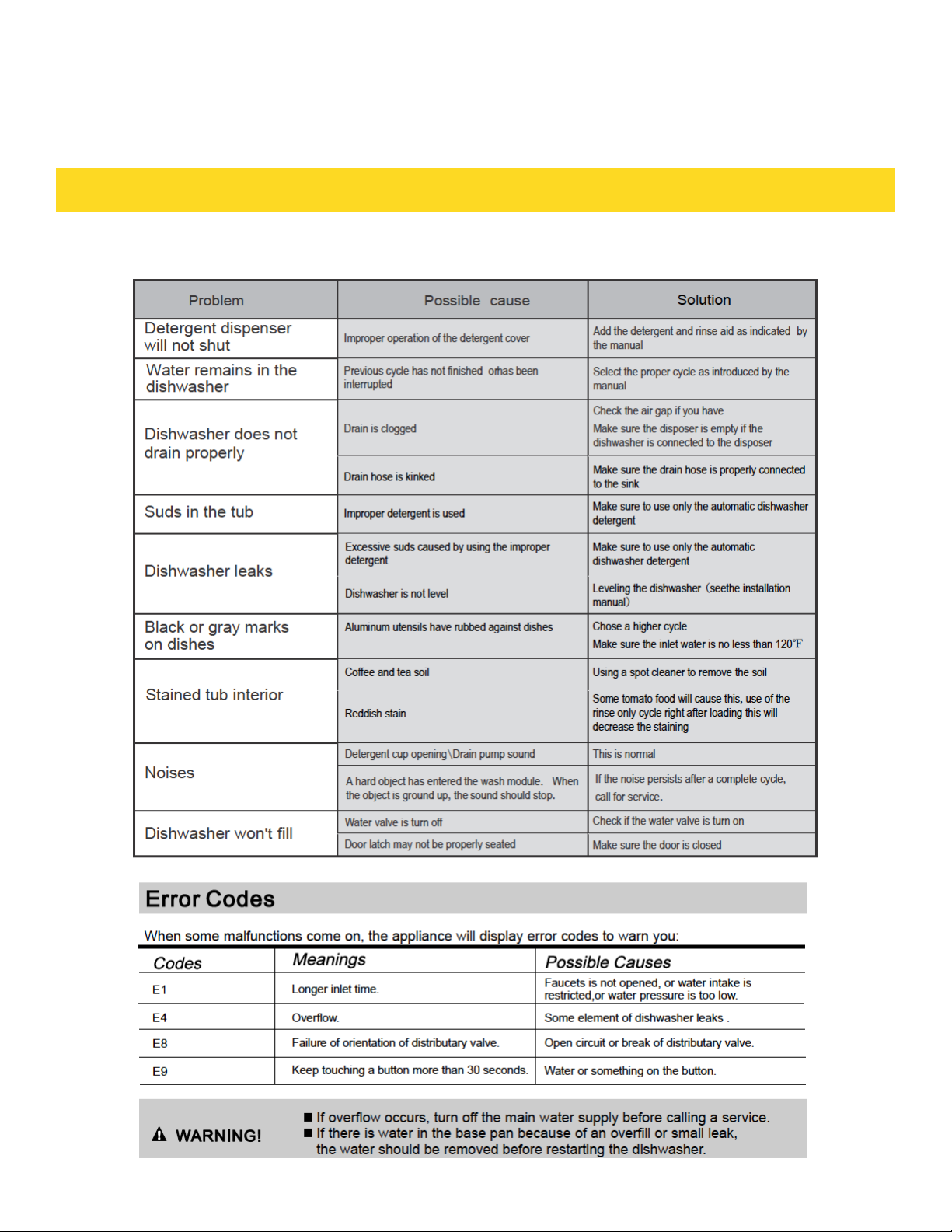

TROUBLESHOOTING
17
