THOR T450TTLMW User manual
WARNING!
It is hazardous for anyone other than authorized service personnel to carry out servicing
or repairs which involves the removal of covers. To avoid the risk of an electric shock do
not attempt to repair this appliance yourself.
Safety tips
Do not use electrical appliances such as a hair dryer or heater to defrost your Fridge.
Containers with flammable gases or liquids can leak at low temperatures.
Do not store any containers with flammable materials, such as spray cans, fire
extinguisher refill cartridges etc. in the Fridge.
Do not remove items from the Fridge compartment if your hands are damp/wet, as this
could cause skin abrasions or “Frost burns”.
Manufacturer’s recommended storage times should be adhered to. Refer to relevant
instructions.
Do not allow children to tamper with the controls or play with the Fridge. The Fridge is
heavy. Care should be taken when moving it. It is dangerous to alter the specification or
attempt to modify this product in any way.
Do not store inflammable gases or liquids inside you Fridge.
If the power cable is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualified persons in order to avoid a hazard.
This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if
they have been given supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
This appliance is intended to be used in household and similar applications such as
·staff kitchen areas in shops, offices and other working environments;
·farm houses and by clients in hotels, motels and other residential type environments;
·bed and breakfast type environments;
·catering and similar non-retail applications.
Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of
obstruction.
Do not damage the refrigerant circuit.
Do not use electrical appliances inside the food storage compartments of the appliance,
unless they are of type recommended by the manufacturer.
1
Do not store explosive substances such as aerosol cans with a flammable propellant in
this appliance.
Disposal
Old appliances still have some residual value. An environmentally friendly method of
disposal will ensure that valuable raw materials can be recovered and used again.
The refrigerant used in your appliance and insulation materials requires special disposal
procedures. Ensure that none of the pipes on the back of the appliance are damaged
prior to disposal. Up to date information concerning options for disposing of your old
appliance and packaging from the new one can be obtained from your local council
office.
Locks
If your Fridge is fitted with a lock, to prevent children being entrapped keep the key out of
reach and not in the vicinity of the appliance. If disposing of an old Fridge break off any
old locks or latches as a safeguard.
INTRODUCTION
Before use
Please read these instructions and the Safety guidelines on page 1 carefully before using
your new Fridge. The Fridge is for indoor, domestic use only.
、
No
Description
1
Metal Shelf
2
Thermostat Knob
3
Adjustable Foot
4
Plastic retaining
INSTALLATION
2
Location
When selecting a position for your Fridge you should make sure the floor is flat and firm,
and the room is well ventilated with an average room temperature of between 16℃and
38℃. Avoid locating your Fridge near a heat source, eg, cooker, boiler or radiator. Also
avoid direct sunlight in out-buildings or sun lounges. If you are placing your Fridge in an
out-building such as a garage or annex ensure that the Fridge is placed above the damp
course, otherwise condensation will occur on the Fridge cabinet. Never place the Fridge
in a wall recessed or into fitted cabinets or furniture when your Fridge is working, the grille
at the back may become hot and the sides warm. It must therefore be installed so that
the back of the Fridge has at least 9 cm(31/2”) of free space and the sides have 2
cm(3/4”). Do not drape the Fridge with any covering.

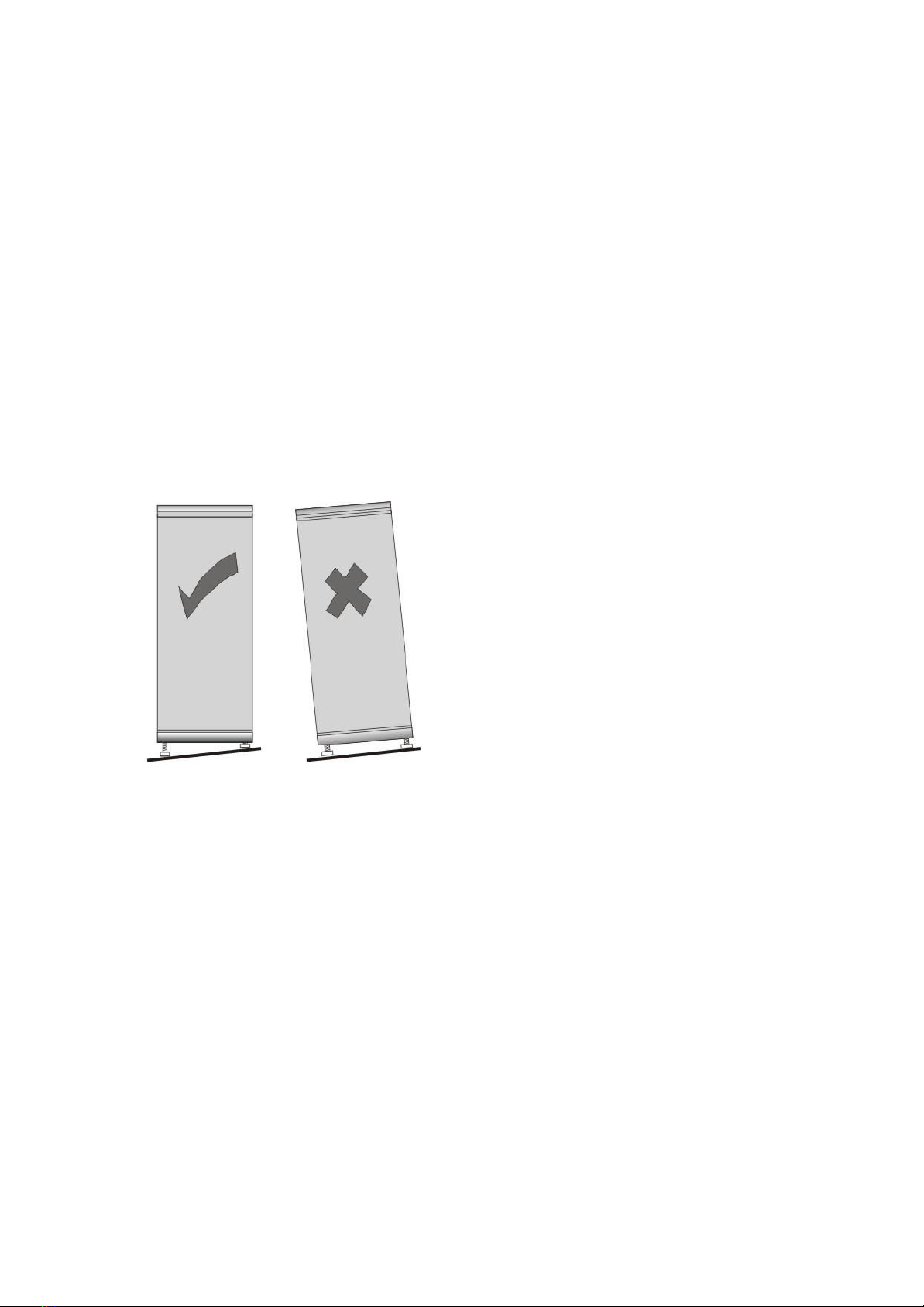

Leveling the Fridge
If the Fridge is not level, the door and magnetic seal alignment will be affected and may
cause you Fridge to work incorrectly. Once the Fridge is placed in its final location, adjust
the leveling feet at the front by turning them.
Cleaning before use
Wipe the inside of the Fridge with a weak solution of bicarbonate of soda. Then rinse with
warm water using a damp sponge or cloth. Wash the baskets and shelves in warm soapy
water and dry completely before replacing in the Fridge. The external parts of the Fridge
can be cleaned with wax polish. See page 7 for more details on cleaning.
Before plugging in YOU MUST
Check that you have a socket which is compatible with the plug supplied with the Fridge.
If not see the section called ELECTRICAL INFORMATION on page 9.
Before switching on!
DO NOT SWITCH ON UNTIL FOUR HOURS AFTER MOVING THE FRIDGE.
The coolant fluid needs time to settle. If the appliance is switched off at any time, wait 30
minutes before switching back on to allow the coolant fluid to settle.
Before filling your Fridge
Before storing foods in your Fridge, turn the Fridge on and wait for 24 hours, to make
sure it is working properly and to allow the Fridge to fail to the correct temperature.
3
START
Testing
Clean the parts of the refrigerator with lukewarm water containing a little neutral
detergent and with clear water, and wipe them dry.
Notes: Electric parts of the refrigerator can only be wiped by dry cloth.
1. Remark: turn the thermostat knob to the "4" position, turn on electricity. The
compressor begin to work..
2. Open the door 30 minutes later, if the temperature in the refrigerator decreased
obviously, it shows that the refrigerator system works well. When the refrigerator
operates for a period of time, the temperature controller will automatically set the
temperature within limits it opens.
Temperature Control Dial
Temperature Control
1.The temperature in the refrigerator compartment is controlled by the temperature
controller installed on the back wall of the refrigerator compartment.
2.Turn the thermostat knob to right or left, you can regulate the temperature inside the
refrigerator.
3.The marks on the knob are the temperature grades, not the exact number of the
degrees of temperature.”OFF” shows a forced STOP and “7” shows the lowest
temperature. Turn the knob from "1"position to "7"position, the temperature decreases
continuously. You may set the temperature control selector to any position according to
what you need.
4.Please set the selector to "4" position in normal use.
STORAGE OF FOOD
1.How to Use the Refrigerator Compartment
*The cook dishes can be put into refrigerator to keep fresh after their temperature
decreases to room temperature.
*Egg pockets and bottle pockets for eggs, butter, milk and bottle drinks,etc..
2.Placement of Food
*Proper place should be left instead of too crowded during food storage.
*Food to be stored should be wrapped with clean plastic film or fresh keeping paper, then
4
distributed to several frames even to avoid contamination and the loss of water and smell
mixture.
*Cool hot food down to the room temperature before storing or consumption of electricity
will increase and would lead to frost forming inside.
IN USE
Tips for keeping food perfect in the Fridge
Take extra care with meat and fish
Cooked meats should always be stored on a shelf above raw meats to avoid bacterial
transfer. Keep raw meats on a plate which is large enough to collect juices and cover it
with cling film or foil.
Leave space around food
This allows cold air to circulate around the Fridge, ensuring all parts of the Fridge are
kept cool.
Wrap up food!
To prevent transfer of flavors and drying out, food should be separately packed or
covered. Fruit and vegetables need not be wrapped.
Pre-cooked food should be cooled properly
Allow pre-cooked food to cool down before placing in the Fridge. This will help to stop the
internal temperature of the Fridge from rising.
Shut the door!
To prevent cold air escaping, try to limit the number of times you open the door. When
returning from shopping, sort foods to be kept in your Fridge before opening the door.
Only open the door to put food in or take it out.
Where to store your foods in the fridge
Cool area
This is where to store foods which will keep longer if they are kept cool. Milk, eggs,
yogurt, fruit juices, hard cheeses eg. Cheddar. Opened jars and bottles of salad
dressings, sauces and jams. Fats, eg. Butter, margarine, low-fat spreads, cooking fats and
lard.
Coldest area
This is where foods which must be cold to keep them safe should be kept:
·Raw and uncooked foods should always be wrapped.
·Pre-cooked chilled foods, eg. Ready meals, meat pies, soft cheeses.
·Pre-cooked meats eg. Ham,
·Prepared salads(including pre-packed mixed green salads, rice, potato salad etc).
·Desserts, eg. Fromage frais, home-prepared food and leftovers or cream cakes.
5
NOTE：Always wrap and store raw meat, poultry and fish on the lowest shelf at the
bottom of the fridge. If so, can not put too long. This will stop them dripping onto, or
touching other foods. Do not store inflammable gasses or liquids in the fridge.
Recommended storage periods
For recommended food storage time, refer to the information given on your food
packaging.
Cleaning inside the Fridge
After defrosting you should clean the Fridge internally with a weak solution of bicarbonate
of soda. Then rinse with warm water using a damp sponge or cloth and wipe dry. Wash
the baskets in warm soapy water and ensure they are completely dry before replacing in
the Fridge.
Cleaning outside the Fridge
Use standard non-abrasive detergent diluted in warm water to clean the Fridge exterior.
The grille of the condenser at the back of the Fridge and the adjacent components can
be vacuumed using a soft brush attachment.
Do not use harsh cleaners, scouring pads or solvents to clean any part of the Fridge
TROUBLE SHOOTING AND MAINTENANCE
Trouble Shooting
Power cut
Do not open the Fridge door more than necessary.
The Fridge is exceptionally cold
You may have accidentally adjusted the thermostat control dial to a higher position.
The Fridge is exceptionally warm
The compressor may not be working. Turn the thermostat control dial to the maximum
setting and wait a few minutes. If there is no humming noise, it is not working. Contact
the local store where your purchase was made.
The Fridge is not working
Check it is plugged in and switched on. Check that the fuse in the plug has not blown.
The Fridge should be placed in a well ventilated room with an ambient temperature of
between 16℃and 38℃. Leave the Fridge for 30 minutes.
Condensation appears on the outside of the Fridge
6
This may be due to a change in the room temperature. Wipe off any residue of moisture.
If the problem continues contact the local store where your purchase was made.
GURGLING, WHOOSHING
These noises are caused by the circulation of the refrigerant liquid in the cooling system.
It has become more pronounced since the introduction of CFC free gases. This is not a
fault and will not affect the performance of your Fridge.
HUMMING, PURRING OR PULSATING
This is the compressor motor working, as it pumps the refrigerant around the system.
Moving the Fridge/Freezer
Location
Do not place your Fridge/Freezer near a heat source, eg. Cooker, boiler or radiator. Also
avoid direct sunlight in out-buildings or sun lounges.
Leveling the Fridge/Freezer
Make sure the Fridge/Freezer is level. Use the rotating leveling feet at the front. If the
Fridge/Freezer is not level, the doors and magnetic seal alignments will be affected and
may cause your Fridge/Freezer to work incorrectly.
Do not turn on the Fridge/Freezer for 4 hours
After the Fridge/Freezer is in place it needs to be left for 4 hours. This allows time for the
coolant to settle.
Installation
Don’t cover or block the vents or grilles of your appliance.
Vacation Time
● Turn off the refrigerator first and then unplug the unit from the wall outlet.
● Remove all the food.
● Clean the refrigerator.
● Leave the lid open slightly to avoid possible formation of condensation, mold, or
odors.
● Use extreme caution in the case of children. The unit should not be accessible to
child’s play.
● Short vacations: Leave the refrigerator operating during vacations of less than three
weeks.
● Long vacations: If the appliance will not be used for several months, remove all food
and unplug the power cord. Clean and dry the interior thoroughly. To prevent odor
and mold growth, leave the door open slightly: blocking it open if necessary or have
the door removed.
Servicing
This product should be serviced by an authorized engineer and only genuine spare parts
should be used.
Under no circumstances should you attempt to repair the appliance yourself.
Repairs carried out by inexperienced persons may cause injury or serious malfunctioning.
Contact the local store where your purchase was made.
When the appliance is not in use for long periods, disconnect from the electricity supply,
empty all foods and clean the appliance, leaving the door ajar to prevent unpleasant
smells.
If you need change the knob, please set to "OFF" position，the knob can be
disassembled easily.
7
ELECTRICAL INFORMATION
THIS APPLIANCE MUST BE EARTHED.
This appliance is fitted with a plug which will be suitable for use in all houses fitted with
sockets to current specifications.
If the fitted plug is not suitable for your socket outlets, it should be cut off and carefully
disposed of. To avoid a possible shock hazard, do not insert the discarded plug into a
socket.
Correct Disposal of this product
This marking indicates that this product should not be
disposed with other household wastes throughout the EU. To
prevent possible harm to the environment or human health
from uncontrolled waste disposal, recycle it responsibly to
promote the sustainable reuse of material resources. To
return your used device, please use the return and collection
systems or contact the retailer where the product was
purchased. They can take this product for environmental safe
recycling.

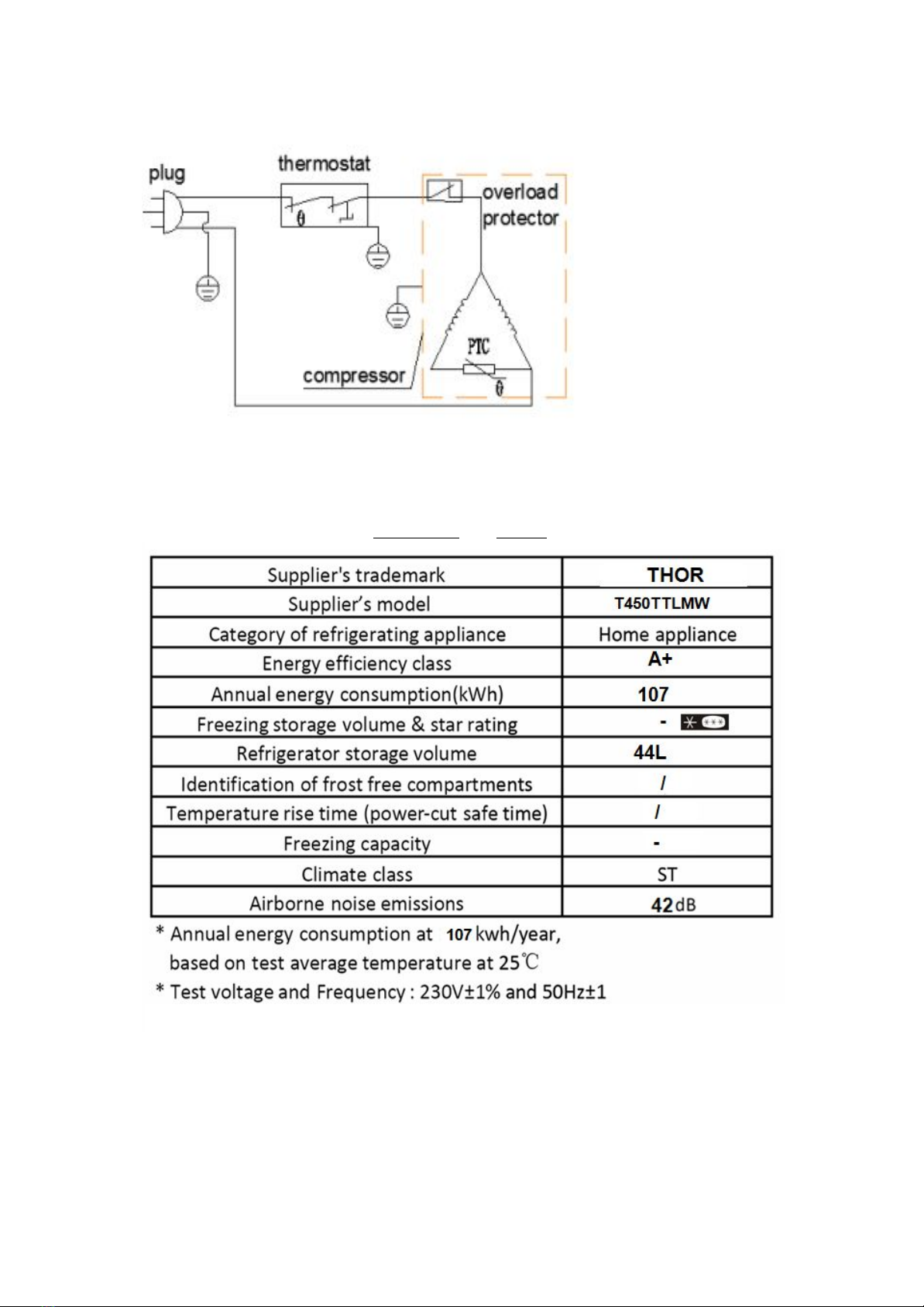

Diagram of Circuit Principles
8
Due to product's changing and improving, the exact product for the consumer may not
correspond with some details in the instruction.
Remarks:
This appliance is intended for DOMESTIC use ONLY.
9
Table of contents
Other THOR Refrigerator manuals
