Thorn security TYCO T1216W-C Guide

EQUIPMENT: T1216W-C
PUBLICATION: MARINEW-P-I
ISSUE No. & DATE: 1 11/12
© 2012 Thorn Security Ltd PAGE 1 of 39
Registered Company: Thorn Security Ltd. Registered Office: Dunhams Lane Letchworth Garden City Hertfordshire SG6 1BE
TYCO T1216W-C
MarineFire Detection/Alarm Control Panel and Repeater
Installation and Commissioning Manual

T1216W-C
MARINEW-P-I
1 11/12
PAGE 2 of 39
List of Contents
1. LIST OF FIGURES...................................................3
2. LIST OF TABLES....................................................3
3. INTRODUCTION......................................................4
4. INSTALLATION AND COMMISSIONING OVERVIEW .....4
5. INSTALLATION.......................................................4
5.1 ELECTRICAL SAFETY......................................4
5.2 INSTALLATION INSTRUCTIONS.........................6
5.2.1 T1216W PANEL INSTALLATION
INSTRUCTIONS........................................6
5.2.2 CONNECTION OF THE INCOMING AC
POWER SUPPLY......................................8
5.2.3 T1200B-C BATTERY BOX INSTALLATION..8
5.2.4 BATTERY INSTALLATION ..........................8
5.2.5 BATTERY CONNECTION ...........................8
5.2.5.1 CONNECTING THE BATTERY BOX TO THE
PANEL PSU9
5.2.6 INSTALLATION AND CONNECTION OF THE
C1631 REPEATER INTERFACE.................9
5.2.7 INSTALLATION AND CONNECTION OF THE
C1665 MUSTER INTERFACE ....................9
5.3 MODIFICATIONS TO THE WATER MIST RELAY
CONTROL PANEL.........................................12
5.3.1 MODIFICATION 1[SYSTEM ABNORMAL]:..12
5.3.2 MODIFICATION 2[SYSTEM OPERATED]:..12
5.3.3 MODIFICATION 3: [FAULT INPUT FROM
T1216W-C] .........................................13
5.4 INTERCONNECTIONS WITH THE WATER MIST
RELAY CONTROL PANEL ..............................13
5.4.1 FINAL CONNECTIONS BETWEEN THE
T1216W AND WMRCP ........................13
5.5 REPLACING THE DISPLAY INSERTS ...............14
5.5.1 TO CHANGE THE INSERTS ......................14
5.5.2 TO FIT THE OPTIONAL DOOR STAY ........16
6. COMMISSIONING..................................................17
6.1 INTRODUCTION............................................17
6.2 COMMISSIONING CHECKLIST ........................17
6.3 AN OVERVIEW OF THE COMMISSIONING
PROCEDURE................................................17
6.4 PRE-COMMISSIONING WIRING CHECK ..........17
6.5 POWERING UP.............................................18
6.6 CONFIGURATION..........................................19
6.6.1 BASIC DEFAULT CONFIGURATION...........19
6.6.2 VESSEL-SPECIFIC CONFIGURATION .......19
7. OPERATING THE ENGINEER’S FUNCTIONS.............19
7.1 ENGINEER’S ZONE/OUTPUT CONFIGURATION
PROCESS:...................................................19
7.2 ZONE OR OUTPUT CONFIGURATION:.............19
7.3 TO RESTORE THE FACTORY DEFAULT
CONFIGURATION FOR ZONES &OUTPUTS:....20
7.4 ENGINEER’S ZONE/OUTPUT CONFIGURATION
TIME-OUT WARNING: ...................................20
7.5 INVALID CONFIGURATION CONDITIONS: .........20
7.6 LIST OF CONFIGURATION DIL SWITCHES AND
THEIR FUNCTIONS:.......................................21
7.7 LIST OF LINK CONFIGURATION FEATURES......23
7.8 DIL SWITCH SETTINGS ON THE REPEATER
INTERFACE BOARD:.....................................24
7.8.1 C1630 OUTPUT INTERFACE
CONFIGURATION................................... 24
7.8.2 C1634 8WAY VOLT FREE RELAY OUTPUT
MODULE CONFIGURATION...................... 24
7.9 COMMISSIONING PROCEDURE...................... 25
7.9.1 ALARM CIRCUITS.................................. 25
7.9.2 ZONES................................................. 25
7.9.3 CLASS CHANGE INPUT.......................... 26
7.9.4 FIRE [ROUTING]OUTPUT....................... 26
7.9.5 FAULT [ROUTING]OUTPUT.................... 26
7.9.6 FIRE PROTECTION OUTPUT................... 26
7.9.7 ANCILLARY INPUTS................................ 26
7.9.8 ANCILLARY OUTPUTS ............................ 26
7.9.9 REPEATERS [WHEN SUPPLIED]............... 26
7.9.10REPEATER MUSTER LINK [IF FITTED]...... 27
7.9.11POWER SUPPLY UNIT. .......................... 27
7.9.12T1216W-C –WMRCP INTERFACE....... 27
7.9.13FINAL DRESSING OF THE CABLES .......... 27
8. USER INDICATIONS.............................................. 29
9. USER CONTROLS................................................ 30
10. PCB LAYOUTS ................................................. 31
11. INSTALLATION DETAILS..................................... 34
12. WIRING DIAGRAMS ........................................... 35
13. WIRING DIAGRAM NOTES.................................. 39

EQUIPMENT: T1216W-C
PUBLICATION: MARINEW-P-I
ISSUE No. & DATE: 1 11/12
© 2012 Thorn Security Ltd PAGE 3 of 39
Registered Company: Thorn Security Ltd. Registered Office: Dunhams Lane Letchworth Garden City Hertfordshire SG6 1BE
1. List of Figures
FIGURE 1–BULK HEAD MOUNTING DETAILS.............. 7
FIGURE 2–BATTERY CLAMP DETAILS ...................... 10
FIGURE 3–REPEATER CONNECTION DIAGRAM ......... 11
FIGURE 4–MUSTER INTERFACE WIRING DIAGRAM... 11
FIGURE 5–SYSTEM ABNORMAL MODIFICATION ........ 12
FIGURE 6–SYSTEM OPERATED MODIFICATION......... 12
FIGURE 7–ADDITIONAL FAULT RELAY...................... 13
FIGURE 8–DISPLAY INSERT REPLACEMENT............. 15
FIGURE 9–DOOR STAY ASSEMBLY.......................... 16
FIGURE 10 –C1627 MOTHERBOARD LAYOUT .......... 31
FIGURE 11 –REAR RIGHT HAND SIDE OF DISPLAY PCB
............................................................ 32
FIGURE 12 –C1634 RELAY OUTPUT MODULE ......... 32
FIGURE 13 –C1630 OUTPUT EXPANSION INTERFACE
............................................................ 33
FIGURE 14 –C1631 REPEATER INTERFACE BOARD . 33
FIGURE 15 –C1665 MUSTER INTERFACE BOARD..... 33
FIGURE 16 –T1216W-C INSTALLATION DRAWING.... 34
FIGURE 17 –MAINS AC CHANGE-OVER UNIT
ELECTRICAL INSTALLATION DIAGRAM..... 35
FIGURE 18 –T1216W-C INTERNAL LAYOUT DIAGRAM
............................................................ 36
FIGURE 19 –T1216W-C MOTHERBOARD,PSU &
REPEATER WIRING DIAGRAM................. 37
FIGURE 20 –WATERMIST PANEL WIRING DIAGRAM.. 38
2. List of Tables
TABLE 1–CONTENT OF SPARES BAG.........................6
TABLE 2–C1631 SETTINGS FOR REPEATER QUANTITY
.............................................................24
TABLE 3–C1631 SETTING FOR REPEATER ADDRESSES
.............................................................24
TABLE 4–SETTING QUANTITY AND TYPE OF O/P
MODULES ON THE C1630 ......................24
TABLE 5–SETTING C1634 BOARD ADDRESS...........24
TABLE 6–SETTING C1634 ZONE RANGE.................24
TABLE 7–SETTING C1634 TO FIRE PROTECTION
MODE ...................................................25
TABLE 8–ZONE AND ZONAL OUTPUT ALLOCATION...25

T1216W-C
MARINEW-P-I
1 11/12
PAGE 4 of 39
3. Introduction
This manual contains all the information necessary
for the installation, commissioning and maintenance
of the T1216W panel.
NOTE: It is important to read this manual fully
before commencing installation.
The following supporting documentation is also
available:
T1216W-C Application Guide
Related Documentation:
T1200-CSales Literature
T1200-C Panel Application Guide
T1200-CUser Manual
T1200-C Log Book
T1200-C Insert Template
Mains AC Changeover Unit Fixing
Instructions.
Note: References are made throughout this
document to “Fire Protection Output” and “Fire
Output”. These refer to particular outputs from the
T1216W panel and are provided for specific
purposes:
Fire Protection Output: An output used to
activate ancillary fire protection equipment or
systems. For example, fire doors or plant
shutdown.
Fire Output: An output used to send a
common fire warning signal to a remote fire
monitoring station.
References are also made to “Manual Fire Alarm”
and “Muster”. These relate to fire alarm sounder
operating modes which are activated manually from
the fire panel display. The panel is configurable to
one or other of the two modes.
Detailed descriptions of both outputs are provided
within the following text.
4. Installation and Commissioning
Overview
This section lists the steps that are taken in
installing and commissioning a T1216W system.
Reference should be made to the T1216W
Application manual for technical details and
description of panel features.
1. Install all field wiring and equipment
Refer to the Installation instructions in section
5.2. Refer to the field device installation
manuals.
2. Install the panel
Refer to the installation instructions in section
5.2. Do not connect the field equipment at this
stage.
3. Connect any repeaters (if applicable)
Refer to the installation instructions in section
5.2.
4. Commission the panel
Refer to section 6. Commissioning.
5. Installation
The control panel must be installed by suitably
qualified technicians familiar with the installation of
fire detection and alarm systems. In addition, it is
recommended to refer to the following information:
The Current edition of the relevant wiring
regulations for ships.
Any specific vessel requirements.
Any field device installation instructions.
Any data sheet provided for the installation of
Intrinsically Safe devices.
Notes:
The rating plate, containing essential electrical
information is located on the outside of the
panel, on the left side.
The mains supply cable should be a minimum
of 1mm2copper protected by a 5A fuse.
An appropriate lockable double pole disconnect
device shall be provided as part of the vessel
installation. This device must have a minimum
contact gap of 3mm.
5.1 Electrical Safety
WARNING:
Prior to commencing installation of the
control panel, ensure that adequate
precautions are taken to prevent
damage to the sensitive electronic components on
the display board and the control board due to
electrostatic discharge. You should discharge any
static electricity you may have accumulated by
touching a convenient earthed object. You should
repeat the process at regular intervals during the
installation process, especially if you are required to
walk over carpets.
If possible, wear an anti-static wrist strap connected
to a suitable earth point when working on the panel.
The panel must be located in an area which
complies with the environmental specification
detailed in the T1200-C Application Manual and
should be at least 2 metres away from pager
systems or any other radio transmitting
equipment. The operating temperature range of
the panel & repeater is -10ºC to +55ºC. Batteries
are housed in a separate enclosure and are
rated as operational between -20ºC to +50ºC for
charging purposes. Maximum humidity is 95%
for panel, repeater & batteries.

EQUIPMENT: T1216W-C
PUBLICATION: MARINEW-P-I
ISSUE No. & DATE: 1 11/12
© 2012 Thorn Security Ltd PAGE 5 of 39
Registered Company: Thorn Security Ltd. Registered Office: Dunhams Lane Letchworth Garden City Hertfordshire SG6 1BE
IMPORTANT NOTES ON BATTERIES:
DANGER: Batteries are electrically live
at all times, take great care never to
short circuit the battery terminals.
WARNING: Batteries are often heavy;
take great care when lifting and
transporting batteries. For weights
above 24 kilos, lifting aids should be
used.
DANGER: Do NOT attempt to remove
the battery lid or tamper with the
internal workings of the battery.
Electrolyte is a highly corrosive
substance, and presents significant danger to
yourself and to anything else it touches. In case of
accidental skin or eye contact, flush the affected
area with plenty of clean, fresh water and seek
immediate medical attention.
Valve Regulated Lead Acid (VRLA) batteries are
“low maintenance”, requiring no electrolyte top-
up or measurement of specific gravity.
WARNING: Only clean the battery case with a cloth
that has been soaked or dampened with distilled
water. Do not use organic solvents (such as petrol,
paint thinner, benzene or mineral spirits) or other
materials that can substantially weaken the case.
Do not use a dry cloth as this will generate static
electricity, which in turn may lead to an explosion.
WARNING: Avoid operating temperatures outside
the range of -15  C/5  F to +50°C/122°F for
float/standby applications.
The recommended normal operating temperature is
20°C.
HIGH TEMPERATURE will reduce battery service
life. In extreme cases this can cause Thermal
Runaway, resulting in high oxygen/hydrogen gas
production and battery swelling. Batteries are
irrecoverable from this condition and should be
replaced.
LOW TEMPERATURE will prolong battery life but
reduce output capacity.
DANGER: Do not incinerate batteries.
If placed in a fire, the batteries may
rupture, with the potential to release
hazardous gases and electrolyte.
VRLA batteries contain substances
harmful to the environment.
Exhausted batteries must be recycled.
Return them to the battery
manufacturer or take them to your
Council waste disposal site for
appropriate disposal.
ELECTRICAL SAFETY:
The volt-free relay contacts provided within the
panel must not be used to directly switch any
voltage that exceeds 30V. (Please also refer to
relay rating data).
A 9V battery is supplied fitted to the inside of the
door. This battery provides power to the buzzer in
the event of total power failure or display ribbon
disconnection. The connecting lead of this battery is
disconnected from the display board during
shipping.
1. DO NOT short circuit the battery terminals or
the connecting lead.
2. DO NOT remove this battery unless it
measures 8V or less.
3. DISCONNECT THE LEAD from the display
board BEFORE replacing the battery to avoid
accidental polarity reversal which may damage
the display circuitry.
4. ALWAYS secure the battery in the battery
holder with a Tie-wrap.
5. DO NOT use rechargeable batteries as these
will gradually discharge due to internal
resistance.
Some of the panels covered by this manual
require a 110 or 230V AC supply. Refer to the
equipment rating plate and T1200-C Application
Manual for detailed information.
All installation work should be carried out in
accordance with the recommendations of the
current edition of the IEE regulations by
suitably qualified and trained personnel.
This is an IEC Class 1 electrical
appliance and therefore must have
the chassis connected to an
electrical earth.

T1216W-C
MARINEW-P-I
1 11/12
PAGE 6 of 39
Table 1 –Content of Spares Bag
Quantity
Description
Type
1
Mains Fuse
T5AH250V 20mm
1
Battery Fuse
T8AH250V 20mm
16
End-of-Line resistors for zone circuits
10k 0.25W
4
End-of-Line resistors for alarm circuits
3k9 0.25W
3
End-of-Line resistors for monitored outputs
3k9 0.25W
2
Access Control key
Key Ref - 801
Part no 509.023.061
1
Positive battery lead
Red –250mm
1
Negative battery lead
Black –300mm
1
Battery coupling lead
Blue –250mm
1
Tie wrap cable clip for securing mains lead

8
Neoprene washers for box fixing
Part no 2400174
1
Total power failure battery [PP3]
Supplied fitted
1
Alternative Button test insert
Panel - English
1 x THORN
1 x TYCO
TYCO & THORN Logo Labels
Self-Adhesive Label
1
T1200C Documentation CDROM
CDROM
5.2 Installation Instructions
1. Carefully remove the control panel from the
packing and lay the panel on a flat surface.
2. Locate the spares bag (either inside the
packing box or inside the panel) and check
that the items shown in Table 1 above are
present.
5.2.1 T1216W Panel Installation
Instructions
Note: The panel is supplied configured for bottom
cable entry. If top cable entry is required then the
door of the enclosure should be removed & fitted to
the opposite side of the enclosure. The installation
instructions below apply to top or bottom cable
entry.
1. Ensure that the panel is on a flat surface with
the door facing up.
2. Remove the panel door as follows:
3. Undo the two slotted screws that secure the
door shut. The screws will remain attached to
the door.
4. Open the door. Note that the door will open
past 180 degrees and will put tension on the
hinges if no support is provided underneath.
You may find it useful to place the packing box
underneath the door to provide support.
5. Locate the ribbon cable connecting the display
board to the main control board (motherboard).
Push the metal retaining clip off the connector
on the display and pull the ribbon cable out of
the connector.
6. Locate the earth strap connected to the door.
Pull the earth strap connector off the spade
terminal on the door.
7. Use a suitable flat blade screwdriver to
unscrew the hinges whilst supporting the door.
8. Place the door and hinge fixing screws
carefully to one side.
9. The chassis is fixed to the enclosure backbox
at five points. Three of these points are key-
hole type; two are round holes for screws.
10. Remove the Chassis from the enclosure as
follows:
(a) Disconnect the chassis earth lead from
the spade terminal on the enclosure
backbox.
(b) Remove the two cross-head screws at the
bottom left & right corners of the chassis
(towards the gland plate).
(c) The three key-hole fixings do not have
screws.
(d) Slide the chassis free of the key-hole
slots.
(e) Lift the chassis out of the enclosure and
place carefully to one side. Note that the
chassis is heavy and caution should be
taken when lifting the chassis.
(f) Observe that there is a key-hole fixing in
the centre of the chassis which slides onto
a post. Care should be taken when
replacing the chassis that this key-hole
slides onto the post correctly.
NOTE: The door and chassis both contain
Control Boards with sensitive and fragile

EQUIPMENT: T1216W-C
PUBLICATION: MARINEW-P-I
ISSUE No. & DATE: 1 11/12
© 2012 Thorn Security Ltd PAGE 7 of 39
Registered Company: Thorn Security Ltd. Registered Office: Dunhams Lane Letchworth Garden City Hertfordshire SG6 1BE
electronic components on them. You must place
these items in a location where they will not be
damaged. Use the packing box to place these
items inside, ensuring that the door & chassis
remain separated. Store them in a safe place
which is clean, dry and dust-free.
Note: Do not allow the door & chassis to
come into contact with the packing foam as
this may hold a static charge.
11. Locate the earth lead connecting the gland
plate to the earth bar. Disconnect the earth
lead from the earth bar.
12. Remove the screws securing the gland plate to
the enclosure. Remove the gland plate.
13. Use a centre punch and hammer to remove
the required knock-outs by placing the centre
punch diagonally opposite the fixing point on
the knockout and striking the centre punch with
the hammer. DO NOT remove the knock-outs
from any unused cable entries.
14. Refit the gland plate ensuring that the seal is
correctly seated.
15. Re-connect the earth lead from the gland plate
to the earth bar.
For Bulk Head mounting:
(a) Identify the four indented holes in the
back of the enclosure that are used to
mount the enclosure.
(b) Mark the location of one of the upper
fixing holes on the wall/bulkhead. Drill and
fix with a suitably plated or stainless steel
M5 nut, bolt and washers (fixings not
supplied). The fixing must be sealed using
two neoprene washers [supplied with the
panel fixing kit], one fitted between the
panel and the bulkhead and the other
fitted between the panel and the steel
washer inside the panel. See Figure 1 –
Bulk Head Mounting Details. Do not fully
tighten at this stage.
(c) Level the panel and fix the remaining
fixing points as above.
(d) Check that neoprene seals have been
fitted as shown in Figure 1 then fully
tighten all of the fixing nuts & bolts.
(e) Check that the enclosure is firmly seated
against the bulk head and is not deformed
in any way.
M5 STAINLESS STEEL BOLT
M5 STAINLESS STEEL WASHER
NEOPRENE WASHER
ENCLOSURE
NEOPRENE WASHER
BULKHEAD
M5 STAINLESS STEEL WASHER
M5 STAINLESS STEEL NUT
Figure 1 –Bulk Head Mounting Details
For Console mounting:
(a) Cut a suitable hole in the console to fit the
enclosure. Dimensions are shown in
section 11.
(b) Identify the four holes in the outer flange
of the enclosure that are used to mount
the enclosure in a console.
(c) Insert the enclosure into the console. Note
that the flange will not sit flush with the
console at this stage because of the four
bushes used for securing the door.
(d) Mark the centre positions of the four
bushes. Remove the enclosure and drill
suitable sized holes to accommodate the
bushes (13mm to 15mm diameter).
(e) Insert the enclosure into the console and
check that the flange now sits flush with
the console. Drill suitable mounting holes
in the console & fix with M5 counter sunk
screws.
16. Bring all field wiring into the enclosure through
suitable cable glands, ensuring that the cable
conductors are of sufficient length inside the
enclosure (at least 30cm). Waterproof glands
and seals should be used to maintain ingress
protection against water. Ensure that all
conductors are clearly labelled. Any unused
cable entries which are open must have
waterproof knockout seals fitted.
17. Connect the earth drain wires of the field
cabling to the earth bar(s) positioned at the
back of the back-box. Up to two drain wires
may be connected to each terminal.
18. Ensure that the electrical continuity of any
cable shield is maintained through to the last
device on the circuit. The shield must only be
connected to enclosure earth in the panel by
using the earth bars provided.
19. Clear any dust and debris from inside the
enclosure.
20. Reinstallation of the chassis is the reverse of
removal. Ensure that all keyholes on the

T1216W-C
MARINEW-P-I
1 11/12
PAGE 8 of 39
chassis are fully mounted onto the posts in the
back-box.
21. Reconnect all earth wires and ensure none are
trapped between the chassis and back-box. Do
not connect the field wiring at this stage.
22. Refit the door. The refitting procedure is the
reverse of removal. Ensure that the earth strap
and ribbon cable are reconnected correctly.
23. If a door stay is supplied then this should now
be fitted following the instructions in section
5.5.2.
24. Connect the incoming protective earth
conductor to the Earth terminal in the mains
terminal block. This is the primary earth point
and is labelled [Also labelled E]; see
section 12. Wiring Diagrams.
25. NOTE: When shutting the door of the panel,
DO NOT over tighten the thumb-screws.
Tighten until finger-tight and then turn another
quarter-turn using a screwdriver.
5.2.2 Connection of the incoming AC
Power Supply
Note: For installations requiring the Mains AC
switch-over unit, a 24Vdc supply will need to be
connected from the panel to the AC mains switch-
over unit to drive the LED indications. See Figure
17 for wiring details.
1. With both poles of the incoming power supply
safely isolated at the feeder end, connect the
Live [AC] conductor to the mains terminal
block [L terminal] as shown in section 12.
Wiring Diagrams.
2. Connect the Neutral [AC] conductor to the
mains terminal block [N terminal] as shown in
section 12. Wiring Diagrams.
3. Secure the incoming supply cable using the
cable tie supplied. NOTE: The cable tie should
be over the outer cable insulation.
5.2.3 T1200B-C Battery Box Installation
The T1200B-C battery box can only be bulk head
mounted. The incoming cable must have an in-line
fuse in the positive power supply (fuse type: T6.3A
HRC). The fuse must be mounted external to the
battery box, in a suitable terminal box which is
close-coupled to the battery box. See Figure 19 for
wiring details.
To mount the T1200B-C battery box:
(a) Identify the three indented holes in the back
of the enclosure that are used to mount the
enclosure.
(b) Mark the location of one of the upper fixing
holes on the wall/bulkhead. Drill and fix with
a suitably plated or stainless steel M5 nut,
bolt and washers (fixings not supplied). The
fixing must be sealed using two neoprene
washers [supplied with the fixing kit], one
fitted between the panel and the bulkhead
and the other fitted between the panel and
the steel washer inside the panel. See Figure
1 –Bulk Head Mounting Details. Do not fully
tighten at this stage.
(c) Level the enclosure and fix the remaining
fixing points as above.
(d) Check that neoprene seals have been fitted
as shown in Figure 1 then fully tighten all of
the fixing nuts & bolts.
(e) Check that the enclosure is firmly seated
against the bulk head and is not deformed in
any way.
(f) Mount the fused terminal box (not supplied)
adjacent to the battery box and fit a suitable
waterproof coupling to allow cable entry from
the terminal box to the battery box.
5.2.4 Battery Installation
The T1200B-C battery box will only hold 2 x 17Ah
PowerSonic SLA batteries.
1. Remove the battery clamps from the battery
box before fitting the batteries.
2. Place the left-hand battery into the battery box.
The battery should be located toward the left
side of the enclosure, the battery terminals
should be positioned towards the front.
3. Place the right-hand battery into the battery
box. The battery should be located toward the
right side of the enclosure, the battery
terminals should be positioned towards the
front.
4. Fix the battery retaining clamps. [See Figure 2]
5.2.5 Battery Connection
1. Connect the black battery lead to the terminal
marked BAT-, connect the red battery lead to
the terminal marked BAT+.
2. The Thermistor assembly is supplied loose in
the fixing kit supplied with the T1216W-C
panel. Connect the Thermistor leads to the
terminals marked THERM.
3. Tie-wrap the Thermistor to one of the battery
leads so that when the battery leads are
connected, the Thermistor is located just
above one of the batteries.
4. The blue lead is used to connect the batteries
together. Do not connect this lead until you are
ready to power up the panel.

EQUIPMENT: T1216W-C
PUBLICATION: MARINEW-P-I
ISSUE No. & DATE: 1 11/12
© 2012 Thorn Security Ltd PAGE 9 of 39
Registered Company: Thorn Security Ltd. Registered Office: Dunhams Lane Letchworth Garden City Hertfordshire SG6 1BE
5.2.5.1 Connecting the battery box to
the panel PSU
1. Run a suitable 4-core shielded cable between
the panel and the battery box.
2. Label each core appropriately (BAT+, BAT-,
THERM, THERM).
3. Connect the negative battery conductor to the
“Batt -” [battery negative] terminal and connect
the positive battery conductor to the “Batt +”
[battery positive] terminal. Both terminals are
situated on the panel chassis.
4. Connect the Thermistor leads to the two
terminals marked “Therm” on the panel chassis.
5. Warning: Do not connect the leads to the battery
at this stage. Connection of the batteries will
power up the panel even if the mains supply is
off.
5.2.6 Installation and connection of
the C1631 Repeater Interface
Warning: Observe anti-static precautions
The C1631 interface board is not provided as
standard with the panel. It is included in the spares
kit of the repeater panel, to be fitted in the main fire
alarm panel when required.
1. Ensure that the panel and repeaters are
powered down and the main and standby
supplies are disconnected.
2. On the fire alarm panel remove the jumper link
at J22 (adjacent to J9) and fit a C1631
repeater interface to connectors J13 and J9 on
the right-hand side of the C1627 motherboard.
The board should be held in place by the
12mm high plastic spacer provided. See
Figure 10.
3. The Repeater is supplied with the C1631
Interface Board fitted.
4. Connect the RS485 data cable as shown in
Figure 3.
5. Connect the Aux 24Vdc supply from the panel
to the repeater. You can use two cores in the
data cable for this purpose only if the voltage
drop between the panel and repeater is not
more than 2Vdc.
Notes:
One repeater will draw up to 75mA which means
that the total resistance of the cable should not
exceed 24 Ohms (12 Ohms in each core). The
T1216W-C Application Guide lists cable types with
their nominal DC resistance.
If more than one repeater is required or the cable
resistance is too great, then data cable is
unsuitable for supplying power and a separate
suitable 2-core cable must be used.
Use only Plenum rated screened data cable with at
least three core-pairs to accommodate repeater
communication & Muster Interface options. 4 pairs
will be required if power is also being provided
(subject to the limitations described above).
Connect the cable screen to earth at the fire alarm
panel and the repeaters.
5.2.7 Installation and connection of the
C1665 Muster Interface
Warning: Observe anti-static precautions
The C1665 interface board is not provided as
standard with the panel. It is an optional item that
can be ordered separately and used with repeaters
to provide Muster Alarm control from repeater
panels.
1. Ensure that the panel and repeaters are
powered down and the main and standby
supplies are disconnected.
2. On the C1627 motherboard in the fire alarm
panel and each repeater, identify link J23 and
connector J2 which are located on the left
hand side of the motherboard.
3. Remove link J23 and carefully plug the C1665
PCB into connectors J2 and J23.
4. Connect the field cable as shown in Figure 4.
5. Connect 2 off 3K9 monitoring resistors to the
C1665 in the last repeater as shown in Figure
4. [The resistors are supplied in the Muster
Interface fixing kit].
6. On the fire alarm panel display PCB fit link J2
to the lower position for Muster operation
Note:
Use three cores of the RS485 screened data
cable.

T1216W-C
MARINEW-P-I
1 11/12
PAGE 10 of 39
BACKBOX
DOOR
DOOR SEAL
'GORTEX' SEAL
EARTH POST
DOOR EARTH STRAP
EARTH POST
SELF ADHESIVE FOAM (4 PLACES)
Fuse: Input: Serial No: Part No: Product: Standards: Approval:
0086/09
KM95744
Fire Alarm System
Isolate Supply Before
0086-CPD-555921
Opening Cover
THIS UNIT MUST
BE EARTHED
RATING LABEL
Thorn Security Ltd
Made in Great Britian
3 WAY PSU TERMINAL BLOCK (2 OFF)
TERMINAL BLOCK LABEL
BAT +
BAT -
N/C
THERM THERM
N/C
BATTERY CLAMPS
Figure 2 –Battery clamp details

EQUIPMENT: T1216W-C
PUBLICATION: MARINEW-P-I
ISSUE No. & DATE: 1 11/12
© 2012 Thorn Security Ltd PAGE 11 of 39
Registered Company: Thorn Security Ltd. Registered Office: Dunhams Lane Letchworth Garden City Hertfordshire SG6 1BE
EARTH STUD
EARTH BAR
Repeater
A B
GND
[Top right hand corner of C1627 motherboard]
Data Cable Screen
T1216W fire detection/alarm panel
Power Supply connections not shown.
Repeater
A
B
GND
T1200 repeater panel [max 5 off]
[Top right hand corner of C1626 motherboard]
Figure 3 –Repeater connection diagram
M in Sin GND GNDM out S out
C1665 Muster
Interface in Fire
Panel
M in Sin GND GNDM out S out
C1665 Muster
Interface in Repeater
Panel 1
M in Sin GND GNDM out S out
C1665 Muster
Interface in last
Repeater Panel
2 off 3k9
resistors
Wiring Optional Repeater Muster Interface[s]
These three cores should be contained within the Repeater RS485 communications cable, the cable
screen being connected to Earth at panel & repeaters. If a separate cable is used then the cable
screen should be connected to the Earth.
Figure 4 –Muster Interface Wiring Diagram

T1216W-C
MARINEW-P-I
1 11/12
PAGE 12 of 39
5.3 Modifications to the Water Mist
Relay Control Panel
Three modifications to the Water Mist Relay Control
Panel [WMRCP] are necessary to provide the
correct interface. See Modifications 1, 2 and 3 in
section 13.
These modifications should be carried out by
either the Engineer responsible for the WMRCP
or under their direct guidance and instruction.
5.3.1 Modification 1 [System Abnormal]:
Refer to Figure 5 for details.
On Relay R50/2, disconnect wires 313 and 314
from the normally closed contact pair and reconnect
to the normally open pair. [Contacts described with
RL50 de-energised –i.e. in the fault condition].
Remove the 6k8 monitoring resistor connected
between wires 313 and 314. Use two spare field
terminals to connect a 10K 0.25W resistor in series
with R50/2.
6k8
Resistor
TB5/3
TB5/4
313
314
R50/2
De-energised
(fault condition)
Before Modification
10k
Resistor
TB5/3
TB5/4
313
314
R50/2
De-energised
(fault condition)
After Modification
Wire
Link
WaterMist Control Panel
System Abnormal Output Signal
U3 U4
Site Wiring to
T1216W-C
Site Wiring to
T1216W-C
Figure 5–System Abnormal Modification
5.3.2 Modification 2 [System Operated]:
Refer to Figure 6 for details.
Replace the 6k8 monitoring resistor connected
between wires 315 and 316 with a 10k 0.25W.
Use two spare field terminals to connect 680 Ohm 1
Watt resistor in series with R44/3.
6k8
Resistor
TB5/1
TB5/2
315
316
R44/3
Relay shown in
quiescent
(non-alarm)
condition
Before Modification
680 Ohm
Resistor
TB5/1
TB5/2
315
316
R44/3
After Modification
Wire
Link
WaterMist Relay Control Panel
System Operated Output Signal
U1 U2
10k
Resistor
Relay shown in
quiescent
(non-alarm)
condition
Site Wiring to
T1216W-C
Site Wiring to
T1216W-C
Figure 6–System Operated Modification

EQUIPMENT: T1216W-C
PUBLICATION: MARINEW-P-I
ISSUE No. & DATE: 1 11/12
© 2012 Thorn Security Ltd PAGE 13 of 39
Registered Company: Thorn Security Ltd. Registered Office: Dunhams Lane Letchworth Garden City Hertfordshire SG6 1BE
5.3.3 Modification 3: [Fault Input from
T1216W-C]
The Fault Signal Interface Relay
Refer to Figure 7 for details.
The common fault relay logic circuit within the
WMRCP operates at 220Vac. It is recommended
that an additional relay is installed within the
WMRCP and contacts on this interface relay be
used to switch the 220Vac signal. Details for the
connections are shown in Figure 19 and Figure 20.
Generic specification for the interface relay:
Octal or 11-pin type.
Coil operating voltage range: 21Vdc to 28.5Vdc.
Contacts required: 1 x volt-free changeover
rated 1A at 250Vac minimum.
Terminal socket with relay retaining clip.
Temperature range -20 to +70 deg C.
Relay and socket approved to VDE or similar.
Fit the fault interface relay [RL FLT I/F] and connect
the N/O contact [relay de-energised] into TB2
terminals 7 and 8.
Site wiring
from
T1216W-C
24Vdc
Switched
0Vdc
N/C
N/O
P
Interface relay
shown de-energised
[T1216W-C fault]

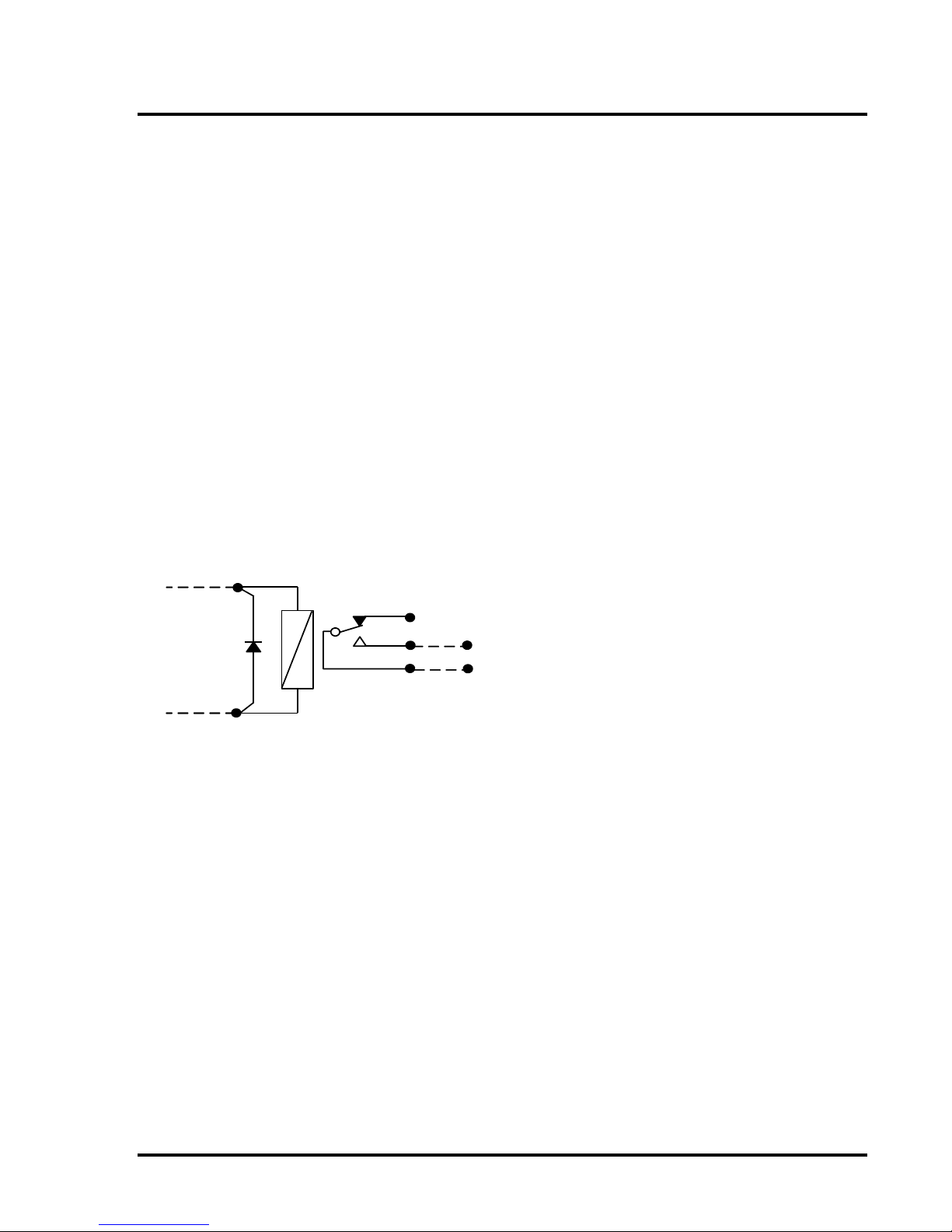

Circuit Diagram for Additional Fault
Interface Relay to be fitted in WMRCP
50V 1Amp diode
[for suppression]
TB2/7
Panel
wiring
TB2/8
Figure 7–Additional Fault Relay
5.4 Interconnections with the Water
Mist Relay Control Panel
The Water Mist Relay Controls Panel [WMRCP] is
supplied by Tyco Safety Product Korea.
This document assumes that the WMRCP is fully
and correctly installed and tested prior to carrying
out the final connections to the T1216W-C.
Before attempting access to the WMRCP to
carry out any modifications and connections
between the T1216W-C panel and the WMRCP,
ensure:
All the current technical documentation is
available for the WMRCP.
That the WMRCP is safe to work on and the
Water Mist System and any other plant or
equipment connected to or controlled by the
WMRPC is isolated/locked off and safe.
All necessary permits to work are in place.
The Engineer responsible for the
commissioning of the WMRCP system is
available and a procedure is in place which
includes the allocation of the various tasks
associated with carrying out the final
connections between the panels and testing
the T1216W-C--WMRCP system as a whole.
Any other vessel-specific precautions and
requirements are in place.
See Figure 19 and Figure 20 for details of the
interconnections between the T1216W-C and
WMRCP.
WARNING:
THE WMRCP CONTAINS HAZARDOUS
VOLTAGES.
5.4.1 Final Connections between the
T1216W and WMRCP
This procedure assumes that all interconnecting
cabling between the two panels has been correctly
installed, tested and the cores checked through and
identified at each end.
1. At the T1216W-C, ensure the panel is safe to
work on as described above.
2. Terminate the 15 cores for 14 zone fire signals
and common return into the appropriate
terminals in the T1216W-C. The 8 signal wires
for zones 1 to 8 should be connected to the
pole of relays 1 - 8 on the C1634 address 1.
[This is the left hand one of an adjacent pair of
C1634 output boards]. Signals for zones 9 to
14 should be connected to the pole of relays 1
- 6 on the C1634 address 2. [This is the right
hand one of an adjacent pair of C1634 output
boards].
3. The common return wire should be connected
into the normally open contact terminal on
relay 1A and a link should be installed to
common up all of the normally open contacts
on both C1634 boards. See Figure 20 for
details.
4. Record the identification numbers of each core
and its use [e.g. “Zone 1 fire signal”].
5. At the WMRCP, ensure the panel is safe to
work on as described above.
6. Identify the 15 cores of cable for each of the
controls. Using the WMRCP documentation,
connect each core into the appropriate
terminal on the WMRCP.
7. In the WMRCP, identify the terminals for
[Watermist] System Operated output signal [as
modified under section 5.3.2]. Connect 2 cores
to the appropriate terminals. Record the core
identification reference and circuit use.
8. In the WMRCP, identify the terminals for
[Watermist] System Abnormal output signal [as
modified under section 5.3.1]. Connect 2 cores

T1216W-C
MARINEW-P-I
1 11/12
PAGE 14 of 39
to the appropriate terminals. Record the core
identification reference and circuit use.
9. In the WMRCP, identify the additional fault
interface relay described in section 5.3.3. The
normally open relay contacts [relay de-
energised] should be connected to terminals 7
and 8 on TB2. Connect 2 cores of the field
cable to the relay coil. Record the core
identification references, circuit purpose and
polarity. [The core connected to the cathode of
the suppression diode will be the +ve core].
10. At the T1216W-C, identify the cable cores
connected to the WMRCP for the [Watermist]
System Operated and [Watermist] System
Abnormal outputs. Connect System Operated
to Z15+ and Z15- on the C1627 motherboard.
Connect System Abnormal to Z16+ and Z16-.
Polarity is not important.
11. At the T1216W-C, identify the cores for the
signal to the additional fault interface relay in
the WMRCP. Test the circuit to ensure the
cable is fault free and the cores are marked
with the correct polarity. Connect the cores as
follows:
Cable Core
T1216W-C Terminal on
C1627 Motherboard
positive
Aux DC 24V
negative
Fault Routing C/-
12. Install a wire link between Aux DC 0V and
Fault Routing terminal P.
13. Ensure that the 6-way link below the Fault
Routing terminals is removed to allow the relay
to operate as volt-free contacts.
14. This completes the connections required.
5.5 Replacing the Display Inserts
The display overlay is adhered to the display PCB
and is fitted with a series of text label inserts to
identify the various user controls and indications.
The inserts slip into pockets in the overlay and
provide a flexible method of providing foreign
language variants without affecting the overlay. The
panel is provided with one set of standard English
text inserts fitted. These inserts are reversible with
the rear blank to allow small volume language
variants to be typed. Since one of the panel’s
configurable options allows manual activation of the
fire alarms in either the Manual Fire Alarm or
Muster mode, an additional English text insert is
provided for the switch section –one side identifies
the top left hand switch and LED as “Manual Fire
Alarm” the other side identifies this switch as
“Muster”.
Additional double sided inserts may be supplied for
Chinese or Japanese applications.
5.5.1 To change the inserts
1. Isolate the mains supply to the panel.
2. Disconnect the batteries at the battery box.
3. The panel buzzer will sound continuously due
to total loss of power. Open the panel door.
4. Locate and disconnect the wire from the 9V
battery holder at J4 on the back of the display
board (bottom-centre). [The PP3 battery is
fixed to the display frame below the display
board]. The buzzer will silence.
5. Disconnect the buzzer lead from the display
board (either connected at the bottom (J5) or
top (J6).
6. Use an M3 box spanner to loosen and remove
the nuts and plain washers holding the display
frame. Store the nuts and washers safely for
re-fitting.
7. If the optional door stay is fitted then this will
need to be removed from the frame.
8. Remove the frame and store it safely.
9. To separate the display from the seal, carefully
apply moderate pressure to the front of the
display at the edge of the rectangular hole in
the door. Work progressively from the starting
point around the edge of the PCB back to the
starting point.
10. When the display PCB is free of the seal,
remove the PCB from the door studs. Carefully
work the PCB off the studs keeping the PCB
parallel to the door to prevent it jamming.
11. The insert tabs can clearly be seen projecting
from the edge of the PCB. Pull the tabs
carefully to remove the inserts.
12. To re-fit an insert, locate the gap between the
PCB and the overlay and slide a corner of the
insert in. Straighten the angle of entry, hold the
insert near the point of entry rather than at the
end and feed the insert down until the leading
edge of the insert is fully home.
13. Visually inspect the front of the display to
ensure the inserts are correctly located.
14. Re-fit the PCB to the studs on the door,
making sure that the display is the correct way
up.
15. Work the PCB down the studs keeping the
board parallel to the door to prevent jamming.
16. When the board is down on the studs, apply
light pressure around the outside edge of the
board to ensure it is correctly seated on the
seal.
17. Refit the frame with the battery located
towards the bottom of the door.
18. When the frame is fully down on the studs,
apply light pressure around the outside edge to
ensure it is correctly seated.

EQUIPMENT: T1216W-C
PUBLICATION: MARINEW-P-I
ISSUE No. & DATE: 1 11/12
© 2012 Thorn Security Ltd PAGE 15 of 39
Registered Company: Thorn Security Ltd. Registered Office: Dunhams Lane Letchworth Garden City Hertfordshire SG6 1BE
19. Refit the washers to all studs and then fit the
nuts loosely only.
20. Using the box spanner, carefully tighten each
nut down until it is just in contact with the
frame. Do not fully tighten at this stage.
21. Tighten each nut by turning the nut a quarter of
a turn. Press the frame against the enclosure
door using fingers only and check for any
slack.
22. Repeat step 21 until the frame is firmly seated.
Note –Over tightening the nut may cause
the stud to break away from the door.
23. Refit the door stay if previously removed.
24. Reconnect the 9V battery lead to J4 on the
rear of the display PCB.
25. Reconnect the buzzer lead to J5 or J6 as
appropriate. The buzzer will sound.
26. Reconnect the standby batteries at the battery
box and re-instate the mains power. After a
few seconds the panel will return to the
quiescent state.

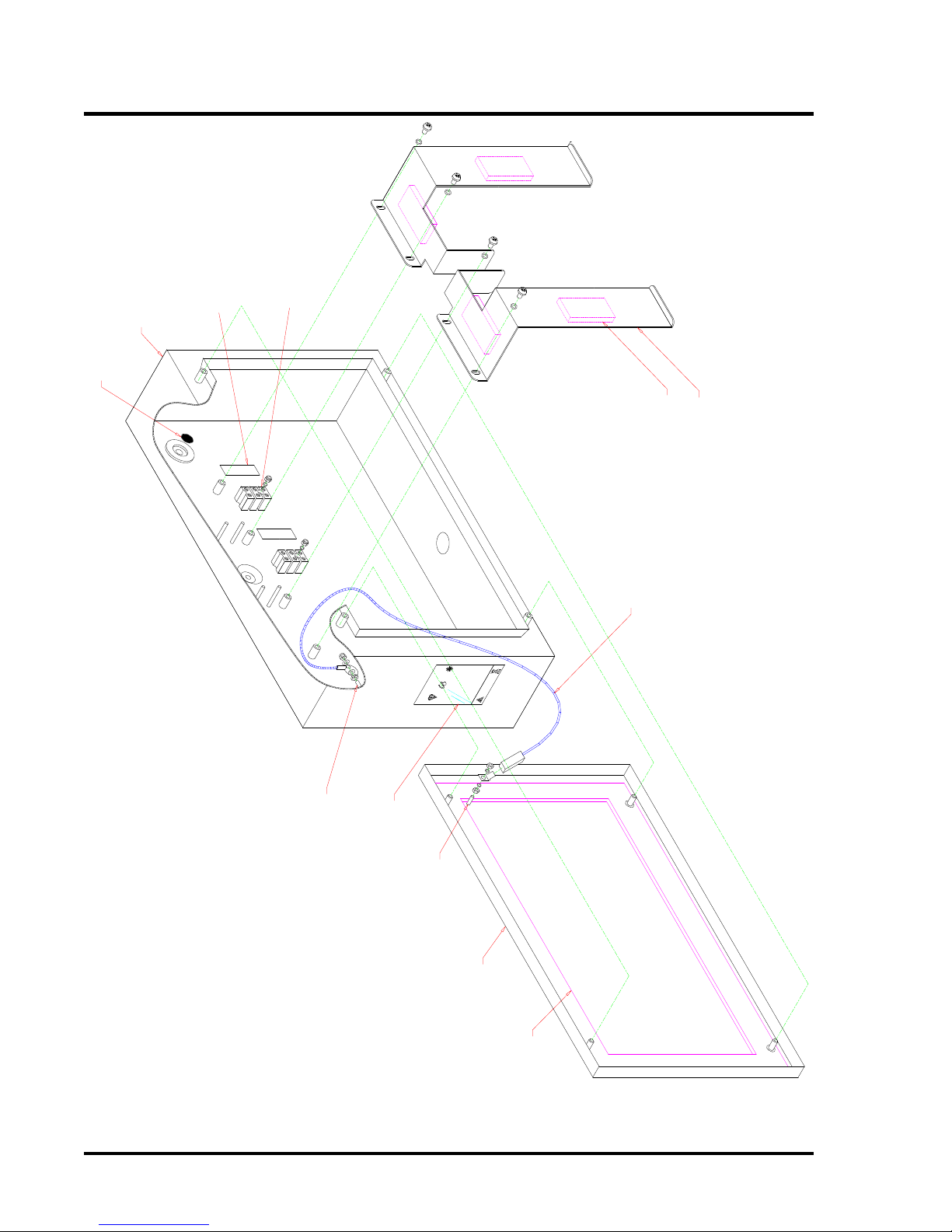

Figure 8 –Display Insert Replacement

T1216W-C
MARINEW-P-I
1 11/12
PAGE 16 of 39
5.5.2 To Fit the Optional Door Stay
1. A door stay is available as an option for the
T1216W-C panel.
2. A single door stay may be fitted to the door/back
box assembly during the installation of the panel
enclosure described in section 5.2.1. Also refer
to Figure 9–Door Stay Assembly.
3. Materials required –1 off T1200 Door Stay
Assembly kit [508.023.025].
4. Tools –ratchet socket set with 8mm and 10mm
sockets.
5. Locate the four fixing studs used to secure the
stay. Two M6 studs are located on the frame
holding the display board. These are used to
secure the door mounting bracket. Two M5
studs are located on the inner return face of the
back box at the bottom towards the door hinge.
These are used to secure the door stay
enclosure mounting bracket.
6. Offer the door stay door mounting bracket up to
the studs on the display frame as shown in
Figure 9 and fit one M6 washer and Nyloc nut
[supplied] to each stud. The nuts should be tight
enough to prevent movement between slider
assembly and door.
7. Adjust the door opening angle and the
orientation of the door stay arm so that the
enclosure mounting bracket can be fitted to the
studs on the enclosure. Secure with the M5
nyloc nuts provided. Tighten the nuts sufficiently
[with an M5 socket] to prevent any movement
between the bracket and the box.
8. Check the operation of the door stay. The door
should open to approximately 110 -120 degrees
allowing the sliding nut to spring into the latched
position latching the door open. To close the
door, push the door stay arm up to release the
door stay sliding assembly nut.
Figure 9–Door Stay Assembly

EQUIPMENT: T1216W-C
PUBLICATION: MARINEW-P-I
ISSUE No. & DATE: 1 11/12
© 2012 Thorn Security Ltd PAGE 17 of 39
Registered Company: Thorn Security Ltd. Registered Office: Dunhams Lane Letchworth Garden City Hertfordshire SG6 1BE
6. Commissioning
6.1 Introduction
The following equipment should be available where
possible to minimise commissioning time:
i. Two VHF/UHF Portable Radios or other
communication devices (for two engineers)
ii. Digital Multi-meter with accurate voltage &
resistance measuring capabilities
6.2 Commissioning Checklist
1. Before commissioning, the engineer should
check the following:
i) All field wiring has been inspected and
tested in accordance with manufacturer’s
wiring recommendations and all relevant
marine/local regulations.
ii) All field cables are wired into the control
panel enclosure through suitable cable
glands.
iii) Detector bases are terminated but detector
heads are not fitted. Any devices with
electronic components are not fitted.
Terminations to devices with electronic
components should be linked through to
maintain cable continuity.
iv) Manual Call Points are not connected but
cable is linked through to maintain
continuity.
v) No end-of-line devices (e.g. alarm circuit
EOL resistor) are fitted in the field.
vi) Remove configuration link J6, J7, J8
located on the C1627 motherboard directly
below the Fault [Routing] Signal output.
[Failure to remove this link before
powering up the panel will cause a fault
condition to occur].
2. The following information should be available to
the commissioning team:
Detection layout drawings.
Wiring schematic diagram.
Control Panel installation manuals.
Installation manuals for all equipment
connected to the system.
Vessel specific configuration details.
Technical documentation for the Watermist
Relay Control Panel.
Experience has shown that tracing wiring faults on
long circuits that are routed through risers etc. can
be difficult without knowledge of the wiring route.
It is recommended that the electrical installer be
made available until basic wiring continuity is
proven.
6.3 An Overview of the
Commissioning Procedure
Commissioning is broken in to 3 sections:
1. Pre-commissioning wiring check.
2. Powering the panel up with no field wiring
connected, configuring the panel in accordance
with the vessel-specific requirements and
carrying out a functional check.
3. Functional testing of all circuits and field devices
to check each circuit and function in turn to
ensure correct operation of the entire system.
In this way any faults may be located quickly and
accurately. The general procedures are as follows:
1. If alarm circuits have been used as part of the
system, they should be checked first by using
the Manual fire alarm function. The correct
operation of each sounder should be checked to
ensure that audibility levels meet the relevant
regulations.
2. Detection zones should be commissioned next.
The purpose is to establish the correct
functioning of each device and check for correct
indication at the control panel. The panel
responses [as configured] should be checked at
this time.
3. All ancillary inputs and outputs should be
commissioned and the functionality confirmed.
The interface with the WMRCP should be
commissioned at this stage.
4. Fire protection signals should be tested.
5. Fire and fault output signalling should be tested.
WARNING: Before testing, the engineer must be
aware both of the operation of all equipment
fitted to the auxiliary circuits and of the
consequences of their operation.
6.4 Pre-Commissioning Wiring Check
NOTE: This pre-commissioning wiring check
procedure should be followed to test all wiring
prior to specific commissioning of any
detection, alarm and auxiliary circuits.
1. Ensure that no devices are connected to the fire
detection zones and sounder circuits, but that
the cables are linked through at the device
locations to achieve a continuous circuit.
2. Ensure that the resistance of all cables to earth
and between cores is at least 2M.
Check the following:
i) Positive-to-earth resistance is 2Mor higher.
ii) Negative-to-earth resistance is 2Mor
higher.
iii) Positive-to-negative resistance is 2Mor
higher.
3. Connect a wire link as the end-of-line device on
each of the fire detection zones and sounder

T1216W-C
MARINEW-P-I
1 11/12
PAGE 18 of 39
circuits. At the panel end, measure the
resistance across the positive & negative ends
of the cables for each of the circuits; ensuring
the value does not exceed 20. Remember to
remove the wire links after the tests.
Correct polarity throughout all circuits must be
maintained. Check and rectify any faults.
4. All sounders, detector heads and call points
should now be connected and the correct end-
of-line devices fitted. Use the spare end-of-line
devices supplied and leave the EOL devices in
the panel terminals at this stage. Remember to
remove any links fitted to detector bases. Be
very careful to maintain correct polarity at each
device.
Warning:
Intrinsically safe zone arrangement:
1. Ensure that the installation has been carried out
in full accordance with the installation
documentation provided with the I.S. devices
and I.S. barrier. Failure to carry out the
installation correctly is likely to render the
system unsafe and risks causing an explosion.
2. End-of-line resistors with a value of 10Kmust
be used. Additionally, these resistors must also
comply with the requirements laid down in the
installation data sheets provided with the I.S.
barrier and the I.S. fire detection devices.
3. Any zones used for I.S. applications must be
configured to Intrinsically Safe mode. [Except for
mixed I.S./Non-I.S. zones as detailed below].
4. Recommended I.S. barrier - MTL5061/MTL5561
[galvanic type].
5. Mixed I.S and Non-I.S. Zones:
Where the Safety System Documentation
allows, zones can contain I.S. and Non I.S.
devices. The requirements of the Safety
Documentation must be applied and the number
of I.S. devices must be limited to 3 in total.
The I.S. devices must be located at the end of
the zone with the I.S. barrier located in an
adjacent safe area. All of the non-I.S. devices
must be connected in the zone wiring between
the barrier and the panel. The I.S devices
should be connected between the I.S. barrier
and the end of line.
The zone must be configured to the non-I.S.
mode [This simply sets the operating detection
thresholds and is not a safety issue].
The non-I.S. section [safe side - between the
panel and the I.S. barrier] will support full open
and short circuit fault monitoring and
detector/MCPs fire event discrimination. The I.S.
section (hazardous side - between the IS barrier
and the end of line resistor) will support open
circuit fault monitoring only - short circuit fault
will raise a detector fire. It will not support
detector/MCP discrimination; all devices will
raise a detector fire indication.
Intrinsically Safe alarm devices [sounders] may be
connected via an MTL 5021 or MTL5521 galvanic
isolator. There are no requirements for configuring
the panel’s sounder outputs. Note: Galvanic
isolators prevent fault monitoring of the
sounder circuit. Any cable fault between the
isolator and I.S. sounders will not be detected.
The 3k9 end of line monitoring resistor should be
connected across the barrier terminals 11 and 12
[i.e. in parallel with the sounder circuit input to the
safe area terminals on the IS barrier]. The
installation requirements supplied with the I.S.
barrier and the I.S. sounders must be fully
observed.
6.5 Powering up
Prior to powering up, the panel will have been
installed in accordance with the installation
instructions, all cabling will have been fully installed
and tested, glanded into the panel enclosure but
not connected to the panel terminals. The mains
supply should be isolated externally to the panel.
The interface connections to the WMRCP should
be isolated prior to powering up the T1216W-C.
1. Connect the 9V battery lead to J4 on the rear of
the display PCB.
2. Connect the buzzer lead to J6. The buzzer will
sound.
3. Check the 24V battery connections are correct.
4. Check the Fault Routing Output configuration
link (3-way link at J6, J7, J8) has been removed.
[Link located on the C1627 motherboard directly
below the Fault Signal relay].
5. Final battery connections:
Fit the connector on the end of the black lead
onto the negative (black) terminal of the left-
hand battery. Fit the connector on the end of
the red lead onto the positive (red) terminal of
the right-hand battery.
Connect the blue battery lead between the
positive (red) terminal of the left-hand battery
and the negative (black) terminal of the right-
hand battery.
Warning: Connection of the batteries will
power up the panel even if the mains
supply is not energised.
6. Ensure the mains supply is safely isolated
external to the panel. Remove the mains supply
fuse from the panel mains terminal block. Once
the permit to energise the mains supply is in
place, energise the mains. At the mains terminal
block in the panel, check the voltage and polarity
are correct. Isolate the mains supply again
before replacing the panel fuse and finally re-
energising.

EQUIPMENT: T1216W-C
PUBLICATION: MARINEW-P-I
ISSUE No. & DATE: 1 11/12
© 2012 Thorn Security Ltd PAGE 19 of 39
Registered Company: Thorn Security Ltd. Registered Office: Dunhams Lane Letchworth Garden City Hertfordshire SG6 1BE
7. If all the end of line devices are correctly
terminated in the panel and the 24V battery is
OK, the panel should be silent, displaying only
the Power Supply On indication.
8. Turn the Access keyswitch to “1” and press the
Test Display button. The panel should respond
by lighting all indications and sounding the
buzzer. This will continue for 5 seconds after the
button is released.
6.6 Configuration
6.6.1 Basic Default Configuration
The factory-set default mode is:
All zones latching fire indication, standard
[non-intrinsically safe].
Machinery space zones –none programmed.
Fire output signal, Fire Protection and Sounder
outputs not delayed.
Sounders –General steady Alarm mode
selected (not zonal, not pulsed).
Crew Alarm Mode –not selected.
Fire [Routing] Output –link selected to
powered/monitored mode.
Fire Protection Output –link selected to
powered/monitored mode.
Fault Signal [routing] Output –link selected to
powered/monitored mode. [NB –THIS
OUTPUT NEEDS TO BE CHANGED TO THE
VOLT-FREE MODE BY REMOVING THE 3-
WAY LINK J6, J7, J8].
Earth fault monitoring –enabled [link fitted].
Manual fire alarm/Muster sounder operation –
link selected to Manual Fire Alarm.
LED brightness –highest setting.
Fire Protection outputs not to operate on non
latched zones –not selected.
Inhibit silence alarms/reset for 3 minutes –not
selected.
Silence alarms before reset –not enabled.
Buzzer –enabled.
Latching faults –not selected.
6.6.2 Vessel-Specific Configuration
It is possible to tailor the functionality of the
T1216W-C fire alarm panel in line with vessel-
specific requirements. Details of the vessel
configurable options and the configuration process
are provided in sections 6.6 and 7.1 respectively.
Charts are provided in the System Log Book for
planning/recording the actual configuration. This
configuration is not lost when the panel is powered
down.
7. Operating the Engineer’s functions
7.1 Engineer’s Zone/Output
Configuration Process:
Various programmable configuration options
associated with the zonal inputs and outputs can be
enabled & disabled by operating the appropriate
DIL switch located within the panel enclosure.
These are:
oConfigure one or more zones for use with I.S.
barriers/isolators.
oConfigure zones as latching/non-latching fire
indication.
oConfigure outputs to be delayed.
NOTE: The delay feature does not comply
with the requirements of EN54-2.
oConfigure Machinery Space Zones.
7.2 Zone or Output Configuration:
1. Select a programmable configuration mode:
oEnable the controls on the display, by turning
the Access keyswitch on the panel display to
the “1” position.
oIf the panel is in the fire alarm condition,
silence the alarms and reset.
oOpen the panel door and locate the
appropriate DIL switch on the motherboard
[Config Non-latch Zones; Config I.S. Zones;
Config Delay O/Ps] and move the required
switch to the ON position.
The CONFIG ENABLED LED on the
motherboard will illuminate. If the LED
pulses then an invalid configuration option
has been selected.
The Panel’s System Fault LED will flash
and the buzzer will operate.
The Select LED on the front of the display
will pulse unless an invalid configuration
option has been selected.
Any standing fire or fault alarm indications
and associated outputs will be inhibited.
If active, the indications for evacuation,
silence buzzer, delay on or disablement
indications will clear.
The panel will indicate the current status of
the selected programmable configuration
mode on the yellow fault/disabled LEDs on
the Zones, Sounders, Fire Routing and Fire
Protection outputs.
A steady indication denotes that the
zone/output is already configured to the
selected mode.
No indication denotes that the zone/output
has not been configured to the selected
mode.
oClose the panel door to allow access to the

T1216W-C
MARINEW-P-I
1 11/12
PAGE 20 of 39
buttons on the display.
2. Select a zone or output to be configured:
oOn the panel display, press the Select On/Off
switch to enable the Cursor Select Mode.
The Select LED will become steady and the
panel buzzer will silence.
A pulsing indication [cursor] will appear
either on the Zone 1 Fault/Disabled LED or
the Sounder Fault/Disabled LED/Test
depending upon which configuration DIL
switch is selected.
oUse the Select ↑ and Select↓ buttons to scroll
the cursor indication through the selectable
options:
For zonal configuration, through all zones
sequentially in forward [Select↓] or reverse
[Select ↑] sequence starting at zone 1.
For Output Delay configuration, through
Sounders, Fire Protection and Fire Routing
outputs in forward [Select↓] or reverse
[Select ↑] sequence starting at Sounders.
3. To change the configuration of a selected
zone or output:
oWith the cursor flashing on the selected zone
or output:
Operation of the ENABLE button will set the
configuration for the selected zone/output
causing the associated fault/disabled LED
to illuminate steady (with flashing cursor).
Operation of the DISABLE button will clear
the configuration from the selected
zone/output and restore normal operation.
The fault/disabled LED will clear (with
flashing cursor).
Move the cursor to each required zone/output in
turn and press ENABLE or DISABLE as
required.
4. To quit the programmable configuration
mode:
oTo return the panel to normal operating mode
applying the updated configuration:
Open the panel door and return the
selected Config DIL switch on the
motherboard to the OFF position.
The CONFIG ENABLED LED on the
motherboard will clear, the panel buzzer will
silence and the flashing System Fault
indication and zone/output configuration
status indications on the display will clear
as will the cursor and the Select indications.
Any current alarms, disablements, will be
re-indicated along with any active status
indications [Delay on etc.].
oClose and lock the panel door.
oReturn the ACCESS keyswitch to the “0”
position to disable the controls on the display.
IMPORTANT NOTE: WHILE THE PANEL IS
IN THE ENGINEER’S ZONAL/OUTPUT
CONFIGURATION MODE, ALL ZONAL
INPUTS ARE IN PERMANENT RESET AND
OUTPUTS ARE INHIBITED –THE PANEL
WILL NOT RESPOND TO ANY FIRE ALARM.
7.3 To Restore the Factory Default
Configuration for Zones &
Outputs:
Open the panel door and locate the DIL
switches SW1-4 to SW1-8 on the motherboard
[Config Non-latch Zones; Config I.S. Zones;
Config M/S Zones; Config Delay Zones; Config
Delay O/Ps] and move each switch to the On
position.
oThe Config Enabled LED on the motherboard
will flash.
oThe Panel’s System Fault LED and Disabled
LED will flash and the buzzer will operate.
oAny standing fault or disablement indications
will clear.
oIt will not be possible to enter the Select
Mode.
Press the Disable button on the panel’s display
and wait 5 seconds.
Return DIL switches 1-4 to 1-8 to the OFF
position.
oThe Config Enabled LED on the motherboard
will clear.
oThe Panel’s System Fault LED will flash and
the buzzer will clear.
oThe factory default configuration [all zones as
latching fire, non-intrinsically safe, non-
machinery space] will be restored and the
Fire output, Fire Protection and Sounder
outputs will no longer be delayed.
7.4 Engineer’s Zone/Output
Configuration Time-out Warning:
This feature is provided to prevent the panel being
left in the Zone/Output Configuration condition.
1 minute after the last button press:
oThe panel buzzer will restart.
oThe Select LED will flash.
oThe System Fault LED will continue flashing.
Press the Select On/Off button to continue with
the configuration process otherwise quit the
configuration process as described in step 4 of
7.2 above.
7.5 Invalid Configuration conditions:
Invalid condition: If 2 or more configuration
switches on the motherboard are in the On
position at the same time:
oThe Config LED on the motherboard will
