Sirius Signal C-1002 User manual

Our Products Are Made in the USA.
C-1002 Operation Manual
SKU: SSDC1002-ROC
Proudly made in the USA.
(Complies with “Buy American Act” – may contain imported components.)
Patent Pending

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
2
Contents
1FEATURES.................................................................................................................3
2SAFETY WARNINGS..................................................................................................3
3MODES ....................................................................................................................4
3.1 Manual Mode ......................................................................................................4
3.2 Bluetooth Mode ...............................................................................................4
4CHANGING BATTERIES.............................................................................................4
4.1 Reinstalling the LED Module .................................................................................5
5SPECIFICATIONS ......................................................................................................6
5.1 Environment ........................................................................................................6
5.2 Buoyancy .............................................................................................................6
5.3 LED Wavelength...................................................................................................6
5.4 Run Time .............................................................................................................6
5.5 Average Effective Intensity for Visual Light ............................................................6
5.6 Average Effective Intensity for Infrared Light .........................................................6
5.7 Sure Swift Paddle Switch Design ...........................................................................6
5.8 Battery Requirement.............................................................................................6
5.9 Bluetooth .............................................................................................................7
5.10 Dimensions.......................................................................................................7
5.11 Weight ..............................................................................................................7
5.12 Additional Compliance......................................................................................7
6DISPLAYING THE LIGHT............................................................................................7
7MAINTENANCE ........................................................................................................7
8THE SIRIUS SIGNAL SYSTEM .....................................................................................8
9THE SIRIUS SIGNAL APPLICATION ............................................................................8
9.1 Installation of Phone Application ..........................................................................8
9.1.1 Android ......................................................................................................8
9.1.2 iPhone ........................................................................................................8
9.2 Operation of Phone Application ...........................................................................8

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
3
9.2.1 Home Page.................................................................................................8
9.2.2 Test Light ....................................................................................................9
9.2.3 Float Plan ...................................................................................................9
9.2.4 Contacts .....................................................................................................9
9.2.5 Check-Me .................................................................................................10
9.2.6 SOS..........................................................................................................10
9.2.7 First Aid ....................................................................................................10
10 TROUBLESHOOTING..............................................................................................10
10.1 Light won’t light ..............................................................................................10
10.2 Only half of the LEDs light...............................................................................11
10.3 When I try to send a Check Me/SOS message or register my product code, I get
an error message popup. The Internet works fine in my other apps.............................11
Table of Figures
Figure 1: Polarity of CR2032 Coin Cell ............................................................................3
Figure 2: Polarity of CR123A Batteries .............................................................................3
Figure 3: Installation of CR123A Batteries in Battery Tray .................................................4
Figure 4: Illustration of Collar Position When Properly Tightened......................................4
1 FEATURES

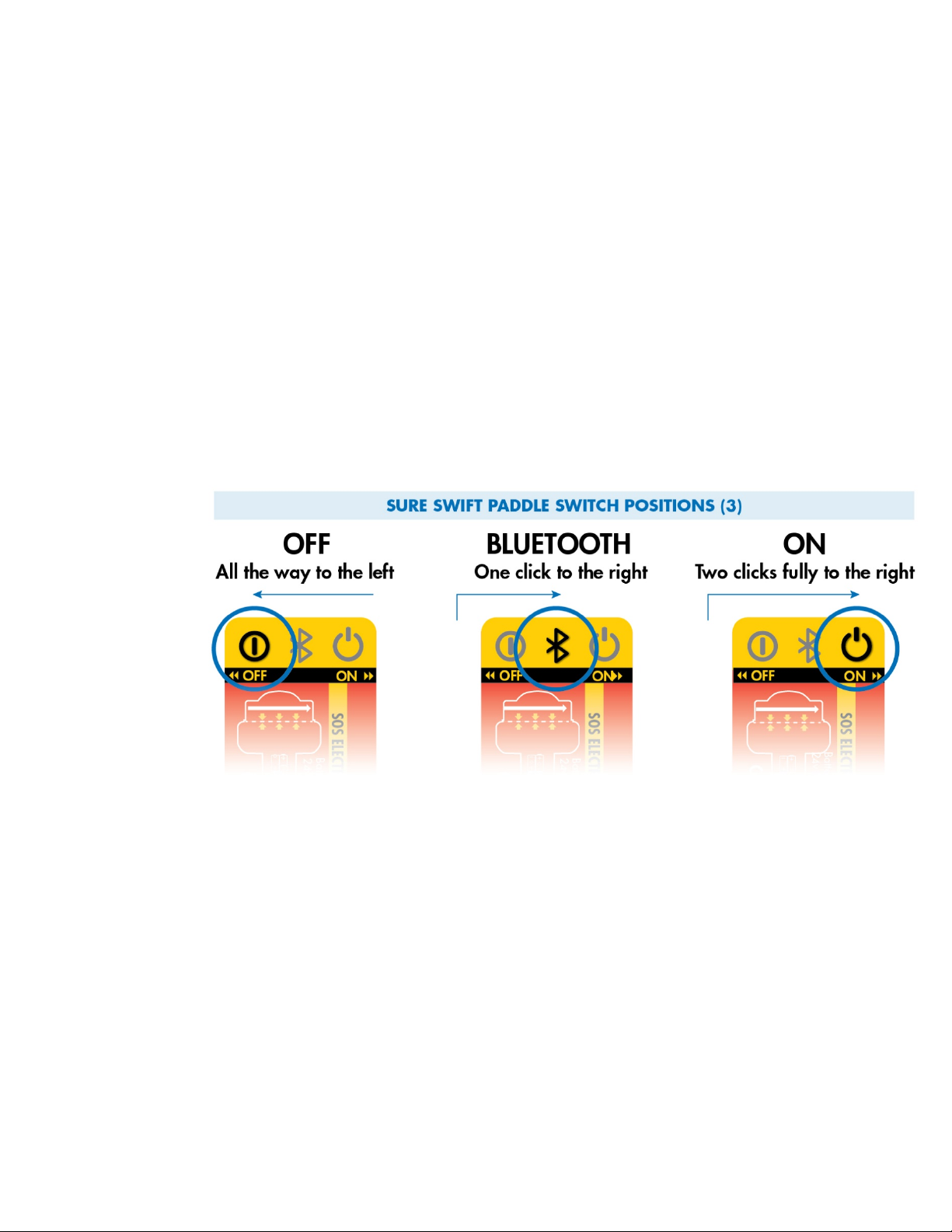

1.1 Manually turning on the light by setting the Sure Swift Paddle Switch two
clicks fully to the right.
1.2 Bluetooth Mode by setting the switch to the center position.
2 SAFETY WARNINGS
2.1 This is not a toy and should be treated as such. The SOS function should only
be used in an emergency.
2.2 Use only premium CR123A Lithium batteries.
2.3 Do not mix batteries from different manufacturers.
2.4 Do not mix fresh and used batteries.

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
4
2.5 Observe the proper polarity installation of the batteries.
2.6 Dispose of the used batteries properly.
2.7 Warning: do not look directly at the light; it is extremely bright. In addition, it
contains an infrared LED; emitting infrared light which cannot be seen.
2.8 The red collar can become warm during extended operation. If used as a
handheld device, do not touch the collar during operation.
3 MODES
3.1 Manual Mode
With label facing towards you, turn the Sure Swift Paddle Switch two clicks fully to the right
(past the second detente). The light will begin the SOS pattern; 3 short Orange Red
flashes followed by 3 longer Cyan flashes again followed by 3 Orange Red flashes. The
pattern repeats. To turn unit off, fully return switch to the left two clicks to off position
marked on label.
3.2 Bluetooth Mode
Move the switch to the middle Bluetooth position (past the first detente). Use the Sirius
Signal application to turn on the light (available by registering your device at
SiriusSignal.com). Open the application and press the Test Light button. It might take up to
30 seconds to connect. Upon connecting, the light will begin the SOS pattern. 3 short
Orange Red flashes followed by 3 longer Cyan flashes again followed by 3 Orange Red
flashes. The pattern repeats.
Bluetooth Mode requires a cell phone with the Sirius Signal Application to work.
Do not leave unit switch in Bluetooth position/mode unless operating light for distress
situations. If switch is left in Bluetooth position/mode when not using device, primary cells
will discharge.
4 CHANGING BATTERIES
The light requires eight premium CR123A batteries and one CR2032 Lithium coin cell. The
light will operate without the coin cell, but it is required as a backup for the Bluetooth.
Periodically, the state of the batteries should be checked by turning the light on for a
moment. The battery capacity can also be checked by switching the light to Bluetooth
Mode. The Sirius Signal Application will the report the capacity on the first page. Green
signifies charged batteries, red signifies low charge.
To replace the batteries, unscrew the red collar and gently lift the LED module out of the
housing. Remove the spent batteries and replace them with the new batteries observing

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
5
the proper polarity. See Figures 2 and 3 below. The polarity is shown on the battery holder
for the CR123A batteries. Use good quality batteries. Replace the coin cell (CR2032) with
the positive side facing the outside of the module. See Figure 1.
4.1 Reinstalling the LED Module
Hold unit with label facing you. Check O-ring on top of body then carefully align the
module to go back inside the housing. Take note of hole in PC board. Reinstall making
certain the hole goes over the red rotor shaft. Advance collar slightly to engage threads.
Do not CROSS THREAD. Slowly turn collar while gently rotating and pushing optic
downward until it locks into place. Continue tightening collar until it stops against float.
Fully tightened, the raised bump should be well past 3 o’clock.

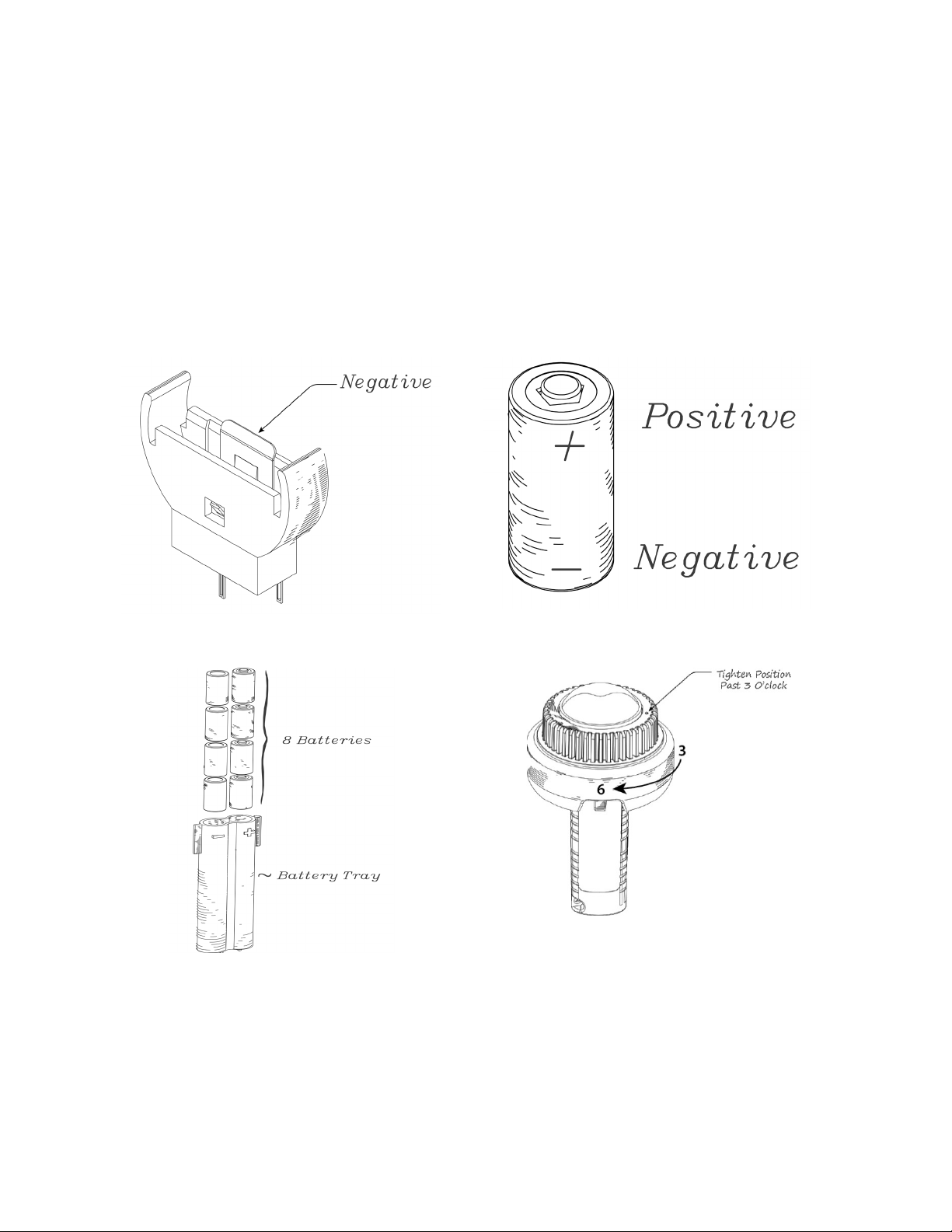

Figure 1: Polarity of CR2032 Coin Cell Figure 2: Polarity of CR123A Batteries
Figure 3: Installation of CR123A Batteries in Battery
Tray
Figure 4: Illustration of Collar Position When Properly
Tightened

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
6
5 SPECIFICATIONS
5.1 Environment
The operating temperature range is -1°C to +30°C (30.2°F to 86°F), and the storage
temperature range is -20C to +55C (-4°F to 131°F).
5.2 Buoyancy
The device is capable of floating with the light output fully visible above the waterline in
calm fresh or salt water. It is also submersible.
5.3 LED Wavelength
6 red-orange 610-620 nm 6 cyan 490-520nm 1 IR 740-890 (Flashes USCG spec SOS
signal in colors and infrared)
5.4 Run Time
Performance specification run time – 2 hours. The C1002 has an innovative feature that
allows the light to continue after the specified 2 hours at half power illuminating half of
the LEDs. This extends the total operational run time approximately 7 hours.
5.5 Average Effective Intensity for Visual Light
For the Orange Red and Cyan LEDs, the Average Effective Intensity exceeds 50cd in a
hemispherical distribution.
5.6 Average Effective Intensity for Infrared Light
The Infrared LED output is described in a different way. It significantly exceeds 21mW/Sr;
again in a hemispherical distribution.
5.7 Sure Swift Paddle Switch Design
Designed to be activated with one hand. The added space in the Bluetooth mode switch
area adds additional momentum for a single-hand activation even with a glove on.
5.7.1 Self-Cleaning Lever
5.7.2 Accidental Switch Activation Protection
5.8 Battery Requirement
Requires 8 CR123A batteries (included) and one CR2032 coin cell.

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
7
Performance of device can vary widely by selection of CR123A batteries. Look for
premium, high milliamp range batteries starting at 1600 AB and up for optimal
performance.
5.9 Bluetooth
Bluetooth enabled with enhanced connectivity.
5.10 Dimensions
5.10.1 Height: 8.5” (21.59cm)
5.10.2 Diameter: 5” (12.70cm)
5.11 Weight
5.11.1 Without batteries: 1.080 lbs
5.11.2 With batteries: 1.366 lbs
5.11.3 Shipping Weight: (with packaging): 1.708 lbs, P/N SOS C-1002
5.12 Additional Compliance
5.12.1 CE (European Compliant)
5.12.2 RoHS Compliant
6 DISPLAYING THE LIGHT
The light can be used as a handheld location device that can be manually operated. In
addition, the light can be attached to the craft and displayed at a higher point such as
optional mount or rod holder so that the light can be seen at a greater distance (See Table
1). First put the light in Bluetooth Mode. After positioning the light, use the Sirius Signal
Application to turn on the light.
The distance to the horizon, the practical limit on the distance any light can be seen, can
be estimated by the following formula:
7 MAINTENANCE
The light can be cleaned with a soft cloth and warm water.

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
8
8 THE SIRIUS SIGNAL SYSTEM
As a precision safety device, the light provides an intense visual SOS for greater than 2
hours. It is the “Locate” part of Sirius Signal's “Alert and Locate” system.
This system is composed of an application that comprises the “Alert” part of the system.
This application allows you to send text and phone messages to recipients you select to
alert them you have a problem. The light provides the “Locate” function to allow
respondents to find you.
9 THE SIRIUS SIGNAL APPLICATION
You can register your device at https://siriussignal.com/owners/ Registration allows you to
download the Sirius Signal application to your phone. App is compatible with Android 5.0
and up or IOS 13.0 and up. You will be allowed multiple downloads of the Sirius app with
the issued product code key. If you are not the original purchaser of the Sirius Signal C-
1002 SOS eVDSD but, it is part of your boat’s safety equipment you will need to re-
register as the new owner of unit. A small fee is required. Go to the Sirius Signal website.
Click on store then purchase choose new product code key.
9.1 Installation of Phone Application
See video on our website, SiriusSignal.com/Application/
Android
Open a browser, locate the APK file you want and tap to download. You should be able to
see it downloading on the top bar of your device. Once it’s downloaded, open downloads
and tap on the APK file. Tap “Yes” when prompted. This will install the app on your device.
iPhone
Open the Apple Store App, locate the Sirius Signal application file, tap “Get” and tap
“Install.” This will install the app on your device.
9.2 Operation of Phone Application
Tap on the Sirius Signal Icon to open the application.
Home Page
Clicking the “Test Light” button toggles the light on or off if the switch on the light is in the
center position, Bluetooth mode.
Clicking on the blue box or clicking on the triple bar on the upper left and choosing
“Contacts” allows one to enter a list of contacts for the “Check-Me” or “SOS” functions.

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
9
Clicking on the purple box shows your position and that of other users around you.
Clicking the white “Start Trip” button sends you to the “Float Plan” form provided to inform
others of the details of your trip.
Clicking on the yellow Check-Me button causes the program to send the previously setup
message to the previously setup list of Check-Me recipients.
Clicking on the red SOS button causes the program to send the previously setup message
to the previously setup list of Emergency recipients.
Test Light
This button toggles the C1002 light on and off. Set the switch on the light to the center
Bluetooth mode position. Place the device in an open position where it can be seen, the
higher the better. Then open the Sirius Signal application and tap the “Test Light” button. It
can take up to 30 seconds to connect. The light will then turn on and begin flashing SOS.
Float Plan
Fill out the Float Plan to describe your trip. List the Passengers Aboard, preferably in
alphabetic order. Add the area of operation or final destination. If you will be going to
multiple destinations, list them. Enter your departure and arrival times so that respondents
will know when you are expected back. List any medical conditions those on board have;
add the person’s name and condition. Add a description of the vessel. Then click “Submit”.
Contacts
Contacts are entered one by one. You can enter the information manually or import the
entries from your phone’s contact list. Also, there are two contact lists. One for the Check-
Me function and one for the Emergency function. There are Labels above the list, Check-
Me and Emergency. Tap on the label to select that list.
To enter a contact in either list, select the “Add” button at the bottom of the CONTACTS
menu. Either manually enter the information or import the contact information.
To import a contact, select the “Import” button next to the blank contacts fields. Check the
box next to the entry you would like to import, then tap the check mark in the upper right
of the page.
Import also includes a search function. Type in a name on your contact list and the
application searches as you type.
Above the contact entry list but below the labels is a region where you can enter a
message for either function. Type in a message to be sent by test and by an electronic cell
phone call. For example, one might say, “Emergency; need assistance. Sweet Ann’s Ride”
for the emergency message. For the Check-Me function, one might say, “The trip is going
well, just checking in.”

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
10
Check-Me
This feature allows you to “check in” with a previously defined group.
SOS
This feature allows you to send an Emergency message to a previously defined group.
First Aid
Click on the First Aid icon. On the sketch of a man, tap on the body part that has a
problem. A list will appear. Tap on the item on the list to invoke a discussion concerning
how to address the issue.
10 TROUBLESHOOTING
10.1 Light won’t light
10.1.1 Sure Swift Paddle Switch not in right position.
10.1.2 Batteries exhausted
Replace with 8 CR123A good quality batteries.
10.1.3 One or more batteries reversed
Inspect batteries for correct polarity; correct if needed
10.1.4 Battery or switch contacts corroded
Clean contacts with an eraser.

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
11
10.2 Only half of the LEDs light
10.2.1 Batteries exhausted
Replace with 8 CR123A good quality batteries. The C1002 has a
feature that allows the light to continue after the Specified 2 hours at
half power using half of the LEDs.
10.2.2 Broken wires
Return to manufacturer for repair.
10.3 When I try to send a Check Me/SOS message or
register my product code in the mobile app, I get an
error message popup. The Internet works fine in my
other apps.
Solution #1: Check your VPN settings. Some websites and apps do not work when using
VPN. VPN should be disabled when using the Sirius Signal app.
Android:
1. Open your phone's Settings app.
2. Tap Network & internet And then Advanced And then VPN.
3. Next to the VPN you want to disconnect, tap Settings.
4. Turn off that VPN.
Important: Settings can vary by phone. For more info, contact your device manufacturer.
IOS
Go to Settings > VPN and toggle it off.

Sirius Signal | 1042 N. El Camino Real, B-200 Encinitas, CA 92024 | [phone] |SiriusSignal.com
12
