Lalizas Lifelink MOB Danbuoy User manual

73669 Lifelink MOB Danbuoy & Horseshoe
OWNER’S MANUAL
TABLE OF CONTENTS
Warnings 2
Description 2
Detailed Presentation 2-3
www.lalizas.com
Mounting Instructions 4
After Activation 4
Cleaning 4
Servicing Instructions 4
Storage 5
Spare Parts 5
Servicing Record 5

2
WARNING!
Please read carefully all the instructions provided, before use. Failure
to do so, may result in injury or death.
WARNING!
This device must be used in accordance with the instructions provided
in this manual to secure maximum performance. Failure to comply
with the instructions could result in a lower level of performance or
in failure of the device, which could result in death. Under some
circumstances, even if used properly, this device may not save your
life.
WARNING!
Do not orally inate this device with the included oral ination tubes
and then do not pull the ination tab. This could cause injury and may
overstress the buoyancy chamber.
WARNING!
This device is not designed to satisfy the requirements of a life raft
for extended durations. This unit is designed for man-overboard or
individual rescue operations.
Description
In case of a Man Overboard emergency, quick response of the crew can be
a matter of life and death for the person fallen into the sea. LALIZAS Lifelink
MOB Danbuoy & Horseshoe is intended to provide a quick and easy-to-
use assistance to both the crew as well as the person in danger.
Product consists of an inatable otation unit in horseshoe shape and
preinstalled lifejacket SOLAS light, an inatable danbuoy with a ag and a sea
anchor. All these components are folded and packed in a bag, secured
in a compact HDPE case and ready-to-use. Case is easily and steadily
installed on vessel’s rails.
Simple operation
In a Man Overboard emergency, pulling the stainless steel pin will release
the bottom lid of the case and as a result, the safety equipment will fall securely
into the sea.
Detailed Presentation
WARNING!
This unit requires limited periodic maintenance to ensure operation
in an emergency. Do not use this unit if it has not been properly
maintained. Maintenance should be performed only by an authorized
LALIZAS Service Station. Please check the “Servicing Instructions”
for additional details.
WARNING!
Do not open or otherwise disassemble this device until needed.
Maintenance should be performed only by an authorized LALIZAS
Service Station. Please check the “Servicing Instructions” for
additional details.
WARNING!
Never use this device if it has obvious damage. Maintenance should
be performed only by an authorized LALIZAS Service Station. Please
check the “Servicing Instructions” for additional details.
Warnings
Horseshoe and Danbuoy are equipped with automatic inators and CO2
cylinders. This means that they will be automatically inated as soon as they
are immersed into the sea, without any further action needed.
Then, the person in the water should get closer to the inated equipment,
place horseshoe under their arms and lock the buckle. Danbuoy will provide
visibility as it is designed to stay vertical to the surface and hold a ag
on its high top.
Additionally, sea anchor will help the person stay in place and facilitate
the rescue from the crew. It should be noted that all components that fall into
the sea are connected with a rope and thus, there is no danger of losing any
part due to sea waves or wind.
Lifelink MOB Danbuoy & Horseshoe Specications
CASE
Gross weight 6 kg
Material HDPE
Color Grey
Dimensions 46.5 cm H x 27 cm L
x 13 cm W
HORSESHOE
Buoyancy 140 N
Material Nylon with TPU
Color Fluo Yellow
CO2 Ination 33 gr cylinder
DANBUOY
Material Nylon with TPU
Color Fluo Yellow
Dimensions 175 cm above
waterline
CO2 Ination 33 gr cylinder
Lifejacket light
SOLAS
8 hours of continuous
operation

3
73669 Lifelink MOB Danbuoy & Horseshoe / OWNER’S MANUAL

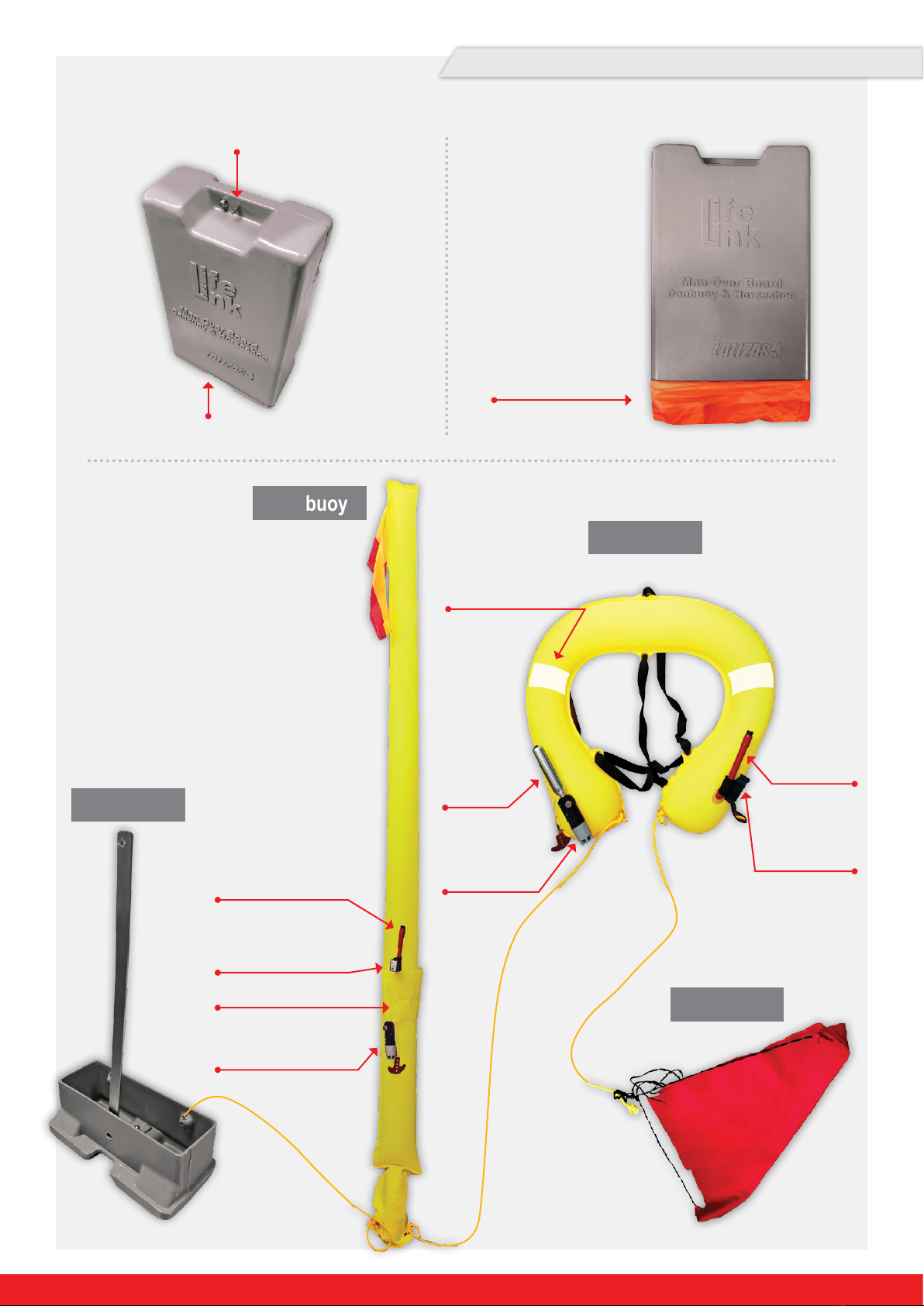

Pull the pin in order to release the bottom lid
Bottom lid
Inner bag protects
the contents from
water
Bottom lid
Danbuoy
Horseshoe
Sea Anchor
LALIZAS Oral Ination
Tube ISO 12402-7
33g CO2
Cylinder
LALIZAS Oral
Ination Tube
ISO 12402-7
LALIZAS Whistle
ISO 12402-7 & 8
LALIZAS
Automatic Inator
JS1 ISO 12402-7
LALIZAS Retroreective
tape SOLAS
33g CO2Cylinder
LALIZAS Automatic
Inator JS1 ISO 12402-7
LALIZAS Lifejacket
Light water-activated
USCG, SOLAS/MED

4
Mounting Instructions
Lifelink MOB Danbuoy & Horseshoe is designed to t most conventional
boat rails. It can be installed onto horizontal rails but also at the intersections
of vertical and horizontal rails. Case must be in vertical position, on the
outer side of rails. The location should be selected carefully so that there is
a clear path under the case to allow free fall of both the lid and the equipment
into the sea. No obstacles should exist in the path. Otherwise, parts could
become entangled and not perform as intended.
All necessary screws are included within the product’s packing. Do NOT drill
holes or use other screws rather than those coming with the product as this
could damage the case and the safety equipment inside.
For the installation of the case onto the rails, product comes with 4 SS plates
and 8 SS cap screws M8x16 ISO 10642.

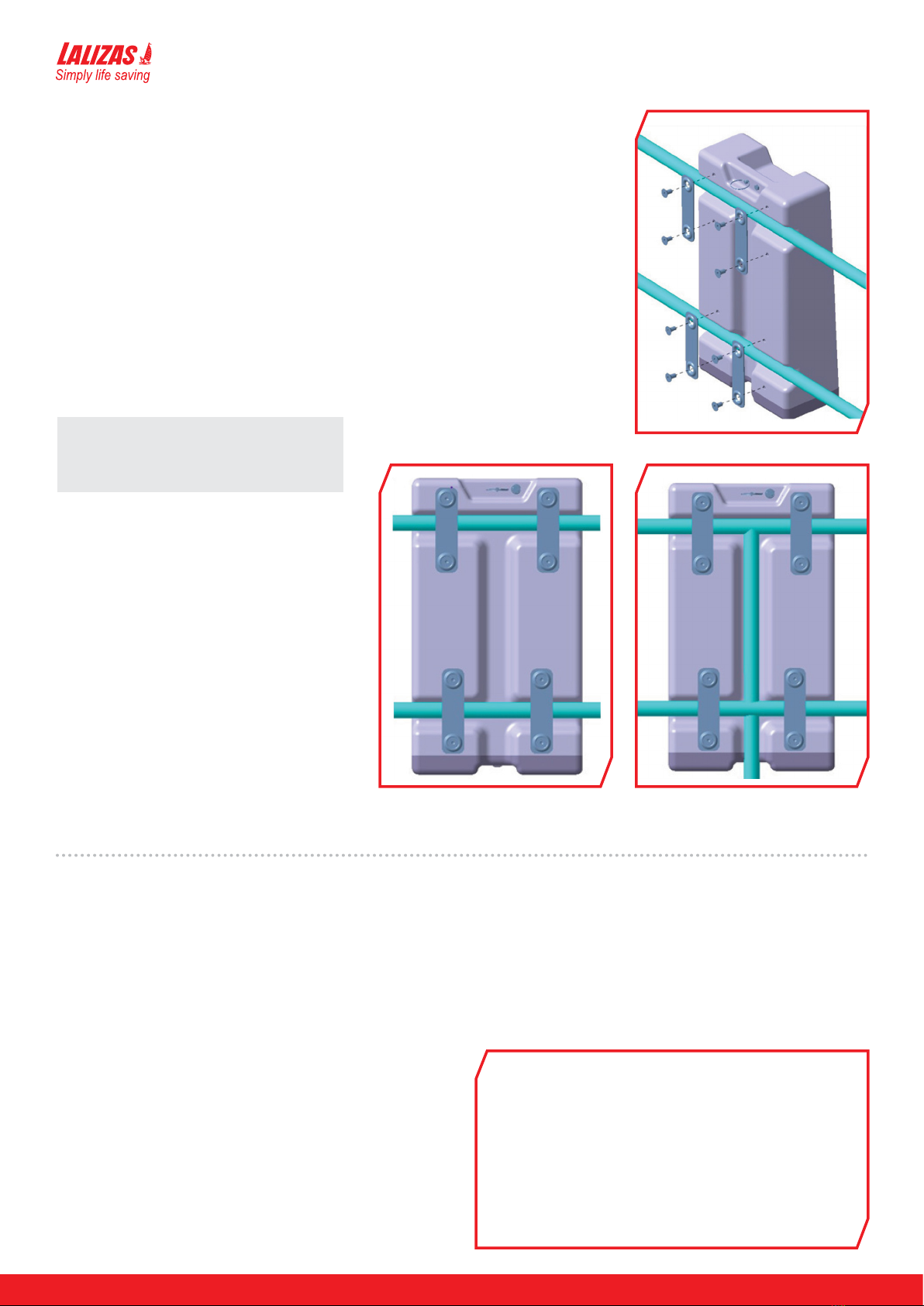

Depending on the placement
of rails, there are 2 possible
positions to install the case,
as shown:
IMPORTANT NOTE!
Distance between horizontal rails: 300-310mm
Max rail diameter: 25mm
After Activation
After devices have been activated, the crew should bring them aboard. If
possible, all materials should be rinsed with clean water and let air-dry. Then,
the inatable devices should be completely deated. To deate chambers,
remove oral ination tube cap, insert the nipple of the cap strap and hold into
the valve. Apply gentle pressure to the chamber and deate it. Re-install the
cap in the normal position on the ination tube. For reuse, Lifelink MOB
Danbuoy & Horseshoe must be serviced and repacked by an authorized
LALIZAS Service Station.
Cleaning
Lifelink MOB Danbuoy & Horseshoe hard container and otation devices
may be cleaned with mild soap and water. Never use harsh chemicals
on or around this product. If exposed to harsh chemicals such as hydraulic
uids, oils or solvents, have the unit cleaned and inspected by an authorized
LALIZAS Service Station.
In any case, attention should be
paid while installing the case
onto rails so that it does not
accidentally fall into the sea.
After screwing all 8 M8x16 DIN 7991 screws,
make sure that the case is steady and
check again that no obstacle interferes
between the case lid and the sea surface.
Servicing Instructions
Lifelink MOB Danbuoy & Horseshoe requires inspection and service from
an authorized LALIZAS Service Station after each use or 3 years after the
manufacturing date. Failure to comply with this requirement may lead Lifelink
MOB Danbuoy & Horseshoe not to perform as designed.
IMPORTANT NOTE!
It is recommended that the Lifelink MOB Danbuoy
& Horseshoe should be removed from the rail and
stored below if the boat is moored for extended
periods.
2 horizontal rails Intersection of 2 horizontal
rails with a vertical one

5
Storage
Proper storage of Lifelink MOB Danbuoy & Horseshoe is very important
to extend its lifetime. When not in use, it is recommended that the device
should be stored in a climate controlled environment and not be left
exposed. It should be stored in a clean and dry environment out of direct
sunlight.
Spare Parts
Servicing Record
CODE DESCRIPTION
00348 CO2Cylinder, 33gr
20190 LALIZAS Auto re-arm Kit for JS1 Adult Lifejacket, 33 gr
20260 Automatic Inator
20610 Ination Valve for oral tube
70010 LALIZAS Nautical Whistle (in blue)
70190 Retroreective Tape ORALITE ,SOLAS, Set of 6 pcs, 5x10 cm
71324 LALIZAS Auto re-arm Bobines, Set of 4, for Adult & Child Lifejacket
72349 LALIZAS Lifejacket LED Flashing Light "Safelite IV" ON-OFF water-activated, USCG,SOLAS/MED
INSPECTED BY SERVICING DATE SPARE PART REPLACED
73669 Lifelink MOB Danbuoy & Horseshoe / OWNER’S MANUAL
This product should not be stuffed into tight containers or lockers, nor
should other items be stacked on top of it. Protect it against vermin, acids,
gasoline, fuel oil, and other chemicals or their fumes which may contaminate
the material. Do not expose to concentrations of ozone (produced by
electric motors, generators, or switches). Do not store the unit on the ground.
Keep this manual near the Lifelink MOB Danbuoy & Horseshoe.
