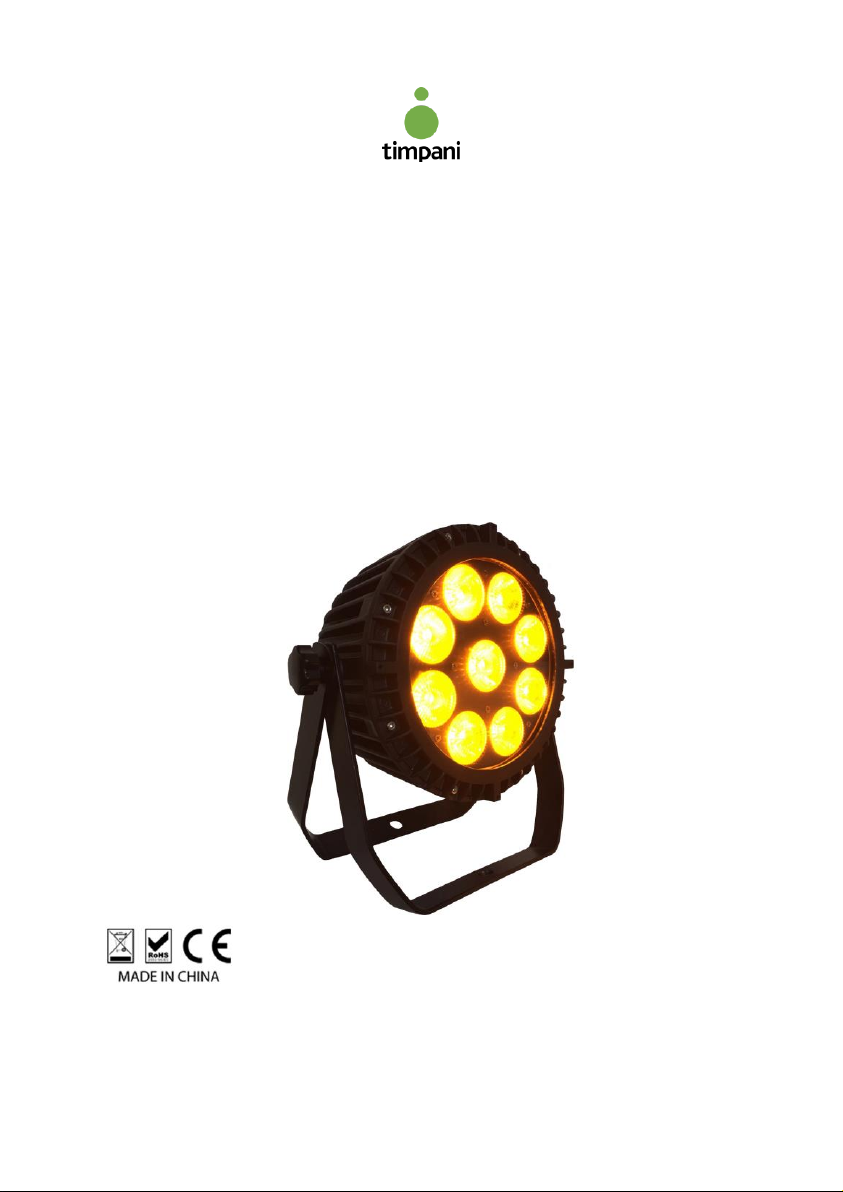

BATTERYPAR45
9PCS*12W RGBWA+UV LED PAR (6IN1)

www.timpani.it
USER MANUAL
P le a se rea d t he ins t r u ction s ca refu ll y before use

www.timpani.it
TABLE OF CONTENTS
1. S af ety I nst r uctions................................................................................................. 4
2. Technical Specifications........................................................................................ 7
3. How To Control The Unit....................................................................................... 7
4. Menu...................................................................................................................9
5. DMX Channel.....................................................................................................10
6 . Remind.................................................................................................................. 11

www.timpani.it
statement
The product has well capability and intact packing when leave factory. All of the
user should comply with warning item and manual, any misuse cause of the
damages are not included in our guarantee, and also can not be responsible for
any malfunction & problem owing to ignore the manual.
1. SafetyInstructions
Please keep this User Guide for future consultation. If you sell the unit to another user,
be sure that they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before using the unit.
Before operating, ensure that the voltage and frequency of power supply
match the power requirements of the unit.
It’s important to ground the yellow/green conductorto earth in order to avoid electric
shock.
The unit is for indoor use only. Use only in a dry location.
The unit must be installed in a location with adequate ventilation, at least 50cm
from adjacent surfaces. Be sure that no ventilation slots are blocked.
Disconnect main power before replacement or servicing.
Make sure there are no flammable materials close to the unit while operating as it is fire
hazard.
Use safety cable when fixes this unit. DO NOT handle the unit by taking its head only,
but always by taking its base.
Maximum ambient temperature is Ta: 40℃. DO NOT operate it where the temperature is
higher than this Unit surface temperature may reach up to 85℃. DO NOT touch the

www.timpani.it
housing bare-hand during its operation. Turn off the power and allow about 15 minutes
for the unit to cool down before replacing or serving.
In the event of serious operating problem, stop using the unit immediately.Never try
to repair the unit by yourself. Repairs carried out by unskilled people can lead to
damage or malfunction. Please contact the nearest authorized technical assistance
center. Always use the same type spare parts.
DO NOT touch any wire during operation as high voltage might be causing electric
shock.
Warning:
Please set one light only as master when used Master-slave model in the same
channel.
DO NOT set any light as master when used DMX hold model.
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain
or moisture.
DO NOT open the unit within five minutes after switching off.
The housing, the lenses, or the ultraviolet filter must be replaced if they are visibly
damaged.
Caution:
There are no user serviceable parts inside the unit. DO NOT open the housing or
attempt any repairs yourself. In the unlikely event your unit may require service,
please contact your nearest dealer.
Installation:
The unit should be mounted via its screw holes on the bracket. Always ensure that the
unit is firmly fixed to avoid vibration and slipping while operating. And make

www.timpani.it
sure that the structure to which you are attaching the unit is secure and is able to
support a weight of 10 times of the unit’s weight. Also always use a safety cable that
can hold 12 times of the weight of the unit when installing the fixture.
The equipment must be fixed by professionals. And it must be fixed at a place where is
out of the touch of people.

www.timpani.it
2. Technical Specifications
Light Sources: 9pcs*12W RGBWA+UV LED
Beam Angle: 15°
Power Consumption: 160W
Voltage: 12.6V
Stored electricity: 14ah
Lifespan: charge-discharged for about 400 times
Net Weight: 5Kgs
Control
DMX Channel: 7/11 Channel
Control Modes: DMX and wireless
Construction
Display: OLED Display
Data In/Out socket: 3-pin XLR sockets
Power Socket: Powercon in/out
Protection Rating: IP65
Features
* OLED display
* Powercon True One in/Out
* Option for change LED Power (Eco, Medium, High power)
* Battery Charging Information and Wireless Channel change in Display
* Emergency Mode (enable / disable)
* DMX hold （on/off）in display

www.timpani.it
* Working hours: battery could run over 20hrs (single white color)/ 4.5 hrs ( full color)
on a full charge;
3. How To Control The Unit
Th e D M X512 is w id ely us ed in intellig ent ligh ti ng co n tr ol,with a DMX 512
controller.connect several lights together,dmx in and dmx out,
3 pin XLR co nn ectors : Pin 1: G ND , Pin 2: Nega tive s ig n a l (-), Pin 3: P o s itive s i g na l (+)

www.timpani.it
Display:
MENU To select the programming functions
DOWN To go backward in the selected functions
UP To go forward in the selected functions
ENTER To confirm the selected functions
Set DMX Address Code
1. Press "Menu" to "Set DMX Address",and press"ENTER" keys to enter into
2. Show "Set DMX Address DMX Address:001",Press the "UP and DOWN"
keys to amended
4.Turn on operation: when in charging or turn off, press "MENU" for more than 4s,
then screen will display clients' logo and model of products,
there are "MENU","UP"."DOWN" for your selection to choose the function,press" E
NTER" to confirmed and enter the next menu,press "MENU" could back
to the last menu.
When turn on , press" MENU" for more than 4s,the screen will display " Power Off",
and will close LED output by then.
If charger connect with electricity,the screen will display charging icon and percenta
ge of battery power. Or will be turn off directly,
and the battery powered wll be totally cut off
5. When using Master-Slave model,apart from the first one as Master without
setting,the others need to set as Slave.
6. When using DMX512 controller,all the lights need to set as DMX model.

www.timpani.it
MENU
Choose Pattern
Static Color
Static Color
Show Mode
Sound model
User Colors
User Run
RGBW (0-255) Strobe( 0-255)
001-016
AUTO / FADE / SNAP / STRO(RGBA)
Sound ( 1-3) outdoor no the function
RGBW ( 000-255) Bank: 1/16
1. Static Color
2. Auto Mode
User setting
Channel
DMX512 Address
Slave Mode
7-CH / 11CH
001-512
System setting
White balance
Show Battery
Display sleep
Dimmer option
RF 2.4 setting
RF 2.4 FREQ
Power Setting
Emergency Lamp
DMX Hold
RGBW ( 0-255)
Yes / No?
Open/5Sec/10Sec/15Sec
Normal - lowest
Yes/No
1CH-7CH
High / Medium / Low
Yes / No
Yes / No

www.timpani.it
Information
Led Temp:
Work Hours:
Software Version
Hardware version
Logo
30℃-70℃
000H-999H
V.1.02
HC-035F

www.timpani.it
DMX channel´s functions and values (7/11 DMX channels):
7CH
No.
DMX512
Value
Function
1
0~255
Red dimmer
2
0~255
Green dimmer
3
0~255
Blue dimmer
4
0~255
White dimmer
5
0~255
Amber dimmer
6
0~255
UV dimmer
7
0~19
Normal model
20~39
Dimmer curve （slow )
40~59
Dimmer curve （slower )
60~255
Dimmer curve （slowest )
11CH
No.
DMX512
Value
Function
1
0~255
Total dimmer for CH11 (0~11)
2
0~9
Strobe off
10~255
Strobe：10 lowest，255 fastest
3
0~255
Red，the max depend on total dimmer
4
0~255
Green，the max depend on total dimmer
5
0~255
Blue，the max depend on total dimmer

www.timpani.it
6
0~255
White，the max depend on total dimmer
7
0~255
Amber，the max depend on total dimmer
8
0~255
UV，the max depend on total dimmer
9
0~9
Dimmer model
10~29
Color choose ：CH12
30~49
Jump variable effect ：CH12 control the speed
50~69
gradual variable effect ：CH12 control the speed
70~89
mutation effect：CH12 control the speed
90~109
Red + strobe:CH12 control the speed
110~129
Green + strobe:CH12 control the speed
130~149
Blue + strobe:CH12 control the speed
150~169
Total strobe: CH12 control the speed
170~209
Sounds control the jump variable effect
210~229
Sounds control the jump variable effect + gradual
variable effect
230~255
Sounds control the strobe
10
0~255
This channel’s function are depending on the value of
CH7：
When the value is 10~29，then the function is colors
choose.
When the value is 30~189，then the function is speed
control: 0 is the lowest,255 is the fastest.
11
0~19
Normal model
20~39
Dimmer curve （slow )
40~59
Dimmer curve （slower )
60~255
Dimmer curve （slowest )

www.timpani.it
4. Remind
It need to charge a times for each two months, and 50% battery power at
least, if for a long time without using.
