Player Mode Changing.Push this button,USB/SD raido souring
:Reverse Fuction. In normal condition,this player has reverse
fuction. Push this Button, reverse the playing file only.
:Play/Pause Button.
:Volume-/Backward,Push this button and release, play the last
file;Push the button and hold it, Decrease the playing volume.
release, play:Volume+/Backward,Push this button and the next
file;Push the button and hold it, increase the playing volume.
(1)
(3)
(2)
(4)
(5)
changeablesouring
15.MP3 PLAYER
MODE:
/VOL-
/VOL+
Button. Push this button, can change EQ mode, the Effectranking
is : CLASSICAL,BASS,LIVE,POP
EQ
(6)
(7).Bluetooth: You can realize fixed equipment, short distances between
mobile devices and building personal domain network data exchange.
(8). REC*: Press REC button to enter recording mode. the AMP can record
all sounds of your guitar, microphone and Line input music.
If you want to listen to the music in the same time when you record, an
earphone is highly recommended to avoid possible noise. the recorded
music files will be stored in the AMP file of TF card automatically by the
name of rec 0000.mp3. the music quality is 128K bps.
( *REC: available on JUMP12AMK2 and JUMP15AMK2)
JUMP8AMK2
180 W
55Hz-20KHz
8” 2-WAY
8” 30oz
8 ohm
96dB(±2dB)
96 dB
THE MUSIC
3
1” Titan magnete 10OZ
Power MAX
Frequency Range (-10dB)
Configuration
Woofer
Nominal Impedance
Sensitivity (1W@1m)
Maximum SPL
Tweeter
JUMP10AMK2
User Manual
250 W
55Hz-20KHz
10” 2-WAY
10” 30oz
8 ohm
96dB(±2dB)
96 dB
Power MAX
Frequency Range (-10dB)
Configuration
Woofer
Nominal Impedance
Sensitivity (1W@1m)
Maximum SPL
Tweeter
1.25”
JUMP12AMK2
350 W
50Hz-20KHz
12” 2-WAY
12” 40oz
4 ohm
96dB(±2dB)
96 dB
Power MAX
Frequency Range (-10dB)
Configuration
Woofer
Nominal Impedance
Sensitivity (1W@1m)
Maximum SPL
Tweeter
2”
JUMP15AMK2
400 W
50Hz-20KHz
15” 2-WAY
15” 40oz
4 ohm
98 dB
Power MAX
Frequency Range (-10dB)
Configuration
Woofer
Nominal Impedance
Sensitivity (1W@1m)
Maximum SPL
Tweeter
2”
98dB(±2dB)

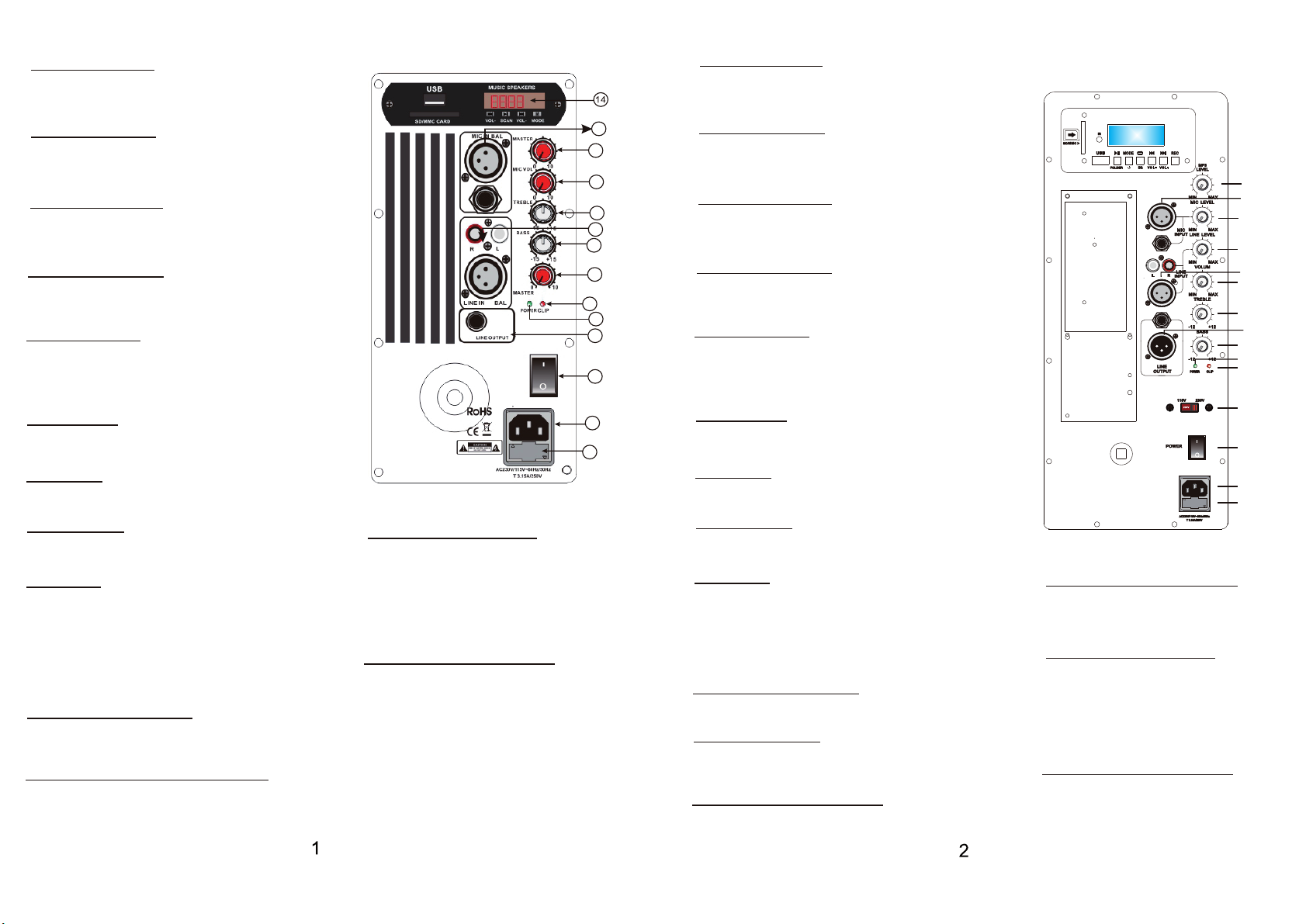

ACTIVE PA CONTROL PANEL (
1.Mic input
Mic in: Use XLR or 1/4’’ Jack
connector balanced or unbalanced.
2.Mic Level
Mic level:Control the signal for
MIC when using a microphone.
3.Line input
Use RCA or XLR connector
balanced or unbalanced.
4.Line Level
Control the signal for LINE when
using the ling.
5.Line Out
A balanced 1/4 JACK output,parallel
to the input, Use this to pass the signal
along to another active cabinet.
6.Treble
Rise or attenuate 12dB at 10KHz frequency.
7.Bass
Rise or attenuate12dB at 100Hz frequency.
8.Master
Control the output signal.
9.Peak
The LED lights up when signal distortion occurs.
Reduce the Volume with the LEVEL CONTROL
UNTIL THE peak LED does not light up any more,
or occasionally lights up at signal peaks.
10. Power light
Power indicator
13. MAINS INLET IEC
Input for connection of an appropriate
mains lead.
14. Power Fuse
15. Power Switch
In the event the mains fuse blowss
only replace with same type and rating
please refer to the product rear panel
for details of the correct type and rating.
This switches the product on/off .
when the unit is on the power led
illuminates.
ACTIVE PA CONTROL PANEL ( JUMP15AMK2 SHOW) JUMP10AMK2 SHOW)
1.Mic input
Mic in: Use XLR or 1/4’’ Jack
connector balanced or unbalanced.
2.Mic Level
Mic level:Control the signal for
MIC when using a microphone.
3.Line input
Use RCA or XLR connector
balanced or unbalanced.
4.Line Level
Control the signal for LINE when
using the ling.
5.Line Out
A balanced 1/4 JACK output,parallel
to the input, Use this to pass the signal
along to another active cabinet.
6.Treble
Rise or attenuate 12dB at 10KHz frequency.
7.Bass
Rise or attenuate12dB at 100Hz frequency.
8.Master
Control the output signal.
9.Peak
The LED lights up when signal distortion occurs.
Reduce the Volume with the LEVEL CONTROL
UNTIL THE peak LED does not light up any more,
or occasionally lights up at signal peaks.
10. Power light
Power indicator
11. MAINS INLET IEC
Input for connection of an appropriate
mains lead.
12. Power Fuse
13. Power Switch
In the event the mains fuse blowss
only replace with same type and rating
please refer to the product rear panel
for details of the correct type and rating.
This switches the product on/off .
when the unit is on the power led
illuminates.
1
2
3
4
5
6
7
8
9
10
11
13
12
11. Mp3 LEVEL
Controls how loud the`MP3 input sounds.
12.Voltage selection:
Change AC power between AC110V and AC230V
1
2
3
4
5
6
7
8
9
11
10
12
13
