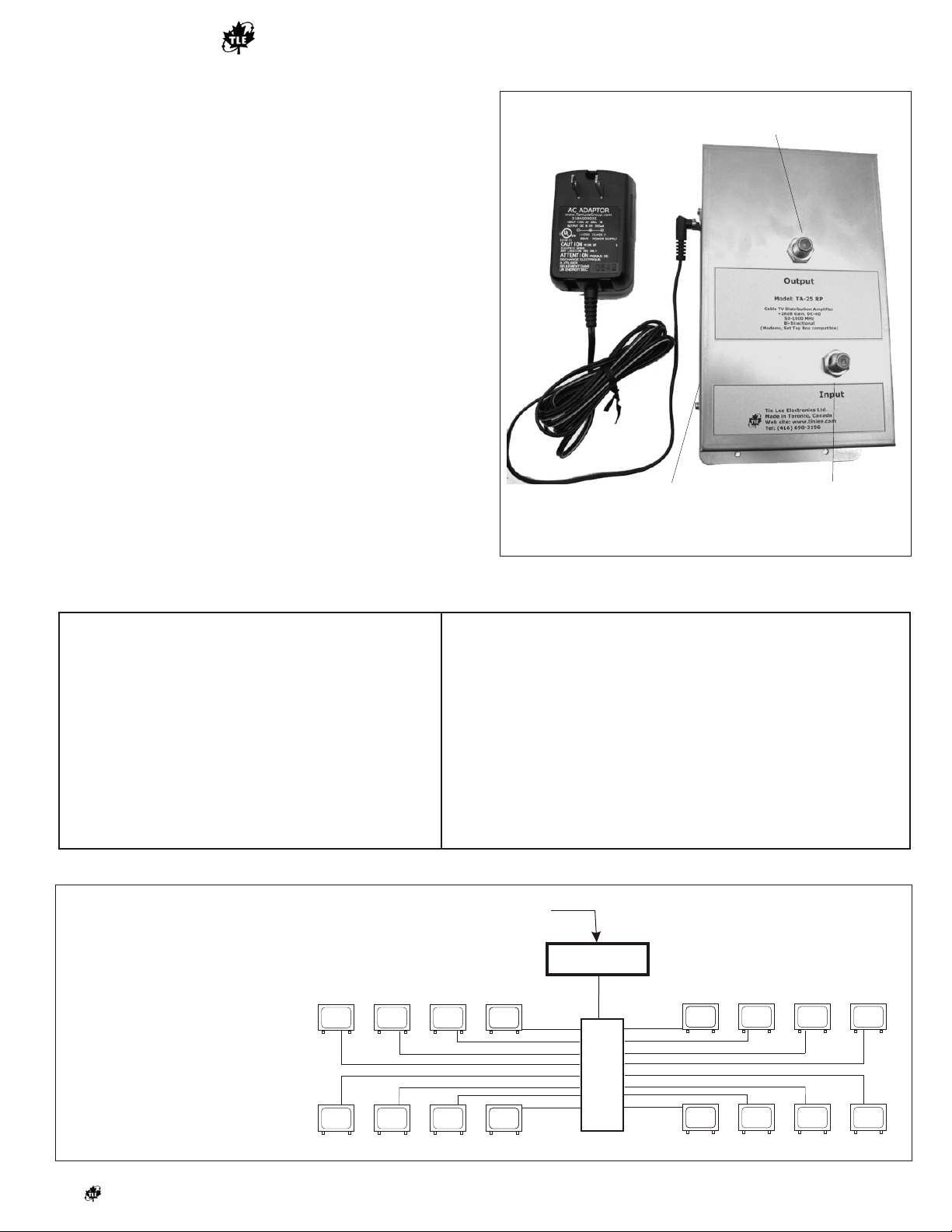

Tin Lee Electronics TA-25-RP User manual

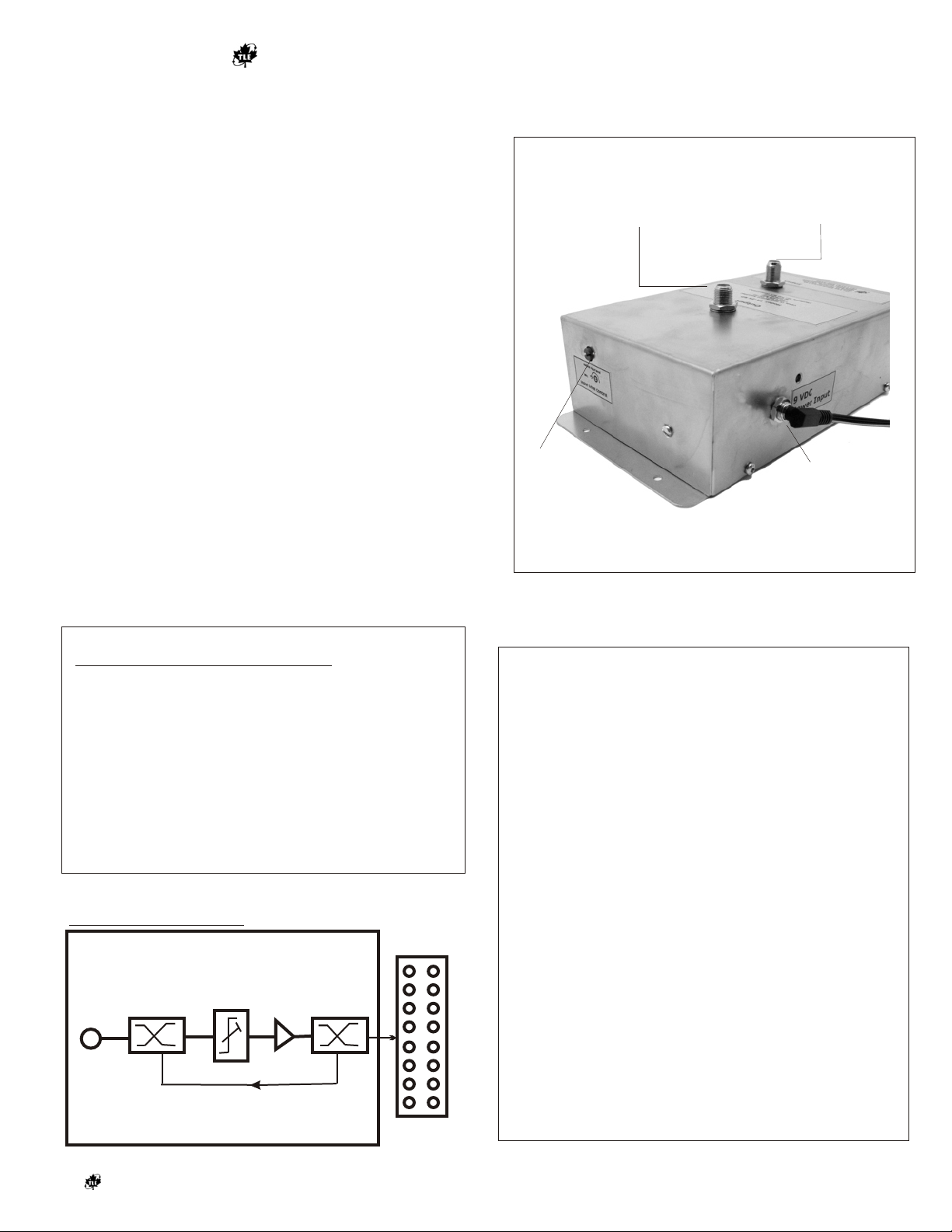

Model TA-25-RP (5-40 Mhz, 50-870 MHz)
Bi-directional Cable TV Distribution Amplifier
Product Description
The TA-25-RP is a high-performance TV distribution amplifier
designed for residential and small system cable TV signal
distribution with 8 to 20 outlets and long cable runs. It
provides a single high level output for external splitters and
taps used in custom distribution system configurations
(Figure 2 shows an example 16-way distribution).
Features:
·Easy to install; includes adjustable and precise level
control to optimize input signal level
·State-of-the-art GaAs p-HEMT SMD amplifier ICs with
push-pull output circuitry
·High gain and low noise will optimize picture quality on
bigger screens
·Digital cable ready (bi-directional) - possible to connect
Cable Modems, Set Top Box, Pay TV Decoders
·HDTV antenna distribution models available
·Powered with UL approved AC power adapter
·Full technical support and two-year warranty
Tin Lee Electronics Ltd. 41 Coxwell Ave. Toronto, Ontario, Canada 416-690-3196 | fax [phone] www.tinlee.com
TA-25-RP
Cable TV input
(5-40 Mhz, 50-870MHz)
AC adapter Power
+9V DC, 350 mA
Single High Quality Output
Up to+30 dBmV (+5dB input)
RFI Shielded
Metal Enclosure
Product Specifications
CATV signal
5-40, 50-870MHz
6 ay ple
1 s it
-w t r
+5 dBmV
Example Application
TA-25-RP
TV
+12 dBmV
TV
+11 dBmV
TV TV
+10dBmV
TV
+9 dBmV
TV TV
+10 dBmV
TV
+9dBmV
TV
+11 dBmV
TV
+12 dBmV +12 dBmV +11 dBmV +10 dBmV +9 dBmV
+10 dBmV+9 dBmV +11 dBmV +12 dBmV
TV TVTV TV TV
TV TVTV TV TV
TV show room distribution
system with 16 outlets.
Directly connect outputs to TVs
or into digital set top boxes.
Figure 2 shows the approximate
signal levels (550 MHz) at
amplifier input, outputs, after 16-
way splitter, and at each TV
after cable losses (cable length,
RG-6, 50 to 100 feet).
Figure 2
+30 dBmV
+15 dBmV +15 dBmV
Frequency Range (Mhz)
Power Gain (dB)
Gain Flatness(dB)
Noise Figure (dB)
Input Return Loss(dB)
Output Return Loss(dB)
Number of outputs
Signal level at output
Maximum in/out levels
Return Filter Isolation
Return Filter loss
Cross Modulation
Composite Triple Beat (dB)
Composite 2nd order
Connectors, Impedance
Dimensions (LxWxH)
Weight (lbs)
Operating Temperature
Power Requirements
Power AC Adapter
5-40, 50-870
25
±1.0
2 dB
15 (5-40), 14 (50-870)
15 (5-40), 8 (50-870)
1
+25 dBmV (0dBmV input)
+8 dBmV / -33 dBmV
55dB minimum
1 dB
110 chs; Vo=+25dBmV, -80dB
110 chs flat, V=+25dBmV, -65dB
110 chs flat, V=+25dBmV, -60dB
F-female, 75 ohms
7.5” x 4” x 2” (192x102x50 mm)
2
-15 to+90 °C
9V DC, 350 mA
Included
Figure 1:
TV
+25 dB gain

Model TA-25-RP (5-40 Mhz, 50-870 MHz)
Bi-directional Cable TV Distribution Amplifier
Installation Notes and Warranty Information:
Input
Level
Control
-20db
IN
Diplexer Diplexer
+25db
Forward
Amplifier
External
16 Way
Splitter
5-40 Mhz passive
Return Path
TA-25-RP Block Diagram
Warranty:
+15dbmV
output
+5dbmV
1) Unpack the TA-25-RP and DC power adapter
2) Locate the TA-25-RP in a dry area, near AC power outlet.
The TA-25-RP has 4 mounting holes for wall mounting.
3) Before applying power to the amplifier, turn the Input Level
Control counterclockwise 3 turns to reduce the input signal
level by approximately -10dB. Note: Gain control has approx 7
turn range for 20 dB signal reduction. Important - Do not force
the turn the max or min position of control. This would damage
the control.
4) Connect the input CATV signal and output distribution
cables to the amplifier. Terminate unused amplifier output
ports.
5) Connect AC to Wall outlet, and, plug DC to Amplifier power
jack
5) Re-adjust the Input Level Control to optimize the signal.
Turn Level Control Clockwise to increase signal,
counterclockwise to reduce input signal, and stop when the
picture quality at TV sets and set top boxes are received
clearly.
Important Safety Precautions
¨To avoid electrical shock, do not take apart
this unit
¨Do not overload the wall outlets or
extension cords. This could result in the risk
of fire or electrical shock
¨This amplifier should be used only with the
power supply included
Tin Lee Electronics (TLE) products are guaranteed for TWO
YEARS from the date on the original invoice (includes parts
& labour ). All Products are guaranteed to perform to our
specifications under intended operation. Warranties do not
cover misuse, improper installation, abuse, tampering, or
Act of God damage.
To obtain warranty service:
1) Retain invoice or original proof of purchase to establish
the start of the warranty period.
2) Notify TLE as soon as possible if defect or problem found
3) The product can be shipped back to TLE prepaid after it
has been agreed by TLE that the product is defective.
4) All tampering, modifications, or unauthorized repairs will
void product warranty.
For Service Information contact:
Service Department
Tin Lee Electronics Ltd. 41 Coxwell Ave.
Toronto, Ontario, M4L 3A9
Tel: [phone] Fax: [phone]
Www[email protected]
Tin Lee Electronics Ltd. 41 Coxwell Ave. Toronto, Ontario, Canada 416-690-3196 | fax [phone] www.tinlee.com
Input 20 dB
Level Control
Cable TV input
Return Path (5-40 MHz)
Forward Path (50-870MHz)
Power
+9V DC
Cable TV Output
(5-40 Mhz, 50-870 Mhz)
+25 dBmV min (0dB input)
