Tineco CARPET ONE User manual

CARPET ONE
Smart Carpet Washer
Instruction Manual
Manual De Uso
Mode D’emploi
*Actual product may differ from illustration.
TINECO IS HERE TO HELP.
We’ll get back to you within 1 business day.
www.tineco.com
1-855-292-8864
Mon. - Fri. 9am - 6pm (CST)

EN
1
CONTENTS
Important Safety Instructions...............................................................2
Overview................................................................................................7
Accessories............................................................................................9
Assembly .............................................................................................10
Operation............................................................................................13
Maintenance .......................................................................................21
Specications ......................................................................................26
Troubleshooting..................................................................................27
Warranty ..............................................................................................28
TINECO IS HERE TO HELP.
We’ll get back to you within 1 business day.
www.tineco.com
1-855-292-8864
Mon. - Fri. 9am - 6pm (CST)

EN
2
Important Safety Instructions
SAVE THESE INSTRUCTIONS
Household use only.
When using an electrical appliance, basic precautions should always be followed, including
the following:
READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the
warnings and instructions may result in electric shock, re and/or serious injury.
WARNING – To reduce the risk of re, electric shock, or injury:
1. This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge
if they have been given supervision or instruction concerning use of the appliance in
a safe way and understand the hazards involved. Children should not play with the
appliance. Cleaning and user maintenance shall not be performed by children without
supervision.
2. The appliance is not to be used by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have
been given supervision or instruction.
3. Use only indoors, do not immerse. To reduce risk of electric shock – Use only on carpet
moistened by cleaning process.
4. Do not allow to be used as a toy. Close attention is necessary when used by or near
children, pets or plants.
5. To reduce the risk of re and electric shock – Use only Tineco cleaning products
intended for use with this machine.
6. Use only as described in this manual. Use only manufacturer’s recommended attachments.
7. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord
around sharp edges or corners. Do not run appliance over cord. Keep cord away from
heated surfaces.
8. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
9. Do not handle plug or appliance with wet hands.
10. Do not use with a damaged cord or plug. If appliance has been dropped, damaged,
left outdoors, dropped into water, or is not working as it should, return it to a service
center.
11. Do not put any object into openings. Do not use with any opening blocked; keep free
of dust, lint, hair, and anything that may reduce air ow.
12. Keep hair, loose clothing, ngers, and all parts of your body away from openings and
moving parts.
13. Use extra care when cleaning on stairs.
14. Do not use to pick up ammable or combustible liquids, such as gasoline, or use in
areas where they may be present.
15. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot
ashes.

EN
3
16. Do not use without lter.
17. To reduce the risk of electric shock, always install oat before any wet pick-up
operation.
18. Prevent unintentional activation. Ensure the switch is in the off-position before picking
up or carrying the appliance. Carrying the appliance with your nger on the switch or
energizing appliance that have the switch on invites accidents.
19. Always switch off the appliance before making any adjustments, changing accessories,
or storing the appliance. Such preventive safety measures reduce the risk of starting the
appliance accidentally.
20. TO REDUCE THE RISK OF ELECTRIC SHOCK – UNPLUG BEFORE CLEANING OR
SERVICING. UNPLUG BEFORE CONNECTING HOSE.
21. Always turn off this appliance before connecting or disconnecting the motorized
nozzle.
22. Turn off all controls before unplugging.
23. Do not leave appliance when plugged in. Unplug from outlet when not in use and
before servicing.
24. Do not use to pick up ultrane particles, such as lime, cement, sawdust, gypsum
powder, or ashes.
25. Do not use to pick up sharp objects, such as metallic nails, pieces of glass, metal paper
clips, or pins.
26. Do not use to pick up hazardous material and chemicals, such as solvent, drain cleaner,
strong acids, or strong alkali.
27. Stop using immediately if the appliance is overheating, making unusual noises,
producing unusual odors, performing low suction, or leaking electricity.
28. Turn cleaner OFF and disconnect from electrical outlet for long-term storage.
29. Always clean the Dirty Water Tank after each use to avoid potential blockage, which
may lead to low suction power, motor overheating, or reduce the service life of the
appliance.
30. Do not expose to rain.
31. Store appropriately indoors in a dry place after use.
32. Do not place or submerge appliance in standing water or try to clean ooded areas.
33. The plug must be removed from the socket-outlet before cleaning or maintaining the
appliance.
34. A hazard may occur if the appliance runs over the supply cord.
35. Connect to a properly grounded outlet only. See Grounding Instructions.
36. To reduce the risk of re and electric shock due to internal component damage, use
only Tineco cleaning uid/solution: Carpet Deodorizing & Cleaning Solution intended
for use with this appliance. See the Cleaning Fluid/Solution section of this manual.
37. Do not turn over nozzle, or touch the bottom surface of the nozzle when using the dry
function.

EN
4
Range of Usage
1. The Carpet washer is to be used on carpets, such as level loop, etc.
2. Keep your appliance away from heat sources, such as replace or heater, to avoid
casing deformation.
3. Do not use to pick up ammable or combustible liquids, ultrane particles, sharp
objects, hazardous material, chemicals or anything that is burning or smoking, as
described above.
About Cleaning Fluid/Solution
1. A large amount of cleaning solution entering into the motor may cause damage to the
appliance. Don’t shake the machine violently.
2. Add solution as instructed in the Operation section. We recommend using the
provided cleaning solution.
3. Keep out of reach of children. If any solution gets into the eyes, immediately ush
them with clean water. If any solution is swallowed by accident, seek medical care
immediately.
4. Dirty water and solution disposal should comply with local environmental regulations.
5. WARNING: To Reduce the Risk of Fire and Electric Shock due to internal component
damage, use only TINECO CARPET DEODORIZING & CLEANING SOLUTION
intended for use with the appliance.
About the Appliance
1. Do not modify or attempt to repair the appliance except as indicated in the instructions
for operating and cleaning.
2. Use extra care when cleaning on stairs.
3. Ensure that the Power Switch is in the OFF-position and unplug before picking up or
carrying the appliance. Do not lay at or lean the appliance so as to prevent dirty water
from entering into the motor.
4. Always install the Dirty Water Tank and Clean Water Tank properly before use.
5. Do not allow the appliance to get wet to avoid risk of re or injury caused by a short
circuit.
Grounding Instructions
1. This appliance must be grounded. If it should malfunction or breakdown, grounding
provides a path of least resistance for electric current to reduce the risk of electric
shock. This appliance is equipped with a cord having an equipment-grounding
conductor and grounding plug. The plug must be inserted into an appropriate
outlet that is properly installed and grounded in accordance with all local codes and
ordinances.
2. WARNING – Improper connection of the equipment-grounding conductor
can result in a risk of electric shock. Check with a qualied electrician or service person
if you are in doubt as to whether the outlet is properly grounded. Do not modify the
plug provided with the appliance – if it will not t the outlet, have a proper outlet
installed by a qualied electrician.

EN
5
3. This appliance is for use on a nominal 120-V circuit and has a grounding attachment
plug that looks like the plug illustrated in sketch A in Figure 20. Make sure that the
appliance is connected to an outlet having the same conguration as the plug. No
adaptor should be used with this appliance.
FCC Supplier’s Declaration of Conformity
TINECO / CARPET ONE SERIES
This appliance complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
(1) This appliance may not cause harmful interference, and (2) this appliance must accept
any interference received, including interference that may cause undesired operation.
TINECO INTELLIGENT, INC.
1700 WESTLAKE AVENUE N., SUITE 200, SEATTLE, WA, 98109, USA
WWW.TINECO.COM
1-855-292-8864
Changes or modications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Note: This equipment has been tested and nd it to comply with the limits for a Class
B digital appliance, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and on,
the user is encouraged to try to correct the interference by one or more of the following
measures:
(1) Reorient or relocate the receiving antenna.
(2) Increase the separation between the equipment and receiver.
(3) Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
(4) Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with a minimum distance
of 20cm between the radiator and any part of your body.
Note
The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modications to this equipment, such modications could void the user’s
authority to operate this equipment.

EN
6
IC Note
This appliance contains licence-exempt transmitter(s)/receiver(s) that comply with
Innovation, Science and Economic Development Canada’s licence-exempt RSS(s).
Operation is subject to the following two conditions:
(1) this appliance may not cause interference.
(2) this appliance must accept any interference, including interference that may cause
undesired operation of the appliance.
- This Class B digital apparatus complies with Canadian ICES-003.
- This equipment complies with ISED RSS-102 radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with a
minimum distance of 20cm between the radiator and any part of your body.
Symbols:
Power On/Off
AUTO/MAX Mode
Dry Mode

EN
7
A. Dry Mode
B. WiFi/Mute Button
C. Back Carry Handle
D. Cord Wrap
E. Dirty Water Tank Release Pedal
F. Recline Pedal
G. AUTO/MAX Mode
H. Power On/Off
I. Tube
J. Digital Display
K. Clean Water Tank Handle
L. Clean Water Tank (CWT)
M.Dirty Water Tank Handle
N. Dirty Water Tank (DWT)
O. Brush Roller Cover Release Button
P. Hose Connection Port Cover
Q. Brush Roller Cover
R. Humidity Sensor
S. Carpet Deodorizing & Cleaning Solution
T. Cleaning Tool
U. 2 in 1 Nozzle
V. Accessory Hose
A
P
R
Q
B
S
K
N
D
C
T
L
OE
U
M
F
V
G
H
I
J
Overview

EN
8
Digital Display
A. Accessory Hose Icon
B. DWT Full or Blocked
C. Dirt Monitoring Loop
(Blue to red according to the dirt
amount)
D. AUTO Mode
E. CWT Empty
F. Brush Roller Tangled Indicator
G. Dry Degree Indicator
H. Tineco Logo
I. WiFi Indicator
J. Water Spray Volume Indicator
A B C D E F G H JI

EN
9
Accessories
Note:
Accessories may vary between markets. If you require more accessories, please go to www.tineco.com
or store.tineco.com.
Carpet Deodorizing & Cleaning Solution
Removes dirt, grime, grease and tough stains from most types of
carpets.
Always use Tineco solution in your appliance.
Add two bottle caps of solution to each full tank of clean water.
Cleaning Tool
A full brush to clean the DWT, brush chamber and opening.
The tool also has a bristled end to remove dirt and mud on the
roller and DWT.
2 in 1 Nozzel
Remove tough stains on the carpet
Accessory Hose
A 2.5-meter hose to connect the appliance and accessory
brushes.

EN
10
Assembly
How to Assemble/Disassemble
Note:
To assemble the handle, insert it into the
appliance until you hear a click.
In the event that the product must be returned,
please disassemble the handle. Press the
spring to release the handle with a tool (like a
screwdriver) and lift the released handle from
the appliance.
Wrap the power cord around the cord hooks for
convenient storage.
click

EN
11

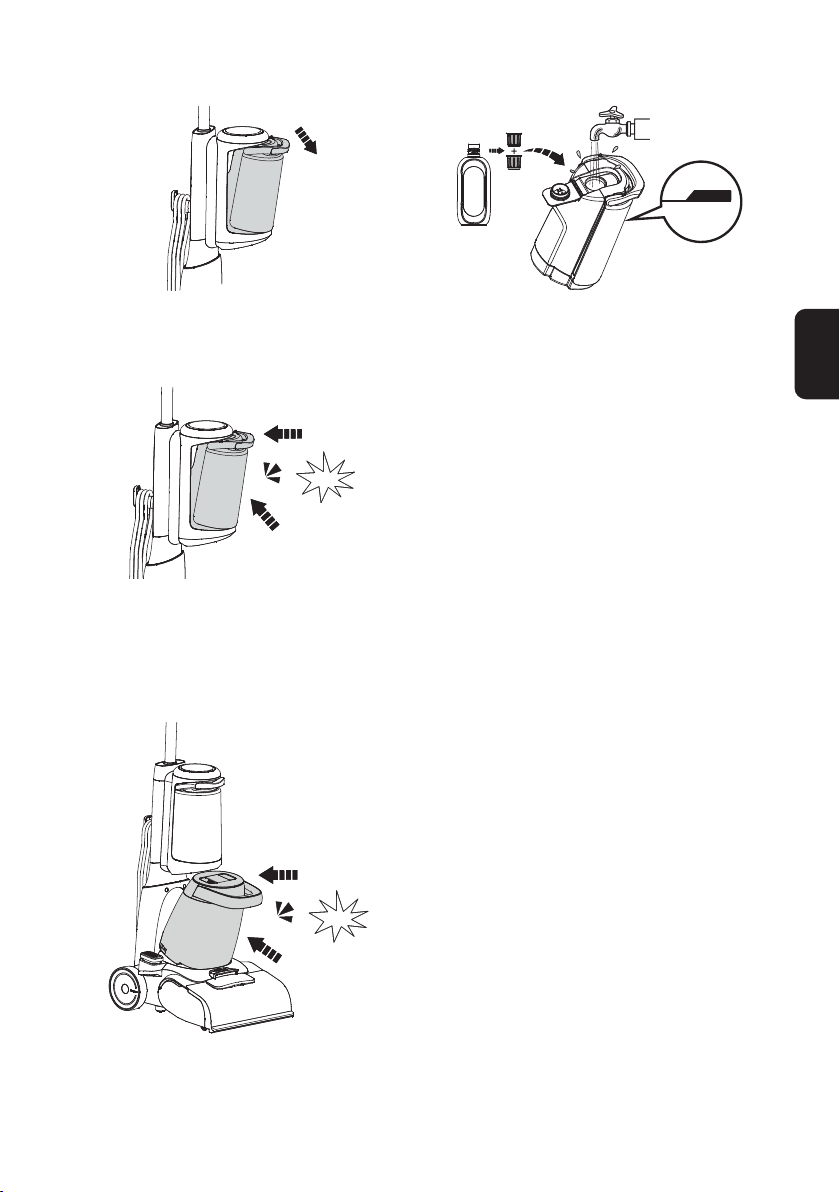

Clean Water Tank
MAX
Press the CWT handle to remove it. Open the tank cap, add two bottle caps of
solution to the CWT then ll with tap water to
the Max line and tightly close the cap.
②
①
click
Note:
Only use water under 140°F/60°C.
DO NOT USE HOT WATER.
Install the Clean Water Tank into the appliance.
You should hear a “Click” if done correctly.
Dirty Water Tank
②
①
Install the Dirty Water Tank into the appliance.
You should hear a “Click” if done correctly.
click

EN
12
Accessory Hose & 2 in 1 Nozzle
or
Choose suitable brush head according to the
usage scenario.
Pull it up to uncover the accessory connection
port.
Insert the hose end into the port.
You should hear two “Clicks” if done correctly.

EN
13
Operation
Preparing for Use (Appliance)
Unwrap the power cord and plug into an electrical
outlet.
Step on the recline pedal to recline the unit for
cleaning position.
Press the button and the appliance will start
in AUTO mode by default. Press it again to turn
off the appliance. Switch between AUTO and
MAX mode by pressing the button.
Press the button and the appliance will start
in Dry mode, press it again to stop DRY mode.
Switch back to original mode by pressing the
button.

EN
14
<160°
In AUTO/MAX and Dry mode, the appliance
will stop working when put uprightly and start
running again when you recline.
Grip the back carry handle to lift or move
appliance. Empty CWT and DWT after each
use.
Note:
• The carpet cleaner differs from the traditional vacuum cleaner.
• In all modes, it blows hot air, whose temperature is 70-80°C.
* Appropriate temperature is conducive to dissolve the dirt and helps surfactant in the solution to decompose the dirt.
• In AUTO/MAX mode, it sprays water when moving forward and stops spraying when moving backward.
• Take a spot test on a small and marginal area of the carpet for colorfastness. Gently rub surface
with a damp white cloth. Then wait ten minutes and check for color removal or bleed with a white
paper towel.
• Do not grip DWT handle to lift or move the appliance.
Stop Working

EN
15
Preparing for Use (Accessory Hose & 2 in 1 Nozzle)
Attach the accessory hose, stand the appliance
upright and ensure that it is power on (if not,
press the button), the appliance will enter
in ACCESSORY Mode, the appliance will stop
working when you recline.
Store the accessories in the bag after use.
Note:
• Do not vacuum foamed liquid.

EN
16
Cleaning Mode Selection
AUTO Mode
Clean: on Min spray volume
The default spray volume is “60”, vary
depending on dirt amount
Heavy dirt: on Max spray volume
• In AUTO mode, the iLoop™ sensor automatically detects how dirty the carpet is and applies the
appropriate volume of water spray.
• A red dirt monitoring loop indicates more dirt is detected, and a blue loop indicates less dirt is
detected. This mode automatically provides the best cleaning solution.
MAX Mode
• In AUTO mode, press the AUTO/MAX button to enter MAX mode. The AUTO indicator on the
display will turn off.
• The iLoop only displays the dirty amount, and the spray volume keeps at the maximum of “100”.
• In MAX mode, the appliance will apply max spray volume.
Blue
Red

EN
17
DRY Mode
Wet
Changes with the degree of
humidity
Dry
• Press the DRY button to enter DRY mode, in DRY mode, the dry degree indicator will change with
the humidity detected by the humidity sensor.
• Press the DRY button again to stop DRY mode, and press the button to switch to the original
mode.
ACCESSARY Mode
• Ensure the appliance is power on (if not, press the button), the appliance will enter into
ACCESSARY Mode. Press and hold the button on the 2 in 1 Nozzle to spray water, and release the
button to stop.
• In ACCESSARY Mode, the accessory icon is illuminated and the spray volume keeps at the maximum
of “100”.
• Stand the appliance upright, remove the accessory hose, the appliance will enter in AUTO mode.
Note:
Keep sharp objects away from the digital display screen to avoid scratches and scrapes.
Keep appliance upright

EN
18
Indicator
When in Use
MAX mode
Spray volume indicator: solid “100”.
Appliance enters standby mode when stand upright in Max mode.
AUTO mode
Spray volume indicator: changes.
Appliance enters standby mode when stand upright in Auto mode.
DRY mode
Spray volume indicator: Solid “0”, Dry Degree Indicator illuminated.
ACCESSORY mode
Spray volume indicator: solid “100”.
Accessory icon: illuminated.
Appliance enters standby mode when recline in Accessory mode.
Accessory icon: blinks.
Spray volume indicator: solid “0”.
See Troubleshotting.
AUTO icon: blinks.
Spray volume indicator: solid “0”.
See Troubleshotting.
No spray volume display: pump malfunction.
Solid red light: dirt sensor malfunction or blocked.
