Drum Washing Machine
April 2010

DRUM WASHING MACHINE
SERVICE MANUAL
1. WHAT IS DRUM WASHING MACHINE?......................................1
2. WASHER SPECIFICATION ..........................................................3
3. PARTS LIST BY ASS'Y.................................................................4
4. CONTROL PART FUNCTION SPECIFICATION ........................17
5. ELECTRONIC FIELD PARTS LIST AND SPECIFICATION .......32
6. WIRING DIAGRAM .....................................................................33

1
Water consumption is reduced by using the power of the laundry falling (free-fall) created when rotating
the drum. With temperature control system, this drum washing machine saves energy and improves
washing performance at the same time.
1. WHAT IS DRUM WASHING MACHINE?
1. Drum Washing Machine
◈Waist Care
Designed by the waist, and the most comfortable
angle eject into the laundry is convenient and easy to
manipulate.
◈Star Drum
Using Star Drum is able to higher Washing
Performance and Minimal damage of laundry, water
consumption.
◈Luxury Audio Dial
Using the advanced Audio Dial is luxury design of
exterior.
◈DD inverter motor
The direct-drive type of which motor is directly
connected to drum without an interim chuth,
significantly reduces noise and vibration.
◈Self-Cleaning Course of Drum.
Enable to Self-Cleaning of Drum.
◈Digital Condensing Dry System.
Condensing Dry System with saveing energy.
2. Key Features

2
• DD Control: Direct drive type of direct connection between drum and motor
• Rotation by powerful high-performance BLDC motor
3. Power System
Pump Drainage BLDC
LAUNDRY

3
3

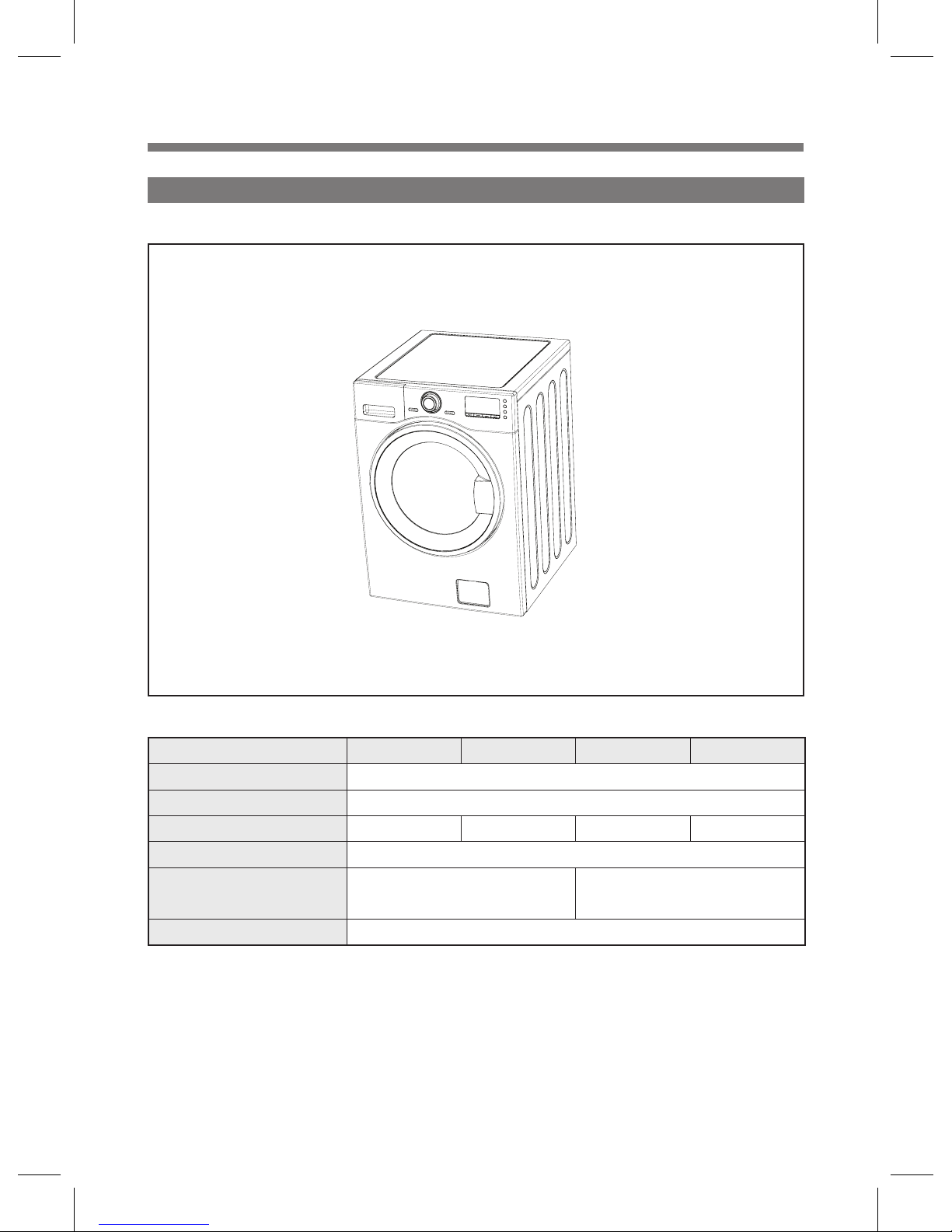

2. WASHER SpECIfICATIoN
1. Product Specification
■DWC-1011W
MODEL DWC-LU1011/1211 DWD-LU1011/1211 DWC-LD1411/1611 DWD-LD1411/1611
Dimension (mm) 600 X 645 X 850
Maximum mass of textile (kg) 9 Kg
Unit Weight (net/gross) 78/82 71/75 76/80 69/73
Standard Water Consumption 65 ℓ
Spin Speed (RPM) DWC(DWD)-LU10XX : MAX 1000
DWC(DWD)-LU12XX : MAX 1200
DWC(DWD)-LD14XX : MAX 1400
DWC(DWD)-LD16XX : MAX 1600
Operating Water Pressure 0.03MPa ~ 0.8MPa (0.3kgf/cm2~ 8kgf/cm2)

4
2. PANEL F AS
A01
A02
A03
A04
A09
A10
A11
A12
A13
A07
A06
A14
A18 A17 A16 A15
A08
A05
■ Panel Front
Parts List

5
No. PARTS NAME CODE SPECIFICATIONS Q’TY REMARK
A00 PANEL FRONT AS 361------- D-LU1221 1
A01 PANEL FRONT AS 36142T2100 ABS 24x16 SUS 430
A02 BUTTON FUNCTION 3616644400 ABS 1
A03 BUTTON OPTION 3616644700 ABS 1
A04 HOLDER LED FUNCTION 3613058500 HIPS 1
A05 PCB F AS PRPSSW- - - - D-LU1221 1
A06 HOLDER LED DISPLAY 3613058600 ABS 1
A07 CASE PCB F 36111T1R00 HIPS 1
A08 SCREW TAPPING 7122401611 T2S TRS 14x16 MFZN
A09 PCB BOARD F 3614348500 FR-1 1
A10 HOLDER LED COURSE 3613058400 HIPS 1
A11 BUTTON DIAL 3616644300 ABS 1
A12 DECORATOR BUTTON DIAL 3611696400 ABS 1CHROMIUM CILDING
A13 BUTTON START 3616644600 ABS 1
A14 BUTTON POWER 3616644500 ABS 1
A15 DECORATOR FILM 36116- - - - - P.C FILM 1
A16 WINDOW COURSE 3615509400 TR-ABS 1
A17 SCREW TAPPING 7122401608 T2S TRS 1
A18 CASE DETERGENT AS 36111- - - - - D-LU1221 1

6
B01
B02
B03
B05
B04
B08
B07
B06
B10
B09
B11
B12
B13
B14
3. INLET BOX AS

7
No. PARTS NAME CODE SPECIFICATIONS Q’TY REMARK
B01 NOZZLE *T 3618111100 PP 1
B02 NOZZLE *U 3618111000 PP 1
B03 BOX INLET 3610526500 PP 1
B04 HOSE INLET 3613274600 EPDM 1
B05 CLAMP AS 3611203200 ID=60, WIRE+GUIDE+BOLT+NUT 1
B06 VALVE INLET 3615416821 220-240V.VDE.BITRON. 1
B07 HOSE WATER SUPPLY 3613270900 EPDM ID9.5 OD14.5, WASHING 1
B08 HOSE WATER SUPPLY 3613270900 EPDM ID9.5 OD14.5, PRE.WASH 2
B09 CLAMP HOSE 3611205800 100H, ID=13.8 W=10.0 0.9T 10
B10 VALVE INLET 3615414820 220-240V,1-WAY HOT PP 1
B11 HOSE WATER SUPPLY 3613270900 EPDM ID9.5 OD14.5, HOT 1
B12 HOSE WATER SUPPLY 3613270900 EPDM ID9.5 OD14.5, STEAM 1
B13 PIPE JOINT I 3614426000 PP 1
B14 Unit Steam AS 36189M2U00 L-SERIES STEAM UNIT 900W 1

8

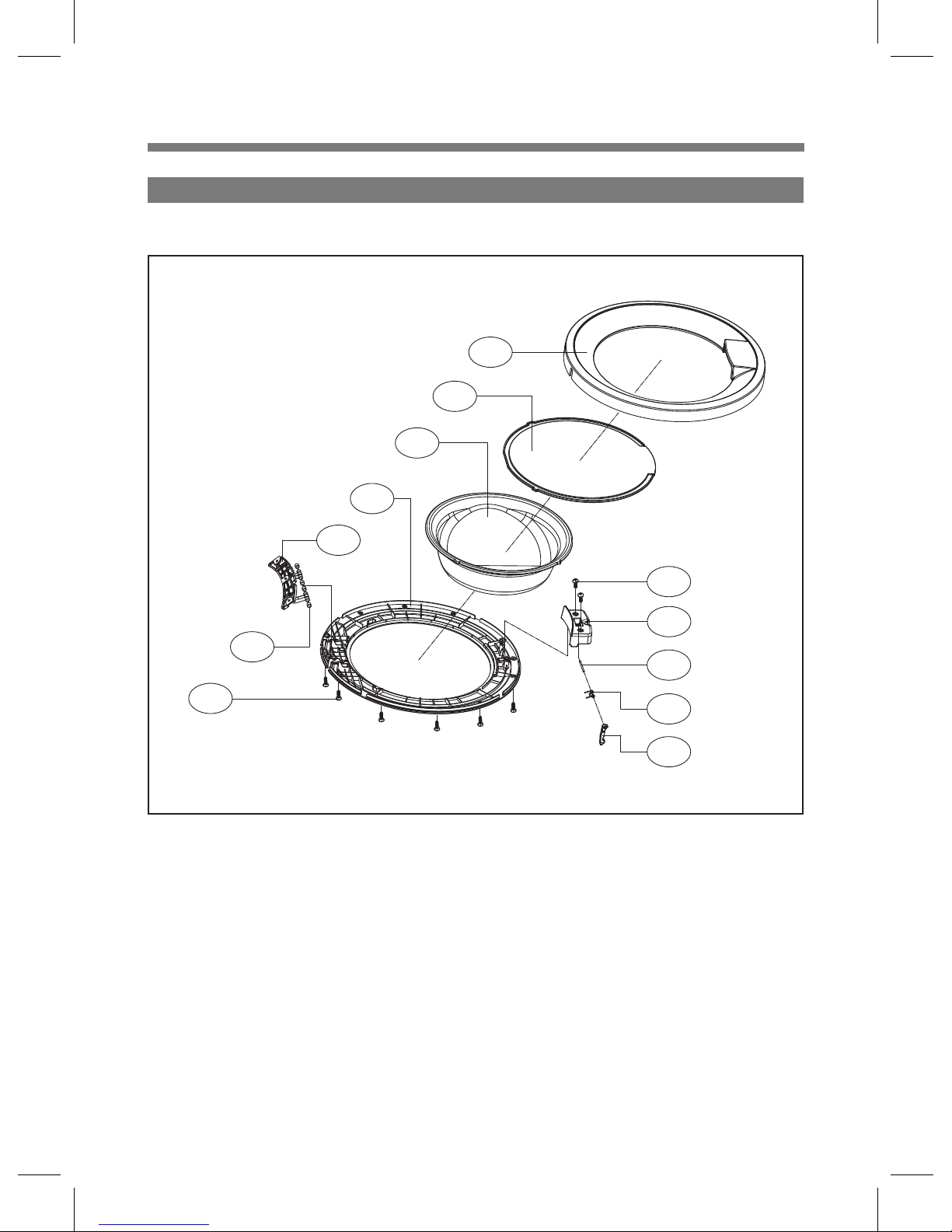

5. DOOR AS
C11
C01
C02
C03
C12
C10
C09
C04
C07
C05
C06
C08
■ 2st Model

9
No. PARTS NAME CODE SPECIFICATIONS Q’TY REMARK
C00 DOOR AS 361------- 1
C01 FRAME DOOR 0 36122UDC00 ABS 1
C2 PROTECTOR GLASS 3618345600 TR-ABS 1
C03 DOOR GLASS 361A113300 GLASS 1
C04 FRAME DOOR 1 36122UDD00 PP 1
C05 HINGE DOOR 3612903800 ALDC 1
C06 CAP HINGE DOOR 3610916500 POM 4
C07 SCREW TAPPING 7115402029 T1S FLT 14 4*20 STS430 NATURE
C08 HOOK DOOR 3613100900 ZNDC 1
C09 SPRING HOOK 3615115400 SUS 1
C10 KOOK SHAFT 36131101000 SUS 1
C11 CASE SPRING DOOR 3611149300 ABS 1
C12 SCREW TAPPING 7122401611 T2STRS 24*6 MFZN

10

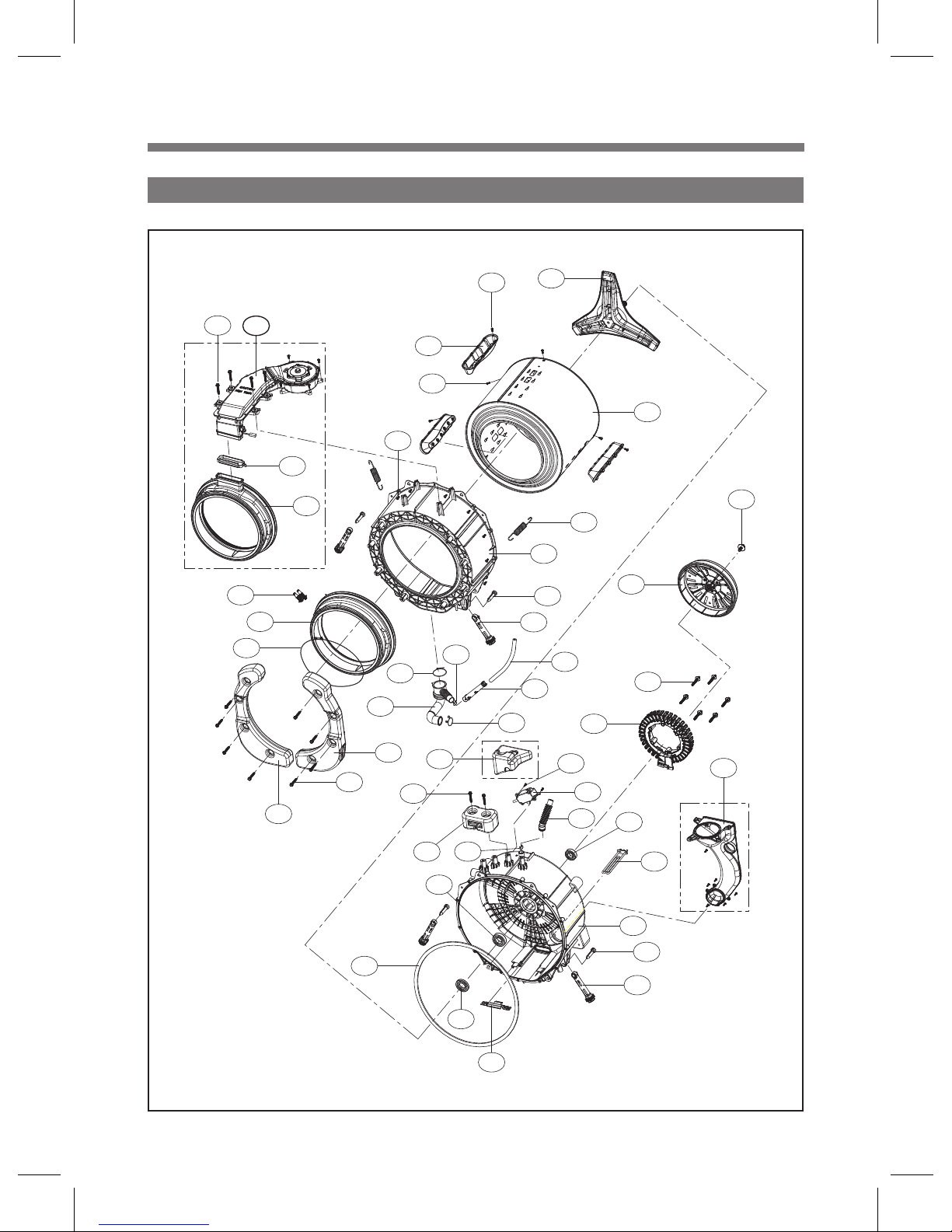

7. TUB ASSY(DD MOTOR)
D26
D23
D22
D25
D24
D20
D18
D17
D19
D16
D15
D10
D21
D11
D04
D07
D05
D06
D08
D03
D01
D02 D39
D42
D34
D41
D43
D32
D31
D33
D36
D28
D30
D27
D29
D09
D13
D14
D12
D40
D38
D37
D35
D44
D45
D46
D47

11
No. PARTS NAME CODE SPECIFICATIONS Q’TY REMARK
D01 BALANCER WEIGHT L 3616110600 PP, D-LU1011, 6.6KG 1
D02 SPECIAL SCREW 3616029400 SWCH 8.5X30 8
D03 BALANCER WEIGHT R 3616110500 PP, D-LU1011, 6.6KG 1
D04 CLAMP GASKET AS 3611207000 C-LU1011 1
D05 GASKET 3612325300 EPDM , WASH , D-LU1011 1WASH
D06 GASKET 3612325400 EPDM , DRY , C-LU1011 1DRY
D07 NOZZLE SHOWER 3618111200 PP 1
D08 CLAMP GASKET BUSHING 3611206800
GI 1.2T 1DRY
D09 SPECIAL SCREW 3616029810 SWCH 6.5X45 4
D10 DUCT B AS 3610DUTL00 C-L E 1DRY
D11 HOSE DRAIN *I 3613275200 EPDM D-LU1011 1
D12 CLAMP AS 3611203210 ID=61, WIRE+GUIDE+BOLT, GS 1
D13 CLAMP HOSE 3611204700 D26 1
D14 CLAMP HOSE 3611201401 HSW3,YW,D2.6,ID36,W44.5 1
D15 AIR TRAP 361A500101 PP 1
D16 HOSE AIR(PRESSURE) 3613266930 ID=4,OD=8, L=680MM(L-SERIES) 1
D17 DAMPER FRICTION 361A700110
70N AKS ST=170-260 DL=197.5 LOW NOISE 2
D18 DAMPER PIN 361A700200 AKS D=14.5 2
D19 TUB FRONT 3618830000 FRPP, C-LU1011 1
D20 SPRING SUSPENSION 3615116800 KGF 2
D21 SPECIAL SCREW 3616029800 SWCH 6.5X30 14
D22 SPECIAL SCREW 3616029500 SUS430 8*25 3
D23 LIFTER WASH 361A401300 PP,1PIECE,TWIST 3
D24 SCREW TAPPING 7122401408 T2S TRS 4X14 SUS,STS 3
D25 DRUM AS 3617012500 D-LU1011 1
D26 SPIDER AS 361A301200
D-LU1011 1
D27 WATER SEAL 361A600100 NBR 1
D28 SEALING TUB 3612321601 EPDM L1600(-0~ +10) 1
D29 FIXTURE HEATER 3612006700 SUS 1
D30 BEARING INNER 3616303100 6206Z 1
D31 DAMPER FRICTION 361A700130
60N AKS ST=170-260 DL=197.5 LOW NOISE 2
D32 DAMPER PIN 361A700200 AKS D=14.5 2
D33 TUB REAR AS 36100T1400 D-LU1011 1

12
No. PARTS NAME CODE SPECIFICATIONS Q’TY REMARK
D34 BALANCER WEIGHT T 3616110400 PP, C-LU1011, 2.48KG 1DRY
D35 BALANCER WEIGHT T(WASH) 3616110700 PP, D-LU1011, 2.48KG 1WASH
D36 SPECIAL SCREW 3616029400 SWCH 8.5X30 2
D37 CLAMP HOSE 3611204700 D26 1
D38 SPECIAL SCREW 3616007400 T2S TRS 4X10+24 2OPTION
D39 UNIT BUBBLE GENERATOR 36189L4177
HIGH,PAD B,BL/WH,320,RP4,GUIDE O,SPONGE 200 1OPTION
D40 HOSE VENT 3613267100 EPDM 1
D41 BEARING OUTER 3616303200 6205Z 1
D42 HEATER WASH 3612803700 230V 2000W.1R5A721002.IRCA FUSE 2EA 1
D43 PIPE DUCT AS 3614414001 C-L PIPE DUCT+HOSE+CLAMP 1
D44 UNIT STATOR BLDC 36189L6200 AL,30T(28T),NMT 1
D45 SPECIAL BOLT AS 3616029900 SWCH M8 + SILOCK 6
D46 UNIT ROTOR BLDC 36189L6300 L'SERIES, NMT 1
D47 SPECIAL BOLT AS 3616029620 SWCH 10*30 S/W P/W NON-SEAL LOCK 1

13

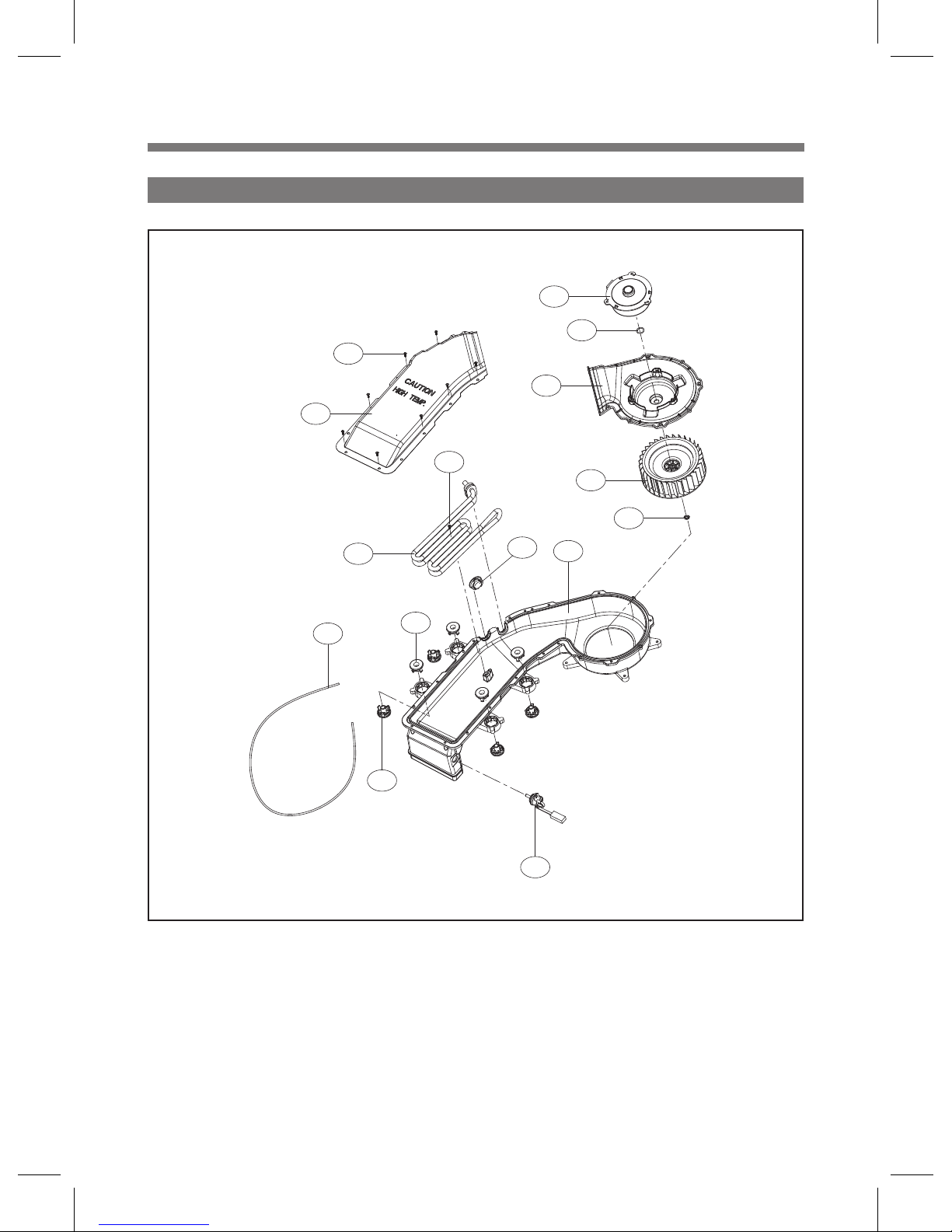

8. DUCT B
E01
E15
E13
E14
E12
E11
E04
E07
E06
E10
E08
E03
E05
E02
E09

14
No. PARTS NAME CODE SPECIFICATIONS Q’TY REMARK
E01 DUCT B UPPER 361A202400 ALCOSTA 1
E02 SCREW TAPPING 7122401411 T2S TRS 4X14 MFZN 8
E03 SCREW TAPPING 7112401208 T1 TRS 4X12 SUS 1
E04 HEATER DRY 3612801400
230V 2.1KW 25.19OHM 6.1W/SQ INCOLOY800 1R1A034002 1
E05 PACKING THERMOSTAT 3614009900 SILICON, DWD-100DR 1
E05 SWITCH THERMOSTAT 3619046500 ON120°C OFF150°C 230V 15A VDE 1
E06 DUCT B LOWER 361A202500 ALDC C-LU1011 1
E07 BUSHING UPPER 3610703800 POM C-LU1011 4
E08 BUSHING LOWER 3610703900 POM C-LU1011 4
E09 GASKET SEAL A 3612325700 EPDM FOAM, D=5, L=1293 1
E10 PACKING RUBBER 3614009800 SILICON, DWD-100DR 1
E10 THERMISTOR DRY 361AAAAD00
C-LD/LU,L=200,R40=26.065K,R90=4.4278K 1
E11 NUT HEX 3616032100 M6*1.0P,CCW 1
E12 FAN AS 3611886400 GFPP30% , C-LU1011 1
E13 COVER DUCT 3611431400 GFPP30% C-LU1011 1
E14 RING O 3614603400 DWD-100DR,NBR,ID=7.6,OD=13.6 1
E15 UNIT FAN MOTOR 36189M2Q00 24V DC 14W 1

15
9. CABINET AS
F07
F01
F03
F02
F04
F05
F10
F09
F08
F06
F11
F12
F13

16
No. PARTS NAME CODE SPECIFICATIONS Q’TY REMARK
F01 CABINET 3610813300 SGCC 0.8T,L'S 1
F02 FRAME LOWER 36122UD700 SGCC 1.2T 1
F03 FRAME TOP *L 36122UDA00 SGCC 1.6T 1
FRAME TOP *R 36122UDB00
SGCC 1.6T 1
F04 BASE U L 3610393800 SGCC T2.0 1
BASE U R 3610393900 SGCC T2.0 1
F05 LEG ADJUST AS 3617703811 CHINA PARTS, DWD-900W 4
F06 MAIN PCB AS 3610PCBL00 D-LU1212EFA 1
F07 PLATE *T 3614541100 SECC 1.2T, C-LU1011 1
F08 SENSOR PRESSURE 3614825240 DL-DW13 AIR INLET 315 1
F09 COVER *B 3611431600 0.4T SGCC, C-LU1011 1
F10 FIXTURE TUB AS 3612007421
6KG, CHINA, SAMWOO 4
F11 FRAME UPPER 36122UD900 SGCC 1.2T 1
F12 UNIT DRAIN PUMP AS 36189M2T00
AC220~240V/50HZ HANYU,AL,30W,DUAL PUMP,FILTER NEW 1
F13 STOPPER SPRING 3615202200 POM, DWD-100DR 2

17
4. CoNTRoL pART fUNCTIoN SpECIfICATIoN
1. SEQUENCE CHART
Division Time Cotton/Noraml
Synthetic Delicate Intensive
Small Middle Small Small Middle
P
R
E.
W
A
S
H
Sensing 20sec
Water Supply 2min ▒
Pre. Wash 10min ▒
8min
Drain 1min ▒
Balancing Spin 2min ▒
Mid. Spin 3min ▒
W
A
S
H
I
N
G
Sensing 20sec ▒▒▒▒▒
Water Supply 2min ▒▒▒▒▒
Washing 1
(Heating)
90min
50min
20min ▒
15min ▒ ▒ ▒ ▒
10min ▒ ▒ ▒ ▒
Washing 2
65min 28min 28min 23min 28min 33min
25min ▒▒▒▒▒
15min ▒▒▒▒▒
R
I
N
S
E
Drain 1min ▒ ▒ ▒ ▒
Balancing Spin
+ Remove Bubble 2min ▒ ▒ ▒ ▒
Mid. Spin 4min ▒ ▒ ▒ ▒
Water Supply 2min ▒ ▒ ▒ ▒
Rinse 1 3min ▒ ▒ ▒ ▒
Drain 1min ▒▒▒▒▒
Balancing Spin 2min ▒▒▒▒▒
Mid. Spin 4min ▒▒▒▒▒
Water Supply 2min ▒▒▒▒▒
Rinse 2 3min ▒▒▒▒▒
Drain 1min ▒▒▒▒▒
Balancing Spin 2min ▒▒▒▒▒
Mid. Spin 4min ▒▒▒▒▒
Water Supply 2min ▒▒▒▒▒
Rinse 3 3min ▒▒▒▒▒
S
P
I
N
Drain 1min ▒▒▒▒▒
Balancing Spin 2min ▒▒▒▒▒
Main Spin
7min ▒▒▒▒▒
5min ▒▒▒▒▒
3min ▒▒▒▒▒
END Crease care 1min ▒ ▒ ▒ ▒
End 10sec ▒▒▒▒▒
Remain Time Display 1:32 1:37 1:27 55 2:28
NOTE
1. In the Cotton/Normal Course, if select 95°C ,real temperature is 85°C and
Heat OFF.
2. As cannot reach the temp. end of the heating.

18
Division Time Quick 20 Sports Wear Tub Clean Drain
Small Small Small Small
W
A
S
H
I
N
G
Soal 30min
Water Supply 2min ▒(1min) ▒ ▒
Washing 1
(Heating)
60min
50min
35min
30min
5min
Washing 2
13min ▒
10min ▒ ▒
4min ▒(3min) ▒ ▒
R
I
N
S
E
Drain 1min
Balancing Spin 2min
Mid. Spin 4min ▒
Water Supply 2min ▒
Rinse 1 3min ▒
Drain 1min ▒(1min) ▒ ▒
Balancing Spin 2min ▒(1min) ▒
Mid. Spin 4min ▒(2min) ▒ ▒
Water Supply 2min ▒(1min) ▒ ▒
Rinse 2 3min ▒(1min) ▒ ▒
Drain 1min ▒(1min) ▒
Balancing Spin 2min ▒(1min) ▒
Mid. Spin 4min ▒(2min) ▒
Water Supply 2min ▒(1min) ▒
Rinse 3 3min ▒(1min) ▒
S
P
I
N
Drain 1min ▒(1min) ▒ ▒
Balancing Spin 2min ▒(1min) ▒
Main Spin
7min ▒
5min ▒ ▒
30min ▒(2min) ▒ ▒
D
R
Y
Crease care 60sec ▒
Drain 1min ▒
Dry
100min Add 46min, only dry model
30min ▒
Cooling 5min ▒
End 10sec ▒
Crease Care 30min ▒
END Crease care 1min ▒
End 10sec ▒▒▒
Remain Time Display 20 50 1:17(2:03) 1
NOTE
