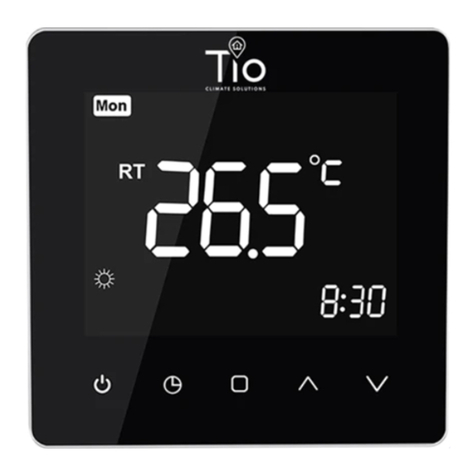

tio TioSTAT User manual

APPLICATION
LCD DISPLAY REFERENCE
This thermostat range has been developed to control
electric underfloor or water heating or water/gas
boilersystem. These units are designed for use in
commercial,industrial, civil, and domestic properties.
•Simple installation
•Acrylic face plate
•
•Large, backlit display
•Sleek, contemporary design
•Elegant chrome frame
•Feather touch control panel
•5+1+1 six period per day programming
•Simple, one-touch temperature
control over-ride. Pre-set
temperatures maintained within
+/- 1°C Internal and external
sensors allowcontrol of
•both air and/or floor temperatures
•Suitable for installation in a
standard single backbox
•WIFI/ZIGBEE/MODBUS
communication optional
Sensor：NTC Accuracy：±1℃
Power Consumption：< 1.5W Timing Error：
<1％
Power Supply：95 ~ 240VAC, 50 ~60Hz
Current Load：5A（water heating, water/gas
boiler), 16A（electric heating)
Shell material：PC+ABS (flame retardant)
Dimension：86x86x13.3mm
Ambient Temp.：0-45℃，5-95％RH
（Non-condensing）
Storage Temp.：-5-55℃Installation Hole
distance: 60mm
FEATURES
TECHNICAL INFORMATION
QUICK FUNCTIONS
WIRING DIAGRAM

Turn off the stat Press button for 5 seconds to
enter configuration menu. During this menu, short
press to change parameters. Press to confirm
the setting.
When power is on, press for 5 seconds to
enter programmable mode. Press to change
the differentitems. Press to set the
relative values.
The order is Minute → Hour → Temperature →
Minute timing-on → Hour timing-on→ Minute
timing-off→ Hourtiming-off→ Temperature
adjusting.
(“Mon-Fri”,”Sat”,”Sun”=“5+1+1”)
programmablemode, every mode has two
times zones and a timetemperature setting)
CONFIGURATION MENU
DIMENSIONS
PROGRAM SETTINGS
INSTALLATION
