Titan Attachments ATVWC3 User manual

TOWABLE WOOD CHIPPER
ATVWC3
198270
Operator’s Manual
Read the Operator’s Manual entirely. When you see this
symbol, the subsequent instructions and warnings are
serious follow without exception. Your life and the lives
of others depend on it!

2
PART 1: GENERAL SAFETY RULES
WARNING
Read this Safety & Operating Instructions manual before you use the Woodchipper.
Become familiar with the operation and service recommendations to ensure the best
performance of your machine.
CAUTION
This machine is designed solely to chip wood and must not be used for any other
purpose. It should only be used by trained operators who are familiar with the content of
this manual. It is potentially hazardous to fit or use any parts other than your dealer parts.
The company disclaims all liability for the consequences of such use, which in addition
voids the machine warranty.
BEFORE USING THE WOODCHIPPER
NOTICE
A. Operators must be fully trained before using this machine.
B. User Manual is read and understood.
C. Machine is positioned on level ground; all guards are fitted and in good condition.
D. Blades are in good condition and secure. All blades are sharpened or replaced in sets.
E. All fasteners are checked for tightness.
F. Only WOODEN materials free of nails etc. are fed into the machine.
G. Fire extinguisher is available on site.
H. Always feed from the side.
I. It is better to have a second trained operator within easy reach of the machine.
J. Always maintain strict discipline and service machine at specified periods.
K. Note direction of discharge chute and if necessary, note the wind direction to prevent
debris from being blown into highway or where it could affect members of the public.
L. DO NOT put any part of your body into the in-feed chute while the machine is running.
M. DO NOT operate the machine whilst under the influence of alcohol or drugs.
N. DO NOT operate inside a building or confined space or Climb on the in-feed chute.

3
WHEN USING THE WOODCHIPPER
NOTICE
A. Always feed from the side.
B. It is better to have a second trained operator within easy reach of the machine.
C. Always maintain strict discipline and service machine at specified periods.
D. Note direction of discharge chute and if necessary, note the wind direction to prevent
debris from being blown into highway or where it could affect members of the public.
E. DO NOT put any part of your body into the in-feed chute while the machine is running.
F. DO NOT operate the machine while under the influence of alcohol or drugs.
G. DO NOT operate inside a building or confined space or Climb on the in-feed chute.
PROTECTING YOURSELF AND THOSE AROUND YOU
WARNING
This is a high-powered machine, with moving parts operating with high energy. You must
operate the machine safely. Unsafe operation can create a number of hazards for you, as
well as anyone else in the nearby area. Always take the following precautions when using
this machine:
A. Keep in mind that the operator or user is responsible for accidents or hazards
occurring to other people, their property, and themselves.
B. Always wear protective googles or safety glasses with side shields while using the
Woodchipper to protect your eyes from possible thrown debris.
C. Avoid wearing loose clothing or jewelry, which can catch on moving parts.
D. We recommend wearing gloves while using the Woodchipper. Be sure year gloves fit
properly and do not have loose cuffs or drawstrings.
E. Wear shoes with non-slip treads when using your Woodchipper. If you have safety
shoes, we recommend wearing them. Do not use the machine while barefoot or
wearing open sandals.
F. Wear long pants while operating the Woodchipper.
G. Always keep bystanders at least 50 feet away from your work area. Stop the engine
when another person or pet approaches.
SAFETY FOR CHILDREN AND PETS
WARNING
Tragic accidents can occur if the operator is not alert to the presence of children and pets.
Children are often attracted to the machine and the chipping activity. Never assume that
children will remain where you last saw them. Always follow these precautions:

4
A. Keep children and pets at least 50 feet from the working area and ensure they are
under the watchful care of a responsible adult.
B. Be alert and turn the machine off if children or pets enter the work area.
C. Never allow children to operate the Woodchipper.
SAFETY WITH GASOLINE - POWERED MACHINES
WARNING
Gasoline is a highly flammable liquid. Gasoline also gives off flammable vapor that can be
easily ignited and cause a fire or explosion. Never overlook the hazards of gasoline. Always
follow these precautions:
A. Never run the engine in an enclosed area or without proper ventilation as the exhaust
from the engine contains carbon monoxide, which is an odorless, tasteless, and a
deadly poisonous gas.
B. Store all fuel and oil in containers specifically designed and approved for this purpose
and keep away from heat and open flame, and out of the reach of children.
C. Replace rubber fuel lines and grommets when worn or damaged and after 5 years of
use.
D. Fill the gasoline tank outdoors with the engine off and allow the engine to cool
completely. Don't handle gasoline if you or anyone nearby is smoking, or if you're
near anything that could cause it to ignite or explode. Reinstall the fuel tank cap and
fuel container cap securely.
E. If you spill gasoline, do not attempt to start the engine. Move the machine away from
the area of the spill and avoid creating any source of ignition until the gas vapors have
dissipated. Wipe up any spilled fuel to prevent a fire hazard and properly dispose of
the waste.
F. Allow the engine to cool completely before storing in any enclosure. Never store a
machine that has gas in the tank, or a fuel container, near an open flame or spark
such as a water heater, space heater, clothes dryer, or furnace.
G. Never adjust or repairs with the engine running. Shut down the engine, disconnect
the spark plug wire, keeping it away from the spark plug to prevent accidental
starting, wait 5 minutes before adjusting or repairs.
H. Never tamper with the engine’s governor setting. The governor controls the
maximum safe operation speed and protects the engine. Over-speeding the engine is
dangerous and will cause damage to the engine and to the other moving parts of the
machine. If required see your authorized dealer for engine governor adjustments.
I. Keep combustible substances away from the engine when it is hot.
J. Never cover the machine while the muffler is still hot.
K. Do not operate the engine with the air cleaner or the carburetor air intake cover
removed. Removal of such parts could create a fire hazard. Do not use flammable
solutions to clean air filter.
L. The muffler and engine become very hot and can cause a severe burn: do not touch.

5
GENERAL SAFETY
WARNING
Operating this Woodchipper safely is necessary to prevent or minimize the risk of death or
serious injury. Unsafe operation can create several hazards for you. Always take the
following precautions when operating:
A. Your Woodchipper is a powerful tool, not a plaything. Exercise extreme caution
always. The machine is designed to Chip Woods. Do not use it for any other purpose.
B. Know how to stop the Woodchipper quickly.
C. Never operate your unit on a slippery, wet, muddy, or icy surface. Exercise caution to
avoid slipping or falling.
D. See manufacturer’s instructions for proper operation and installation of accessories.
E. Never use the machine without ensuring that all guards and shields are in place.
F. Never, under any conditions, remove, bend, cut, fit, weld, or otherwise alter standard
parts on the Woodchipper. This includes all shields and guards. Modifications to your
machine could cause personal injuries and property damage and will invalid your
warranty.
G. If the machine starts to make an unusual noise or vibrate, shut down the engine,
disconnect the spark plug wire, keeping it away from the spark plug to prevent
accidental starting, wait 5 minutes for engine to cool down, then inspect for damage.
Vibration is a warning of trouble. Check damaged parts and clean, repair and/or
replace, as necessary.
H. Never tamper with safety devices. Check their proper operation regularly.
I. Before performing any maintenance or inspection procedure, shut down the engine,
disconnect the spark plug wire keeping it away from the spark plug to prevent
accidental starting, wait 5 minutes for machine to cool down.
J. Never allow people who are unfamiliar with these instructions to use the
Woodchipper. Allow only responsible individuals who are familiar with these rules of
safe operation to use your machine.
K. Never overload or attempt to chip woods beyond the manufacturer’s
recommendation. It could result in personal injury or damage to the machine.
L. While using, do not hurry or take things for granted. When in doubt about the
equipment or your surroundings stop the machine and take time to look things over.
M. Never operate the machine when under the influence of alcohol, drugs, or
medication.
N. Use the machine only in daylight.
O. Stay alert for hidden hazards or traffic.
P. Keep all nuts and bolts tight and keep the equipment in good operating conditions.

6
A NOTE TO ALL USERS
List of warnings and cautions cannot be all-inclusive. If situations occur that are not covered by
this manual, the operator must apply common sense and operate this WOODCHIPPER in a safe
manner. Contact the dealers for assistance in your area
PART 1: GENERAL SAFETY RULES (CONT)

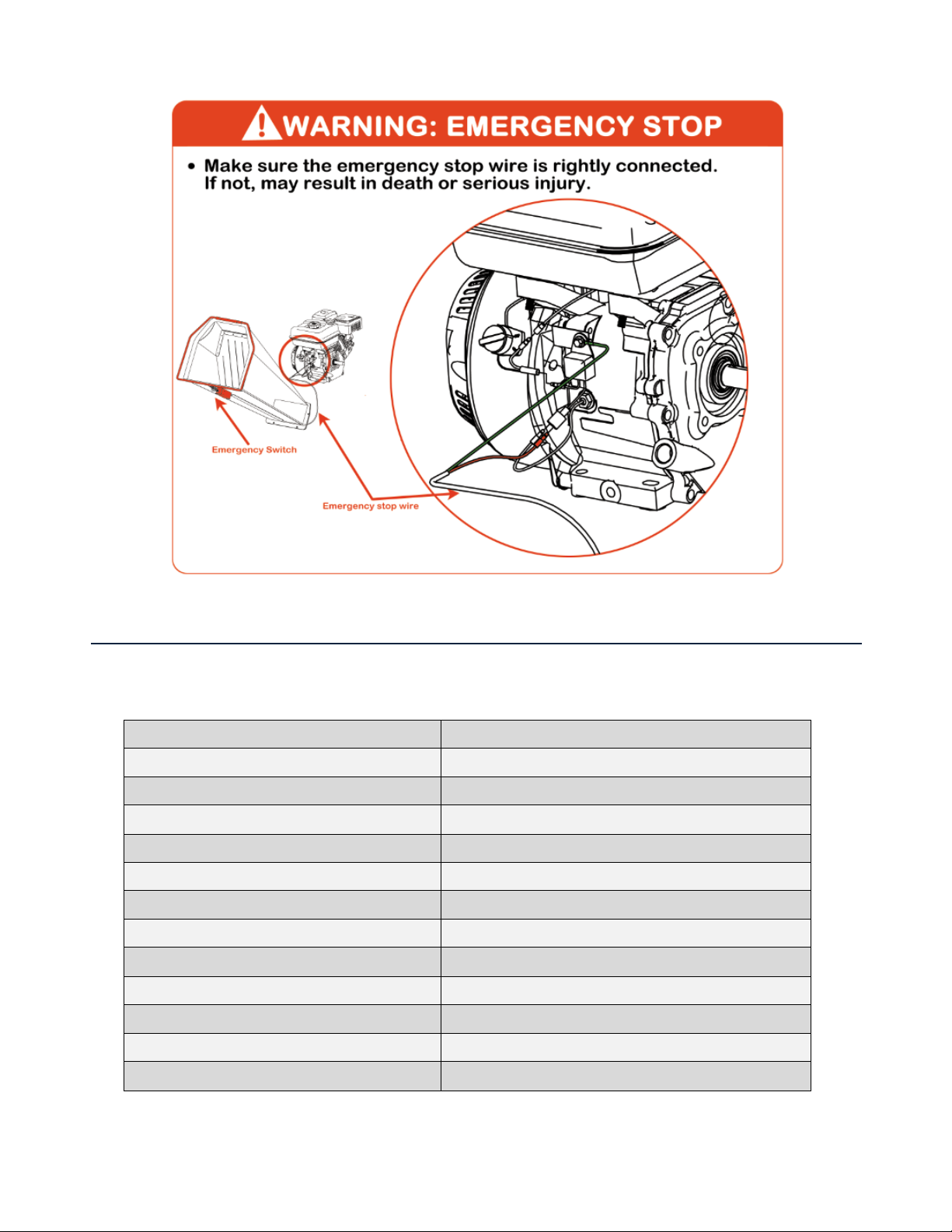

SAFETY LABELS FOUND ON YOUR UNIT

7
PART 2: Familiar with the Woodchipper
TECHNICAL SPECIFICATIONS
START
RECOIL START
ENGINE
6.5HP/7HP FOUR STROKES
POWER
GASOLINE/PETROL
CHIPPER CAPACITY
3CBM/HOUR TO 5CBM/HOUR
WOOD DIAMETER
DIAMETER 100MM
PERMITTED WOOD WIDTH
150MM
CHIPPER BLADE
TWIN REVERSIBLE BLADES
TIRE
4.10/3.5-4
OVERALL HEIGHT
1080MM
OVERALL LENGTH
1500MM
WIDTH
540MM
WEIGHT
100/85KGS
ROLLER MAX RPM
2400RPM

8
PART 3: OPERATING THE WOODCHIPPER
WARNING
A. Read and understand all instructions, safety precautions, and/or warnings listed in “PART
I: General Safety Rules” before operating the WOODCHIPPER. If any doubt or question
arises about the correct or safe method of performing anything found in this manual,
please contact the dealers in your area.
B. When operating the Woodchipper, make sure you are standing in the safe operating
area (OPERATOR ZONE). You must always stay in the safe operating area when the ram is
in motion (whether extending or retracting). Never place any part of your body into a
position that causes an unsafe operating condition.
C. Before loading and operating the Woodchipper, always wear protective gear, including
safety goggles, hearing protection, tight-fitting gloves without draw strings or loose cuffs,
and steel-toed shoes.
D. Knowing the correct and incorrect methods of Chipping Woods. Never using an incorrect
or unsafe method.
STARTING
1. Position your Woodchipper on flat, dry ground, and then stop the front wheel with brake,
make sure the machine cannot be moved.
2. Make sure the fuel shut-off valve is in the “ON” position.
3. Move the choke control lever to the “CHOKE” position (should only be needed if the
engine is cold).
4. Move the throttle control lever to the “FAST” position.
5. Recoil Start: Turn the Ignition Switch to the “On” position. Grasp the recoil starter handle
and gently pull until you feel resistance. Let the cord retract a little bit then pull the cord
rapidly to start the engine. One or two pulls usually starts the engine.
6. Electric Start: Turn and hold the Key in the start position until Engine starts then let the
Key return to run position.
7. Move the choke control lever (if used for cold engine) slowly back to the “RUN” position
when the engine is running well.
8. If the Woodchipper has not been running (cold engine), warm up the engine by running
the engine at half throttle for 3 to 4 minutes, then advance the engine throttle control to
the maximum speed.
STOPPING
1. Move the Throttle Lever to IDLE.
2. Recoil Start: Turn the Ignition Switch to the OFF position.
3. Electric Start: Turn the Key to the OFF position.

9
OPERATOR ZONE
WOOD CHIPPING
NOTICE
Woods and branches’ diameter should be no bigger than 120mm.
WARNING
Do not place your hands into the chute when loading. This is a very UNSAFE method and
could result in injury to your hands.
Do not reach or step across the rail while the Woodchipper is running. This is a very UNSAFE
method which could cause personal injury, even death.
WHEN BLOCKED
If the roller stops while chipping woods or branches, the engine should be stopped, and take
out the woods which stuck the roller, and then restart the engine and chip again.
PART 4: MAINTAINING THE WOODCHIPPER
Regular maintenance is the way to ensure the best performance and long life of your machine.
Please refer to this manual and the engine manufacturer’s user manual for maintenance
procedures.

10
WARNING
Before performing any maintenance procedure or inspection, stop the engine, wait five minutes to
allow all parts to cool. Disconnect the spark plug wire, keeping it away fro mthe spark plug.
Disconnect the Better Terminals (Electric Start Only).
REGULAR MAINTENANCE CHECKLIST
PROCEDURE
BEFORE
EACH USE
EVERY 3
HOURS
EVERY 25
HOURS
EVERY 100
HOURS
CHECK ENGINE OIL LEVEL
Δ
CHECK GENERAL
EQUIPMENT CONDITION
Δ
CHECK WEDGE FOR
SHARPNESS
Δ
GREASE SURFACE OF SLIDE
RAIL
Δ
CHECK BELTS
Δ
GREASE RACK AND PINION
Δ
CHECK TIRE PRESSURE
Δ
CLEAN ENGINE EXTERIOR
AND COOLING
Δ
CHANGE ENGINE OIL
FIRST TIME
5HOURS
Δ
REPLACE AIR FILTER
Δ
REPLACE SPARK PLUG
Δ
Engine Service
Refer to the engine manufacturer’s user manual for engine maintenance.
LUBRICATION
NOTICE
All Bearings of your Chipper are sealed units and should have sufficient lubricant to last the life
of your machine with normal use.

11
PART 5: TROUBLESHOOTING AND PARTS LIST
WARNING
Before performing any maintenance procedure or inspection, stop the engine, wait five minutes
to allow all parts to cool. Disconnect the spark plug wire, keeping it away from the spark plug.
TROUBLESHOOTING TABLE
SYMPTOM
POSSIBLE CAUSE
The engine will not
start.
(Please refer to the
engine user manual
for engine-specific
procedures.)
➢Is the ignition switch in the “ON” position?
➢Is the fuel shut-off valve on?
➢Are you using fresh, clean gas? If the gas is old, change it.
Use a fuel stabilizer if you keep gas longer than 30 days.
➢Does the spark plug clean? If the spark plug is dirty or
cracked, change it. If it’s oily, leave it out, hold a rag over
the plug hole and pull the recoil cord several times to
blow out any oil in the cylinder, then wipe off the plug and
reinsert it.
The engine lacks
power
or is not running
smoothly.
(Please refer to the
engine user manual
for engine-specific
procedures.)
➢Check that the Throttle Lever is in the “Run” position.
➢Is the air filter clean? If it’s dirty, change it following the
procedure in the engine manufacturer’s owner’s manual.
➢Does the spark plug clean? If it’s fouled or cracked,
change it. If it’s oily, leave it out, hold a rag over the plug
hole and pull your recoil cord several times to blow out
any oil in the cylinder, then wipe off the plug and reinsert
it.
➢Are you using fresh, clean unleaded gas? If it’s old,
change it. Use a fuel stabilizer if you keep gas longer than
30 days.
➢Does your engine have the right amount of clean oil? If
it’s dirty, change it following the procedure in the engine
manufacturer’s owner’s manual.
➢Check the oil level and adjust as needed.
Engine smokes.
(Please refer to the
engine user manual
for engine-specific
procedures.)
➢Check the oil level and adjust as needed.
➢Check the air filter and clean or replace if needed.
➢You may be using the wrong oil—too light for the
temperature. Refer to your Engine Owner’s Manual for
detailed information.
➢Clean the cooling fins if they’re dirty.
Machine does not
seem
to have full chipping
power.
➢The belts may be too loose and slipping. Adjust or
replace belts as needed.

12
EXPLOSION VIEW
#
DESCRIPTION
#
DESCRIPTION
1
FOUNDATION
18
IN-FEED
2
ROLLER
19
EMERGENCY STOP FIXATION
3
BLADE
20
RUBBER FIXATION
4
WHEEL AXIS
21
EMERGENCY STOP SWITCH
5
WHEEL
22
SPRING
6
PULLEY
23
RUBBER
7
BELT
24
SWITCH
8
BELT COVER
25
SWITCH COVER
9
CLUTCH
26
ANGLE BAR
10
BELT INNER COVER
27
IN-FEED EXTENSION
11
BEARING
28
HANDLE
12
BEARING FIXATION PLATE
29
SWITCH EXTENSION
13
SUPPORT FOOT
30
FLANGE
14
DISCHARGE CHUTE
31
LOWER BLADE
15
CHUTES ADJUST
32
FOOT RUBBER
16
ENGINE
33
BEARING COVER
17
ENGINE FIXATION PLATE
34
WHEEL PIN

13
ACKNOWLEDGEMENT OF RISK AND RELEASE OF LIABILITY
The use of any equipment, including this one, involves the potential risk of injury. Apart from any
warranty claim that might be presented for a claimed defect in material or workmanship of the product,
you accept and assume full responsibility for any and all injuries, damages (both economic and non-
economic), and losses of any type, which may occur, and you fully and forever release and discharge
Titan, its insurers, employees, officers, directors, associates, and agents from any and all claims,
demands, damages, rights of action, or causes of action, present or future, whether the same be known
or unknown, anticipated, or unanticipated, resulting from or arising out of the use of said equipment.
This equipment must be used with care by capable and competent individuals under supervision, if
necessary.
TITAN LIMITED WARRANTY: TERMS, EXCLUSIONS AND LIMITATIONS OF REMEDIES
This product comes with a one (1) year limited warranty that can be found at
www.palletforks.com/warranty.html. Please review the same for all details regarding the Titan Limited
Warranty.
THE TITAN LIMITED WARRANTY FOUND AT WWW.PALLETFORKS.COM/WARRANTY.HTML IS
EXCLUSIVE AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY
IMPLIED WARRANTY OF MERCHANTABILITY AND/OR FITNESS FOR A PARTICULAR PURPOSE, EACH
OF WHICH IS HEREBY DISCLAIMED.

14
NEED HELP? CONTACT US FIRST.
1-800-605-7595
[email protected]
www.palletforks.com
© 2021 Titan Brands
