TITAN RADIO TR2X User manual

Welcome to the world of Hytera and thank you for purchasing this product. This manual
includes a description of the functions and step-by-step procedures for use. It also includes
a troubleshooting guide. To avoid bodily injury or property loss caused by incorrect
operation, please carefully read the Safety Information Booklet before use.
This manual is applicable to the following product:
TR2X Digital Portable Radio (X may represent 2, 5, 6 or 8).

Copyright Information
Hytera is the trademark or registered trademark of Hytera Communications
Corporation Limited (the Company) in the People's Republic of China (PRC)
and/or other countries or areas. The Company retains the ownership of its
trademarks and product names. All other trademarks and/or product names
that may be used in this manual are properties of their respective owners.
The product described in this manual may include the Company's computer
programs stored in memory or other media. Laws in PRC and/or other
countries or areas protect the exclusive rights of the Company with respect
to its computer programs. The purchase of this product shall not be deemed
to grant, either directly or by implication, any rights to the purchaser
regarding the Company's computer programs. The Company's computer
programs may not be copied, modified, distributed, decompiled, or reverse-
engineered in any manner without the prior written consent of the Company.
Disclaimer
The Company endeavors to achieve the accuracy and completeness of this
manual, but no warranty of accuracy or reliability is given. All the
specifications and designs are subject to change without notice due to
continuous technological development. No part of this manual may be
copied, modified, translated, or distributed in any manner without the prior
written consent of the Company.
We do not guarantee, for any particular purpose, the accuracy, validity,
timeliness, legitimacy or completeness of the third-party products and
contents involved in this manual.
If you have any suggestions or would like to receive more information,
please visit our website at: http://www.hytera.com.
FCC Statement
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates and can radiate radio
frequency energy. If not installed and used in accordance with the
instructions, it may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. Verification of harmful interference by this
equipment to radio or television reception can be determined by turning it
off and then on. The user is encouraged to try to correct the interference by
one or more of the following measures:
·Reorient or relocate the receiving antenna. Increase the separation
between the equipment and receiver.
·Connect the equipment into an outlet on a different circuit to that of the
receiver's outlet.
·Consult the dealer or an experienced radio/TV technician for help.
Operation is subject to the following two conditions:

·This device may not cause harmful interference.
·This device must accept any interference received, including
interference that may cause undesired operation.
Note: Changes or modifications to this unit not expressly approved by the
party responsible for compliance could void the user's authority to operate
the equipment.
Compliance with RF Exposure Standards
Hytera's portable radio complies with the following RF energy exposure
standards and guidelines:
·United States Federal Communications Commission, Code of Federal
Regulations; 47 CFR § 1.1307, 1.1310 and 2.1093.
·American National Standards Institute (ANSI) / Institute of Electrical
and Electronic Engineers (IEEE) C95. 1:2005; Canada RSS102 Issue 5
March 2015.
·Institute of Electrical and Electronic Engineers (IEEE) C95.1:2005
Edition
RF Exposure Compliance and Control
Guidelines and Operating Instructions
To control your exposure and ensure compliance with the
occupational/controlled environmental exposure limits, always adhere to the
following procedures.
Guidelines:
·Do not remove the RF Exposure Label from the device.
·User awareness instructions should accompany device when transferred
to other users.
·Do not use this device if the operational requirements described herein
are not met.
Operating Instructions:
·Transmit no more than the rated duty factor of 50% of the time. To
transmit (talk), push the Push-To-Talk (PTT) button. To receive calls,
release the PTT button. Transmitting 50% of the time, or less, is
important because the radio generates measurable RF energy only when
transmitting (in terms of measuring for standards compliance).
·Keep the radio unit at least 2.5 cm away from the face. Keeping the
radio at the proper distance is important as RF exposure decreases with
distance from the antenna. The antenna should be kept away from the
face and eyes.
·When worn on the body, always place the radio in a Hytera-approved
holder, holster, case, or body harness or by use of the correct clip for
this product. Use of non-approved accessories may result in exposure
levels which exceed the FCC's occupational/controlled environmental RF
exposure limits.
·Use of non-approved antennas, batteries, and accessories causes the
radio to exceed the FCC RF exposure guidelines.
·Contact your local dealer for the product's optional accessories.

IC Statement
The device has been tested and complies with SAR limits, users can obtain
Canadian information on RF exposure and compliance
Après examen de ce matériel aux conformité aux limites DAS et/ou aux
limites d’intensité de champ RF, les utilisateurs peuvent sur l’exposition aux
radiofréquences et la conformité and compliance d’acquérir les
informations correspondantes
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
·This device may not cause harmful interference.
·This device must accept any interference received, including
interference that may cause undesired operation.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables
aux appareils radio exempts de licence. L'exploitation est autorisée aux
deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage,
et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique
subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement
EU Regulatory Conformance
As certified by the qualified laboratory, the product is in compliance with
the essential requirements and other relevant provisions of the following
directives: 1999/5/EC or 2014/53/EU, 2006/66/EC, 2011/65/EU, and
2012/19/EU.
Please note that the above information is applicable to EU countries only.

2
Product Overview 3
Product Controls 3
LED Indications 4
Before Use 4
Attaching the Antenna 4
Attaching the Battery 4
Attaching the Belt Clip 4
Attaching the Audio Accessories 4
Charging the Battery 5
Checking the Battery Power 5
Basic Operations 5
Call Services 6
Call on Digital Channel 6
Call on Analog Channel (Without Signaling)
7
Troubleshooting 8
Care and Cleaning 
Product Care
9
1

Product Cleaning 9
Optional Accessories 9
1

Product Cleaning 9
Optional Accessories 9
1
Contents
Packing List
Contents
Packing List
6
Optional Features

Optional Features

Packing List
Please unpack carefully and check that all items listed below are received. If any item is missing or damaged, please contact your dealer.
Item Quantity (PCS) Item Quantity (PCS)
Radio 1Belt Clip 1
Battery 1Strap 1
Power Adapter 1Documentation Kit 1
Antenna 1//
Check whether the frequency band marked on the antenna label matches that on the radio label. If not, please contact your dealer.
2

Product Overview

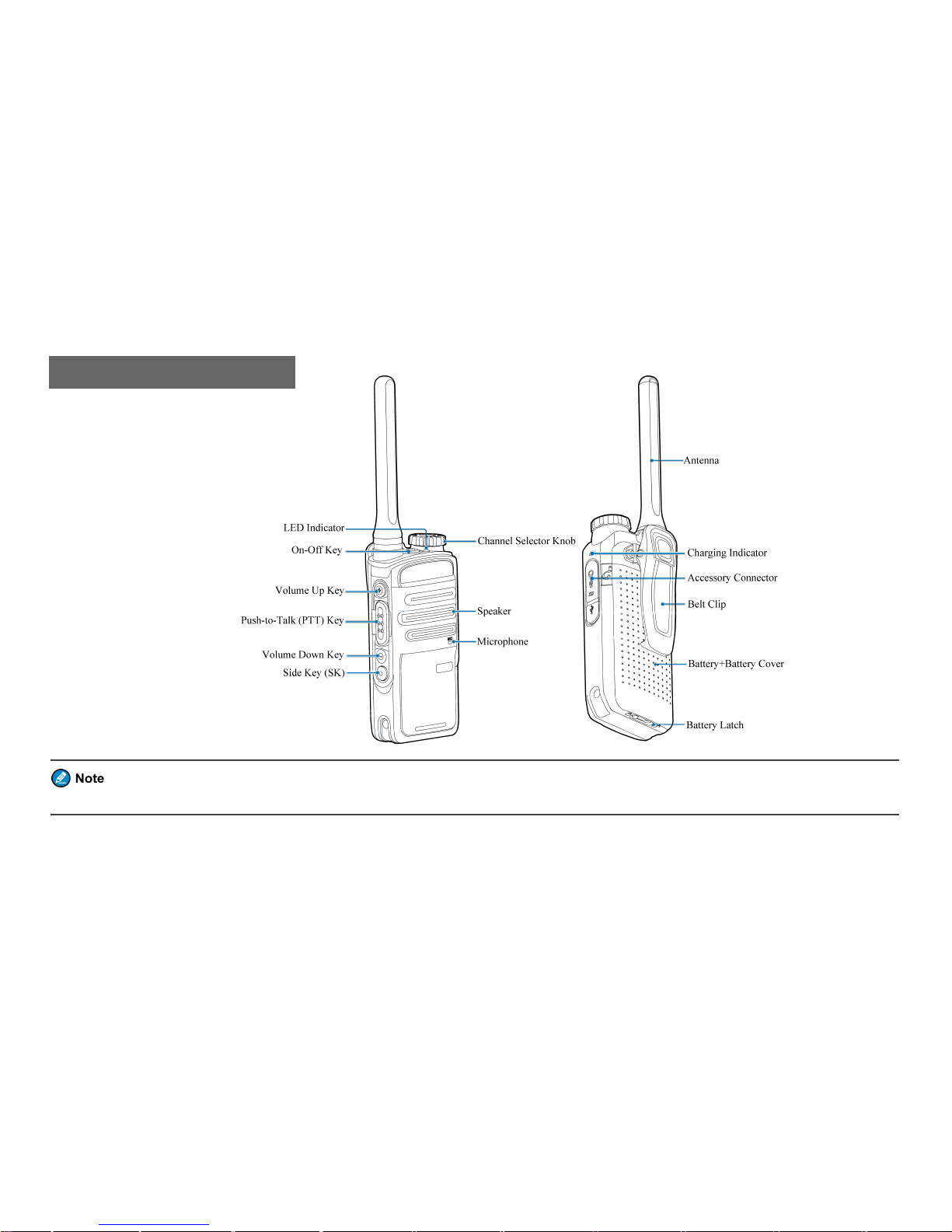

Product Controls
You can request your dealer to program your radio to use the SK as the shortcut to a radio feature.
3

LED Indications
LED Indicator Radio Status
Flashes green Being turned on.
Glows green Receiving.
Glows red Transmitting.
Flashes orange slowly Scanning.
Glows orange
Call hang time: No voice is being transmitted or
received on the channel during a call. Within such
a period, you can press and hold the PTT key and
speak.
Before Use
Attaching the Antenna
1. Place the antenna in its receptacle.
2. Rotate the antenna clockwise until hand tight.
Do not hold the radio by the antenna, as it may reduce the radio
performance and life span of the antenna.
Attaching the Battery
1. Slide the battery latch to the unlock position, and remove the battery
cover.
2. Align the battery contacts with the contacts in the battery compartment,
and press the battery into place.
3. Insert the protrusions at the top of the battery cover into the radio, and
press the cover into place.
4. Slide the battery latch to the lock position.
To remove the battery, make sure the radio is turned off, remove the
battery cover, and lift the bottom of the battery.
Attaching the Belt Clip
1. Use a Phillips screwdriver to turn the screws counterclockwise on the
back of the radio and remove them.
2. Align the screw holes on the belt clip with those on the back of the radio.
3. Put the screws back in place, and use the Phillips screwdriver to turn them
clockwise until hand tight.
Attaching the Audio Accessories
1. Open the accessory connector cover.
2. Plug the accessory into the accessory connector.
3. Turn the screw on the accessory plug clockwise until hand tight.
4

Charging the Battery
·Use the charger specified by Hytera to charge the battery.
·Read the Safety Information Booklet before charging.
The battery delivered with the radio is uncharged. To ensure optimum
performance, fully charge the battery before initial use. It is recommended
that your radio remain powered off during charging.
To charge the battery, do as follows:
1. Insert the USB connector of the power adapter into the USB port of the
radio.
2. Plug the power adapter into a power outlet, and then switch the power out-
let on.
To determine the charging status, check the charging indicator on the radio
according to the following table:
LED Indicator Charging Status
Glows red The battery is charging.
Glows green The battery is fully charged.
Checking the Battery Power
To check the current battery power, press and hold the Battery Power
Indicator key preprogrammed by your dealer. The following table lists
battery power indications.
LED Indicator Alert Tone Battery Power
Glows green Three beeps High
Glows orange Two beeps Medium
Glows red One beep Low
Flashes red Low battery
tone
Under the low battery threshold. Please
recharge or replace the battery.
Basic Operations
If you want to… Then…
Turn on/off the radio Press the On-Off key.
Increase the volume Press the Volume Up key.
Decrease the volume Press the Volume Down key.
Select a channel Rotate the Channel Selector knob.
5

Call Services
Call on Digital Channel
You can initiate a call to or receive a call from the private or group contact
preset for a digital channel.
Initiating a Call
1. Select the required channel.
2. Hold the radio vertically 2.5 to 5 cm from your mouth.
3. Press and hold the PTT key, and then speak into the microphone.
The radio displays for an outgoing group call and for an outgoing
private call.
Receiving and Responding to a Call
When receiving a call, you can listen to it without any operation. The radio
displays for an incoming group call and for an incoming private
call.
You can press and hold the PTT key and speak within the preset time
period.
Call on Analog Channel (Without Signaling)
You can initial a call to or receive calls from all other users on an analog
channel. The operations are the same as those on a digital channel.
6

Optional Features
The following features need to be programmed by your dealer. Please contact your dealer for detailed operations.
Type Feature Description
General
Feature
Zone Allows you to select a zone. The radio supports up to 3 zones, with a maximum of 16 channels per zone.
Power Level Allows you to switch the transmit power level between high and low.
Scan Allows the radio to scan all channels in the scan list preset for the current channel and stay on a channel with activities.
Emergency Alarm Allows you to initiate an emergency alarm or call to ask for help in case of emergencies.
Busy Channel Lockout Prevents the radio from transmitting on a busy channel.
Time-out Timer (TOT) Terminates transmission when the preset time period expires.
Battery Save Allows the radio to automatically enter the battery save mode when it does not detect any activity or operation within
the preset period.
Digital
Feature
All Call Allows you to initiate a call to all users on a digital channel.
One Touch Call Allows you to press one key to call the predefined private or group contact.
TDMA Direct Mode Allows the radio to operate on a channel with two time slots.
Analog
Feature
Squelch Off Allows the radio's speaker to always keep unmuted.
Squelch Level Allows you to adjust the squelch threshold required for the radio to unmute.
Monitor Allows the radio to monitor activities on the channel.
CTCSS/CDCSS Allows you to prevent unwanted calls on the same frequency.
7

Troubleshooting
Phenomena Analysis Solution
The radio cannot be
turned on.
The battery may be installed improperly. Remove and reattach the battery.
The battery power may run out. Recharge or replace the battery.
The battery may suffer from poor contact caused by dirty or
damaged battery contacts. Clean the battery contacts or replace the battery.
During reception, the
voice is weak, intermittent
or totally inactive.
The battery voltage may be low. Recharge or replace the battery.
The volume level may be low. Increase the volume.
The antenna may be loose or may be installed incorrectly. Turn off the radio, and remove and reattach the antenna.
The speaker may be blocked. Clean the surface of the speaker.
You cannot communicate
with other group members.
The frequency or signal strength may be low in comparison
to other members. Verify your TX/RX frequency and signal strength are correct.
The channel type (digital or analog) may be set incorrectly. Verify you are on the correct digital or analog channel.
You may be too far away from other members. Move towards other members.
Unknown voices or noise
is heard on the channel.
You may be interrupted by radios using the same frequency. Change the frequency, or adjust the squelch level.
The radio in analog mode may be set with no signaling. Set signaling for all radios operating at the same frequency to avoid
interference.
You are unable to hear
anyone because of too
much noise and hiss.
You may be too far away from other members. Move towards other members.
You may be located in an unfavorable position. For
example, your communication may be blocked by high
buildings or blocked in an underground area.
Move to an open and flat area, and restart the radio and try
contacting again.
It could be the result of external disturbance (such as
electromagnetic interference). Stay away from equipment that may cause interference.
8
If the above solutions cannot fix your problems, or you may have some other queries, please contact us or your local dealer for more technical support.

Care and Cleaning
To guarantee optimal performance as well as a long service life of the
product, please follow these tips.
Product Care
·Do not pierce or scrape the product.
·Keep the product far away from substances that can corrode the
circuitry.
·Do not hold the product by the antenna or earpiece cable.
·Close the accessory connector cover when no accessory is in use.
Product Cleaning
Turn off the product and remove the battery before cleaning.
·Clean up the dust and fine particles on the products surface and charging
piece with a clean and dry lint-free cloth or a brush regularly
·Use neutral cleanser and a non-woven fabric to clean the keys, knobs
and front case after long-time use. Do not use chemical preparations
such as stain removers, alcohol, sprays or oil preparations, so as to avoid
surface case damage.
·Make sure the product is completely dry before use.
Optional Accessories
Use the accessories specified by Hytera only; otherwise, the Company
will not be liable for any loss or damage arising out of the use of any
unauthorised accessories.
Contact your local dealer for the optional accessories used with the product.


8 1 1 BD3 0 0 2 0 0 0 0
L07157
