TJ Lighting Solutions Sharpy BEAM 5R User manual

1/7

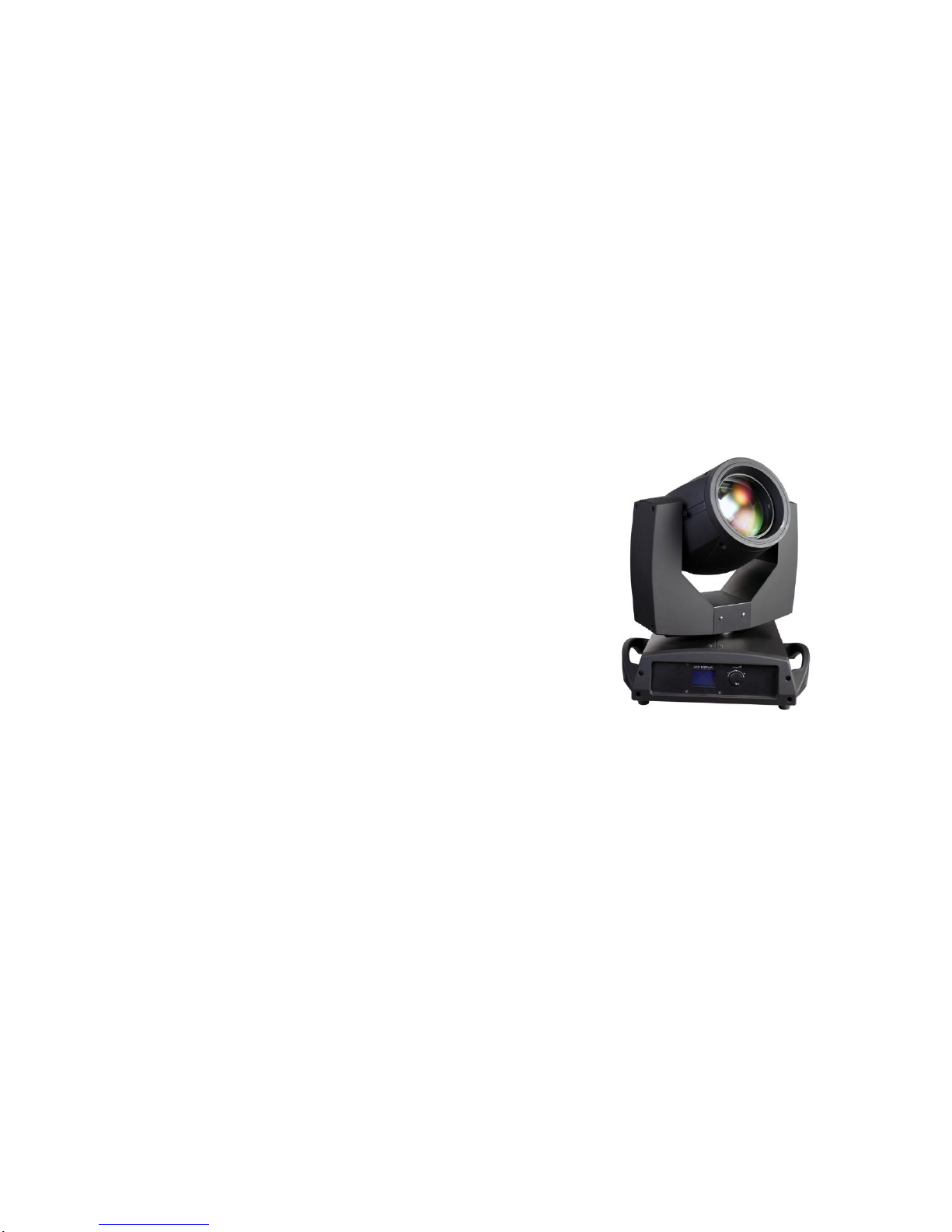

Sharpy BEAM 5R
USER MANUAL
Congratulations on purchasing this 200W moving Beam Light
Thank you for extending your trust in our technology!
Color Temperature: 8000K
Control Mode: DMX512
Channel: 16CH/20CH
Single input: 3 Core XLR
Single Output: 3 Cores XLR
Pan scan: 540°(16bit) Electric correction
Tilt scan: 270°(16bit) Electric correction
Color Wheel: 14 Color + White, Single rotation rainbow effect, two models
changing ( Full color and half color operating)

2/7
ATTENTION：
DANGER OF LIFE！RISKOF FIRE！
RISK OF SHORT CIRCUIT！
Gobos: 8 gobos + white, Double rotation rainbow effect
Strobe: 13 t/s, free strobe and Pulse strobe
Controller function : controller can be with reset function
Vertical angle: 0°~270°
Stepping mode: 255 user-programmable steps without DMX controller mode
Pattern：automatic pattern/sound activate/master-slave control/DMX
The largest external temperature: 40°
Cooling System: Fan
Unprecedented brightness –comparable to wattages many times higher
8-facet rotating prism
Mechanical dimmer
Frost Filter
Rapid and extensive pan and tilt movements
New, high-performance electronics
Eco-friendly: replaces far larger and more expensive spotlights
Electronic ballast fitted as standard
Performance trait:
1, Philips Lamp
2, completely parallel to the beam, similar to the last beam, and no nimbus and
no halo
3,adjustable beam angle from 0 to 3.8°
4, compared with a variety of lighting , the power is higher for several
times(20m 59800LX)
5, 8 kinds of patterns of self-turntable Gobo
6,8prism
7, X and Y(Pan & Tilt)loudspeaker mute and fast movement
8,high-performance electronic components ,small size ,light weight ,easy to
transport(only 15kg)
9,high-performance electronic ballasts
For reasons of safety and approval (CE) the personal reconstruction and/or
modification of this product is prohibited .Please observe that damage caused by
modifications performed manually to this device is not covered by the warranty.
This product leaves our works in a perfect condition. Please observe all notes in
these operating instructions to warrant this condition and the safe operation of the
product!
Any damage caused as a result of the non-compliance with these operating
instructions leads to the expiration of any warranty claim. The manufacturer does
not accept liability for any damage to property or for personal injury resulting from
the improper handling of the product, or non-observance of the operating
instructions.
Store these operating instructions in a safe place for later reference and pass them
to any new holder when selling or lending or leaving this device in the hands of any
other party.
Application According to Purpose
This product is a lighting effect which creates special light effects with one lamp. To
generate these effects, the product must be connected to mains and a DMX-512
compatible controller.
This product is designed for AC110~127V/50~60Hz operation and exclusively for
indoor use.
If used for any purpose other than described in these operating instructions, the
device may suffer damage and the warranty expires .Also, any other use is linked
with risks such as short circuits, fire, electrical shock, etc.
The manufacturer's serial number must never be removed as otherwise the
warranty expires.
Notes on safety
1. Before Operation
Prior to the initial operation of this product, please do the followings
-Read these operating instructions with great care;
-Study and observe all instructions carefully;
-Ensure that everybody and anybody involved in the installation, operation,
transport and storage of this product is suitably qualified;
-Verify whether any visible damage was caused during transport .lf the power cord.
housing or the light are damaged ,do not operate the device; contact your
specialized dealer immediately.
2. Supply Voltage, Mains Cord and Connection to Mains
The handling of supply voltage ,mains cords and connections to mains calls for
particular care considering the risk from a life-threatening electric shock, the risk of
fire and the risk of short circuits please observe the following notes in particular:
Products operating on supply voltage should be kept out of the reach of children.
Therefore ensure the permanent supervision if children are in the immediate vicinity
of the product!
For commercial facilities the regulations on the prevention of accidents of the
respective trade association must be observed. The operation of this equipment at

3/7
ATTENTION：
DANGER OF LIFE！RISKOF FIRE！
RISK OF SHORT CIRCUIT！
ATTENTION：
RISK OF SHORT CIRCUIT！
ATTENTION：
DANGER OF LIFE！RISKOF FIRE！
RISK OF SHORT CIRCUIT！
schools, training facilities, and yourself-help workshops must be supervised
responsibly by trained personnel.
Check the product regularly for any damage to the mains cord! Should you
discover any damage to the malns cord, do not operate or disconnect this product!
Secure the product against accidental operation and contact your specialized
dealer .
Always separate the product from mains by holding the mains plug by the handling
surface .Never disconnect by holding the line cord ! Be sure to connect the product
exclusively to AC110~127V/59~60Hz!
Always be sure during installation, operation, transport and when storing the
product that the mains cord is not exposed to possible mechanical damage, or
damage caused by humidity, fluids, heat or cold!
The products cable entry must not be exposed to stress from pull! Create the mains
connection once the product has been installed only .Always connect the mains
plug last !
The product must only be connected to a proper outlet of the public supply
grid .Connect the mains cord to suitable outlets only ! Use extensions cords in
compliance with specifications only! Do not allow the mains cord to come into
contact with other cords!
Ensure during institution , operation, transport and storage that none of the cables
are freely exposed!
Never touch the mains cord ,mains plug and outlet with wet or damp hands !
When not using the product, and to cleaning always disconnect the product from
mains! To do so, hold the mains plug by the handling surface and never pull the
mains cord!
Never connect the device to dimmer packe!
3. Housing
Always ensure during installation, operation, transport and when storing the
product that no shocks or other forces impact the housing !
The housing must not touch onto any other devices or objects during operation!
Easily flammable materials, e.g. decoration material and other surfaces and objects,
must maintain a minimum distance of 3m to the housing !Walls must maintain a
minimum distance of 50cm to the housing! The device must be installed on a
fireproof surface only (no carpet)1Always ensure aproper circulation of air.
Do not touch the housing during operation it will heat up .The housing is safe to
touch approx .5 minutes following the end of operation!
The device must never be carried via the projector anns. Use the carring handles
only !
Fluids must not enter the housing as this could reduce the protective insulation
and may trigger short cirouits which may lead to fatal electro shocks !If fluid have
entered, disconnect the mains plug immediately and secure the product against
unintentional operation and contact yours specialized dealer! Damage caused as a
resuit of fluids entering the housing is exempt from warranty .
No metal parts or other items must enter the housing as this may reduce the
protective insulation or trigger short circuits which may lead to fatal electric
shocks !If metal parts or other items have entered ,disconnect the mains plug
immediately,secure the product against unintentional operation and contact your
specialized dealer!Damage caused by metal parts or other items in the housing is
exempt fromwarrantly.
4. Operating Environment
The product must be operated and stored in a dry environment only !Splash
water ,rain, humidity, fog may reduce the protective insulation which may lead to
fatal electric shocks! The limit value for relactive humidity is 50% at 45℃.A
minimum distance of 1.5m to a fog machine must be observed ;fog saturation in the
room must not reduce the vislbllity to below 10m .
The product must be operated at a temperature range of between -5℃and 45℃
only. Protect the product against direct exposure to sunlight or other heat, such as
from rediators ! If the product is taken from a cold environment into a warm
environment it must only be taken into operation once it has reached ambient
temperature, since the condensation created by the difference in temperature may
destroy the device!
Protect the product against dust! Dust may reduce the protective insulation, which
may cause fatal electric shocks!
The product must be operated at altitudes ranging between 20m below and 3000m
above sea level only!
The product must not be operated during thunder storms; risk of destruction from
surge voltages!
The product must be operated at a minimum distance of 1.5m to lit objects only!
5. Installation

4/7
ATTENTION：
RISK OF SHORT CIRCUIT！
ATTENTION：
DANGER OF LIFE！RISKOF FIRE！
RISK OF SHORT CIRCUIT！
This product can be operated suspended or as stand-alone system.
Should your lighting effect show any signs of damage, do not install the device! In
this case, have your lighting effect repaired by your specialized dealer. The
manufacturer does not accept responsibility or liability for damage to property or
personal injury resulting from an improperly installation!
As a stand-alone system the device must be installed vertically on an absolute
planar, firm, fireproof, shock-
and vibration-free surface. The installation of this lighting effect must be carried out
by trained and professional staff! The installation of this lighting must only be
carried out with the appropriate materials!
The suspended installation of this lighting effect necessitates a suitable suspension
system! The lighting effect must never be fixed swinging freely in the room. No
individuals should linger underneath the lighting effect during suspended
installation!
It is a must to install this device with a second independent fixture. Such second
fixture must guarantee in the event of failure of the main fixture that no assembly
parts will fall down. Use the fixture on the undersurface only.
The light effect unit must be attached via two certified hooks and omega bracket to
a tie-bar system. Use the screw threads on the undersurface only.
It must be ensured that an expert inspects the mechanical and safety-relevant
installation prior to the initial operation and following major modifications, prior to
the renewed operation. It must be ensured that an expert inspects the mechanical
and safety-relevant installation at least once a year. It must be ensured that an
expert inspects the mechanical installation and the installation of relevance to
safety within the framework of an acceptance test at least every four years.
The installation fixture must be as such that it can withstand for a period of
60minutes 10 times the load capacity without
harmful deformation.
It is prohibited for any individual to unnecessarily stay or pass beneath
the installation during any type of assembly work
.
The light effect unit must be secured by a safety arrester cable if fly-mounted. The
cable must withstand 12 times the weigh of the light effect unit Use arrester cables
equipped with quick closing links. The dropping distance must not exceed 20 cm.
Defect arrester cables or arrester cables that have already been exposed to stress
must not be used.
6. Operation
Controls
Link all DMX devices with a DMX-512 controller by using a standard,3-pin DMX
cable. Connect the output of the first device with the input of the second device and
the output of the second device with the input of the third device and so on.
Connect the mains plug to an outlet.
Operating the product for the first time may generate smoke and odour , this is not
a defect. Avoid connecting the product repeatedly and quickly from/with mains!
Always wait 15 minutes prior to the next connection!
The device starts not until a self-testing and starting time. If the moving head is
ready to start, push and roll the function wheel. The LCD display shows the options,
as below:
7. Lamps
During operation, the lamps will reach temperatures of up to 600OC.Touching the
lamps may cause serious burns! Objects coming into contact with the lamps during
and shortly after operation may catch fire!
Disconnect the product from mains prior to installing or before changing a lamp!
Allow a lamp to cool for approx.15minutes before exchanging it!
Never touch a lamp with bare hands! If damaged or deformed, a lamp must be
exchanged!

5/7
ATTENTION：
DANGER OF LIFE！RISKOF FIRE！
RISK OF SHORT CIRCUIT！
ATTENTION：
DANGER OF LIFE！RISKOF FIRE！
RISK OF SHORT CIRCUIT！
ATTENTION：
FRAGILE!
RISK OF SHORT CIRCUIT！
When exchanging the lamp be sure to use suitable lamps only. Lamps with greater
performance generate excessive heat for the product; risk of fire! Damage resulting
from the use of an unsuitable lamp is exempt from warranty!
Never connect the lighting effect to the mains prior with opened housing.
8. Fuse
Disconnect the product from the mains prior before changing a fuse.
Only replace the fuse by a fuse of same type and rating! An incorrect fuse could
damage of destruct the lighting effect.
Replace a fuse by levering the fuse holder cover with an appropriate screw driver.
Remove the old fuse and place the fuse inside the holder. Replace the fuse holder
and insert it.
Never connect the lighting effect to the mains prior with opened housing.
9. Cleaning
The product must be freed regularly from dust, other deposits and contamination as
this may reduce the protective insulation,which may lead to a fatal electric shock!
Before cleaning,always disconnect the product from mains!
This product should be cleaned with a moist cloth only ;never use aggressive
cleaning agents, solvents or benzine for cleaning.
Ensure that the product is completely dry before operating it again again after
cleaning!
To avoid damage caused during transport, wrap the product in its original
packaging only and handle it with great care during transport!
10. Menu settings:
1. Version: brand, model, version, number, lamp use time
2. Address: Set DMX address
3. Pan reverse: On (reversed) Off (normal)
4. Tilt reverse: On (reversed) Off (normal)
5. Pan/Tilt speed: from 01-16, to set the speed for Pan/Tilt movement
6. Pan/Tilt mode: 8bit, 16bit, when set as 8bit, the channels Pan fine and Tilt
fine will be disabled, the fixture has 13 channels now.
7. Lamp mode: On (lamp on); Off (lamp off)
8. Reset: lighting reset; time restore (can be set password afterwards to
prevent unwanted modifying); Motor restore (can be set password
afterwards to prevent unwanted modifying); exit.
9. Channel data: 01: Shutter; 02: Dimmer; 03: Lamp/reset; 04: Pan/tilt speed;
05: Pan; 06: Tilt; 07: Pan fine; 08: Tilt fine; 09: Color wheel; 10: Gobo; 11:
Gobo effect; 12: Prism/macros; 13:Prism rotation; 14:Focus; 15:Focus
fine; 16: Fog; 17:Exit.
When connected with a DMX controller, the channel value can not be
changed, only show channel DMX value. While there is no DMX
controllers, you can control the fixture by this item, select some channel,
roll the encoder wheel to adjust DMX value,
10. Display: language(English Chinese or some other language according to
your requirement ); Backlight time: open(always on ), 30 seconds;
Back-brightness: 1-4, from dark to bright; exit.
11. Motor adjust: 01: Strobe; 02: Pan; 03: Tilt; 04: Color; 05: Gobo; 06: Prism;
07: Prism rotation; 08: Focus; 09: Fog; 10:Motor zero(can be set password
afterwards to prevent unwanted modifying); 11:Save (can be set password
afterwards to prevent unwanted modifying); 12: Exit.
12. Control: Control select(DMX, Slave, Music, Auto, these function have not
been finished now, they would be finished afterward according to your
suggestion); auto run program(select the program you want to run in
certain mode); auto run speed (set running speed for program).
13. Help info: include copyright, company information, etc.
14. Exit

6/7
DMX Channel
DMX Chart
No.
Channel
DMX value
Description
1
Color Wheel
0
5
9
13
18
22
26
30
35
39
43
47
52
56
60
64
69
73
77
82
86
90
94
99
103
107
111
116
120
124
128
WHITE
WHITE + RED
RED
RED + ORANGE
ORANGE
ORANGE + AQUAMARINE
AQUAMARINE
AQUAMARINE + GREEN
GREEN
GREEN+LIGHT GREEN
LIGHT GREEN
LIGHT GREEN +LAVENDER
LAVENDER
LAVENDER+PINK
PINK
PINK+YELLOW
YELLOW
YELLOW+MAGENTA
MAGENTA
MAGENTA+CYAN
CYAN
CYAN+CTO 260
CTO 260
CTO260+CTO 190
CTO 190
CTO 190+CTB 8000
CTB8000
CTB8000+BLUE
BLUE
BLUE+WHITE
SLOW ROTATION(0.2rpm)
2
Flash
000-009
010-049
050-089
090-129
130-169
170-209
210-255
Full off
Full on
Strobe from slow to fast
Pulse effect opening, increasing
Pulse effect closing, increasing
Random strobe with decreasing speed
Full on
3
Dimmer
0-255
Dark bright
4
Gobo
0-3
4-7
8-11
12-15
16-19
WHITE
Gobo1
Gobo2
Gobo3
Gobo4
20-23
24-27
28-31
32-35
36-39
40-43
44-47
48-51
52-55
56-59
60-63
64-67
68-71
72-113
114-117
118-159
160-166
167-172
173-179
180-185
186-191
192-198
199-204
205-211
212-217
218-223
224-230
231-236
237-243
244-249
250-255
Gobo5
Gobo6
Gobo7
Gobo8
Gobo9
Gobo10
Gobo11
Gobo12
Gobo13
Gobo14
Gobo15
Gobo16
Gobo17
Gobo rotation, forward
Stop
Gobo rotation, backward
Gobo2 Shake (slow to quick)
Gobo3 Shake(slow to quick)
Gobo4 Shake(slow to quick)
Gobo5 Shake(slow to quick)
Gobo6 Shake(slow to quick)
Gobo7 Shake(slow to quick)
Gobo8 Shake(slow to quick)
Gobo9 Shake(slow to quick)
Gobo10Shake(slow to quick)
Gobo11 Shake(slow to quick)
Gobo12 Shake(slow to quick)
Gobo13 Shake(slow to quick)
Gobo14 Shake(slow to quick)
Gobo15 Shake(slow to quick)
Gobo16 Shake(slow to quick)
5
Prism
0-127
128-255
No prism
Prism
6
Prism
rotation
0
21
42
63
84
105
127
128-190
191-192
193-255
0°
90°
180°
270°
360°
450°
540°
Prism rotation, forward
Stop
Prism rotation, backward
7
Effect（blank）
0-255
8
Frost
9
Focus
0-255
10
Pan
0-255
11
Pan fine
0-255
12
Tilt
0-255

7/7
13
Tilt fine
0-255
14
Function
0-11
12-24
25-37
38-50
51-62
63-255
UNUSED RANGE
PAN/TILT FUNCTION.(FAST)
NORMAL
CONVENTIONAL
LINEAR
UNUSED RANGE
15
RESET
0-25
26-76
77-127
128-255
NO
EFFECTS RESET
PAN TILT RESET
CICOMPLETE RESET
16
Lamp
0-25
26-100
101-255
No function
Lamp Off
Lamp On
17 Pan/Tilt speed
18 Colour time
19 Beam time
20. Gobo time
0-255
Pan - Tilt - (Pan fine - Tilt fine)
Colour wheel
Dimmer - Frost –Prism
Static Gobo
Voltage: AC220-240V/50-60HZ
Lamp: PHILIHS 200W
Total Power: 250W
Fuse: 5A/250V
Step Motor: 13 PCS
Packing Size: 450 x 410 x 510cm
Net Weight: 18Kg
Please note: All Information is subject to change without prior notice.
