Product description
Specifications
Thermal management
Light output
Light energy distribution
Precautions and safety instructions
Installing the feature
Maintenance
Troubleshooting
Product dimensions
TABLE OF CONTENTS

4641 East Ivy Street, Mesa, AZ 85205 | [phone] | [email protected] | SCYNCE.AG
3
PRODUCT DESCRIPTION
SPECIFICATIONS
INTENDED USE/S
Scynce Raging Kush is a fixture intended for vertical
flowering illumination of horticultural crops. For other
applications in professional horticulture, please contact a
representative at SCYNCE.
Any use other than the approved intended use described
above is considered unintended use.
SCYNCE cannot be held responsible for possible
consequential damage caused by improper, incorrect
or inadvisable use.
SYMBOLS USED
The following symbols are used in this manual to draw attention to
specific topics or actions
A warning indicates the possibility
of injury to the user and/or damage
to the product should the user
not perform the procedures as
described.
A note alerts the user to potential
problems which may occur if a
procedure is not carried out as
described.
WARNING
ATTENTION
GENERAL SPECS
MECHANICAL
TECHNICAL SPECIFICATIONS
Product Dims (L.W.H): 1124 x 1029 x 83 mm (44.3 x 40.5 x 3.3 in)
Product Weight: 40.8 lbs
Housing: Powder coated aluminum
Ingress Protection Rating: IP66
Manufactures Identification: 120deg Optic: 52629
Name: Raging Kush
Market Introduction: 2019
Installation Environment Suitable for damp location
Scync Raging Kush
Not for use in dwellings

4641 East Ivy Street, Mesa, AZ 85205 | [phone] | [email protected] | SCYNCE.AG
4
ELECTRICAL
OTHER
Main Voltage +/- 10%: 120 – 277 VAC. 50/60 Hz
Power Draw: Max. 740 W
Power Factor: > 0.9
Color Spectra: Three channels: 2700K White / 6500K White / 720nm Red & 660nm Red
Dimmable: Wireless
Ambient Operating Temp: -40 ~ 30°C
Certification: Tested to UL1598, UL8750, UL8800, CSA C22.2 NO. 250.0-08, CSA C22.2 NO. 250.13
Warranty: 5 years (please refer to https://scynceled.com/product-warranty/ for full details)

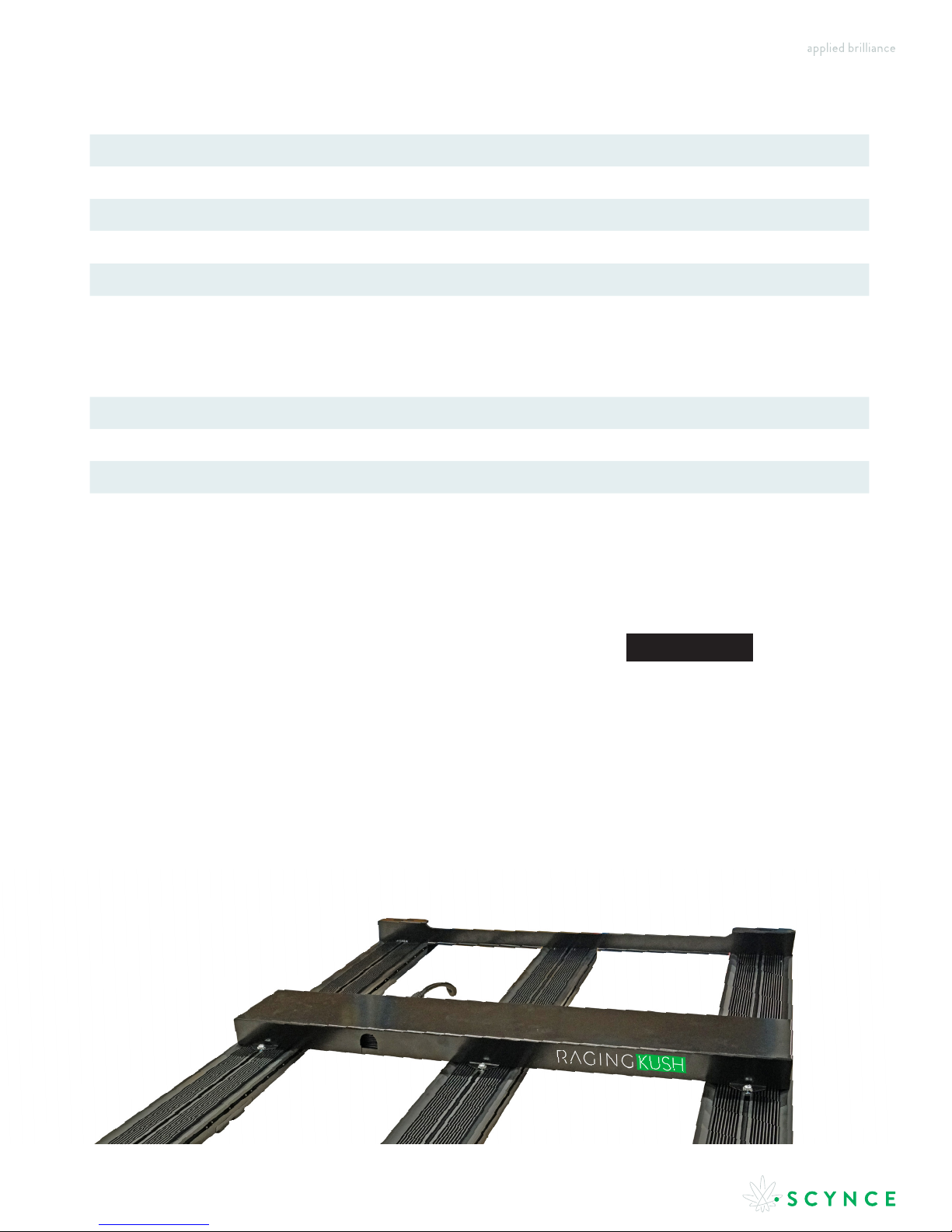

THERMAL MANAGEMENT
All Scynce fixtures have built-in dynamic thermal monitoring. Scynce
Raging Kush utilizes a passive cooling system. Should the light begin
to overheat, the light will automatically reduce output to protect the
light while still maintaining a minimal level of output.
To ensure safe operation of the lighting equipment it is necessary
to control the temperature of the room by mechanical ventilation
or cooling system to below the maximum ambient operating
temperature of 30°C.
Never block the cooling fins on the Raging
Kush, leave a minimum of 1.5 inch clearance
around the back of the Raging Kush fixture.
Blocking the cooling fins will cause the
performance of the fixture to reduce and
may cause permanent damage.
WARNING

4641 East Ivy Street, Mesa, AZ 85205 | [phone] | [email protected] | SCYNCE.AG
5
LIGHT OUTPUT
The Raging Kush has one distribution optical angle options.
120˚ distribution angle has exceptional uniformity of the light onto the crop and is our standard option for indoor,
warehouse and greenhouse where 100% artificial light is required.
120° OPTICS
* 120 degrees is the ideal optic for vertical application allowing the fixture to be mounted between 6” and 18” over the canopy.
OPTICAL DISTRIBUTION

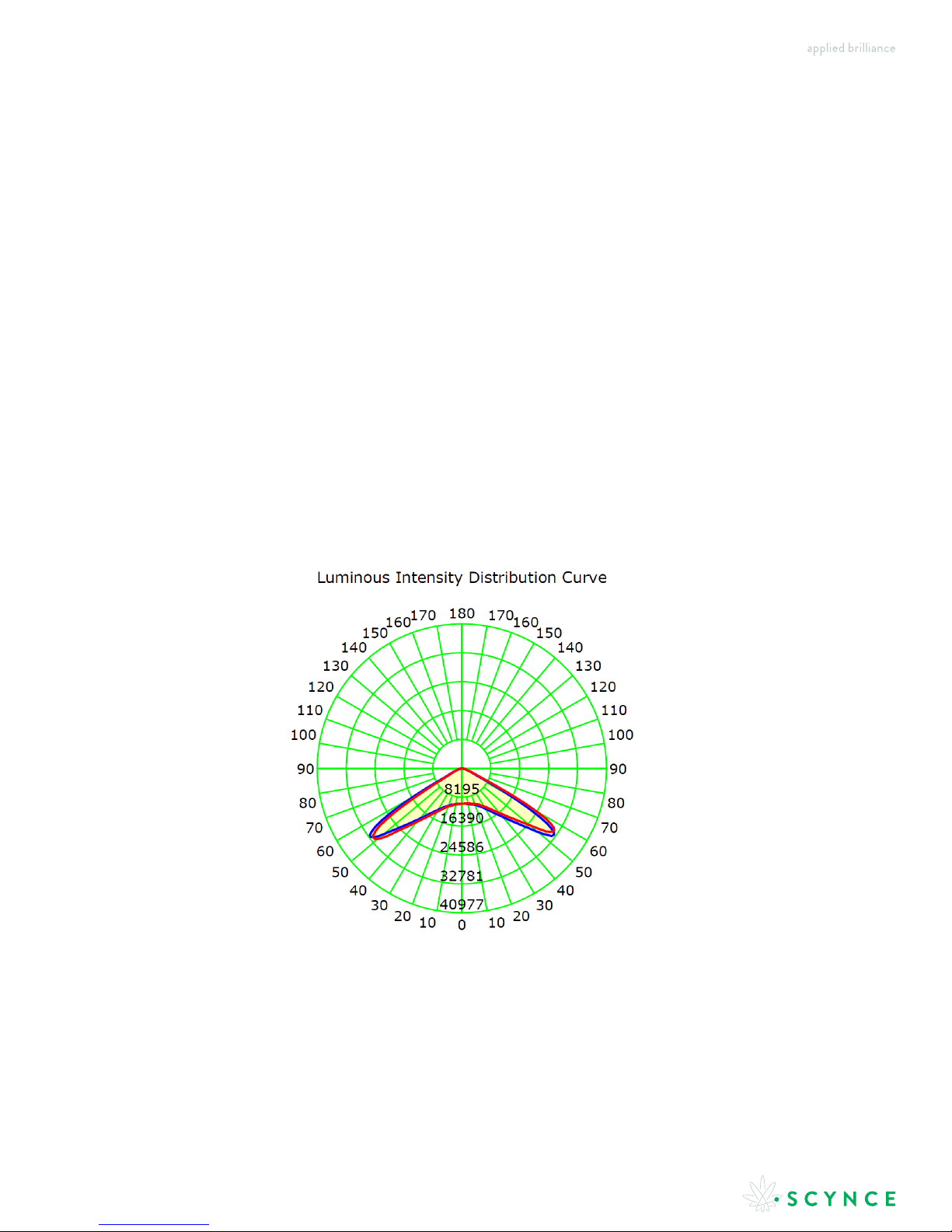

The luminosity distribution curve for the 120 ˚ optics is depicted below. The 120 ˚ optic oers intensity (radiated energy) that
is slightly brighter on the outside of the beam. When hanging the fixture it is important to overlap the beams to achieve an even
intensity on the plant canopy. By controlling the beam with optics, light energy is gathered and focused, taking full advantage of
the LED directed radiation pattern. If you need assistance with fixture layout to achieve a desired PAR level at the plant contact
your Scynce sales representative, we can help.

4641 East Ivy Street, Mesa, AZ 85205 | [phone] | [email protected] | SCYNCE.AG
6
LIGHT ENERGY DISTRIBUTION
PRECAUTIONARY MEASURES
AND SAFETY INSTRUCTIONS
PAR (Photosynthetically Active Radiation) is a region of the electromagnetic spectrum (400 to 700 nm)
that promotes photosynthesis.
PPF (Photosynthetic Photon Flux) tells us how much PAR a light-source emits. PPF does not measure PAR
at a specific location (such as your crop canopy), but it tells you how many photons within the PAR region are
coming out of the light-source every second.
PPFD (Photosynthetic Photon Flux Density) measures the amount of photons within the PAR region at
a specific location (such as your crop canopy) every second. Most PAR meters report PPFD (μmol/m2/s)
measurements.
* For more detailed PAR maps, including how the fixtures work in an array, please visit: www.scynceLED.com
WARNING
• Always adhere to the local building and electrical codes when installing or using the fixture.
• HIGH VOLTAGE- Switch o the main voltage before commencing installation or maintenance work.
• Do not open or disassemble the fixture, it contains no serviceable parts inside. Opening the fixture can be
dangerous and will void the warranty.
• Never look directly into the light source while fixture is turned on. Doing so can cause damage to the eyes.
• The end user is responsible for ensuring correct installation and use of the product. Incorrect installation can
cause damage to the product. The warranty shall become void if the product and/or electronic components
are damaged due to incorrect installation.
• The performance of the fixture may be compromised if operated outside of the recommended ambient
temperature guidelines.
ATTENTION

4641 East Ivy Street, Mesa, AZ 85205 | [phone] | [email protected] | SCYNCE.AG
7
INSTALLING THE FEATURE
INSTALLATION PREP
ELECTRICAL CONNECTION
SINGLE PHASE CORD TERMINATION DOUBLE PHASE CORD
1. Switch o the main voltage
2. Refer to your light plan. Arrange boxed light fixtures in specified mounting locations.
3. Remove the fixture from the packaging and check contents.
4. Gather any additional tools and/or hardware that may be required to mount the fixture.

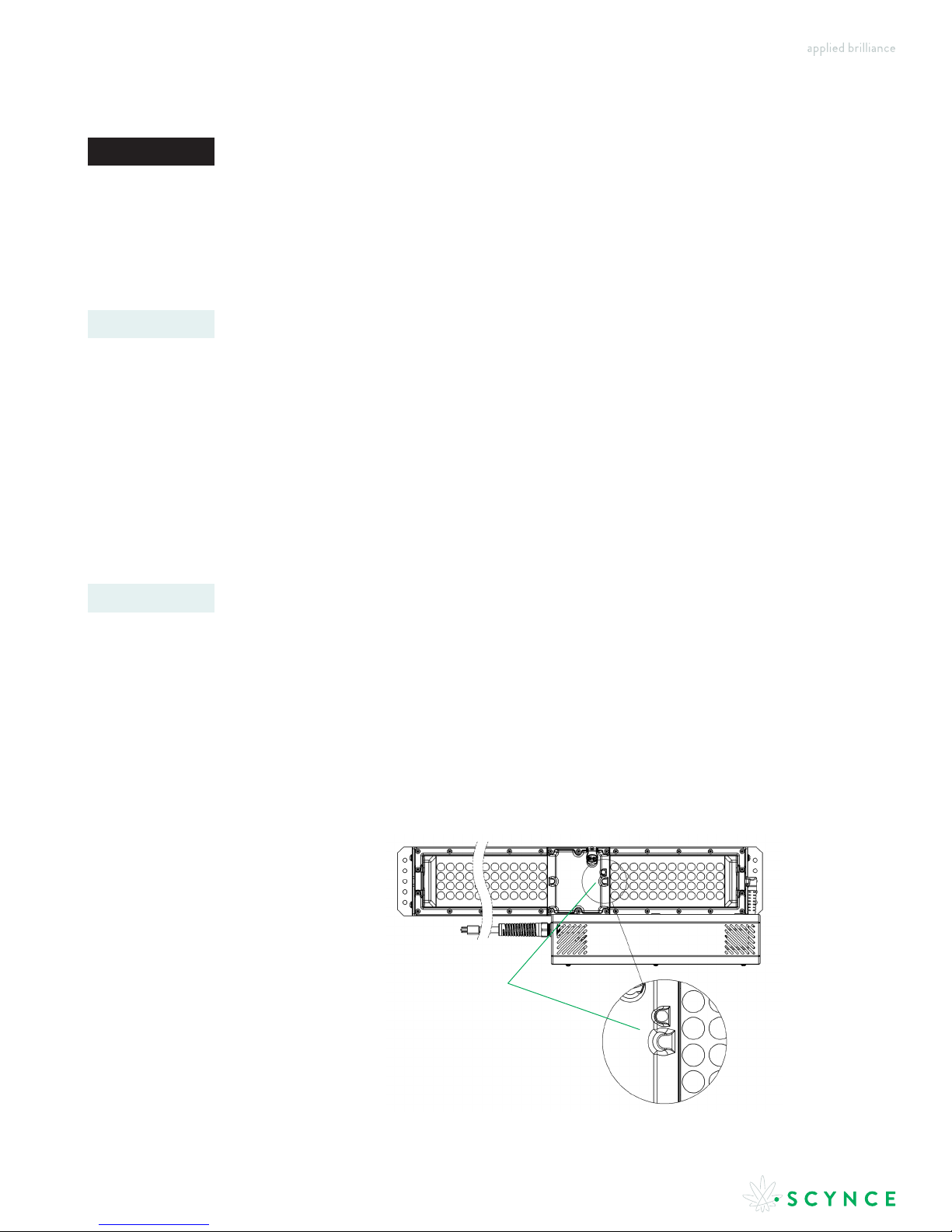

The Raging Kush is equipped with an 8ft power cord, terminated with a North American standard wall plug (NEMA 5-15). Simply
plug the light and you are ready to go.
When routing the fixture power cord ensure that;
The cord is not concealed or extended through a wall, floor, ceiling , or other parts of the building structure.
The cord is not located above a suspended ceiling or dropped ceiling
The cord is not permanently axed to the building structure.
The cord is routed so that it is not subject to strain and isprotected from physical damage.
The cord is visible over it’s entire length.
To ensure safe operation of the lighting equipment it is necessary to control the temperature of the room by mechanical ventilation
or cooling system to below the maximum ambient operating temperature of 30°C (86°F).
BLACK Line BLACK Line
WHITE Neutral WHITE Line
GREEN Ground GREEN Ground

4641 East Ivy Street, Mesa, AZ 85205 | [phone] | [email protected] | SCYNCE.AG
8
CONTROLLING THE LIGHT
Hanging the fixture
The Raging Kush is equipped with three independent channels of LEDs
(White 2700K, White 6000K, and Red 660/720 nm). Each channel
can be independently dimmed from 0% to 100%. Channel dimming
can be adjusted on-the-fly using the mobile app (See Mobile App
Instructions for details) or by setting up an embedded schedule in
the light (See Scheduling Instructions for details)
*Mobile app and Scheduling Instructions can be found at:
https://scynceled.com/installation/
and
https://scynceled.com/support/
The Scynce Raging Kush comes equipped with four hanging points, two on either end of the fixture’s housing.
When mounting the Raging Kush fixtures in an array a minimum distance of 12 inches side to side and a minimum distance
of 1 inch end-to-end must be maintained. When mounting next to a ceiling or wall, movable partitions, and the like, insure a
minimum distance of 1.5 inches is between the fixture and the ceiling and 8 inches between the fixture and the wall and other
adjacent objects.
Always ensure that fixtures are compliant
with local building codes
Never block the cooling fins on the Raging Kush, leave a minimum of 1.5 inch clearance around the back of the Raging Kush
fixture. Blocking the cooling fins will cause the performance of the fixture to reduce and may cause permanent damage.
WARNING
WARNING

4641 East Ivy Street, Mesa, AZ 85205 | [phone] | [email protected] | SCYNCE.AG
9
MAINTENANCE
WARNING
• High Voltage - Switch o the main voltage before commencing maintenance work.
• Risk of Fire. Risk of shock.
• Don’t touch. Fixture reaches high temps while in use
• Do not open or disassemble the product. Opening the product will void the warranty and will break the water tight seal.
ATTENTION
• Always allow the fixture to cool to room temperature before cleaning.
• Never clean the fixture with corrosive cleaning agents or other aggressive liquids. The following cleaners are
known to cause damage to polycarbonate. Solvents; Acetone, Alcohol Ammonia Window Cleaner; Windex,
409… Alkaline Cleaners Ammonia
• Never use abrasive cleaners, abrasive pads, or gritty cloths to clean, the polycarbonate lenses will scratch.
• Never scrape the polycarbonate lenses to remove build-up. Only use a vinegar and water solution (1:100 ratio)
to remove build-up of limescale on the lens.
ATTENTION
• Check the product at regular intervals for build-up of dust and dirt. Clean the product if necessary.
Contamination can lead to overheating and reduced performance.
• Clean the fixture with water and a damp cloth a vinegar and water solution (1:100 ratio) or a polycarbonate safe
cleaner such as Novus #1 Cleaner. Ensure that the polycarbonate lens is always clean.
If the product is defective or damaged, contact SCYNCE customer support. Never switch on a defective or damaged fixture.
Do Not remove or
damage the Gore
breathers. Removal or
damage of the breather
could allow condensation
and contaminants to
enter the fixture.
Gore Breather

4641 East Ivy Street, Mesa, AZ 85205 | [phone] | [email protected] | SCYNCE.AG
10
The fixture does not emit any light. Reset the fixture by disconnecting the main voltage for more than 5 seconds and
then reconnect.
In the event that the fixture switches o again, lower the ambient temperature
Check main voltage line for correct voltage range (120-277vac).
Reload default settings.
If the issue persists, contact supplier for assistance.
Only half of the fixture lights turn on Reset the fixture by disconnecting the main voltage from the fixture for more than
5 seconds and then reconnecting.
If the issue persists, contact supplier for assistance.
The fixture emits too little light when
compared to the other fixture(s).
Reload default settings.
Contact the installer and have the wiring checked.
If the issue persists, contact supplier for assistance.
Fixture will not respond to Dim Control. Reload default settings.
Contact the installer and have the wiring checked.
If the issue persists, contact supplier for assistance.
TROUBLESHOOTING
WARNING ATTENTION
Never switch on a defective or damaged fixture. In the event the
product is defective or damaged, contact the dealer where you
purchased the fixture or contact SCYNCE directly.
WHAT CAN YOU SEE? WHAT SHOULD I DO?
Do not open or disassemble the product. Opening the
product can prove hazardous and will void the warranty.

4641 East Ivy Street, Mesa, AZ 85205 | [phone] | [email protected] | SCYNCE.AG
11

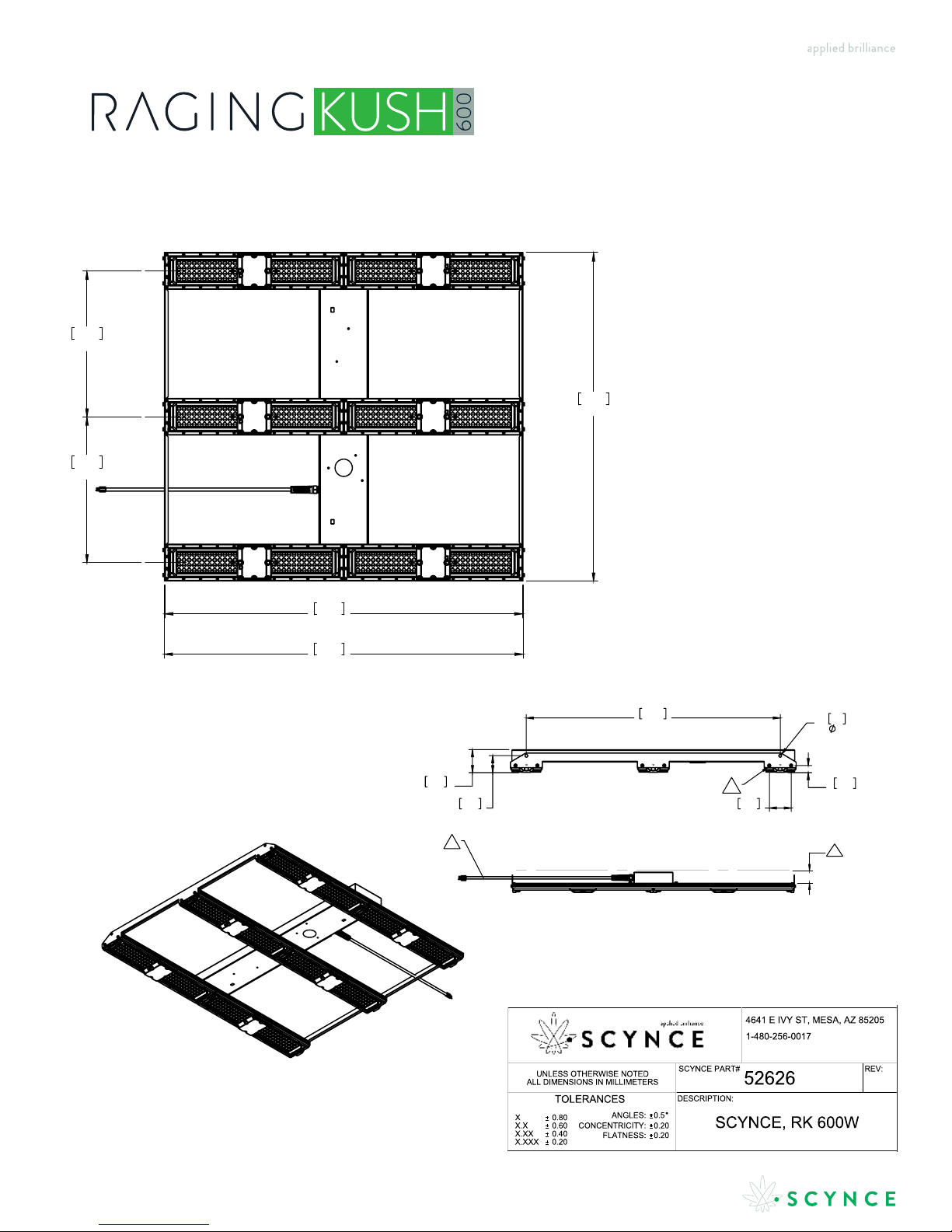

PRODUCT DIMENSIONS
40.53
1029
44.26
1124
44.14
1121
18.00
457
18.00
457
WITHOUT HANGING BRACKET
WITH HANGING BRACKET
36.00
914
2X
.39
10
2X
2.41
61
3.27
83
3.10
79
1.01
26
12X 3
1
2
^
