TKH Siqura XSNet 3100MC User manual

XSNet 3100MC
1
Manual
Preface
This manual describes how to install and use the Ethernet Media
Converter with the link-fault-pass-through function. The Converter
introduced here provides one channel media conversion between
10/100Base-TX and 100Base-FX/BX.
The Converter fully complies with IEEE802.3 10Base-T and IEEE802.3u
100Base-TX/FX standards.
In this manual, you will find:
Product overview
Features on the media converter
Illustrative LED functions
Installation instructions
Specifications
Important: Note that XSNet Series manuals may cover multiple models. To
establish if a particular feature or specification in this manual applies to the
unit at hand, consult the datasheet of the given model.
Note: The EU Declaration of Conformity for this product
can be found at www.siqura.com/support-files.

XSNet 3100MC
2
Table of Contents
PREFACE.................................................................................. 1
TABLE OF CONTENTS ............................................................. 2
INTRODUCTION....................................................................... 3
PRODUCT OVERVIEW ..................................................3
PRODUCT FEATURES.............................................................. 3
PACKING LIST ......................................................................... 3
ONE-CHANNEL MEDIA CONVERTER .................................... 4
PORTS.........................................................................4
PORT SETTINGS...........................................................4
LINK-FAULT-PASS-THROUGH .......................................5
INSTALLATION........................................................................ 7
SELECTING A SITE FOR THE EQUIPMENT .......................7
CONNECTING TO POWER..............................................7
SPECIFICATIONS ..................................................................... 8

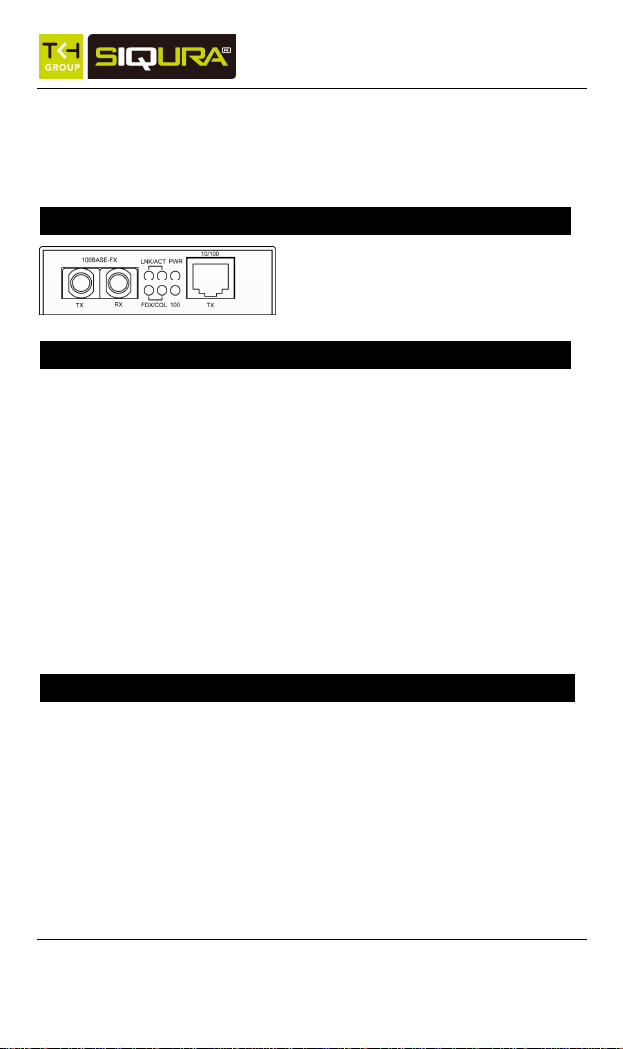

XSNet 3100MC
Introduction
The media converter provides one channel for media conversion between
10/100Base-TX and 100Base-FX/BX.
Product Overview
Product Features
One-channel media conversion between 10/100Base-TX and 100Base-FX/BX
Fiber media allows:
Multi-mode fiber using SC connector
Single-mode fiber using SC connector
WDM single-fiber (bi-direction) transceiver: WDM fiber using SC connector:
-A type: WDM single-fiber (bi-direction) transceiver transmits with 1310nm wavelength and
receives with 1550nm wavelength
-B type: WDM single-fiber (bi-direction) transceiver transmits with 1550nm wavelength and
receives with 1310nm wavelength
Auto negotiation of speed and duplex mode on TX port
Auto MDIX on TX port
One DIP switch for configuring link-fault-pass-through, fixed speed, and half/full duplex
Store-and-forward mechanism
Non-blocking full wire-speed forwarding rate
Support broadcast storm filtering
Back-pressure & IEEE802.3x compliant flow control
F
RONT PANEL STATUS LEDS
External AC to DC power adapter
<Note> The applied optical transceivers are UL approved.
Packing List
When you unpack this product package, you will find the items listed below.
Please inspect the contents, and report any apparent damage or missing
items immediately to our authorized reseller.
The Media Converter
User’s Manual
AC to DC Power Adaptor
3

XSNet 3100MC

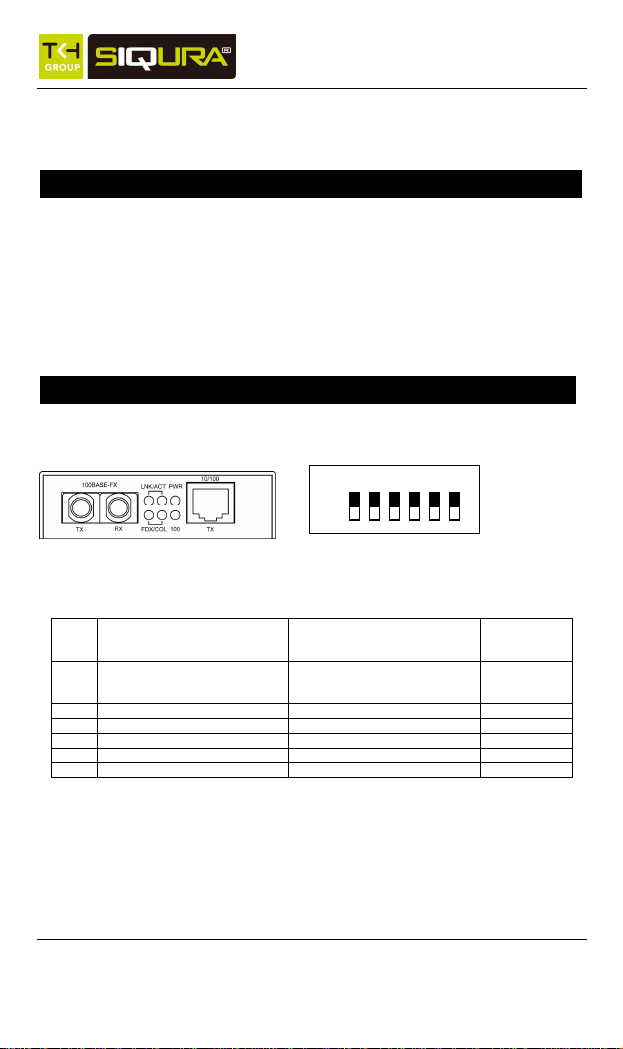

One-Channel Media Converter
Ports
The Converter provides one TX port and one FX/BX port. For the FX/BX
port, it provides options of
Multi-mode fiber using SC connector or
Single-mode fiber using SC connector or
Multi-mode/ Single-mode WDM fiber using single SC connector
For the TX port, it uses RJ-45 connector and auto senses the speed of
10/100Mbps.
Port Settings
Port settings are made very simple by means of a DIP (Dual Inline
Package) switch at the rear panel of the module.
1 2 3 4 5 6
DIP switch
There are six pins on the DIP switch for port settings. Refer to the table below for more details.
DIP
switch
No.
Down Up
1 Enable LFPT Disable LFPT LFPT:
link-fault-pass-
through
2 Enable auto negotiation for TX port Enable forced mode for TX port
3 TX port forced to 100Mbps TX port forced to 10Mbps
4 TX port forced to full duplex mode TX port forced to half duplex mode
5 FX port forced to full duplex mode FX port forced to half duplex mode
6
First, disconnect the converter from the power. Then toggle Pin 2 of the DIP switch to the up position
to enable the forced mode for TX port.
<NOTE> Pin 2 must be toggled up prior to speed and duplex mode settings manually.
Toggle down Pin 3 to force the TX port at the speed of 100Mbps. Or toggle up Pin 3 for 10Mbps
speed.
Toggle down Pin 4 to force the TX port at full duplex mode. Or toggle up Pin 4 for half duplex mode.
4

XSNet 3100MC
5
Toggle down Pin 5 to force the FX port at full duplex mode. Or toggle up Pin 5 for half duplex mode.
Toggle up Pin 1 to disable the link-fault-pass-through.
Connect the converter to the power again. The new setting will come into effect then.
LED Indicators
The LED indicators give you instant feedback on status of the converter:
LEDs State Indication
Steady Power on
PWR stands for POWER
PWR
Off Power off
Steady Connection at the speed of 100Mbps100 (Mbps) Off Connection at the speed of 10Mbps
Steady A valid network connection established
LNK stands for LINK
Flashing Transmitting or receiving data
ACT stands for ACTIVITY
LNK/ACT
Off Neither valid network connection established
nor transmitting/receiving data
Steady Connection in full-duplex mode
FDX stands for FULL-DUPLEX
Flashing Collision occurred
COL stands for COLLISION
FDX/COL
Off Connection in half-duplex mode
Link-Fault-Pass-Through
Connect the FX ports of two Media Converters A and B through the fiber
cable.
Link Fault of the FX port:
A Link Fault condition will be sensed on the TX port whenever the media
converter detects a Link Fault condition on the FX port. Thus, the 100,
LNK/ACT, and FDX/COL LEDs of the media converter would be off.
Link Fault of the TX port of the Media Converter A:
The Media Converter A: A Link Fault condition will be sensed on the FX
port whenever the media converter detects a Link Fault condition on the
TX port. Thus, the 100, LNK/ACT, and FDX/COL LEDs of the TX port of
the Media Converter A would be off.
The Media Converter B: A Link Fault condition will be informed to the FX
port of the Media Converter B. Then a Link Fault condition will be sensed
on the TX port of the Media Converter B whenever the Media Converter B

XSNet 3100MC
6
detects a Link Fault condition on the FX port. Thus, the 100, LNK/ACT, and
FDX/COL LEDs of the Media Converter B would be off.
Link Fault of the FX port
TX Port FX Port
LEDs PWR 100 LNK/ACT FDX/COL LNK/ACT FDX/COL
Media
Converter
A
ON OFF OFF OFF OFF OFF
Media
Converter
B
ON OFF OFF OFF OFF OFF
Link Fault of the TX port of the Media Converter A
TX Port FX Port
LEDs PWR 100 LNK/ACT FDX/COL LNK/ACT FDX/COL
Media
Converter
A
ON OFF OFF OFF ON ON
Media
Converter
B
ON OFF OFF OFF OFF OFF

XSNet 3100MC
Installation
This chapter gives step-by-step installation instructions for the Converter.
Selecting a Site for the Equipment
As with any electric device, you should place the equipment where it will
not be subjected to extreme temperatures, humidity, or electromagnetic
interference. Specifically, the site you select should meet the following
requirements:
The ambient temperature should be between 32 and 113 degrees Fahrenheit (0 to 45 degrees
Celsius).
The relative humidity should be less than 95 percent, non-condensing.
Surrounding electrical devices should not exceed the electromagnetic field (RFC) standards for
IEC 801-3, Level 2 (3V/M) field strength.
Make sure that the equipment receives adequate ventilation. Do not block the ventilation holes
on each side of the equipment.
The power outlet should be within 1.8 meters of the product.
Connecting to Power
This Converter is a plug-and-play device.
Connect the supplied AC to DC power adaptor to the receptacle on the rear panel of the converter,
and then attach the plug into a standard AC outlet.
7

XSNet 3100MC
8
Specifications
Applicable Standards IEEE 802.3 10Base-T
IEEE 802.3u 100Base-TX & 100Base-FX
Fixed Ports 1 TX port, 1 FX/BX port
10/20Mbps for half/full-duplex
100/200Mbps for half/full-duplex
10Base-T speed
100Base-TX speed
100Base-FX/BX speed 200Mbps for full-duplex
Switching Method Store-and-Forward
Forwarding rate 14,880/148,810pps for 10/100Mbps
Per Unit- (2 LEDs): Power; 100(Mbps)
LED Indicators Per Port- (2 LEDs): LNK/ACT; FDX/COL
Dimensions 80.3mm (W) × 109.2mm (D) × 23.8mm (H)
(3.16” (W) × 4.30” (D) × 0.94” (H))
Weight 150g (0.33lb.)
Power External power adaptor 0.16A @ 12VDC
Power Consumption 1.92W Max.
Operating Temperature 0°C ~ 45°C (32°F ~ 113°F)
Storage Temperature -10°C ~ 70°C (14°F ~ 158°F)
Humidity 5 ~ 95%, non-condensing
Emissions FCC Part 15 Class A, CE Mark Class A
