TMG TMG-SDT36S User manual

Skid Steer Side Shift Trencher
www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819
Model:TMG-SDT36S
• Please read the product manual completely before assembly
• Check against the parts list to make sure all parts are received
• Wear proper safety goggles or other protective gears while in assembly
Missing parts or questions on assembly?
Please call: 1-877-761-2819 or email: [e-mail]
Do not return the product to dealer, they are not equipped to handle your
requests
PRODUCT
MANUAL

TABLE OF CONTENTS
TO THE OWNER..................................................................................................................................2/23
SAFETY PRECAUTIONS.....................................................................................................................3/23
SKID STEER SIDE SHIFT TRENCHER ASSEMBLY...........................................................................7/23
OPERATION INSTRUCTIONS.............................................................................................................17/23
MAINTENANCE INSTRUCTIONS.......................................................................................................21/23
STORAGE INSTRUCTIONS................................................................................................................22/23
SPECIFICATIONS................................................................................................................................23/23
www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819
P 1 / 23

TO THE OWNER
GENERAL COMMENTS
Congratulations for having this skid steer side shift trencher attachment!
Your skid steer side shift trencher attachment was carefully designed and
manufactured to give you years of dependable service. Your skid steer side
shift trencher attachment will require some minor maintenance(such as
cleaning and lubricating) to keep it in top working condition.
Be sure to observe all safety precautions and maintenance procedures as
described in this manual.
ABOUT THIS MANUAL
This manual has been designed to help you do a better and safer job. Read this
manual carefully and become familiar with its contents. Remember, never let
anyone operate this unit without reading the "Safety Precautions" and
"Operation Instructions" sections of this manual. Unless noted otherwise, right
and left sides are determined from the position of the skid steer operator sitting
in the seat facing forward.
SERVICE
When service your skid steer side shift trencher attachment, pls. remember to
use only manufacturer replacement parts. Substitute parts may not meet the
standards required for safe, dependable operation. To facilitate parts ordering,
pls. record the model No. and serial No. of the metal plate on your unit.
www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819
P 2 / 23

SAFETY PRECAUTIONS
The skid steer side shift trencher attachments are designed to be easy to use
and maintain. They are operated by the skid steer auxiliary hydraulics. The skid
steer side shift trencher attachments mount to the toolbar or quick attach
mechanism for easy mounting.
BEFORE OPERATION
1.The operator must read the operation manual carefully before installation,
operation or maintenance. Improper operation will cause the machine damaged
or the operator dead.
2.Read all the safe signs and safe declarations. Obey all the professional safe
terms, local laws or the professional directions.
3.Familiar with the skid steer side shift trencher attachment about functions,
specs and operation. Replace the to-be-damaged parts in time. Make sure all
the hydraulic installations and couplings connect firmly, and all the safe signs
stick on the suitable positions clearly.
TO THE OPERATOR
WARNING! PROTECT AGAINST FLYING DEBRIS
1. Always wear proper safety glasses, goggles, or a face shield when
driving pins in or out, or when any operation causes dust, flying debris,
or any other hazardous material.
2. Don’t modify the skid steer side shift trencher attachment casually.
3. Should keep the machine on the flat ground when repair, far away from the
transportation and other dangerous places.
4. Should use the right tools to repair.
5. Don’t operate the machine, unless you are professional, have certificates,
and familiar with its functions, specs and safe operation rules.
6. Must not leave the machine when the machine is running. Must stop the
engine at first and then remove the key if want to leave.
www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819
P 3 / 23

SAFETY PRECAUTIONS
These are common practices that may or may not be applicable to the
products described in this manual.
www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819
P 4 / 23

SAFETY PRECAUTIONS
www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819
P 5 / 23

SAFETY PRECAUTIONS
www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819
P 6 / 23

SKID STEER SIDE SHIFT TRENCHER ASSEMBLIES
SKID STEER SIDE SHIFT TRENCHER ASSEMBLY
www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819
P 7 / 23

SKID STEER SIDE SHIFT TRENCHER ASSEMBLIES
www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819
P 8 / 23
S/N PART NO. PART DESCRIPTION QTYS NOTE
1 020736.06 CHAIN ASSEMBLY 1
2 MOUNTING FRAME ASSEMBLY 1
3 CHAIN TENSION ASSEMBLY 1
4 SOIL PULLING PLATE ASSEMBLY 1
5 GB/T5783-2000 HEX HEAD BOLT M12X40 2
6 GB/T6170-2000 HEX HEAD NUT M12 2
7 GB/T5783-2000 HEX HEAD BOLT M16X130 4
8 GB/T97.1-1987 FLAT WASHER D16 4
9 GB/T93-1985 SPRING WASHER D16 4

SKID STEER SIDE SHIFT TRENCHER ASSEMBLIES
FIGURE 1 CHAIN ASSEMBLY
www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819
P 9 / 22

SKID STEER SIDE SHIFT TRENCHER ASSEMBLIES
www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819
P 10 / 23
S/N PART NO. PART DESCRIPTION QTYS NOTE
10 020736.06-05 CHAIN 1
11 020736.06-03 LEFT ALLOY TOOTH 5
12 GB/T 5783-2000 HEX HEAD BOLT 20 M12*35
13 GB/T 97.1-1987 FLAT WASHER D12 58
14 GB/T 93-1985 SPRING WASHER D12 58 M12X30
15 GB/T 5783-2000 HEX HEAD BOLT 38
16 020736.06-01 LEFT COMMONG TOOTH 10
17 GB/T 6170-2000 HEX NUT 58 M12
18 020736.06-04 RIGHT ALLOY TOOTH 5
19 020736.06-02 RIGHT COMMONG TOOTH 9

SKID STEER SIDE SHIFT TRENCHER ASSEMBLIES
FIGURE 2 MOUNTING FRAME ASSEMBLY
www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819
P 11 / 23

SKID STEER SIDE SHIFT TRENCHER ASSEMBLIES
www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819
P 12 / 23
S/N PART NO. PART DESCRIPTION QTYS NOTE
20 020736I.03.01 ROTATION AUGER 1
21 020724.00-1 STEEL PIPE 2
22 GB/T 97.1-1987 FLAT WASHER D12 6
23 GB/T 93-1985 SPRING WASHER D12 6
24 GB/T5783-2000 BOLT 6 M12X55
25 GB/T97.1-1987 FLAT WASHER D10 6
26 GB/T93-1985 SPRING WASHER D10 6
27 GB/T 6170-2000 NUT 4 M10
28 GB/T 5782-2000 BOLT M 4 10X110
29 020724.01 MOUNTING BRACKET PLATE 1
30 020724.00-10 ASH DAMPER 1
31 GB/T 5783-2000 BOLT 2 M10X20
32 020724.00-2 POSITION ROD 1
33 IE10LM14X1.5ED END STRAIGHT JOINT 1
34 F381CACA101005-2000BSG HOSE 1
35 F381CACA181810-2000BSG HOSE 2
36 IE18LM33X2ED END STRAIGHT JOINT 2
37 GB/T 97.1-1987 FLAT WASHER D16 11
38 GB/T 93-1985 SPRING WASHER D16 11
39 GB/T 6170-2000 NUT M16 1
40 020724.04 ROTATION AUGER FIXED FLANGE 1

SKID STEER SIDE SHIFT TRENCHER ASSEMBLIES
www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819
P 13 / 23
S/N PART NO. PART DESCRIPTION QTYS NOTE
41 GB/T 5782-2000 BOLT 1 M16X130
42 GB91 SPLIT PIN 1 D8X50
43 GB/T 9459 SLOTTED HEX NUT 1 M30X2
44 020724.07 CHAIN WHEEL 1
45 GB2673 HEX SOCKET COUNTERSUNK HEAD SCREW 6 M6X16
46 0207S36.02.01.01-01 COVER PLATE 1
47 HG2811-1996 SKELETON SEAL 1FB70X90-10
48 0207S36.02.01.01-02 SPACER 1
49 GB/T 1096-1979 FLAT KEY 112X8-32
50 020736I.03.02-01 TRANSMISSION SHAFT 1
51 020724.11 LIMIT PLATE 1
52 GB/T 5783-2000 BOLT 6M16X45
53 GB/T 297-1994 TAPERED ROLLER BEARING 33014 2
54 GB894.1 AXIAL SPRING COLLA D70 2
55 020736I.03.02.01 BEARING SEAT 1
56 JB/T 7940.1-1995 OIL CUP 1M8X1
57 GB/T 5783-2000 BOLT 4M16X50
58 GB3452.1-1992 O RING 1128X3.55
59 BM6-191M1024 HYDRAULIC MOTOR 1
60 GB/T 97.1-1987 FLAT WASHER D14 4
61 GB/T 93-1985 SPRING WASHER D14 4
62 GB/T 5783-2000 BOLT 4M14X55
63 020736.01 CONNECTION DEVICE 1

SKID STEER SIDE SHIFT TRENCHER ASSEMBLIE

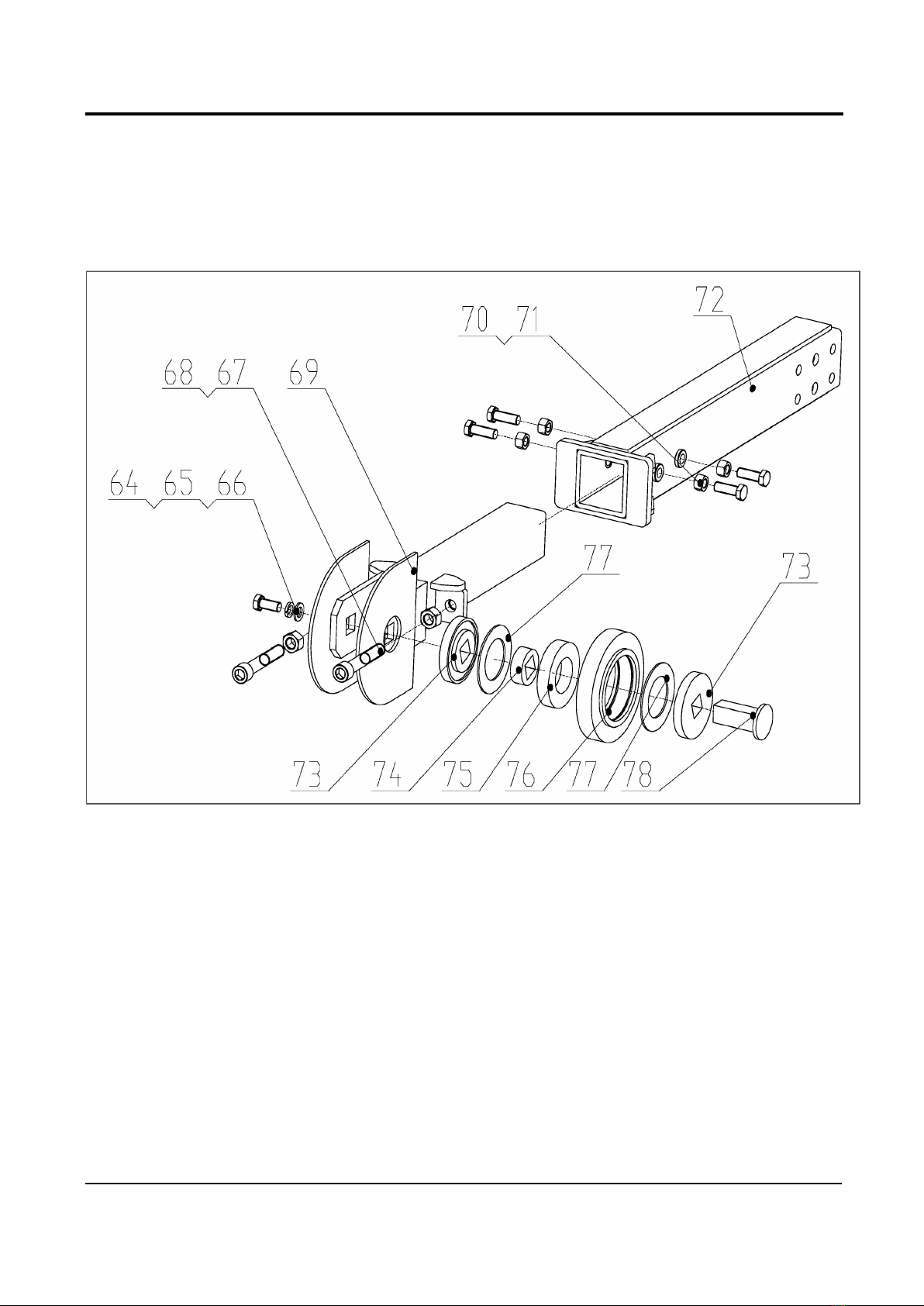

FIGURE 3 CHAIN TENSION ASSEMBLY
www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819
P 14 / 23

SKID STEER SIDE SHIFT TRENCHER ASSEMBLIES
www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819
P 15 / 23
S/N PART NO. PART DESCRIPTION QTYS NOTE
64 GB/T 97.1-1987 FLAT WASHER D16 1
65 GB/T93-1985 SPRING WASHER D16 1
66 GB/T5783-2000 BOLT 1 M16X30
67 GB70.1-2000 HEX SOCKET HEAD BOLT 2 M20X130
68 GB/T6170-2000 NUT 2 M20
69 020736.08 CHAIN TENSIONER 1
70 GB/T5783-2000 BOLT M16X45 4
71 GB/T 6170-2000 NUT M16 4
72 020736.03 MOVABLE DEVICE 1
73 020724.00-7 SPACER 2
74 020724.00-6 INNER SHAFT 1
75 GB/T672 DEEP GROOVE BALL BEARING 6212 1
76 020724.00-5 IDLE WHEEL 1
77 GB/T893.1-2000 CIRCLIP FOR HOLE 110 2
78 020724.00-8 PIN 1

SKID STEER SIDE SHIFT TRENCHER ASSEMBLIES
FIGURE 4 SOIL PULLING PLATE ASSEMBLY
www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819
P 16 / 23

SKID STEER SIDE SHIFT TRENCHER ASSEMBLIES
www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819
P 17 / 23
S/N PART NO. PART DESCRIPTION QTYS NOTE
79 GB/T 97.1-1987 FLAT WASHER D12 20
80 GB/T93-1985 SPRING WAHSER D12 6
81 GB/T6170-2000 NUT 6 M12
82 020736.05.01 SOIL PULLING PLATE SUPPORT 1
83 020724.00-4 NYLON PLATE 1
84 GB/T 5783-2000 BOLT 2 M12X80
85 020736.05-02 CONNECTION PLATE 4
86 GB/T 889.1-2000 LOCK NUT 2 M12
87 GB/T 5783-2000 BOLT 2 M12X90
88 GB/T91 SPLIT PIN 4 3.2X20
89 020736.05-03 TENSION SPRING 1
90 020736.04 EXPANSION PIPE 1
91 020736.05-01 SIDE SUPPORT PLATE 2
92 GB 882-87 PIN 4 12X20
93 GB/T 5783-2000 BOLT 4 M12X35

OPERATION INSTRUCTIONS
The trencher can dig a trench with 900mm depth and 200mm width. Attach the
trencher to the toolbar or quick attach mechanism of your skid steer loader.
RAISING OR LOWERING THE TRENCHER
Raise or lower the trencher by raising or lowering the skid steer loader arms
through their appropriate skid steer controls.
Caution-Raising process should avoid touching high shelves, telephone lines
or branches, once touch a telephone line may cause serious injury or death.
TILTING THE TRENCHER
Tilt the trencher up or down by tilting the toolbar or attachment plate back or
forward through its skid steer controls. We recommend a 65 degrees angle for
general trenching as measured from the ground level(the horizon).
STARTING OR STOPPING THE TRENCHER
Power to the trencher is supplied by oil from the skid steer auxiliary hydraulic
system, which passes through the hydraulic hoses and into the trencher's
hydraulic motor. The trencher itself has no one on or off control, but is
operated by the skid steer auxiliary hydraulic control mechanism. To start the
trencher, engage the auxiliary hydraulics. To stop the trencher, disengage the
auxiliary hydraulics.
Start the trencher, make its chain start to rotate, lower to the ground, and then
let the skid steer loader move backward slowly while trenching.
www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819
P 18 / 23

OPERATION INSTRUCTIONS
TRENCHER SPEED CONTROL
The power of the trencher is supplied by the skid steer's auxiliary hydraulics.
Trencher speed and power are determined by the flow of oil coming out of the
auxiliary system, which in turn is dependent upon skid steer engine speed. To
increase trencher speed, increase skid steer engine speed, on the contrary, to
decrease trencher speed, decrease skid steer loader speed.
When first starting a trench throttle down the skid steer engine to half throttle.
This will reduce the shock to the skid steer and trencher when the digging teeth
first contact the ground. Once the trench is started, set the engine back to the
full throttle. For the general use, operate the trencher with skid steer engine at
full throttle to provide maximum power to the auxiliary hydraulics.
SPIRAL HEIGHT
The spiral is fixed to the trencher mainframe and has no separate adjustment.
To raise the spiral, raise the trencher as previously described. This will raise
the spiral to leave the dirt or spoil closer to the trencher.
CHAIN TENSION ADJUSTMENT
When trenching, the digging chain tension should be adjusted to let the chain
is as loose as possible, without jumping off the sprocket or Idler wheel. In the
left of the trencher arm end, should have an adjustment bolt with a jam nut, to
tighten the chain, need rotate the adjustment bolt to the proper position, and
turn the standard nut to the adjustment bolt, will push the boom out and thus
tighten the chain. To loosen the chain, just use the opposite method.
www.tmgindustrial.com (USA) www.tmgindustrial.ca (Canada) Toll Free:1-877-761-2819
P 19 / 23
