TMG TMG-SSB72 User manual

www.tmgindustrial.com Toll Free:1-877-761-2819
TABLE OFCONTENTS
SAFETY INSTRUCTIONS ............................................................................................................................................2
SAFETY RULE .............................................................................................................................................................3
PARTS DESCRIPTION AND FUCTION ....................................................................................................................... 8

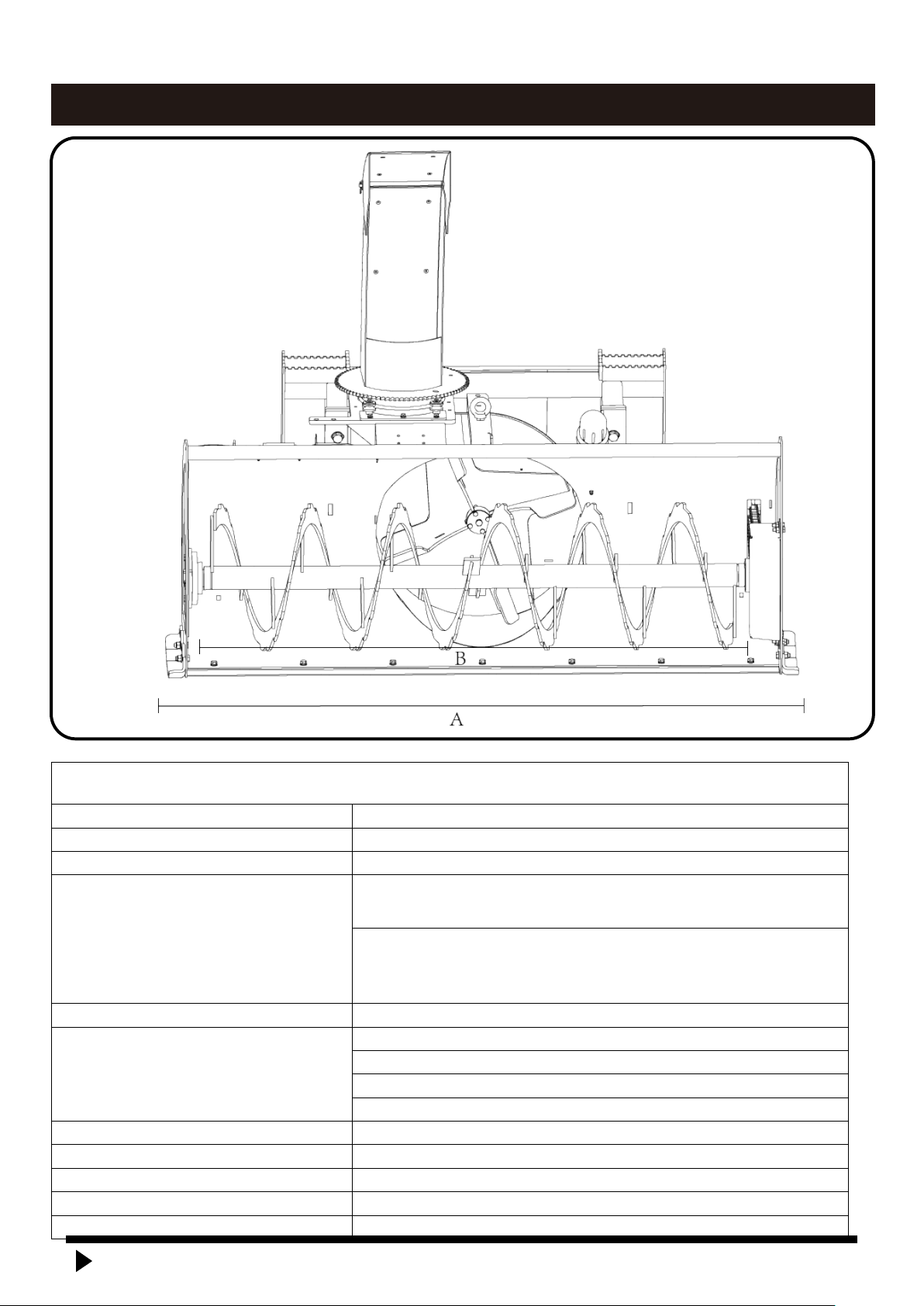

PRODUCTS SPECIFICATIONS................................................................................................................................... 9

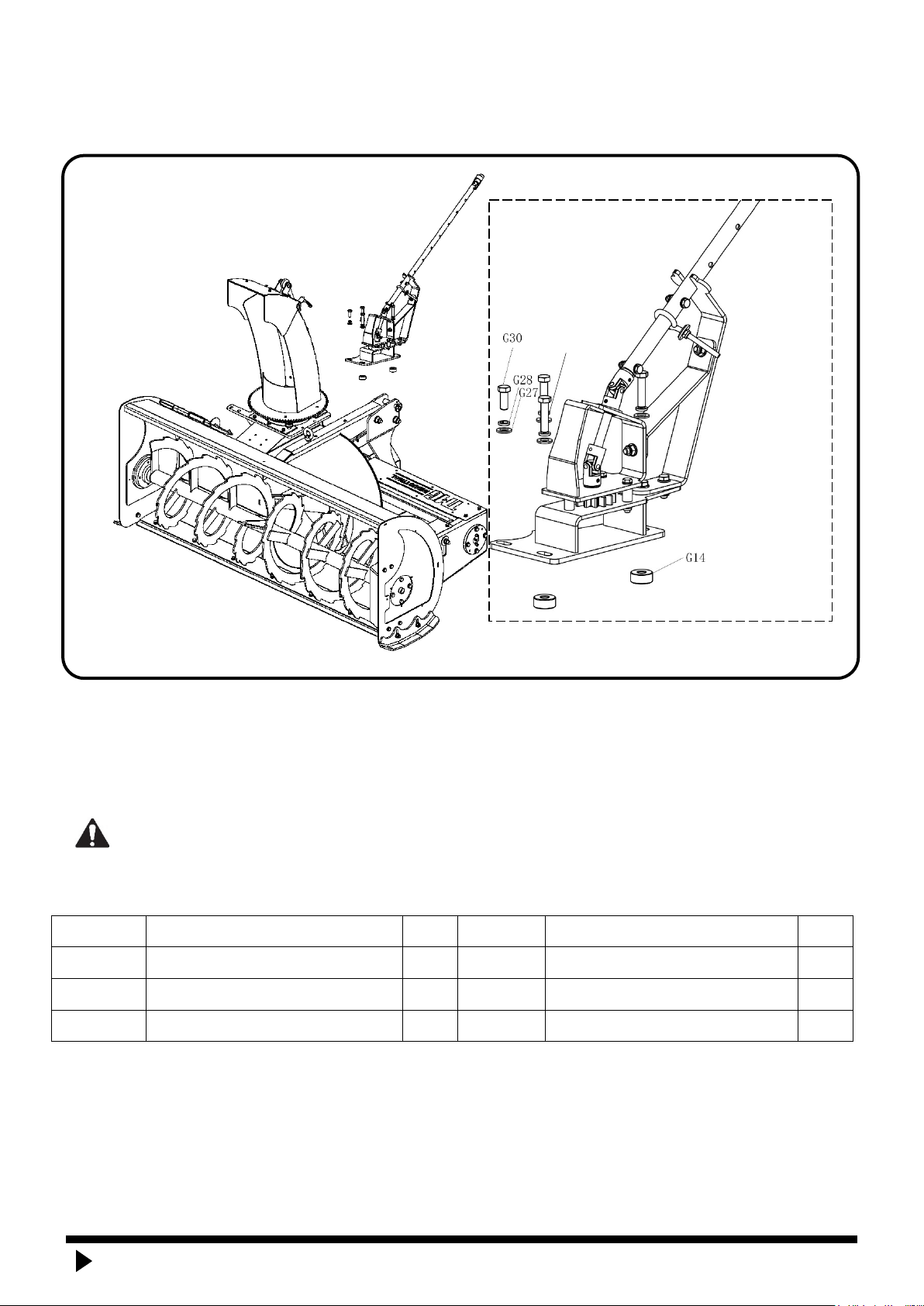

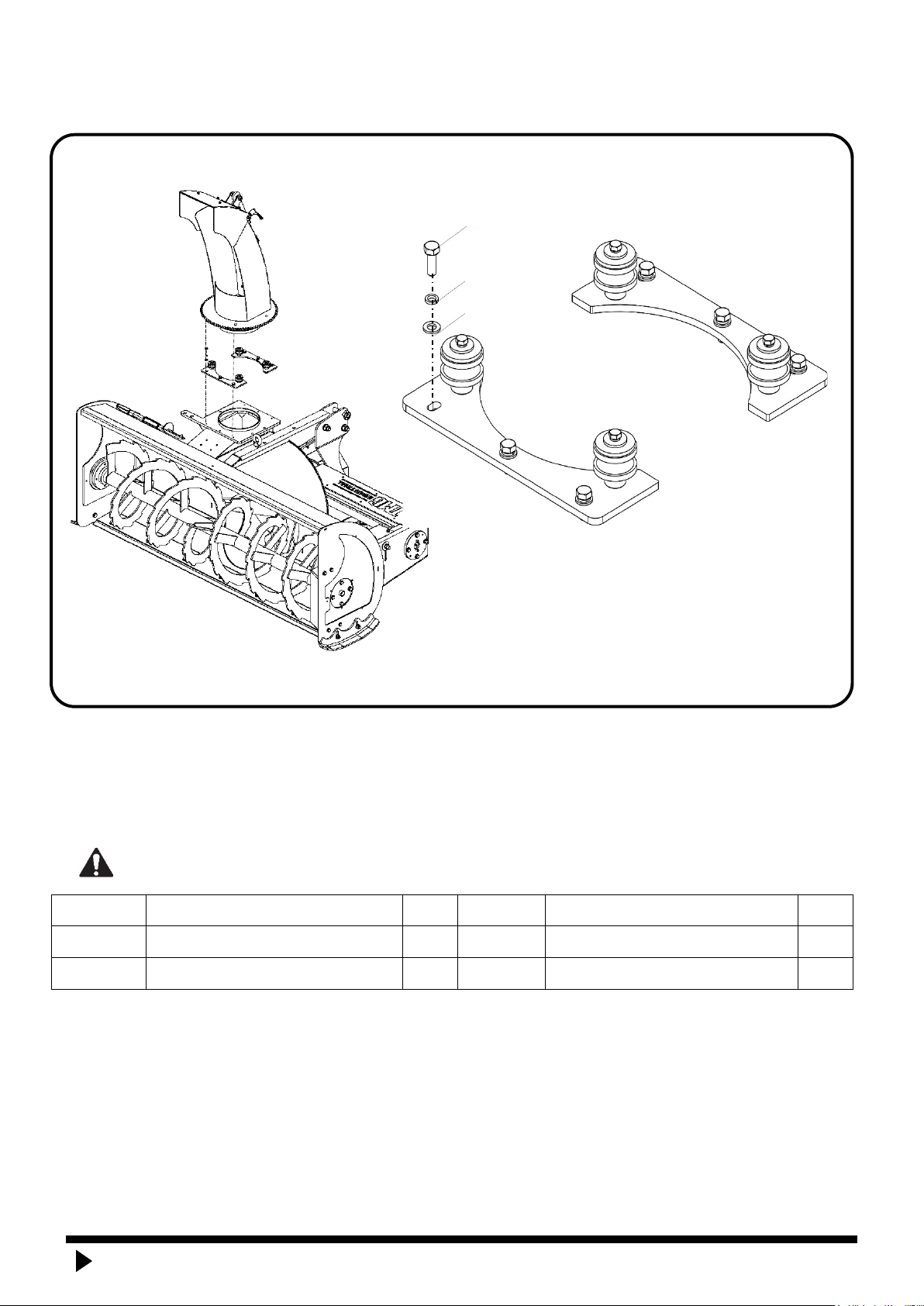

UNPACKING & ASSEMBLY...................................................................................................................................... 11

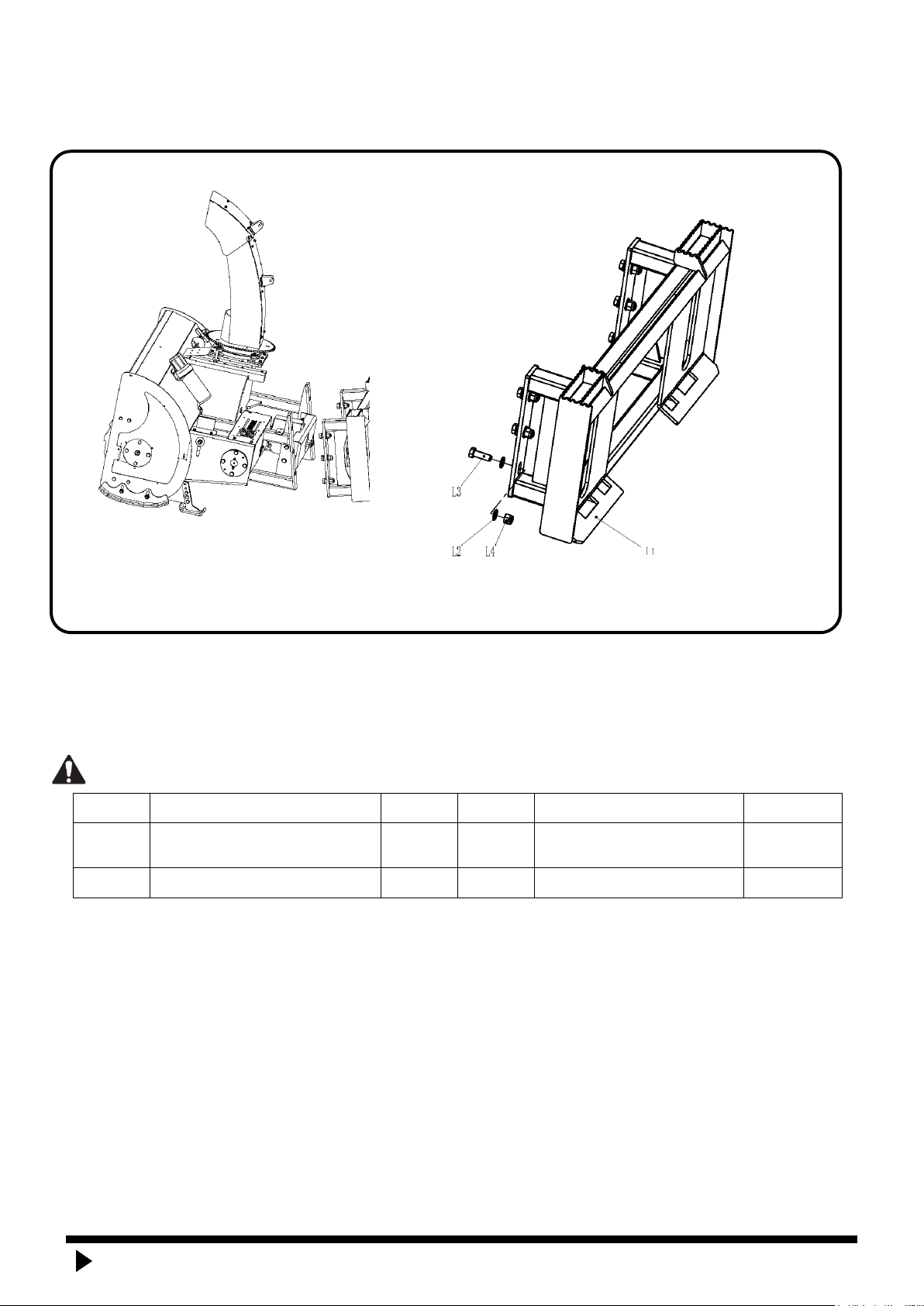

CONNECTING SKID STEER LOADER....................................................................................................................... 16
CHECK BEFORE OPERATING .................................................................................................................................. 17
LUBRICATION POINTS SUMMARY ......................................................................................................................... 18
OPERATING ESSENTIAS ...................................................................................................................................... 21
OPERATING FINISH.................................................................................................................................................. 22
MAINTENANCE SCHEDULE ................................................................................................................................... 23
TROUBLE SHOOTING............................................................................................................................................... 24
EXPLODED VIEW & PARTS LIST .............................................................................................................................. 25

www.tmgindustrial.com Toll Free:1-877-761-2819
SAFETY INSTRUCTIONS
SAFETY DECALS
Before operating the Snow Blower read the following safety instructions.
Failure to comply with these warnings may result in serious injury or death.
2/49

www.tmgindustrial.com Toll Free:1-877-761-2819
3/49

www.tmgindustrial.com Toll Free:1-877-761-2819
SAFETY RULE
WARNING
Careful operation is your best assurance against an accident. All operators, no matter how much
experience they may have, Should carefully read this manual and other related manuals before operating
the power machine and this implement.
--Thoroughly read and understand the “Safety Label” section. Read all instructions noted on them.
--Do not operate the equipment while under the influence of drugs or alcohol, as they impair your ability to safely and properly
operate the equipment.
--The operator should be familiar with all functions of the skid steer loader and attached implement, and be able
to handle emergencies quickly.
--Make sure all guards and shields appropriate for the operation are in place and secured before operating
the implement.
--Keep all bystanders away from equipment and work area.
--Start skid steer loader from the driver’s seat with hydraulic controls in neutral.
--Operate skid steer loader and controls from the driver’s seat only.
--Never dismount from a moving skid steer loader or leave skid steer loader unattended with engine running.
--Do not allow anyone to stand between the implement and skid steer loader while backing up to the implement.
--Keep hands, feet, and clothing away from power-driven parts.
--While transporting and operating equipment, watch out for objects overhead and along the sides
such as fences, trees, buildings, wires, etc.
--Do not turn skid steer loader so tight as to cause hitched implement to ride up on the skid steer loader’s rear wheel.
--Store implement in a safe and secure area where children normally do not play. When needed, secure
implement against falling with support blocks.
PREPARATION
-Keep a first aid kit and fire extinguisher handy.
-Keep the nozzle in contact with the rim of the fuel tank or container opening at all times, until refueling is
complete. Do not use a nozzle lock open device.
-Wear protective clothing and equipment appropriate for the job such as safety shoes, safety, glasses, hard hat,
dust mask, and ear plugs
-Clothing should fit snug without fringes and pull strings to avoid entanglement with moving parts.
-Prolonged exposure to loud noise can cause hearing impairment or hearing loss. Wear suitable hearing
protection such as earmuffs or earplugs.
- - Operating a machine safely requires the operator’s full attention. Avoid wearing headphones while operating Equipment
4/49

www.tmgindustrial.com Toll Free:1-877-761-2819
SAFETY PRECAUTIONS FOR CHILDREN
Tragedy can occur if the operator is not alert to the presence of children, Children generally are attracted to
implements and their work
-Never assume children will remain where you last saw them.
-Keep children out of the work area and under the watchful eye of a responsible adult.
-Be alert and shut the implement and skid steer loader down if children enter the work area.
-Never carry children on the skid steer loader or implement. There is not a safe place for them to ride. They may fall off and be
run over or interfere with the control of the power machine.
-Never allow children to operate the power machine, even under adult supervision.
-Never allow children to play on the power machine or implement.
-Use extra caution when backing up. Before the skid steer loader starts to move, look down and behind to make sure the area is
clear.
Wear Personal Protective Equipment (PPE)
-Wear protective clothing and equipment appropriate for the job such as safety shoes, safety, glasses, hard hat, dust mask, and
ear plugs.
-Clothing should fit snug without fringes and pull strings to avoid entanglement with moving parts.
-Prolonged exposure to loud noise can cause hearing impairment or hearing loss. Wear suitable hearing protection such as
earmuffs or earplugs.
-Operating a machine safely requires the operator’s full attention. Avoid wearing headphones
while operating equipment.
Handle Chemicals Properly
- Protective clothing should be worn.
- Handle all chemicals with care.
- Follow instructions on container label.
- Agricultural chemicals can be dangerous. Improper use can seriously injure persons, animals, plants, soil, and property.
- Inhaling smoke from any type of chemical fire can be a serious health hazard.
- Store or dispose of unused chemicalsasspecifiedbythe chemical manufacturer.
5/49

www.tmgindustrial.com Toll Free:1-877-761-2819
OPERATION
-Do not put hands or feet near, under or inside rotating parts.
-Exercise extreme caution when operating on or crossing gravel drives, walks or roads. Stay alert for hidden hazards or traffic.
Do not carry passengers.
-Never tolerate bystanders in the working zone. Never use an accessory in the direction of by standers, it might throw gravel or
debris that can hurt people or damage property.
-Never operate the accessory at high transport speeds on slippery surfaces. Use care when backing up.
-Do not carry passengers.
-Disengage power to the accessory when it is transported or not in use.
-Never operate the accessory without good visibility or light.
-Keep the accessory away from heat sources or flames.
-Never handle the winch cable or hook while in tension.
-Use only accessories approved by the manufacturer of the snow blower (such as wheel chains, and the like).
- Never operate the snow blower without good visibility or light
-Keep all safety guards in place and in proper working order at all times.
-NEVER place fingers, hands, or body near the snow blower when it is running. Do not lean or reach over the snow blower when
the machine is running.
-Keep all people (except the operator) a minimum of 25 feet from the snow blower during operation.
-Always aim the discharge chute away from people and animals.
-Do not leave the snow blower unattended when it is running. Turn off the engine before leaving the area.
-Do not use this piece of equipment while tired or under the influence of drugs, alcohol or medication.
-Parts, especially exhaust system components, get very hot during use. Stay clear of hot parts.
-Use extra caution when operating on gravel or other loose material.
-Exercise caution to avoid slipping or falling, especially when operating in reverse.
-Thoroughly inspect the area where the equipment is to be used. Remove all foreign objects, which could be tripped over or
thrown by the auger/impeller.
-Always wear safety glasses or eye shields during operation and while performing an adjustment or repair to protect your eyes.
Thrown objects which ricochet can cause serious injury to the eyes.
-Operate the equipment with appropriate foot ware, gloves and clothing. Avoid loose fitting clothing that can get caught in
moving parts.
- The auger and drive controls must be depressed to operate. Do not override this safety feature. Both control levers must
operate easily and automatically return to the disengaged position when released.
-Do not overload the snow blower by attempting to clear snow too quickly.
-Do not operate at high speed on icy or slippery surfaces.
-Always be sure of your footing especially when driving in reverse.
6/49

www.tmgindustrial.com Toll Free:1-877-761-2819
PRACTICE SAFE MAINTENANCE
-Understand procedure before doing work. Refer to the Operator’s Manual for additional information
-Work on a level surface in a clean dry area that is well-lit.
-Lower implement to the ground and follow all shutdown procedures before leaving the operator’s seat
to
Perform maintenance.
-Do not work under any hydraulically supported equipment. It can settle, suddenly leak down, or be lowered
accidentally. If it is necessary to work under the equipment, securely support it with stands or suitable blocking beforehand
-Use properly grounded electrical outlets and tools.
-Use correct tools and equipment for the job that are in good condition.
-Allow equipment to cool before working on it.
-Disconnect battery ground cable before servicing or adjusting electrical systems or before welding on implement.
-Inspect all parts. Make certain parts are in good condition & installed properly.
-Do not alter this implement in a way which will adversely affect its performance.
-Do not grease or oil implement while it is in operation.
-Remove buildup of grease, oil, or debris.
-Always make sure any material and waste products from the repair and maintenance of the implement are
properly collected and disposed.
-Remove all tools and unused parts from equipment before operation.
-Do not weld or torch on galvanized metal as it will release toxic fumes.
MTRANSPORT SAFETY
-Read this owner's manual carefully. Be thoroughly familiar with the controls and proper use of the vehicle and snow blower.
Know how to stop the unit and disengage the controls quickly..
-Never allow children to operate snow blower nor the vehicle. Never allow adults to operate snow blower nor the vehicle
without proper instructions..
-No one should operate the vehicle nor the snow blower while intoxicated or while taking medication that impairs the senses
or reactions.
-Keep the area of operation clear of all persons, particularly small children and pets
-Comply with state and local laws governing safety and transporting of machinery on public roads.
-Check that all the lights, reflectors and other lighting requirements are installed and in good working condition.
-Do not exceed a safe travel speed. Slow down for rough terrain and cornering
-Do not drink and drive.
-Be a safe and courteous driver. Always yield to oncoming traffic in all situations, including narrow bridges, intersections,
etc. Watch for traffic when operating near or crossing road- ways.
-Never allow riders on the machine.
-
7/49

www.tmgindustrial.com Toll Free:1-877-761-2819
Use Seat Belt and ROPS
-
Recommendstheuseof aCABorroll-over-protective- structures(ROPS)andseatbelt in almost allpower machines.
-Combination of a CAB or ROPS and seat belt will reduce the risk of serious injury or death if the power machine should be
upset.
- If ROPS is in the locked-up position, fasten seat belt snugly and securely to help protect against serious injury or death
from falling and machine overturn
Keep Riders Off Machinery
-Never carry riders on the skid steer loader or implement.
-Riders obstruct operator’s view and interfere with the control of the power machine.
-Riders can be struck by objects or thrown from the equipment.
-Never use the skid steer loader or implement to lift or transport riders.
Transport Safely
-Comply with federal, state, and local laws.
-Avoid contact with any overhead utility lines or electrically charged conductors.
-Engage park brake when stopped on an incline.
-Maximum transport speed for an implement is 20 mph (32 km/h). DO NOT EXCEED.
-Never travel at a speed which does not allow adequate control of steering and stopping. Some rough terrains
require a slower speed.
-Sudden braking can cause a towed load to swerve and upset.
-Do not tow an implement that, when fully loaded, weights more than 1.5 times the weigh of towing vehicle.
8/49

www.tmgindustrial.com Toll Free:1-877-761-2819

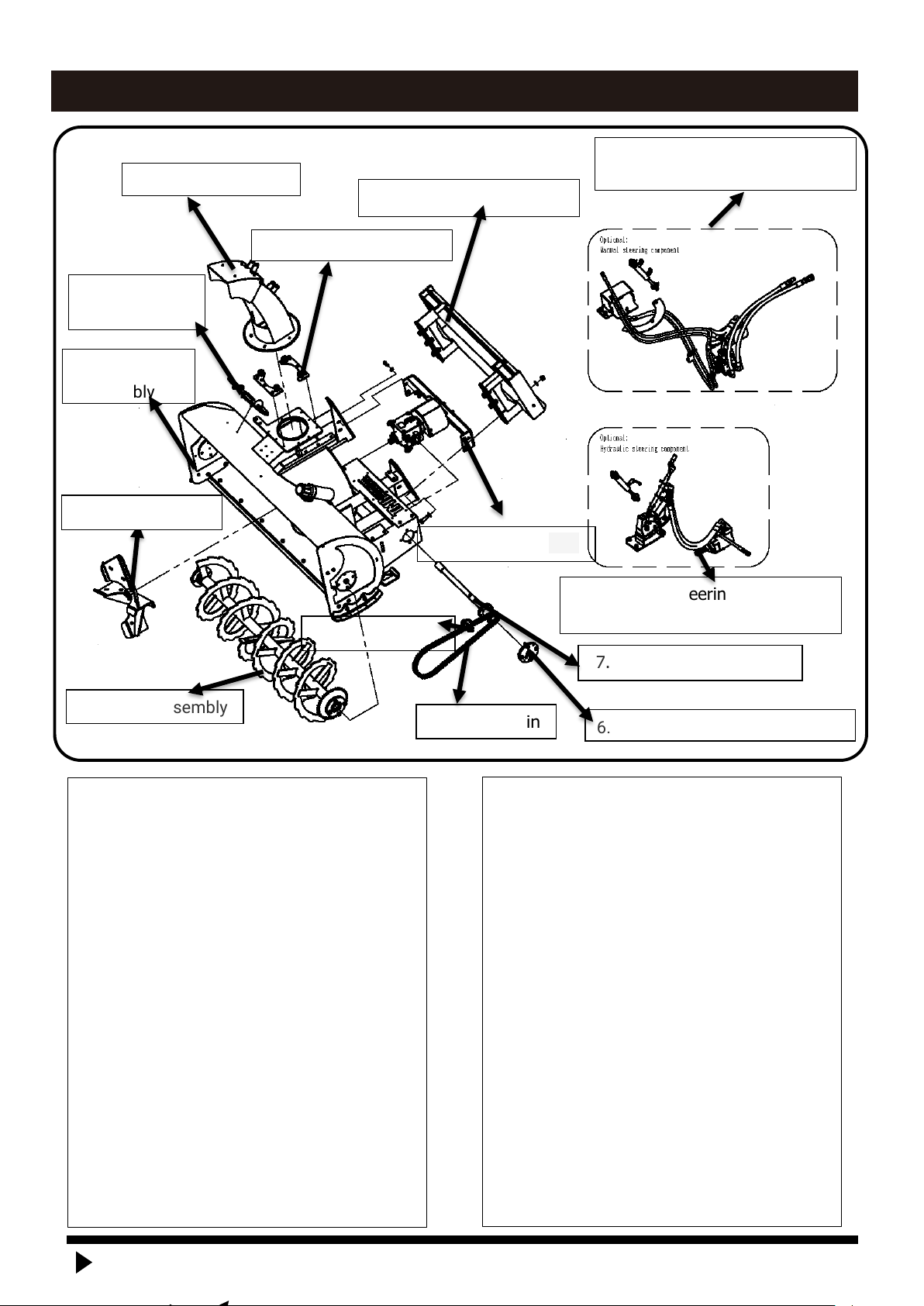

PARTS DESCRIPTION AND FUCTION
2. Outfeed assembly
12. quick change module
3. Pressboard assembly
4.Snow shovel
assembly
1.Bucket body
assembly
10.Fan assembly
11. Gearbox as-rear
7. Drive as-torque limiter
8. Roller chain
9. Tensioner as
5. Stirring assembly
6. Bearing block as-drive shaft
13. Manual steering component
(optional)
14. Hydraulic steering component
(optional)
1. Bucket body assembly
Collect the snow raised by the augers
2. Outfeed assembly
Lift the snow out
3. Pressboard assembly
It is used to adjust and fix the snow outlet
4. Snow shovel assembly
Clean snow from snow chute or auger
before and after use
5. Stirring assembly
Snow removal and ice breaking on roads
6. Bearing block as-drive shaft
To power the auger
7. Drive as-torque limiter
To power the auger
8. Roller chain
To power the auger
9. Tensioner as
To power the auger
10. Fan assembly
Blow up the snow
11. Gearbox as-rear
It is used to connect the PTO to power the
Skid Steer Loader
12. Quick change module
Quick Connect Skid Steer Loader
13. Manual steering component
(optional)
Manual control of outfeed assembly
steering
14. Hydraulic steering component
(optional)
Hydraulically controlled steering of the
outfeed assembly
9/49

www.tmgindustrial.com Toll Free:1-877-761-2819
PRODUCTS SPECIFICATIONS
Skid Steer Snow Blowers
Model No.
TMG-SSB72
Working Width
70.87 in (1800 mm)
Overall Width
74.8 in
（
1900mm
）
Weight with outside skid shoes, case
drain line, couplings, & hydraulic motor
1.Full weight of hydraulic steering configuration --
1003lbs(454.6kg) ;
2.Full weight of manual steering configuration--998lbs(452.51kg)
Drive and Control System
Hydraulic motors
Hydraulic Requirements:
1. Gearbox drive motor: 126.3cc/r ;
Maximum flow rate (continuous): 75L/min;Pressure: 3000psi
2. Snow cone drive motor: 31.6cc/r;
Maximum flow rate (continuous): 18L/min;Pressure: 1450bar
Rated hydraulic pressure of snow blower
2500 - 3000 psi
Gearbox oil capacity
1 Qt SAE 90
Hitch
Skid steer/loader mounting plate
Chute opening at the base
8.66in
（
220mm
）
Impeller housing depth
7.87”in
（
200mm
）
10/49

www.tmgindustrial.com Toll Free:1-877-761-2819
Impeller diameter
24in
（
610mm
）
Number of impeller blades
4
Auger diameter
17.5in
（
445mm
）
Cutting edge
Bolt-on and replaceable full-length cutting edge
Skid shoes
Bolt-on, adjustable & replaceable
Chute rotation
Manual or Hydraulically driven sprocket (opention)
Chute rotation degrees
360 degrees(manual drive ) / 220 degrees(Hydraulically driven)
Spout Deflector
Manual or Hydraulic operation(opention)
Horsepower requirement
45- 75 HP
11/49

www.tmgindustrial.com Toll Free:1-877-761-2819
www.tmgindustrial.com Toll Free:1-877-761-2819
UNPACKING & ASSEMBLY
After unpacking, check the followingcomponents
12/49

www.tmgindustrial.com Toll Free:1-877-761-2819
www.tmgindustrial.com Toll Free:1-877-761-2819 www.tmgindustrial.com Toll Free:1-877-761-2819
Optional hydraulic version for unpacking
13/49

www.tmgindustrial.com Toll Free:1-877-761-2819
* All numbers are not part numbers in the drawings. For correct part numbers,
see explosive diagram.
NO.
DESCRIPTION
QTY
NO.
DESCRIPTION
QTY
1
Bucket body assembly
1
7
Full thread hexagonal bolts M12 * 50
4
2
Outfeed assembly
1
8
Full thread hexagonal bolts M12 * 30
2
3
quick change module
1
9
Spring washers
φ
12
4
4
Handle as-hand assembly
1
10
Plain washers φ12
6
5 Push rod as-hand 1 11
Hexagon locknuts with non-metallic inserts
type 1 M12
2
6
Spacer block (for installing
Pressboard assembly)
2 12 Hydraulic motor assembly 1
NO.
DESCRIPTION
QTY
NO.
DESCRIPTION
QTY
1
Bucket body assembly
1
7
Plain washers
φ
10
3
2
Outfeed assembly
1
8
Full thread hexagonal bolts M12 * 40
2
3
Hydraulic steering component assembly
(optional) 1 9 Full thread hexagonal bolts M12 *50 2
4
Full thread hexagonal bolts M10*35
1
10
Plain washers
φ
12
6
5 Spring washers φ10 3 11
Hexagon locknuts with non-metallic
inserts type 1 M12 4
6
Hexagon socket cheese head screws
M10*16 2
Tools used for installation
No Description Specification Conditions of Use QTY
1 open end wrench 13/19/37 M8, M12, M18 bolt fastening 2
2 wind gun 1280t
Match the corresponding sleeve
instead of the wrench to tighten the bolt
1
3 hammer 1
4 torque wrench 10-220N·m Measuring torque 1
14/49

www.tmgindustrial.com Toll Free:1-877-761-2819
1. Turning at the snow exit
1.1 Handle as-hand
Installation s t e p s :
1. M1 (Cylinder body welding parts) and M2(Push rod welding parts) has been assembled, So，The step1 Install the
hand push rod on the snow outlet,and then install the handle (M3) on the manual cylinder welding, and then secure
the Spacer sleeves (M4), Plain washers (M5), Full-thread hexagon bolts M12*70 (M7) and Locknuts M12(M6) on
push rod welding parts (M1).
2. Importance: Allbolts are locked in place without s h a k i n g .
WARNING:Once the assembly bolts are not fastened in place, there will be abnormal noises when the machine is working.
PART NO.
DESCRIPTION
QTY
PART NO.
DESCRIPTION
QTY
M1 Cylinder body welding parts 1 M5 Plain washers φ12 4
M2 Push rod welding parts 1 M6 Locknuts M12 2
M3 Handle M10*1.25*25 1 M7 Full-thread hexagon bolts M12*70 2
M4 Spacer sleeves 4
M7
M5
M6
M3
M1
M4
15/49

www.tmgindustrial.com Toll Free:1-877-761-2819
1.2 Push rod as-hydraulic
Installation s t e p s :
1. Install the Push rod as-hydraulic on the Bucket body assembly, For controlling the opening and closing angle of the
Bucket body assembly .install the handle (N29) on the manual cylinder weld, and then secure the Manual push rod
welding with the Hydraulic assembly spacer (25), Plain washers φ12 (N26), Locknuts M12(N28) and Full-thread
hexagon bolts M12*70 (N27).
2. Importance: Allbolts are locked in place without s h a k i n g .
WARNING:Once the assembly bolts are not fastened in place, there will be abnormal noises when the machine is working.
PART NO.
DESCRIPTION
QTY
PART NO.
DESCRIPTION
QTY
N25 Hydraulic assembly spacer 4 N28 Locknuts M12 4
N26 Plain washers φ12 4 N29 Rotatable right angle fitting 2
N27 Full-thread hexagon bolts M12*70 2
16/49
N26
N25
N27
N28
N29

www.tmgindustrial.com Toll Free:1-877-761-2819
2.Install the Plate as-stop
Installation s t e p s :
1. Install the discharge port on the snow blower, unscrew the bolt on the machine first, remove one of the Limit plate
of snow funnel, align the discharge port with the bayonet of the snow blower, and fix the limit plate with Plain
washer（C7）, Full-thread hexagon bolts (C9) and Locknuts（C8）
2. portance: Allbolts are locked in place without s h a k i n g .
WARNING: Once the assembly bolts are not fastened in place, there will be abnormal noises when the machine is working
PART NO.
DESCRIPTION
QTY
PART NO.
DESCRIPTION
QTY
C7 Plain washers φ8 6 C9 Full-thread hexagon bolts M8*20 6
C8 Spring washers φ8 6
C9
C8
C7
17/49

www.tmgindustrial.com Toll Free:1-877-761-2819
3.Install the hand push rod
Installation s t e p s :
1. Attach the hand push rod, first install fix the base plate of the hand push rod respectively with Full-thread hexagon
bolts (G30), Spring washers (G28), Plain washers (G27) and Backing block (G14) to secure the remaining two holes
in the base plate.
2. Importance: Allbolts are locked in place without s h a k i n g .
WARNING:Once the assembly bolts are not fastened in place, there will be abnormal noises when the machine is working.
PART NO.
DESCRIPTION
QTY
PART NO.
DESCRIPTION
QTY
G14 Backing block 2 G29 Full-thread hexagon bolts M12*50 2
G27 Plain washers φ12 4 G30 Full-thread hexagon bolts M12*30 2
G28 Spring washers φ12 4
18/49
G29

www.tmgindustrial.com Toll Free:1-877-761-2819
4.Install the Quick change module
Installation s t e p s :
1. Mounting of Front quick change weldmen (L1) on host with fully threaded hexagonal bolts (L3), plain washers (L2)
and locknuts.
2. Importance: Allbolts are locked in place without s h a k i n g .
WARNING:Once the assembly bolts are not fastened in place, there will be abnormal noises when the machine is working.
POS.
DESCRIPTION
QTY
POS.
DESCRIPTION
QTY
L1
Front quick change
weldment
1 L3 Full-thread hexagon bolts 6
L2 Plain washer 12 L4 Locknut 6
14/47
L1
L4
L2
L3
19/49
