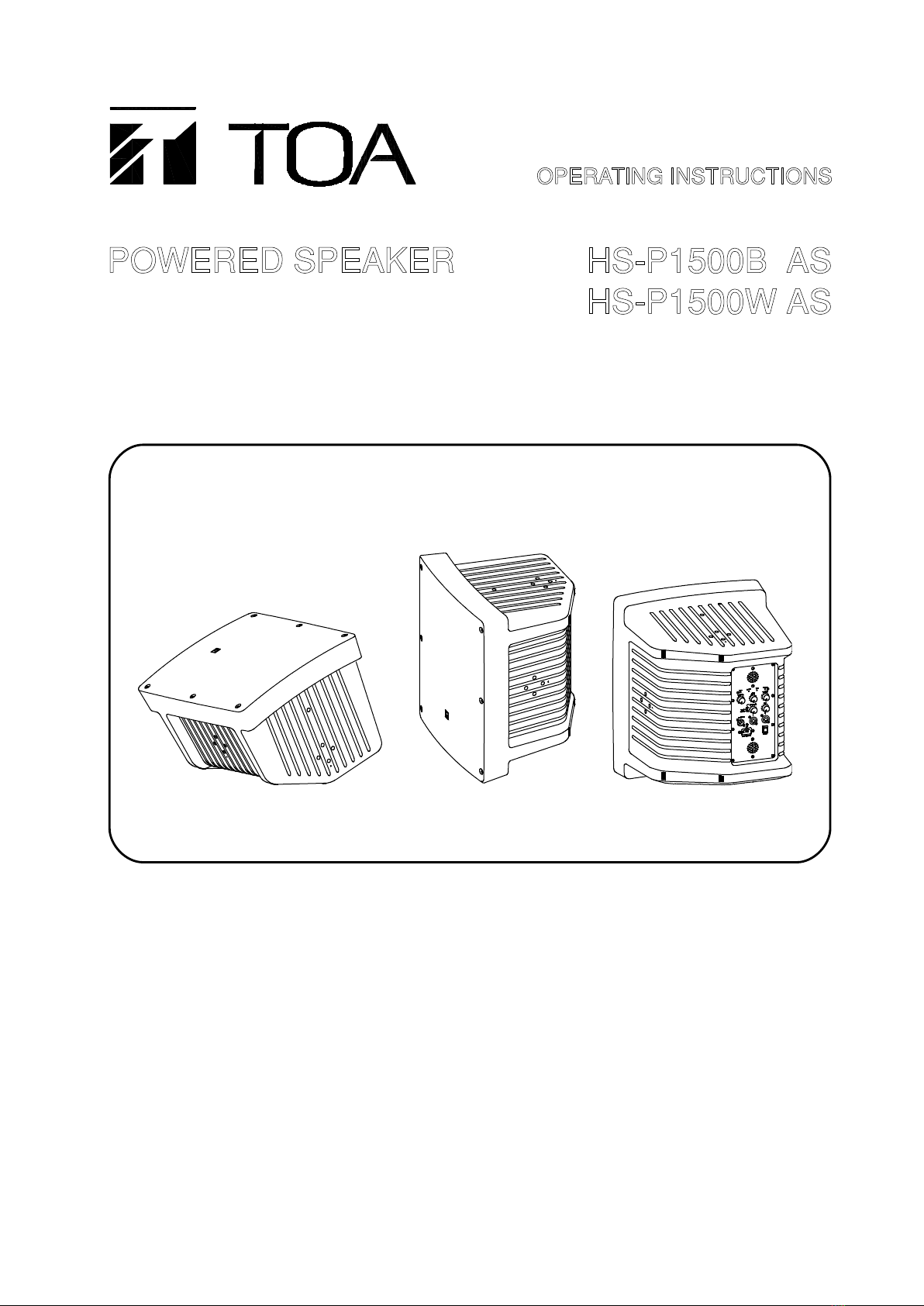

Toa HS-P1500W AS User manual

OPERATING INSTRUCTIONS
POWERED SPEAKER
Thank you for purchasing TOA's Powered Speaker.
Please carefully follow the instruction in this manual to ensure long, trouble-free use of your equipment.
TOA Corporation
HS-P1500B AS
HS-P1500W AS

TABLE OF CONTENTS
1. SAFETY PRECAUTIONS ….................................................................................... 3
2. GENERAL DESCRIPTION …....................................................................….......... 4
3. FEATURES ….......................................................................................................... 4
4. DIMENSIONAL DIAGRAM ...................................................................................... 5
5. NOMENCLATURE AND FUNCTIONS ................................................................... 5
6. VOLUME CONTROL SETTINGS ........................................................................... 7
7. PROTECTION OPERATION LIST .......................................................................... 7
8. BLOCK DIAGRAM …............................................................…..........................…. 8
9. CONNECTIONS ...............................................................…................................... 8
10. INSTALLATION ....................................................................................................... 9

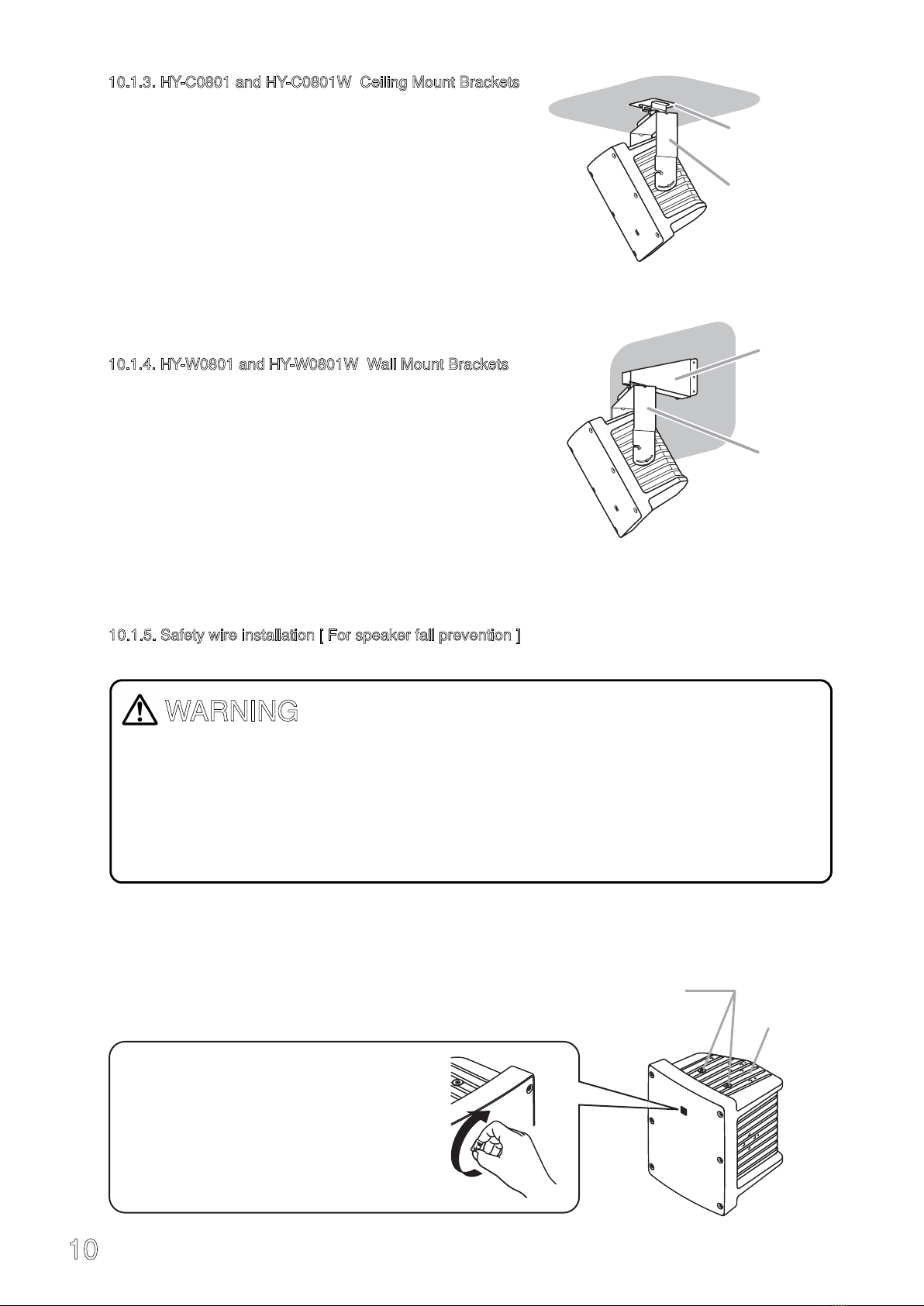

10.1. Installing to Ceiling or Wall ….................................................................................................... 9

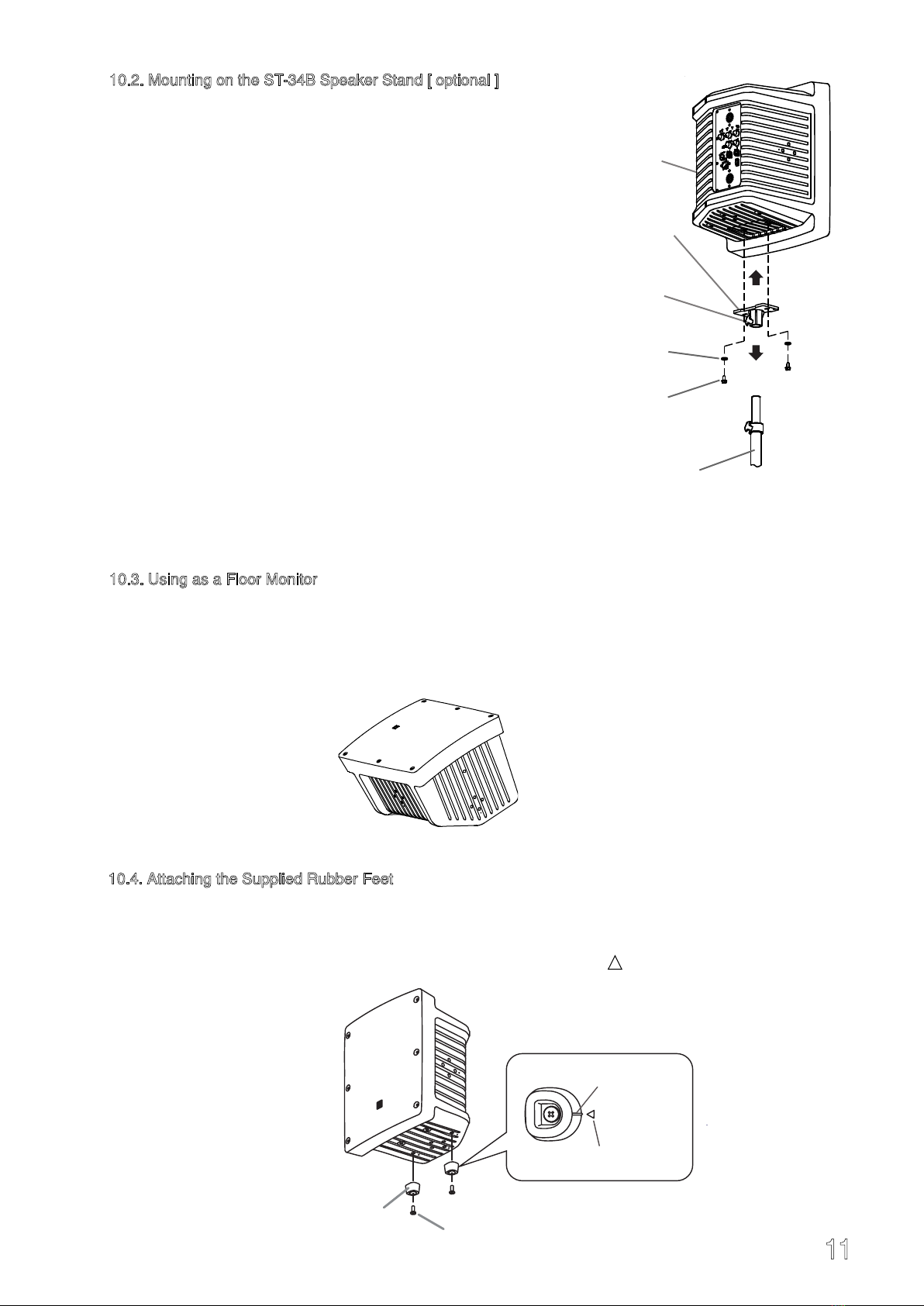

10.2. Mounting on the ST-34B Speaker Stand (optional) ….............................................................. 11
10.3. Using as a Floor Monitor …....................................................................................................... 11
10.4. Attaching the Supplied Rubber Feet …..................................................................................... 11
10.5. Attaching a Handle …................................................................................................................ 11
11. SPECIFICATIONS ….............................................................................................. 12
2

WARNING
3
1. SAFETY PRECAUTIONS
• Before installation or use, be sure to carefully read all the instruction in this section for correct and
safe operation.
• Be sure to follow all the precautionary instruction in this section, which contain important warnings
and/or cautions regarding safety.
• After reading, keep this manual handy for future reference.
Safety Symbol and Message Conventions
Safety symbol and messages describe below are used in this manual to prevent bodily injury and property
damage which could result from mishandling. Before operating your product, read this manual first and
understand the safety symbols and messages so you are thoroughly aware of the potential safety hazards.
Indicates a potentially hazardous situation which, if mishandled, could
result in death or serious personal injury.
When Installing the Unit
• Avoid installing or mounting the unit in unstable locations, such as on a rickety table or a slanted
surface. Doing so may result in the unit falling down and causing personal injury and / or property
damage.
• Install the unit only in location that can structurally support the weight of the unit and the mounting
bracket. Doing otherwise may result in the unit falling down and causing personal injury and / or
property damage.
• Since the unit is designed for indoor use, do not install it outdoors. If installed outdoors, the aging of
parts causes the unit to fall off, resulting in personal injury. Also, when it gets wet with rain, there is a
danger of electric shock.
• Owing to the unit's size and weight, be sure that at least two persons are available to install the unit.
Failure to do so could result in personal injury.
• Do not use other methods than specified to mount the bracket. If extreme force is applied to the unit,
the unit could fall off, resulting in personal injuries.
• Use screws that are appropriate for the ceiling's or wall's structure and composition. Failure to do so
may cause the unit to fall, resulting in personal injury.
• Ensure that all screws are securely tightened. If they are not tightened or firmly secured after
installation, the unit could fall down, possibly resulting in personal injury.
• Use the specified mounting bracket in combination. Doing otherwise may cause the unit or
component to fall off, resulting in personal injury.
• Do not mount the unit in locations exposed to constant vibration. The mounting bracket can be
damaged by excessive vibration, potentially causing the unit to fall, which could result in personal
injury.
• Do not expose the unit to rain or an environment where it may be splashed by water or other
liquids,as doing so may result in fire or electric shock.
• Use the unit only with the voltage unit. Using a voltage higher than that which is specified may result
in fire or electric shock.
• Do not cut, kink, otherwise damage nor modify the power supply cord. In addition, avoid using the
power cord in close proximity to heaters, and never place heavy objects -- including the unit itself –
on the power cord, as doing so may result in fire or electric shock.
• The apparatus shall be connected to a main socket outlet with a protective earthing connection.
• Should the following irregularity be found during use, immediately turn off this unit's power switch,
disconnect the power supply plug from the AC outlet and contact your nearest TOA dealer. Make
no further attempt to operate the unit in this condition as this may cause fire or electric shock.
• If you detect smoke or a strange smell coming from the unit.
• If water or any metallic object gets into the unit
• If the power supply cord is damaged (exposure of the core, disconnection, etc.)
• If it is malfunctioning (no tone sounds.)

4
CAUTION
When Installing the Unit
• When unpacking or installing the unit, be sure to handle it with two or more persons. Falling or
dropping the unit may cause personal injury.
• Avoid touching the unit's sharp metal edge to prevent injury.
• To avoid electric shock, be sure to switch off the amplifier's power when connecting to other speakers.
• Never plug in nor remove the power supply plug with wet hands, as doing so may cause electric
shock.
• When unplugging the power supply cord, be sure to grasp the power supply plug never pull on the
cord itself. Operating the unit with a damaged power supply cord may cause a fire or electric shock.
When the Unit is in Use
• Do not place heavy objects on the unit as this may cause it to fall or break which may result in
personal injury and/or property damage. In addition, the object itself may fall off and cause injury
and/or damage.
• Make sure that the volume control is set to minimum position before power is switched on. Loud
noise produced at high volume when power is switched on can impair hearing.
• Do not operate the unit for an extended period of time with the sound distorted. This is an indication
of a malfunction, which in turn can cause heat to generate and result in a fire.
2. GENERAL DESCRIPTION
TOA's HS-P1500 series are Powered Speakers with high power handling capabilities and excellent durability
for background music in the hall, restaurant, religious place and etc. This 2-way self-powered speaker
features a built-in digital amplifier of 170W rated output and 15-inch woofer. The speaker's enclosure is
made of resin. It can be installed and used in many different applications with combined use of the supplied
accessories and/or the optional mounting brackets.
3. FEATURES
• Tweeter array realizes a 90° horizontal x 40° vertical directivity control at high frequencies.
• Compact and lightweight with its high frequency tweeter array arranged in front of the frequency
woofer.
• Built-in overload protection circuitry for the tweeters, disconnects the power amplifier's output when
unusual temperature rise occurs.
• Both permanent and temporary installations available.
• Either vertical or horizontal speaker installation available for the permanent installation.
• Easy to carry with a handy handle.
• Rated output of 170W. Two Audio input, with one input that has a combined LINE and MIC option
(selectable with the switch selector).
• Equipped with the LED indicators that show the input/output status, etc.
Indicates a potentially hazardous situation which, if mishandled, could
result in moderate or minor personal injury, and/or property damage.

5
C
c
8
4
7
5
6
8
9
[Bottom]
[Front]
[Side] [Rear]
4. DIMENSIONAL DIAGRAM
5. NOMENCLATURE AND FUNCTIONS
[ Input Panel of Powered Speakers ]
HS-P1500 Series [ Rear ]

6
1. Power Switch [ ON / OFF ]
Turning this switch on causes the amplifier to function, and turning it off causes the amplifier to
cease function.
Note : All input volume to be in the minimum position.
2. Power Indicator [POWER]
Lights green when the power switch is turned on.
3. Indicators [INPUT, OUTPUT, PEAK, PROTECT]
The Indicators are as follows from left to right :
 Input Indicator [INPUT]
Lights green regardless of the input level control setting when an input signal level exceeds about –20 dB.
 Output Indicator [OUTPUT]
Lights yellow when an output level exceeds about 1 W at an 8Ωload
 Peak Indicator [PEAK]
Lights red when an output signal clips (distortion occurs).
Note : When the Peak indicator is lit, turn the input level control counterclockwise until its light
extinguishes or decrease the input signal level of the connected external device. Operating the unit
while the Peak indicator remains lit may cause the protection circuitry to be activated.
 Protection Indicator [PROTECT]
Lights red when the protection circuitry is activated. (See p. 7; Protection Operation List.) When the
power is switched on, this indicator lights for about 2 seconds and then extinguishes.
4. Master Volume Control
Adjusts the overall signal level.
5. Bass Control
Adjusts bass response. Rotate clockwise to increase bass output, and counterclockwise to reduce it.
The center position provides flat characteristics.
6. Treble Control
Adjusts treble response. Rotate clockwise to increase bass output, and counterclockwise to reduce it.
The center position provides flat characteristics.
7. AUX Volume Control
Adjusts the AUX level.
8. MIC / LINE Volume Control
Adjusts the Microphone or Line level.
9. Switch Selector
Select to input LINE (0dB) or MICROPHONE ( -60dB).
10. AUX Input Terminal
Input type is unbalanced, using XLR connector type / phone plug
(combination type), Pin connector XLR : Pin 1, 3 : Earth, Pin 2: Hot
11. MIC / LINE Input
Input type is balanced, using XLR connector type / phone plug (combination type)
Pin connector XLR : Pin 1: Earth, Pin 2: Hot, Pin 3 : Cold

7
12. Line Out
Input type is unbalanced, using XLR connector type for parallel output can connect to another of the
same unit or other equipments. Pin connector XLR : Pin 1, 3 : Earth, Pin 2: Hot
Note : When connecting to other equipment, they must be of same impedance.
13. Functional ground terminal [SIGNAL GND]
Hum noise may be generated when external equipment is connected to the unit. Connecting this terminal
to the functional ground terminal of the external equipment may reduce the hum noise.
Note : This terminal is not for protective earth.
14. AC Inlet
Connect the supplied power cord to this inlet. The socket-outlet shall be installed near the equipment and
the plug (disconnecting device) shall be easily accessible.
15. Ventilation Fan
To circulate the hot air out of the amplifier.
Caution: Do not close/block this hole, in order to protect the amplifier from over-heating.
16. Ventilation panel (Air Vent)
To circulate airflow into the unit.
Caution: Do not close/block this hole, in order to protect the amplifier from over-heating.
6. VOLUME CONTROL SETTINGS
Output levels are adjustable with individual volume controls. For music play or announcement, adjust the
corresponding volume control so that the red peak indicator lights intermittently.
Note that the sound quality is downgraded when the peak indicator remains lit.
7. PROTECTION OPERATION LIST
Temperature rise
at power amp.
heat sink
(over 100°C)
Temperature rise
inside the unit
(over 80°C)
Failure Protection Operation
Indicator Remedy Recovery
Connecting a correct
load automatically
restores
normal operation.
Turn off this unit's
power switch. Correct
the load,
then turn on the power.
Operation
automatically
returns to normal when
the temperature
decreases.
Contact the TOA dealer where the unit
was purchased.
Remove
overload.
Check
speakers and
lines for short
circuit.
Check the unit
for correct
ventilation and
overload.
Peak indicator
lights.
Protection
indicator
lights.
Protection
indicator
lights.
Four indicators of
the
corresponding
channel
extinguish.
Current limiter is
activated. When
impedance drops
below the specified
value.
Current limiter is
activated.
Load is
disconnected.
Load disconnected.
Built-in amplifier unit
that caused the
failure halted.
Over current due
to overload
Short circuit

8
[ Dynamic Microphone ]
When using a microphone
adjust switch selector at -60dB.
[ AUX Input e.g. CD/Tape Player ]
When using an AUX input
adjust switch selector at 0dB.

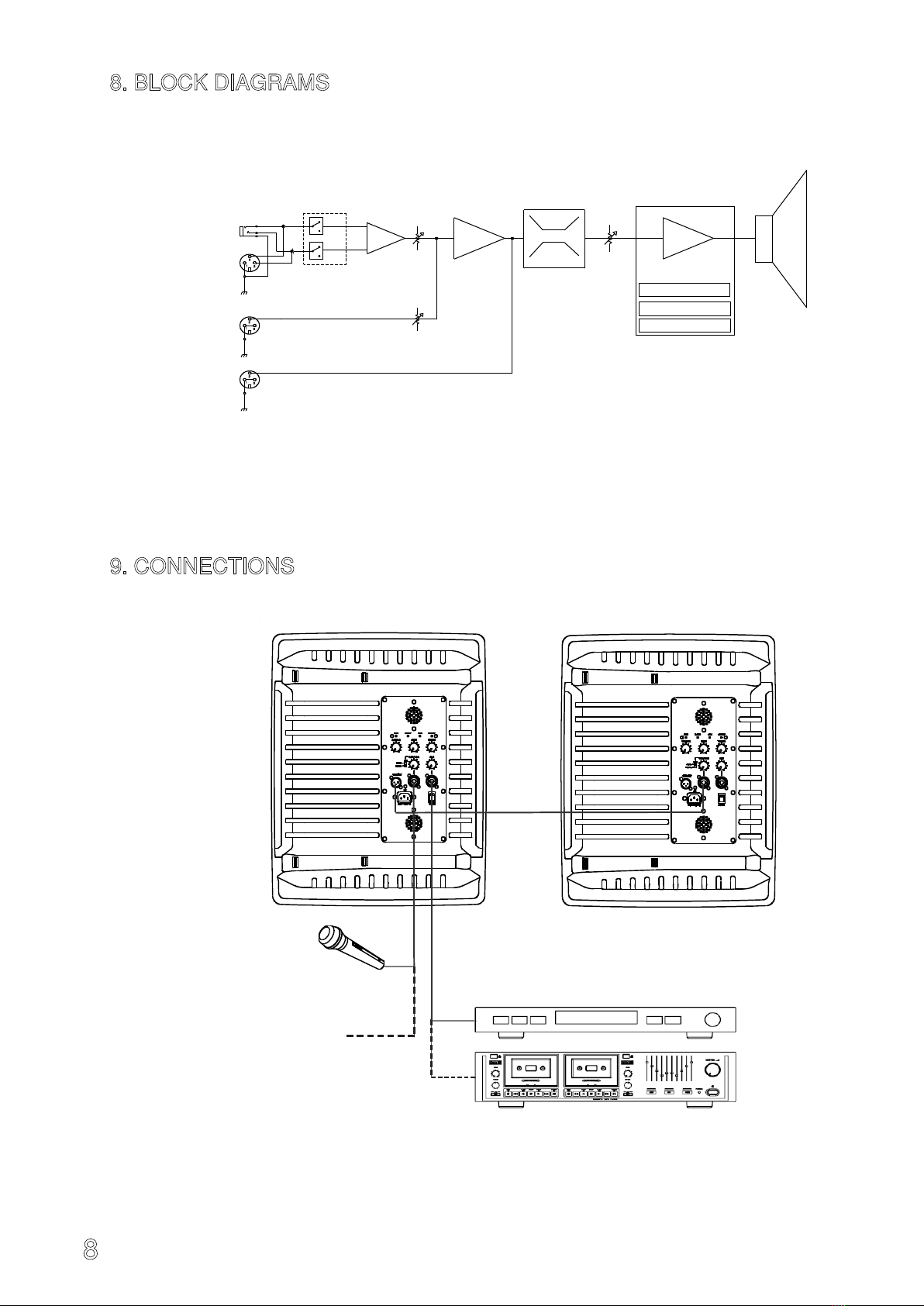

8. BLOCK DIAGRAMS
9. CONNECTIONS
[ CD Player ]
[ Tape Player ]
[ HS-P1500 ] [ Another HS-P1500 ]
MIC/LINE
-60/0dBV/600Ω
Balanced
AUX
-10 dBV/10kΩ
Unbalanced
LINE OUT
0 dBV / 600Ω
Unbalanced
DIGITAL
AMPLIFIER
MASTER
BASS
TREBLE
SUMMING
AMPLIFIER
INPUT LEVEL
GAIN INPUT
SELECTOR
0dB
0dB
-60dB
-60dB
1
2
3
1
2
3
1
2
3
CURRENT LIMITER
PROTECTION CIRCUIT
SHORT DETECTOR

9
10. INSTALLATION
10.1. Installing to Ceiling or Wall
• Install the speaker system to a ceiling or wall using the optional mounting brackets shown below.
Note : Refer to the instruction manual enclosed with the HY-1500 series Mounting Bracket for its
mounting details.
10.1.1. HY-1500VB, HY-1500VW Mounting Brackets
[ For vertical speaker mounting ]
• These brackets are designed to mount HS series speakers to ceilings or walls vertically.
• They allow speaker's vertical angle to be adjusted.
Ceiling : From 15° upward to 90° downward
Wall : From 15° upward to 60° downward
Note : They also permit speaker's horizontal angle to be adjusted in conjunction with the optional HY-C0801
or HY-C0801W Ceiling Mount Bracket, or HY-W0801 or HY-W0801W Wall Mount Bracket.
[ Ceiling installation ]
Mounting Bracket
[ Wall installation ]
10.1.2. HY-1500HB, HY-1500HW Mounting Brackets
[ For horizontal speaker mounting ]
• These brackets are designed to mount HS series speakers to ceilings or walls horizontally.
• They allow speaker's vertical angle to be adjusted.
Ceiling : From 0° upward to 90° downward
Wall : From 15° upward to 60° downward
Note : They also permit speaker's horizontal angle to be adjusted in conjunction with the optional
HY-C0801 or HY-C0801W Ceiling Mount Bracket, or HY-W0801 or HY-W0801W Wall Mount Bracket.
[ Ceiling installation ]
[ Wall installation ]
Mounting Bracket
Mounting Bracket
Mounting Bracket

10
Installation position of an M8 bolt
M8 (Screw pitch : 1.25 mm, effective depth : 24 mm)
Note : Unified inch screws cannot be used. Speaker's
bottom surface
Changing the orientation of
the front panel logo
Turn the logo mark while holding its edges
to change its orientation.
10.1.3. HY-C0801 and HY-C0801W Ceiling Mount Brackets
[ For ceiling installation, horizontal angle adjustable ]
Installing the HS series speaker to a ceiling in
conjunction with the HY-1500 series Mounting Bracket
permits the speaker's horizontal angle to be adjusted.
The figure at right shows an example of vertical
speaker installation.
10.1.4. HY-W0801 and HY-W0801W Wall Mount Brackets
[For ceiling installation, horizontal angle adjustable]
Installing the HS series speaker to a ceiling in
conjunction with the HY-1500 series Mounting Bracket
permits the speaker's horizontal angle to be adjusted.
The figure at right shows an example of horizontal
speaker installation.
Ceiling mount
bracket
Mounting
Bracket
Mounting
Bracket
10.1.5. Safety wire installation [ For speaker fall prevention ]
When mounting the speaker system to the ceiling or wall, install a safety wire as needed.
When installing the safety wire, be sure to follow the instruction below.
Failure to do so may cause the speaker to fall, resulting in personal injury.
Use a wire rope of 2mm(0.08”) or more in diameter. (The safety wire is not supplied.)
Tighten the safety wire to take up the slack. Otherwise, impact shock at speaker fall may cause the
Wire connected parts or wire itself to break.
Install the safety wire to a place that can structurally support the full weight of load.
Screw a speaker suspension bolt (M8) into one of the screw holes on the speaker's bottom surface.
Then, connect the safety wire to the bolt.
WARNING
Wall mount
bracket

11
10.2. Mounting on the ST-34B Speaker Stand [ optional ]
Note :
Refer to the instruction manual enclosed with the
Speaker Stand for its mounting details.
Step 1. Fix the bracket supplied with the speaker stand
to the speaker.
Step 2. Spread the tripod legs of the stand to their full
extension.
Note : Spread the tripod legs until the stays
extend horizontally.
Step 3. Mount the speaker with the bracket fixed onto
the stand.
Step 4. Determine the speaker direction, and tighten
the bracket fixing screw.
Step 5. Adjust the stand height.
10.3. Using as a Floor Monitor
Note : When installing the speaker system on slippery floor, put a non slip mat under the speaker.
Do not kick or stand on the speaker system, as this will damage the speaker.
Speaker
Bracket
(supplied with the stand)
Bracket fixing screw
Plain washer for M8
(supplied with the stand)
Speaker mounting screw M8
(supplied with the stand)
ST-34B Speaker stand
41
3
5
10.4. Attaching the Supplied Rubber Feet
Attach the rubber feet in the case of speaker storage or on-floor speaker installation.
Note : The rubber foot has a direction (back and forth).
Align the datum line on the rubber foot with the positioning mark ( ) on the speaker unit as shown
below.
Rubber foot
(accessory)Screw M6 x 20 (accessory)
Datum line
Positioning mark

12
10.5. Attaching a Handle
The speaker system comes with a handy carrying handle.
Attach the handle on the speaker's top surface.
Screw M6 x 20
(accessory)
Handle fitting bracket
(accessory)
Handle
(accessory)
11. SPECIFICATIONS
No. Model HS-P1500B AS HS-P1500W AS
Enclosure Sealed type
Power Source 220 – 240V AC (50/60Hz)
Rated Output 170W
Power Consumption 100W
Sensitivity 98 dB (1W,1m)
Frequency Response 60Hz – 20kHz
Crossover Frequency 3 kHz
Directivity Angle Horizontal : 90°, Vertical : 40°
MIC/LINE : XLR-3-31 type combination connector
Input (balanced/unbalanced, -60dB/0dB selective)
AUX : XLR-3-31 type combination connector, -10dB unbalanced
Output LINE Out : XLR-3-31 type connector, 0dB unbalanced
Tone Control Bass :
± 10dB at 100Hz, Treble : ± 10dB at 10kHz
Operating Temperature -10°C to 40°C
Enclosure : Polypropylene, black
Finish Punched Net : Surface-treated steel plate black,
Input panel : Surface-treated steel plate, black
Dimension 451(W) x 560(H) x 400(D)mm (17.76” X 22.04” X 17.75”)
Weight 16kg (35.2 lb) unit only
Power cord (2m) ...1, Handle...1, Handle fitting bracket...2, Rubber
foot...2, Screw M6 x 20...4
Mounting Bracket: HY-1500VB/VW, HY-1500HB/HW ;
Ceiling mount bracket : HY-C0801; Wall mount bracket:HY-W0801;
Speaker stand: ST-34B
Accessory
Option
TOA Corporation 533-06-250-80
