Toa PJ-202DL-EB User manual
BI-DIRECTIONAL PROJECTION PJ-202DL-EB
SPEAKER
Thank you for purchasing TOA's Projection Speaker.
Please carefully follow the instructions in this manual to ensure long, trouble-free use of your equipment.
TABLE OF CONTENTS
1. SAFETY PRECAUTIONS ......................... 1
2. GENERAL DESCRIPTION
AND FEATURES ........................................2
3. INSTALLATION ......................................... 3
4. DIMENSIONAL DIAGRAM......................... 4
5. POLAR PATTERN .......................................4
6. FREQUENCY RESPONSE (1 W, 4 m) .......5
7. SPECIFICATIONS .......................................5
5
1. SAFETY PRECAUTIONS
Before installation or use, be sure to carefully read all the instructions in this section for correct and safe
operation.
Be sure to follow all the precautionary instructions in this section, which contain important warnings and/or
cautions regarding safety.
After reading, keep this manual handy for future reference.
When Installing the Unit
Refer all installation work to the dealer from whom
the speaker was purchased. Installation work
requires extensive technical knowledge and
experience. The speaker may fall off if incorrectly
installed, resulting in possible personal injury.
Install the speaker only in a location that can
structurally support the full weight of the unit and
mounting bracket. Doing otherwise may result in
the speaker falling down and causing personal
injury and/or property damage.
Since the unit is designed for in-door use, do not
install it outdoors. If installed outdoors, the aging of
the parts causes the unit to fall off, resulting in
personal injury. Also, when it gets wet with rain,
there is a danger of electric shock.
Do not use other methods than specified to install
the speaker. Extreme force is applied to the
speaker and the speaker could fall off, possibly
resulting in personal injuries.
Use screws that are appropriate for the ceiling's or
wall's material and structure. Failure to do so may
cause the speaker to fall, resulting in material
damage and possible personal injury.
Ensure that all screws are securely tightened. If
they are loose after installation, the speaker could
fall down, possibly resulting in personal injury.
Do not mount the speaker in locations exposed to
constant vibration. The speaker or its mounts can
be damaged by excessive vibration, potentially
causing the speaker to fall, which could result in
personal injury.
Traceability Information for Europe (EMC directive 2004/108/EC)
Manufacturer: Authorized representative:
TOA Corporation TOA Electronics Europe GmbH
7-2-1, Minatojima Nakamachi, Chuo-ku, Kobe, Hyogo, Suederstrasse 282, 20537 Hamburg,
Japan Germany
INSTRUCTION MANUAL
WARNING
Indicates a potentially hazardous situation which,
if mishandled, could result in death or serious
personal injury.
……………………6
Do not use anti-rust lubricant. If it contacts resin or
rubber parts, they could deteriorate and cause the
speaker to fall, possibly resulting in personal injury.
Do not install the speaker in indoor swimming
pools or such locations where liquid chemicals are
used. The parts deteriorate if corroded, causing
the speaker to fall, which could result in personal
injury.
When the Unit is in Use
If any of the following irregularities occurs,
immediately switch off the amplifier's power, and
inform the shop from where the speaker was
purchased. Further using the speaker may result in
fire or electric shock.
· If you detect smoke or a strange smell coming
from the speaker
· If water or any metallic object gets into the
speaker
· If the speaker falls, or the speaker case breaks
To prevent a fire or electric shock, never open nor
remove the speaker case. Refer all servicing to
your nearest TOA dealer.
When Installing the Unit
Avoid touching the speaker's sharp metal edge
to prevent injury.
To avoid electric shock, be sure to switch off
the amplifier's power when connecting
speakers.
When the Unit is in Use
Do not operate the speaker for an extended period
of time with the sound distorting. Doing so may
cause the speaker to heat, resulting in a fire.
Do not stand or sit on, nor hang down from the
speaker as this may cause it to fall down or drop,
resulting in personal injury and/or property
damage.
Have the speaker checked periodically by the shop
from where it was purchased. Failure to do so may
result in corrosion or damage to the speaker or the
mounts that could cause it to fall, possibly causing
personal injury.
2. GENERAL DESCRIPTION AND FEATURES
The PJ-202DL-EB is certified according to the European Standard EN 54-24: 2008, and compliant with the
British Standard BS 5839-8: 2008 14.8. The PJ-202DL-EB is a bidirectional projection speaker designed for
wall or ceiling installation in indoor and outdoor applications.
It features
2 x 5“ cone speaker + HC
Ceramic Screw Terminal
Rugged bracket included
Aluminium alloy cabinet and grille
Water proof according IP 44
An extreme wide temperature range: -25°C to +70°C
EN 54-24 certified + BS 5839 Part 8
Note
Never dismantle the PJ-202DL-EB in any way even for repainting reason. Since the PJ-202DL-EB is
certified in the form of complete assembly by the above-mentioned standards, it does not meet these
standards if dismantled.
The input power (impedance) is factory-preset to 20 W (500 Ω) for 100 V line.
CAUTION
Indicates a potentially hazardous situation which,
if mishandled, could result in moderate or minor
personal injury, and/or property damage.
2
3. INSTALLATION
Step 1. Drill two holes in the wall or in the ceiling fitting with the anchor bolts supplied with the speaker.
Note
If the screws and anchor bolts are not appropriate for the ceiling material, separately prepare the proper screws.
Step 2. Insert the anchor bolts into the holes.
Step 3. Connect the cables.
3-1. Loosen the two screws of the protection cover with a Phillips screwdriver and remove the cover.
3-2. Run the amplifier cable through the cable gland(s).
3-3. Strip the amplifier cable jacket as shown below
3-4. Insert one cable end into the screw terminal according to the required tapping and the other to the
COM terminal and fasten the screws.
Impedance
500 Ω
1 kΩ
2 kΩ
100 V line
20 W
10 W
5 W
3-5. Close the protection cover after finishing the connection and fix it with the 2 screws.
Step 4. Screw the speaker bracket to the ceiling or to the wall.
Note
Each two screws and anchor bolts for mounting are supplied. Use screws that are
appropriate for the ceiling's or wall's material and structure.
3
4. DIMENSIONAL DIAGRAM
Unit:mm (in)
4
5. POLAR PATTERN

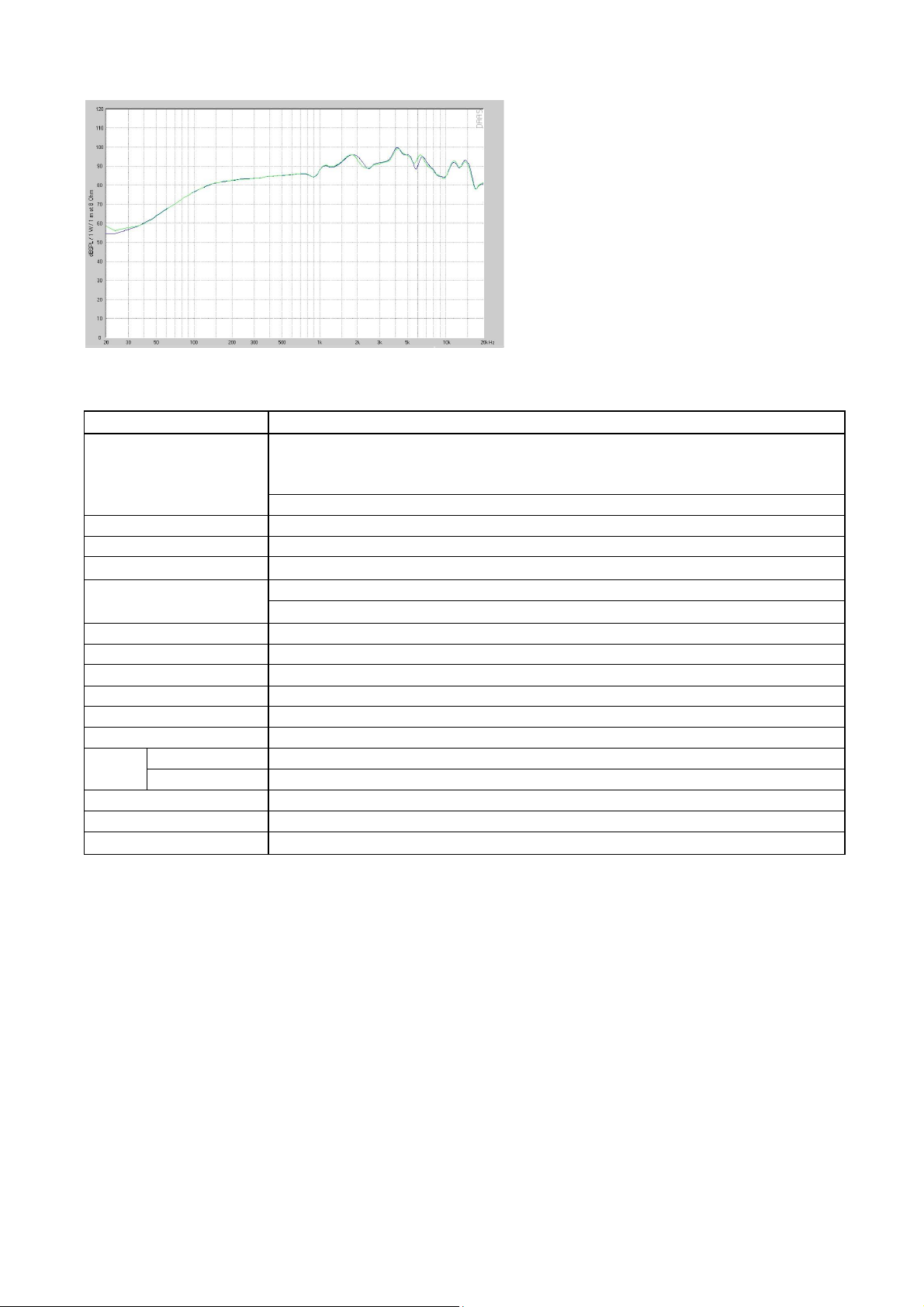

6. FREQUENCY RESPONSE (1 W, 1 m)
7. SPECIFICATIONS
Model
PJ-202DL-EB
BS-678BSW
Standards
Certified to the European Standard EN 54-24: 2008 EN 54-24 Certificate
Loudspeaker for voice alarm systems 1488/CPD/0338/W
for fire detection and fire alarm systems
In compliance with the British Standard BS-5839-8: 2008
Environment Type
Type A, B
Rated Noise Power
20 W (100 V line)
Rated Impedance
100 V line: 500 Ohm (20 W), 1 kOhm (10 W), 2 kOhm (5 W)
Sensitivity
S.P.L.
76 dB (1 W, 4 m, 100 Hz to 10 kHz pink noise, 2 speaker)
89 dB (at rated noise power / 4 m, 2 speaker)
Frequency Response
120 Hz –20 kHz (–10 dB of sensitivity)
Coverage Angle (–6 dB)
2x 130° (500 Hz), 2x 155° (1 kHz), 2x 155° (2 kHz), 2x 60° (4 kHz)
Speaker Component
2x: 12 cm (5") cone speaker
Operating Temperature
-25°C …. + 70°C
Cable Connection
Screw terminal (ceramic)
Applicable Cable Size
Conductor size : 0.8 –2.5 mm2(cross section)
Finish
Baffle
Aluminium, white paint
Cabinet
Aluminium, white paint
Dimensions
146 (dia) x 186 (D) mm (5.75“ x 7.32“)
Weight
3.2 kg (7.05 lbs)
IP Grade
IP 44
Notes
The design and specifications are subject to change without notice for improvement.
The specification data were measured in an anechoic chamber, according to EN 54-24.
Reference axis: Axis is on the center of grill surface and perpendicular to the grill surface.
Reference plane: Plane is on the grill surface and perpendicular to the reference axis.
Horizontal plane: Plane contains the reference axis and perpendicular to the reference plane.
5
