Toa IP-1000 Series User manual

User’s Manual

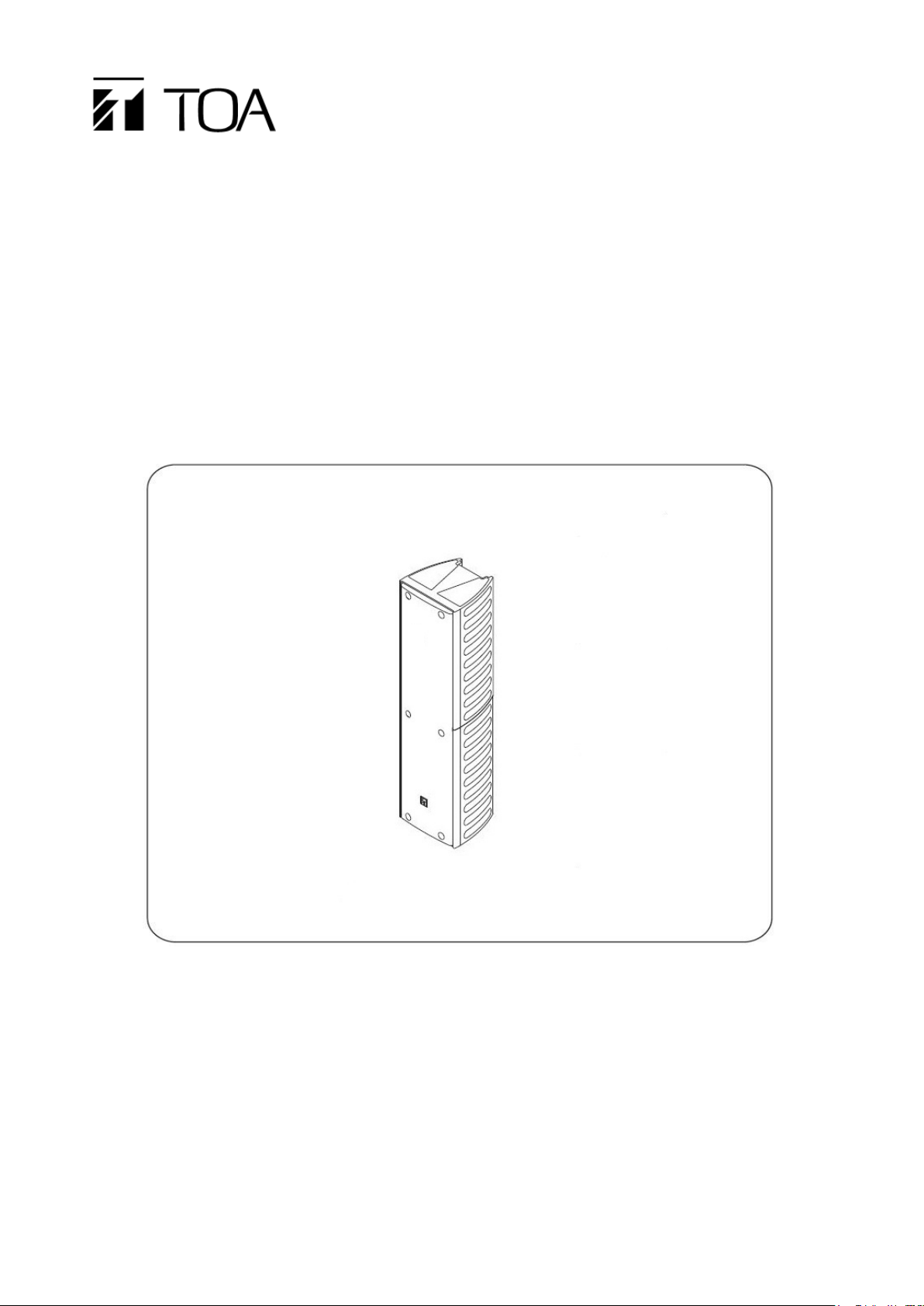

IP audio column speaker TZ-P406BIP1/WIP1
Thanks for your purchase of TOA products IP-1000 series.
Please read the manual carefully to ensure the machine operating in long time and fault-free.
TOA Corporation

Chapter 1
Safety precaution

1-1
Chapter 1: safety precaution
Please abide by the warning and the relevant safety tips.
Please place this manual in convenient place after you reading the guide for future reference.
Warning
The sign means there is potential safety hazard, when operate wrong may result in
death or serious injury.
The sign is used to remind the user that attached is the important operation and
maintenance data.
（1）Avoid getting wet by water.
Do not make the machine wet or exposed to rain water or other liquid contamination of the
environment, or lead to fire or get an electric shock.
（2）Do not use unspecified voltage.
Using the marked voltage on the machine.
Using more than the logo of voltage could lead to fire or shock.
（3）Do not scratch the power cord.
Do not scratch the power cord or cut it.
Simultaneously, keep the power line far way from heated objects, put heavy things on it will lead to
fires or electric shock.
Using machine
（1）In case of the anomalies
Please turn off the power supply immediately when finding the abnormal phenomena. Please
connect with the agency. If continue to using the equipment, it is likely to catch fire or resulted in
electric shock.
·The smoke or smell of the machine.
·The inside of the machine is flooded by water or external intrusion.
·Machine falling or machine case damage.
·The power cord damage (wire core is exposed of broken, etc)
·Malfunction (e.g no network connection, no sound etc.)
（2）Do not open the machine internal or modify the machine.
Do not external substance getting into the equipment.
Please do not put any metallic or inflammable objects into the machine, otherwise it may cause fires
or electric shock.
（3）Please do not touch it during thundering
To avoid electric shock, please do not touch the machine and the plug during lightning, etc.
（4）Please do not place containers with liquid or small metal objects on machine above.
If containers drop and liquid get into the machine that will likely catch fires or cause electric shock.
（5）Do not open the machine internal or modify the machine.
The machine contains high voltage parts, once open the cover or modify the machine, it may result
in fires or cause shock. All the maintenance and other machine modification should be operated by
professional personnel.
（6）Maintenance and the precautions for not using in a long time.
While maintenance, if the machine is not been used for 10 days or more, please turn off power
supply switch for safety. If do not comply with this provision, it will likely cause electric shock or fires.

1-2
Chapter 2
Products description

2-1
Chapter 2: products description
2.1 Summary
2.1 Summary
TZ-P406BIP1/WIP1 is an IP audio column speaker, which can receive broadcast from other terminals
or servers, it supports system settings via browser. It comes with a loop detection function to detect the
working status of IP column horn speaker and indicate on the server software.
Line input
IP audio column speaker can connect to other machines as broadcasting audio source.
The loop detection
IP audio column speaker has a self-checking function showing equipment working status through
the loop detection.
Receive broadcast
IP audio column speaker can receive broadcast from other devices or server.
Program Timer
Uploading the required sound source to the server, setting broadcasting program, IP audio
column speaker can self-automatic broadcasting according to the server plan.
System settings through browser
User can configure the network parameters, audio parameters and password modification etc,
through browser.
Easily installation
IP audio column speaker is not only suitable for indoor, but also for outdoor, and it is easily
installation.

2-2
Chapter 2: product description
2.2 Connector description
①Network connector:the specification is the RJ-45,insert the network cable to connect with server,
the network interface comes with a dual color (green, orange)indicator light ,the indicator light can
show the working status of the IP audio column speaker.
Working status Indicator light
Network cable not connected Green light flash slowly, orange light goes out
Offline status Green light flash slowly ,orange light is normally on
Free status
Green light is always bright
Receiving broadcast
Green light and orange light both flash quickly
②Power connector: DC24V/2.7A, supply power for the IP audio column speaker.
③Line input connector: the interface color is green, the specification is 3.81-2P, it can receive other
audio signals as the broadcast source.
Rated audio input (unbalance):1Vrms (Max input: 2Vrms), Audio input impedance:10KΩ
“+”is the signal port “-”is the signal ground end
The sound source of line input as local one, it can interrupt the audio program of network sound
source .Its request for audio priority configuration in the web page.
④2P European standard connector (black): nonuse.

Chapter 3
Wiring

3-1
Chapter 3: wiring
3.1 IP audio column speaker wiring
3.1 Wiring diagram

3-2
Chapter 3: connection
3.2 Installation description
3.2 Installation description
Outdoor installation notes
The IP audio column speaker must be installed in the vertical direction.

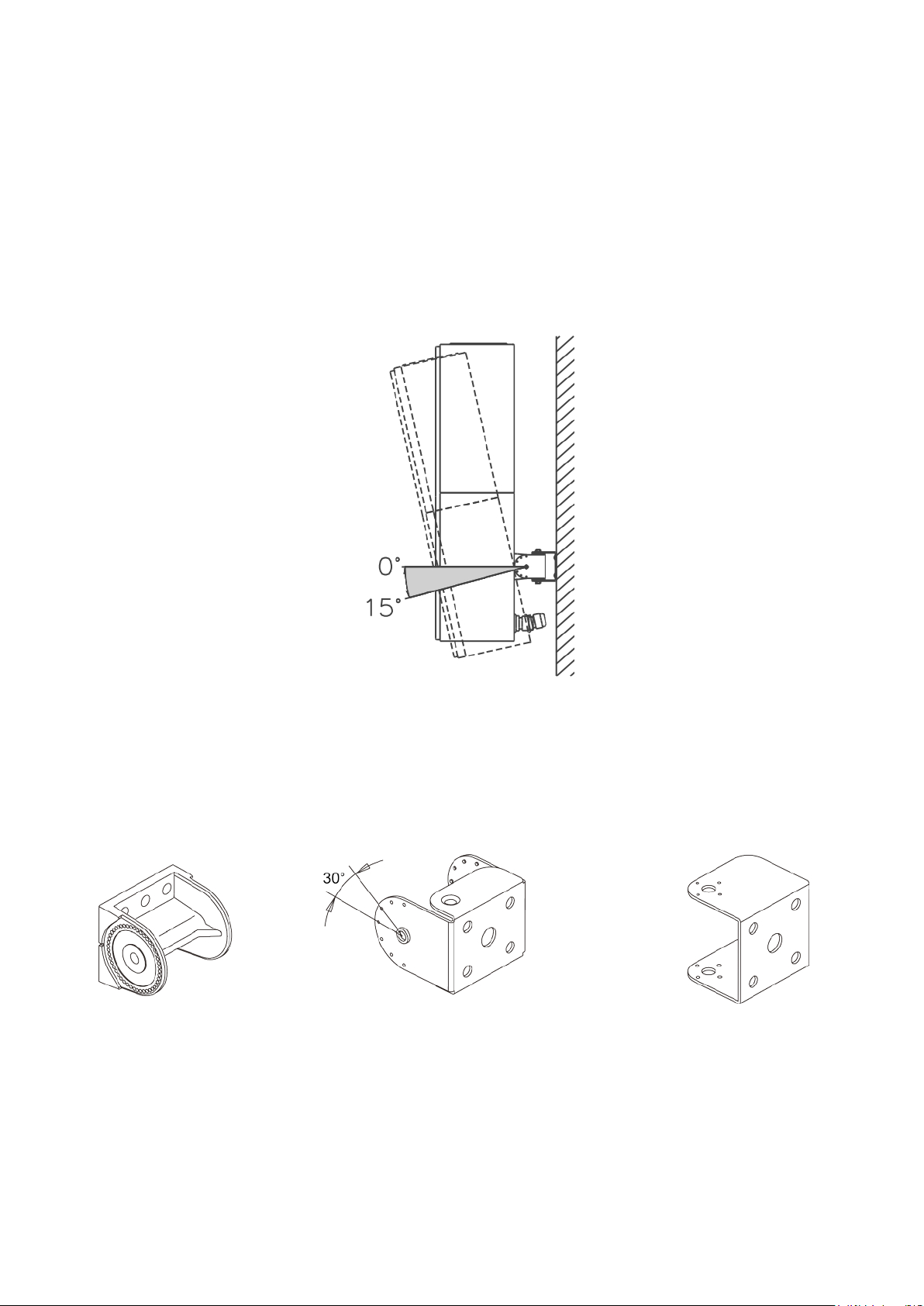

The incline angle in accordance with the following picture.
Note: please put the reverse input terminal at the below of the loudspeaker.
The running condition temperature is -10℃to +50℃, exceed the temperature may cause machine
problem.
3.2.1 Wall-mounted installation
IP audio column loudspeaker is equipped with mounting bracket, as follows:
[mounting bracket A} [mounting bracket B} [mounting bracket
C}

3-3
Chapter 3: connection
3.2 Installation description
3.2.1.1 Horizontal and vertical installation
The mounting screw and bracket are included in the fittings of the IP audio column speaker.
The highest level is 60 degrees, vertical: 15 degrees downward maximum
The installation steps, please refer to the following pictures:
Step1: Please install the mounting bracket C on the wall.
Aimed at the positive side speaker along with the arrow marked horizontal direction (left or
right).
Note: the installation tools are not included in the accessories.
The arrow marked direction (bracket C)

3-4
Chapter 3: connection
3.2 Installation description
Step 2: Connecting the screw (M6*12) of mounting bracketA and C, adjust the angle of bracket B and
tighten for it.
Note: aligning the direction of the bracket B and C as arrow indicated.
Step3: Installing the bracketA on the back of the speaker by screw（M5*20）.
Step 4: Insert the reverse bracketA into the back of the speaker, and put the screw (M5*60) into the
screw hole of connection the bracket A and B, but no need to tighten it.
Step 5: Adjust the vertical angle of the speaker and tighten the screw (M5*60) .
The angle adjustment range of the speaker is 0-7.5°
Note: The closed surfaces of the bracketA and B is designed for lock each other, it’s to ensure
two sides are firmly connected after installation.
3.2.1.2 Vertical installation
Installing the speaker by bracketA and B. After the bracket B is fixed on the wall, please install the
speaker according to the step 3 to 5. This is for vertical direction adjustment only.
*Vertical installation*: 22.5 degrees downward at maximum.

3-5
Chapter 3: wiring
3.2 Installation description
3.2.2 Portable installation
IP audio column speaker can be installed on the moveable bracket (TOA model ST-16A (optional))
Please refer to the following steps:
Step 1: Installing the bracket on the bottom of the speaker with screw (M8*15 screw)
Step 2: Installing the speaker bottom bracket on the ST-16A.
Note: More details, please refer to the attached ST-16A installation instruction.

3-6
Chapter 3: connection
3.3 Reference dimension

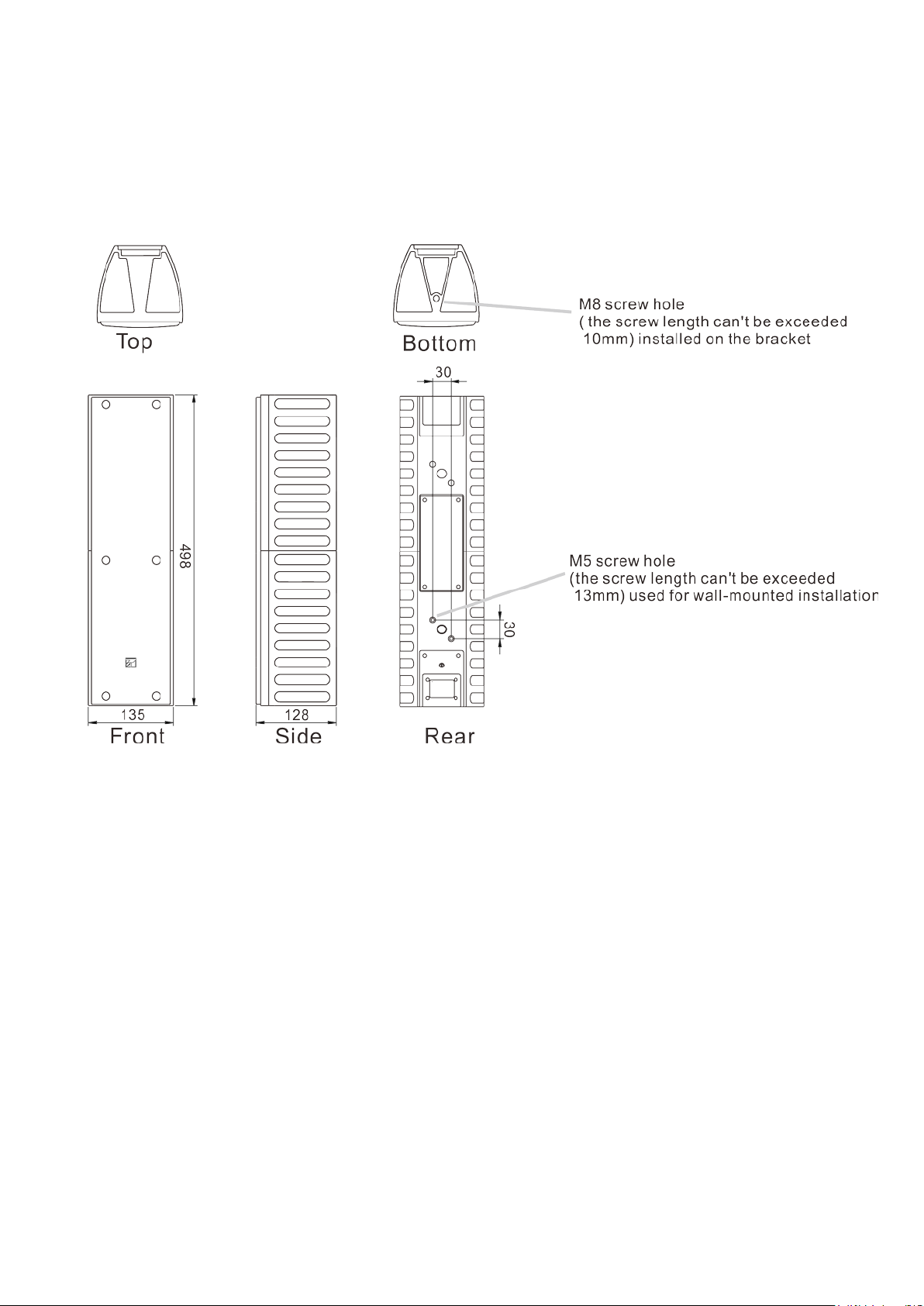

3.3: Reference dimension (unit: mm)

Chapter 4
System settings by browser

4-1
Chapter 4: system settings by browser
4.1 Enter into browser
4.1 Entering the browser

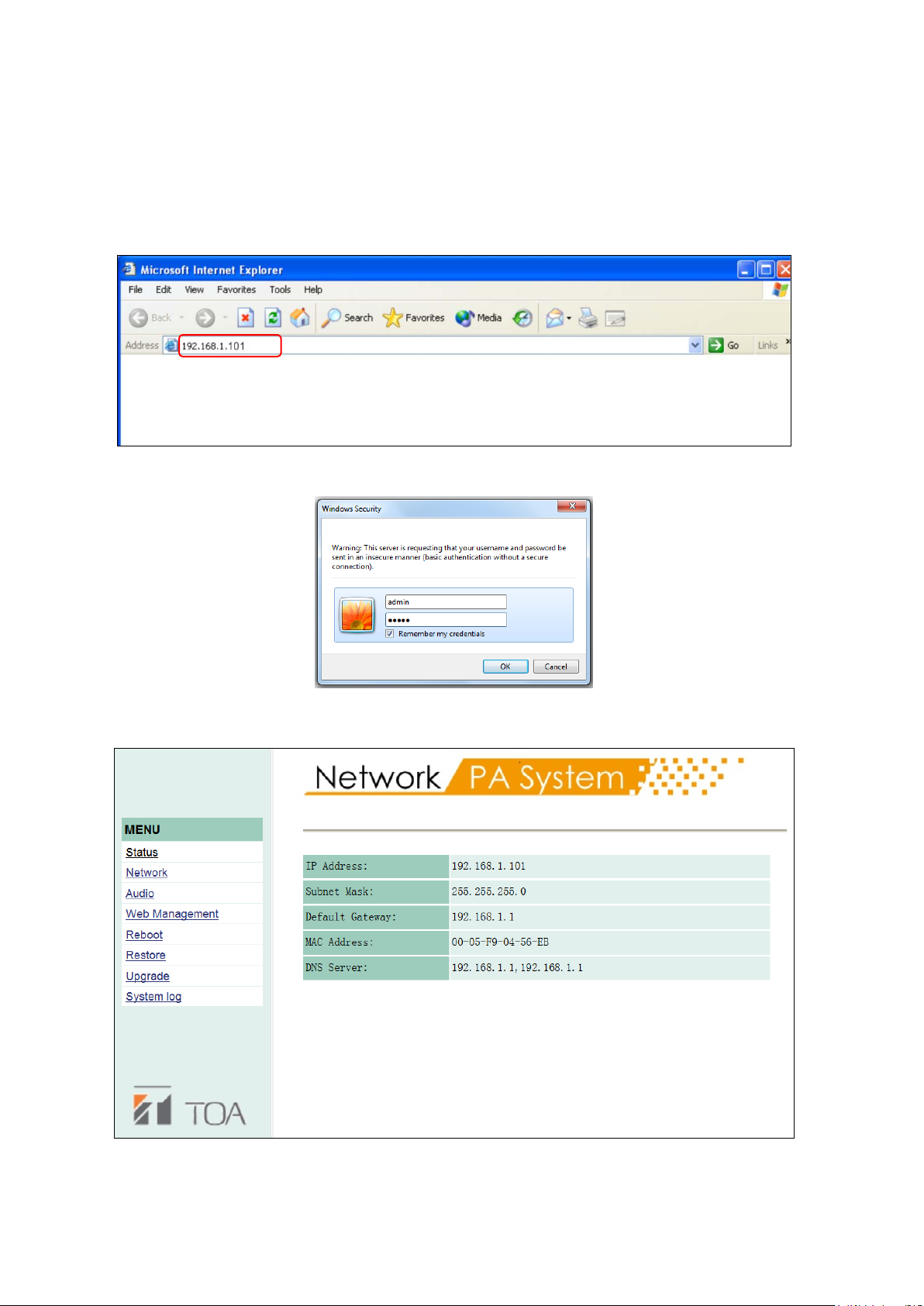

Step1: Please input: IP address of the speaker (factory defaults is 192.168.1.101),then press
Enter.
Step 2: Please input the user name and password in the login window of the Web page (the
defaults is admin)
Note: There is different letter of the use name and password.
Step 3: It can enter into the Web page after pressed the Enter.

4-2
Chapter 4: system settings by browser
4.2 Network parameters
4.2 Network parameters
Device number Identify the unique number of the speaker and it can’t be repeated with
other terminals or hosts.
IP address
IP address of the speaker
Device port The defaults port number is 2046, please don’t modify it if not in
specially situation.
Subnet mask
Please setting subnet mask(the defaults is :255.255.255.0)
Defaults gateway
The gateway of the speaker (the defaults is :192.168.1.1)
DNS Server 1
The IP of preferred domain interpreter in the speaker’s network
DNS Server 2
The IP of standby domain interpreter in the speaker’s network
System server
IP address of the IP broadcast server
System server port
The defaults sever number is 2048, please don’t modify it if not in
specially situation.
Language
The Web page of the speaker’s application segment procedure
(Firmware) is support for switchover of English and Chinese, but the
Web page of bottom segment procedure (BIOS) isn’t support for
switchover of English and Chinese.
Handshake
Interval
Setting the interval time between the speaker and the server.

4-3
Chapter 4: system settings by browser
4.3 Audio parameters
4.3 Audio parameters
Coding mode Broadcast coding, PCM means no data be compressed, ADPCM
means packed data
(low network data value)
Line input volume
The volume of audio line input
Line input
threshold value
In order to avoid output of circuit and sound source noise, when the
line input audio range is smaller than the value (line input threshold
value), it will turn off the amplifier automatically within 1min. Line
input threshold value is divided into to 3 levels, 20mV, 30mV, 50mV
respectively, 20mV audio range is the lowest, 50mV audio range is
the highest.
Network loop
detection threshold
value
The speaker will detect the voice according to the level of IP loop
detection threshold value of the device, when there is no sound
output, the server will pop display fault information.
Does not detect to enable IP circuit detection function;
The sensitivity of the first level detection is the highest, and the
sensitivity of the five stage detection is the lowest.
Broadcasting
sampling rate
IP active speaker sampling rate in broadcasting
Broadcast output
volume
IP active speaker total output volume in broadcasting (0~15)
Audio priority
Network priority: network sound source ( broadcast initiate by
server) priority is higher than the local one.
local priority：local sound source ( line input sound source ) priority is
higher than the network audio source.
Higher priority tasks can interrupt lower priority tasks.

4-4
Chapter 4: system settings by browser
4.4 Web management
4.4 Web management

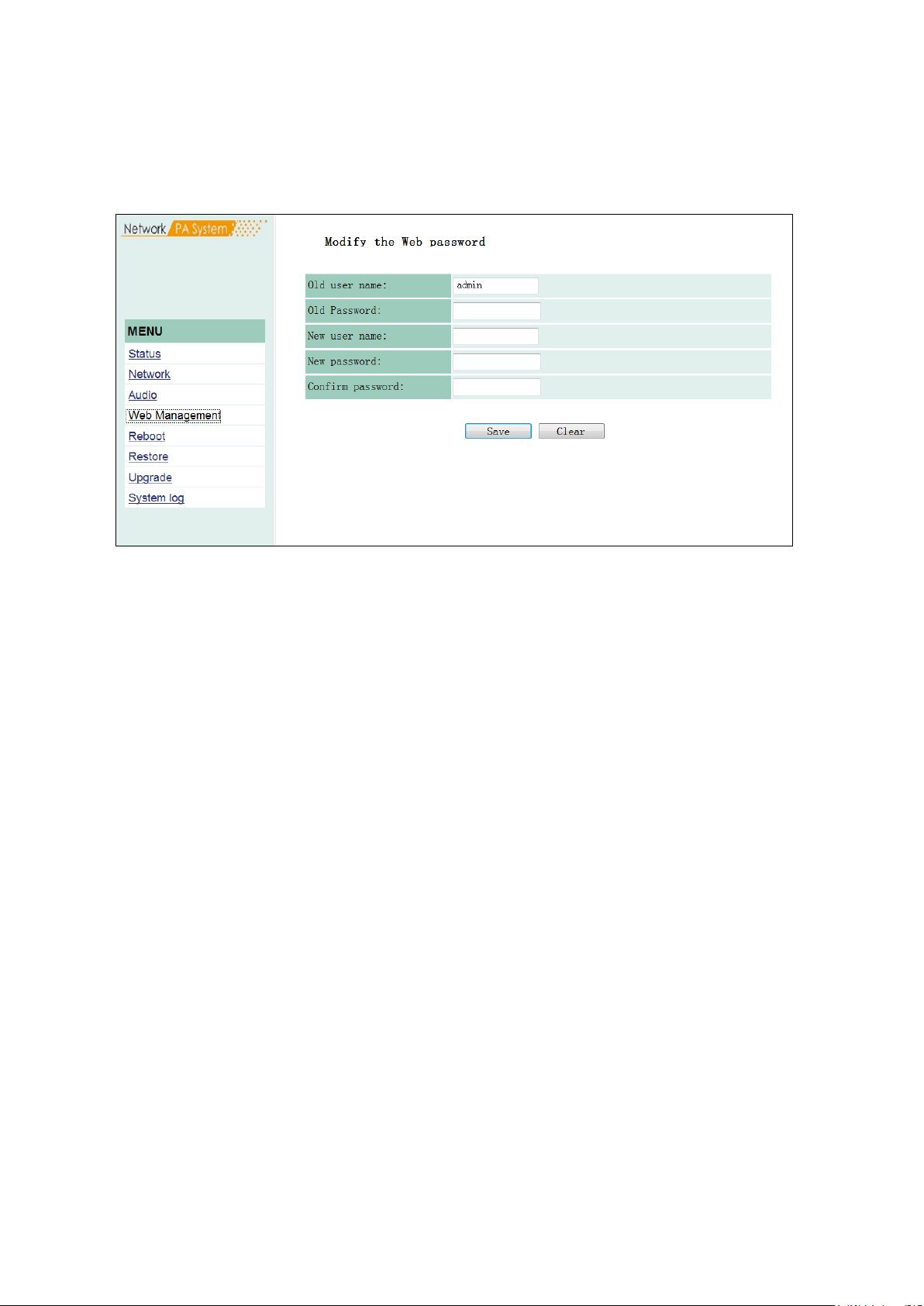

You can modify the account number and password in the Web management parameters.

4-5
Chapter 4: system settings by browser
4.5 Restart device
4.5 Restart device

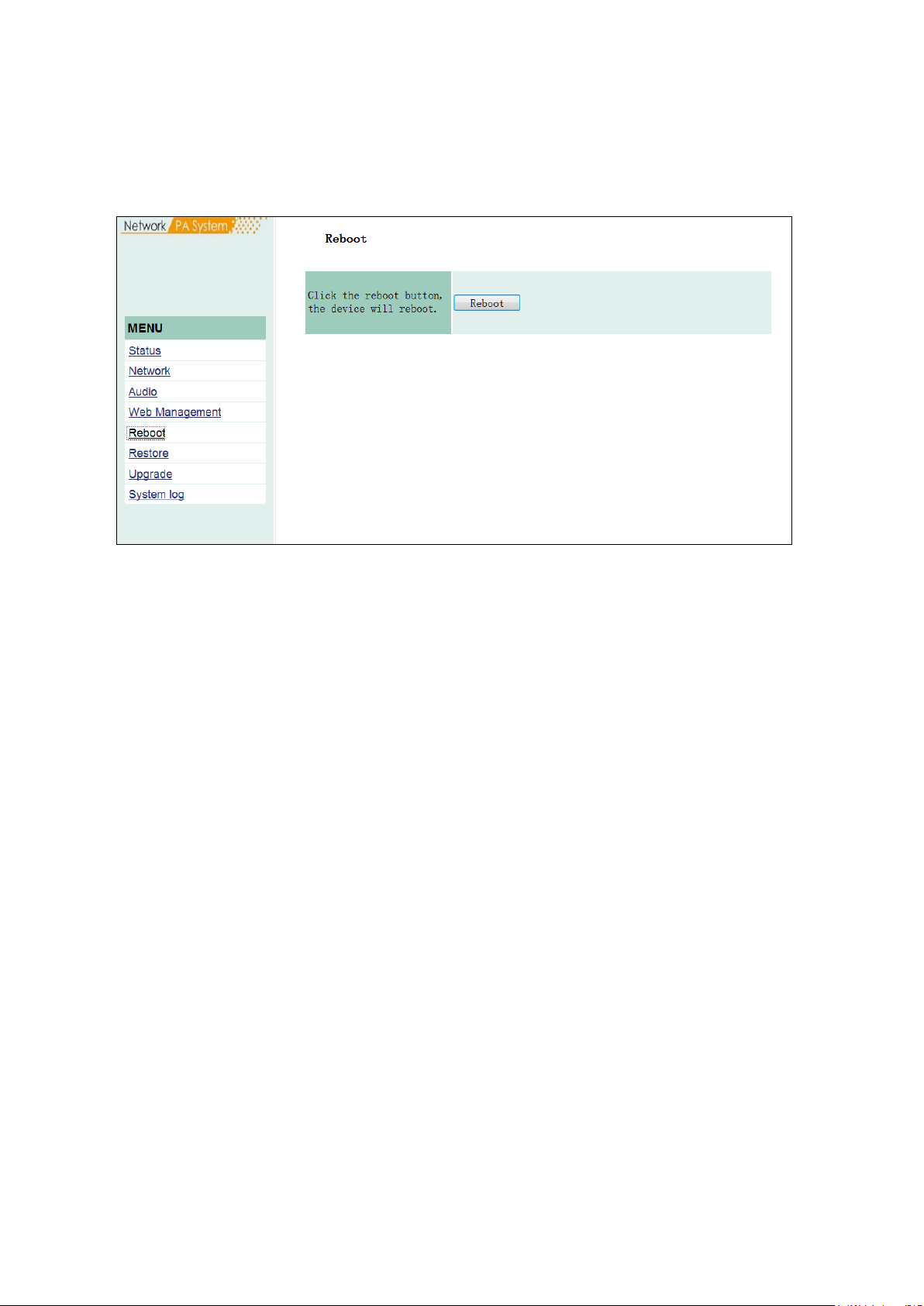

User can click the “restart device” to restart the speaker.

4-6
Chapter 4: system settings by browser
4.6 Reset to defaults
4.6 Reset to defaults
Reset to defaults: all the parameters will reset to defaults.
