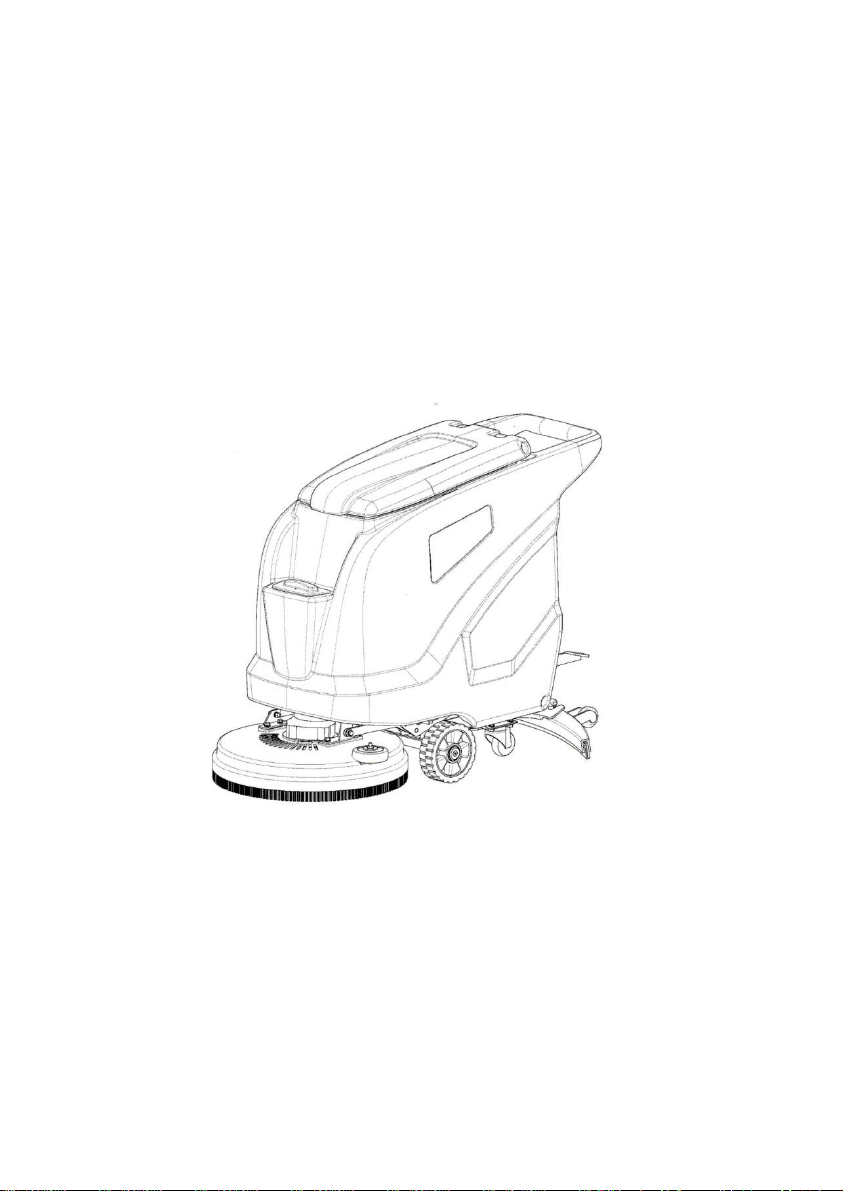

Toolots M60 Technical manual
M60 Walk-behind Floor Cleaner
OPERATION INSTRUCTION
CAUTION!
Read this manual carefully before using the device.
1
Contents
Warning
.....................................................................................................................
2
Operation guide
...........................................................................................................
3
Safety instructions
........................................................................................................
4
Operation process
........................................................................................................
5
Complete cleaning
.......................................................................................................
6
Technical specifications
................................................................................................
7
Diagram
.....................................................................................................................
8
Operation
...................................................................................................................
9
Function
...................................................................................................................
10
Core components
.......................................................................................................
11
Consumables
.............................................................................................................
12
Daily Maintenance
.....................................................................................................
13
Changing Battery
.......................................................................................................
13
Battery maintenance
.................................................................................................
14
Trouble shooting
........................................................................................................
15
Warranty
..................................................................................................................
16
2
1
、
Read all the installation instructions carefully before you first use your machine.
2
、
This ground washing machine is only used as a hard ground cleaning equipment. If it is used for
other purposes than the instructions in this manual, our company will not be liable for any losses
caused thereby.
3
、
The washing machine should avoid being involved in long fibers such as rope and silk, corrosive
chemicals, high temperature sundries, etc., otherwise the brush may be damaged or cause other safety
accidents.
4
、
This ground washer mainly cleans dirty hard ground.
5
、
Any form of modification may affect its performance, life, and even affect the use of safety and may
violate laws and regulations. Damage caused by modification does not belong to the
“
warranty
”
.
6
、
When the washing machine is turned on, it is not allowed to extend or bring any part of the body
into the rotating parts to avoid the damage to the body caused by the rotation of the machine.
7
、
The machine should be parked on the slope as far as possible, and must be parked on the flat ground.
8
、
The power supply of the sweep must be disconnected first when opening the boot hood, installing
accessories, or maintaining and repairing.
9
、
Battery charging should be in a well-ventilated place, power shortage should be timely charging.
10
、
When you finish the work, you should unplug the key in time and keep it properly to avoid
unauthorized personnel.
11
、
When stopping the machine, the washing machine should lift all the brushes and water-absorbing
rakes, which can prolong the service life of consumable parts and maintain the machine.
12
、
Do not use water gun or high pressure water gun to rinse the machine directly.
WARNING!!
3
OPERATION GUIDE
Machine outer packing
Immediately after receiving the machine, check whether the received machine and accessories are
consistent with those on the shipping bill, and check whether the machine is damaged during
transportation. If the machine is damaged or missing, please contact us, so that we will send you the
missing products as well as the damaged products in transit.
Proper use
Hand-push floor washers are used for commercial purposes such as hotels, schools, hospitals,
factories, shops, offices and rental businesses. You can scrub the hard floor of the indoor
environment, such as concrete, asphalt, stone synthetic materials, etc. Do not use the machine on
carpet surfaces. Use only recommended pads, scrubs, and commercially available floor cleaners. Do
not perform any operation other than the operation manual.
Working principle
This is a floor scrubbing and drying machine. in the traditional floor washing mode, a mixture of
water and detergent is ejected from the cleaning tank onto the floor, where it is cleaned by a rotating
cleaning brush/liner /. When the machine moves forward, the water scraper will suck the dirt on the
ground into the sewage tank under the action of vacuum suction.To keep the ground clean and dry.
Please check the machine according to the following steps before work
1) Turn on the key switch to check the battery power. If the battery is insufficient, please turn off the
power immediately and then charge the battery.
2) Open the cover of the water tank to check the water quantity. If the water quantity is insufficient,
an appropriate amount of water should be added before operation.
3) Step on the brush plate assembly and place the brush plate on the ground.
4) Put down the water scraper assembly on the ground.
5) Check whether the sewage tank is empty. If there is sewage, please drain it. The sub-operation and
water-absorbingadhesivestripareingoodcondition.
6) Remove any obstacles during operation.
CAUTION! Do not use the machine without training
4
SAFETY INSTRUCTIONS
(1) Read the manual before operating the machine.
(2) Do not mix different types of cleaners, otherwise harmful gas will be produced.
(3) Do not use the machine in an explosive environment.
(4) Do not use the machine to transport items.
(5) Do not use acidic solutions that will damage the machine
(6) Do not spray the machine with water or pressurized water directly, and do not use corrosive
substances to clean the machine.
(7) Do not use the machine near flammable liquid/vapor/liquid or flammable dust to reduce fire and
injury.
(8) The battery will emit hydrogen. Keep away from sparks and open flames when charging.
(9) Do not use it outdoors. Indoor storage.
(10) Do not touch the machine brush when it is spinning.
(11) When the machine breaks down, please check whether the routine maintenance work can not be
done properly. Please contact the service provider.
(12) When the machine needs replacement parts, please contact the retailer in our service center.
THE WORKING PRINCIPLE
Traditional Cleaning
This is a floor scrubbing and drying machine. in the traditional floor washing mode, a mixture of water
and detergent is ejected from the cleaning tank onto the floor, where it is cleaned by a rotating cleaning
brush/liner /. when the machine moves forward, the water scraper will suck the dirt on the ground into
the sewage tank under the action of vacuum suction. keep the ground clean and dry.
CAUTION! This machine can only be used indoors and stored indoors.
5
OPERATION PROCESS
1
、
Check whether the battery wiring contacts are good enough to prevent short circuit faults.
2
、
Turn on the machine with a key, and check whether the battery is sufficient, if the battery is too low,
don't continue using the machine, turn off the power immediately, and charge the battery.
3
、
Check that the brush pan or needle holder is properly installed.
4
、
Check whether the gripper is properly installed (The strip is installed).
5
、
Check to see if the wheels are working properly
6
、
Empty the waste water tank.
7
、
Fill the fresh water reservoir with clear water.
8
、
Check the amount of water in the water scale tube, if the amount of water is insufficient, add the
right amount of water first before the operation;
9
、
Check the top cover of the tank to make sure it is properly covered and creates a preliminary seal;
10
、
Check the sewage pipe cap and place it inside the sewage pipe clamp.
11
、
Check to lower the brush pan lifting handle, and lower the brush pan to the ground;
12
、
Check the solenoid valve, open the water valve switch, and adjust to the right amount of water;
13
、
Press the switch of the water absorption motor to start the water absorption motor, pay attention to
whether there is abnormal or abnormal sound, if abnormal, immediately turn off the power
14
、
Press the switch of the brush disk motor to start the brush disk motor, pay attention to whether
there is abnormal or abnormal sound, if abnormal, immediately turn off the power.
OPERATION CAUTIONS
1
、
When stopping cleaning work, please close the water valve first and keep the water scraper
working until all the sewage is absorbed clean, turn off the suction motor, lift the brush plate and
turn off the brush plate motor, and turn off the main power when the suction motor is completely
stopped.
2
、
When cleaning the ground, a large number of sewage stains suddenly appear behind, please drain
the sewage tank in time, so as to carry out normal operation.
3
、
Confirm that the machine does not make any abnormal noise when working. If there is any
abnormal noise, it should stop immediately and check the reason.
CAUTION! In order to better maintain the machine and improve the service life of
wearing parts, the total power supply must be turned off after the water absorption motor
is com
p
letel
y
sto
pp
ed.
6
4
、
If any parts of the machine are removed, for whatever reason, they must be restored to their
normal state before the machine is put to work;
5
、
Touch the moving parts of the machine is dangerous and absolutely forbidden.Turn off the power
and remove the key.
6
、
At any time to stop for repair, maintenance or abnormal operations, it is necessary to ensure that
the machine stops stable, can be overhauled.
01. Report machine damage or malfunction immediately.
02. Slow down when turning and go slow on slopes and smooth surfaces.
03. Do not scrub on a 9% slope and do not transport on a slope with a slope of more than 21%
04. Be careful and careful when reversing the machine.
05. When leaving the machine, it is necessary to park smoothly on a level surface. Turn off the
key switch and remove the key to save.
Complete cleaning
1
、
Emptying the waste Water tank. If the waste water tank is full,the float closes the suction
channel.The suction operation is interrupted.Rinse the waste water tank with clear water.
2
、
Do not park the machine in a humid environment and do not store the machine in an extremely
cold place
3
、
Check the power before shutdown and charge it in time.
CAUTION! All maintenance, overhaul or repair work must be handled by our
professional service personnel
In the boot cleaning work, must not stay in the same place rotation, stay in the same
place for a long time, the ground will be washed and damaged.
CAUTION! Raise the brush an
d
the vacuum bar afte
r
complete cleaning. Don'
t
park on the slope.
7
TECHNICAL SPECIFICATIONS
M60Model
21inScrubbing width
Squeegee width 34in
20inBrush size
20990sqft/hCleaning efficiency
3-4hCleaning time
166rpmBrush speed
66LBBrush pressure
0.67HPAbsorbent power
135mbarVacuum suction
0.67HPBrush motor power
Solution tank
Recovery tank
24V/100AHBattery capacity
339LBTotal Weigh
48*21*39inMachine size
Packing size 56*24*48in
14.6 gal
15.9 gal
8
Diagram of the machine
2
Control Panel
1
Key Switch
Sewer pipe
Suction steak
Water Gage
Suction box cover
Bilge suction box
Filling pipe end
Solution tank
Main wheel
Brush plate component
9
Operation
1. Turn on the power key switch (located under the console)
2. Turning the key to the right will turn on the power supply of the vehicle, and turning it to the left
will disconnect the power supply.
3.Press the Brush button- brush is switched off after approx,5seconds.
4.Red light
–
On status
5.The blue suction button is on the left side of the panel
6.Press the Suction button
–
suction is switched on/off approx.5 seconds.
7.Adjust the amount of water according to the situation
8.
“
ECO mode
”
turn on.
9.Press the
“
ECO
”
button-- The movement is slower, the noise is less.
10.When the indicator light is on, it means that the water in the water tank is about to be drained, and
water needs to be added before the work can continue.
CAUTION!
Please follow the instructions for the first use. Users need to be trained.
3
Battery status
Brush off/on button
ECO mode
Take down disc
brush button
Water meter
Suction off/on button
Water volume
adjustment button
10
Function
Aluminum alloy brush cover
Aluminum alloy brush plate cover is mainly linked with the
rotation of the brush plate motor to drive the rotation of the
ground brush plate, the main role of the brush plate is to scrub
the dirt on the ground, decontamination. It is equipped with
water retaining ring to prevent the second pollution caused by
sewage dumping water in the cleaning process.
filling pipe end
Water tank, two calibers can also be filled with two hoses at the
same time. Please inject clean water without impurities, and the
water temperature shall not exceed 50 degrees Celsius. If the
ground dirt is serious, low-bubble cleaner can be injected into
the clean water tank.
Sewage pipe.
Remove the sewage pipe and open the cover of the sewage tank
to drain the water. Large diameter sewage pipe design, can
completely discharge dirt, drainage speed is fast, not easy to
block, the length of sewage pipe is 1 m 1, convenient distance
drainage position.
Connection battery
Two maintenance-free batteries of the brand are combined
together, and the connecting line is connected with the charger
line. The battery is installed in the battery compartment under
the sewage tank.
Suction steak and strip
Suction steak made of aluminum alloy, good quality, can be
used for a longer time. The shape of the arc can absorb water
better. The rubber strip is easy to replace and easy to use.
11
electric machine
0.67hp/24V All copper wire. Low noise, low temperature, more
energy saving
Suction motor
Suction motor power:0.67hp/24v. Fast speed, strong function.
Control panel
The control panel has all the operation buttons.
Battery
100AH maintenance-free battery, the charging process is
generally 3-4 hours, the charger will turn green when fully
charged.
Charging station
Intelligent charger, full load efficiency
≥
85%, automatically
charging after correct connection, built-in charging timeout
protection device, to protect the battery.
Core components
12
Consumables
Filter screen
The rubber strip
Disc brush
Wheel
Suction sewage pipe
13
Daily Maintenance
When the machine is not working, clean the brush tray to protect the bristles.
When the machine is not working, lift the cleaning particles and other stains to protect the
rubber strip from deformation.
Check the scution lips after using.
Every time you fill water or after use, please empty the sewage in the sewage tank, the
floating ball clean effectively protect the motor
When the machine operation time, the battery power will decline, when the power display
table in the last grid flashing light, indicating insufficient electricity, need to charge in time.
Charge the battery for about 4 hours after each use, do not over discharge the battery, the
battery loss is serious. The battery should not be charged more than once everyday and the
machine should only be running for at least 15 minutes Use the charger to fully charge the
battery before using the machine again.
Changing Battery
Battery Replacement Process
1
、
Shut off power.
2
、
Loosen the bolt to remove the old battery.
3
、
Connect the new battery and tighten the bolts.
CAUTION!
Do not expose the machine to rain, store i
t
indoors.
CAUTION!
Replacement of battery must be operated by professional personnel to avoid
danger of electric shock!
CAUTION!
Check whether the battery connection is correct.
14
Battery maintenance
1
、
Please wear protective gloves to protect your hands when you work.
2
、
The tip and electrode of the battery shall be treated with anti-corrosion treatment. Wipe
repeatedly with a brush dipped in soda water, but do not pour the solution into the battery.
3
、
Check whether the battery cable is worn and the contact parts are loose. Replace them if necessary.
4
、
Keep the power supply dry and keep it clean to avoid damage
Maintenance
Charge the battery before storing the machine to extend the service life of the battery. Charge the
battery once every 3 months, empty and clean the water tank and sewage tank, store the machine
in a dry area, lift the absorbant brush head and wash the floor to maintain the upward position, and
open the sewage tank cover to promote air circulation.
ATTENTION
Maintenance must be done by professionals
Do not tilt the machine.
Do not modify the machine.
Use the matching battery charger.
CAUTION!
The battery case must be left open while charging. Keep away from fire.
CAUTION!
Please do not use the machine in inflammable and explosive
environment, and do not charge the machine unattended
15
Trouble shooting
Symptom Cause Solution
The machine cannot
power on
Power cables are not connected. Reconnect the power cord to the
machine.
Oxidation of power line. Check the power cable and reinstall
the nut.
The battery has run down. Check whether the battery is
charged.
The machine moves
slowly
Low power Recharged
The machine overload Reduce machine load
There isn't enough water in the
tank
Add fresh water again
Poor brush Blockage of filter screen Clean the filter
Water is not enough Fill the water
Poor suction
The suction pipe is blocked Clean house
Thesewagepipeisnot
connected.
Reconnection.
Battery
p
ower too low Charge the battery fully
Strip damage Replace the strip
There's a gap off the ground Adjust the Angle
Scution motor
noise
Blockage of suction vent. The suction vent is blocked by a
foreign object.
Blockage of suction pipe. There is garbage in the suction
p
ipe.
Motor fault The motor inlet
Poor running time
Battery
p
ower too low Please charge the battery fully.
Batteries need maintenance See
“
Maintenance battery
”
The battery needs repair. Change the battery.
Charger damage Replace the charger
16
Warranty
The company has a perfect after-sales service system, and customer satisfaction of the sales commitment.
1
、
From the date of purchase, except wearing parts and consumables (rubber strip, brush plate, pipe,
battery, etc.), the rest of the main parts are guaranteed for one year.
2
、
When the user sends the product for repair, he/she must hold the valid purchase invoice and the
warranty card of the product. The warranty period starts from the date of invoice issuance. The user
should keep the warranty card and the purchase invoice properly.
3
、
The warranty does not apply to following situations:
The product is damaged due to improper usage(including storage)and operation by the user.
No warranty card or valid purchase record
The producrt type or serial number noted on the invoice or warranty card is not conformity with the
actual product.
Cause of force majeure
The warranty period has expired.
4
、
Damage to the product caused by accident, abuse, negligence, or improper use of its parts is not
covered by the warranty, and the Company is not responsible for any direct or indirect losses.
5
、
We will also provide you with the service you need in time to exceed the above limits
WARRANTY CARD
User Name Tel
The dealer's
stamp to
prove
Product Name Floor cleaner
Product Model
Product Code
Purchase date
Selling unit
Table of contents
